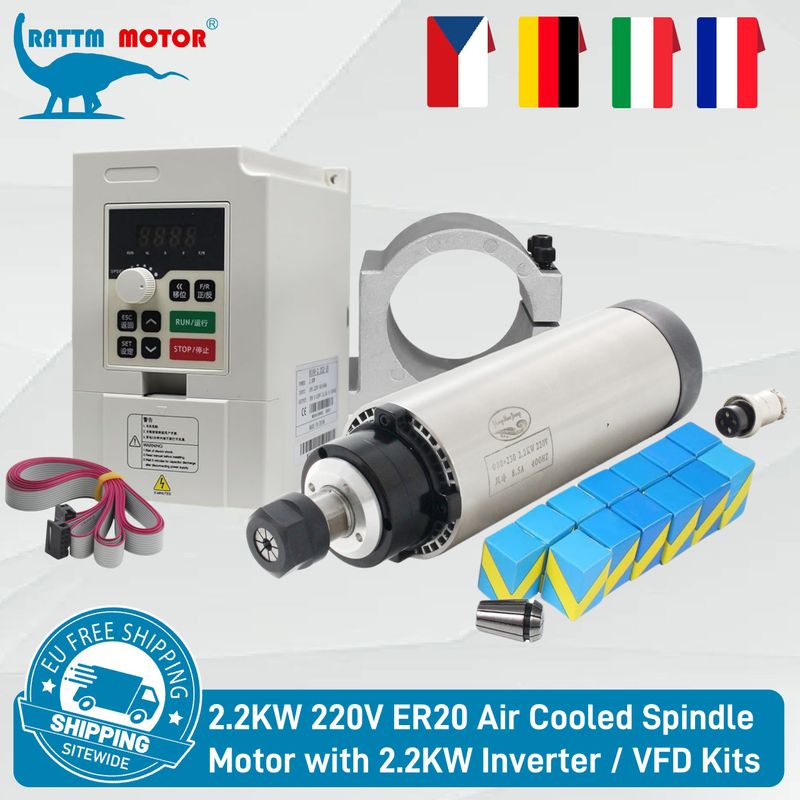

【EU Store】2.2KW 220V ER20 Air Cooled Spindle Motor with 2.2KW Inverter / VFD Kits +80mm Bracket for CNC Router Milling Machine
Includes all taxes
Meet your Seller
-
$369.40Sold by BILLIONS BIRDS
Description
Just Spindle Package include:
1 x 2.2KW Air Cooled spindle motor ER20 (220V,24000rpm,4 bearing,400Hz)
ADD VFD Package include:
1 x 2.2KW Air Cooled spindle motor ER20 (220V,24000rpm,4 bearing,400Hz)
1 x 2.2KW Inverter 220V 0-1000Hz
1 x English manual for the inverter
ADD VFD CLAMP Package include:
1 x 2.2KW Air Cooled spindle motor ER20 (220V,24000rpm,4 bearing,400Hz)
1 x 2.2KW Inverter 220V 0-1000Hz
1 x 80mm Spindle clamp holder tool
1 x English manual for the inverter

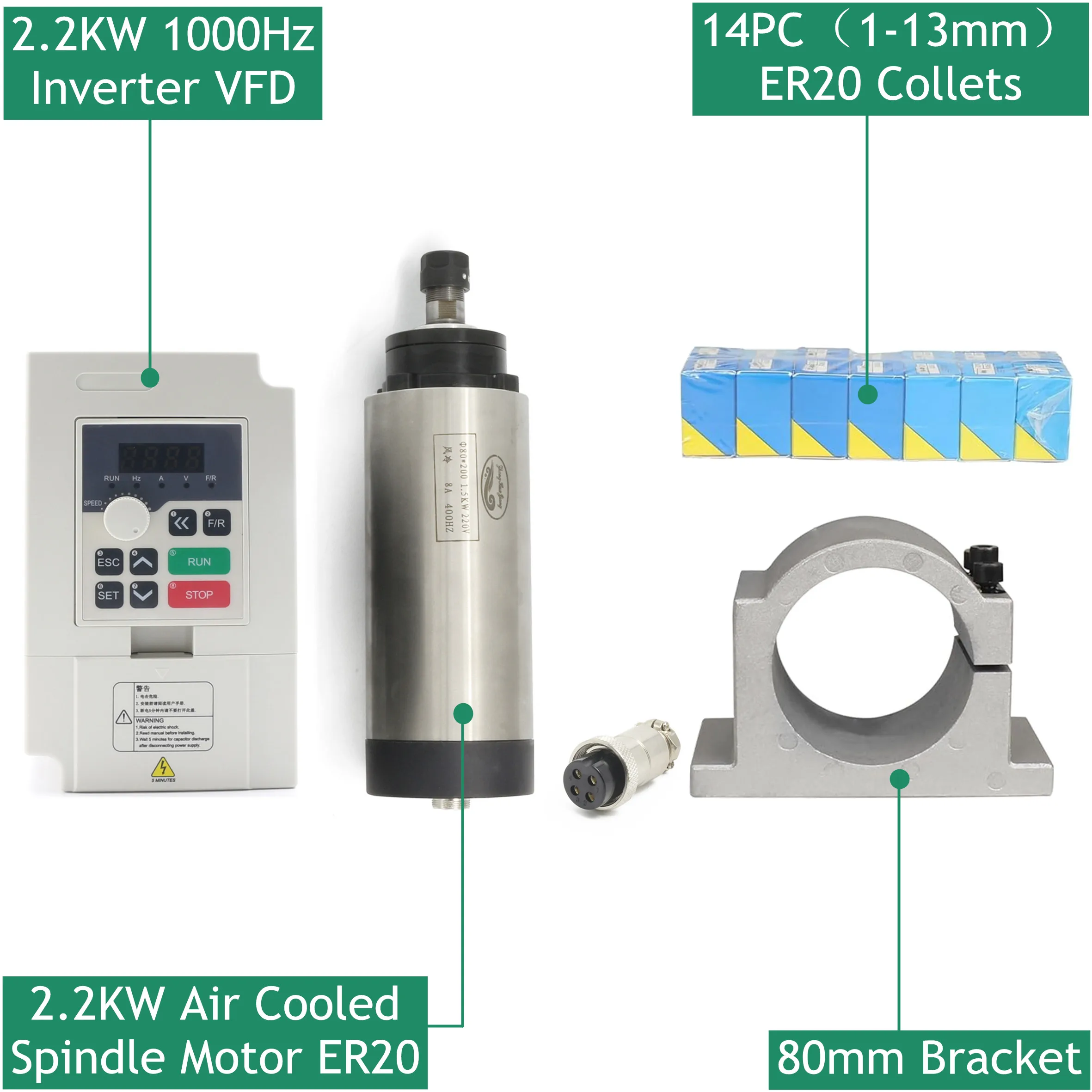

Full kit Package include:
1 x 2.2KW Air Cooled spindle motor ER20 (220V,24000rpm,4 bearing,400Hz)
1 x 2.2KW Inverter 220V 0-1000Hz
1 x 80mm Spindle clamp holder tool
1 Set ER20 collets (1-13mm) 14Pcs
1 x English manual for the inverter

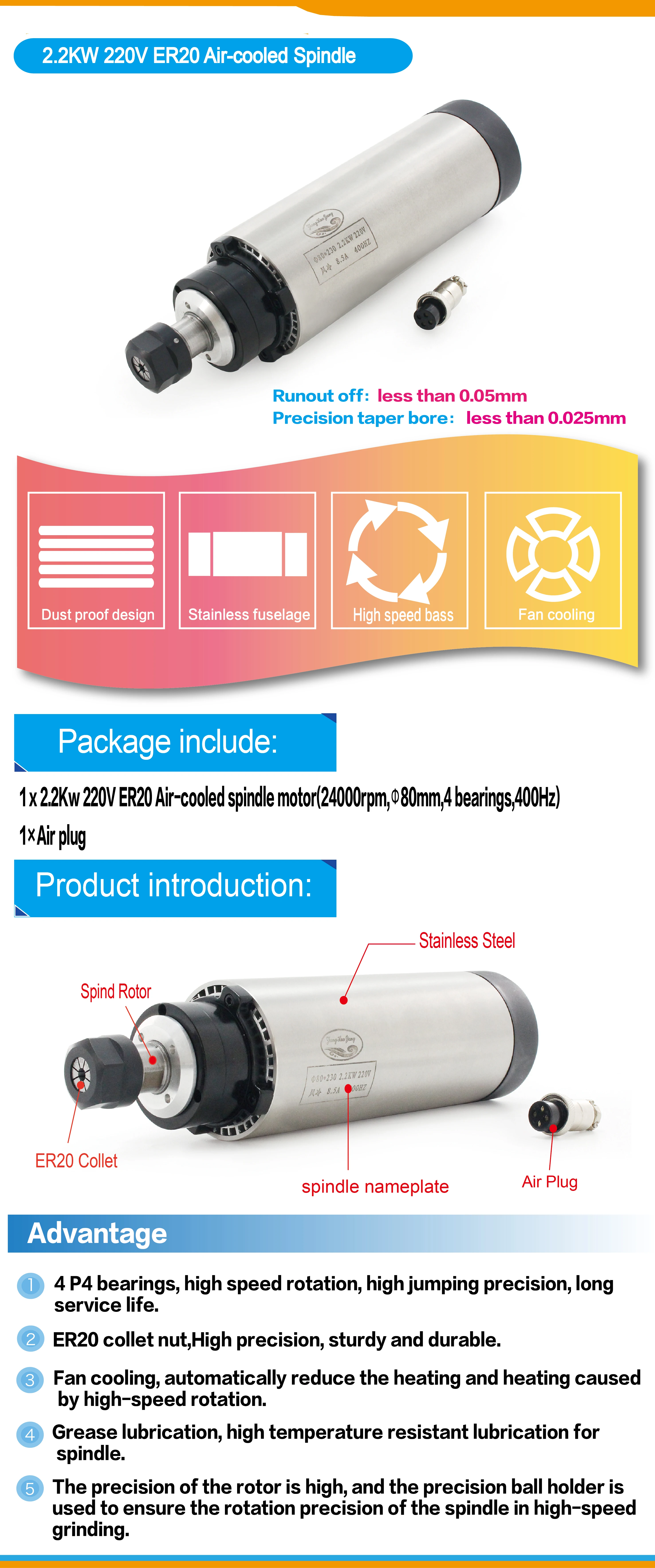

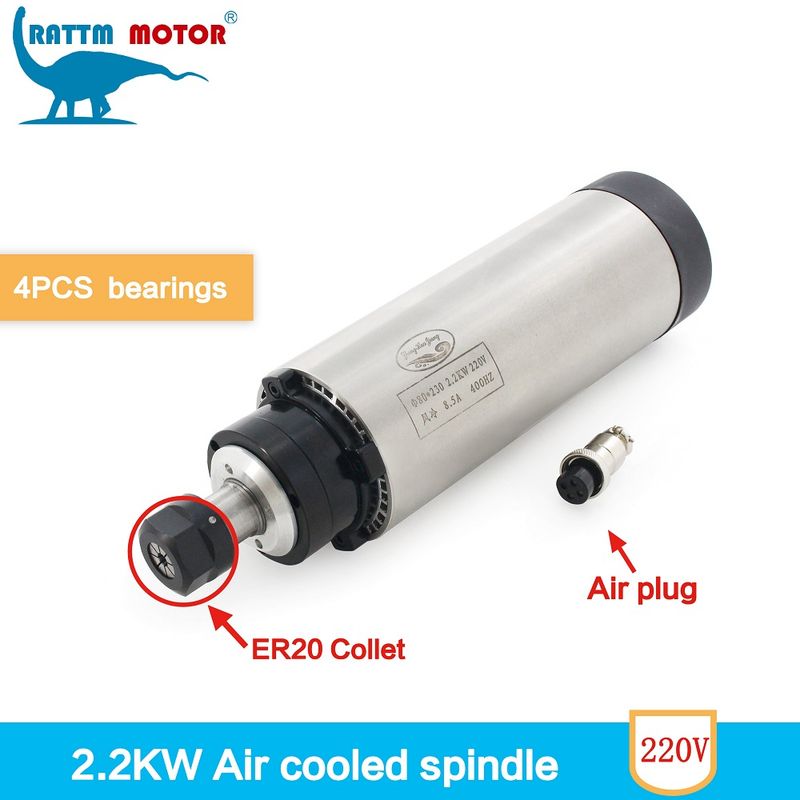

1. 2.2KW ER20 Air-cooled Spindle motor Engraving milling Grind

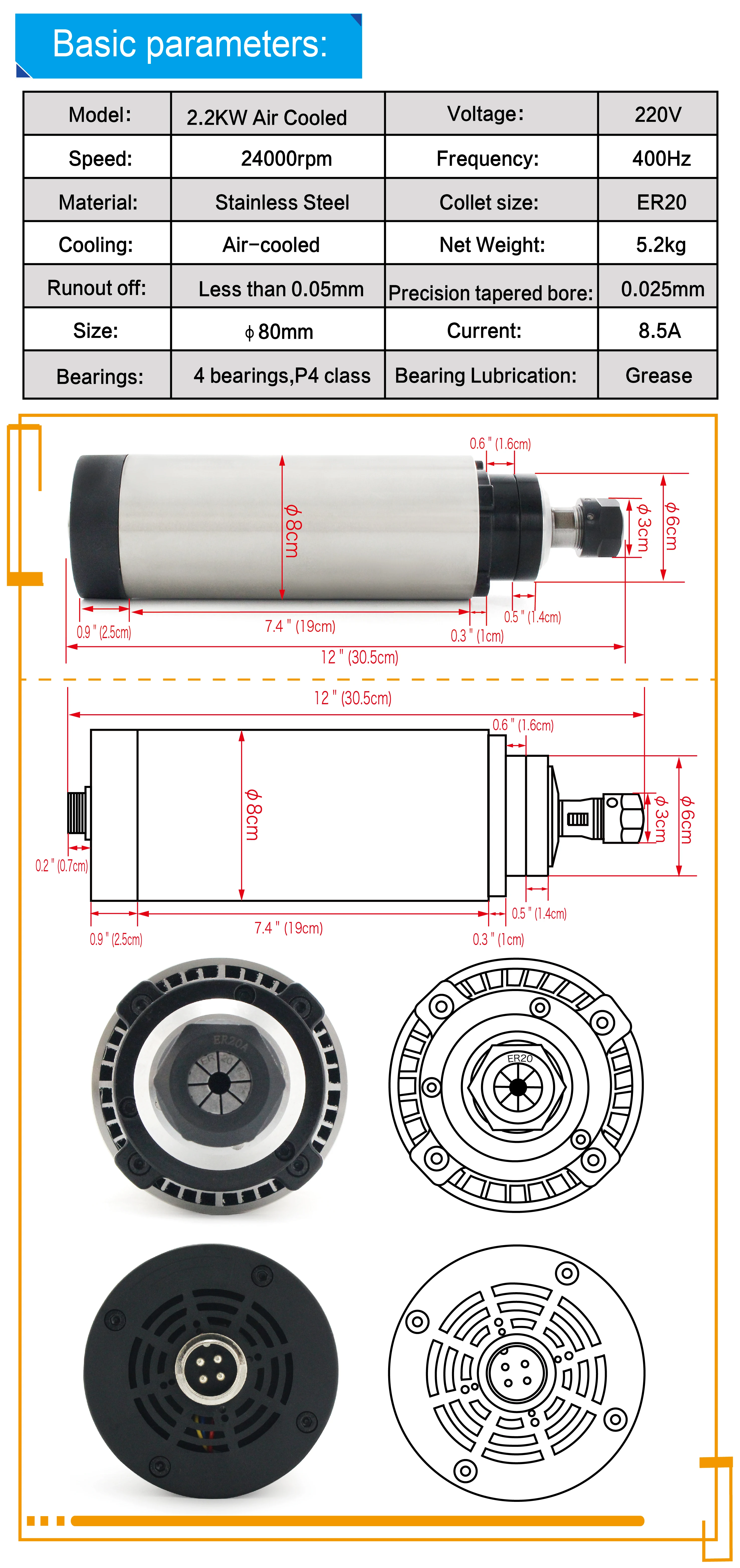

Specification:
Material:Stainless Steel

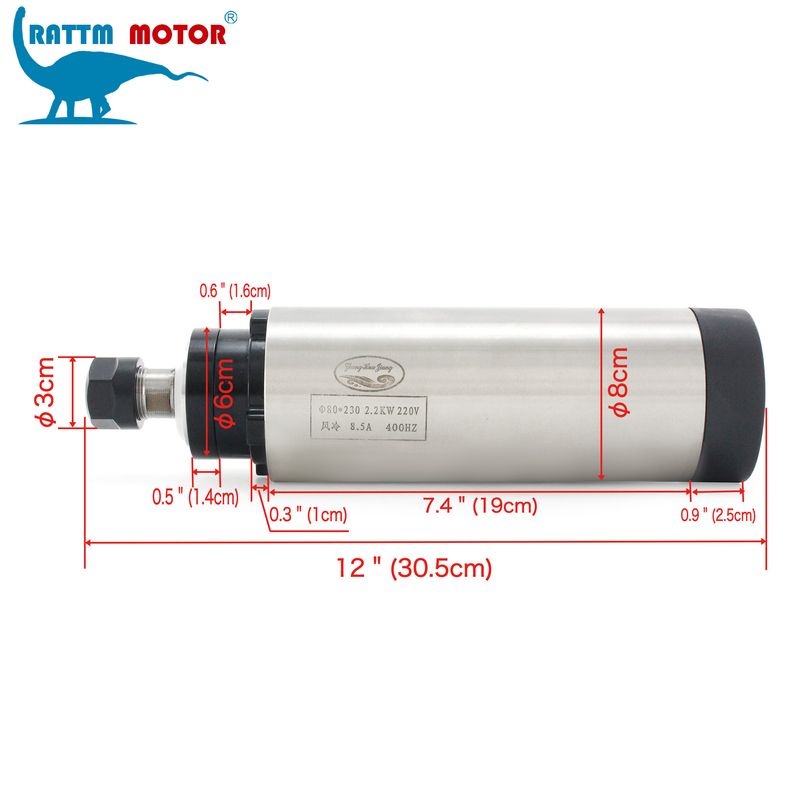

Size:80x230mm(Middle body diameter:80mm x Length:230mm)
Power:2.2Kw
Voltage:220VAC
Current:8.5A
Frequency:0-400Hz
Speed:0-24000rpm
Cooling:Air-cooled
Runout off:Less than 0.05mm
Precision tapered bore:Less than 0.025mm
Bearing Lubrication:Grease
Collet size:ER20
Bearings:4 bearings(C7005x2 + C7002x2),P4 class, Angular contact bearings
Net Weight:5.2kg

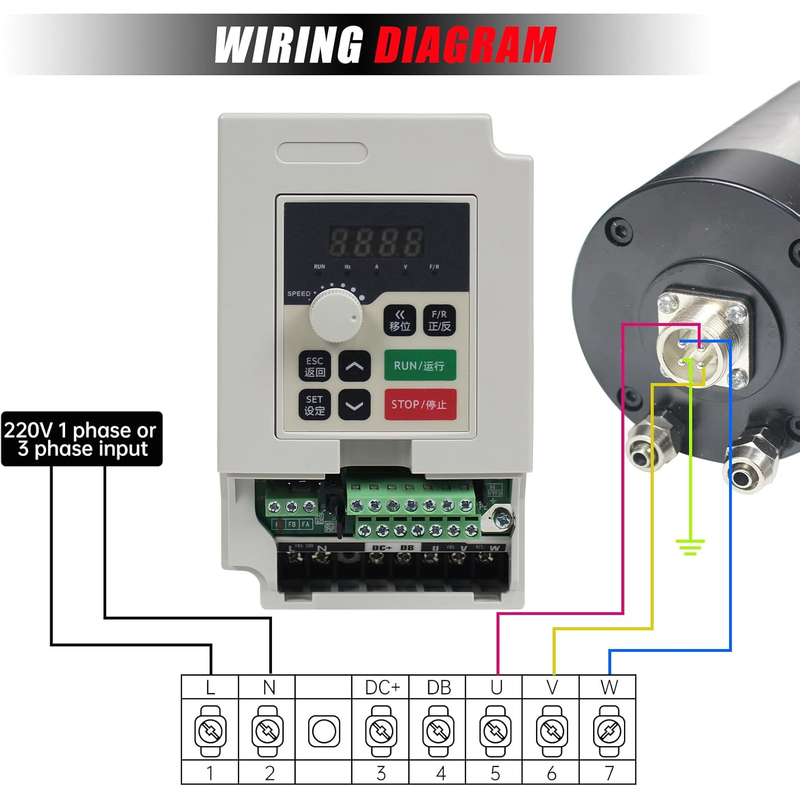

Power supply interface:Professional
aviation Interface, Interface 1234 marked 123 respectively connected to
the inverter output end of the (U, V, W), 4 ground wire this interface
must be safe ground.
Main application:Wood, Aluminum, Stone, metal, glass, PVC,PCB etc industry

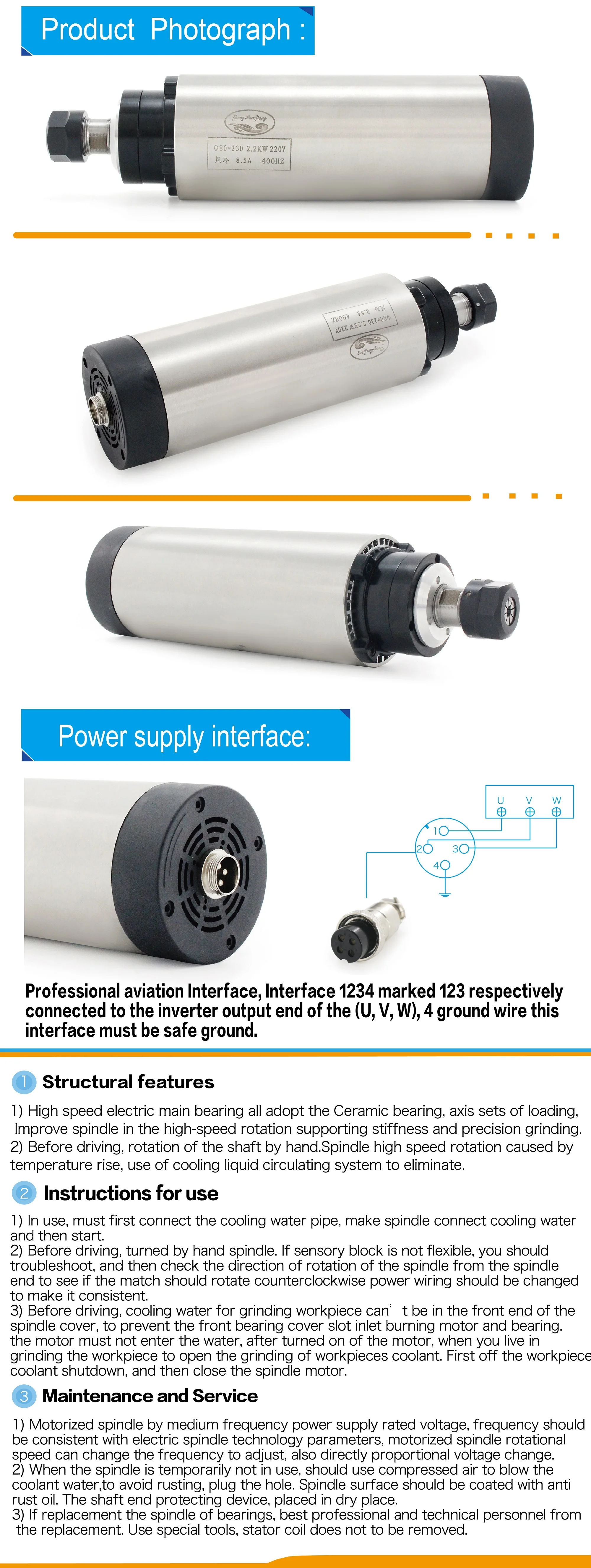

1) Structural features
1) High speed electric main bearing all adopt the C-class high-speed
angular contact ball bearing, axis sets of loading, Improve spindle in
the high-speed rotation supporting stiffness and precision grinding.
2) Before driving, rotation of the shaft by hand.Spindle high speed
rotation caused by temperature rise, use of cooling liquid circulating
system to eliminate.
2) Instructions for use
1) In use, must first connect the cooling water pipe, make spindle connect cooling water and then start.
2) Before driving, turned by hand spindle. If sensory block is not
flexible, you should troubleshoot, and then check the direction of
rotation of the spindle from the spindle end to see if the match should
rotate counterclockwise power wiring should be changed to make it
consistent.
3) Before driving, cooling water for grinding workpiece can’t be in the
front end of the spindle cover, to prevent the front bearing cover slot
inlet burning motor and bearing. the motor must not enter the water,
after turned on of the motor, when you live in grinding the workpiece to
open the grinding of workpieces coolant. First off the workpiece
coolant shutdown, and then close the spindle motor.
3) Maintenance and Service
1) Motorized spindle by medium frequency power supply rated voltage,
frequency should be consistent with electric spindle technology
parameters, motorized spindle rotational speed can change the frequency
to adjust, also directly proportional voltage change.
2) When the spindle is temporarily not in use, should use compressed air
to blow the coolant water,to avoid rusting, plug the hole. Spindle
surface should be coated with anti rust oil. The shaft end protecting
device, placed in dry place.
3) If replacement the spindle of bearings, best professional and technical
personnel from the replacement. Use special tools, stator coil does not
to be removed.

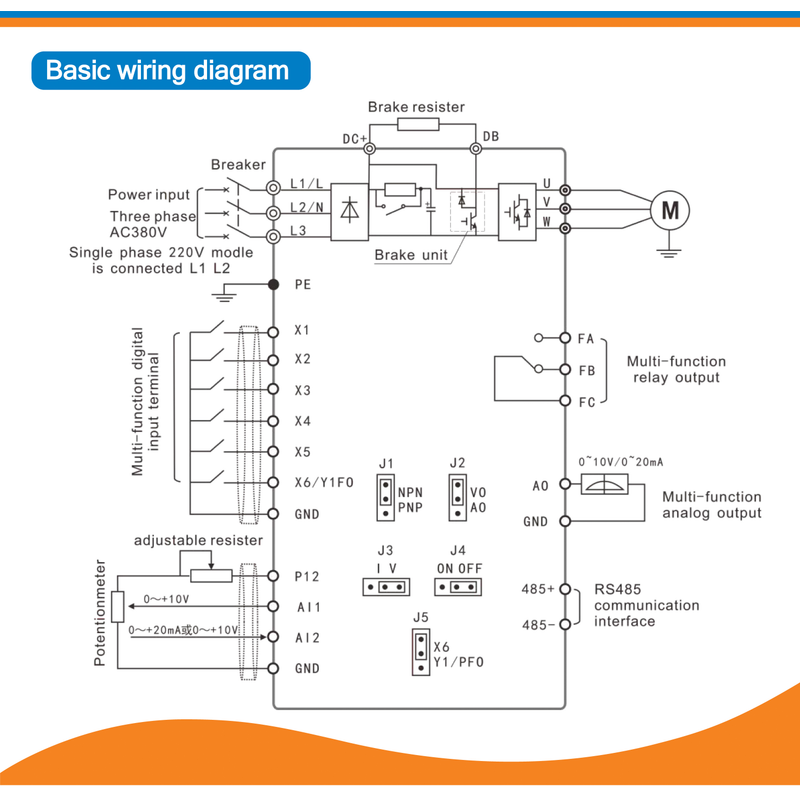

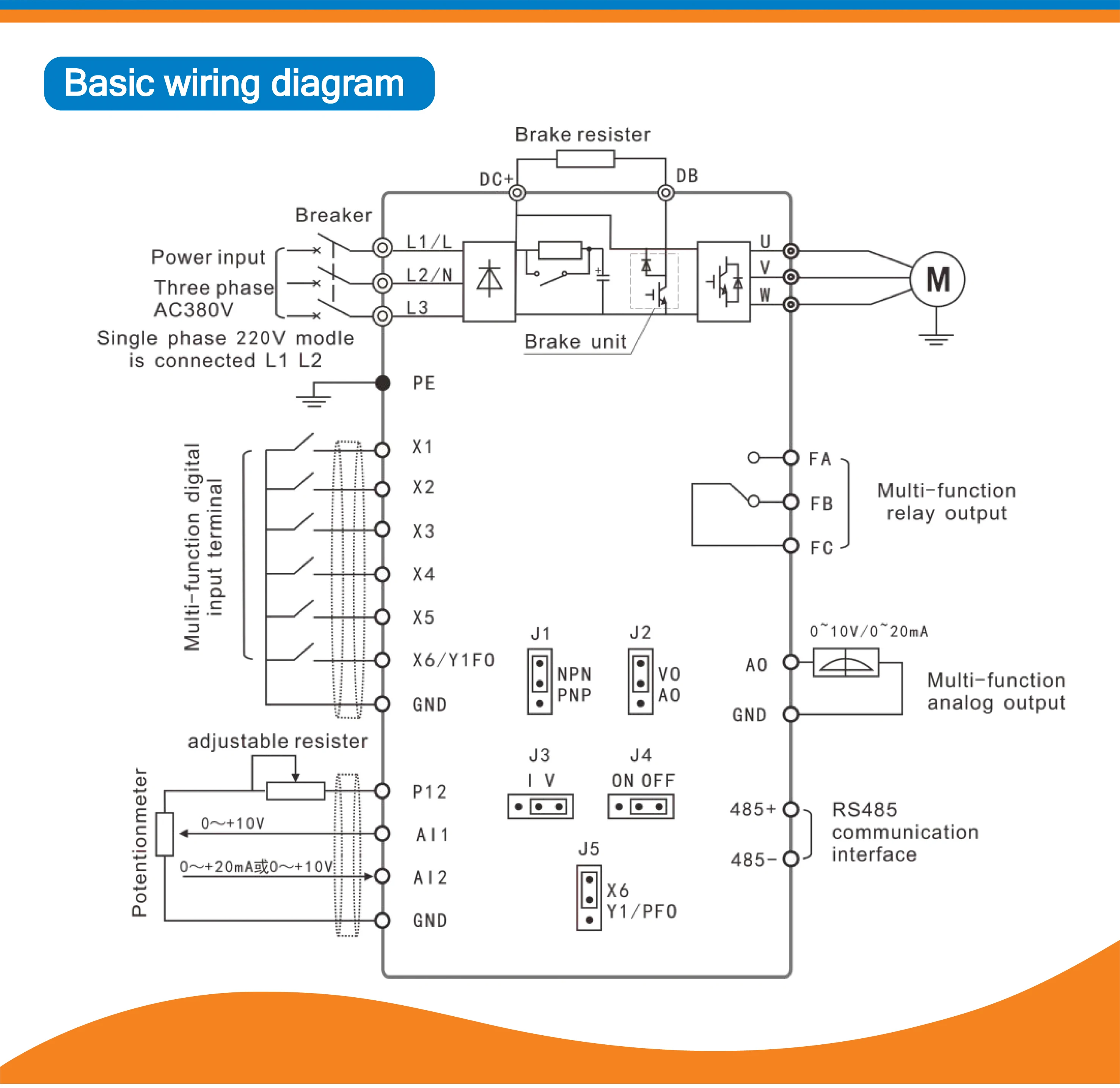

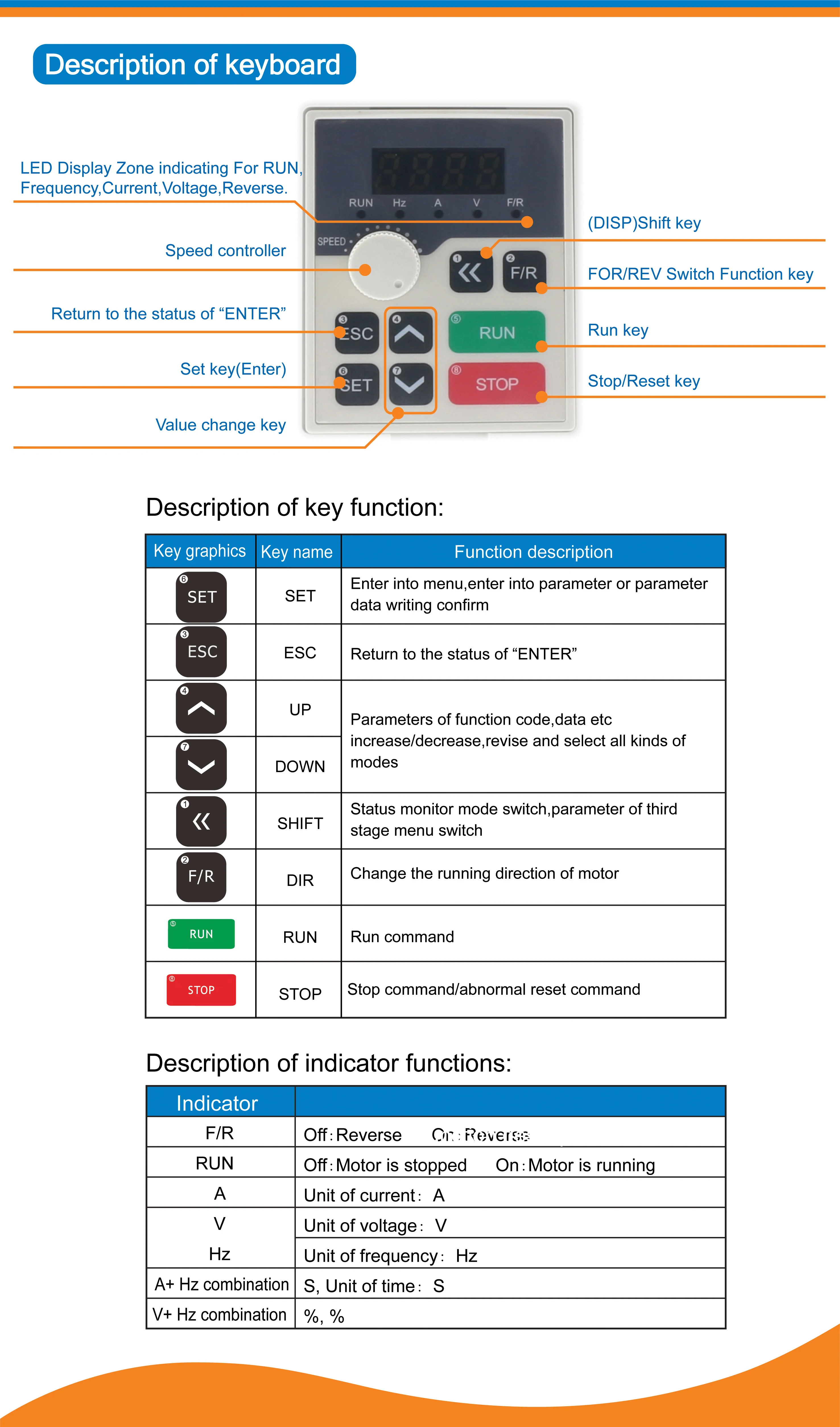

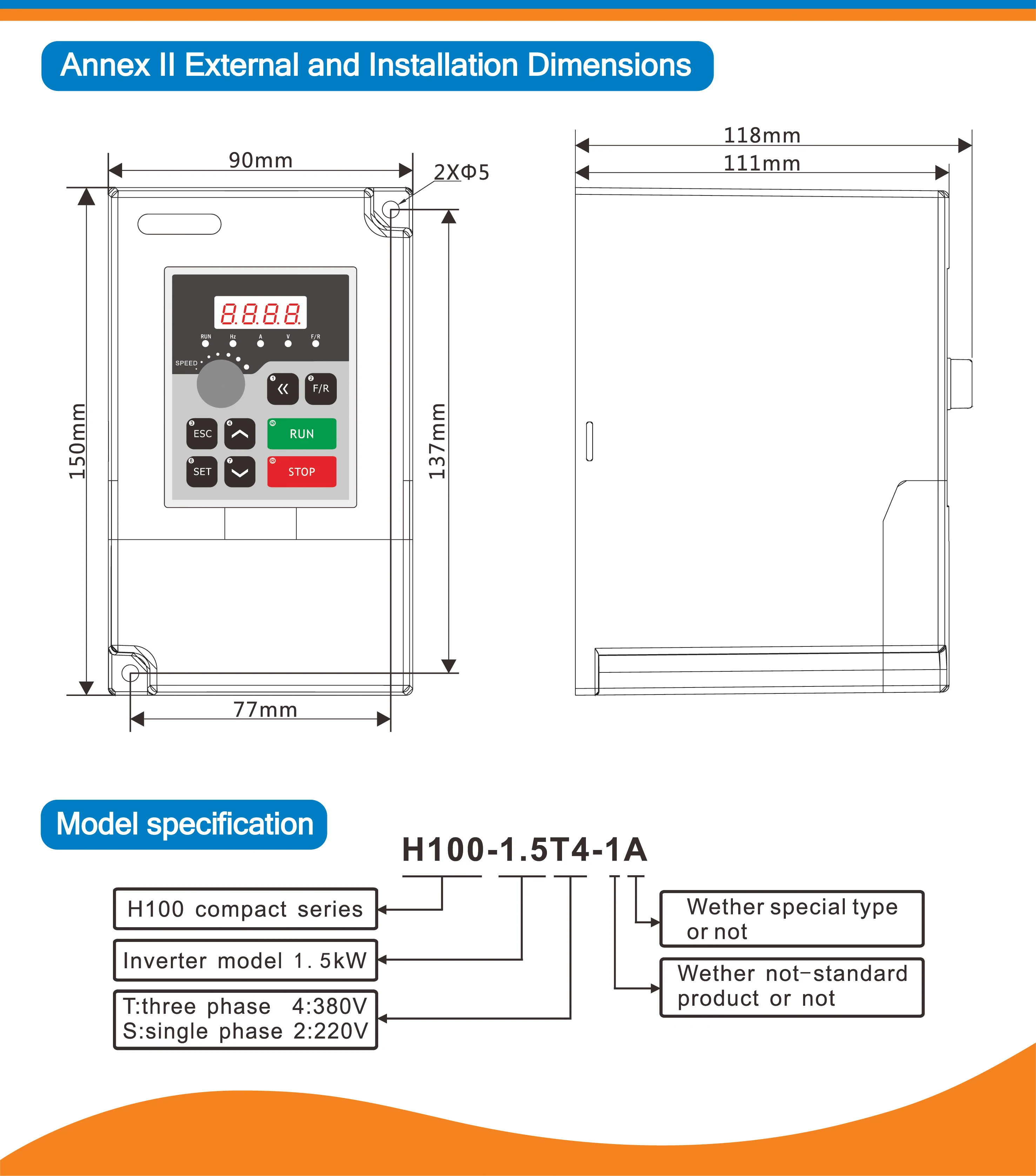

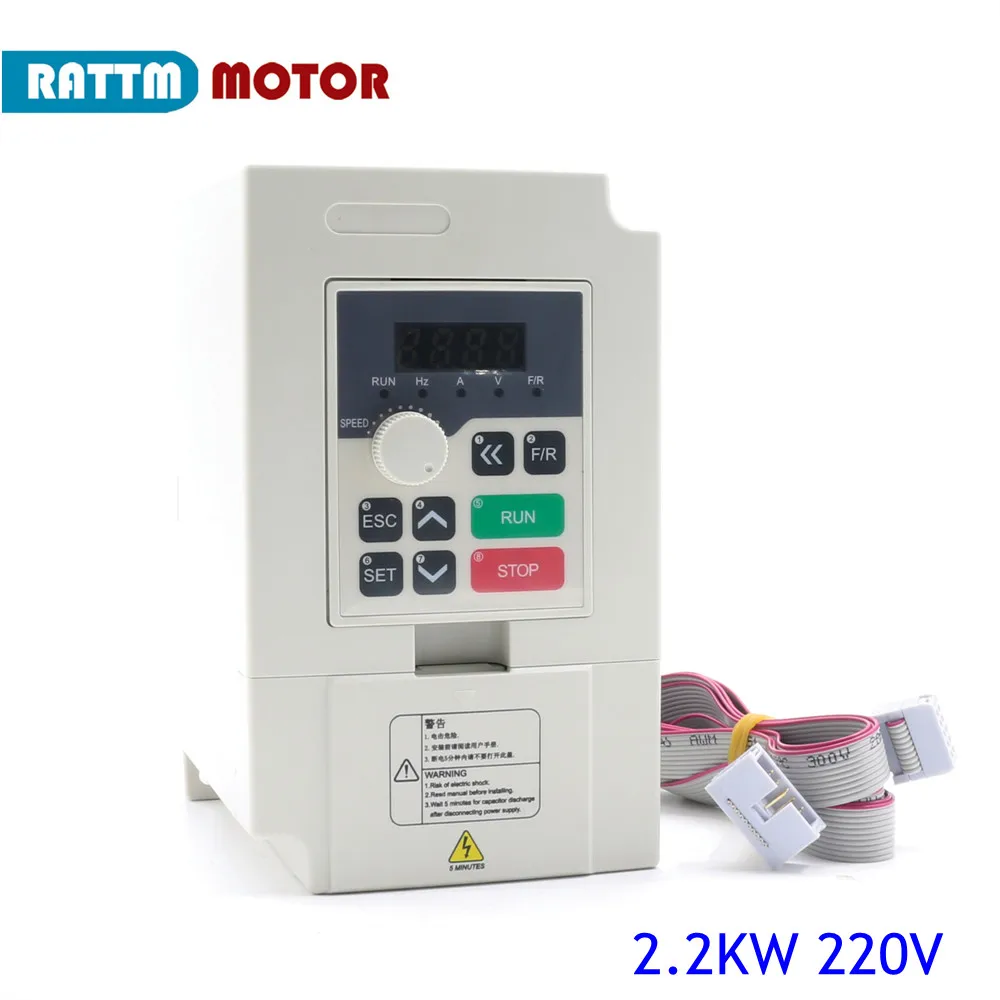

2. 2.2KW 220V Inverter VFD
Input Voltage:220V(+/-15%)
Output Voltage:220VAC
Input Frequency:50-60 Hz
Output Frequency:0-1000 Hz
Input Phase:1 phase
Output Phase:3 phase
Warranty:1 year from the date you purchased
◆Two speed control modes: no PG vector control (SVC), V/F control
◆ No PG vector control (SVC): starting torque 0.5Hz up to 150%
◆ 8-stage simple PLC function, multi-speed control and PID control
◆ Support multiple frequency settings: digital setting, analog setting, PID setting, RS485 communication setting

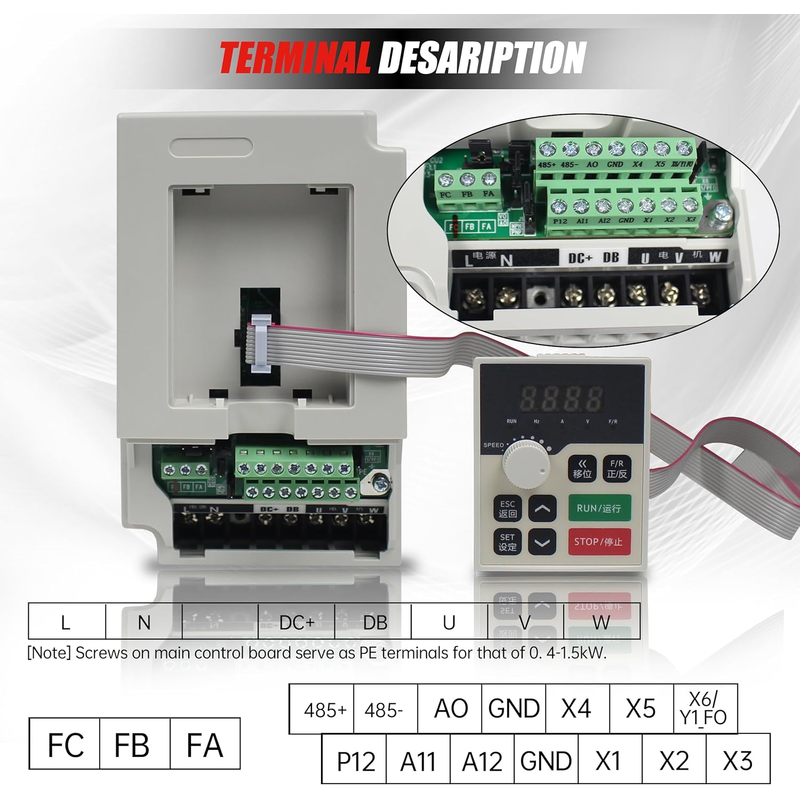

◆ I/O terminals can be freely programmed to combine multiple working modes according to user needs.
◆ With jump frequency control function, it can effectively suppress mechanical resonance and make the system more stable and reliable.
◆ With instantaneous power-down retention function, it can avoid the impact of production due to instantaneous power failure
◆ With over torque and under torque detection
◆ Automatic voltage adjustment function to effectively solve the low frequency oscillation problem of high power motor
◆ Provide a variety of fault protection functions: over-current, over-voltage, under-voltage, over-heat, overload, lack of equal real-time monitoring and protection to ensure safe operation

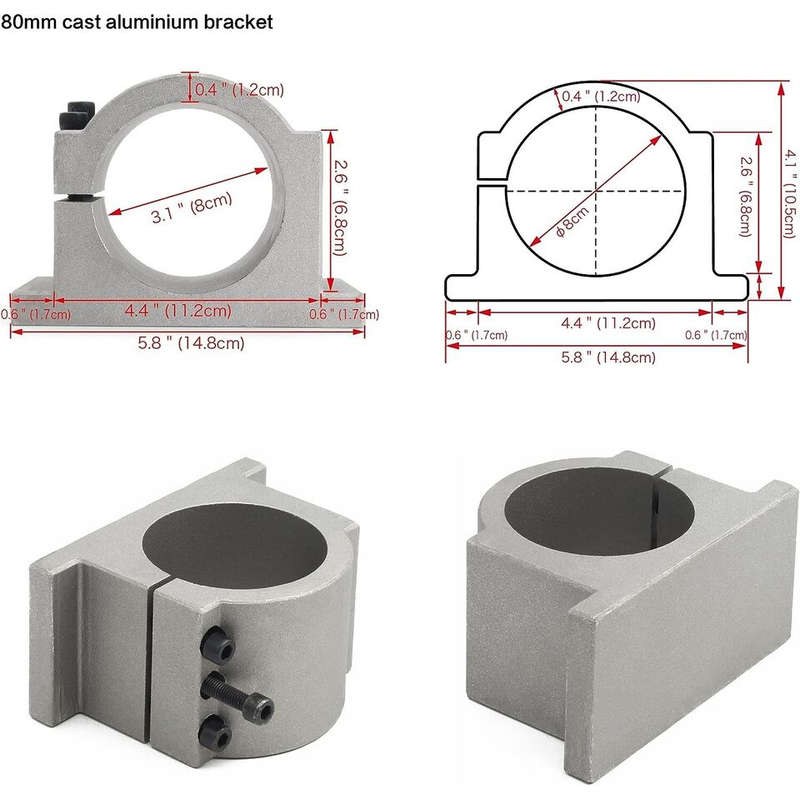

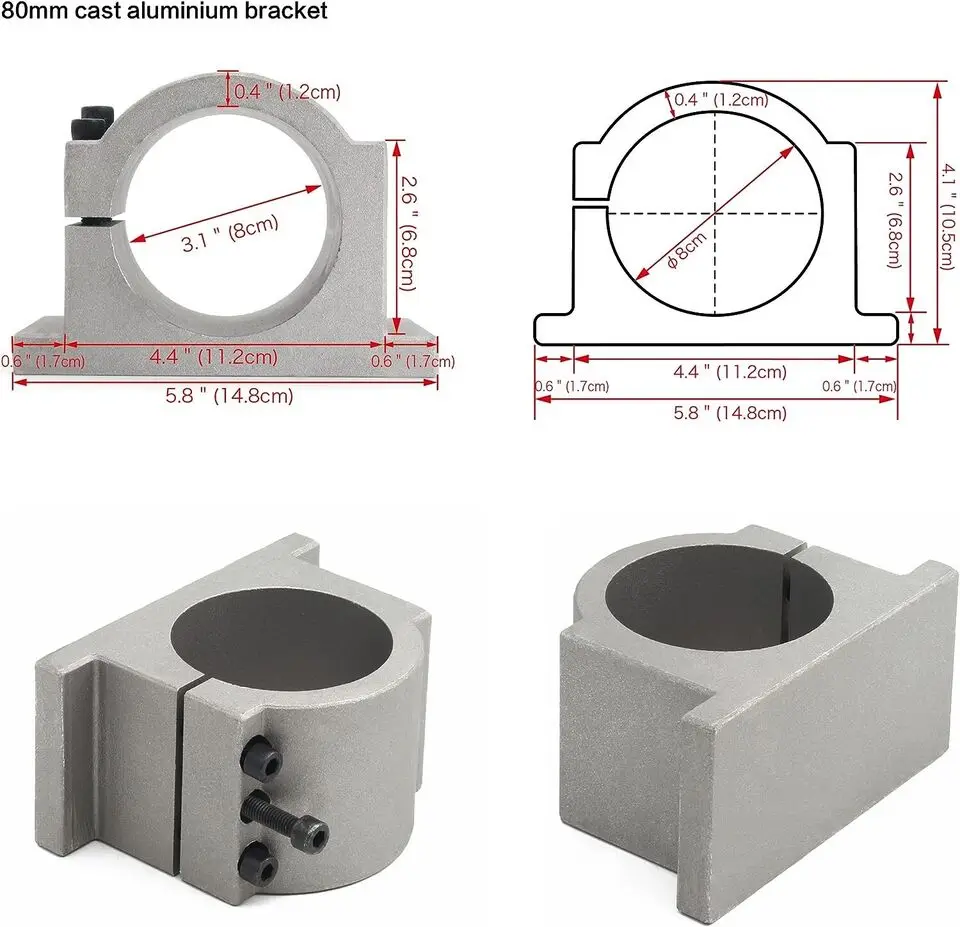

3.80mm cast aluminium bracket

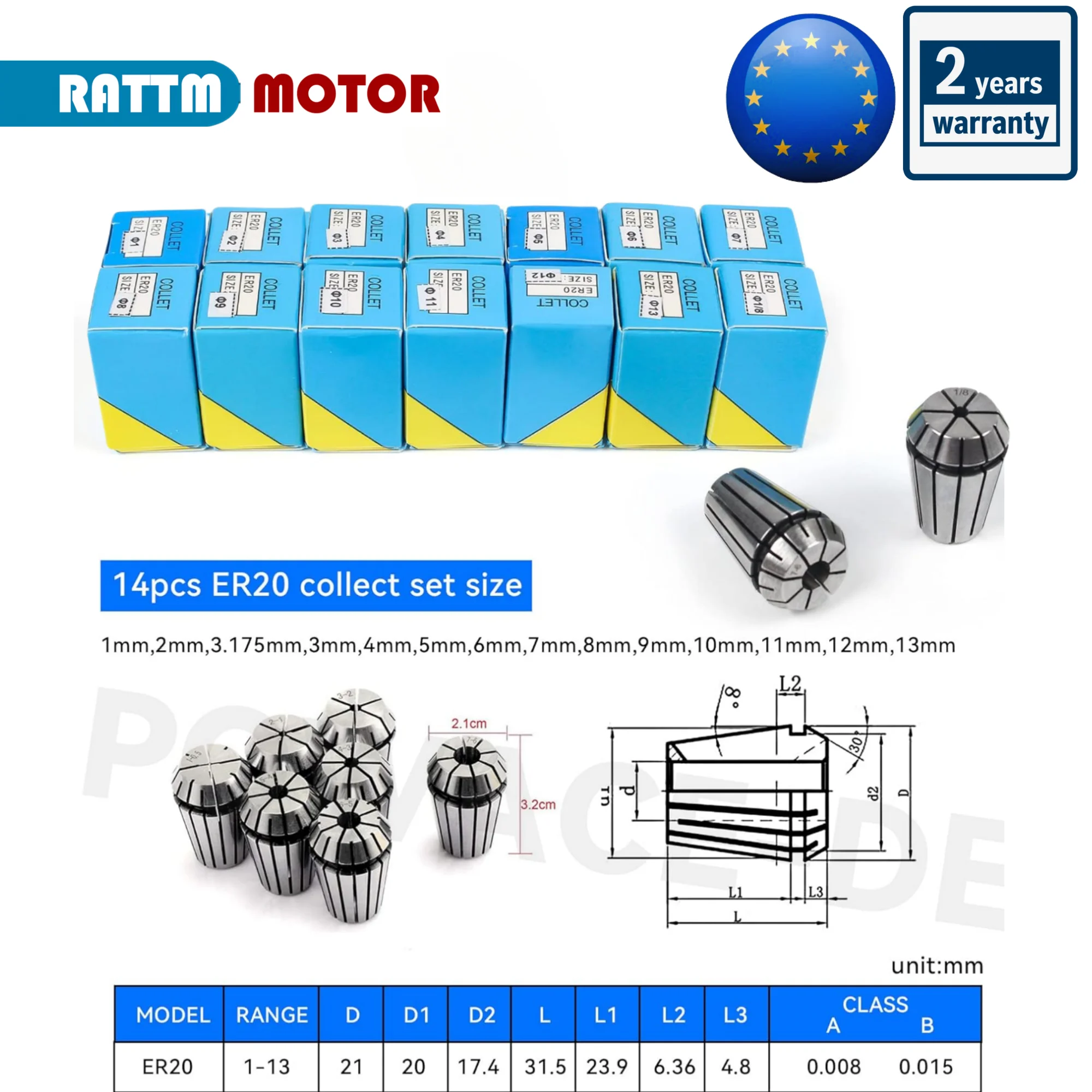

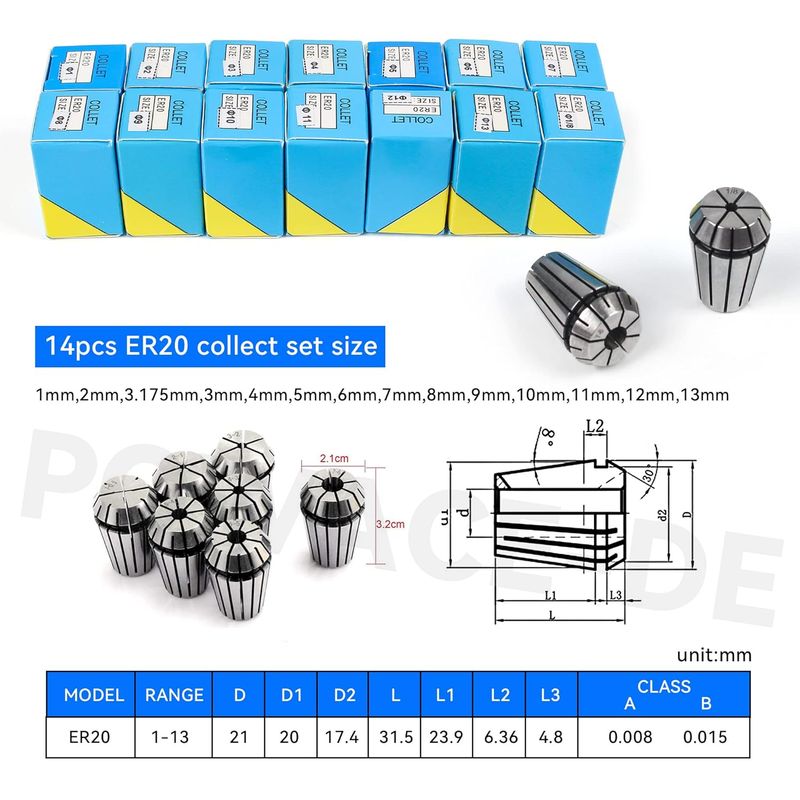

4. 1 Set (1-13mm)14Pcs ER20 Collets
