【EU Store】Offline CNC Controller System DDCS Expert V2.1, 4 Axis 5 Axis G-code Stanalone Interface With M3K Extended Keyboard For Router Magnetic Encoder CNC Kit & 400W 600W 750W 1000W 1KW 220V AC Servo Stepper Motor Driver

$1,510.12

Includes all taxes

Quantity
Meet your Seller
Delivery options
  • Ship Only

Description


Note:

The default motor kit does not have a CN1 interface. If you need this feature, please contact us in advance before purchasing.

3 options:

3 axis kit:

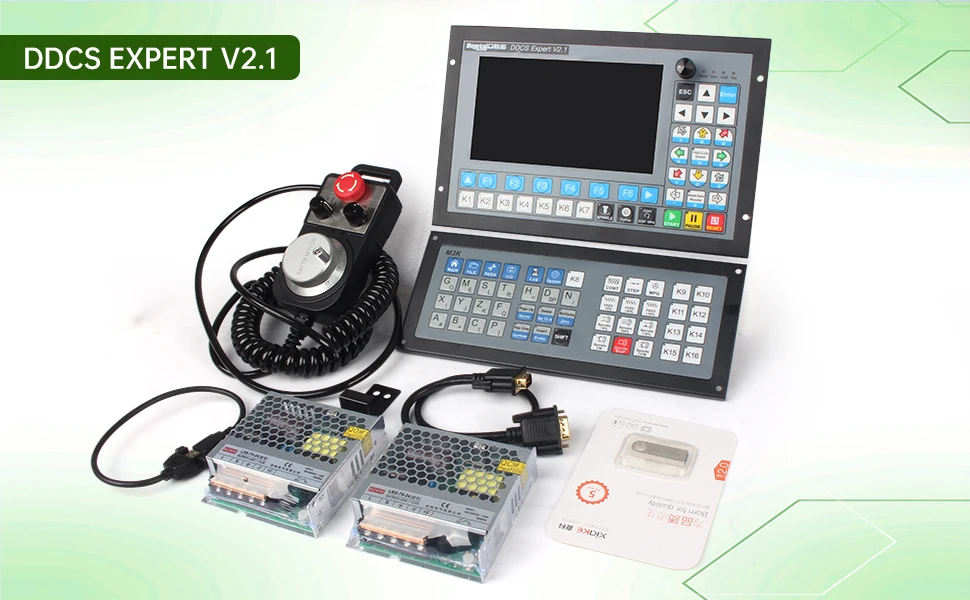

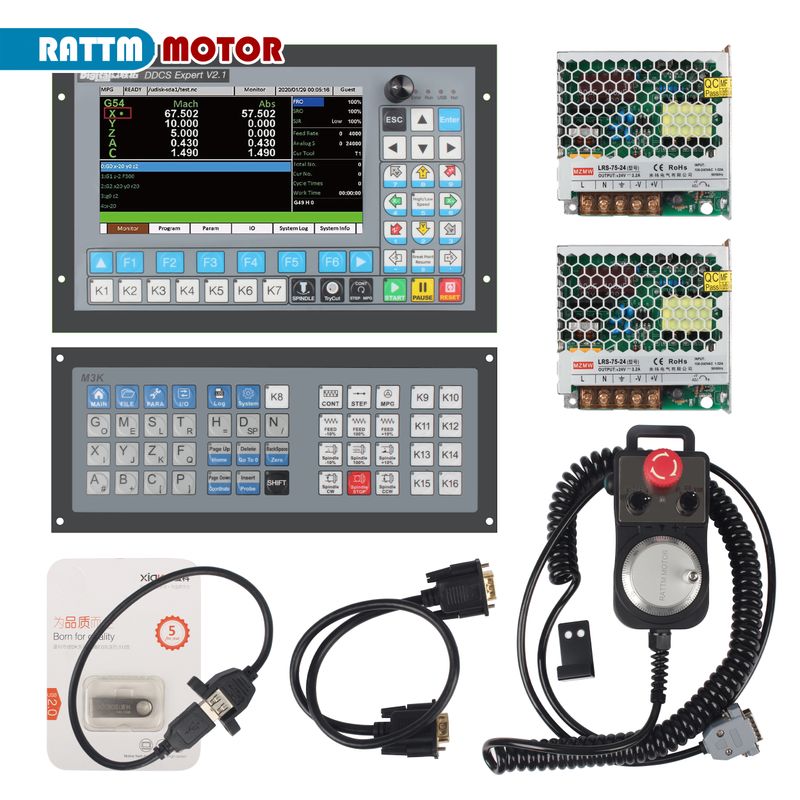

1 x 4 Axis CNC Offline Controller DDCS-EXPERT

1 x 4GB USB Flash drive

1 x M3K extended keyboard

1x matching cable

1 x USB extension cable

1x 4GB USB flash drive

1 x network cable

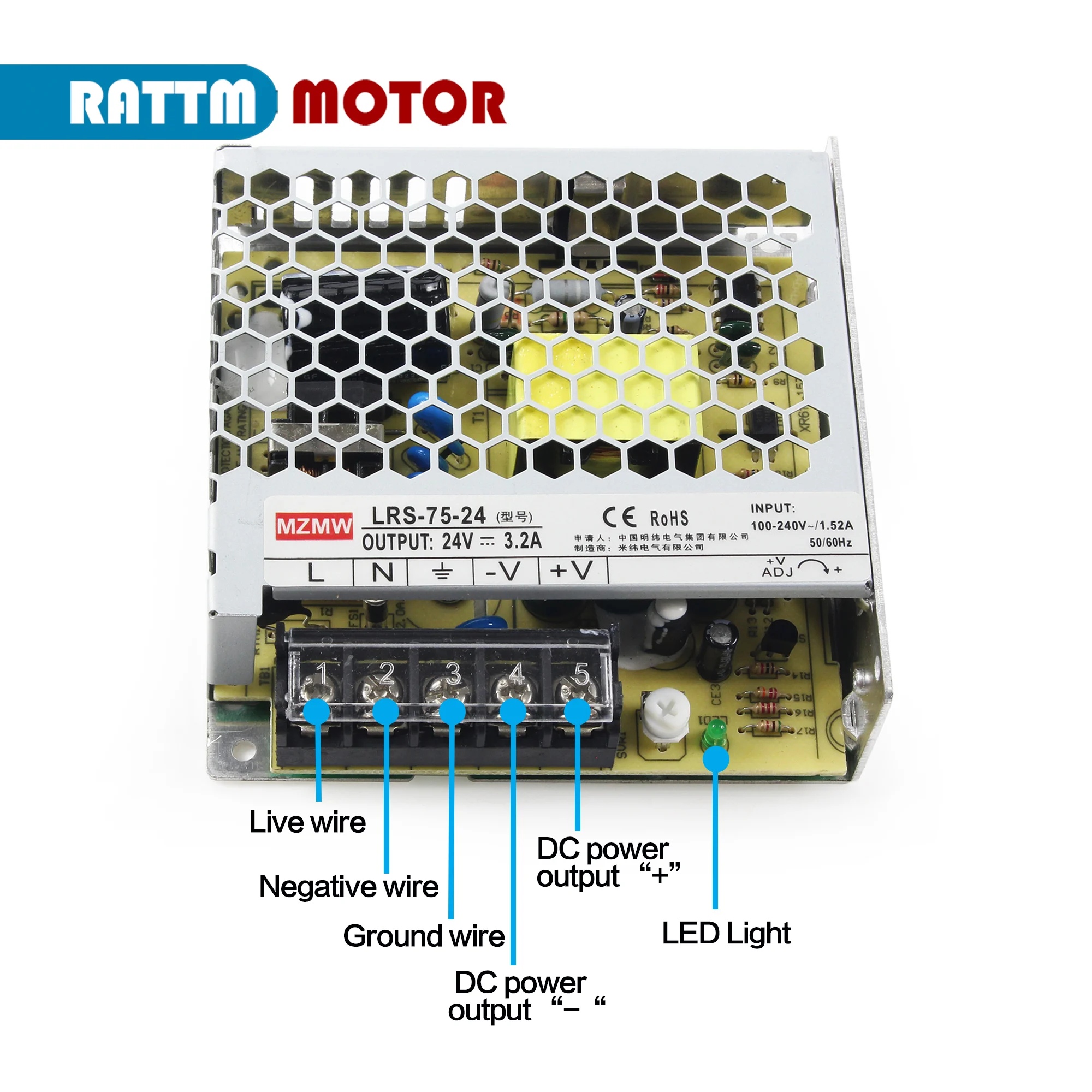

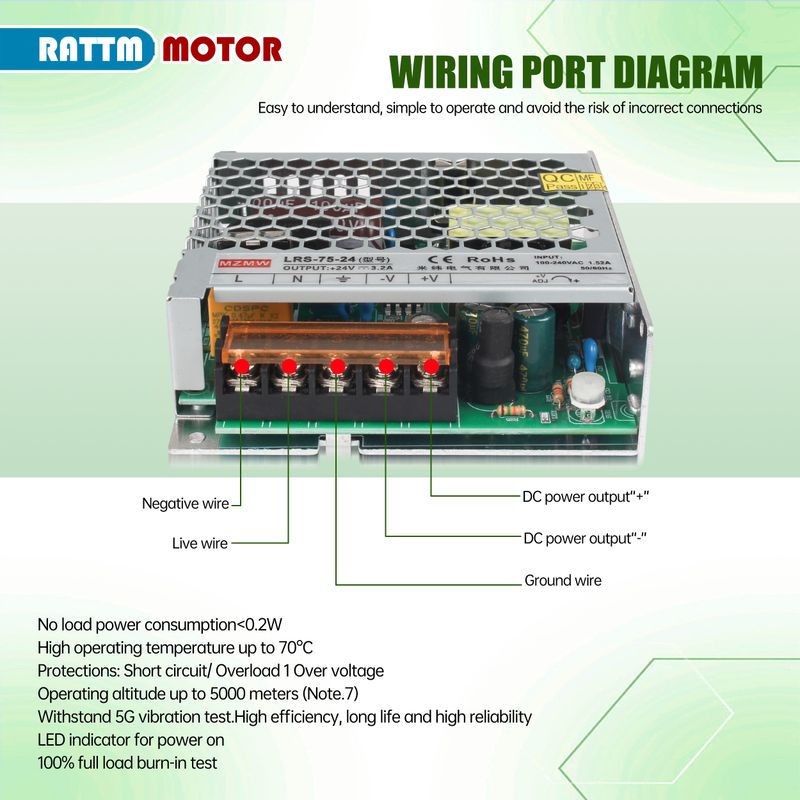

2 x 75W 24V DC power supply

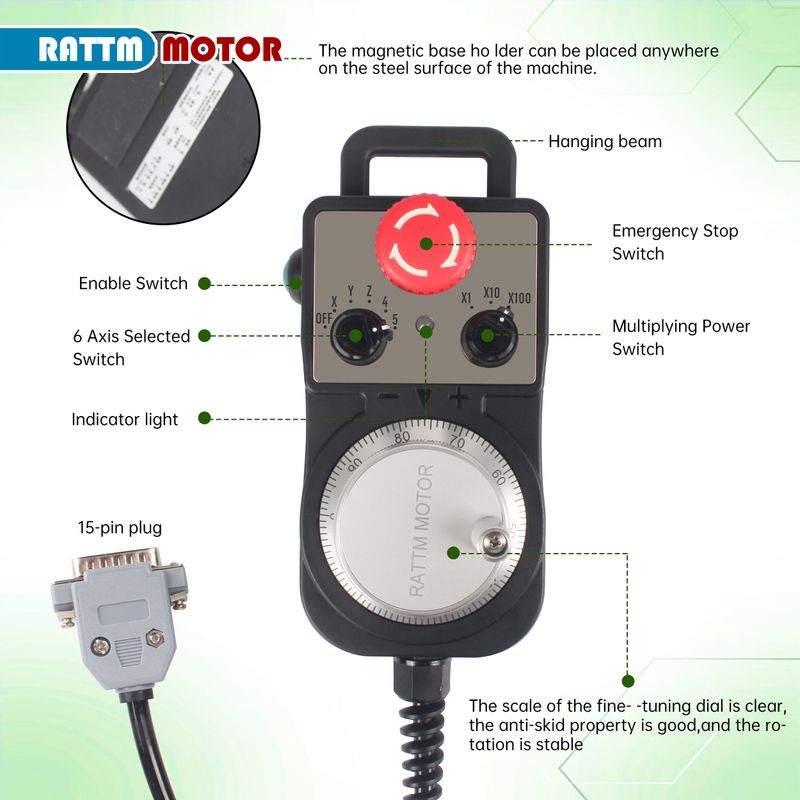

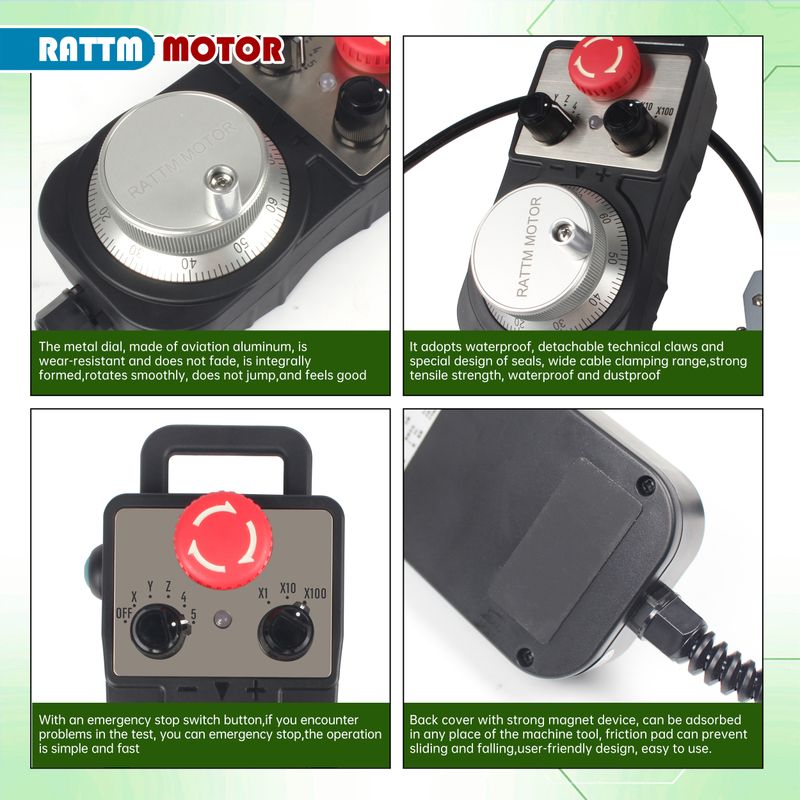

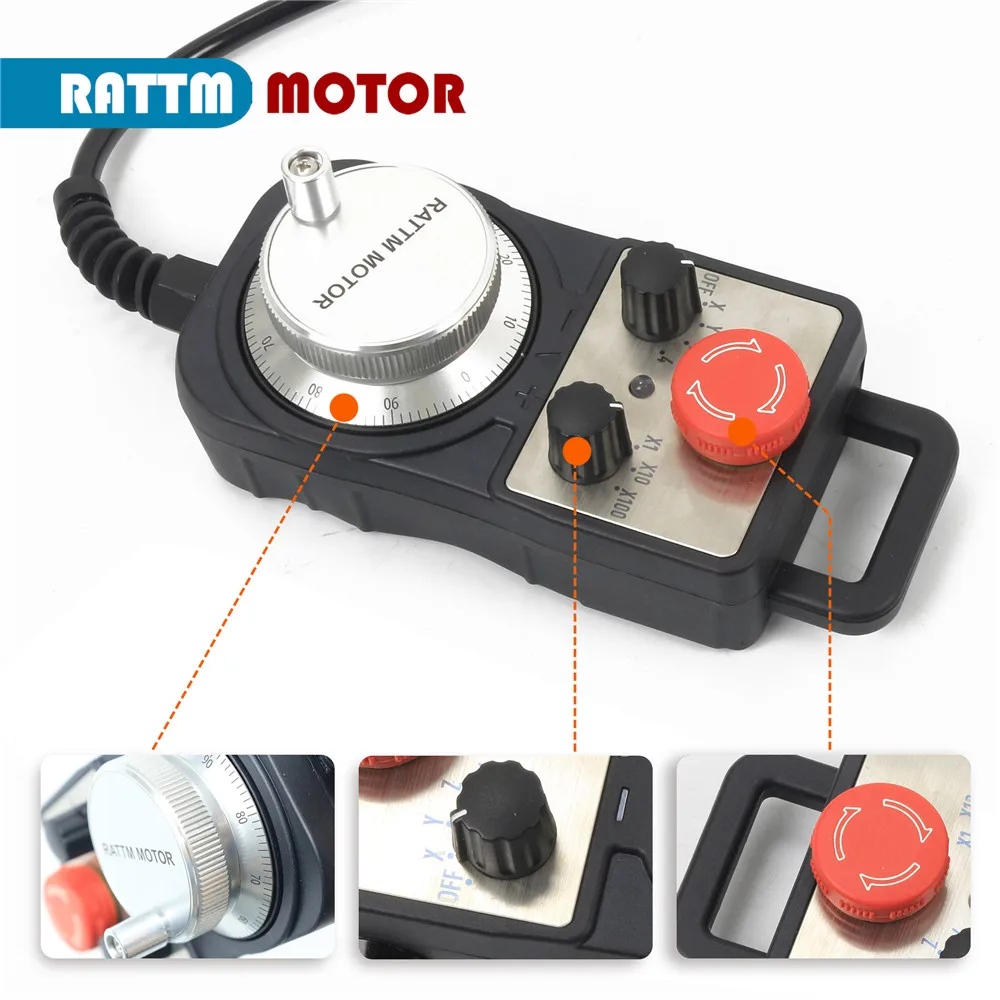

1 x 4 Axis Pendant Handwheel MPG with E-Stop with plug

English User manual

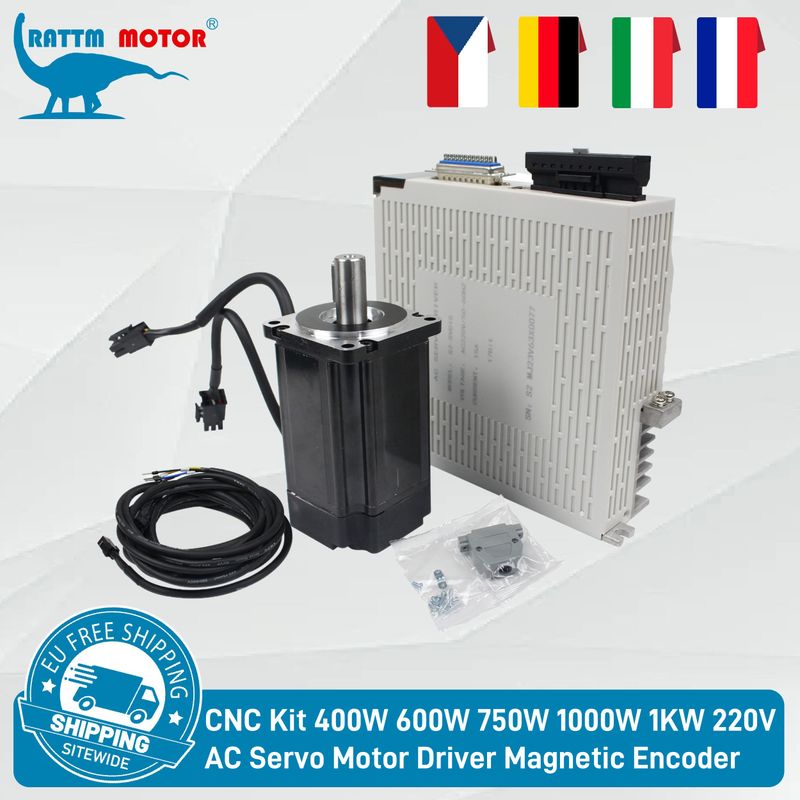

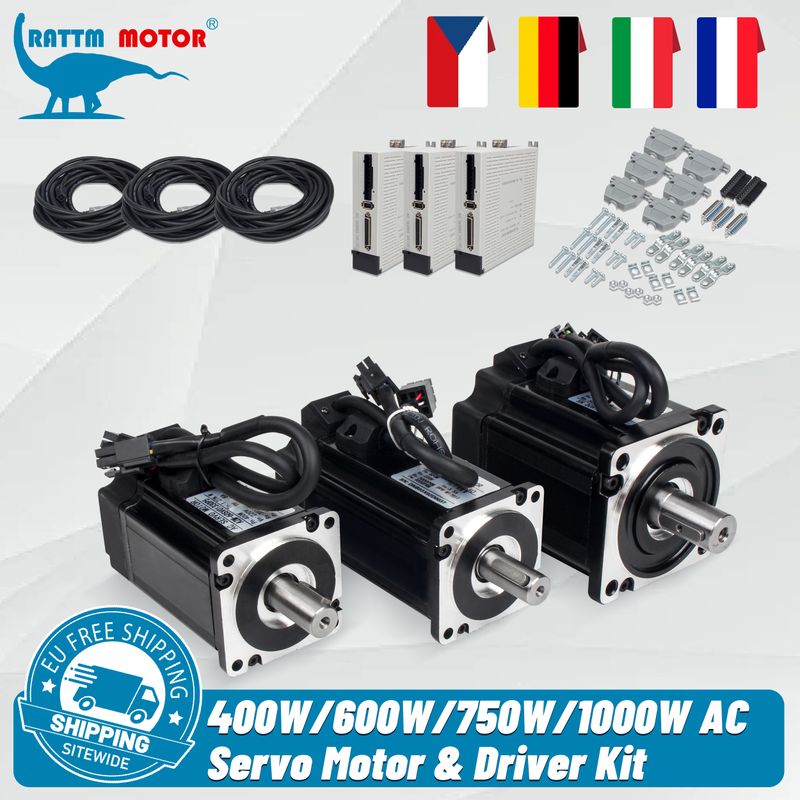

3 x 400W-1000W  (with or without brake)

3 x A2M-60SV AC servo motor

3 x S2-SVD15 AC servo driver

3 x 3m power cable

3 x3m encoder cable

English manual will send to your email.

4 axis kit:

1 x 4 Axis CNC Offline Controller DDCS-EXPERT

1 x 4GB USB Flash drive

1 x M3K extended keyboard

1x matching cable

1 x USB extension cable

1x 4GB USB flash drive

1 x network cable

2 x 75W 24V DC power supply

1 x 4 Axis Pendant Handwheel MPG with E-Stop with plug

English User manual

4 x 400W-1000W  (with or without brake)

4 x A2M-60SV AC servo motor

4 x S2-SVD15 AC servo driver

4 x 3m power cable

4 x3m encoder cable

English manual will send to your email.

5 axis kit:

1 x 5 Axis CNC Offline Controller DDCS-EXPERT

1 x 4GB USB Flash drive

1 x M3K extended keyboard

1x matching cable

1 x USB extension cable

1x 4GB USB flash drive

1 x network cable

2 x 75W 24V DC power supply

1 x 5 Axis Pendant Handwheel MPG with E-Stop with plug

English User manual

5 x 400W-1000W  (with or without brake)

5 x A2M-60SV AC servo motor

5 x S2-SVD15 AC servo driver

5 x 3m power cable

5 x3m encoder cable

English manual will send to your email.



DDCS-Expert Brief technical feature:

axis circular interpolation;
1) Max. 5 Axis; 1M Hz output frequency for each axis; 2-4 Axis linear interpolation, any 2
2) 7 inch full color display screen; resolution ratio: 1024*600, 40 operation keys;

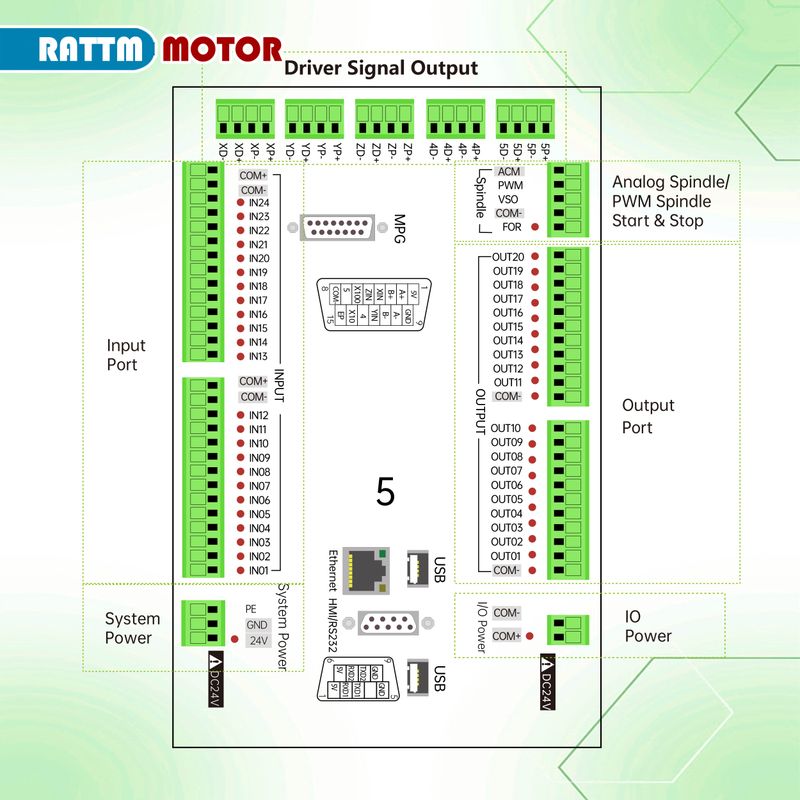

3) 24 photoelectric isolated digital inputs, 21 photoelectric isolated digital outputs;
4) Analog spindle control 0-10V spindle control, also support PWM Output;
5) Magazine type: Supports multiple spindle mode, support straight Tool Magazine, gantry
type Magazine, disk type magazine;
6) Probe Mode: Supprt Floating Probe and Fixed Probe;
tion, length compensation;
7) Backlash compensation methods: direction gap compensation, radius gap compensa-
8) Interpolation Algorithm: S type, circular hard algorithem, circular soft algorithm;
9) Language: Chinese, English;
10) Software Alarms: Program Error, operation Error, overtravel Error, Driver Error and so
11) Network: Support fifile share and online machining the remote fifiles by Ethernet;
output, and servo spindle output;
12) Spindle control mode support Multi-speed (3 lines 8 kinds speed), 0-10V Analog
13) Compatible with standard G-code, support popular CAD/CAM software, such as
ArtCam, MasterCam, ProE, JDSoft SurfMill, Aspire, Fusion 360 and so on;
14) The control system can preview the processing path before machining, and it makes
the system more steady, working smoothy and precise;
15) Support high speed machining in continuous Polyline segment, system can choose a
most effiffifficient algorithm automatically from difffferent kinds Polyline segment algorithm;
16) Support un-limited size fifile for machining;
17) Support Pause Breakpoint resume, “Power Cut” recovery, Start from the specifific line;
18) Support time-lock function;
19) Support 4 kinds operation rights: visitor, operator, admin, super admin;
mode” and so on;
20) Support function of “Try cutting” (handwheel guiding) and “Single-stage processing
21) Support the fuction of Back to orignal point
21) The Power Supply for the controller is 24VDC, minimum Current is 0.5A;
22) The Power Supply for IO Port is 24VDC, minimum current is 0.5A; By the IO power
supply,system already supply the power to IO ports.So no need the external power supply.
2 x 75W 24V DC power supply

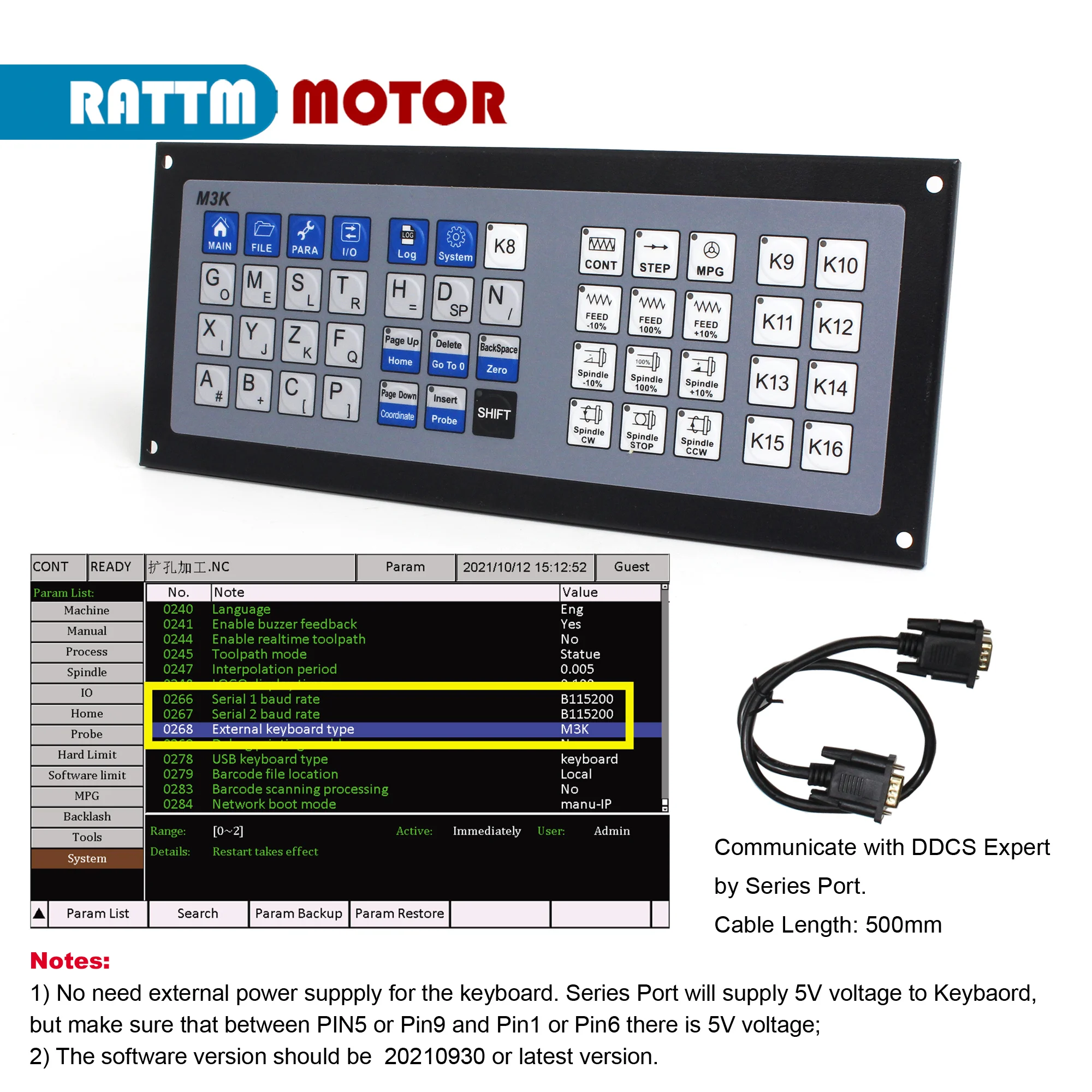

3. M3K extended keyboard
