Full Set Automatic Non-stop Toilet Jumbo Roll Paper Rewinding Making Cutting Machine Production Line

$30,016.78

Includes all taxes

Quantity
Meet your Seller
Delivery options
  • Ship Only

Description


PLEASE NOTE:

1.The price only for reference, the specific cost based on your requirements and the destination port, please contact the customer service for more product details and quotations!


2.We ship the goods by sea !!

3.Door to door please leave message or whatsapp or email for price !!!

Contact: Kathy

WhatsApp/Wechat/Mobile: +86 13937192057
Email: sales17yugong@yg797.com

Product Description

TECHNICAL DATE
1. Full automatic toilet paper&kitchen towel machine
Machine Model
Full automatic toilet paper&kitchen towel machine
Raw Material Width
1850mm
Finished Roll Diameter
φ90~φ280mm
Finished Roll Core Diameter
φ32~φ50mm
Raw Material Diameter
1200mm≤(Other size to be specified)
Raw Material Core Diameter
φ76mm(Other size to be specified)
Perforation pitch
4 Pieces of Anvil blades (115mm)Other size to be specified
Machine Speed
0~230m/min
Capacity
3.5-4tons/day(8hours)
Unwinding Unit
2,3 ply,(Other Size to be Specified)
Air-system
3HP air compressor, min. pressure 5kg/cm2pa ( provide by user)
Power
24.5KW
Dimensions
10000*4300*2000(L*W*H)
Machine weight
7.0 Ton
Basis weight
15~22 g/㎡
Voltage
380V 50HZ
2. Automatic bandsaw toilet paper cutting machine:
1. LCD touchable screen is used to realize humanized operation, easy to operation and adjust.
2. No workers is needed in the cutting process, very safe.
3. The machine is suitable for box drawing paper, facial paper cutting,cutting length for facial paper can be customized.
4. It is easy to set cutting number and cutting length and can be connected with automatic packing machine.
5. The machine settings are advanced and stable. Control parts are mainly used good quality import parts.
Technical Parameter:
Speed
80-200times/min
Power
7.5KW 380V
Air supply
0.6 MPA(supplied by client)
Roll size
Customizable
Dimension
3400*1200*1950 mm
3.Automatic kitchen towel cutting machine:
1. The main motor is independently driven by a frequency converter;
2. Using an adjustable mold, the diameter adjustment range of a single machine is 150~300mm (can be customized
according to customer requirements);
3. The equipment adopts an automatic sharpening system, and the grinding wheel automatically adjusts the feed according to the blade loss;
4. The sharpening angle, grinding degree, grinding wheel speed, etc. are all controlled through the screen and buttons, reducing the technical requirements for workers to adjust the sharpening;
5. The knife sharpening system is equipped with an independent dust removal device to ensure a sanitary working environment;
6. The band saw adopts a hydraulic tensioning system to ensure the tension of the band saw;
7. Automatically shut down and alarm when the knife is broken to ensure safe use;
8. The feeding motor adopts a high-precision servo system to ensure the quality of the finished product;
9. The equipment automatically calculates the quantity of cut finished products based on the raw materials and finished
product length;
10. When the input data is incorrect, the device will stop working and prompt adjustment on the interface;
11. The equipment uses a knife for cutting, reducing user costs;
Cutting speed
20~30 cut/min(low speed) 30~50cut/min (high speed)
Cutting diameter
150~300mm, mold adjustable
Cutting length
≤450mm (low speed) ≤200mm (high speed)
Raw material length
≤3000mm can be customized according to customer needs
Cutting deviation
2mm
Machine weight
2700kg
4.Automatic multi-rolls toilet paper&kitchen towel paper packing machine:
The MJ-400B packaging machine is independently designed and developed by combining the characteristics of Chinese household paper and the manufacturing concept of advanced machinery and equipment, integrating automatic paper feeding, automatic material sorting, bagging and sealing. This machine is connected with the front-end rotary and automatic paper cutter to achieve online continuous production. Only manual bagging is required, and the finished product is automatically sent out after packaging. This machine adopts a servo motor-based control method: the paper is pushed into the bag, and the structure of the servo motor is combined with the sorting and sorting of materials, simplifying the adjustment steps. It saves gas consumption and solves the problem of unstable operation due to the influence of gas supply during use of the packaging machine. It adopts advanced PLC computer programming control, LCD touch screen, easy parameter setting, and the sealing uses heating tube constant temperature sealing. This machine has applied for
multiple invention and utility model patents. The machine is easy to equip; the drive motor of the machine adopts a
high-efficiency spindle servo motor, the host equipment operates a human-machine interface, and the synchronous operating system can be operated within the entire range of the equipment, thus better protecting personal safety during maintenance. The whole machine has stable quality and high efficiency.
Packing type:
2-6rows
Packing speed
3-6bags/min
Packing height
80-160mm
Packing width
60-600mm
Packing length
300-800mm
Voltage
380V 50HZ
Total power
5KW
Air supply
0.6-0.9Mpa

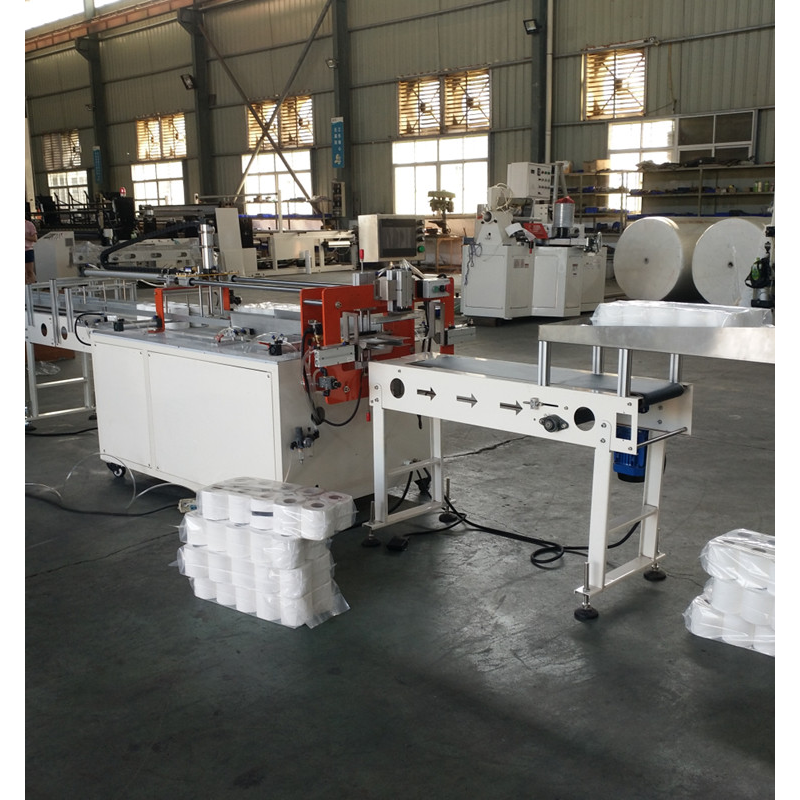

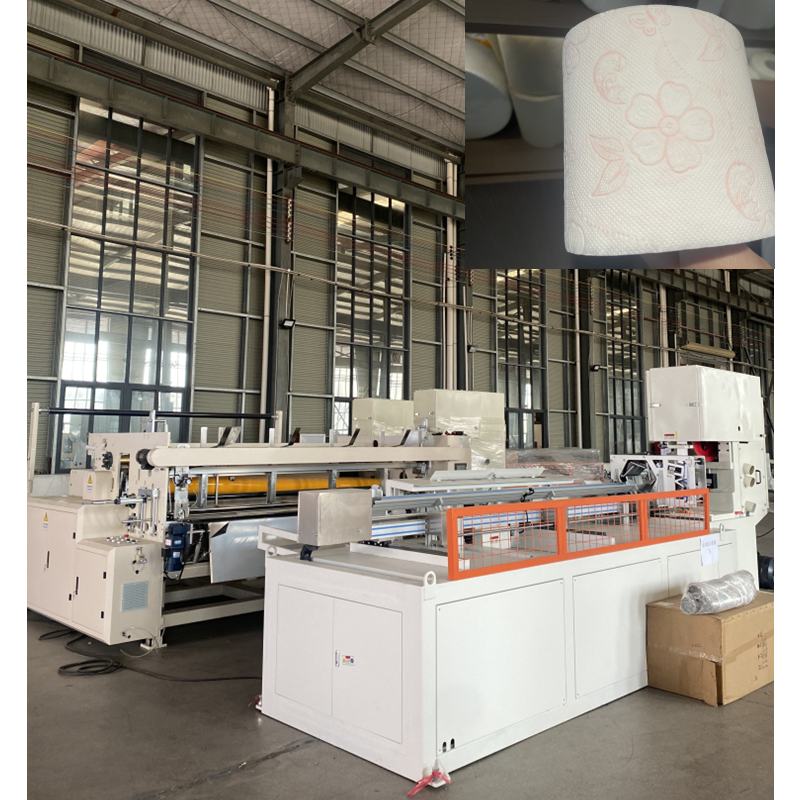

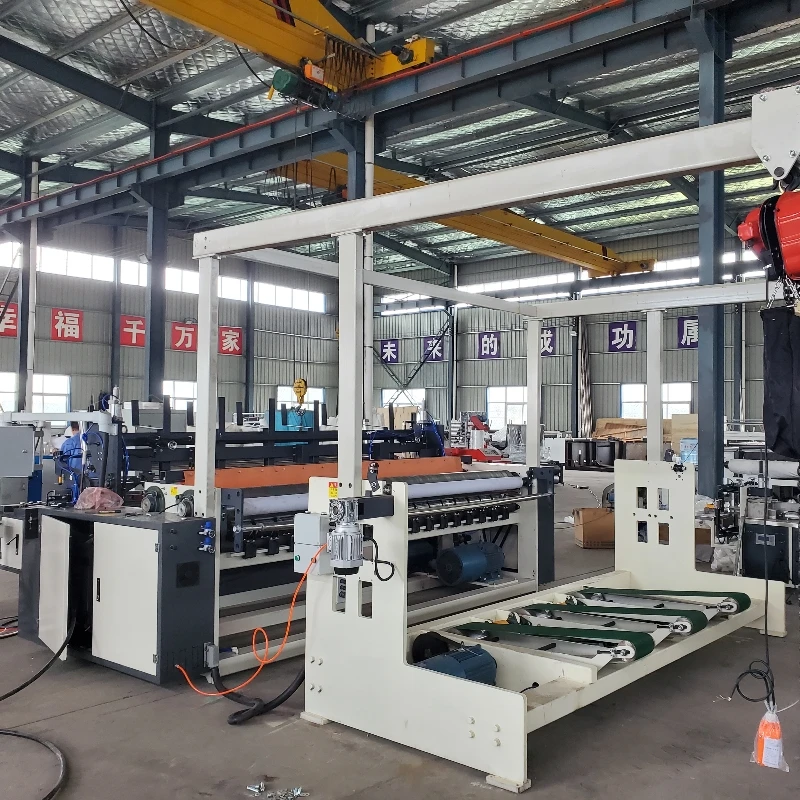

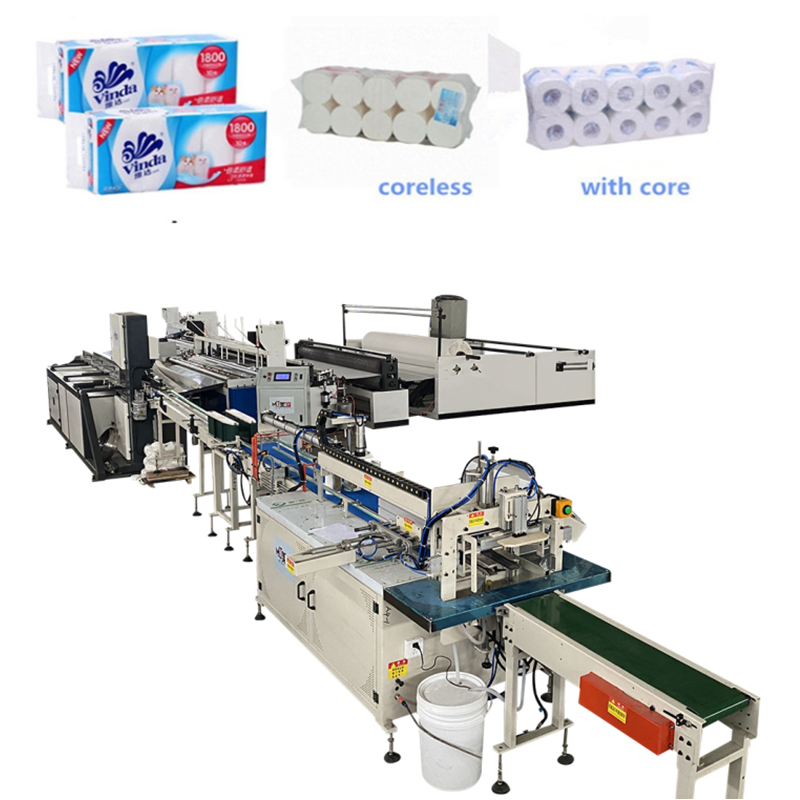

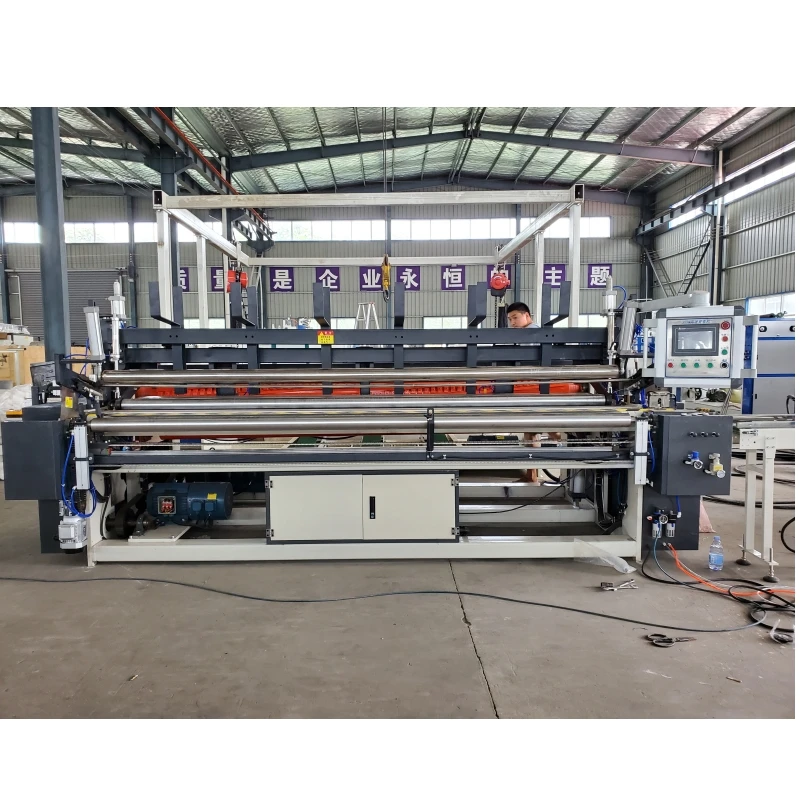

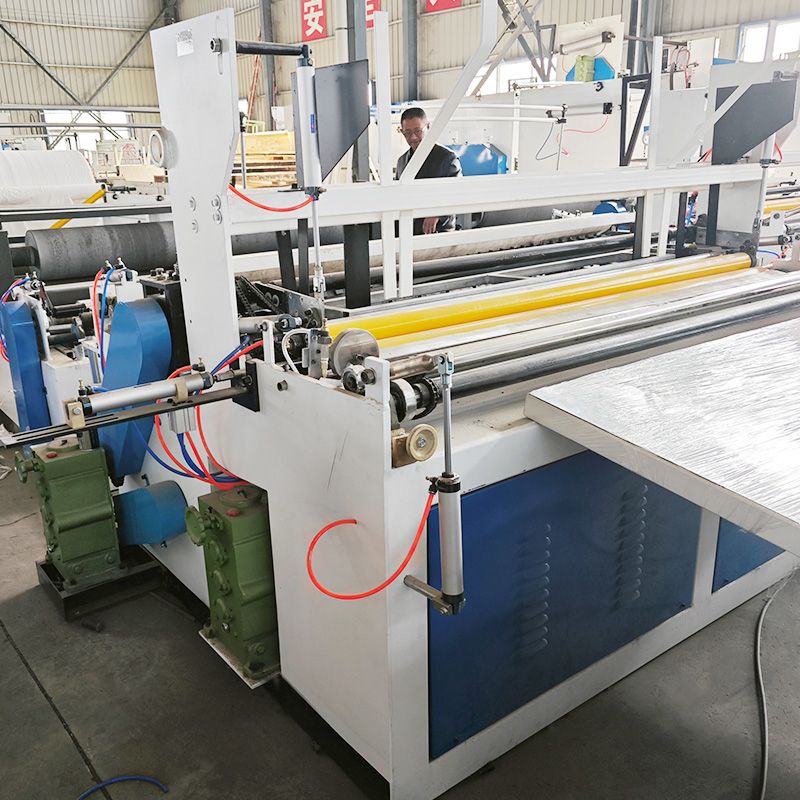

Product Show
