We first design a
draft based on customer needs and make adjustments based on feedback. Then, we use professional tools to
color the paper cup fan and the bottom paper.

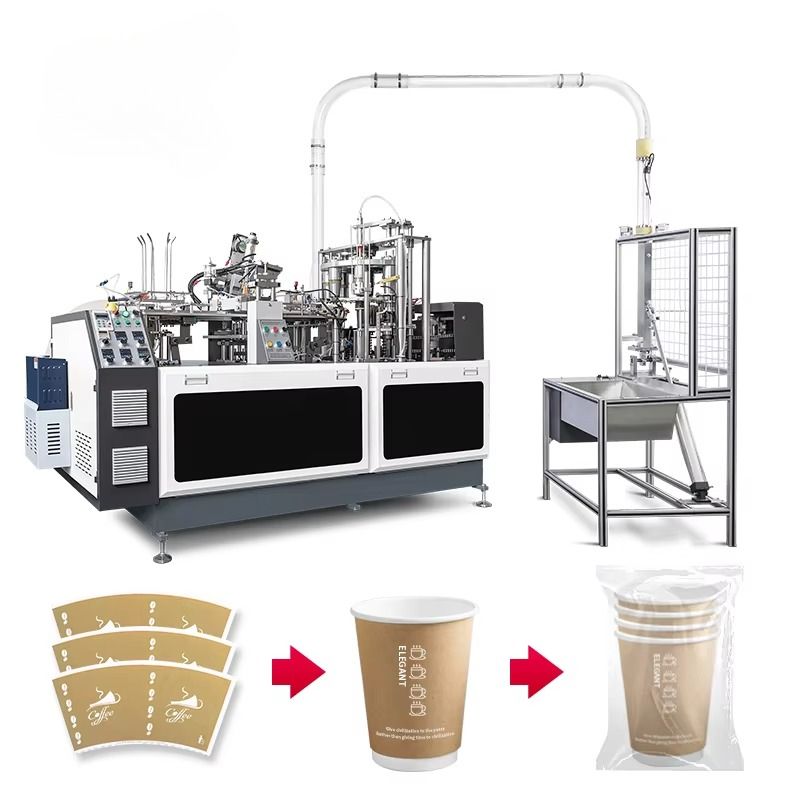

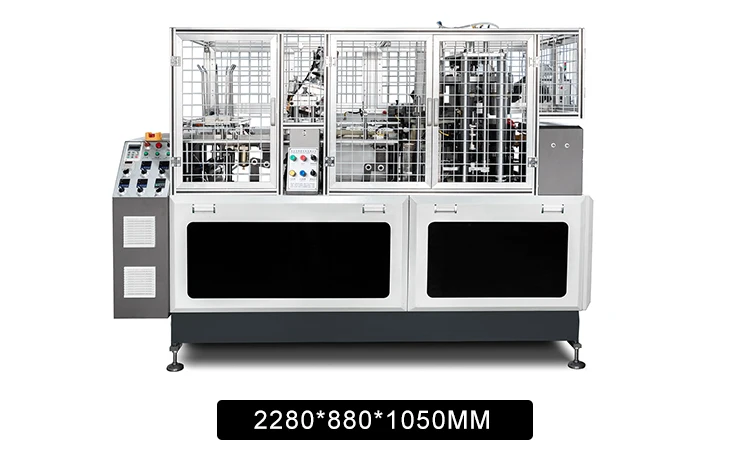

Fully Automatic Ultrasonic Paper Cup Making Machine - 100pcs/min High Efficiency for Coffee Milk Tea Disposable Cups
$24,950.23
Includes all taxes
Meet your Seller
-
$24,950.23Sold by BILLIONS BIRDS
Description
Please Note :
1. The price is for reference only.The specific cost depends on your requirements and the destination port. Please contact us for more product details and quotations
2. We will ship you by sea!!!
3. If you have any questions or interests, please feel free to contact us for a free quote. We look forward to working with you
4.Door to door pleaseleave messageorwhatsappor emailfor price !!!
Jane(SalesManager)
Whatsapp/Wechat/Mobile :+86 13837137368
Email:yugongmachinery12@foxmail.com
#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-2{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-3{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-4{text-align:center}#detail_decorate_root .magic-5{font-size:26px}#detail_decorate_root .magic-6{width:750px}#detail_decorate_root .magic-7{overflow:hidden;width:750px;height:1452px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-8{margin-top:0;margin-left:0;width:750px;height:1452px}#detail_decorate_root .magic-9{padding:0;margin:0;color:#333;font-size:14px;padding-left:4px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-10{font-size:16px}#detail_decorate_root .magic-11{overflow:hidden;width:750px;height:907px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-12{margin-top:0;margin-left:0;width:750px;height:907px}#detail_decorate_root .magic-13{overflow:hidden;width:750px;height:489px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-14{margin-top:0;margin-left:0;width:750px;height:489px}#detail_decorate_root .magic-15{overflow:hidden;width:750px;height:808px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-16{margin-top:0;margin-left:0;width:750px;height:808px}#detail_decorate_root .magic-17{overflow:hidden;width:750px;height:795px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-18{margin-top:0;margin-left:0;width:750px;height:795px}#detail_decorate_root .magic-19{overflow:hidden;width:750px;height:474px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-20{margin-top:0;margin-left:0;width:750px;height:474px}#detail_decorate_root .magic-21{overflow:hidden;width:750px;height:1913px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-22{margin-top:0;margin-left:0;width:750px;height:1913px}#detail_decorate_root .magic-23{overflow:hidden;width:750px;height:1297px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-24{margin-top:0;margin-left:0;width:750px;height:1297px}#detail_decorate_root .magic-25{font-size:22px}#detail_decorate_root .magic-26{overflow:hidden;width:373px;height:254.63466666666667px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-27{margin-top:0;margin-left:0;width:373px;height:254.63466666666667px}#detail_decorate_root .magic-28{overflow:hidden;width:373px;height:254px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-29{margin-top:0;margin-left:0;width:401.8987341772152px;height:254px}#detail_decorate_root .magic-30{width:750px;border-collapse:collapse}#detail_decorate_root .magic-31{min-height:28px;padding:5px 10px;width:144px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-32{min-height:28px;padding:5px 10px;width:270px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-33{min-height:28px;padding:5px 10px;width:271px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-34{min-height:28px;padding:5px 10px;width:561px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-35{display:none}#detail_decorate_root .magic-36{min-height:28px;padding:5px 10px;width:272px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-37{min-height:28px;padding:5px 10px;width:272.2px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-38{font-family:inherit;font-style:inherit;font-variant-ligatures:inherit;font-variant-caps:inherit;font-weight:inherit}#detail_decorate_root .magic-39{min-height:28px;padding:5px 10px;width:726px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-40{overflow:hidden;width:750px;height:958px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-41{margin-top:0;margin-left:0;width:750px;height:958px}#detail_decorate_root .magic-42{overflow:hidden;width:750px;height:845px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-43{margin-top:0;margin-left:0;width:750px;height:845px}#detail_decorate_root .magic-44{font-size:20px}#detail_decorate_root .magic-45{overflow:hidden;width:750px;height:779px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-46{margin-top:0;margin-left:0;width:750px;height:779px}#detail_decorate_root .magic-47{overflow:hidden;width:750px;height:512px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-48{margin-top:0;margin-left:0;width:750px;height:512px}#detail_decorate_root .magic-49{vertical-align:top;display:inline-block;padding-right:4px;width:50%;box-sizing:border-box;margin-bottom:-4px;padding-left:4px;margin-top:-4px}#detail_decorate_root .magic-50{vertical-align:top;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-51{width:371px;height:320.8116710875331px;overflow:hidden}#detail_decorate_root .magic-52{position:relative;left:0;top:0;width:371px;height:320.8116710875331px}#detail_decorate_root .magic-53{padding:0;margin:0;color:#333;font-size:14px;line-height:20px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-54{width:371px;height:320px;overflow:hidden}#detail_decorate_root .magic-55{position:relative;left:0;top:0;width:370.99999999999994px;height:324.25201072386056px}#detail_decorate_root .magic-56{overflow:hidden;width:750px;height:479px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-57{margin-top:0;margin-left:0;width:750px;height:479px}#detail_decorate_root .magic-58{overflow:hidden;width:750px;height:827px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-59{margin-top:0;margin-left:0;width:750px;height:827px}#detail_decorate_root .magic-60{overflow:hidden;width:750px;height:1052px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-61{margin-top:0;margin-left:0;width:750px;height:1052px}#detail_decorate_root .magic-62{overflow:hidden;width:750px;height:687px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-63{margin-top:0;margin-left:0;width:750px;height:687px}
Customer Customization Case

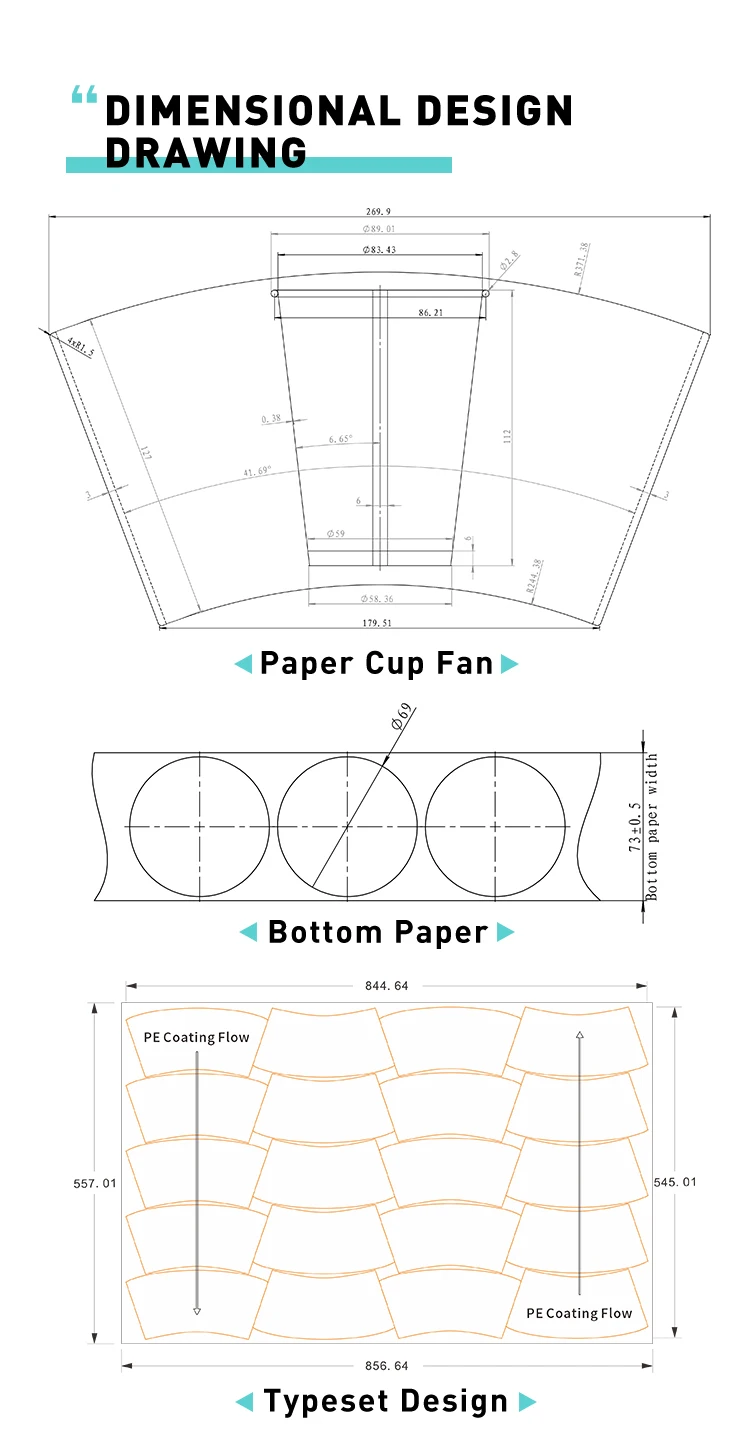

Dimensional Design Drawing
First, engineers design the
paper cup fan and
bottom paper drawings according to customer samples, and then draw the
typeset design drawings.

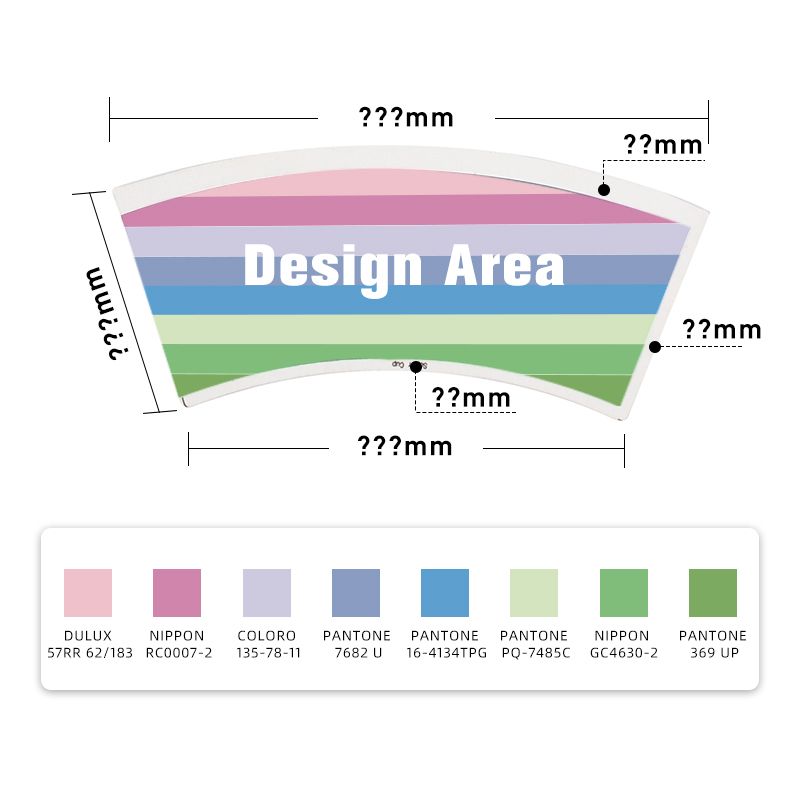

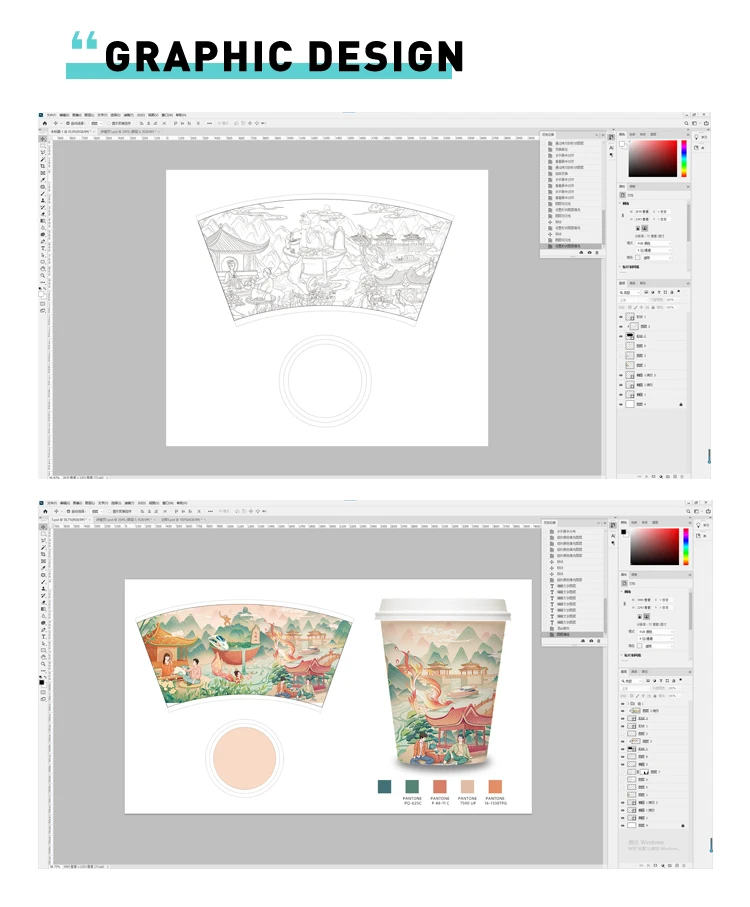

Graphic Design

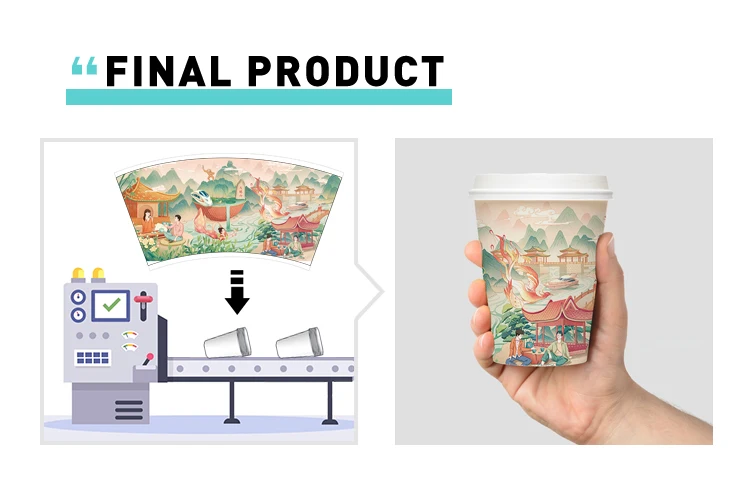

Final Product
Once the design is completed, we will produce a small number of samples for review and send physical samples or electronic sample drawings to ensure that the final design fully meets the customer's expectations.
Production And Quality Inspection

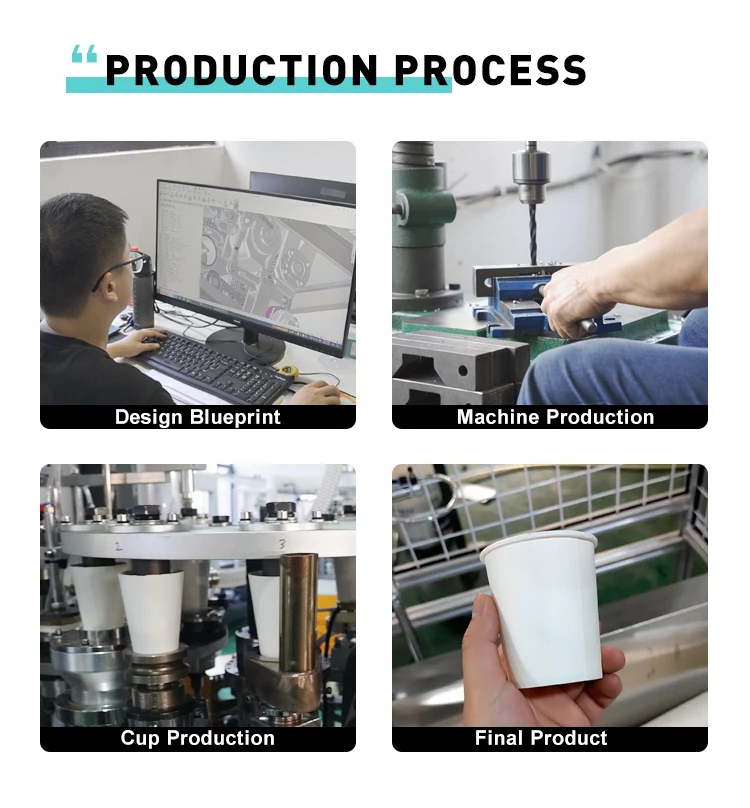

Production Process
• Design Blueprint: Develop a detailed blueprint of the cup machine according to customer needs.
• Machine Production: Manufacture, assemble and fully test the paper cup machine.
• Cup Production: Conduct small-scale trial production of paper cups after machine debugging.
• Final Product: Display the finished paper cup machine and paper cups, and conduct quality inspection.
• Machine Production: Manufacture, assemble and fully test the paper cup machine.
• Cup Production: Conduct small-scale trial production of paper cups after machine debugging.
• Final Product: Display the finished paper cup machine and paper cups, and conduct quality inspection.

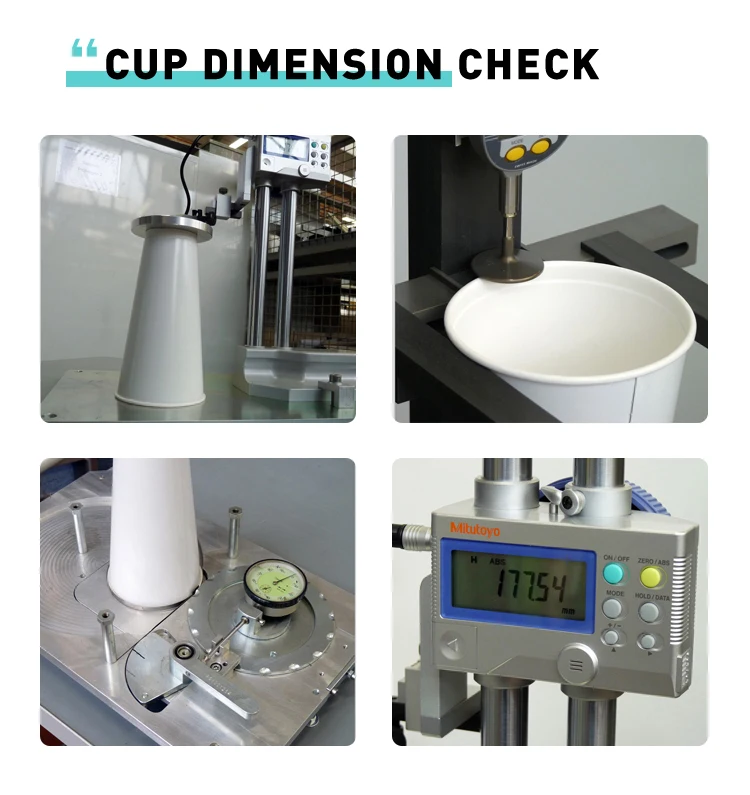

Cup Dimension Check
We perform detailed
dimensional measurements on the produced paper cups to verify the accuracy of the paper cup machine and ensure that the dimensions of the paper cups meet the requirements without significant deviation.

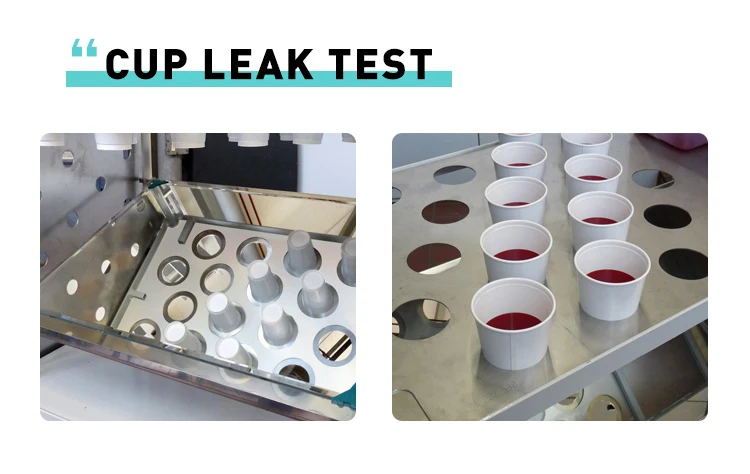

Cup Leak Test
We conduct rigorous
leak tests on paper cups, observe the bottom seal effect through mirrors, and test multiple paper cups to ensure sealing performance and durability.
Consultation And Recommendation

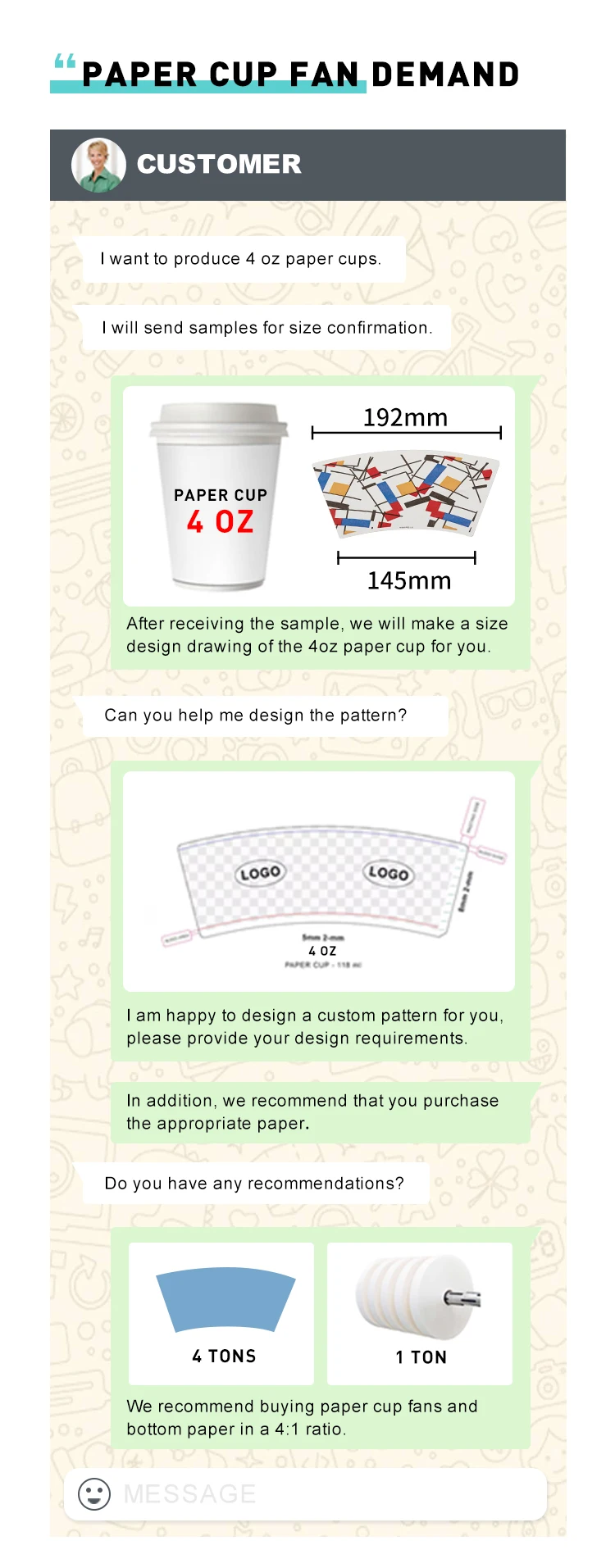

Paper Cup Fan Demand
The
customer needs a paper cup fan for a
4-ounce paper cup and will
send samples so that we can make an accurate size design. At the same time, he wants us to
design the pattern of the paper cup fan.
We recommend that the customer purchase the paper cup fan and the backing paper in a
4:1 ratio.
Paper Cup Machine Demand
The
customer needs a machine that can produce
4 to 16 ounce paper cups at a speed of about
100 cups/minute.
I suggest equipping it with a
cup collection table to better collect paper cups.

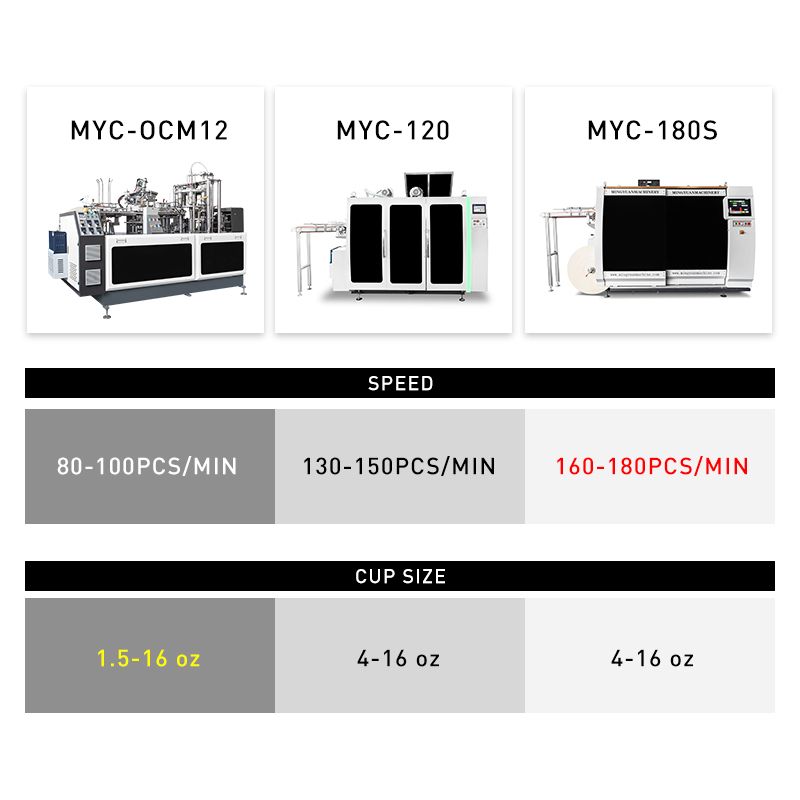

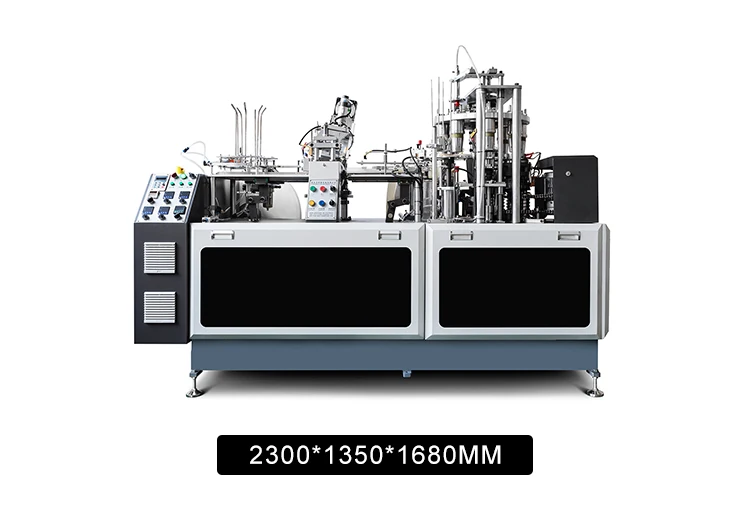

Model comparison
|
Model
|
MYC-OCM12 Simple Model
|
MYC-OCM100 Simple Model
|
||
|
Cup Side Welding
|
Ultrasonic Heater
|
|||
|
Paper Cup Size
|
1.5-16 oz（Mold exchangeable）
Max cup height：136mm
Max bottom width：80mm
|
1.5-9 oz（Mold exchangeable）
Max cup height：95mm
Max bottom width：65mm
|
||
|
Rated Speed
|
80-100pcs/min
|
90-100pcs/min
|
||
|
Raw Material
|
One or two side PE coated paper（popular for hot and cold drink cups）
|
|||
|
Suitable Paper Weight
|
140-350gsm
|
|||
|
Power Source
|
50/60HZ, 380V/220V（better use 380V, 3 phase）or special power requirement
|
|||
|
Total Power
|
6KW
|
|||
|
Total Weight
|
GW/NW：2000KG/1900KG
|
GW/NW：1600KG/1500KG
|
||
|
Working Air Source
|
Air pressure：0.4Mpa；
Air out-put：0.6m 3/minute；
Need to buy air compressor（by user）
|
|||
|
Cup Bottom Heating
|
1 side PE paper by heating knurlingï¼›
2 side PE paper by cool device（circle water）knurling
|
|||
|
OEM（Show Client Company Name In Machine Panel）is welcome in our factory
|
||||

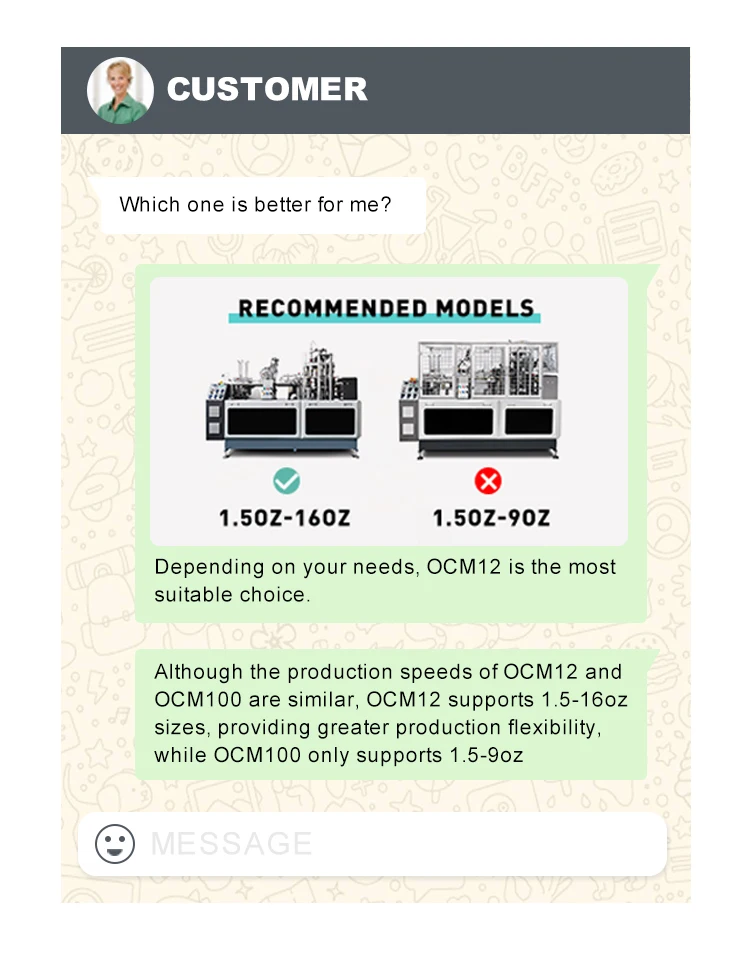

Recommended Models
According to customer needs, we recommend two paper cup machines: OCM12 and OCM100. Although the speeds of the two machines are similar (about 100pcs/min),
OCM12 supports
1.5 -16 oz paper cups, while
OCM100 only supports
1.5 - 9 oz. Considering customer needs, it is recommended to choose OCM12.
Remind Customers
Although the OCM12 supports 4 -16 oz paper cups, each mold can only produce one size. To make a different size of paper cup, you need to change the mold or use another machine.
We will provide the best advice to help you decide whether to change the mold.
Paper Cup Machine Purchase
We will arrange a trial
machine demonstration to allow customers to intuitively understand the machine's operating effect, and provide an
operation guide that details the installation, commissioning, operation and maintenance steps.
If you are interested, please feel free to contact us for more details.
After-Sales Service
Order To Delivery
From order to delivery, the entire process takes about 25-30 days
Installation and commissioning
Our technical team can come to the factory for precise commissioning and provide on-site training for operators.
Paper cup customization

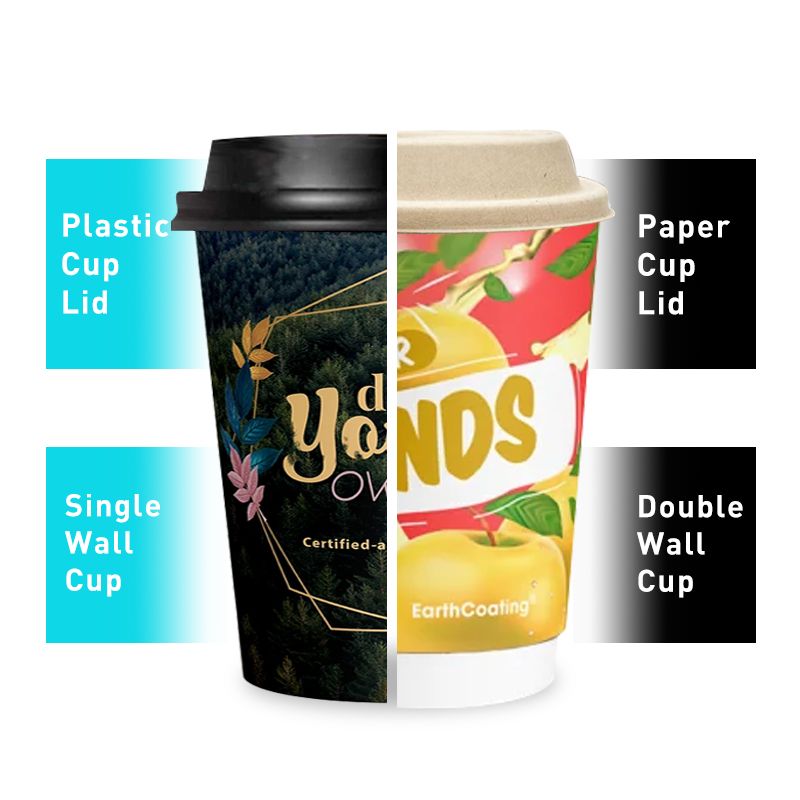

We provide customized paper cup services, from pattern design to brand logo, which can be customized on demand.
After-Sales Service
We provide customers with comprehensive after-sales services, including installation and commissioning services, operation training, two-year warranty, regular inspections, problem solving support and operation and maintenance manuals to ensure the efficient operation of the equipment throughout the process.
Company Strength
Our company
Henan Yugong Machinery Co., Ltd. is a large machinery manufacturing enterprise which focuses on research and development,production and sales of mining, tunnel construction, sandblasting equipment, road and bridge construction equipments and so on.Webelieves that good quality can give us survival, thus we only provide you top products. All the products with high quality meet international standards and are highly estimated by all clients at home and abroad. All the staff in our company are professionally trained, so we can recommend you the most appropriate equipment. Every machine will be strictly examined before delivery. Any question about the machine will be replied within 24 hours. Welcome you to be our new client!
FAQ
Q1. Are you trading company or manufacturer?
A:we are one of the leading manufacturer of the paper cup machine, Plastic lid machine, paper plate machine etc paper product machinery in China.
Q2. Do you have quality certificate?
A:we have got the ce certificate for our machine.
Q3. What's the delivery time?
A:Around 20~30 days, however, based on order.
Q4. where is your factory location?
A:we are locate in Henghe industrial zone, feiyun street, ruian city, zhejiang province, china. our nearest high way exit is feiyun, our nearest train station is ruian station, our nearest airport is wenzhou airport.
Q5.How does your factory do regarding quality control?
A:Quality is priority. Our Factory always attach great importance to quality controlling from the very beginning to the very end:
1).Skilful workers care every details in handling the producing and packing processes;
2).Quality Control Department specially responsible for quality checking in each process.
Q6. What terms of payment you usually use?
A:T/T 30% deposit and 70% before machine loading, Western Union, L/C at sight.
Q2. Do you have quality certificate?
A:we have got the ce certificate for our machine.
Q3. What's the delivery time?
A:Around 20~30 days, however, based on order.
Q4. where is your factory location?
A:we are locate in Henghe industrial zone, feiyun street, ruian city, zhejiang province, china. our nearest high way exit is feiyun, our nearest train station is ruian station, our nearest airport is wenzhou airport.
Q5.How does your factory do regarding quality control?
A:Quality is priority. Our Factory always attach great importance to quality controlling from the very beginning to the very end:
1).Skilful workers care every details in handling the producing and packing processes;
2).Quality Control Department specially responsible for quality checking in each process.
Q6. What terms of payment you usually use?
A:T/T 30% deposit and 70% before machine loading, Western Union, L/C at sight.
