G-Penny 1.5kw ER16 D=65mm Air Cooled Spindle Motor 110v/220v Wood Working Air Cooling 65x258mm 4pcs ball Bearings
Includes all taxes
Meet your Seller
-
$354.51Sold by BILLIONS BIRDS

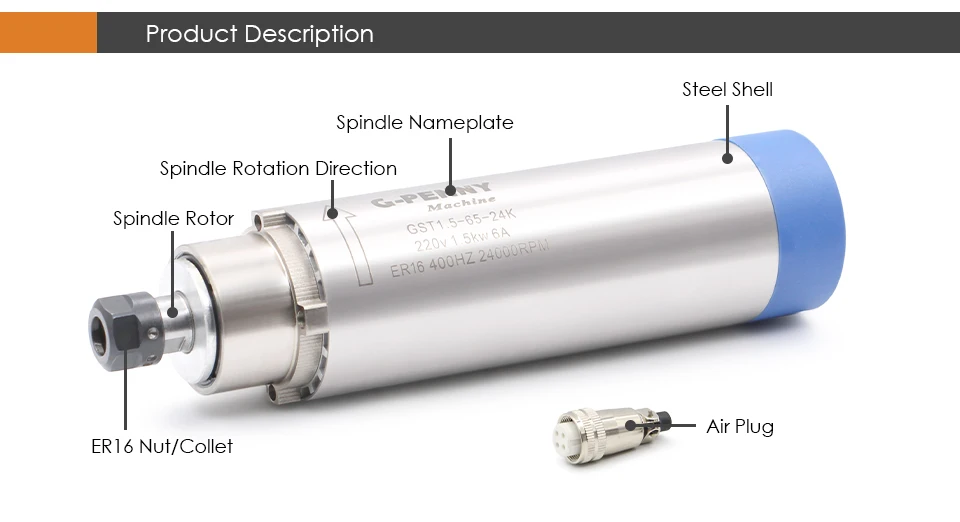

Description

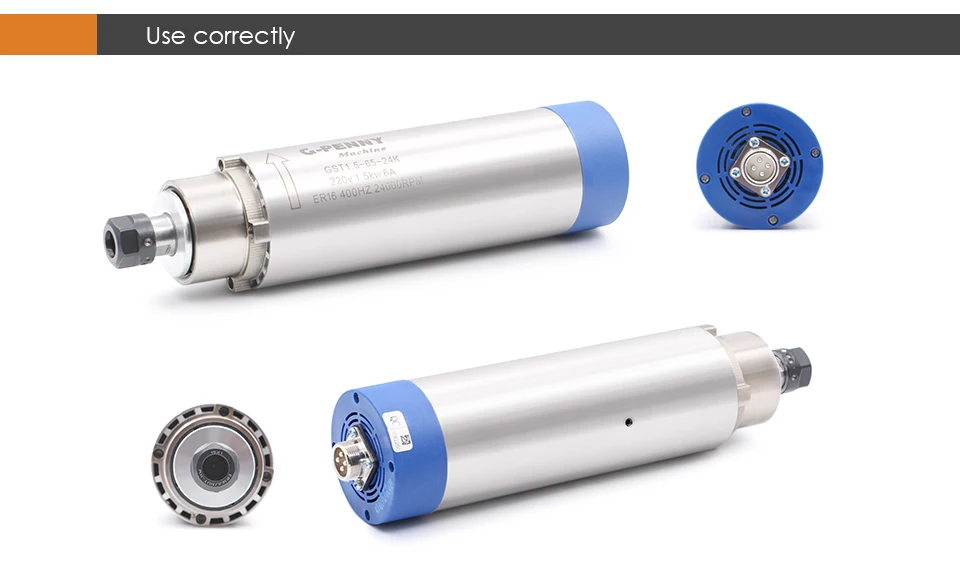

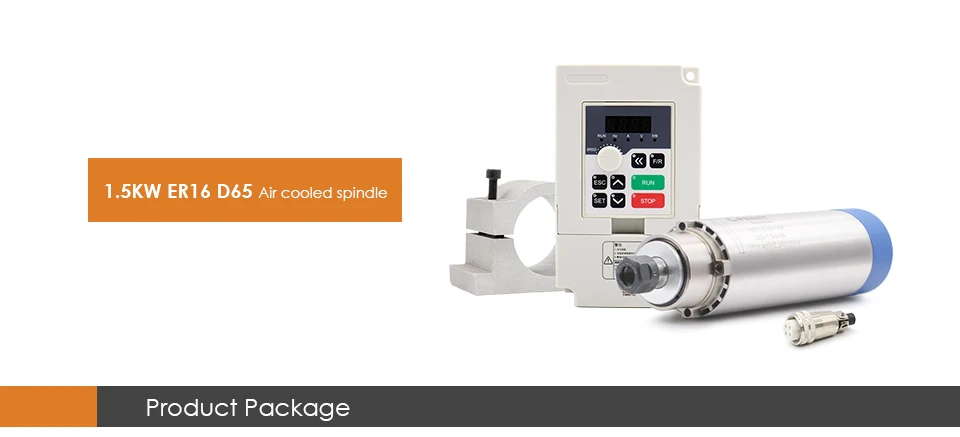

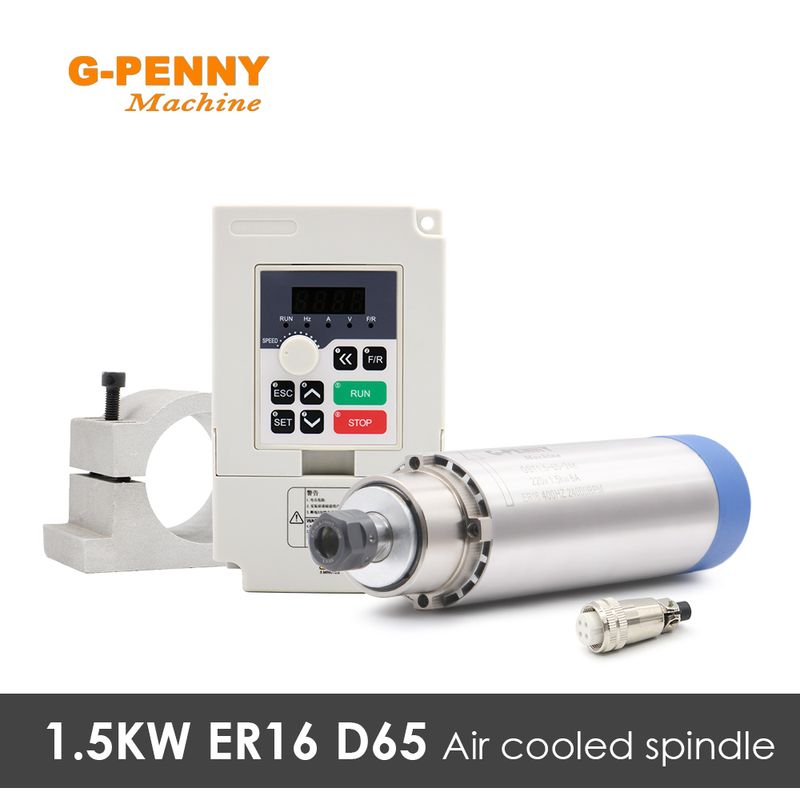

1 pcs & 1.5kw ER16 D=65 Air Cooled Spindle Motor Engraving Milling Grinding 65x258mm 4pcs Bearings
1 pcs & 1.5KW QL Inverter
1 pcs & 65mm Bracket

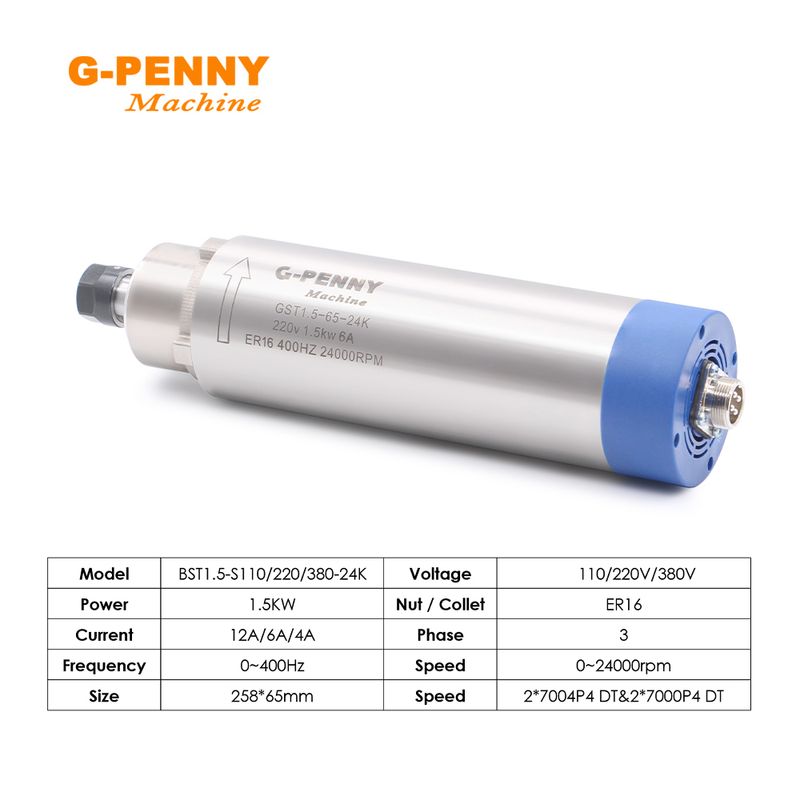

Basic parameter:

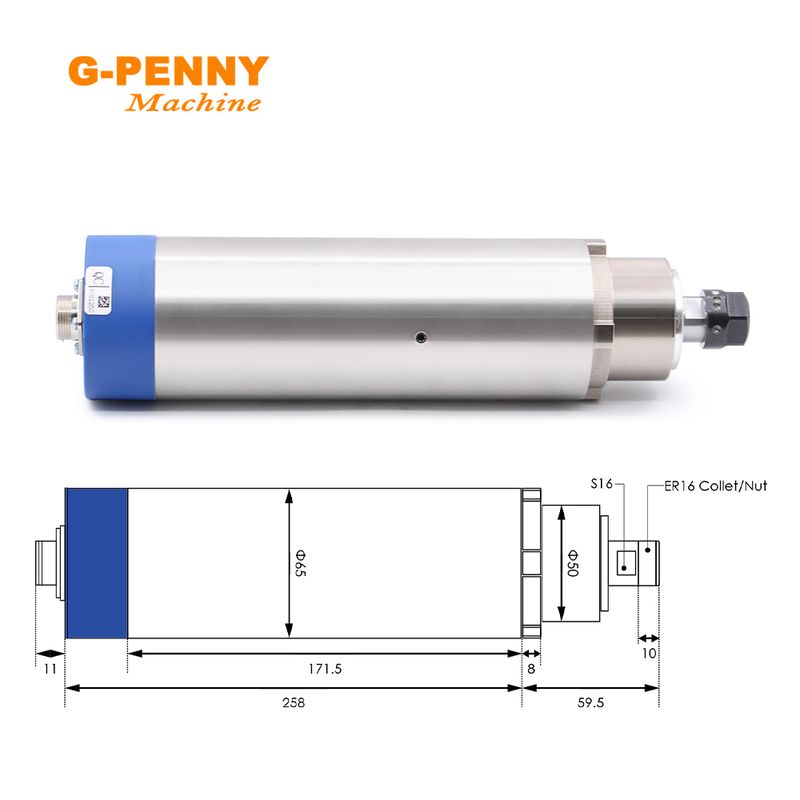

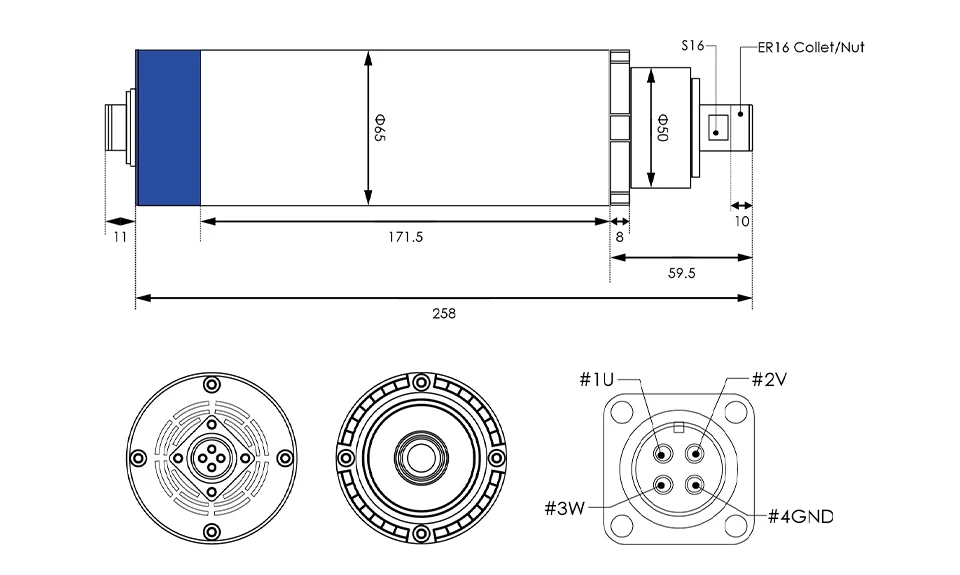

Size:65x258mm ( Body diameter:65mm; Length:258mm )

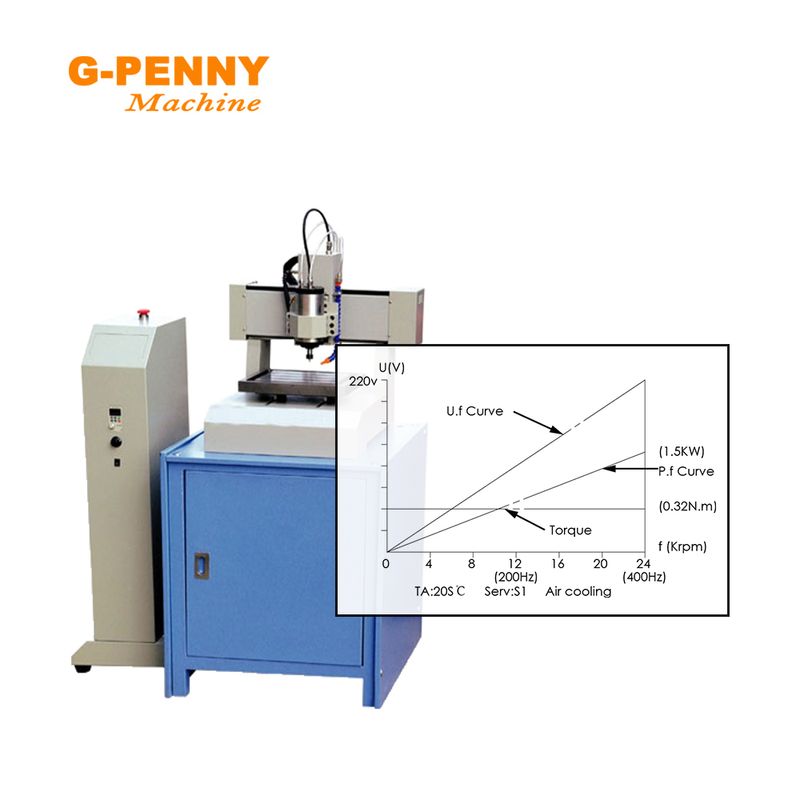

Speed Ways: Through 3-phase output inverter and adjust the inverter frequency to change the spindle speed.
Cooling: Air cooling

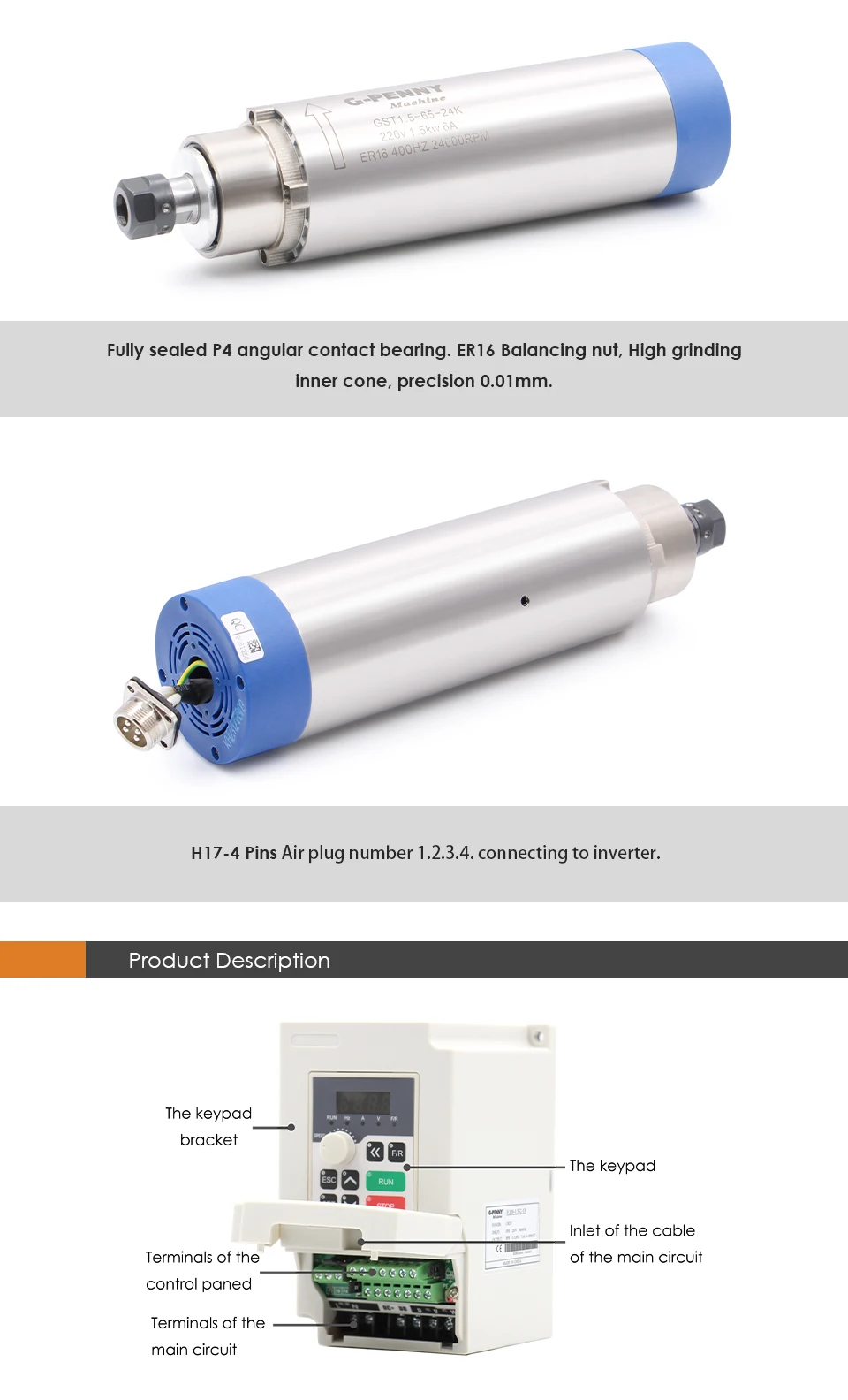

Power Interface: Optional H17-4 pins waterproof air plug. The air plug marked "1 ","2"," 3"," 4", "1 ","2 ","3" were connected to inverter (U, V, W), 4 connected inverter ground.(Pay attention! our spindle "4" connecting to GND,promised personal safety!!)
Power: 1.5kw (1HP=0.735kw)
Voltage: 110v/220v/380v
Frequency: 0-400Hz
Speed: 0-24000rpm
Runout Off: 0.01mm
4pcs full sealed P4 angular contact ball bearings
Bearing Type: 2×7004P4 DT& 2 ×7000P4 DT
Air Cooling ER16 collet chunk
Clip Knife diameter: 10mm,9mm,8mm,7mm,6.35mm,6mm,5mm,4mm,3.175mm,3mm,2mm,1mm
Grease Lubrication
Main Application: Engrave for wood,bamboo,normal PCB,PVC,PMMA,plastic,duotone board(ABS)and etc nonmetal, also can engrave on gold,silver,copper, aluminium,Pb etc soft metal surface working.(Please pay more attention, this is wood working spindle, only can used for wood working and aluminum working,please don't use it for steel. If you need steel working,please check the metal spindle,thank you!)
Advantage:
● P4 angular contact ball bearings ,2×7004P4 DT &2×7000P4 DT,increase spindle life.
● Air plug pin-4 connect to spindle body to ensure operator safety.
● Longer length make the torque bigger,more powerful.
● Carefull assembly make the spindle more precisional.
● Precision 0.01mm.Coaxial degree less than 0.0025mm
● Shipment within 4 days,promise the delivery time.
● We are the spindle manufacturer,we offer only best quality and best price to you.
Tip: The spindle size 65x258mm, ER16 spindle torque is greater than the other brands. Quality is very good.

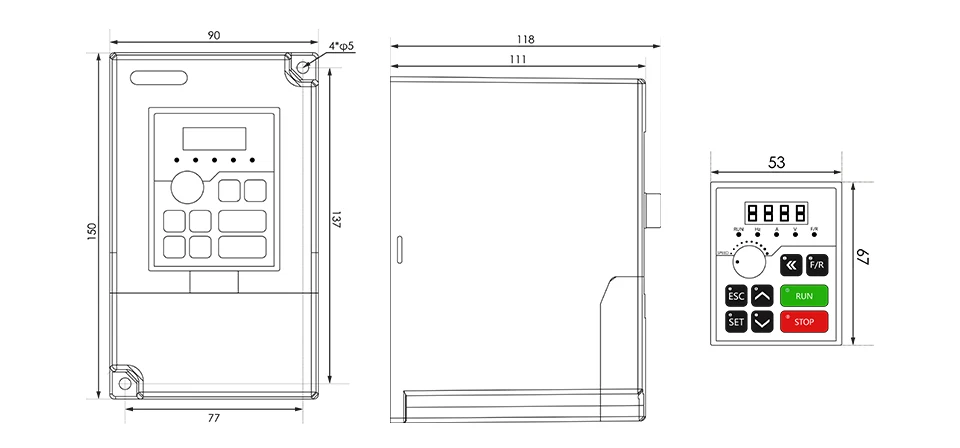

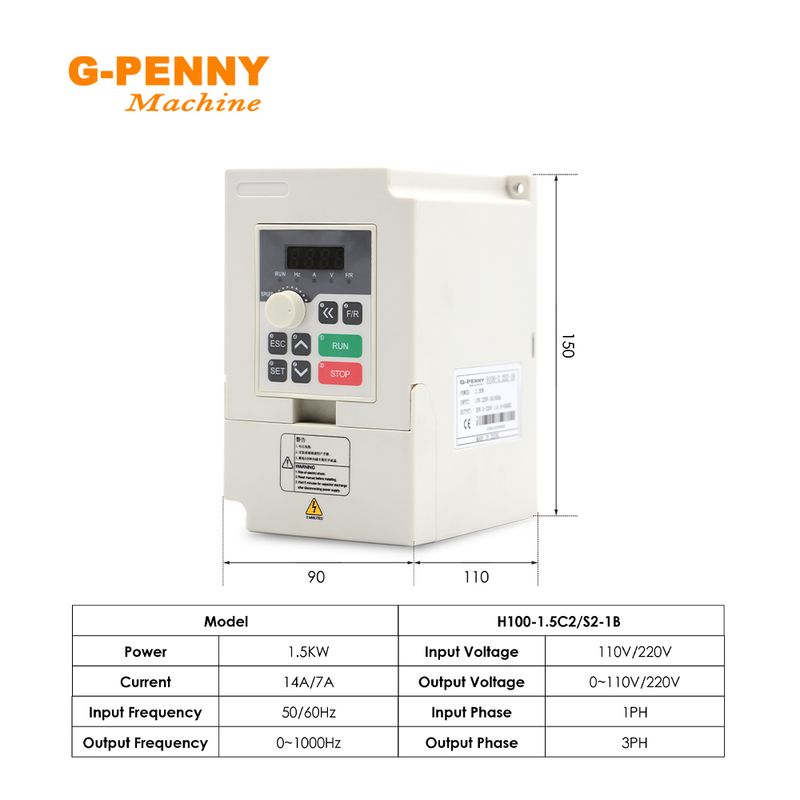

Power: 1.5KW
Input Voltage: 110v/220v
Curent: 14A(110V) / 7A(220V)
Output Voltage: 0~110v/220v
Input Frequency: 50/60 Hz
Output Frequency: 0-1000 Hz
Input Phase: 1 phase
Output Phase: 3 phase
Warranty: 1 year from the date you purchased
Features:
1. The outer plastic shell of the inverter is made of ABS flame retardant raw material, which is flame retardant and not easy to break.
2. The inverter cooling fan is a domestic first-line brand Huaxia Hengtai, the air volume is more than 20% higher than that of ordinary fans, and the service life is more than 5 years.
3. There is an independent cooling air duct inside the inverter, which can form an independent space and effectively prevent dust, water mist, etc. from entering the circuit board.
4. With MODBUS485 communication function, built-in braking unit.
5. Built-in PID setting, speed tracking, multi-function relay output, multiple fault protection, multiple state feedback torque control, analog setting.
6. The capacitor brand used in the inverter is Taiwan loose control, the temperature resistance is 105 degrees, and the temperature resistance of ordinary capacitors is 80 degrees.
7. The maximum output frequency of the inverter can reach 1000HZ,
8. Currently has CE certificate, CSA certification program has passed, in certification.
9. Heavy load and high torque, 1HZ can reach full torque.
10. Up to 16-stage speed control can be achieved.
DO NOTset up the inverter by yourself if you don't know how to, or it will make both the spindle and inverter burn easily.
Please contact us, we have manuals, videos and pictures to help you.

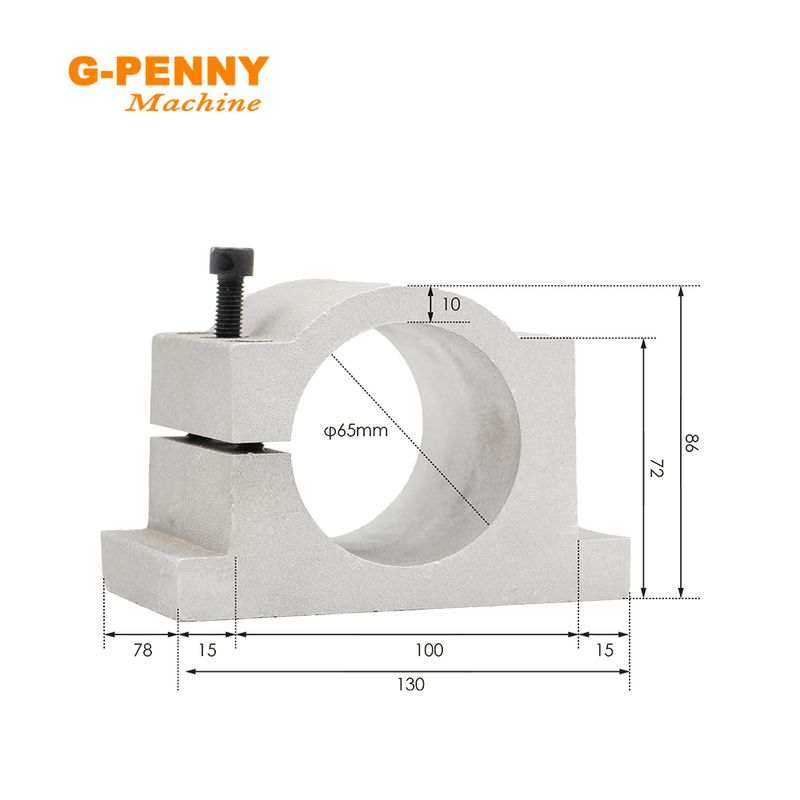

Basic parameter:
Diameter: 65mm
Material: Cast aluminium
Features:
● Compared with the aluminium profile fixture,the accuracy is much higher , and it is hard to deform.
● Inner wall is very smooth, outer walls is sandblasted, relatively fine uniform, but not very smooth,.
● Cast aluminium fixture is much heavier than aluminium profile fixture.
● Spindle working environment temperature is usually -10 ~ 40 .
● Before installing the first electric spindle axis head turned by hand, should feel flexible, non-blocking phenomenon.
● Spindle in the preservation and transportation, high-speed grease inside the bearing state will change, customers should be running at low speed for 30 minutes. 3000 rpm and then follow the poor increase, run 20 minutes each. Spindle and the inverter should be working together. The inverter's specifications and parameter settings need match spindles parameter.(Because of high-speed grease inside the bearing state will change,when you get the spindle, maybe the noise sounds not normal.Please run it 30 minutes or even more, the noise will be normal.)

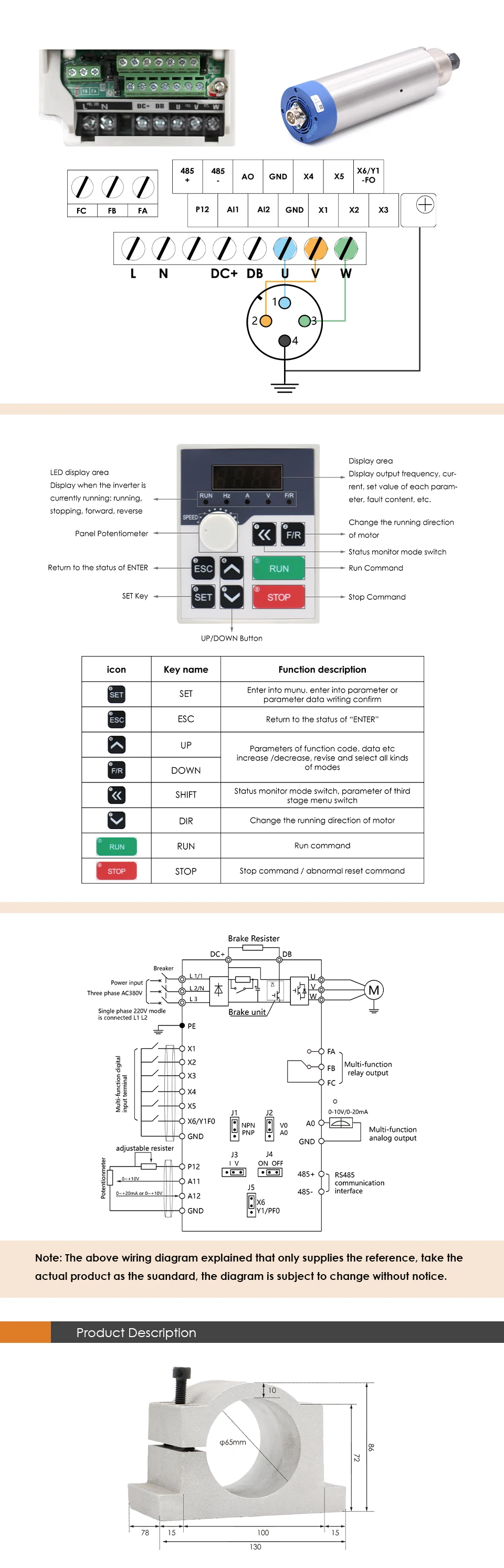

● Connect the inverter spindle, three-phase inverter power cord should be soldered in the plug 1 (U), 2 (V), 3 (W) feet, 4 feet for the ground. After the power is turned on, to observe whether the spindle rotation axis indicates the direction consistent. If inconsistency should be immediately shut down, replace the inverter and spindle connected two wires of three-phase power supply.
● During normal operation, air-cooled spindle often encounter the phenomenon of heat, always check whether the air-cooled spindle housing and duct clogging dust.If clogging dust, to promptly clean up. If you do not clean up, it is easily to make the spindle burned.
● Every day before using the spindle must be running at low speed for 15-20 minutes. Clamping the cutters to spindle, collet nuts ,collets,cutters must be clean enough. Shank inserted into the collet must be greater than 15mm.

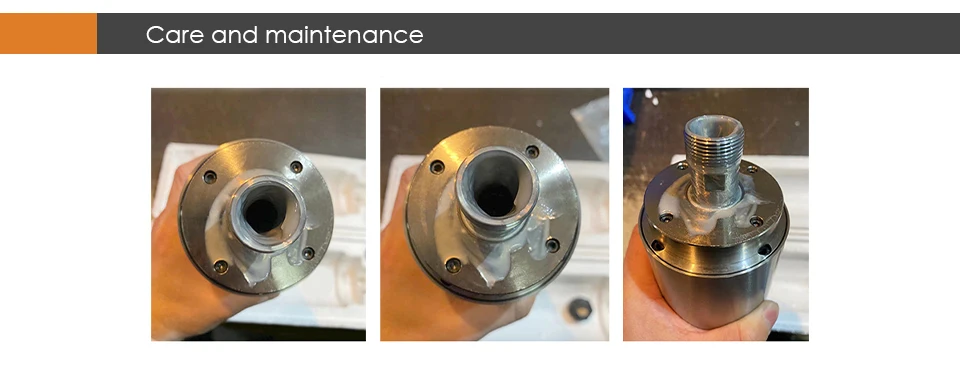

● If the spindle will not be used for a long time, please keep the spindle oil sealed to prevent rust from being unused for a long time.
● Before shipping , we did the oil seal to avoid the rust during the long shipment. When you get the spindle, please clearing the oil seal before using. Thank you.
● Water cooled spindleMUSTbe used with water pump. Otherwise the spindle will soon broken.
● AC spindle motorMUSTuse with inverter. The power of inverter need equal or bigger than the spindle power. Before using,please set up the inverter parameters suitable for spindle. Otherwise the spindle and inverter will broken at once.
● When you use the spindle,the noise is not same as always,pleaseSTOPthe spindle at once. You may need to replace the spindle bearings.
● If you don't know how to set up the inverter or connect the spindle to inverter,please contact us. We will help you to set up it.

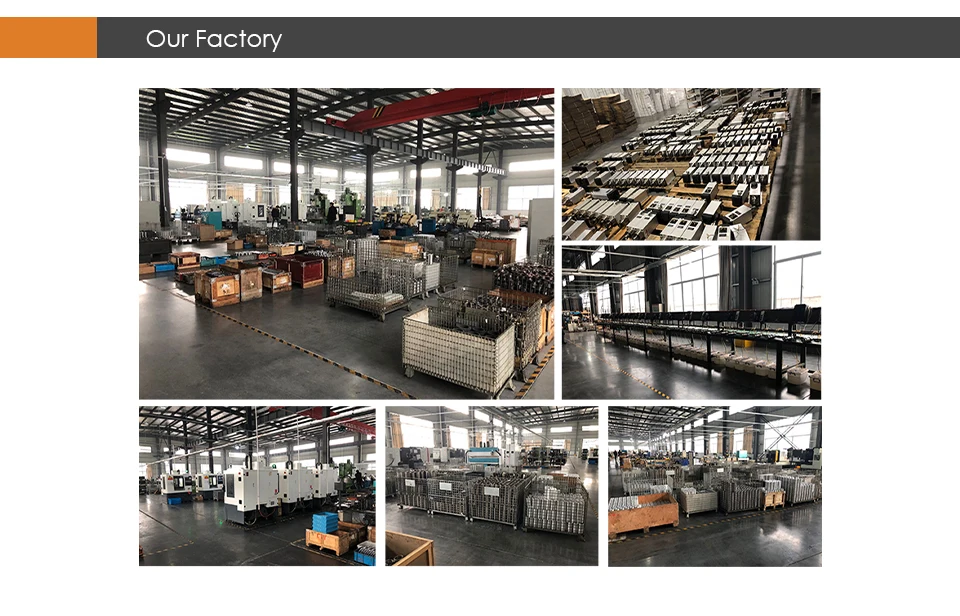

Spindle from the production - assembly - test, and finally the perfect packaging .
We will 100% guarantee security to the hands of the guests.
