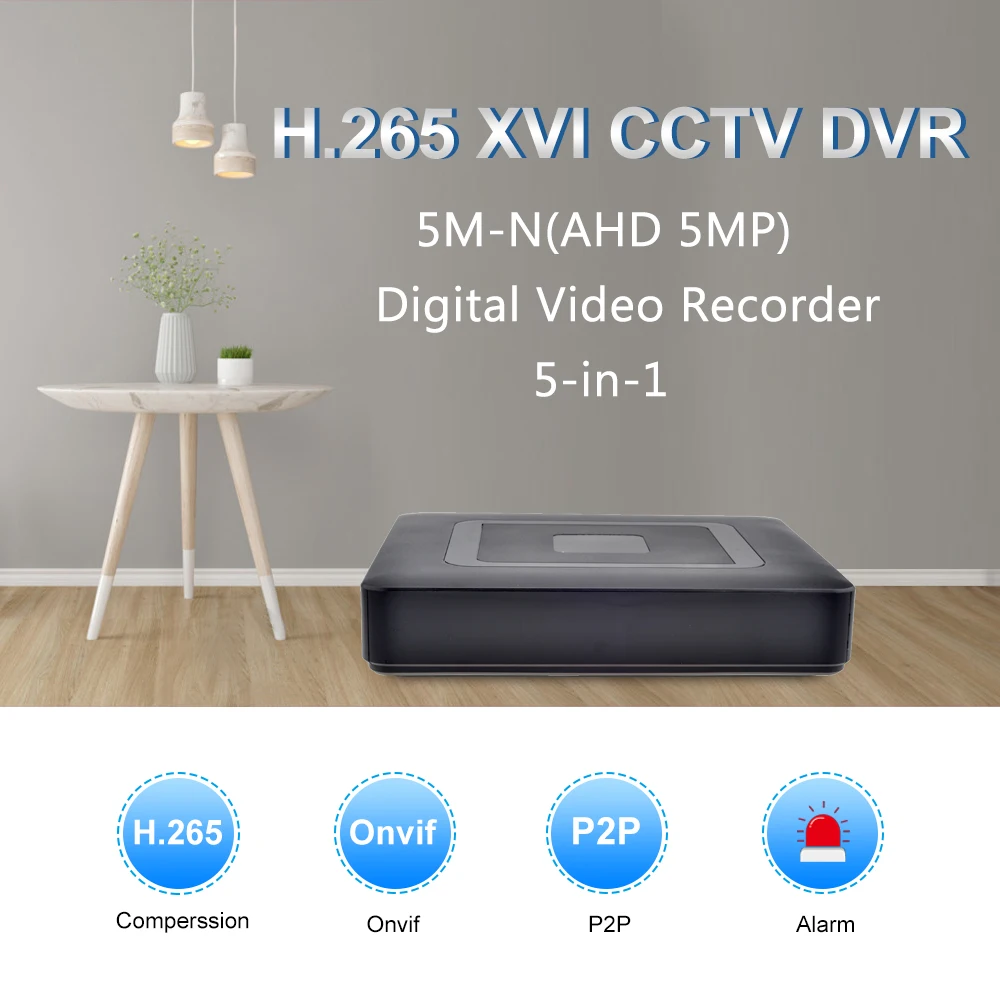

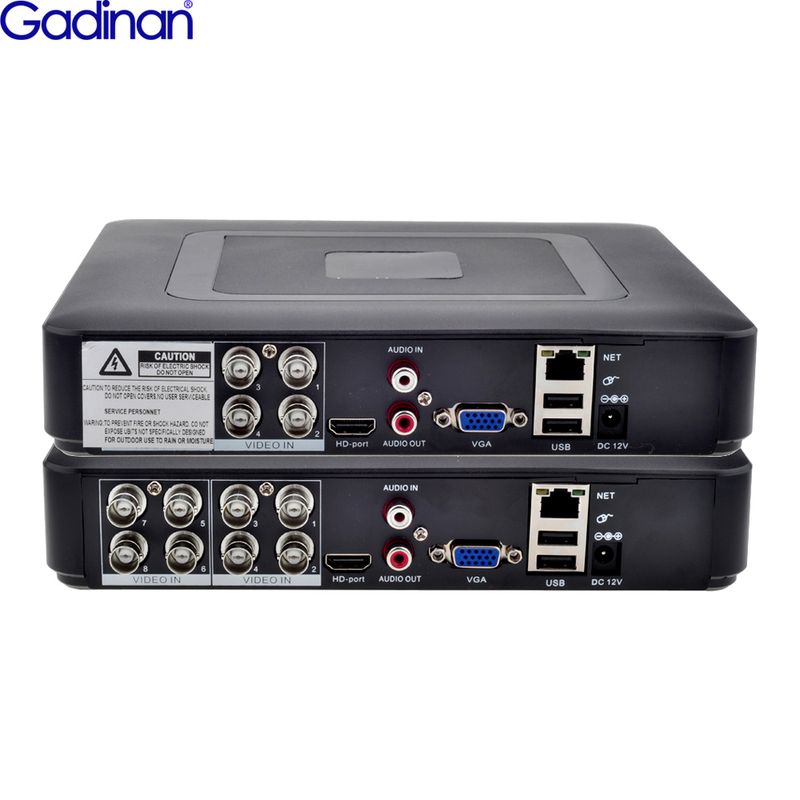

Gadinan Hybrid 4CH 8CH AHD 5MP Mini DVR H.265X XVR Video Recorder for Analog AHD Camera Camera HDMI Surveillance DVR

$107.84

Includes all taxes

Ships From
Build-in HDD
Video Input
Quantity
Meet your Seller
Delivery options
  • Ship Only

Description

Features
Support AHD 5MP/4MP/3MP/1080P/960P/720P series front-end real-time encoding;
Support VGA, HDMI HD output;
Support XM Cloud technology, easy to achieve a variety of network penetration, one step to remote monitoring, getting rid of various complicated network settings, easy and simple to operate;
Support various mobile monitoring:(IOS, Android).
Support multiple web browsers(IE,Chrome,Firefox,Safari);

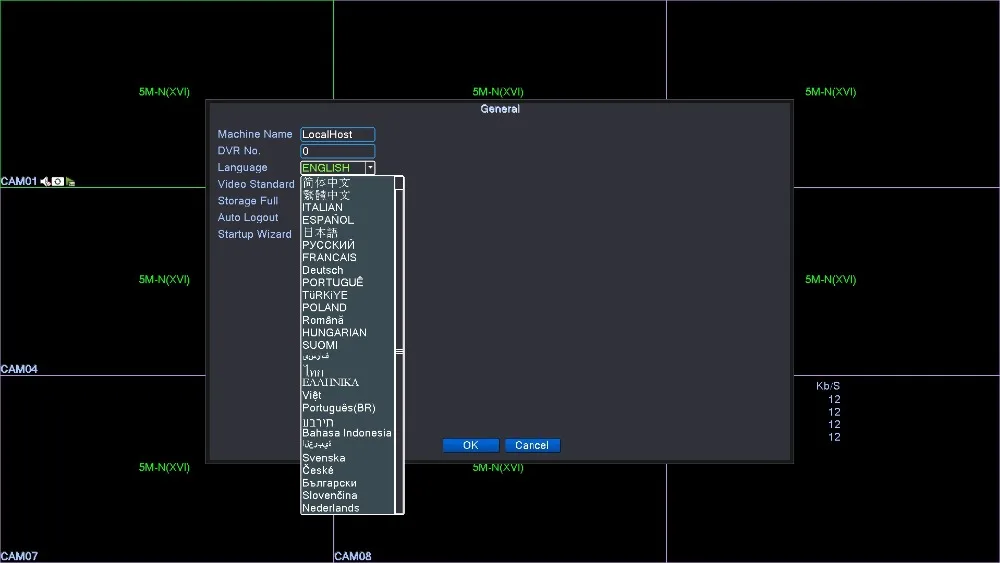

Support more than 20 languages(English, Finnish, French, German, Greek, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, Chinese, Traditional Chinese, Turkish, etc.), no nation boundaries;
perfect protection circuit, unique triple watchdog function
Supporting web, CMS, center platform management software MYEYE, provide SDK development.
Support XVI,image quality is better

4CH AHD-DVR Specification:

System

Main

Hi3520D V300











Video

Codec

H.265X

Monitor

VGA;HDMI

Preview

ability

4*5M-N@20fps(5 in 1);4*4M-N(5 in 1);

4*1080P(5 in 1)

Encode ability

4*5M-N@12fps(5 in 1);4*4M-N@15fps(5 in 1);

4*1080P@15fps(5 in 1)

Decode ability

2*5M-N@12fps(5 in 1);4*4M-N@15fps(5 in 1);

4*1080P@15fps (5 in 1)


Multi-mode input

analog:4*5M-N;

network:8*5M;


Motion Detection


Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel)


Audio

Audio

G.711A

Intercom

support



Record

Record mode

manual>alarm>motion detection>timing

Search mode

Search by time, calendar, event, channel

Video

HDD, network

Backup mode

Network, USB hard disk, USB burner, SATA burner






External Interface

Video input

4ch BNC

Video

1ch VGA, 1ch HDMI

Audio I/O

1/1

Alarm I/O

0/0

Network

RJ45 10M/100M self-adaption

Extension interface


2* USB 2.0 ports

HDD

1*SATA ports (Max 8TB/per)




General

Power

12V/2A

Working

environment

Temperature:0℃—+55℃,Humidity:10%—90%,Atm:86kpa—

106kpa

Dimension

255mm(length)* 225mm(width)* 45mm(height)


Weight

1KG


8CH AHD-DVR Specification:

System

Main processor

Hi3520DV400

Interface

Preview

1/4/8/9

Video

Codec

H.265+

Monitor quality

VGA(1080P at most);HDMI(1080P at most)

Preview ability

8*5M-N@12fps(6 in 1)/8*4M-N@15fps(6 in 1)/

8*1080P@15fps(6 in 1)/4*1080P(6 in 1)

Encode ability

8*5M-N@6fps(6 in 1)/8*4M-N@8fps(6 in 1)/

8*1080P@8fps(6 in 1)/4*1080P@18fps(6 in 1)

Decode ability

4*5M-N@6fps(6 in 1)/8*4M-N@8fps(6 in 1)/

8*1080P@8fps(6 in 1)/4*1080P@18fps(6 in 1)

Multi-mode input

Analog:8*5M-N;support Network:16*1080P;8*5M


Motion Detection

Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set

(Limited local channel)

Audio

Audio compression

G.711A

Intercom

support

Record & playback

Record mode

manual>alarm>motion detection>timing

Local Playback

4ch(analog input mode)

Search mode

Search by time, calendar, event, channel

Storage &

backup

Video storage

HDD, network

Backup mode

Network, USB hard disk, USB burner, SATA burner

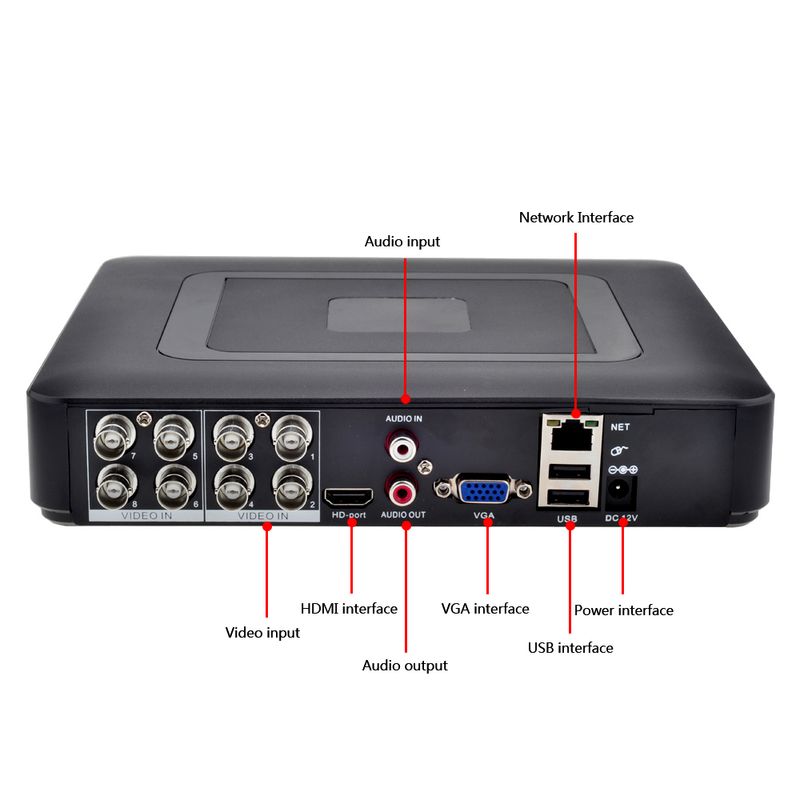

External Interface

Video input

8ch BNC

Video output

1ch VGA, 1ch HDMI

Loop Vout

N/A

Audio I/O

1/1

Alarm I/O

0/0

Network interface

RJ45 10M/100M self-adaption

PTZ control

Support kinds of PTZ protocols


USB

2* USB 2.0 ports

HDD

1*SATA ports (Max 8TB/per)

Wireless

3G, WIFI (extend via USB)

General

Power supply

12V/2A

Power Consumption

<15W (without HDD)

Working environment

Temperature:0℃—+55℃,Humidity:10%—90%,Atm:86kpa—106kpa

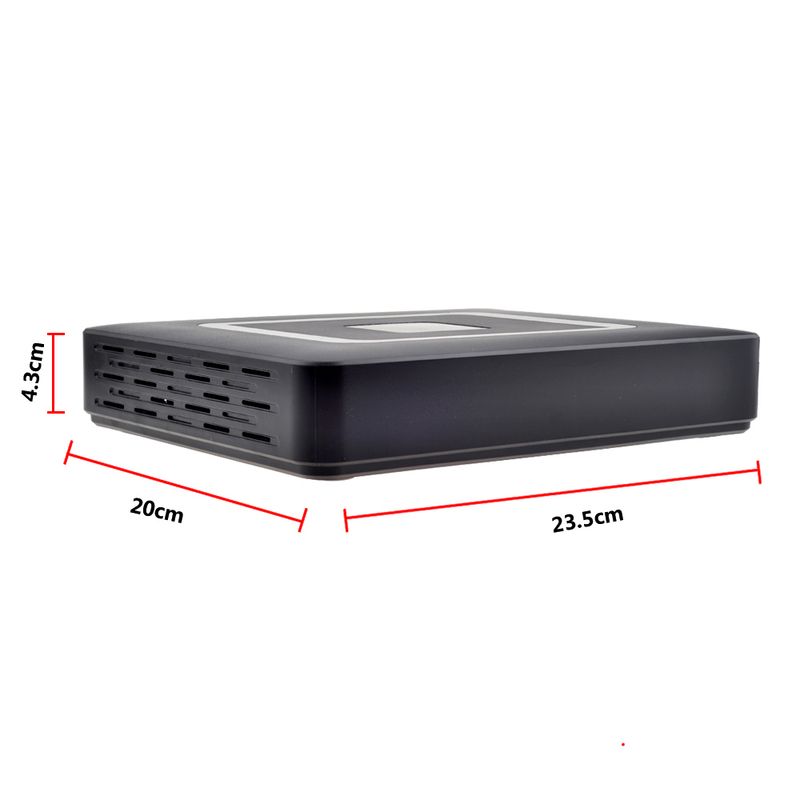

Dimension

255mm(length)* 225mm(width)* 45mm(height)

Weight

1KG

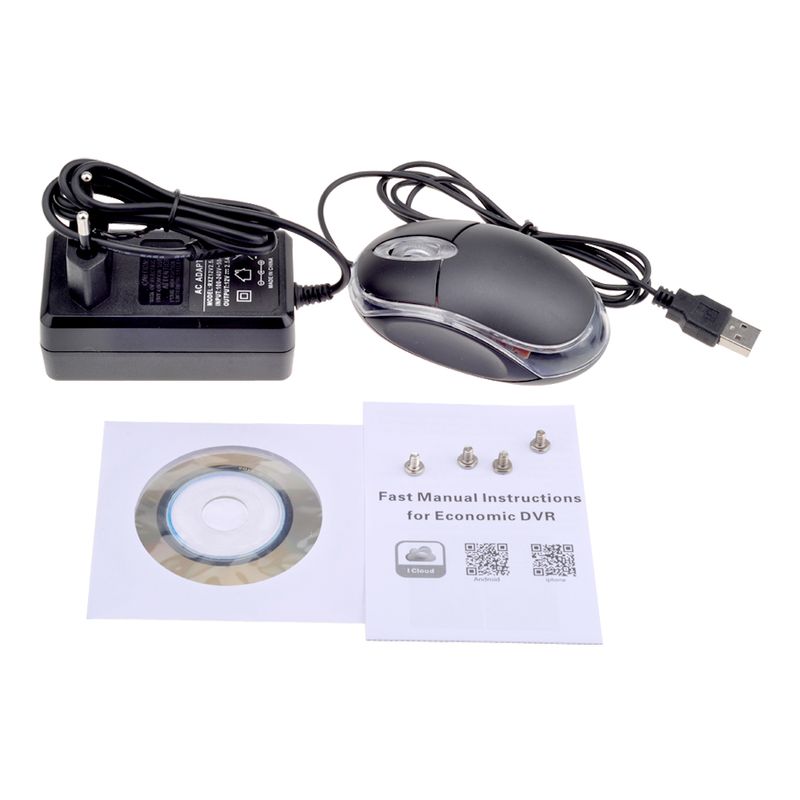

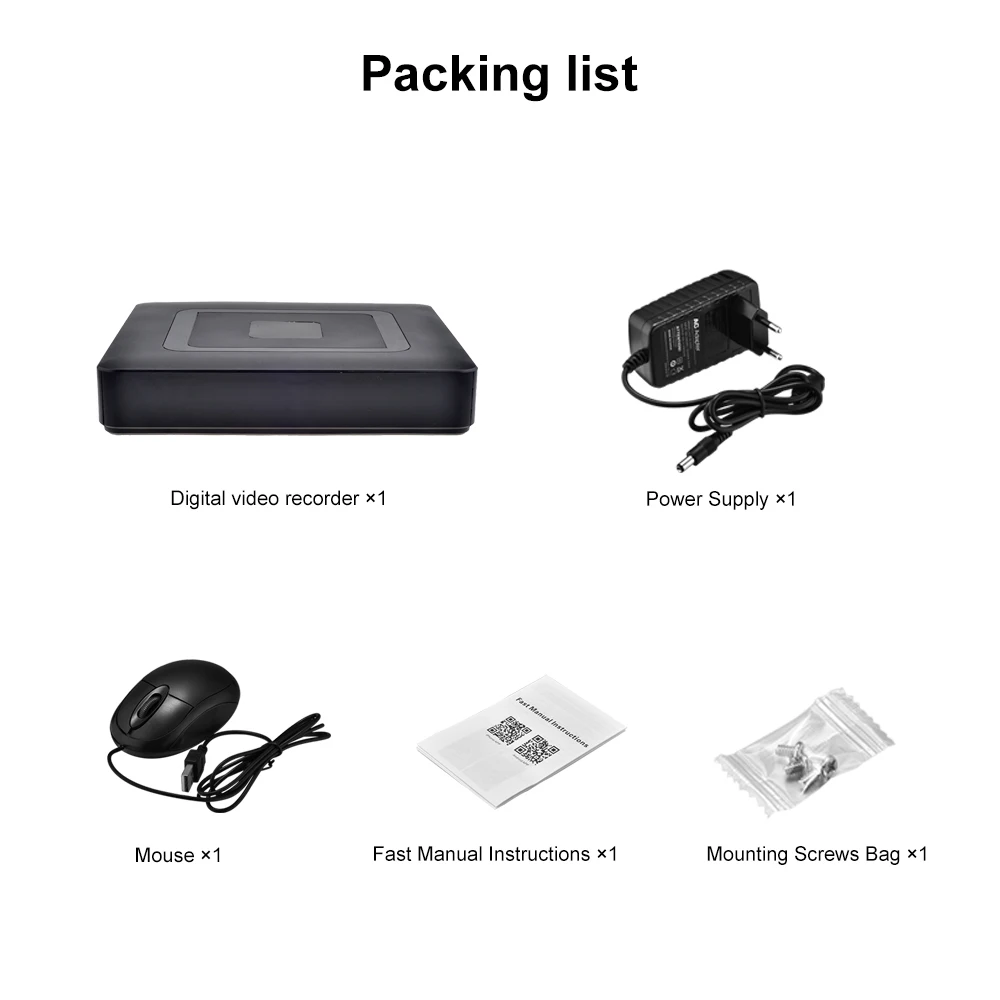

Package included:
1*AHD DVR
1*Mouse
1*Power Supply 12V 2A For AHD DVR
1*Usermanual

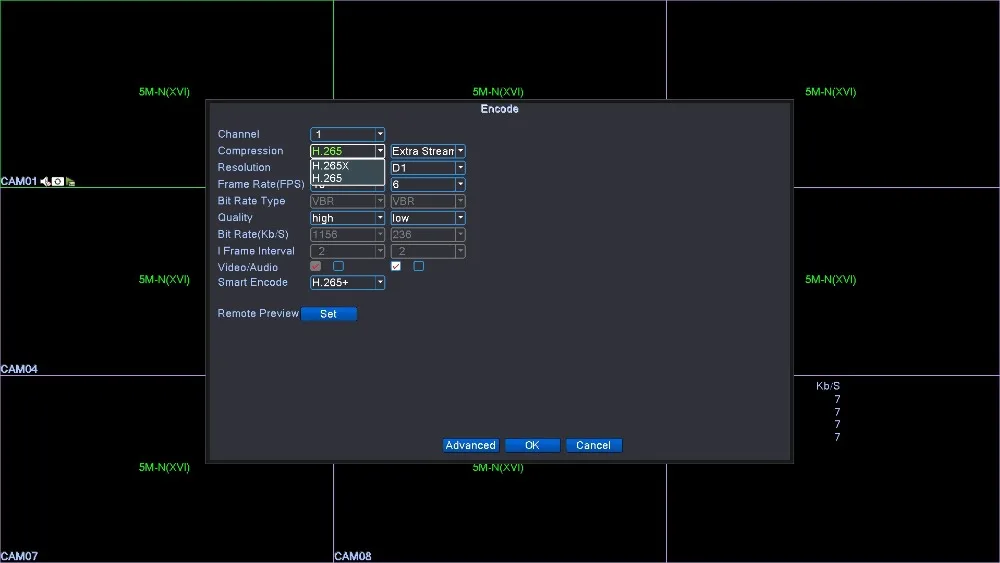

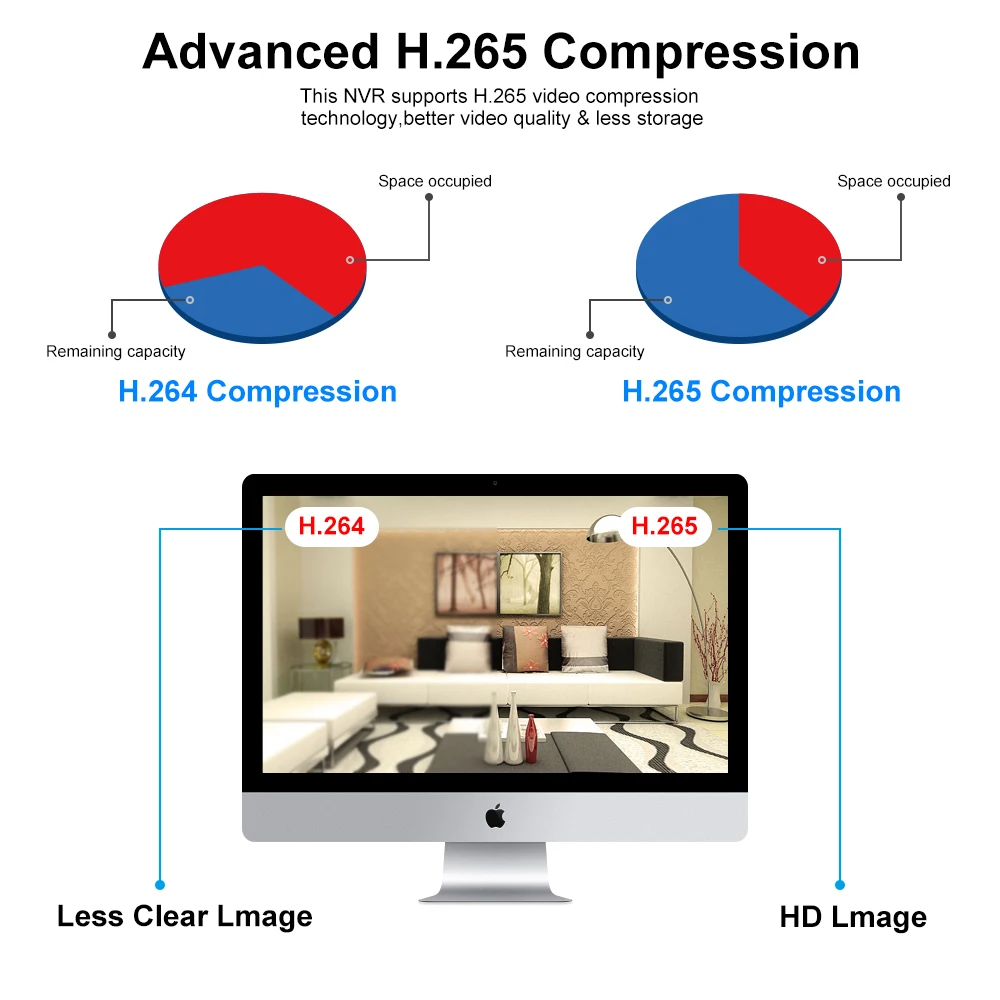

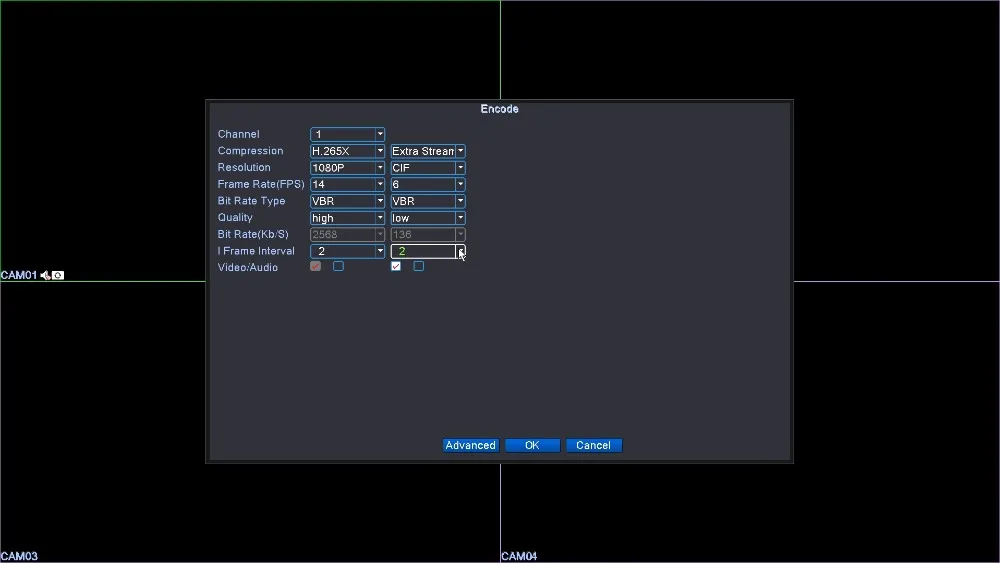

Advanced H.265x Compression

The NVR Support H.265x video compression technology,better video quality&lessstorage

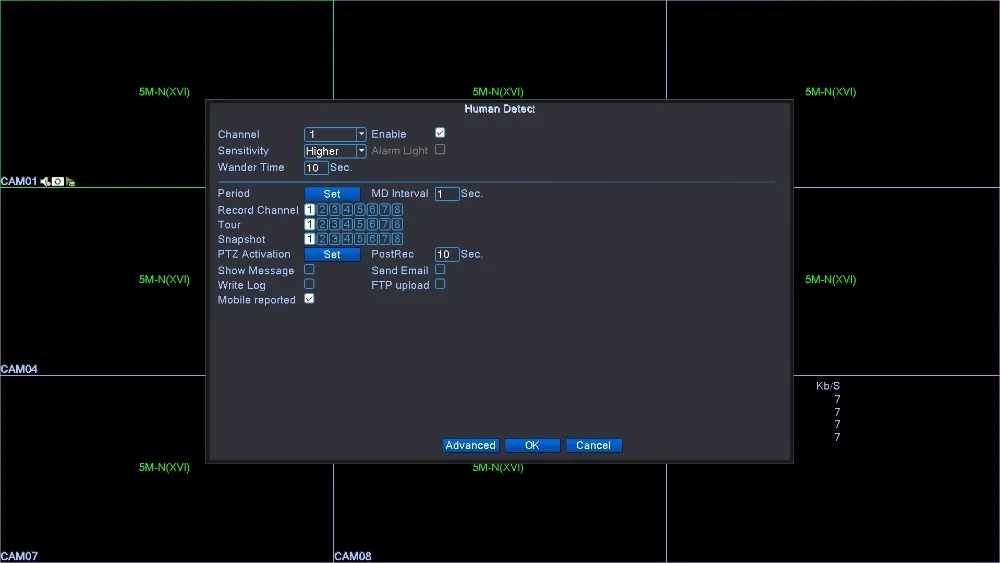

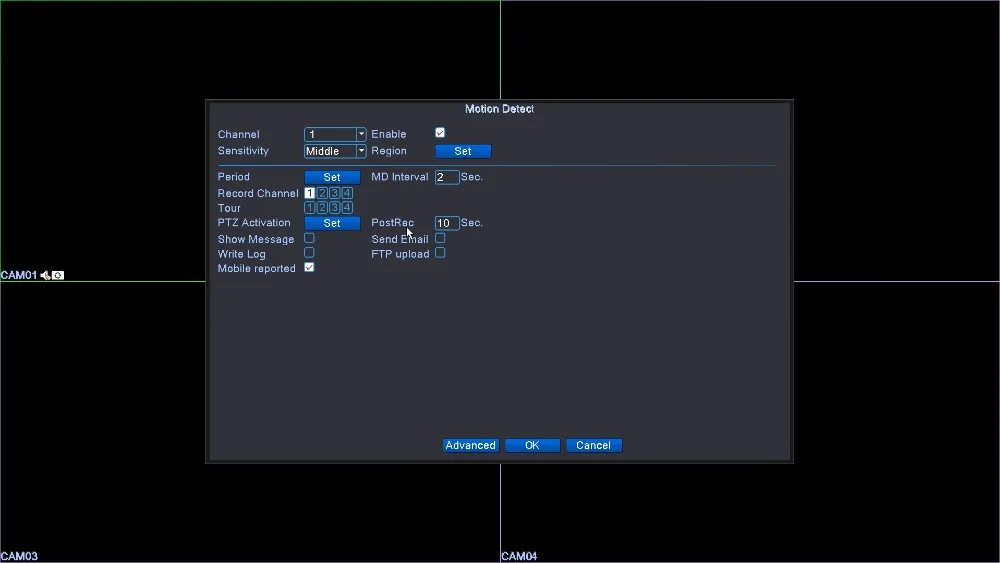

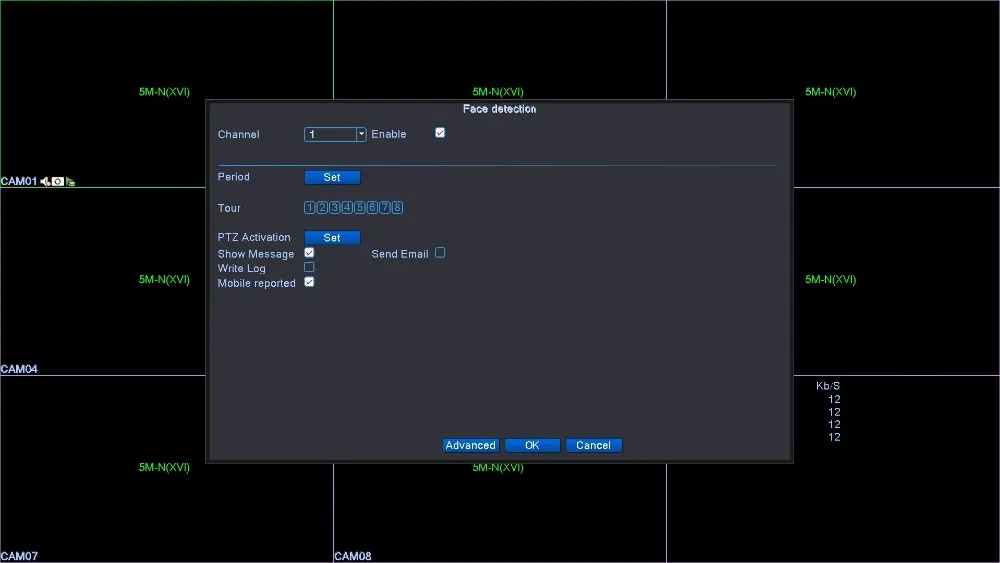

Motion Detection & Alarm Alert

When detect motion,the camera can push alarm message to APP or send photo to your email.Then you can check the details timely.

Multi Platform Access

Support Windowns PC,iPhone,Android mobile access

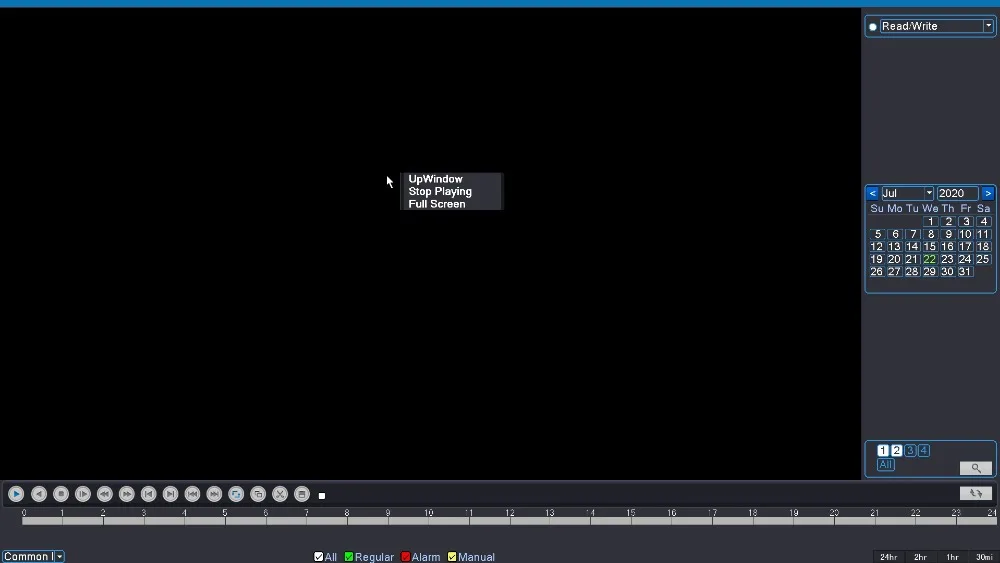

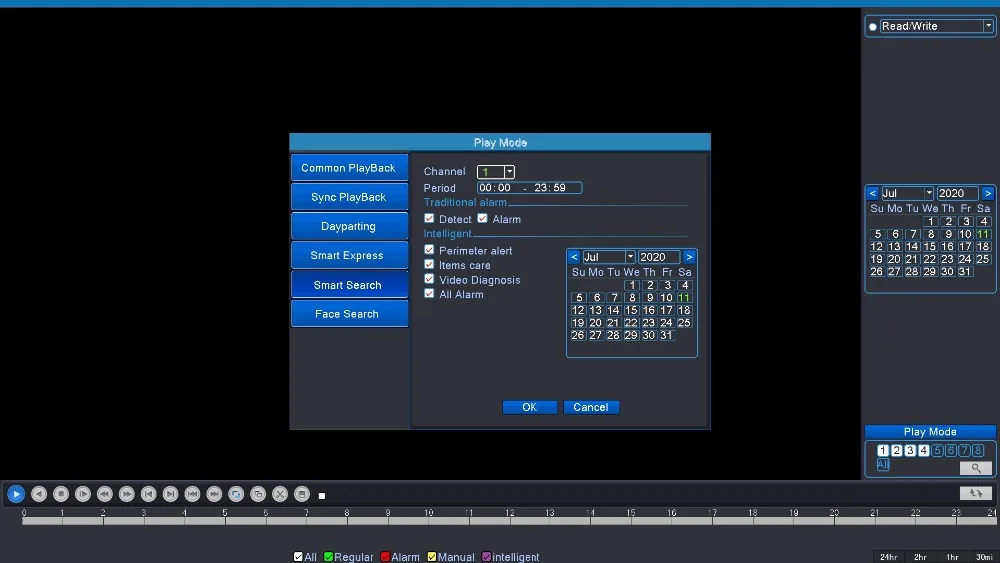

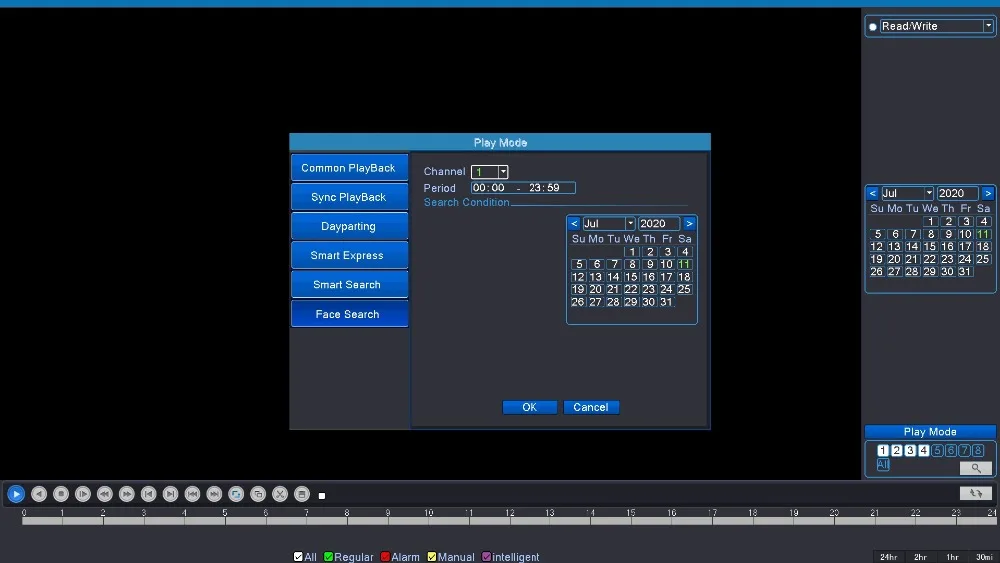

Real Time Recording and Playback

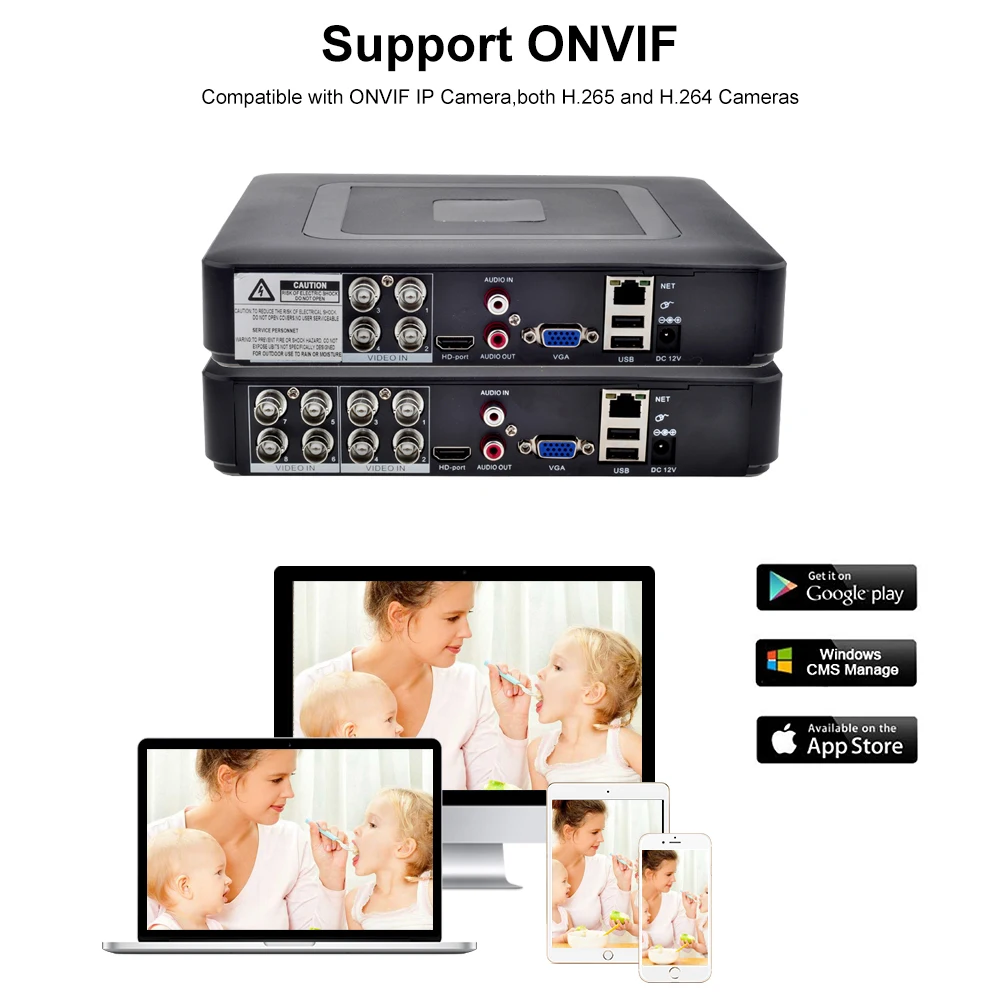

Support ONVF 2.0

Works with third party ONVF NVR and software,such as ONVF device manager,blue iris ,VLC and so on

Mobile Phone Setting

Easy setting , mobile phone viewing (Android and iPhone iOS)

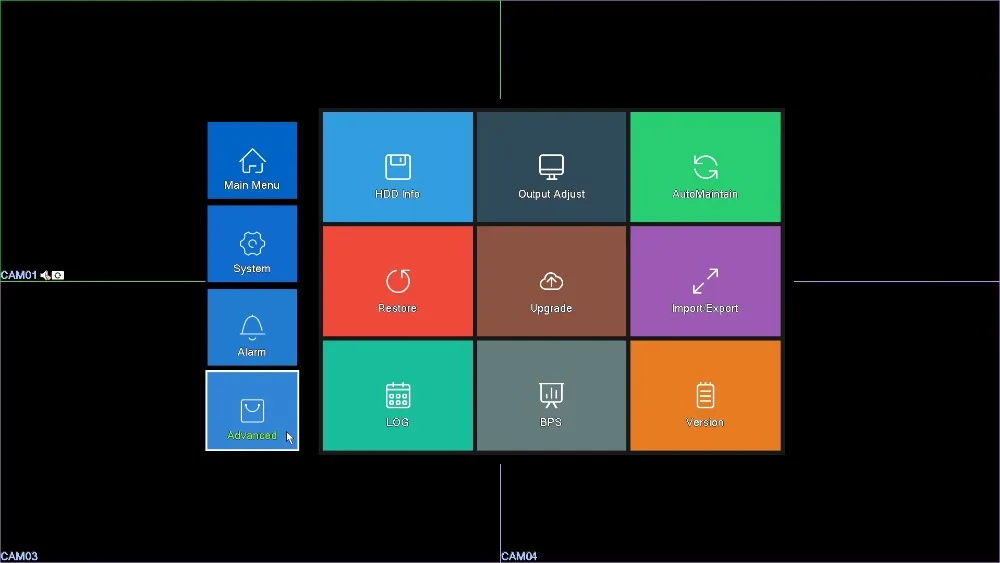

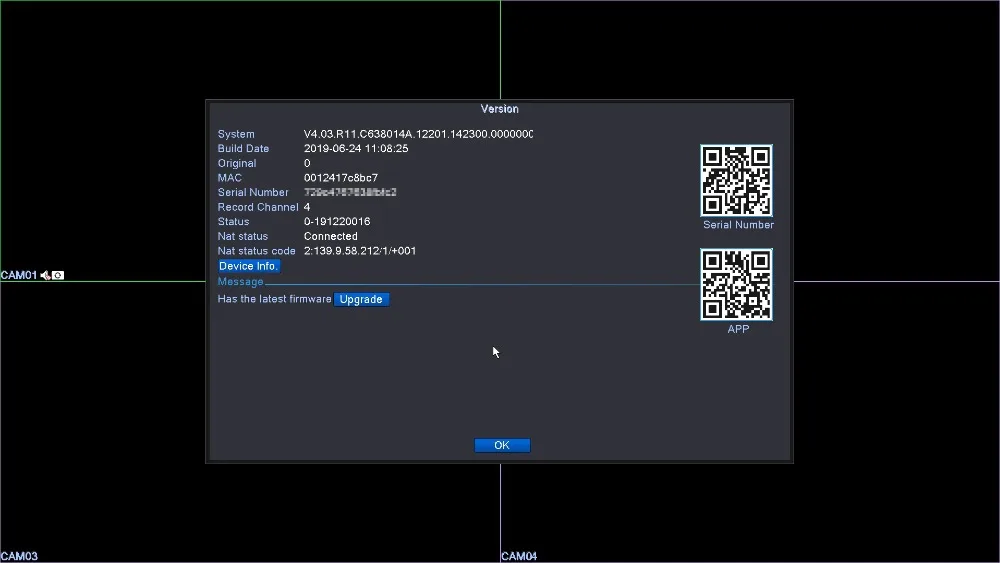

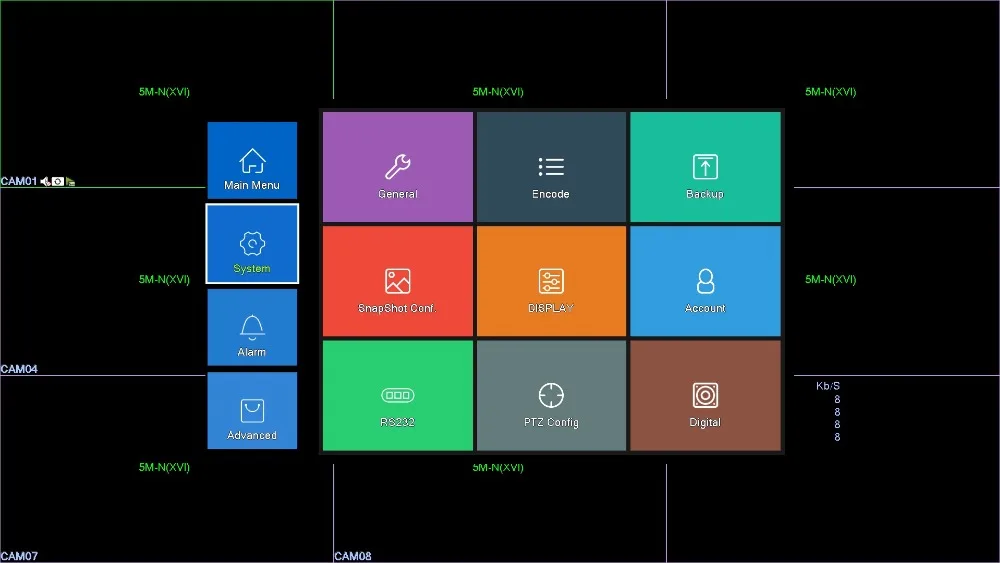

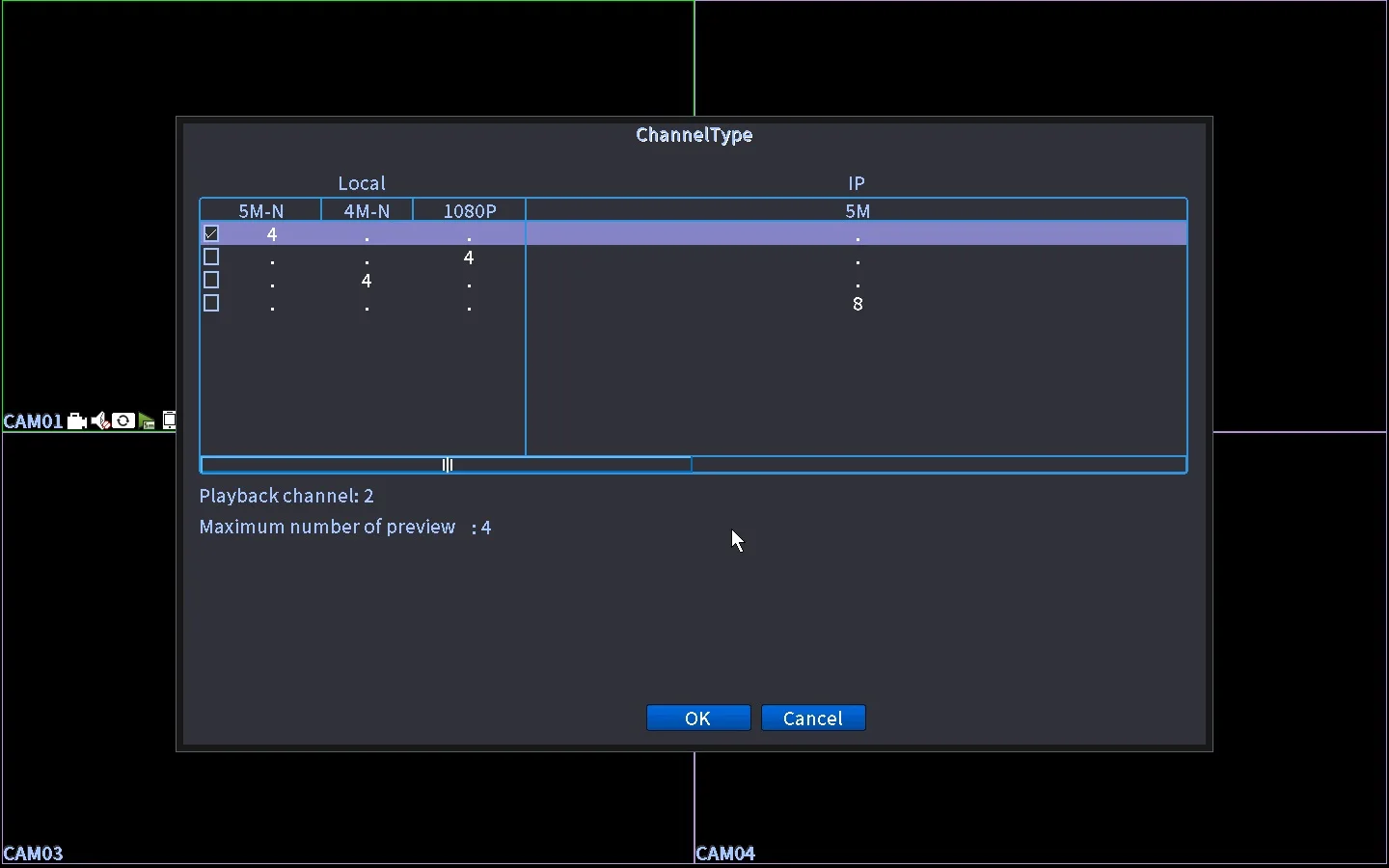

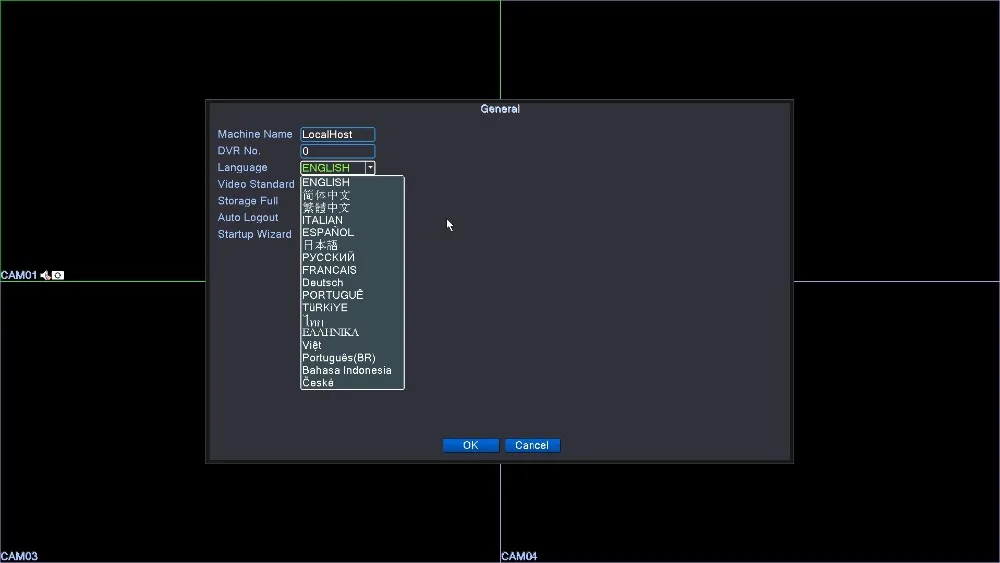

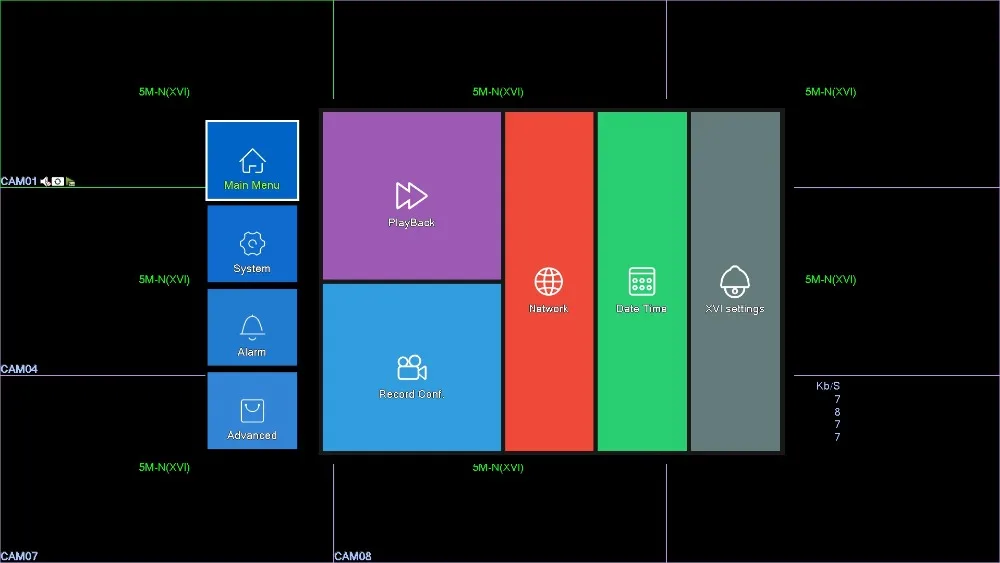

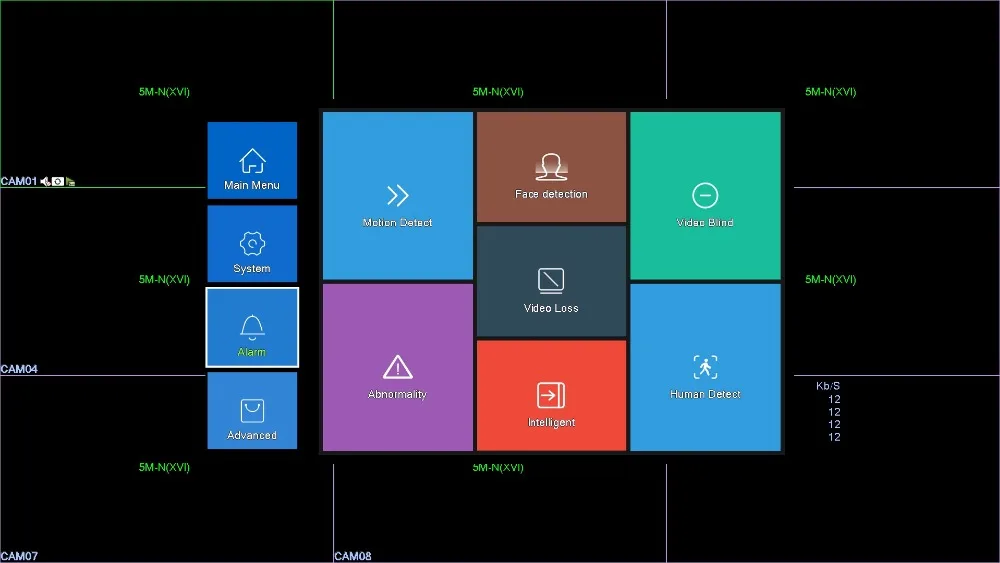

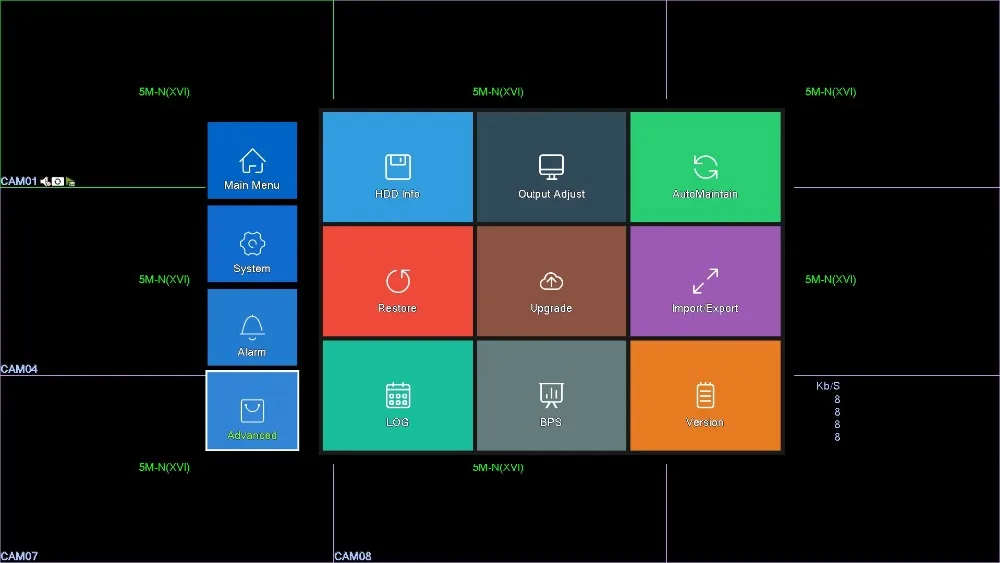

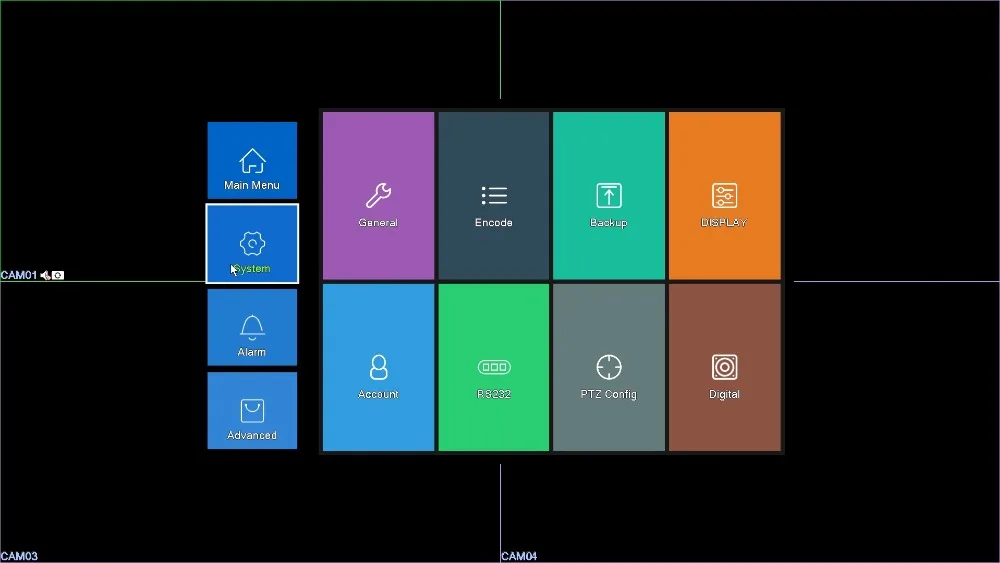

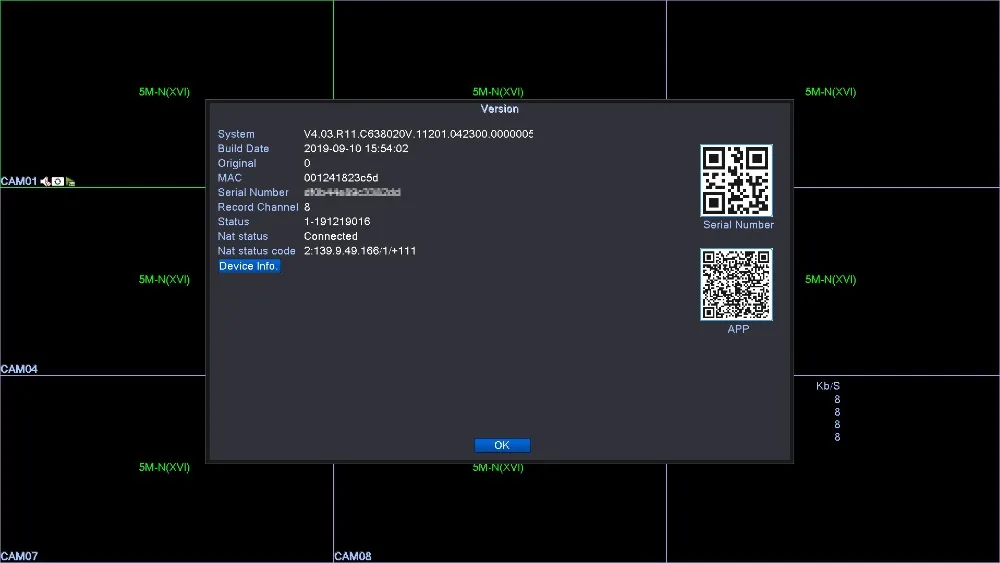

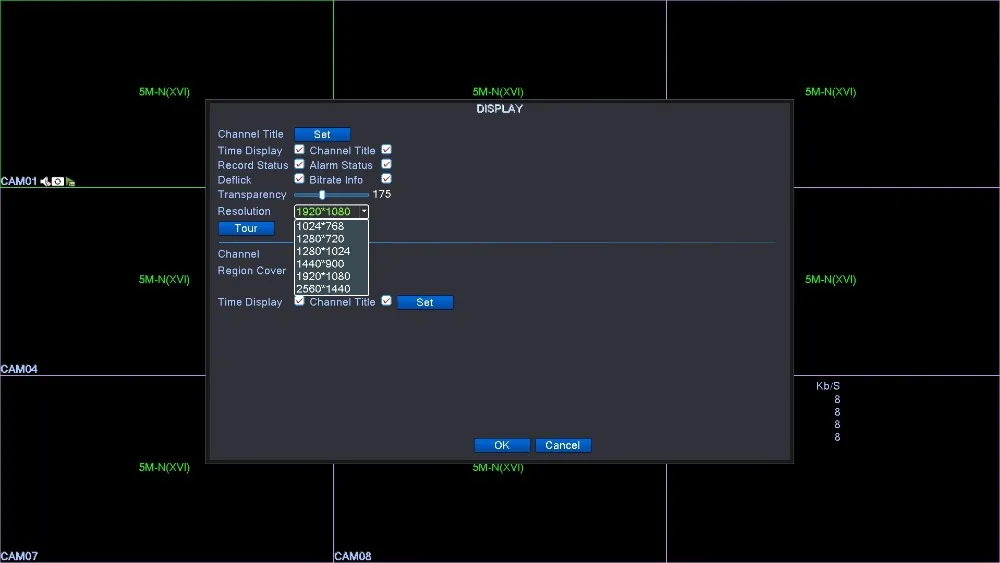

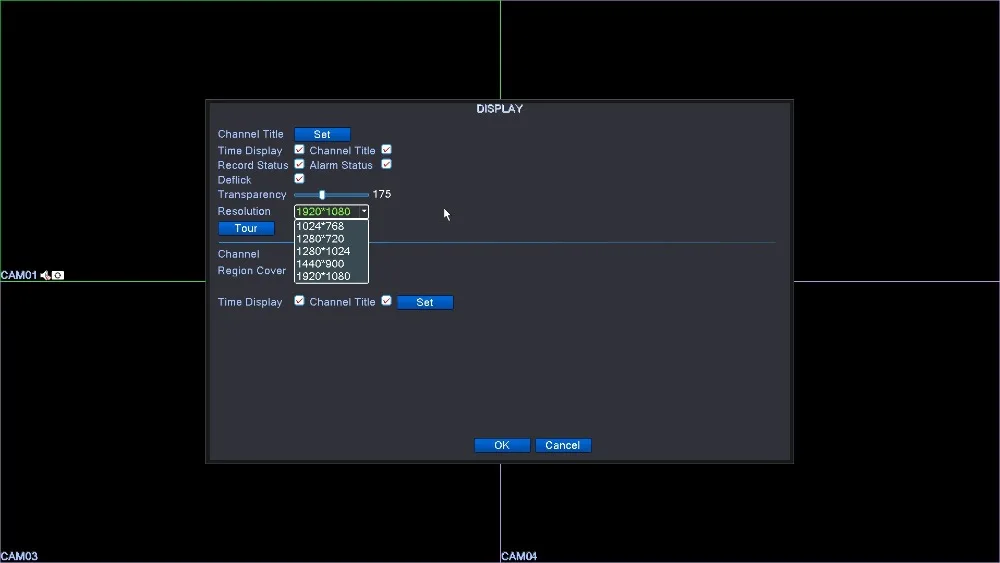

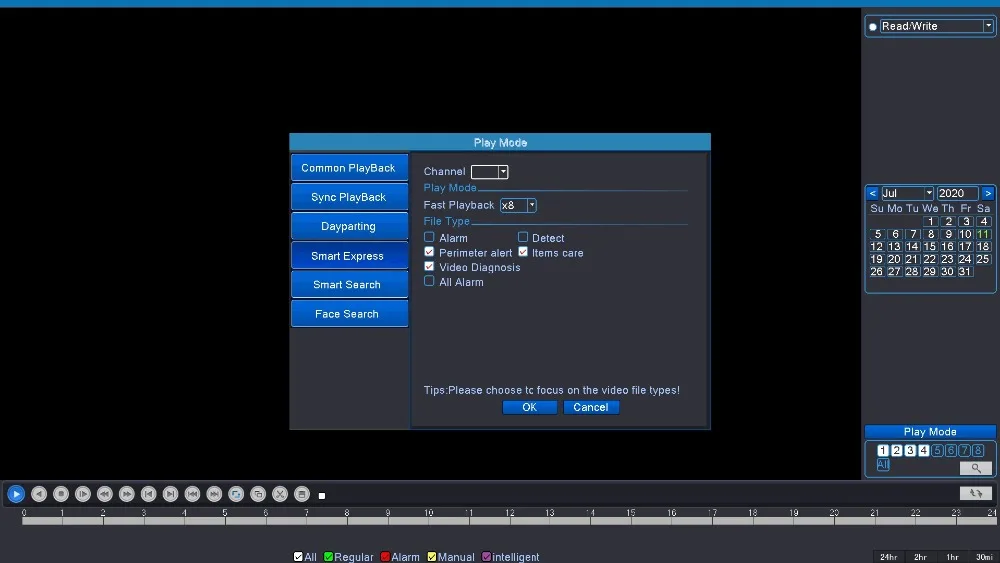

Operation Menu

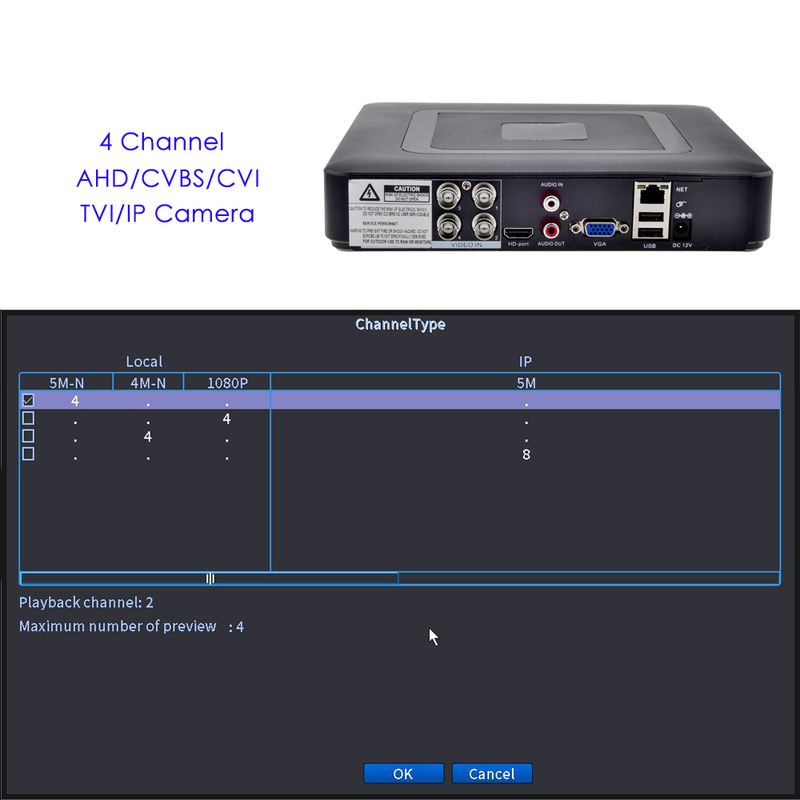

4CH DVR

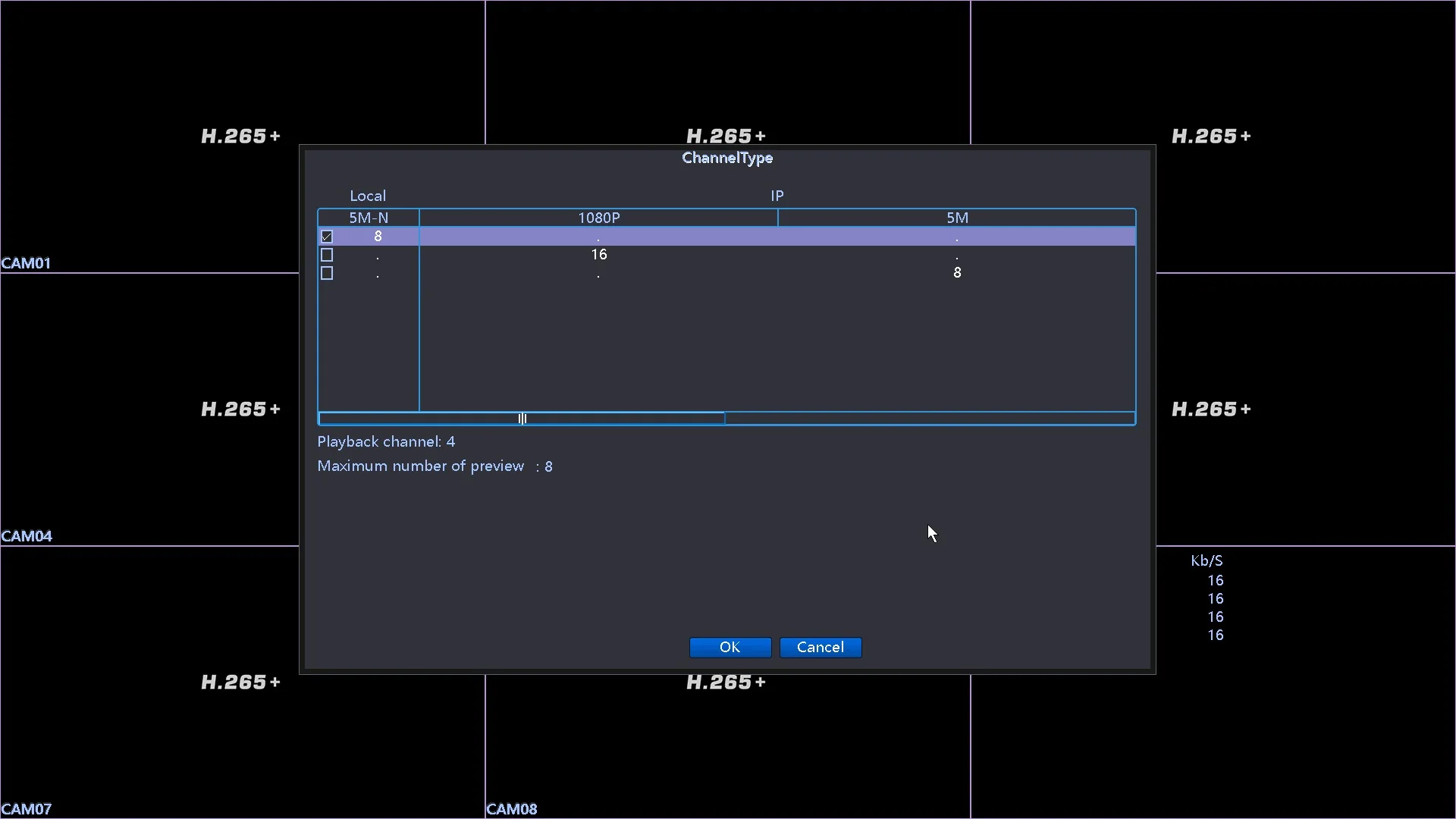

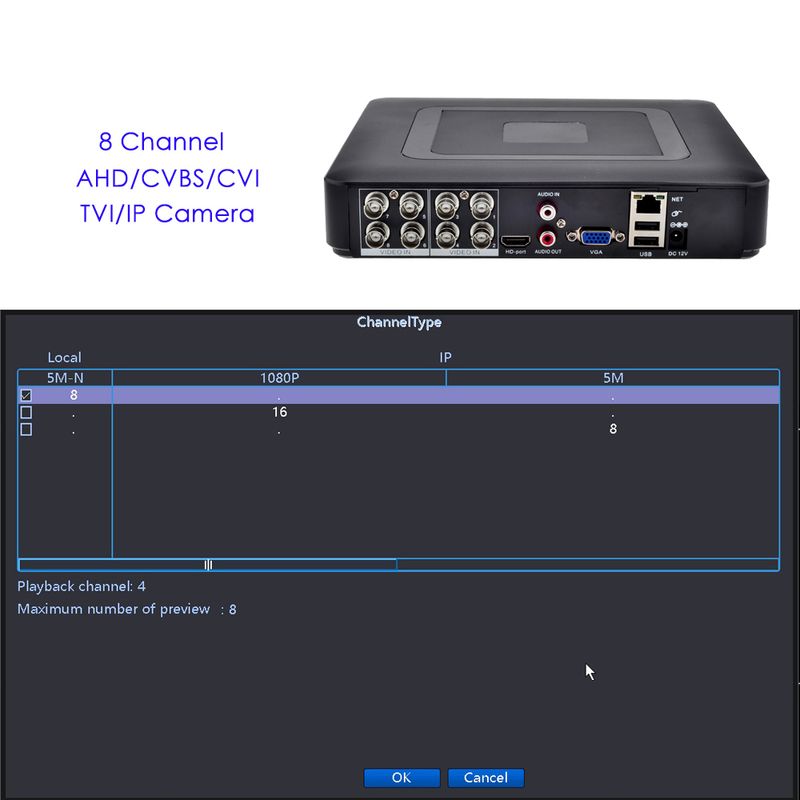

8CH DVR
