Summary

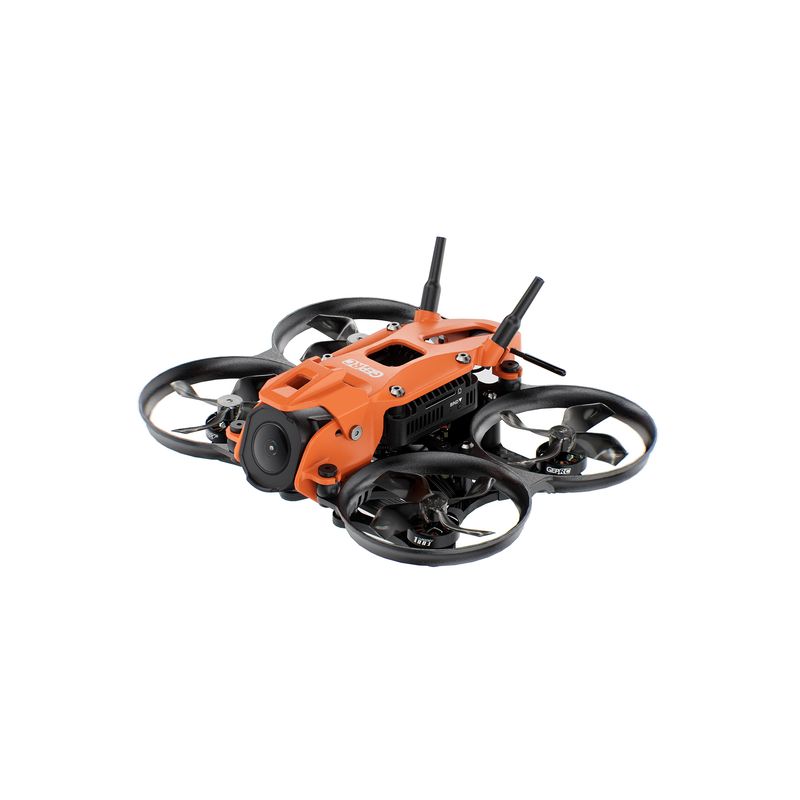

  The Darkstar16 is GEPRC’s latest TinyWhoop, designed for flexible, on-the-go flying.
Featuring a 1.6-inch frame and the  O4 Air Unit Pro system, it comes equipped with a larger CMOS sensor that delivers sharper, clearer images and improved low-light performance.
The modular VTX, combined with an integrated top cover and four-point damping ball system, effectively filtering out resonances and reducing the jello effect in footage, ensuring stable and clear imaging.
The Darkstar 16 offers a high-performance, creative flight experience.

Note: Contents vary by selected WTFPV or O4 Pro specifications.

Note: The WTFPV version does not come with any VTX, camera, antenna

Feature

1. The integrated four-point damping system ensures stable aerial imaging, empowering limitless creativity.

2. Quick-release design lets you detach the VTX module by removing just 6 screws.

3. Equipped with the  O4 Air Unit Pro, featuring a larger CMOS for clearer images and better low-light performance.

4. Lightweight molding strikes a balance between durability and performance.

5. The compact 1.6-inch frame offers portability for efficient filming.

6. The fixed XT30 power connector ensures simple on/off operation.

Specfication---O4 Pro

• Model: DarkStar16 O4 Pro

• Frame: GEP-DS16

• Wheelbase: 91mm

• FC System: TAKER F411-12A-E 1-2S AIO

• MCU: STM32F411CEU6

• Gyro: ICM42688-P

• OSD: Betaflight OSD w/AT7456E chip

• ESC: Bluejay 8Bit 12A

• VTX:  O4 Air Unit Pro VTX Module

• Camera:  O4 Air Unit Pro Camera Module

• Antenna: 5.8G UFL antenna

• Motor: SPEEDX2 1003 14800KV

• Propeller: Gemfan1636-4

• DarkStar16 O4 PNP (Built-in O4 AIR Unit Pro receiver) Version Weight: 86g±5g
  Receiver: PNP / ELRS2.4G

• Recommended battery: LiHV 2S 530mAh

• Flight time: 4′00″ (with LiHV 2S 530mAh battery, low-speed indoor cruising）

Includes

1 x DarkStar16 O4 Pro
1 x Darkstar16 top plate (grey）
1 x Darkstar16 camera protector (grey)
1 x Darkstar16 protective frame (black)
1 x Gemfan1636-4 (2CW+2CCW)
1 x Plum screwdriver
1 x Spare screw pack
1 x Keychain



Specfication---  WTFPV

• Model: GEPRC DarkStar16 O4 Pro WTFPV

• Frame: GEP-DS16

• Wheelbase: 91mm

• FC System: TAKER F411-12A-E 1-2S AIO

• MCU: STM32F411CEU6

• Gyro: ICM42688-P

• OSD: Betaflight OSD w/AT7456E chip

• ESC: Bluejay 8Bit 12A

• VTX: /

• Camera: /

• Antenna: 5.8G UFL antenna

• Motor: SPEEDX2 1003 14800KV

• Propeller: Gemfan1636-4

• GEPRC DarkStar16 WTFPV PNP Version Weight: 56g±5g

• Receiver: PNP / ELRS2.4G

• Recommended Battery: LiHV 2S 530mAh

• Flight time: 4′00″ (with LiHV 2S 530mAh battery, low-speed indoor cruising）

Includes
1 x GEPRC DarkStar16 O4 Pro WTFPV
1 x Darkstar16 top plate (grey）
1 x Darkstar16 camera protector (grey)
1 x Darkstar16 protective frame (black)
1 x Gemfan1636-4 (2CW+2CCW)
1 x Plum screwdriver
1 x Spare screw pack
1 x Keychain screw
2 x Damping Ball
