Summary

The DarkStar22 combines high performance with portability, equipped with the O4 Pro VTX system, delivering ultra-low latency, HD stable long-range transmission.
It features the latest TAKER F405 20A ELRS2.4 2-4S AIO  flight controller with an integrated receiver, eliminating the need for an additional RX and ensuring compatibility with all mainstream ELRS protocol radios. The innovative five-point floating damping system provides a stable working environment for the O4 Pro gyro, enabling smooth and stabilized video output.
With a reserved GPS mount, pilots can enjoy safer flights in complex outdoor environments. The SPEEDX2 1104 7500KV motors, paired with newly designed high-efficiency 2219 props, deliver a strong punch while maintaining an excellent balance of power and endurance.
The entire build is compact, reinforced with a thickened canopy and prop guards for crash resistance, making it beginner-friendly and safe to fly both indoors and outdoors. Truly a performance beast among micro cinewhoops!

Note: Contents vary by selected WTFPV or O4 Pro specifications.

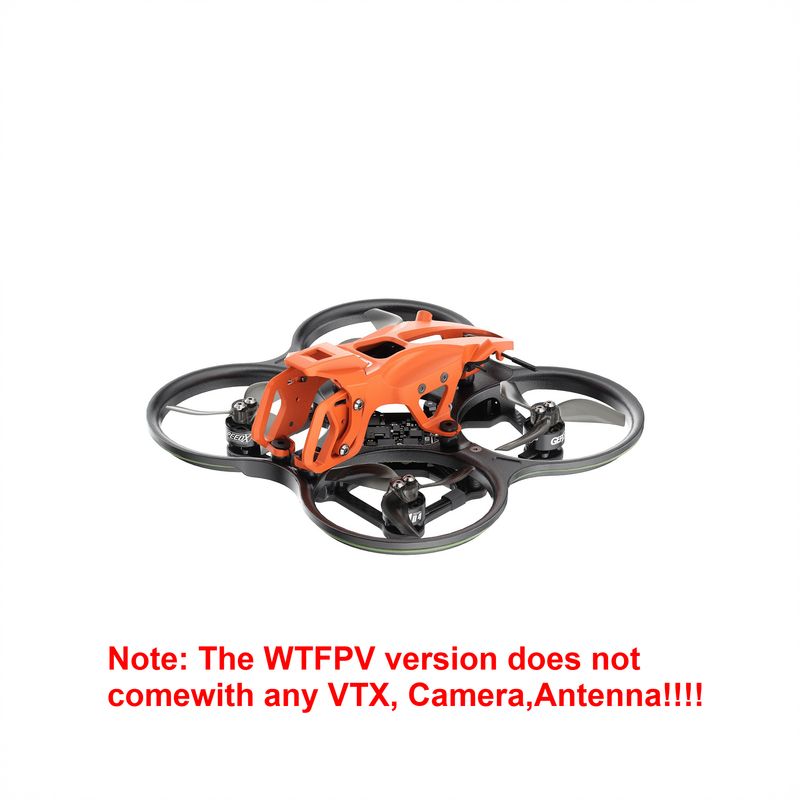

Note: The WTFPV version does not come with any VTX, camera, antenna

Feature

1. Mini-sized drone with O4 Pro HD system, supporting up to 4K 120fps recording.

2.  Powered by the latest TAKER F405 20A ELRS2.4 2-4S AIO  with integrated ELRS 2.4G receiver.

3. Camera protection canopy effectively shields the O4 Pro camera module.

4.  All-new five-point damping design, enhancing stability for the O4 Pro camera module

5.  Simple body structure – only 4 screws to disassemble the frame.

6.  LED strip powered by a mini controllable BEC – small in size, big in function.

7.  O4 Pro mounting module includes reserved GPS slot, supporting most mainstream Mini GPS modules.

   Specfication---O4 Pro

• Model: DarkStar22 O4 Pro

• Frame: GEP-DS22

• Main Carbon Plate Thickness: 2.5mm

• Wheelbase: 100mm

• FC System: TAKER F405 20A ELRS2.4 2-4S AIO

• MCU: STM32F405

• Gyro: ICM42688-P

• FC Firmware: GEPRC_TAKER_F405 AIO

• Flash: 16MB

• ESC: 8Bit 20A

• Motor: SPEEDX2 1104 7500KV

• Propellers: HQProp 2219-3

• Power Connector: XT30U-M

• VTX: O4 Air Unit Pro

• Camera: O4 Air Unit Pro camera module

• Antenna: O4 Air Unit Pro antenna

• Receiver: PNP (O4 Pro built-in RX) / ELRS 2.4G

• Weight (ELRS 2.4G version): 126.8g

• Recommended Battery: GEPRC Stormx LiHV 3S 720mAh

• Flight Time: 6min45s (tested under smooth cruising; actual flight time depends on flight style)

Specfication---  WTFPV

• Model: DarkStar22 WTFPV

• Frame: GEP-DS22

• Main Carbon Plate Thickness: 2.5mm

• Wheelbase: 100mm

• FC System: TAKER F405 20A ELRS2.4 2-4S AIO

• MCU: STM32F405

• Gyro: ICM42688-P

• FC Firmware: GEPRC_TAKER_F405 AIO

• Flash: 16MB

• ESC: 8Bit 20A

• Motor: SPEEDX2 1104 7500KV

• Propellers: HQProp 2219-3

• Power Connector: XT30U-M

• VTX: /

• Camera: /

• Antenna: /

• Receiver: PNP (O4 Pro built-in RX) / ELRS 2.4G

• Weight (ELRS 2.4G version): 98.0g

• Recommended Battery: GEPRC Stormx LiHV 3S 720mAh

Includes
1 × DarkStar22 Drone
1 × Prop Guard
1 × Top Plate
1 × Camera Cover
1 × Battery Pad
2 × Propellers (pairs)
1 × 10*120mm Battery Strap
1 × L-shaped Hex Wrench 1.5mm
1 × Battery Anti-slip Pad
1 × Damping Ball Punch Tool
1 × Binding Pin
1 × USB Adapter Board
1 × 5P Terminal Cable

Spare Screw Pack Includes:
2 × Damping Balls
4 × M2*4 Round-head Screws
4 × M2*7 Round-head Screws
4 × M2*6 Countersunk Screws
4 × M2*5 Countersunk Screws
4 × M2*6 Round-head Screws
4 × M2*7 Countersunk Self-Tapping Screw
