Heavy Load 500 Kgs Warehouse AGV Automated Guided Vehicle Industrial Amr Fast Robot

$17,049.56

Includes all taxes

Color
Quantity
Meet your Seller
Delivery options
  • Ship Only

Description

Pls contact us for more details. WhatsApp/Wechat:+86 13574193250 Thank you!
Product Description

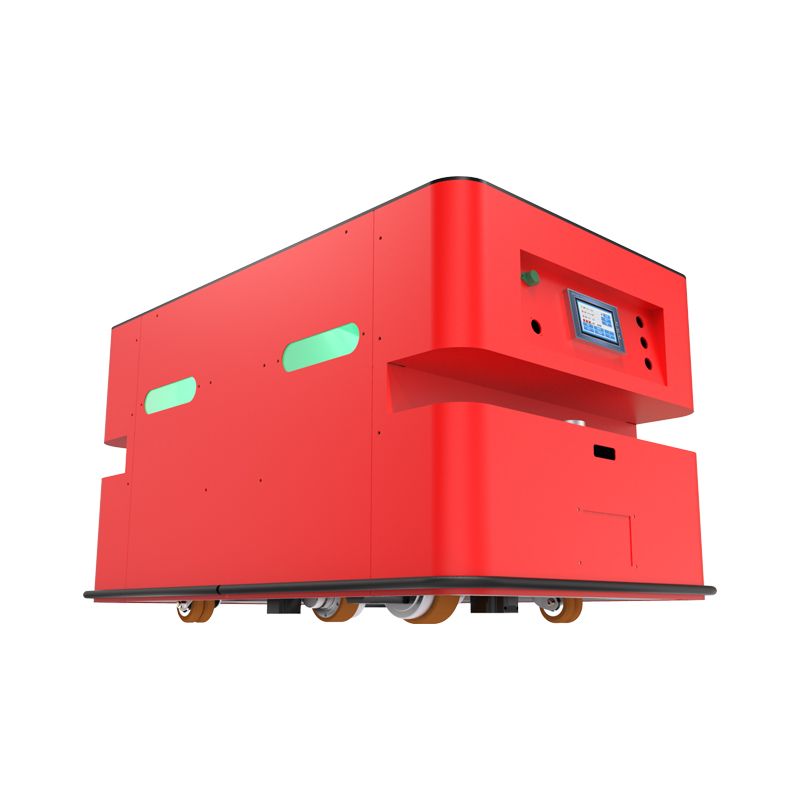

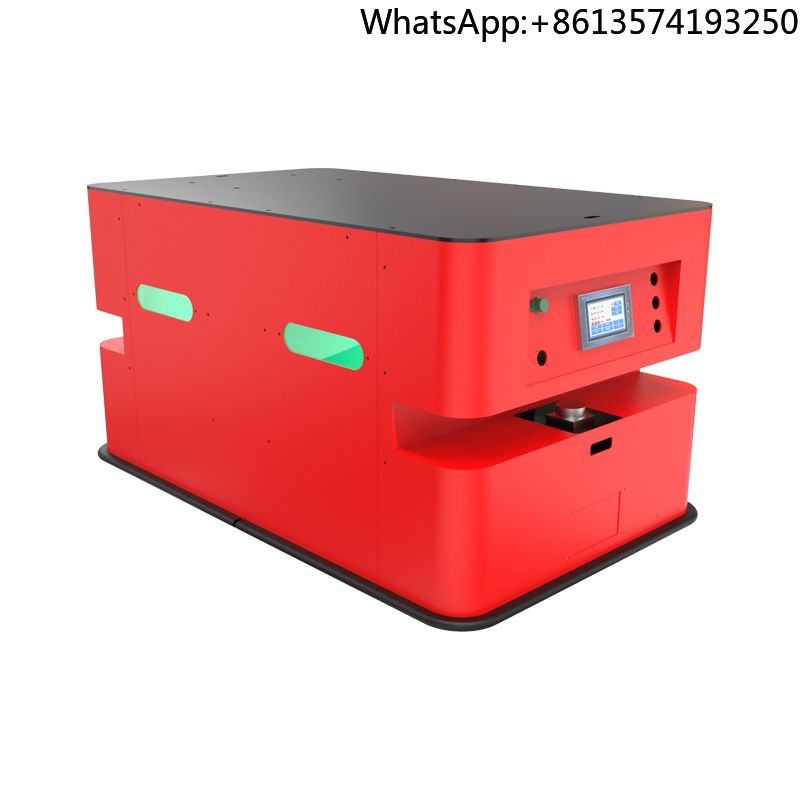

BRTAGV21050A

BRTAGV21050A is a composite mobile robot plat form using laser SLAM navigation, with a load of -
500kg. It can be matched with a low-pressure coopera tive robot arm to realize the function of grasping or -
placing materials, and is suitable for multi site materi al transmission and grasping. The top of the platform -
can be equipped with transmission modules of various shapes such as rollers, belts, chains, etc., to realize the
material transfer between multiple production lines, further improve the automation of production pro
cesses, and improve production efficiency.
1.2.Features: 1.Autonomous positioning navigation: Adopting inertial navigation and visual navigation technologies to achieve precise positioning 2.Flexible motion control: Adopting two wheel differential drive, supporting forward, backward, rotation and other motion control, the motion process is smooth. 3.Intelligent power management: supports multi-level battery threshold control, self charging when low battery, and returning to work automatically after completing charging. 4.Multiple safety protection: front laser sensor, pneumatic collision detection around, left and right emergency stop buttons, and other multi-level safety protection to achieve safe and reliable motion control. 5.Friendly human-robot interaction: supports LCD display and sound alarm prompts. 6.Large cargo handling: supports lifting, handling, and lowering of rated 100kg and maximum 200kg cargo. 7.Device status indication: Prompts device status through sound prompts and status indicator lights. Wireless network communication: supports WIFI network communication and seamless roaming, and the network coverage area operates without obstacles. 1.3.Product details BRTAGV12010A is a lurking and lifting handling robot that uses laser SLAM+QR code navigation, with a load of 100kg. Laser SLAM and QR code navigation freely switch to meet multiple scenarios and different accuracy requirements. In complex scenarios with a large number of shelves, precise positioning using QR codes is used to drill into the shelves for lifting and transportation. Using laser SLAM navigation in fixed scenarios, it is not limited by ground QR codes and can operate freely in the environment. 1.4. BRTAGV12010A robot application cases (1) Warehouse sorting (2) Loading and unloading (3) Automatic handling, etc 1.5. Charger requirements The charger is not included in the entire machine. Customers are requested to purchase it according to the following technical requirements: Charging voltage: 54.75 ± 0.05V Charging method: constant current/constant voltage (CC/CV) Charging current: ≤ 30A 1.6. Handle requirements The handle is not included in the entire machine. Please purchase it according to the following technical requirements: Handle adaptation model: Logitech F710, other models have not been tested for adaptation yet. Please contact the manufacturer's technical personnel for confirmation.

Product Specifications

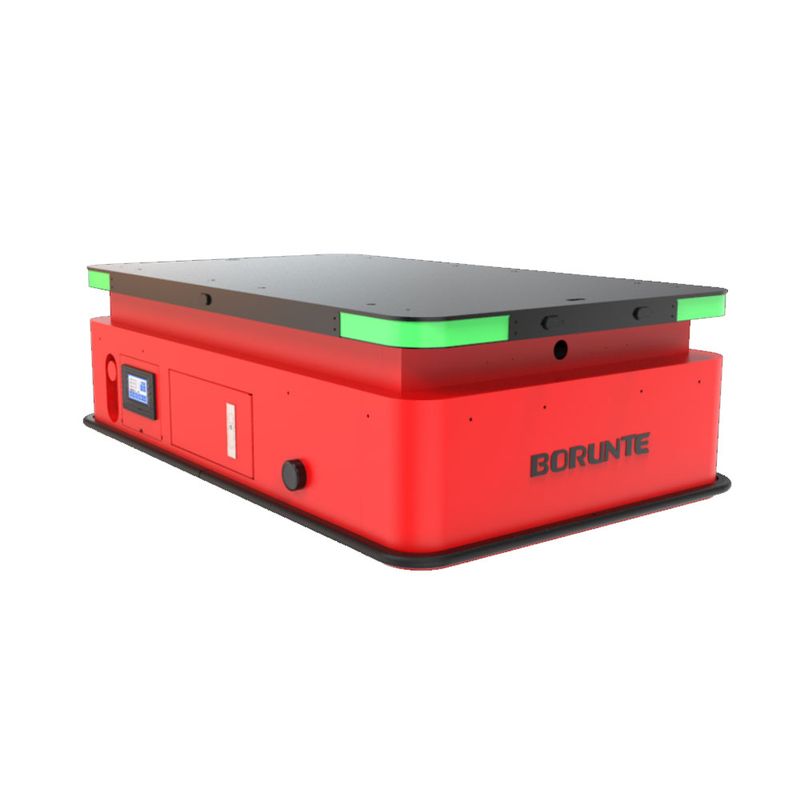

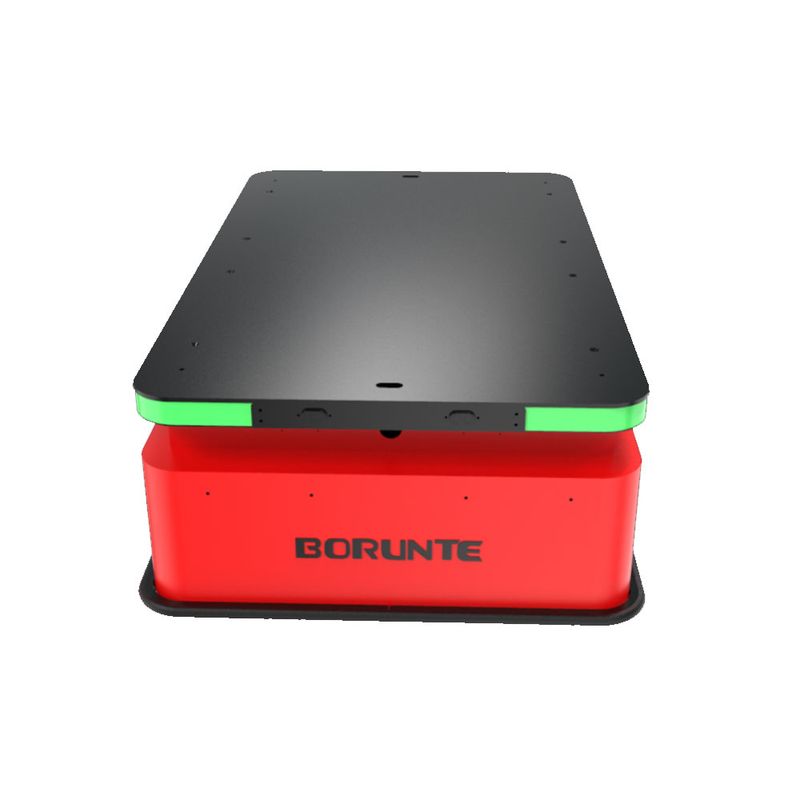

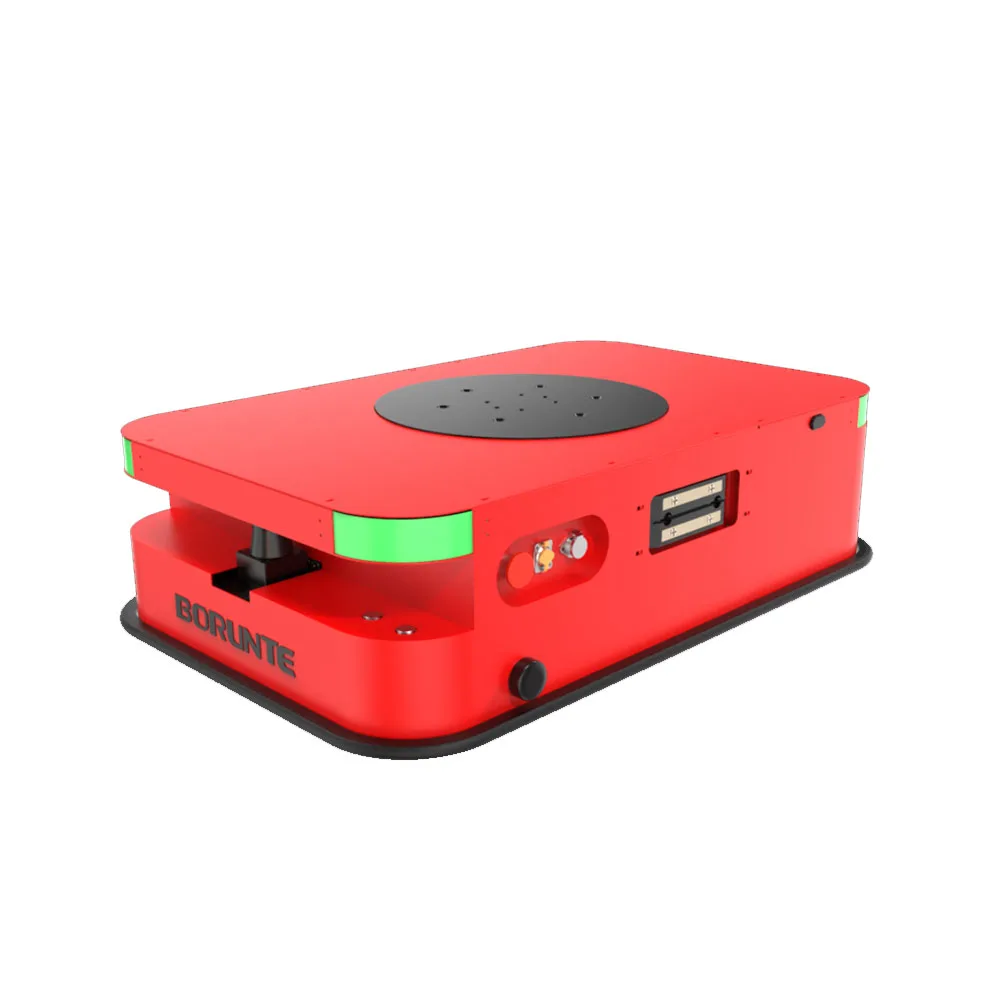

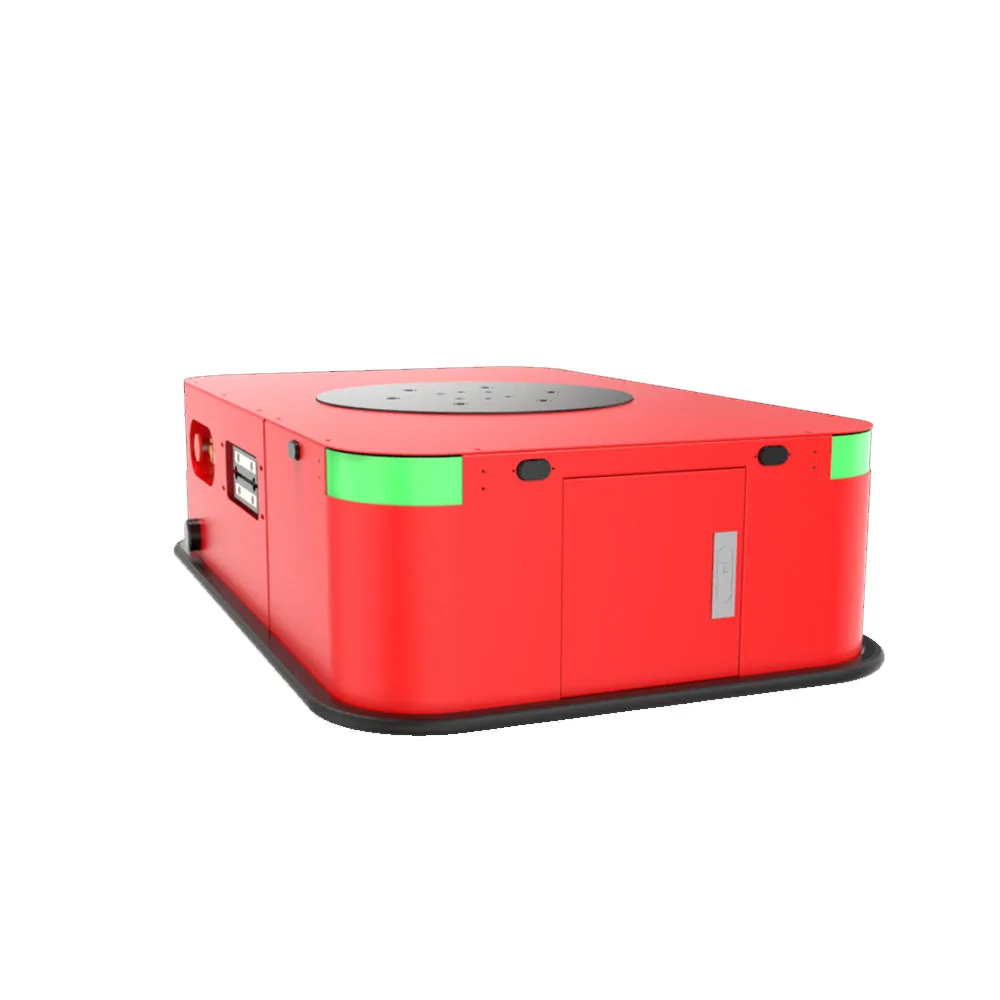

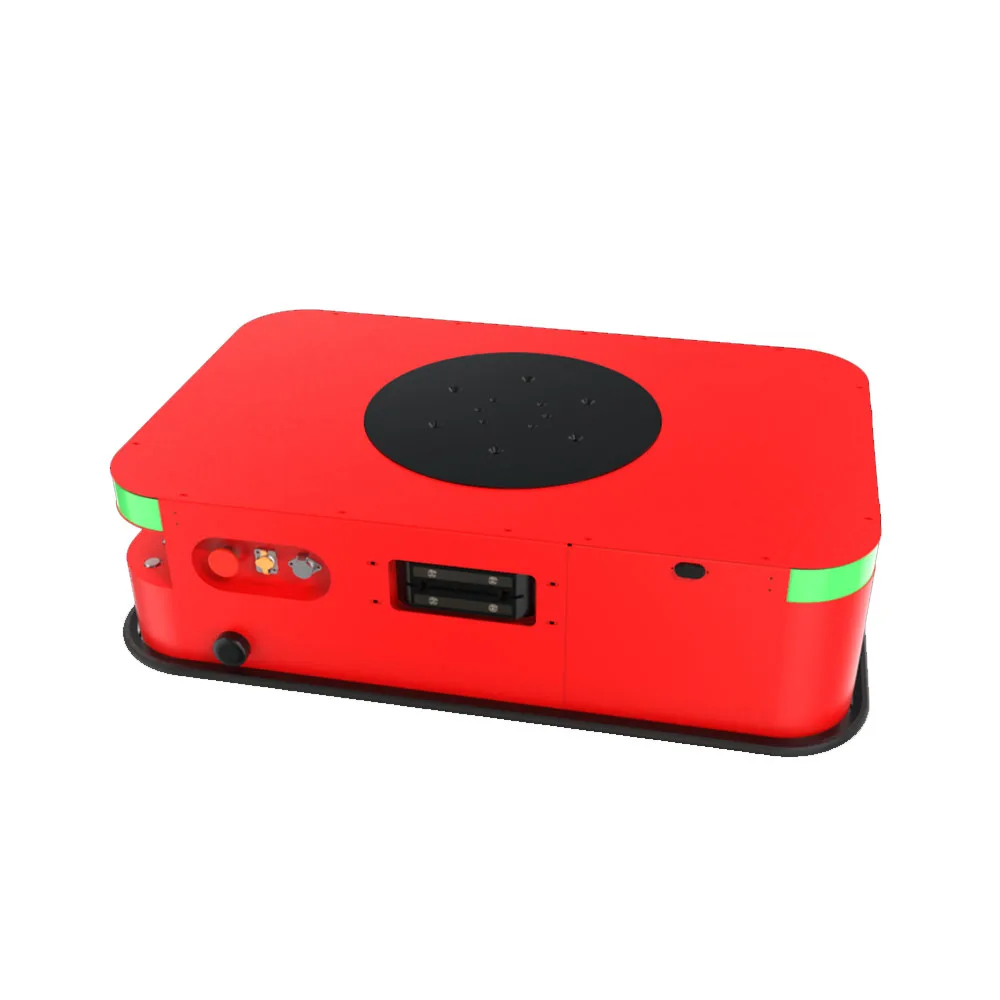

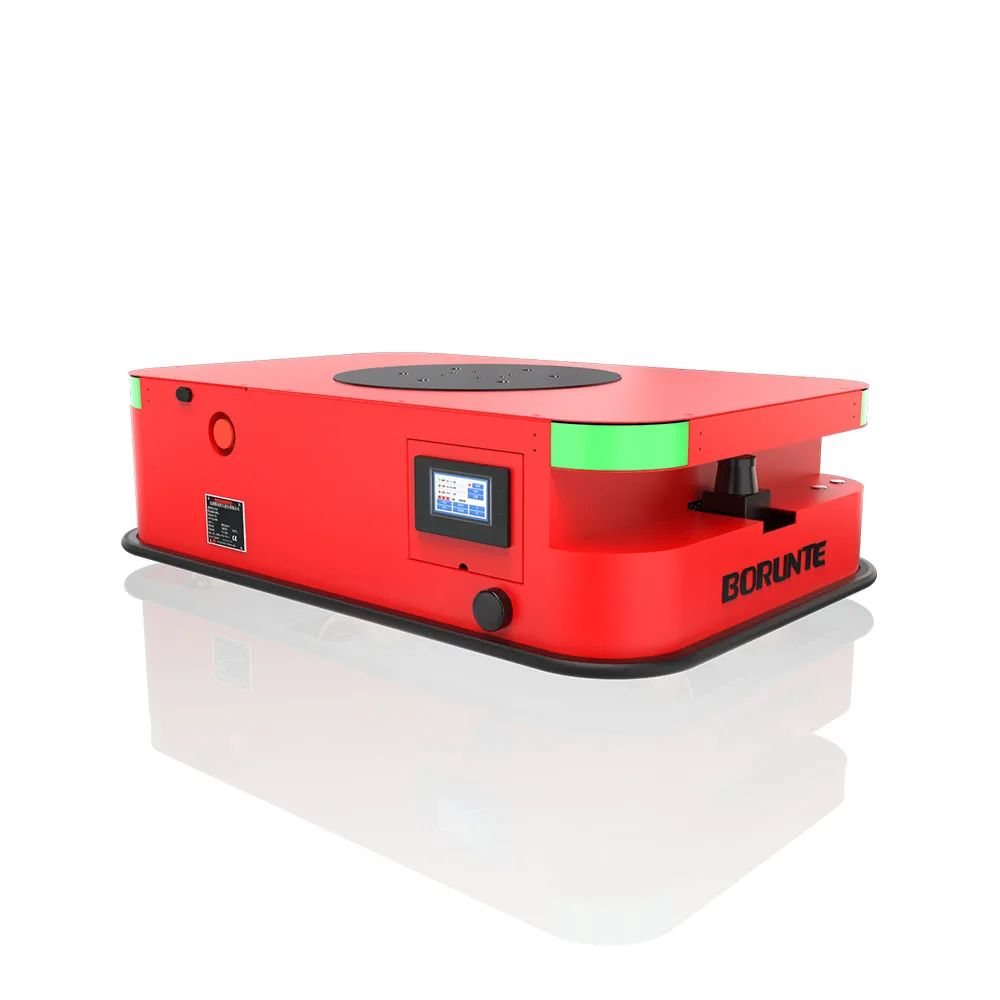

BRTAGV12010A mobile robot

Basic parameters

Navigation mode
Laser SLAM & QR navigation
Driven mode
Driven mode

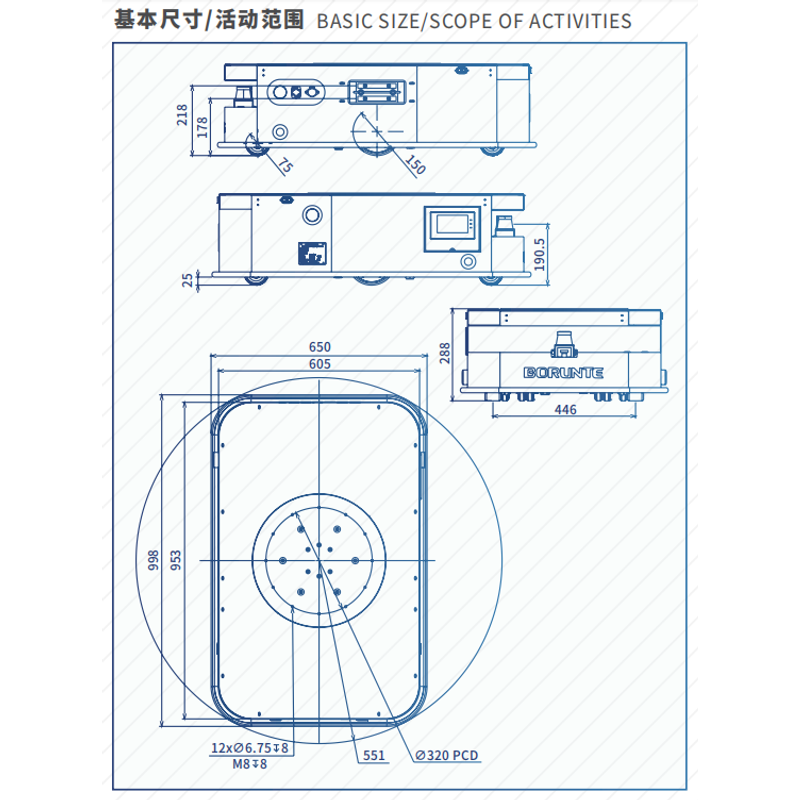

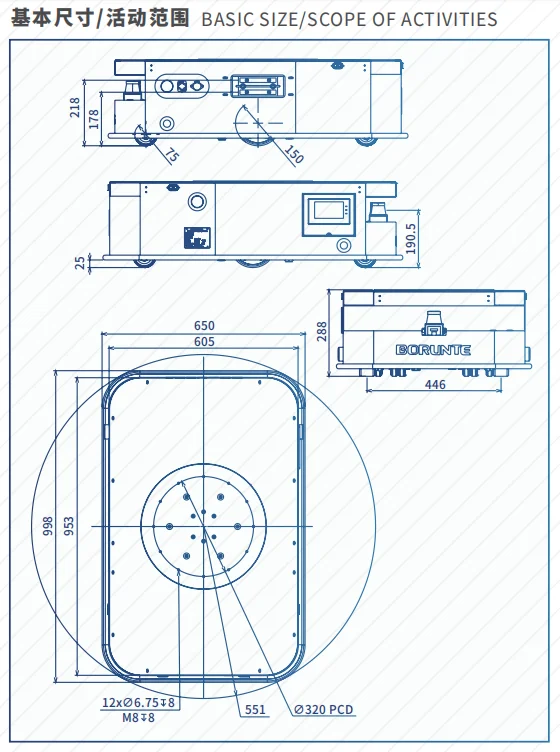

L*W*H
1140mm*705mm*372mm
Turning radius
645mm
Weight
150kg
Rated load
500kg
Ground clearance
35mm
Lifting plate size
R=200mm
Maximum lifting height
80mm
Performance parameters

Trafficability
≤3%
Repeat position accuracy
±10mm
Cruise speed
1m/s(≤1.5m/s)
Battery parameters

Capacity
24Ah
Integrated cruise control
8H
Charge method
Manual/auto/quick change
Specific equipment

Laser radar
QR radar
Emergency stop button
Speaker
Atmosphere lamp
Anti-collision strip
Company Profile

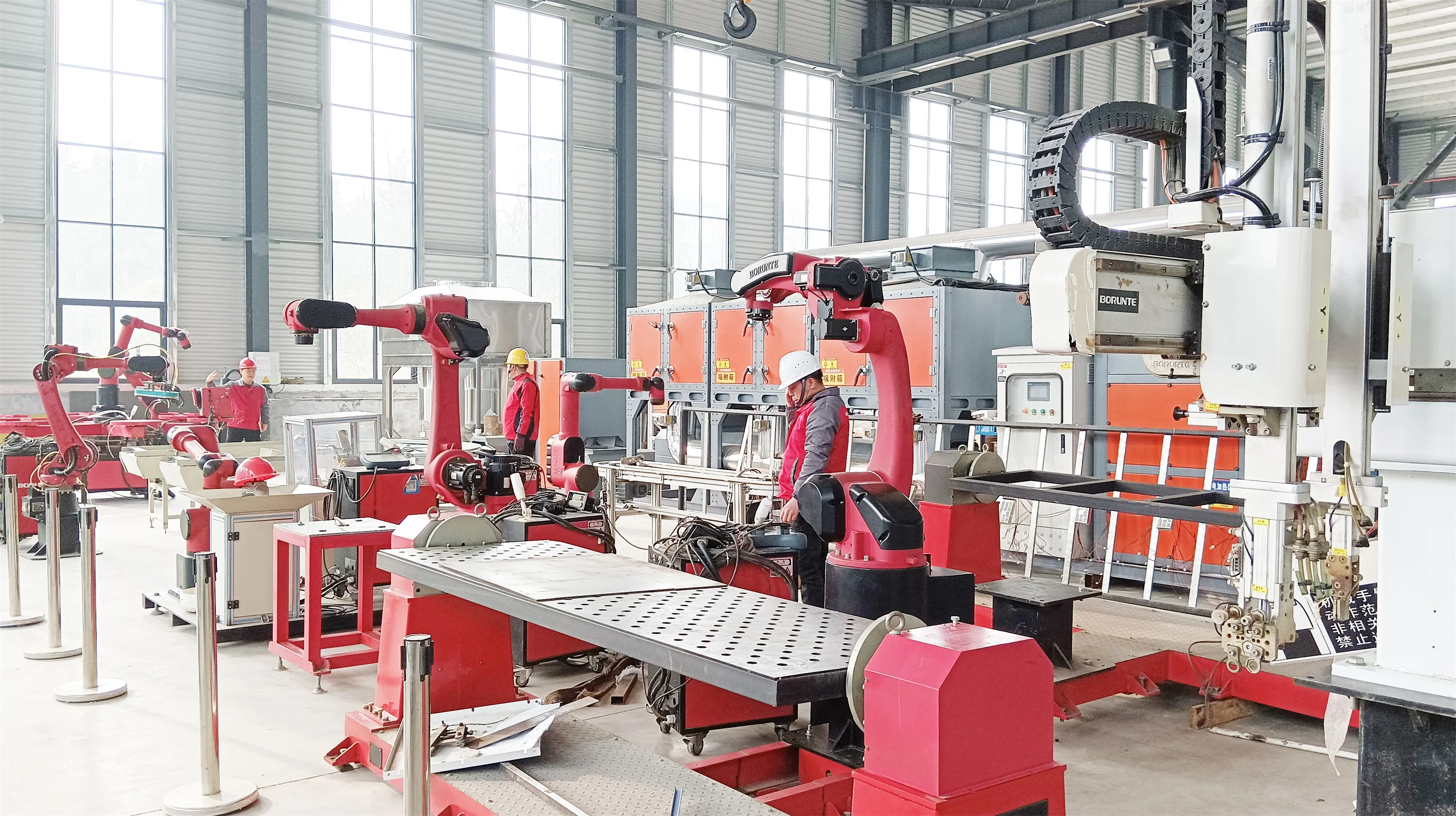

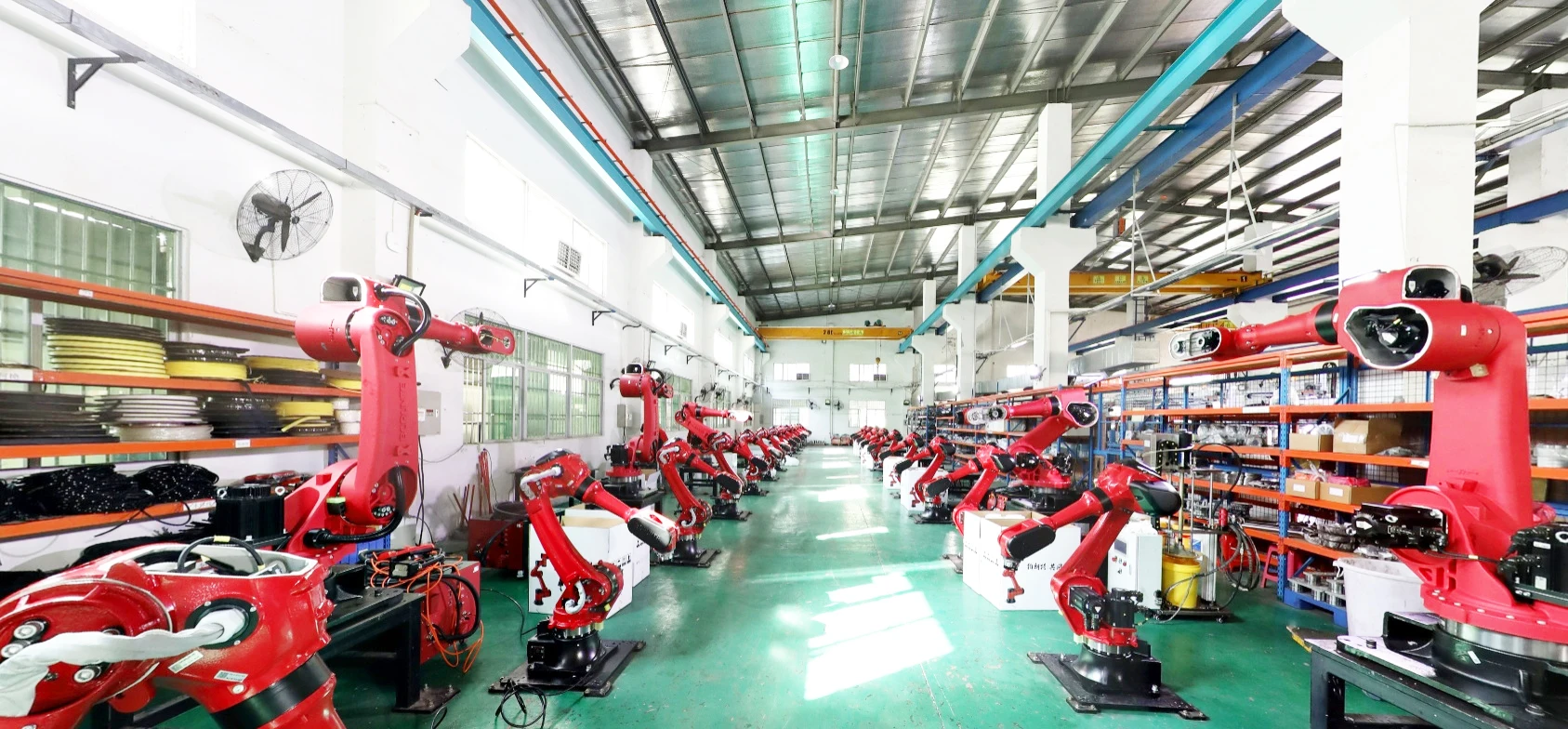

Longen intelligent equipment Co., Ltd. was founded in 2012, from a singleautomated assembly line to the whole field automation supporting applicationprogram, set design, development, manufacturing training and after-sales serviceas one, the company's products are: industrial robot applications widely usedin spraying,welding, grinding, stamping, automatic assembly, machine toolloading and unloading, palletizing, aluminum casting, etc. Automatic sprayingline, electrophoresis line, logistics, high precision CNC parts processing and avariety of non-standard automatic production lines.
CERTIFICATIONS
Exhibition Photos
FAQ
Q: Are you a trading company or manufacturer? A: We are an experienced manufacturer with a factory covering an area of 30,000 square meters. Q: How to choose the right robot model? A: Acoording to the application, your products weight and the needs of arm length. You can send us the video of your workers'oparation, and then we will recommend the most suit model for you. Q: Can I have my own customized product? A: Yes.OEM are available,including logo,package etc. Q: How long is the warranty period of your robot? A: 1 year warranty and lifetime maintenance. Q: What's the delivery time? A: Within 5-10 days for ready stock order.The exact time depends on actual situation. Q: What payment do you accept? A: In general, our payment is trade assurance order for retail order and bulk order accept T/T ,Deposit and etc.
