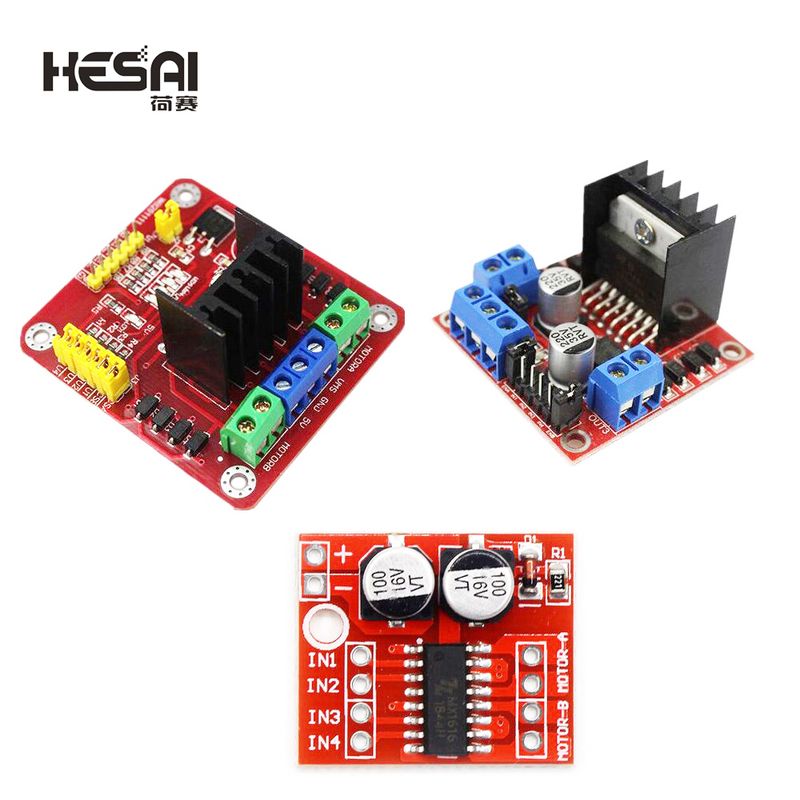

L298N New Dual H Bridge DC Stepper Motor Drive Controller Board Module for arduino Diy Kit

$1.81

Includes all taxes

Quantity
Meet your Seller
Delivery options
  • Ship Only

Description

Purchase Notes

1. The two logistics of Yanwen Economic Air Mail and China Post Ordinary Small Packet Plus do not have tracking information, so there is no time limit. We recommend using China Post Registered Air Mail or AliExpress Standard Shipping.
2. We do not accept refunds for minor damage (pin bending, slight screen abrasion,etc.)during the transit of the material, without affecting normal use. If you mind,please do not buy.
3. Some products provide technical support, if you need help, please contact us, we will handle your message the first time.
4. If you have any questions about the product, please contact us before you open a dispute. We will give you the most satisfactory answer.
5. We provide each customer with good quality products, very favorable prices and the most sincere service. We hope to get your good feedback.
Wish you a pleasant shopping!

L298N is a high voltage, high current motor driver chip. The chip uses 15-pin package. The main features are: high voltage, maximum operating voltage up to 46V; output current, instantaneous peak current up to 3A, continuous operating current of 2A; rated power 25W. Contains two H-bridge high-voltage and high current full-bridge driver can be used to drive DC motors and stepper motors, relays, coils and other inductive load; using standard logic level signal control; having two enable control terminal, in allows input signal without being affected or disable the device has a logic supply input, the internal logic circuit part of the work at a low voltage; can be an external sense resistor, the amount of change back to the control circuit. Drive motor using L298N chip, the chip can drive a two-phase stepper motors or four-phase stepper motor, can drive two DC motors.

1.The module uses L298N chip as the main drive, with driving ability, low heat, anti-jamming features.

2.It can be used to take power through the built-in 78M05 drive power part of the work, but in order to avoid damage to the regulator chip, when a drive voltage greater than 12V, please use an external 5V logic supply.

3. Uses high-capacity filter capacitors, freewheeling diode protection, reliability can be improved.

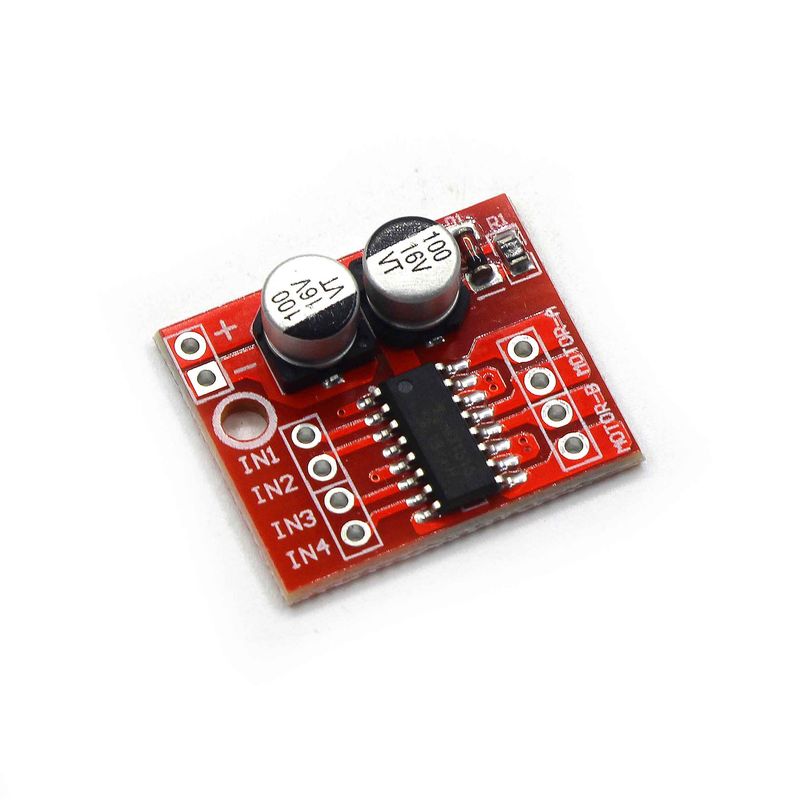

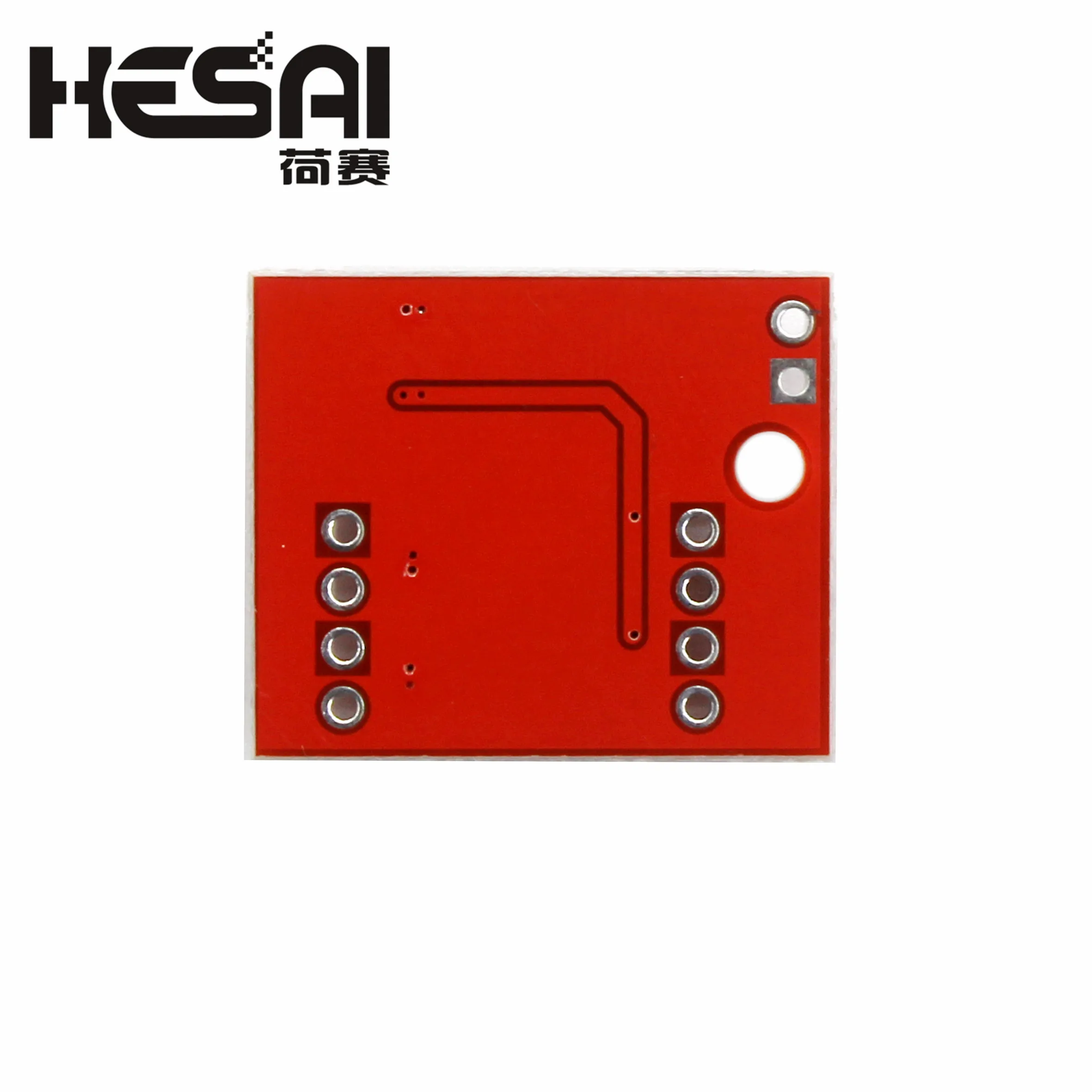

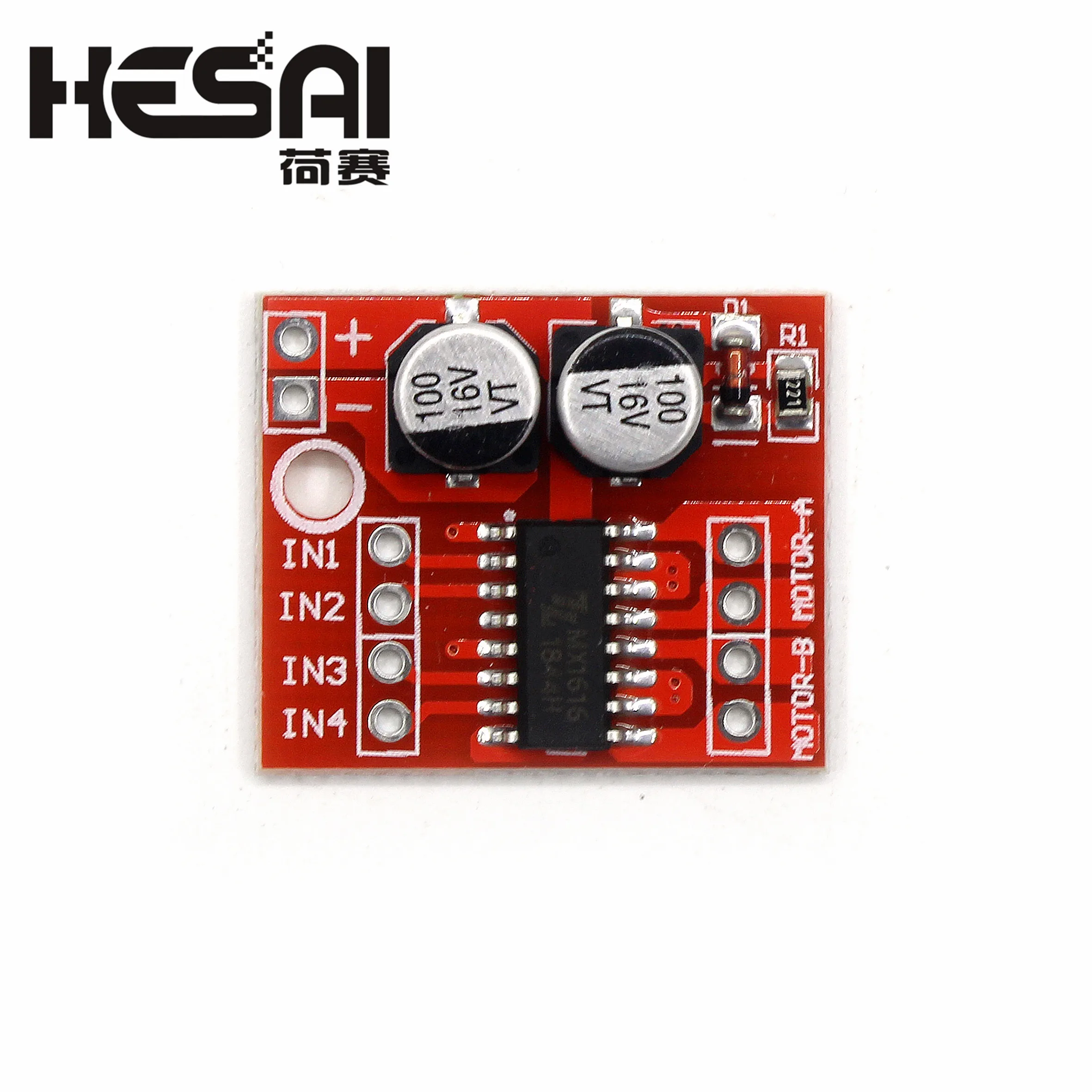

  • motor drive module is very suitable for use in battery powered smart car, toy car, robot and so on, the supply voltage of 2V~10V can simultaneously drive two DC motor or 1 4 line 2 phase stepper motor, can achieve positive and speed control function, each current to 1.5A continuous current. The peak current is up to 2.5A, with thermal protection and automatic recovery.

  • Product highlights:

  • 1 imported professional motor driver chip, built-in low conduction resistance switch MOS, heating minimum, without radiator, small volume, energy saving, is your ideal choice for battery powered.

  • (L298N internal transistor switch, low efficiency, high fever, without heat, heavy volume, the market of L298N is easy to burn out, do not use the original chips, this product can be the perfect replacement.)

  • 2 dual 1.5A*2, peak current to 2.5A, built-in overheat protection circuit, do not be afraid of motor stalling burn, automatic recovery after falling temperature. (the smart car voltage and current on the market are within this range)

  • 3 small size, light weight, 0 standby current, is your ideal choice for vehicle model

  • Product parameters:

  • H bridge motor dual drive, and can drive two DC motor or 1 line 4 phase stepper motor;

  • The voltage of the power supply module 2V-10V;

  • The signal input voltage 1.8-7V;

  • Single channel current of 1.5A, peak current up to 2.5A, low standby current (less than 0.1uA);

  • The built-in common conduction circuit, the input end is suspended, the motor will not malfunction;

  • The built-in overheat protection circuit with hysteresis effect (TSD), there is no need to worry about motor stall;

  • Product size: 24.7*21*5mm (LxWxH), ultra small size, suitable for assembly and vehicle;

  • Mounting hole diameter: 2 mm

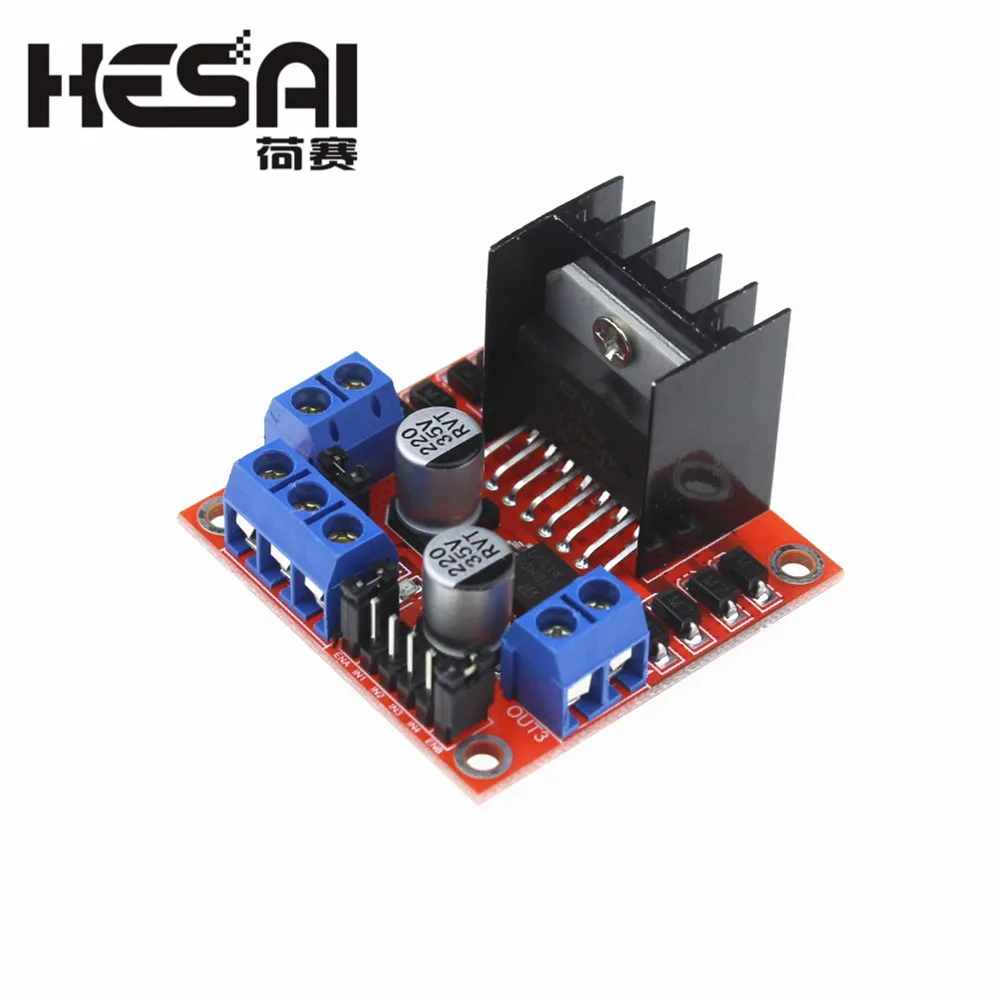

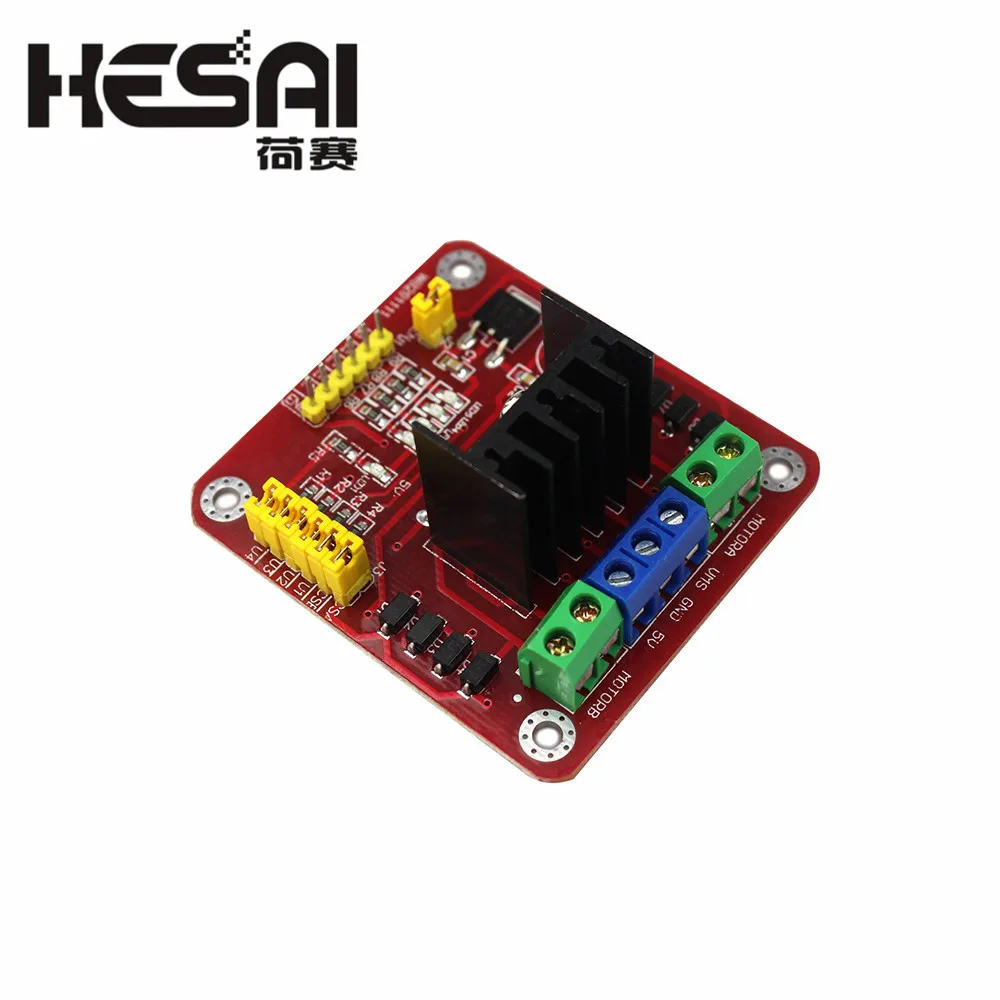

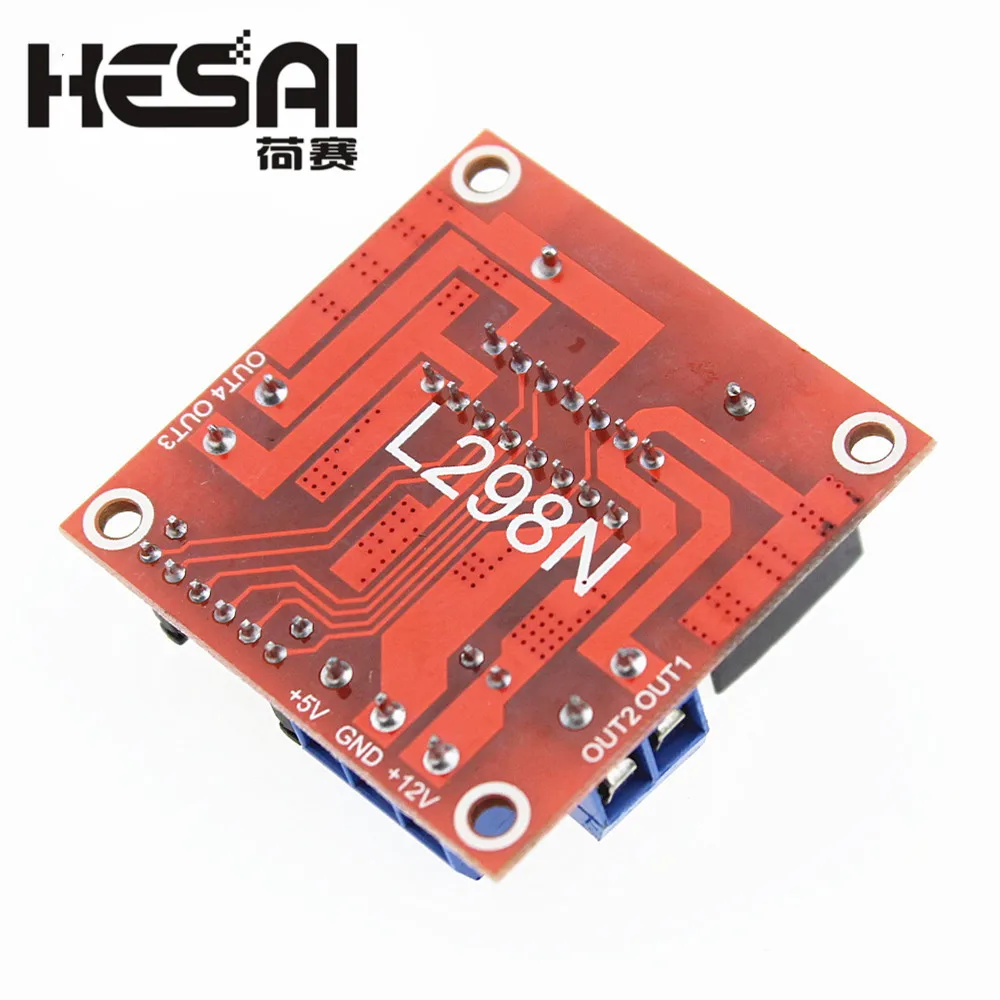

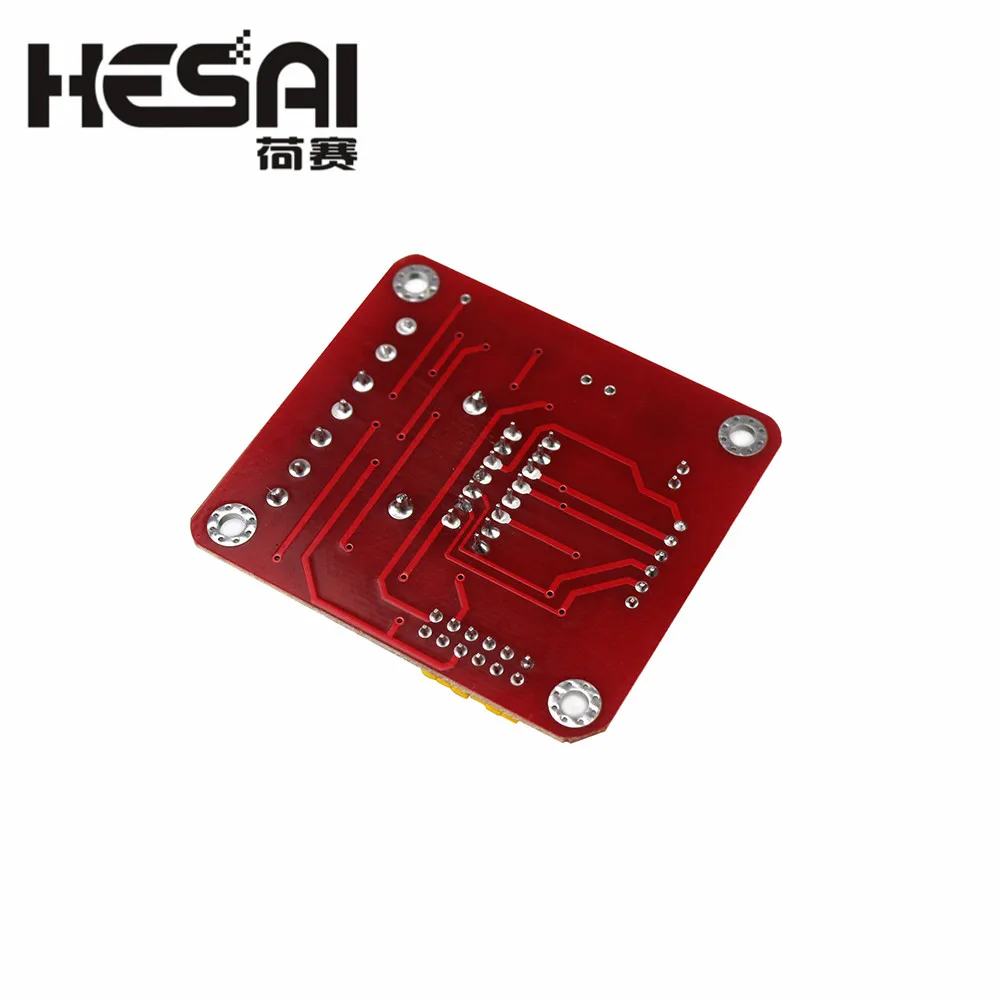

This L298N driver module, use the ST's L298N chip, can direct drive two road 3-30 v dc motor, and provides a 5 v output interface, can give a 5 v power supply circuit system, support 3.3 VMCU control, easy to control dc motor speed and direction, and can also control two phase stepper motor, is a smart car essential.
The driver chip: double H bridge driver L298N chip
The driving part of the terminal power supply scope VMS: + 5 v ~ + 35 v
The driving part of the peak current Io: 2 a/bridge
The logical part Vss terminal power supply range: 4.5 to 5.5 V
The logical part of the working current range: 0 ~ 36 ma
Control signal input voltage range: 4.5 5.5 V low level high level 0 V
Maximum power consumption: 20 w
Storage temperature: 25 Deg C ~ + 130 Deg C
Drive plate size: 55 mm * 60 mm * 30 mm
Driver board weight: 33 g
Other functions: control the direction of light, the power indicator, current detection, logical part within plate for electrical interfaces.
