LASER TREE 20W 10W 5W Optical Power Laser Head 450nm Blue Light TTL Laser Module For CNC Engraver Wood Cutting DIY Tools
Includes all taxes
Meet your Seller
-
$268.65Sold by BILLIONS BIRDS
Description
LT-K20 (Optical Power 20W) Features:
LaserTree K20 is a true 19-21W output optical power laser engraving and cutting module. It uses beam compressed technology to combine 4pcs 5W laser diodes into a powerful laser beam with 20W laser power.
2. Powerful Cutting Ability
12mm basswood plywood: 100mm/min, one pass
15mm black acrylic: 15mm/min, one pass
15mm pine wood: 100mm/min, one pass
9mm MDF: 100mm/min, 2 passes
3. Built-in Air Assist Airway & Dual Fan Cooling Design
1>Built-in air assist airway to get clean-cut edges, improve cutting performance.
2>Excellent heat dissipation makes the laser module maintain a stable cutting ability and prolong service life.
4. Working Status Indicator
The electrical connection status can be easily checked by the "Power" and "Signal" LED indicator.
5. Temperature Display & Alarm Function
Excessive working temperatures can reduce the life time of the laser head at an accelerated rate.
LaserTree K20 create a solution with working temperature display,so that you can check the internal temperature of the module easily. When the working temperature of laser module over 55 â, it will sound an alarm through the buzzer.
6.Red Cross Line Locating
The working frame can be positioned by red crosshair, it is helpful for improving the convenience of the secondary cutting and engraving as well.
7. Copper Core Protection Lens.
Easy to clean and replace when the lens is contaminated or dusty.
8. Laser View Window
Anti-blue light view window with optical glass material, protective your eye from blue light, no fear of fiames.
For Cutting
Please make the focus locate lower than the cutting material surface.
For example, if you want to cut 10mm material, the focus should be 5mm lower than material surface, please adjust the fixed focus lever to 5mm.
LT-80W-AA-PRO/LT-80W-AA (Optical Power 10W) Features
1.LT-80W-AA-Pro
It has an upgraded nozzle compared to the previous LT-80W-AA. The difference of this nozzle is that it has an advanced hydrodynamic design that makes better use of air pressure. When using the same air compressor, the upgraded version has a faster jet airflow.
2.With the air asssit nozzle
The laser head comes with a specially designed air assist nozzle. When cutting with this laser head, the air assit system will blow air through the air nozzle. That will bring you excellent cutting experience and greatly reduce burned marks.
Air pump suggestion: Air pressure and capacity: â„0.027kPa, 27L/min
3. Remarkable cutting ability
Cutting 8mm bass plywood ,120mm/min ,one pass.
Cutting 5mm bass plywood, 50mm/min, one pass.
Cutting 5mm MDF by 2 passes, 150mm/min , 2 passes.
4.With the laser protective cover
Comes with a removable protective cover. Whether engraving or cutting, use this shield to filter blue light and work without laser glasses, convenient and fast. It's also easy to remove if you don't need it.
5. Widely Compatible Design
LT-80W-AA-Pro laser module can be installed on Z*aitu,O*tur,Tw* Trees,S*ulpful9, Xtool, A*omstack and other models of DIY laser engraving machines.
(If you are not sure if it is compatible, please send us a picture of your machineâs contro board, we will provide you with a connection diagram.)
LT-40W-A-Gold (Optical Power 5W) Features:
The Blue Laser Module is designed for CNC mill. With 450nm wavelength, it is an effective tool for laser engraving and laser cutting. they can engrave and cut a variaty of materials.
Features:
Blue Laser Module --- Professional laser head with high speed and high stability. Bright blue-violet light, easy for locating when engraving.
Adjustable Focus --- Adjustable laser head, easy to adjust, ensure engraving with good quality and high efficiency.
Easy to Assemble --- Small and compact, engravingving material ---Wood, paper, leather, bamboo, plastic, rubber, alumina, stainless steel, copper,etc.
LT-40W-F23 (Optical Power 5W) Features:
ăUpgraded 23mm Fixed Focus Laser Moduleă
a.Directly engrave mirror stainless steel: no need painting black;
b. Super fast engraving speed: 304 stainless steel, up to 800mm/min with 23mm focus length;
c. Remarkable cutting ability: cutting through 4mm thickness plywood by one pass at speed of 80-100mm/min.
ăBeam compressed spotă
Our blue laser module with Original diode, high quality,20,000 hours life time! Beam compressed spot to make the beam size much smaller at focus, power density increase 4~5 times, the engraving speed increase 4~5 times accordingly. At same time, the precision increase 4~5 times also. The solution make high engrave speed and high precision possible.
ăEasy to Use and Remove to Installă
The 40W laser engraving head with metal wind gathering hood,prevent flames from burning. Upgraded Magnetic eye protective cover, easy to remove and install. Control line installation method: pluggable. suitable for DIY engraving and cutting machine.
ăApplicable Materialsă
Plywood, black acrylic, MDF, wood, paper, leather, bamboo, plastic, rubber, alumina, stainless steel, etc. (Unable to engrave: blue/purple/white/transparent material, aluminum without oxide layer)

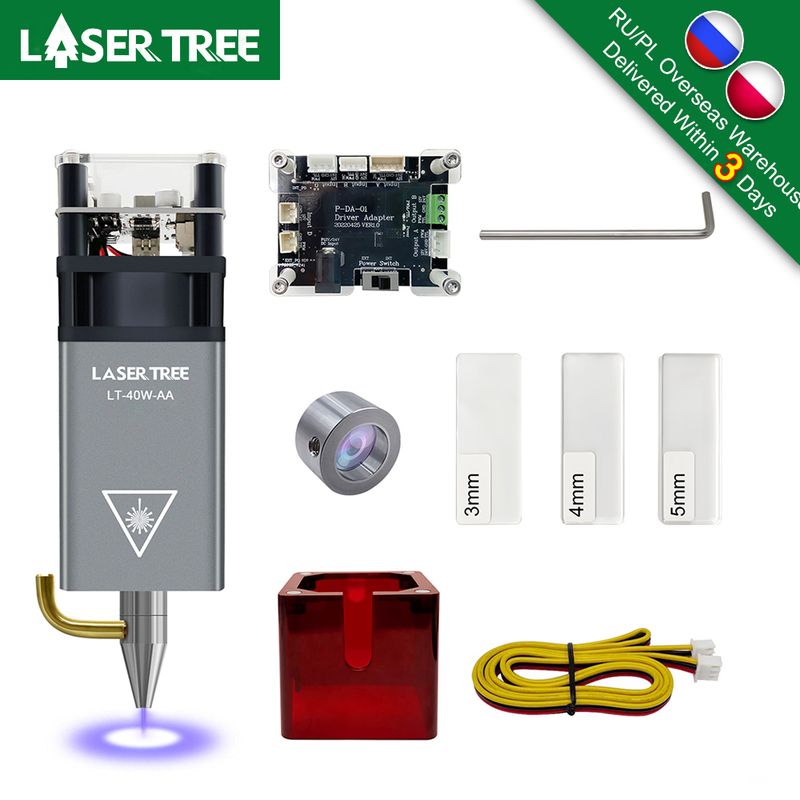

LT-40W-AA (Optical Power 5W) Features:
1. Optical power is 5W (±1W), electrical power is 12V (1.5A-2A).
2. It can cut through 4mm plywood by one pass, the speed is 190mm/min, 100% power.
3. High precision engraving resolution 0.08mm.
4. With air assist, when performing laser cutting operations, the air assist system blows air through the air nozzle to remove dust and debris to improve cutting performance and reduce burn marks, and can also prevent the dust and debris generated during the cutting process from contaminating the optical lens and lens surface , thereby increasing the service life of the lens.
LT-20W-A (Optical power 4W) Features:
ăAdjustable focus optical power 4W moduleă
a. The cutting focal length is 50mm, it can cut through 1-2mm basswood plywood at one time
b. The focal length of engraving is 20mm, which is more suitable for engraving wood (cannot engrave stainless steel)
