Linshang LS175 Illumination Colorimeter Color Difference Meter With 20mm Aperture
Includes all taxes
Meet your Seller
-
$1,101.69Sold by BILLIONS BIRDS
Description
Linshang LS175 Illumination Colorimeter Color Difference Meter With 20mm Aperture
Introduction:
Suitable for color measurement on textured or rough surface materials such as textiles.Color scan and Color comparison functions.

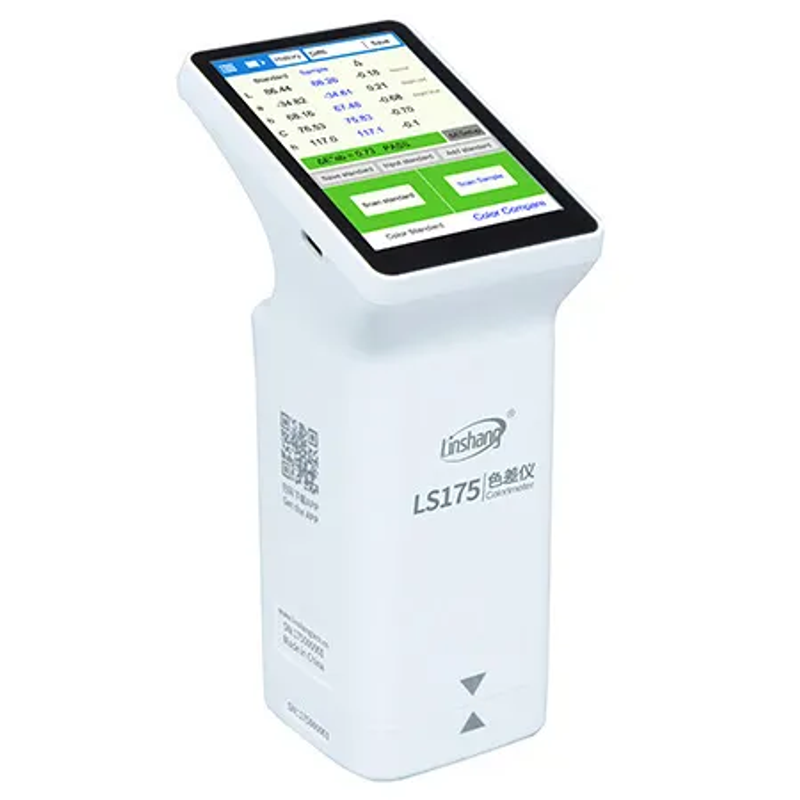

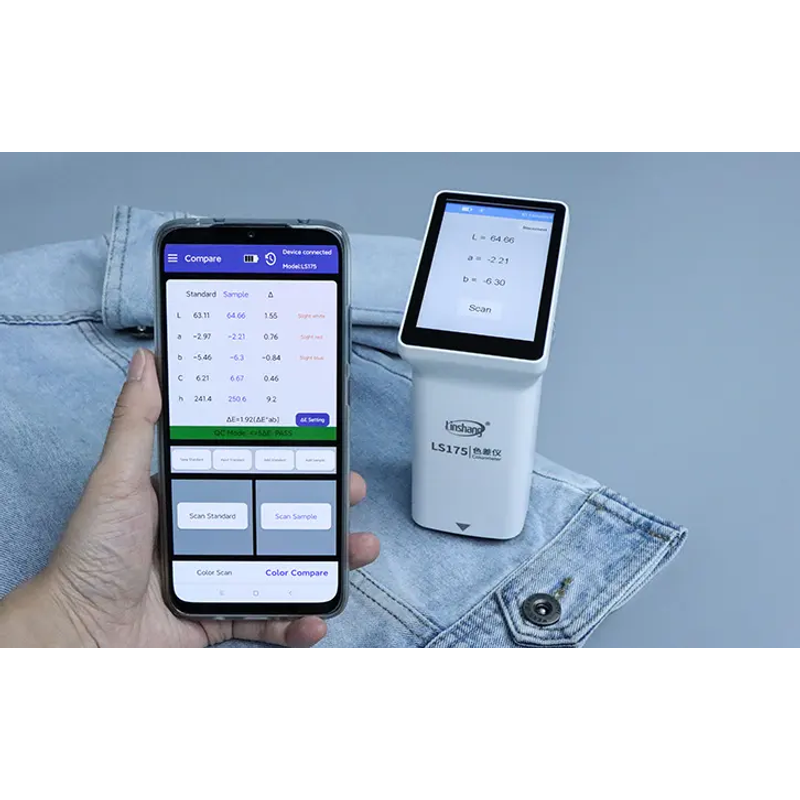

LS175 is a handheld 45/0 illumination geometry colorimeter with a large 20mm measuring aperture, a 3.5-inch IPS color capacity touch screen, can connect with mobile phone or PC. This device can work independently without connecting APP on mobile phone or PC software. Several color charts helps matching the closest color number of scanned color in short time. The device also has color comparison function, support multiple methods of adding standard. Availability of setting threshold of color difference ensures QC quick inspcetion. The device can connect APP and PC software, expanding its functions such as color sharing and printing report.
Application:
As it can measure larger area to acquire more even color data with its large 20mm measuring aperture, LS175 has wide application in color measurement and widely used in industries of textiles, leather,fabrics and wood furniture.
Parameter:
| Parameter | Value |
|---|---|
| Illumination geometry | 45/0 (45° annular illumination, 0° viewing angle) |
| Illumination light source | Full spectrum LED light source |
| Measuring aperture | 20mm |
| Measurement conditions | Light source D65, field of view 10° |
| Measuring time | 1s |
| Color space | CIE Lab,Luv,LCh,Yxy,CMYK,RGB,Hex |
| Color difference formula | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00 |
| Repeatability | Standard deviation ΔE*ab ≤ 0.03 (Measurement condition: the average value of 30 measurements on the white tile at an interval of 3s after calibration) |
| Dimension | 86mm X 62.5mm X 158mm |
| Weight | 225g |
| Power supply | Rechargeable lithium battery 3.7V@4000mAh, can measure 10,000 times continuously under full charge |
| Display | 480×320 dot matrix IPS color screen |
| Language | Simplified Chinese, English |
| Charging port | USB(Type-C) |
| Data transmission | USB, Bluetooth |
| Operating temperature range | 0~45℃,0~85%RH(no condensation) |
| Storage temperature range | -25~55℃,0~85%RH(no condensation) |
Feature:
Large measuring aperture, higher precision
As it can measure larger area with its large 20mm measuring aperture, the device ensures higher precision on the test results as it acquires more even color data when measuring textured or rough surface materials.
Touch screen makes measurement convenient
The device adopts a 3.5-inch IPS color capacity touch screen, no need to operate by pressing button. It offers smooth user operation experience and interactive interface, simple operation.
Portable and Precise
Portable size, durable and stable architecture with ergonomic design ensures more stable test results.
Providing multiple sets of electronic color charts

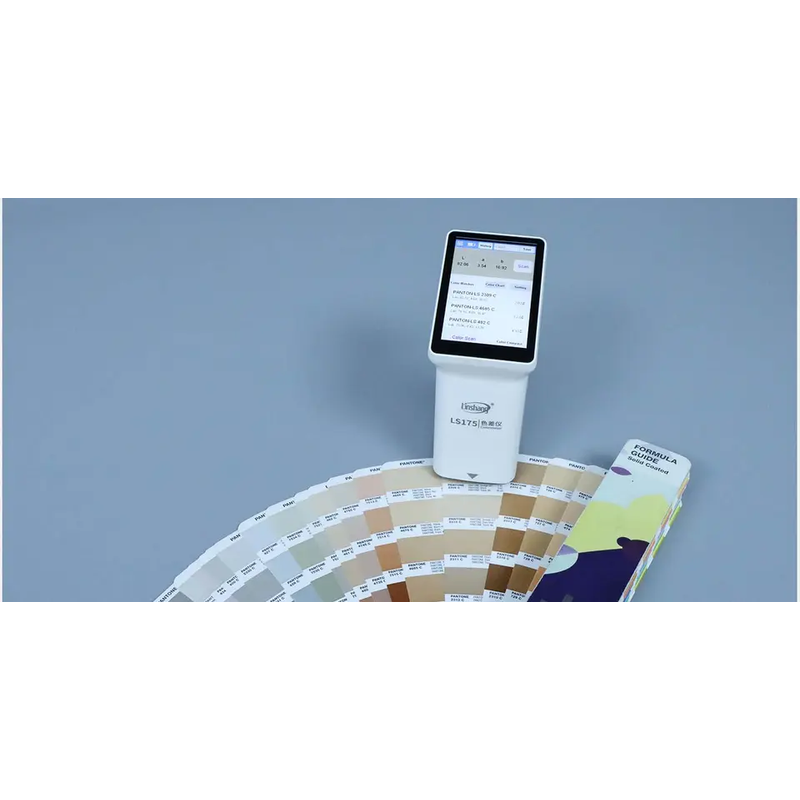

The device provides multiple sets of electronic color charts applicable for many industries (RAL, Pantone, NCS), can quickly match 3 closest serial numbers in the color charts with precision rate over 90%, keeping your hands free from carrying heavy color charts.
Color scan and Color Compare function
LS175 has two main functions: Color scan and Color compare. You can get result within 1 seconds when using Color scan function. Quality Control inspection can be realized in Color compare function that color deviation on 3 Lab color channels will be prompted, offering reference for color toning.
Packing List:
| No. | Description | Quantity | Unit |
|---|---|---|---|
| 1 | Colorimeter | 1 | Set |
| 2 | USB cable | 1 | pcs |
| 3 | U disk (software) | 1 | pcs |
| 4 | Cleaning cloth | 1 | pcs |
| 5 | Locating plate | 1 | pcs |
| 6 | User manual | 1 | pcs |
| 7 | Certificate / Warranty card | 1 | pcs |
