Mebay DC30D MK2 Generator Controller Board Panel Small Diesel Genset Control Module

$113.39

Includes all taxes

Ships From
Quantity
Meet your Seller
Delivery options
  • Ship Only

Description

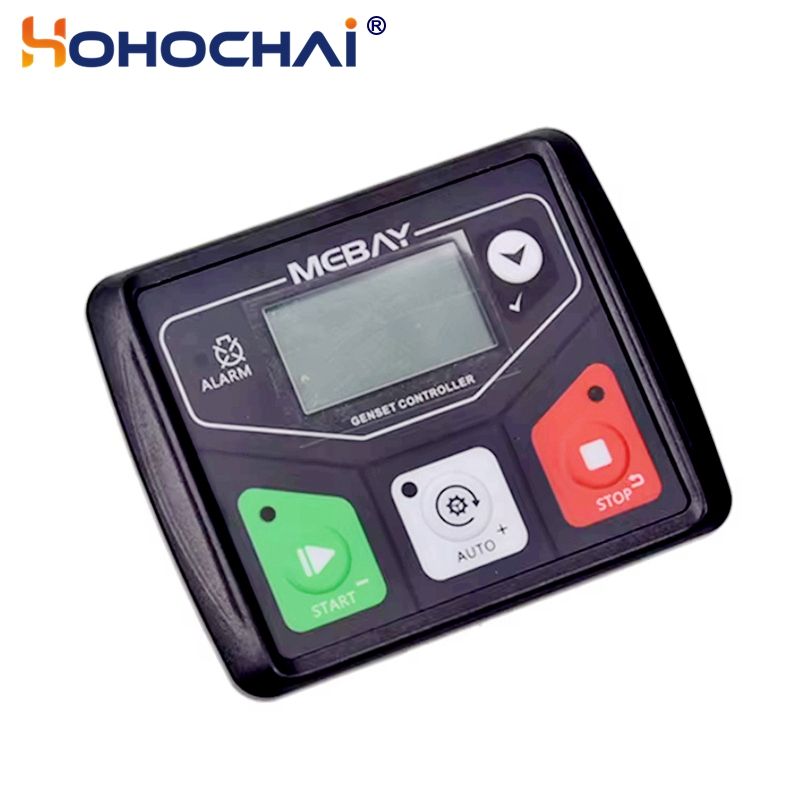

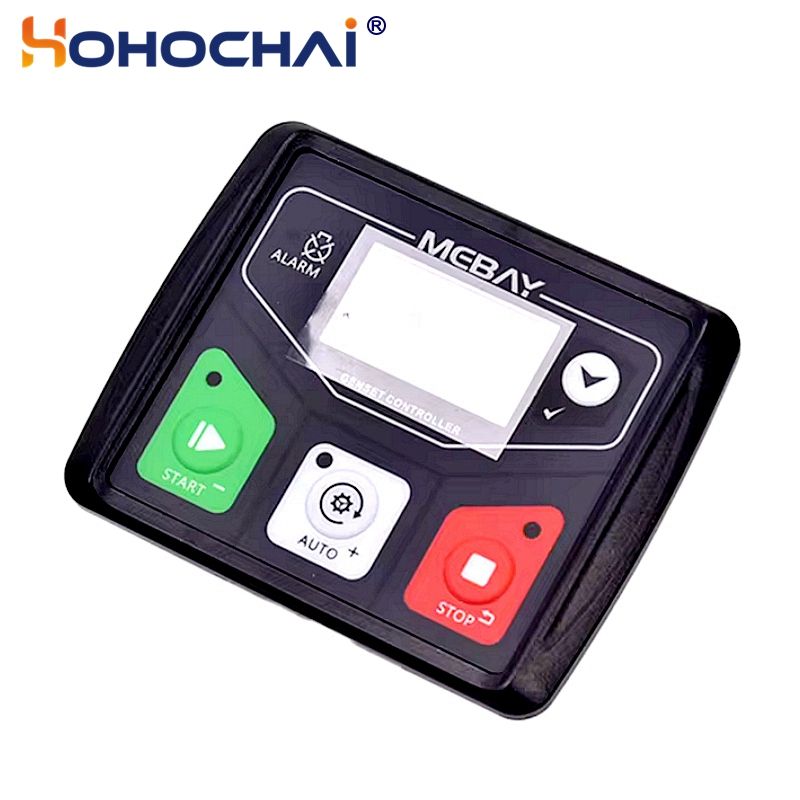

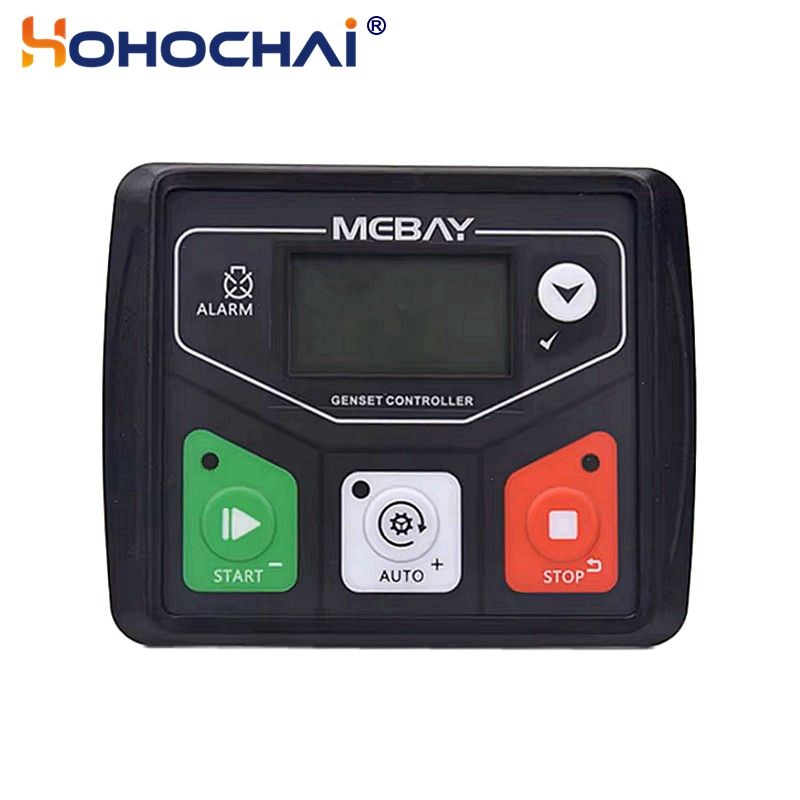

Mebay DC30D MK2 Generator Controller Board Panel Small Diesel Genset Control Module

This Controller Series is specialized for small diesel, gasoline, gas generator sets’start, stop,monitor and defaults checking as well as parameters setting.

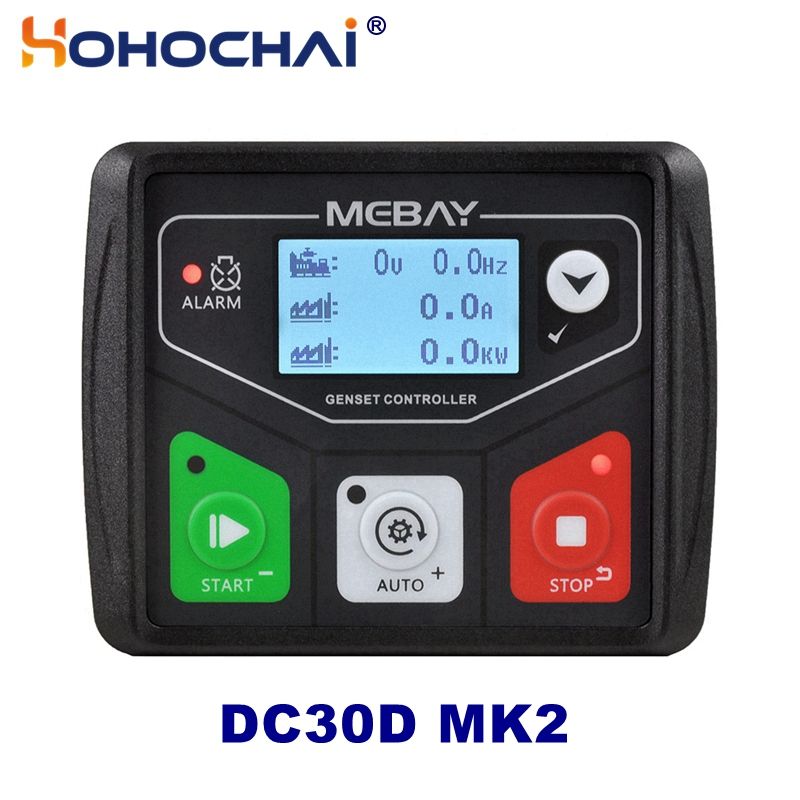

The controller has a point array LCD screen, can display various faults in the same time that the genset will be stopped once it can not work smoothly. There are Chinese/English interface options, more language can be set according to user’s request. All the parameters can be configured through the front face buttons or use programmable interface by USB to adjust via PC. It can be widely applied for all kinds of auto control system of gensets.

Parameters:
Operation Voltage:DC8-36V Continuous
Power Consumption:
Standby:24V:MAX 1W
Working:24V:MAX 2W
AC Voltage Input:1P2W(L-N input) 30VAC-360VAC(ph-N)
Rotate speed sensor Frequency:50-9000Hz
Generator Frequency input:50/60Hz
MAX Accumulating Time:9999.9Hours(Min Store time:6min)

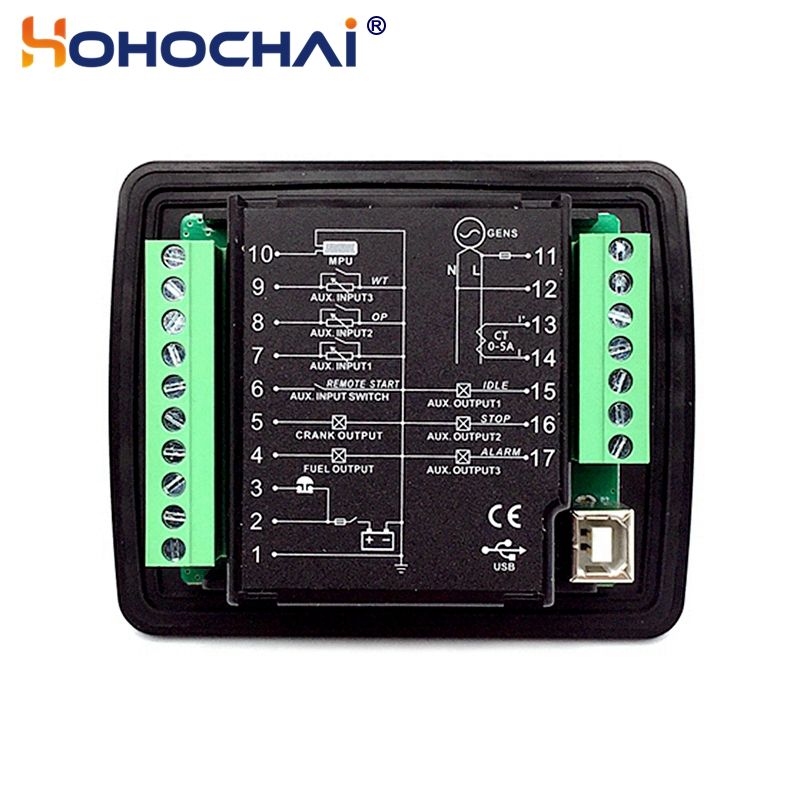

Fuel Relay Output:1Amp DC+VE Supply voltage
Start Relay Output:1Amp DC+VE Supply voltage
Programmable Relay output 1:1Amp DC+VE Supply voltage
Programmable Relay output 2: 1AMP Non-contact-Normal open Normal close output
Programmable Relay output 3: 1AMP Non-contact Normal Open output
Switch value input: Available if connecting with Battery -
Insulation strength: Apply AC1.5kV voltage between high voltage terminal and low voltage terminal; The leakage current is not more than 3mA within 1min.
Working condition: -25-65℃
Storage condition: -40-85℃
Protection Level: IP54:when waterproof rubber gasket is added between controller and its panel
Overall dimension: 106mm×86mm×45mm
Panel cutout: 78mm×66mm
Weight 0.25Kg
