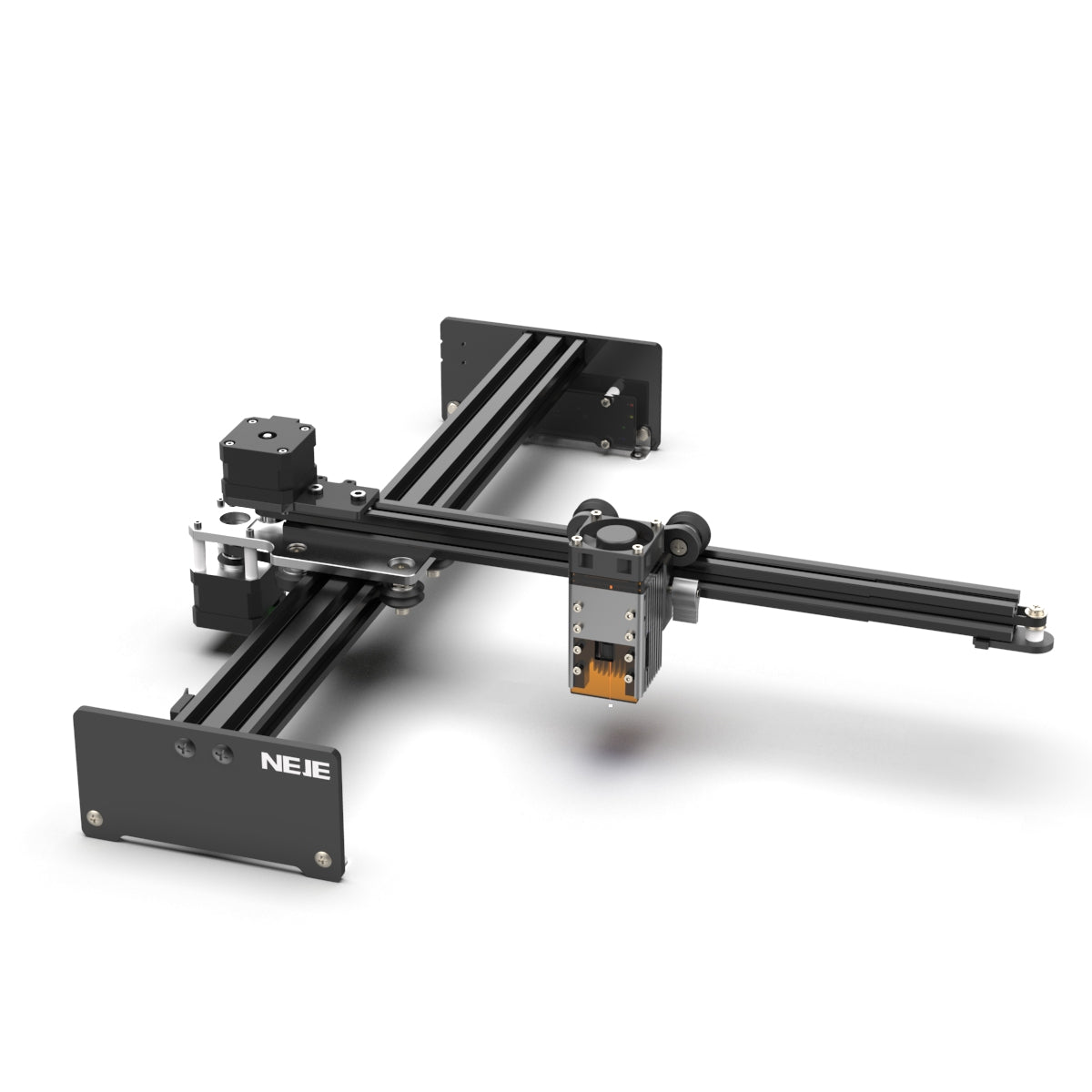

Neje 5 Hand-Held Woodworking Carving Cutting Artwork Plus Engraving Machine Offline Line Control Wood Router for Wood Leather Paper Stainless Steel

$665.21

Includes all taxes

Color

Neje 5 Plus

Size

Ship from

China

Ship to

By shipping method

Meet your Seller

$665.21

Sold by BILLIONS BIRDS

Delivery options

Ship Only

Description

Features

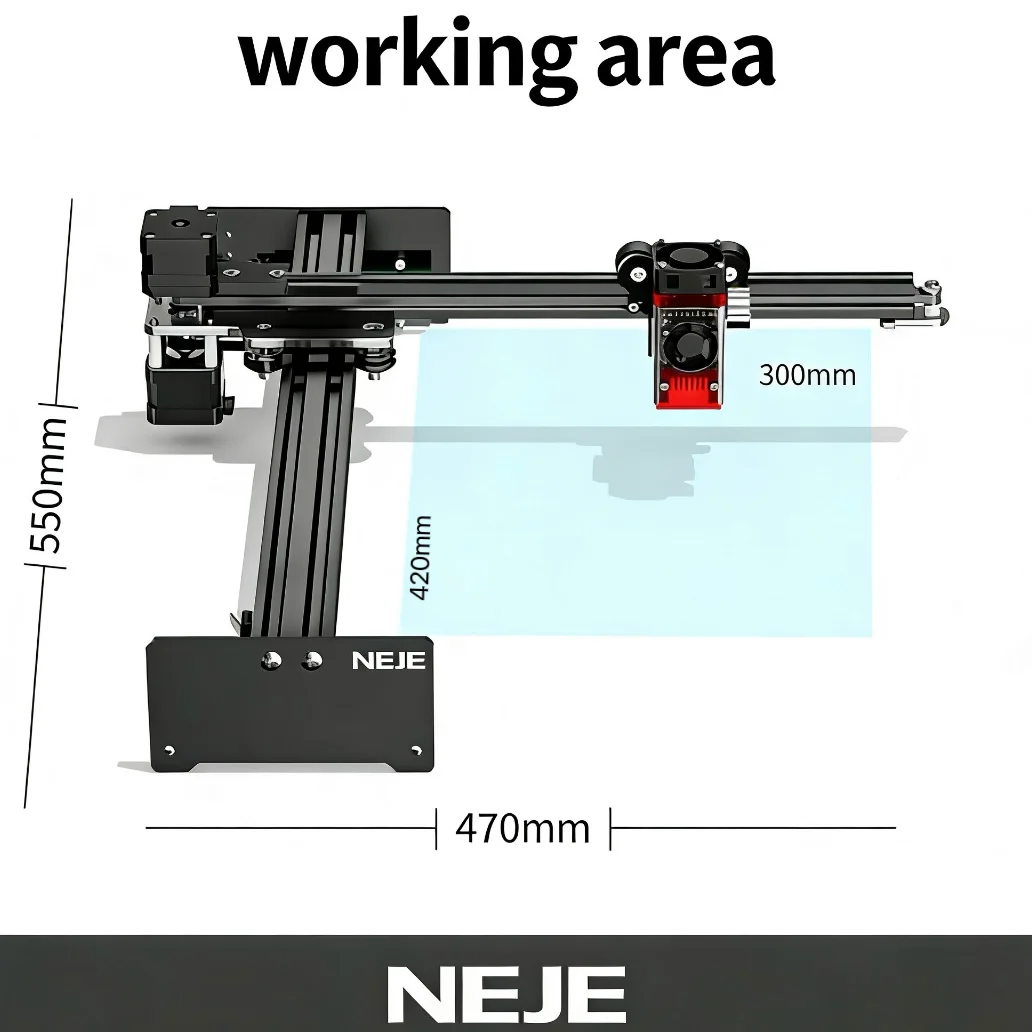

【top engraving speed】just fit on a desktop with a width of 600mm, and the left side of the m
Machine is not limited by the size of the material.It is suitable for processing large area materials.Under the protection of the mems vibration protection sensor, the engraving and cutting processes can be completed at the same time.The x-axis motion module weighs only 120g and is driven by a 40mm thick high-performance stepper motor, providing a faster engraving experience compared to a gantry structure. it features a resolution of 3400 x 5600 pixels, an engraving accuracy of 0.075 mm dot pitch, and 339 dots per inch.The whole machine function test requires only 4 screws to complete the installation.
【top engraving capabilities】the laser beam is formed by combining two high-power laser diodes distinctive technology.The minimum focus point reaches 0.04x0.06mm (a40640 module).12w pulse real pulse output.It can directly engrave clear grayscale on the stainless steel surface.Support neje advanced laser module, built-in fast intelligent drive, temperature feedback can be timely, and intelligently adjust the fan heat dissipation.Güvenli ve sessiz kullanım.
【more materials, clearer】 wood, mdf, leather, paper, cotton, etc.Are all supported.8mm plywood only needs air-assisted cutting once (a40640), and the cutting is very clean.Can directly engrave stainless steel, glass, transparent acrylic and so on.

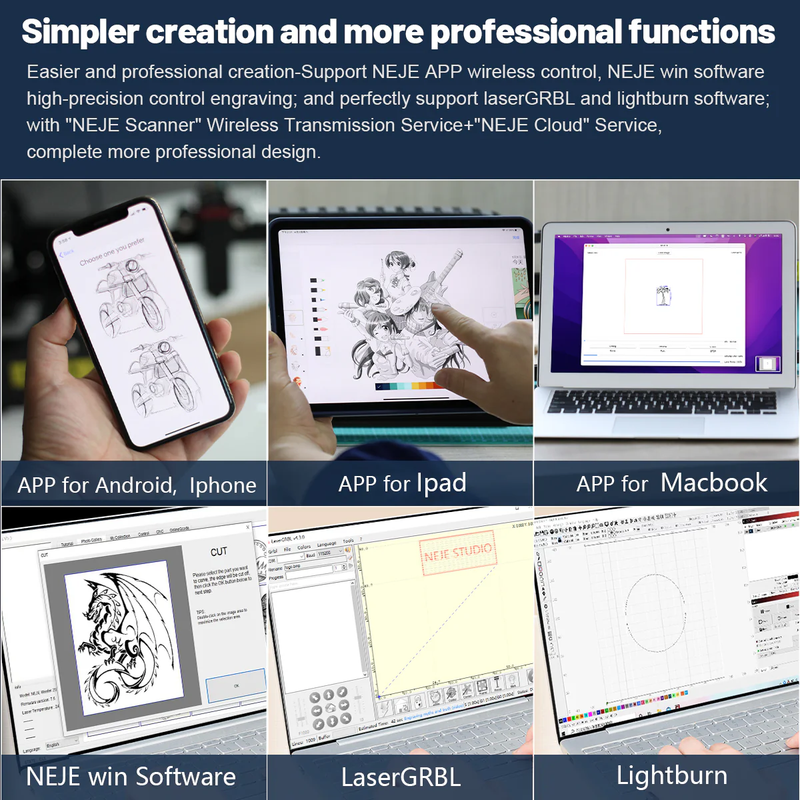

PortableProfessionalControl32-bit softwareControlSystemTheFastestSpeedCanReach200,000 mm/minSupportsLasergrbl.Lightburn.Neje.WinSoftwareNeje.AppAndroidPhoneIphoneIpadMacbookYouCanChangeItByTakingPhotosWithYourMobilePhoneGoldSelectingPicturesFromTheAlbumItCompleteTheWorkQuicklyNeje.ProvidesFreeSoftwareOta.UpgradeServices.
【perfect after-sales service]】the whole machine is guaranteed for free for 2 years (laser module: 2 years and 20,000 hours warranty), and vulnerable parts are shipped worldwide within 24 hours.

Product details

About neje quality control and service!

Founded in 2013, neje is the inventor and innovation leader of diode laser engraving machines.After 9 years of continuous research and iteration, neje's laboratory and factory have become experts in the field of diode laser engraving machines.The diode engraving machine brand is the only manufacturer with its own optical laboratory, manufacturing plant, global warehousing service and complete after-sales process.Every progress of neje follows the user value first.EveryMechanical engineeringEquipmentControlPanelAndModuleNeedsItGoThroughTheStrictlyR&dProcessesAndFactoryQualityControlSystemOrTheNeje.LaboratoryAndAllTheAutomaticQualityControlThatTheNeje.FactoryHasAchievedEnsuresThatEveryUserCanGetReliableProductsAndServiceCommitmentsNeje never assembles spare parts to ensure that each equipment all have undergone complete testing, neje has served 1 million consumers in the past 9 years, better products and services are the key to success.

Expansion description

M7 2014RelayExpansionAccessories,CanBeUsedToControlA.c.GoldD.c.PowerSupplySmokeExhaustSystemCanAlsoBeUsedToControlOtherCircuits,UsedAsM8,ThereAreSafetyRisksWhenOperatingHigh voltageCircuits,RequiringProfessionalOperationM8 8ValveExpansionAccessories,CanBeUsedItControlTheWaterCompressorSwitchesWhere3SupportsAccessoriesExpansionPurposeTheRelayModuleWaterValveModuleAndThroughNeedToBePurchasedSeparatelyNot included in the product list.

About air assist

When do you need air assist?

Air-assisted engraving or cutting can only be used for engraving or cutting that produces more carbonized substances.Generally, the depth of engraving is less than 1mm, and the cutting of plywood less than 2mm does not require air assist.A small fan can be used to blow off the smoke generated by the engraving.Air assist is not recommended when engraving images, and adding air assist at this time will destroy image details.

What kind of air pump is suitable for cutting

The primary function of air assist is to blow away the carbonized material produced during cutting. using a standard oxyhydrogen torch or electromagnetic inflator is essentially pointless in this regard.Only the pressure of the oil pump and air compressor (0.4-1.5mpa) has the effect of blowing away the carbonized material.It should be noted that the air from the oil pump contains oil and cannot be directly used for the air-assisted module of the closed cavity, otherwise the oil will contaminate the lens, resulting in power drop or damage to the lens.The air pressure of the air compressor can be used for a short time with the closed cavity, but when used for a long time, the water-containing gas will contaminate the lens, cause the power to drop, and even damage the lens.

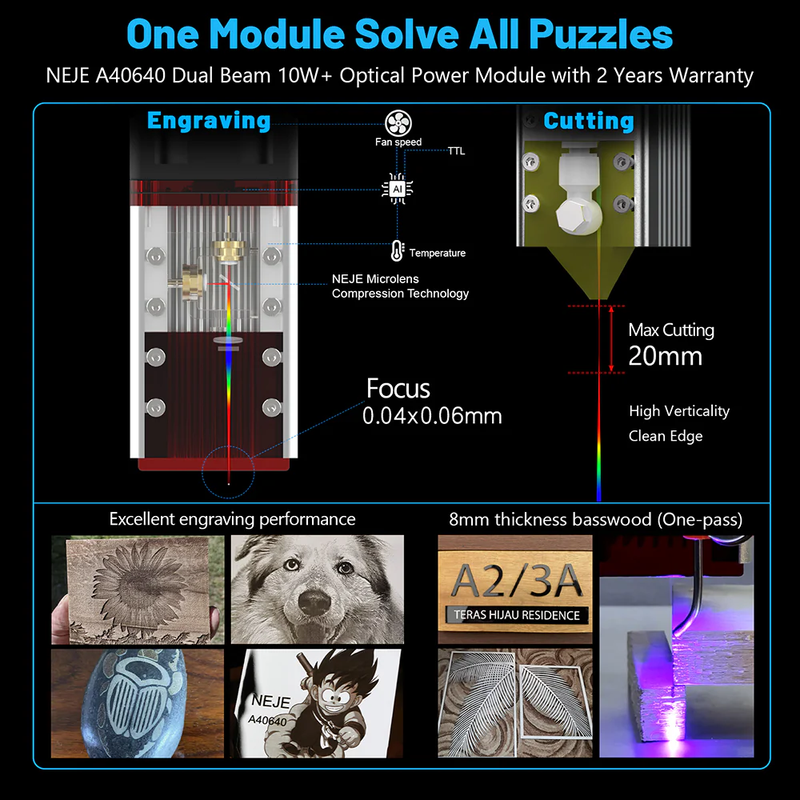

How to add air assist on the a40640 laser module

The neje a40640 module is an adjustable focus module.For the consistency of testing, the neje factory adjusts the module to 55mm focal length by default.This focal length is suitable for cutting thicker materials.This focal length is generally not commonly used.When you first use the product, it's recommended to use a flathead screw to adjust the focal length to approximately 30mm, which is 1-2mm away from the light baffle.ThisFocal pointLengthHasItVeryHighFocal pointPowerDensityAndCanDirectlyEngraveGrayscale.Stainless steelSteelImagesGray–blackStoneAndOtherHardMaterialsNeje.A 40640CanDirectlyEngrave3 dHardwoodAndOtherMaterialsAndDoesNoteRequireWaterSupportTwoToTheHighEnergyDensityDesignA 40640CanDirectlyVaporizeGeneralWoodenMaterialsDuring theTheEngravingAndCuttingProcessSoItIsAlsoUnnecessaryToAddWaterAssist.

Specifications

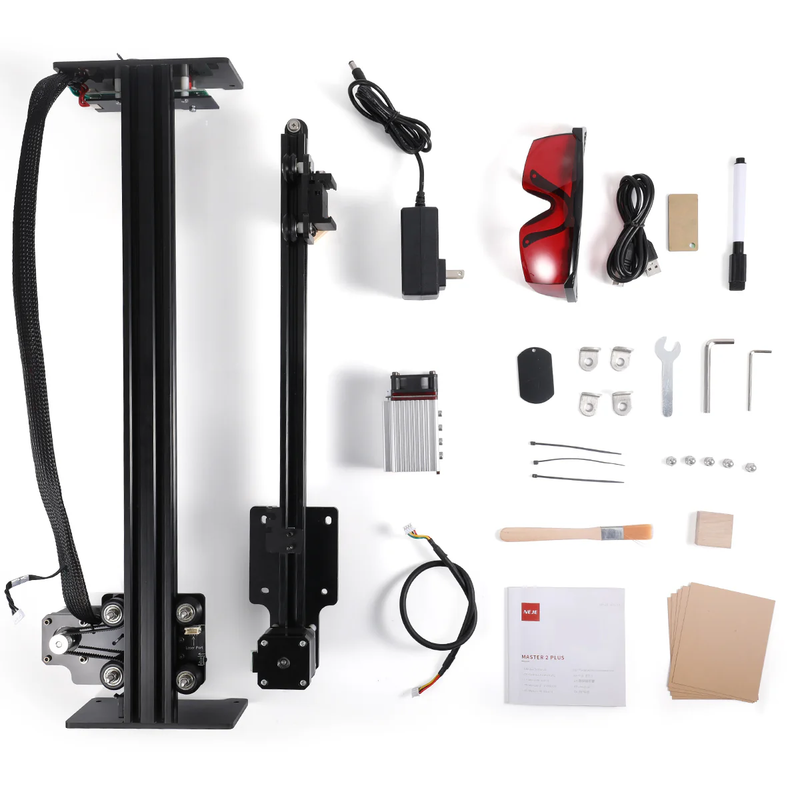

Package listing
