NEJE 80W/50W/40W Laser Head Module Kit High Power 450nm TTL Module for Laser Engraving Machine DIY Tools
Includes all taxes
Meet your Seller
-
$526.35Sold by BILLIONS BIRDS
Description
HOW TO CHOOSE NEJE LASER MODULE
A40630, A30130modules have very fine square light spots, and are better at high-resolution engraving and grayscale engraving of hard materials, They are all zoom modules. A40630 and A30130 also have strong cutting ability and are suitable for cutting Plywood, mdf board and black acrylic. N30610 can present 0.02mm detail, A40630 and A30130 are the same optical features, focal point 0.04x0.04mm, the difference in the different air-assisted extension forms and compatible air pumps.
A40640(Artist's Choice) is a classic creative master 2 beam zoom laser module, it is the world's first 2 beam laser diode engraving and cutting module with zoom design, with the best metal engraving ability, fast groove engraving ability, perfect cutting compatibility. Better application on a wider range of materials, The strongest power density (0.04x0.06mm with 12W+ pulse and 11W continuous optical power, Use 80% power (9W+) when cutting for a long time)of enables the A40640 to have the top engraving ability, There are very special and top artistic expressions on the carvings of stainless steel grayscale carvings, stone carvings, Glass Carving, hardwood reliefs, canvas art, and other materials. The adjustable focal length design enables the A40640 module to have a uniform cutting thickness of 20mm and short-focus fast cutting capabilities. If you only consider 1 module to help you solve all the needs, it is the best choice.
E40(Recomend), E80are the series of fixed focus modules specially designed by NEJE for cutting and directly use it for engraving with ACO air pump. These four modules are fixed focal length modules, which require clean air source support, F30130 is 10mm focal length, good at cutting plywood and metal engraving less than 4mm, E30130 is 20mm focal length, through internal NEJE optical processing, the spot shape is square, suitable for cutting materials with strong symmetry requirements such as model aircraft, E40 is 2 beam fixed module with 11W pulse and 10W+ continuous power output capability, Same engraving capability as A40640, It is a carving and cutting module with high cost performance and wide application. E80 is 4 beam module, 20W+ output, it is not recommended for engraving, the focus point is larger, heavy weight and the need to add air assist are the disadvantages of 4xLD. If you have requirements for cutting speed of 3-4mm materials, E80 is the right choice for you, Normally, 500mm/min can cut plywood cleanly, It should be noted that E80 is a 24V input module, which can only support the new NEJE-3-Max mainboard (v1.1.0 and above) .
E40‘S SPECIAL CAPABILITIES
E40(High Precision multi-function module) is a high-power dual beam fixed focus high-precision module. E40 module has extremely small incisions when cutting MDF boards, leather, acrylic, fabric, cardboard and other high-density materials less than 4mm, and the minimum gap between incisions is less than 0.06mm, At the same time, it can carve stainless steel, stone, glass, ceramics and other high-resolution materials with high-precision rendering capability, and the imaging effect is meticulous and accurate. It is a perfect high-power image rendering module. The NEJE E40 module adopts NEJE's unique external lens optical compression technology, which makes the focus energy density amazing, The energy density is 2 times higher than that of the 20W optical power module, so it has faster speed and precision in the actual engraving process. The incision in XY direction tends to be uniform, Therefore, you will get a more even effect when drawing lines. E40 module adopts more stable and reliable optical solution, which makes the service life of the E40 continuous cutting mode 40% longer than that of the ordinary laser module, and the service life of the E40 normal working mode (8 hours per day) even reaches 7 years. The NEJE team's goal for E40 is to become the next classic, You can always believe that it will constantly brings you more amazing projects.
WHAT NEJE A40640 CAN BRING TO YOU?

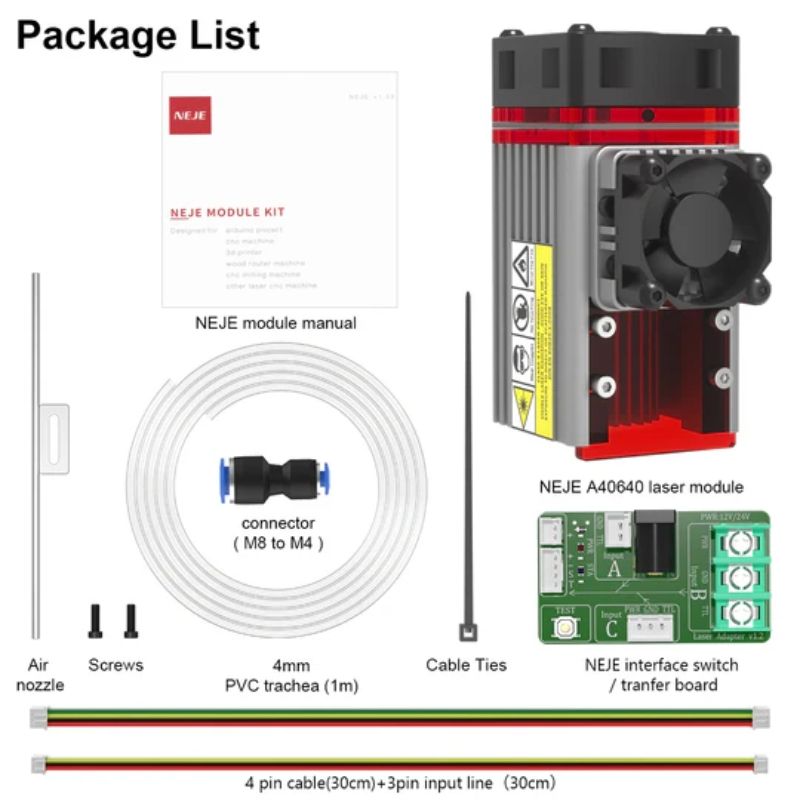

A40640 (The most widely used module) is a classic creative master dual beam zoom laser module, it is the world's first 2 beam laser diode engraving and cutting module with zoom design, with the best metal engraving ability, fast groove engraving ability, thick material cutting compatibility, Make it the most widely used module. Due to the built-in NEJE unique fiber compression technology, It has a very strong energy density (0.04x0.06mm with 12W+ pulse and 11W continuous optical power), There are very special and top artistic expressions on the carvings of stainless steel grayscale carvings, stone carvings, Glass Carving, hardwood reliefs, canvas art, and other materials. The A40640 is the only high-power module with variable focus section, The optimized A40640 II has higher cutting reliability, The short focus is suitable for carving hard materials such as metal stone and cutting materials with high density such as mdf, The long focus has better depth of field and smaller included angle for cutting thick wood and other materials. The excellent design makes the A40640 have a very strong vitality from the first creator of high-power diode laser to today, Due to the high power density, it has an equivalent application higher than 20W (optical power) laser in large area image engraving, If you only consider 1 module to help you solve all the needs, it is the best choice.
