New Technology 100m to 150 Meters Deep Well Solar Water Pump
Includes all taxes
Meet your Seller
-
$853.89Sold by BILLIONS BIRDS
Description
Solar water pump: 2 years
MPPT controller: 2 years
Solar panels: 25 years
You can buy solar panels from us or just buy solar water pump and controller .
If the controller and motor damaged within 2 years, we will send you a new controller or motor for replacement.
If the impeller is damaged within 2 years, we will send you spare impellers for replacement.
1.Q: Are you a manufacturer or trading company?
We are a manufacturer that specialized in water pump 15 years. our products have abtained the CE certificate.
2.Q: How can I get some samples?
we accept the sample order, but need to be paid.
3.Q: What's your delivery time?
1.The samples can be sent to you within 3-5days.
2.The batch order can be shipped to you within 5-15days after order confirmation
4.Firstly we should know from you :
What is the fluid ?
Clean water(temperature), dirty water(temperature), particles,or slurry ?
Daily Water Supply： ______m3

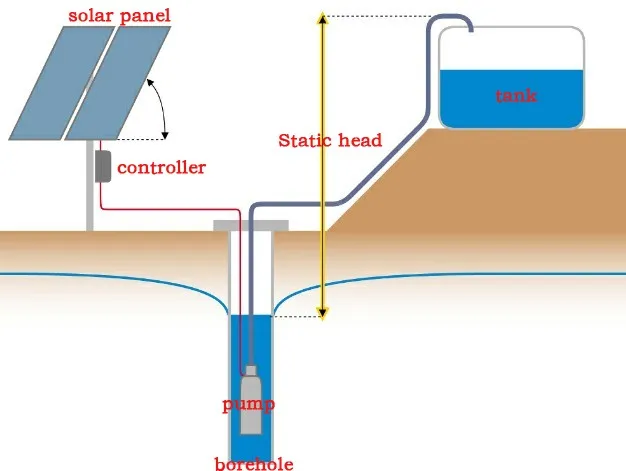

Static haed(vertical height from the pump to the highest point of delivery):________ m
Motor Cable length( the cable between controller and pump) :__________m
Pipeline length(Entire pipeline from the pump outlet to the point of delivery) :____________m
Slope or horizonal between borehole and tank _____________

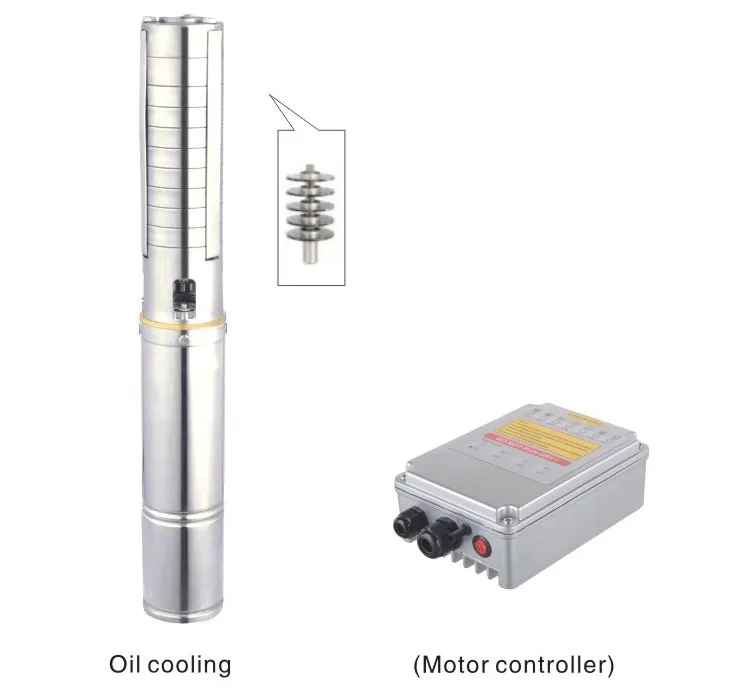

solar submersible pump, immersed into water, connects motor with pump directly.
It consists of submersible pump, motor, MPPT controller, water pipe, cable, solar panels and etc.
Solar panels convert solar energy into electrical energy, connecting to dedicated low-voltage solar pump. It is convenient, practical and simple. The solar pump runs automatically in the sun, while it runs continuously by battery or grid electric when little sunshine.

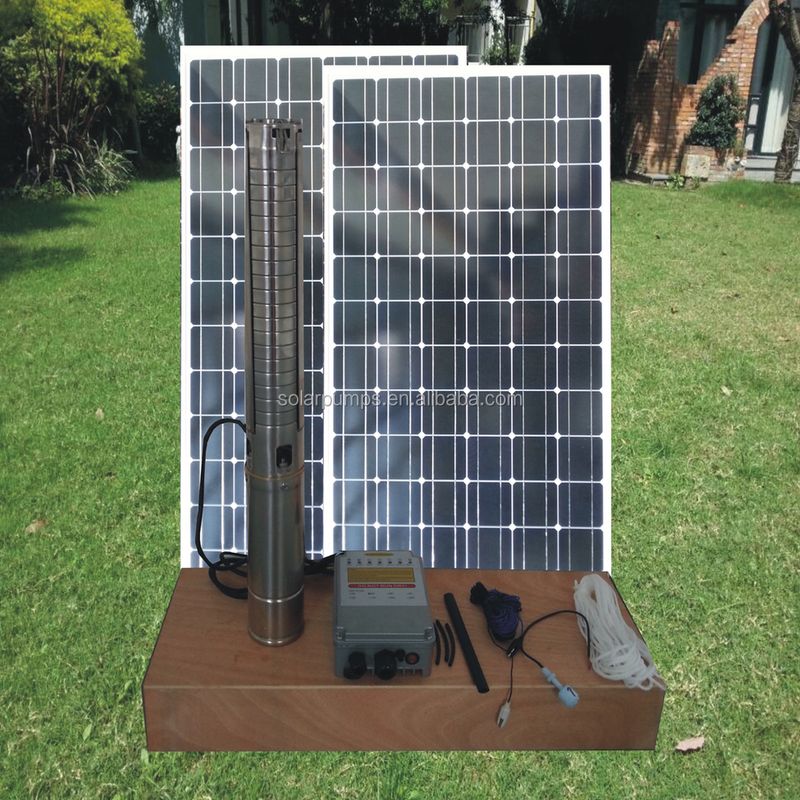

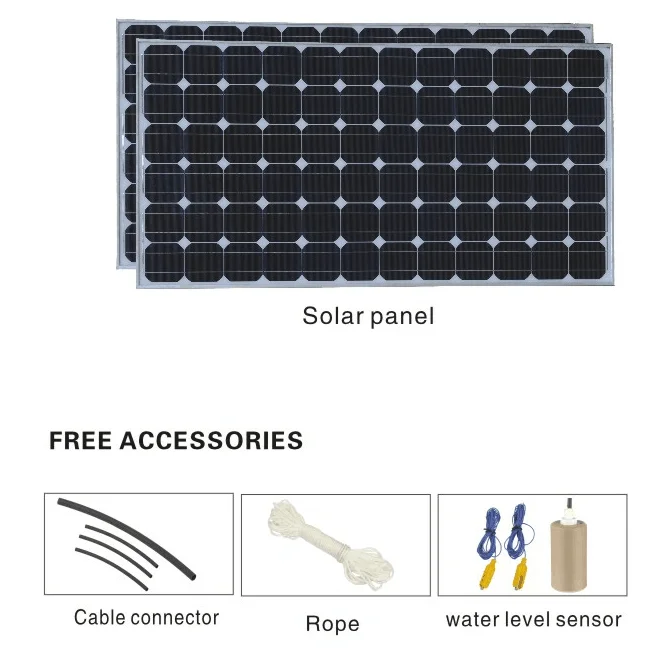

The Finished Products include:
1. Solar pump with 3m cable, longer cable is available if required
2. MPPT Controller
3. Water level sensor or float switch:10meter cable, longer cable is available
4. Cable for solar panel: 6m, longer cable is available
5. Cable connector
6. Solar panels are option
7. Rope to hang the pump
8. Installation Manual
ADVANCED TECHNOLOGY:
1.Application innovation
Compared with the traditional alternating current
machine,the efficiency is improved 25% by the permanent magnetism,direct current,brushless,non-sensor motor.
2.Technics innovation
Adopt double plastic package for rotor and stator,
motor insulation≥300MΩ,the motor security was much improved.
3.Structure innovation
Oil filling,convenient installation and environmental protection.
MATERIAL OF PARTS:
Outlet: stainless steel
Pump body: stainless steel
Motor casing:stainless steel
Impeller: Stainless steel
Bearing:NSK
solar submersible pump
|
TYPE
|
VOLTAGE
(V)
|
POWER
(W)
|
WATER OUTPUT DALIY
(Liters/day)
|
LIFT HEAD
(M)
|
OUTLET SIZE
(Inch)
|
DIAMETER
(mm)
|
|

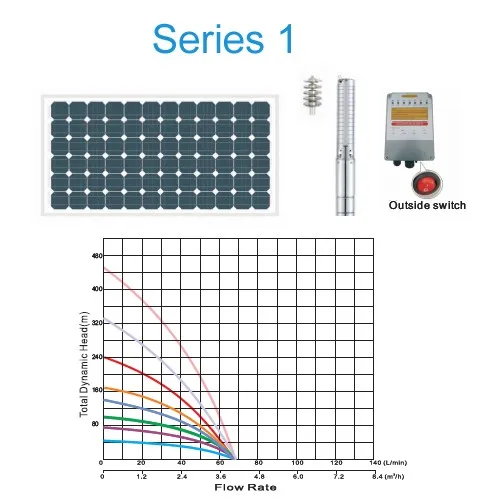

Series 1
|
|
|
|
|
|
|
|
JCS4-4.0-34
|
36
|
370
|
12,000 to 20,000 liters/day
|
5 to 30m
|
1.25
|
92
|
|
JCS4-4.0-75
|
48
|
550
|
12,000 to 20,000 liters/day
|
5 to 60m
|
1.25
|
92
|
|
JCS4-4.0-103
|
48
|
750
|
12,000 to 20,000 liters/day
|
5 to 85m
|
1.25
|
92
|
|
JCS4-4.0-134
|
72
|
1100
|
12,000 to 20,000 liters/day
|
5 to 110m
|
1.25
|
92
|
|
JCS4-4.0-166
|
252
|
1500
|
12,000 to 20,000 liters/day
|
5 to 145m
|
1.25
|
92
|
|
JCS4-4.0-243
|
288
|
2200
|
12,000 to 20,000 liters/day
|
5 to 210m
|
1.25
|
92
|
|
JCS4-4.0-333
|
288
|
3000
|
12,000 to 20,000 liters/day
|
5 to 300m
|
1.25
|
92
|
|
JCS4-4.0-458
|
288
|
4000
|
12,000 to 20,000 liters/day
|
5 to 420m
|
1.25
|
92
|
|

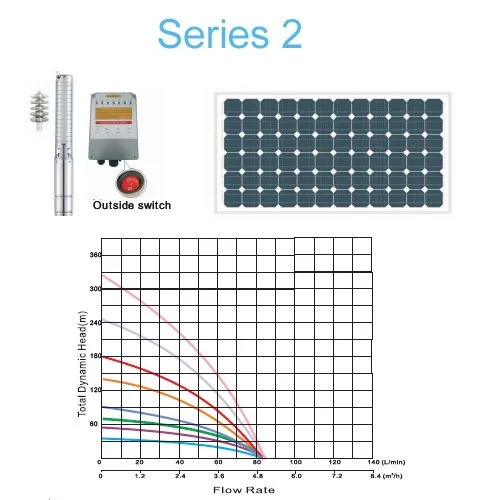

Series 2
|
|
|
|
|
|
|
|
JCS4-5.0-36
|
36
|
370
|
20,000 to 28,000 liters/day
|
5 to 25m
|
1.5
|
92
|
|
JCS4-5.0-55
|
48
|
550
|
20,000 to 28,000 liters/day
|
5 to 40m
|
1.5
|
92
|
|
JCS4-5.0-71
|
48
|
750
|
20,000 to 28,000 liters/day
|
5 to 60m
|
1.5
|
92
|
|
JCS4-5.0-93
|
72
|
1100
|
20,000 to 28,000 liters/day
|
5 to 80m
|
1.5
|
92
|
|
JCS4-5.0-137
|
252
|
1500
|
20,000 to 28,000 liters/day
|
5 to 120m
|
1.5
|
92
|
|
JCS4-5.0-181
|
288
|
2200
|
20,000 to 28,000 liters/day
|
5 to 160m
|
1.5
|
92
|
|
JCS4-5.0-244
|
288
|
3000
|
20,000 to 28,000 liters/day
|
5 to 210m
|
1.5
|
92
|
|
JCS4-5.0-326
|
288
|
4000
|
20,000 to 28,000 liters/day
|
5 to 300m
|
1.5
|
92
|

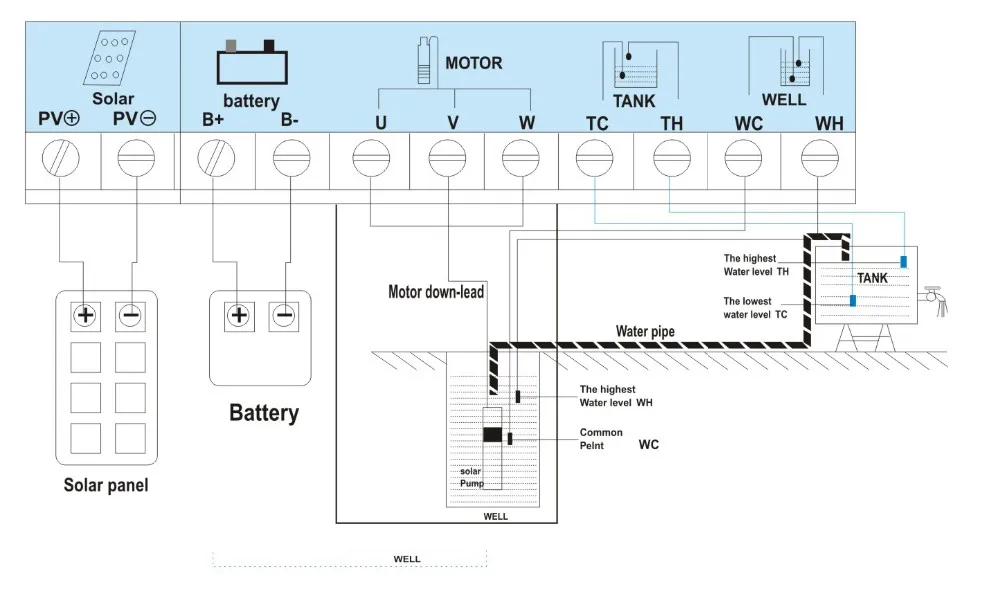

controller with battery backup function:
controller without battery backup function:
SOLAR PANELS AND BATTERIES SELECTION:
1. The power of solar panel=power of pump X 1.3, the voltage of solar panel=the voltage of pump, the controller should be matched
2. Select the batteries according to the following fomulas: The use hour of Battery=The battery capacity÷(the machine power÷the battery voltage) X 0.6 . For example,the machine power is 200w,the battery capacity is 100AH,the voltage is 12V,and the battery is fully charged,then the use hour is 100÷(200/12) x 0.6=3.6housrs.
3. The battery capacity=the use hour÷0.6 x (the machine power÷the battery voltage) For example,the machine power is 200w,the battery capacity is 12V,and the battery need to be used for 3.6 hours,the the battery capacity is: 3.6÷0.6 x (200÷12)=100AH
Our goal is to provide the highest quality solar powered water pump possible
