FEATURE

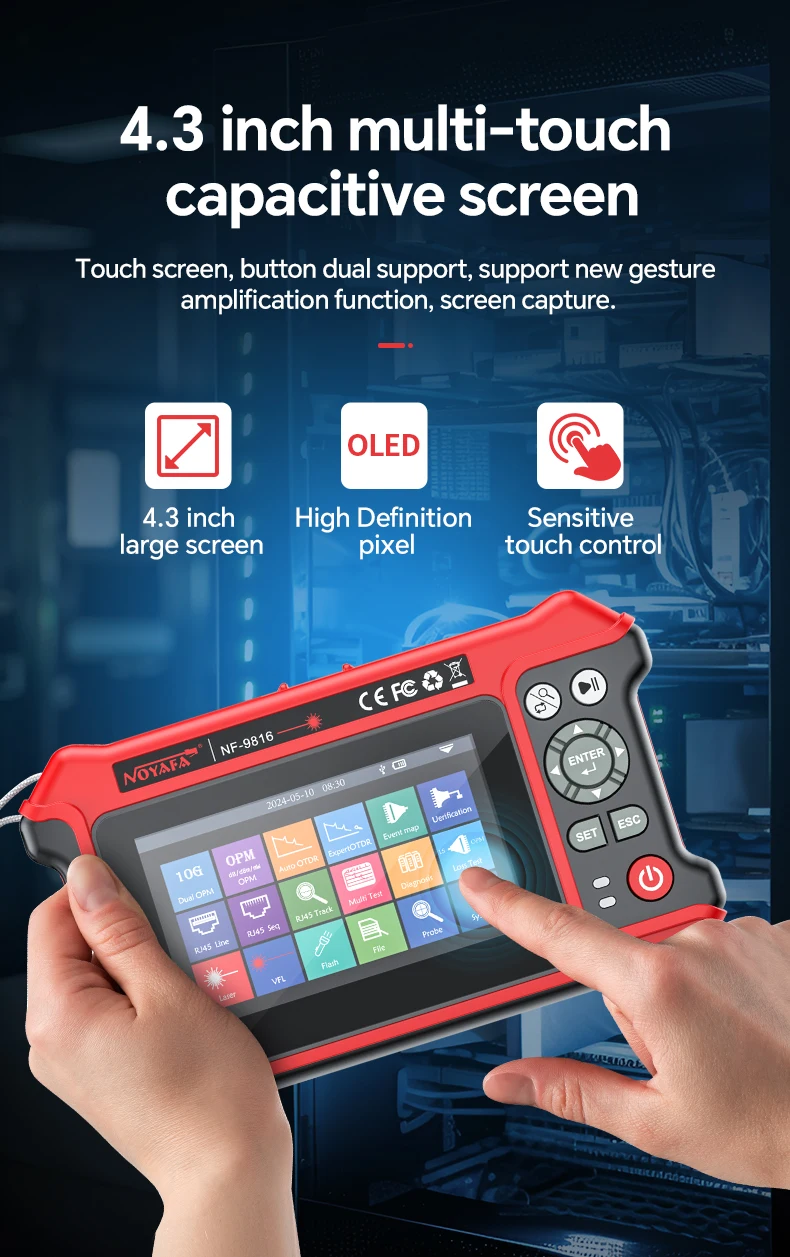

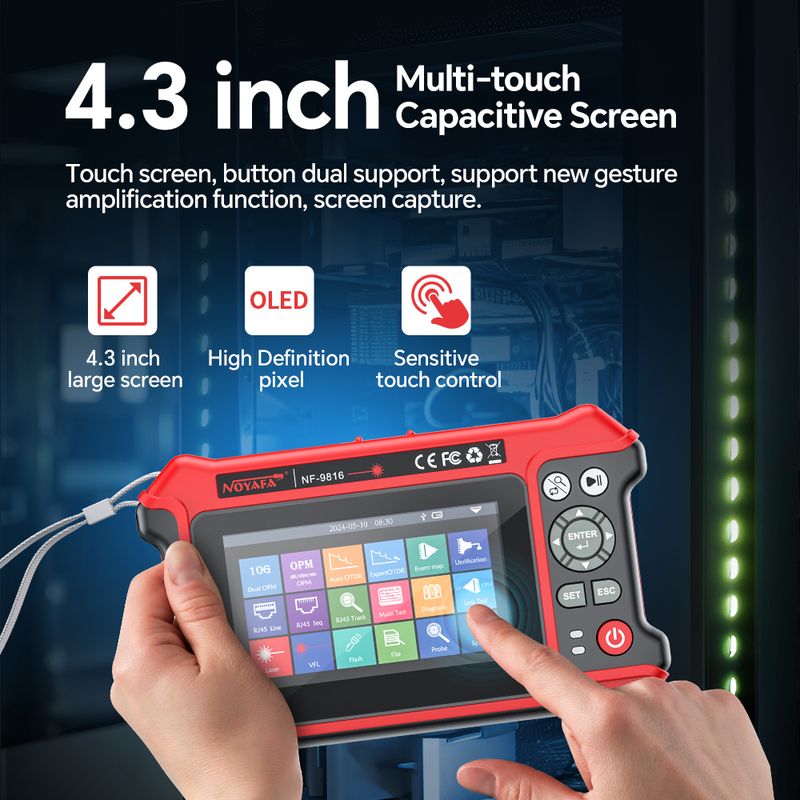

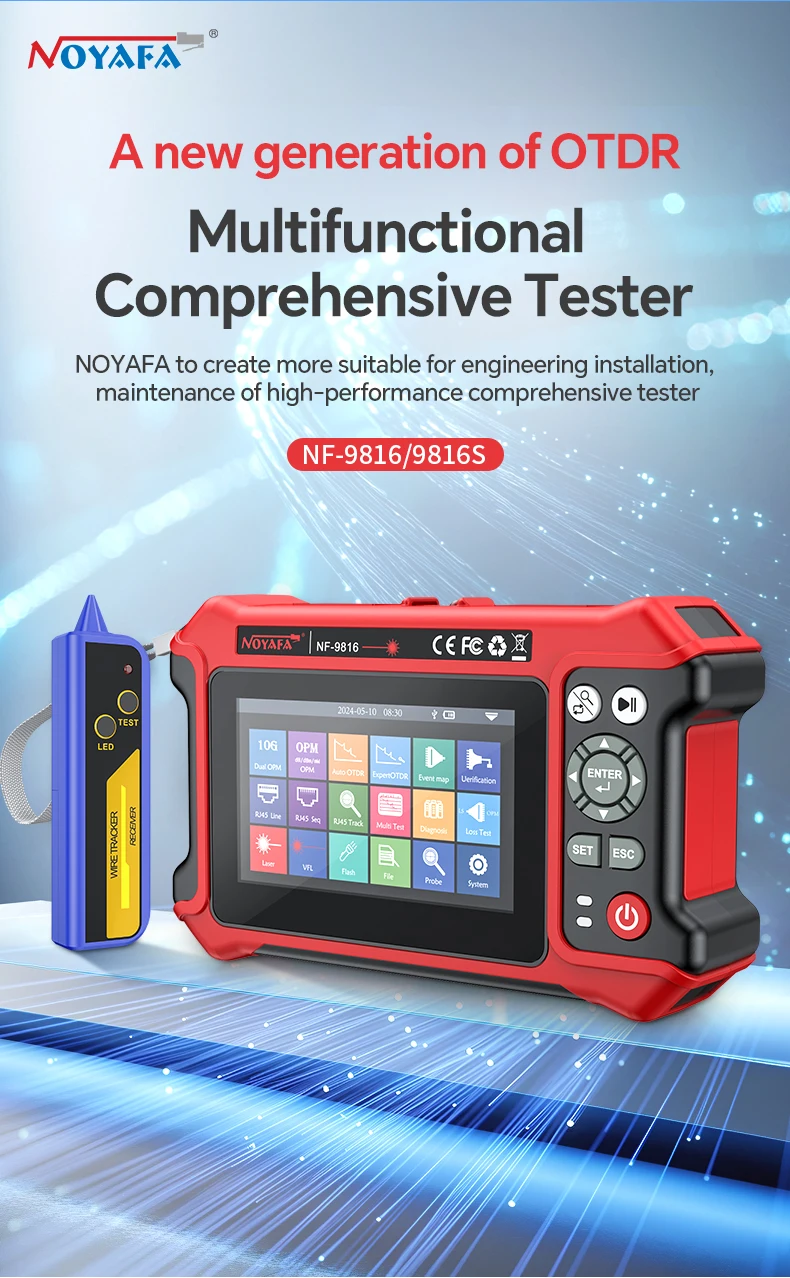

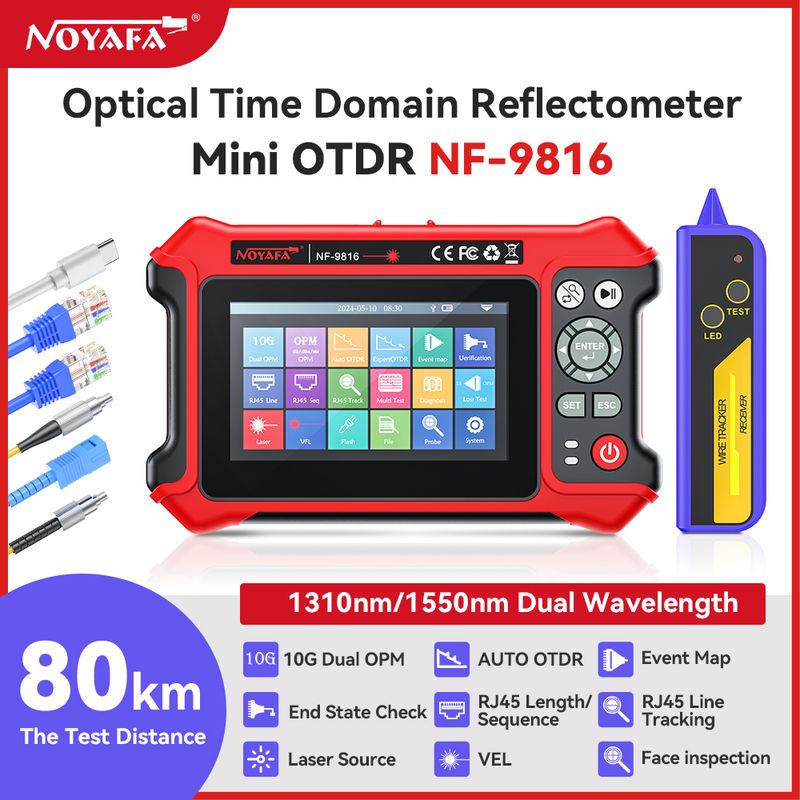

This series instrument is a multi-functional optical measurement instrument, integrated with automatic OTDR, expert OTDR, event map, 10G split-wave optical power meter, end state verification, multi-core test, stabilized light source, optical power meter, optical loss test, network cable length, line sequence test, network cable search, optical fiber end-face detection, wireless charging and other multi-functions in one, touch screen and button dual design, easy to operate, friendly interface, it is the Fibre optic cable construction, installation and maintenance, project acceptance and on-site repair of the right hand.

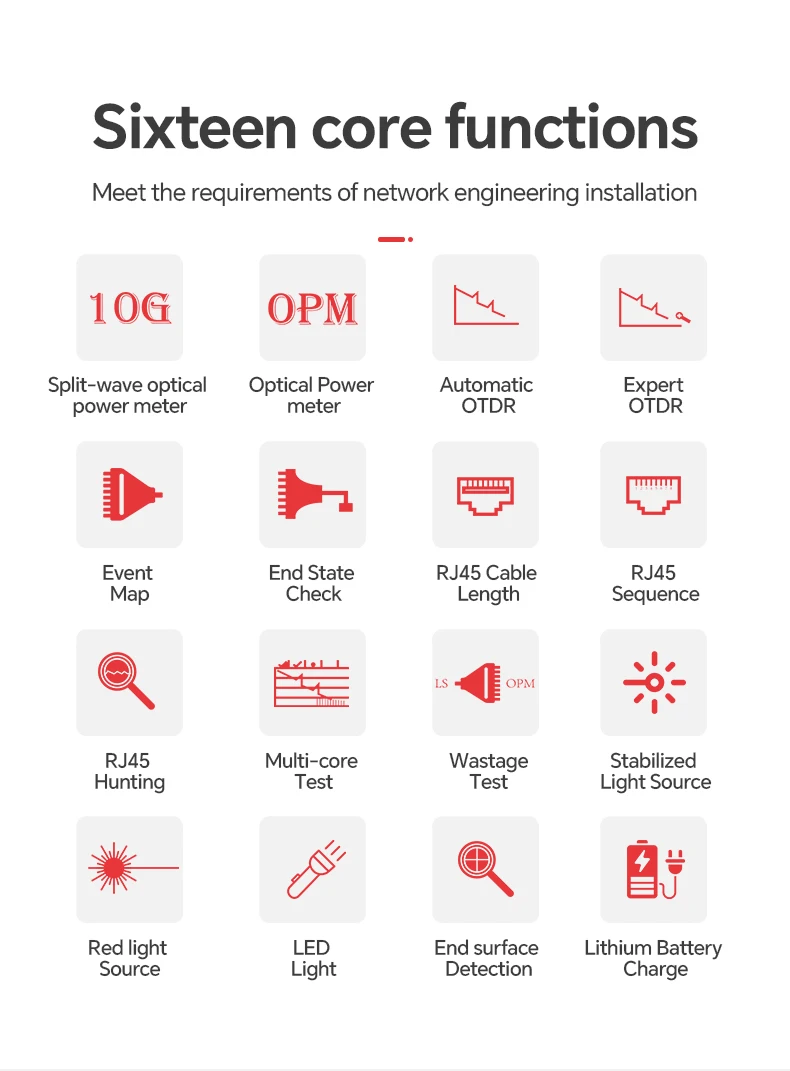

16-in-1 Funtions
The intelligent and versatile fiber optic cable tester offers 16 all-around and rich functions in one device.It includes Expert OTDR,Automatic OTDR,10G Split-Wave OPM,Optical Power Meter,Event Map,End State Check,RJ45 Hunting/Sequence/Cable Length,Multi-Core Test,Wastage Test,Stabilized Light Source,Red Light Source,LED Light,End Surface Detection,Lithium Battery Charging.With a touch screen and button combination design,it provides easy operation and a user-friendly interface,making it ideal for optical cable installation,engineering acceptance,and on-site repairs.

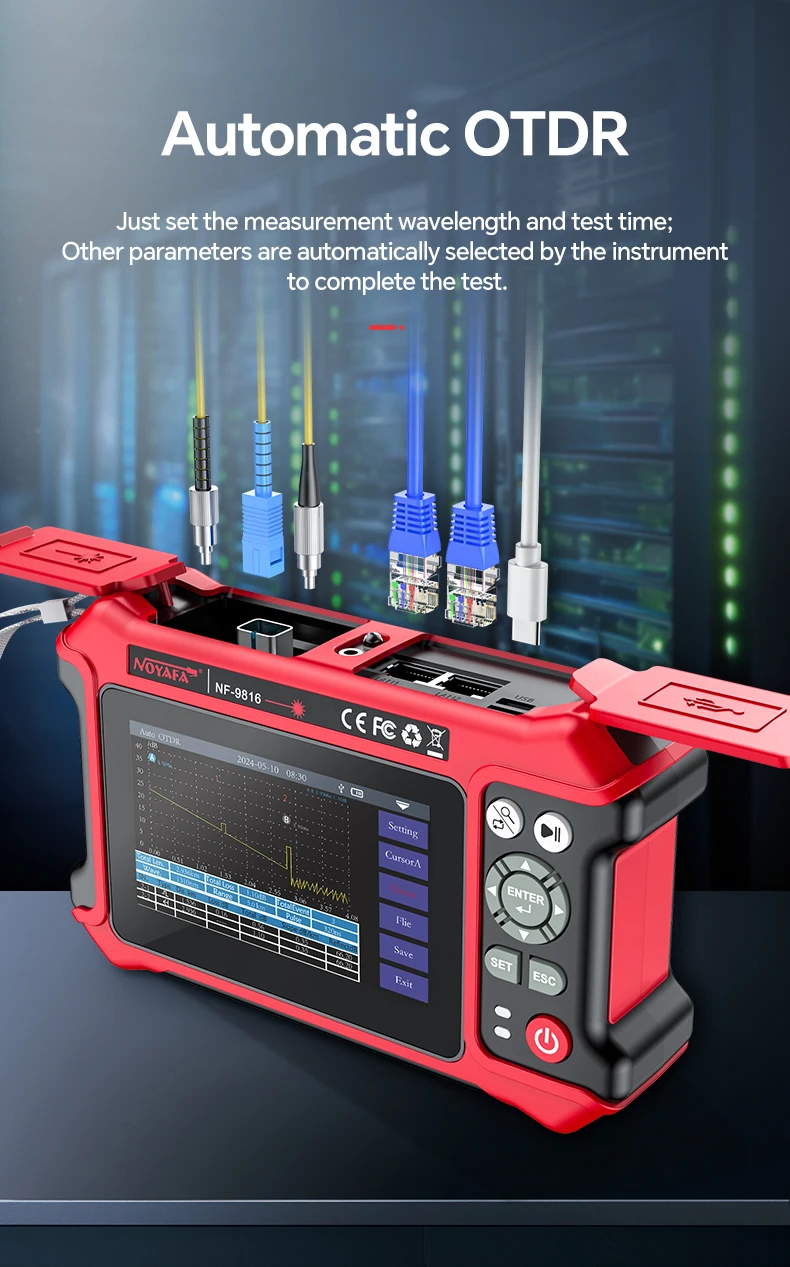

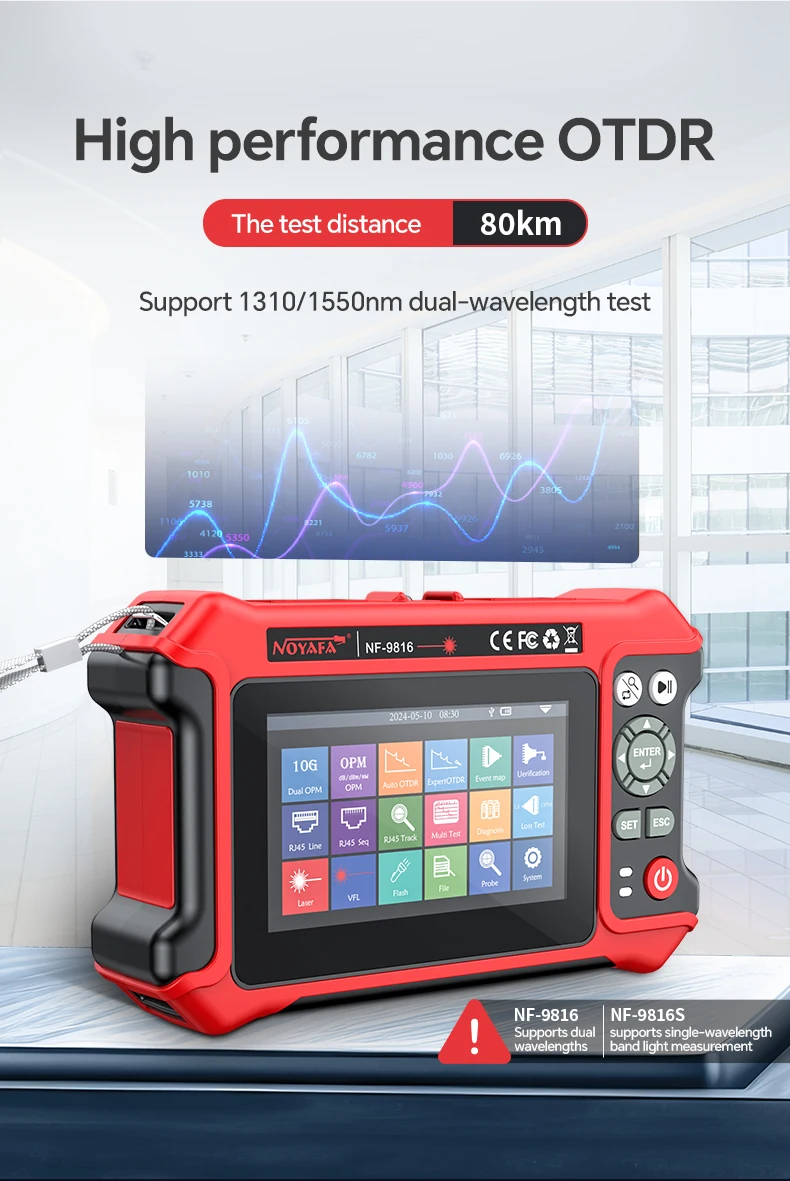

OTDR Fiber Optic Testing

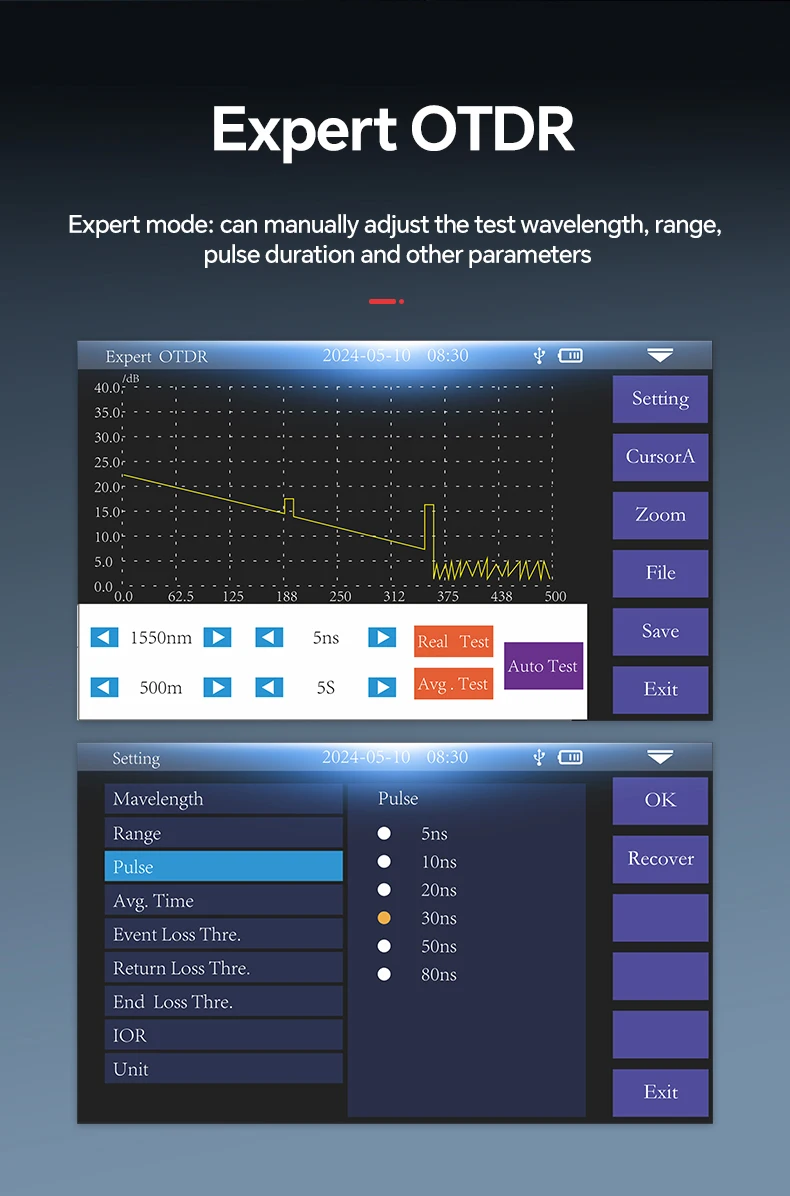

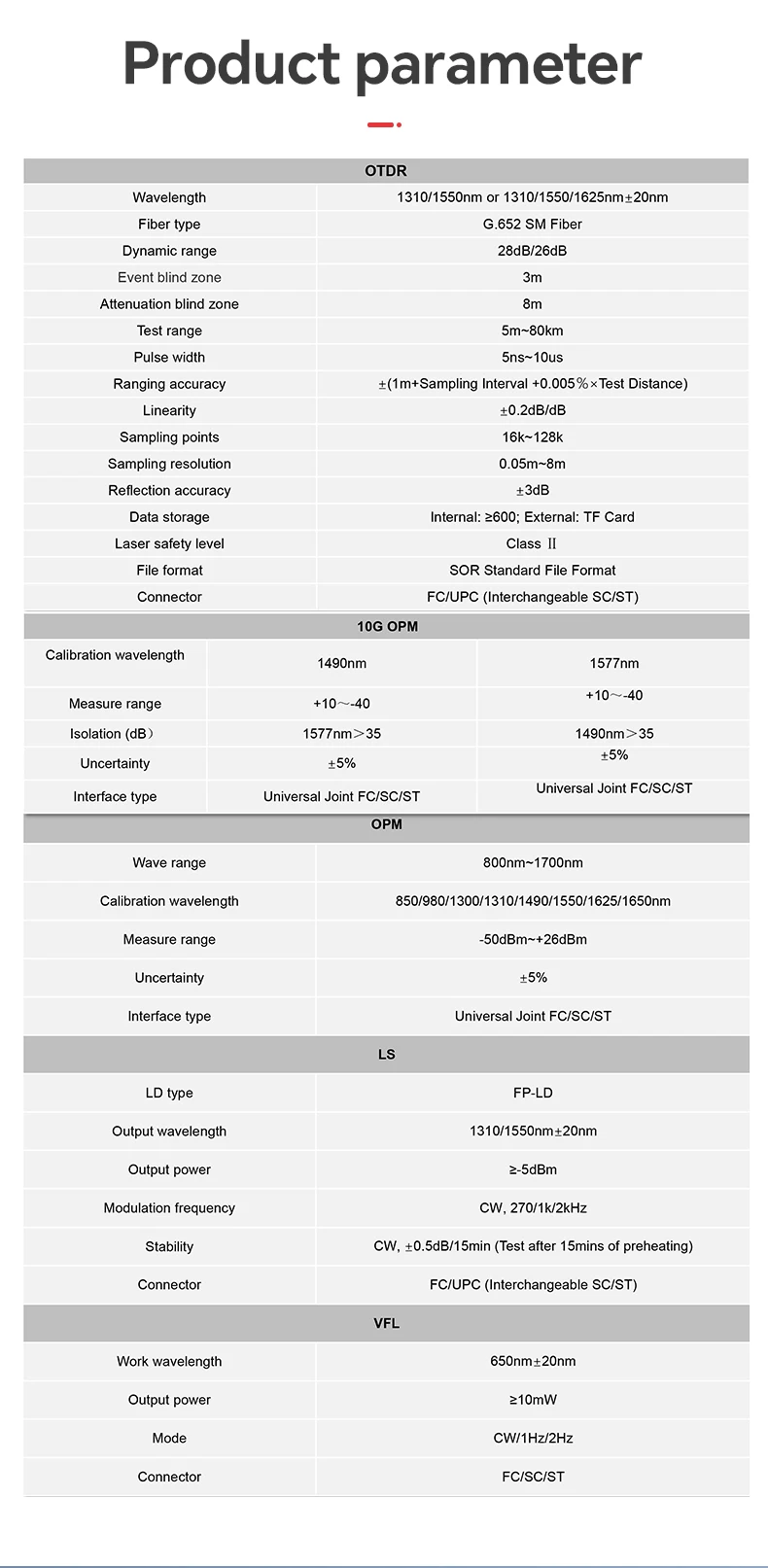

This professional OTDR fiber tester supports two ODTR modes,automatic ODTR and expert ODTR,to ensure that the tester can adapt to various tasks-from basic cable testing to advanced fiber fault detection, providing flexibility for testing simple and highly detailed fiber optic systems.The OTDR tester offers wavelengths of 1310/1550nm with a dynamic range of 28dB/26dB and a maximum test distance of 80 kilometers.The device displays power values for both wavelengths on the same screen.The one-touch test feature enables quick setup of wavelength,distance range, pulse width,and measurement time.
OPM,VFL,LS,OLS

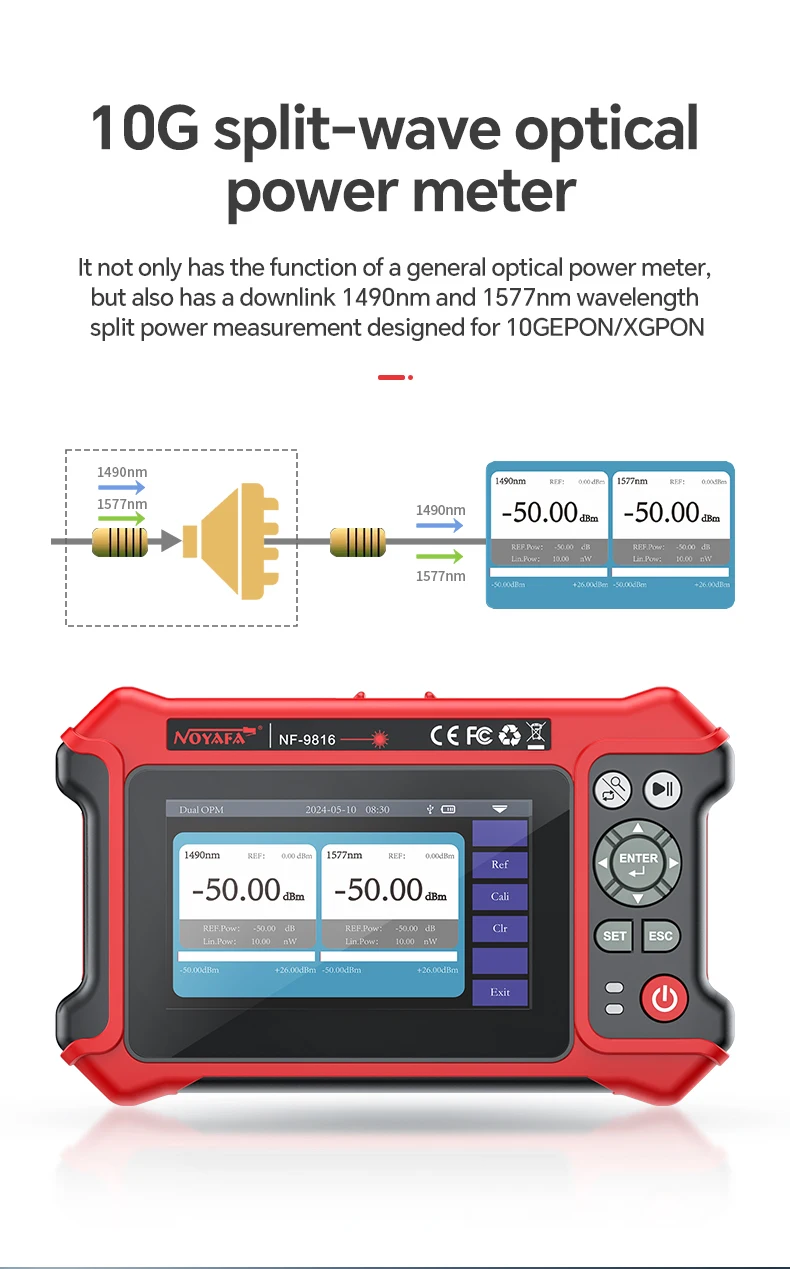

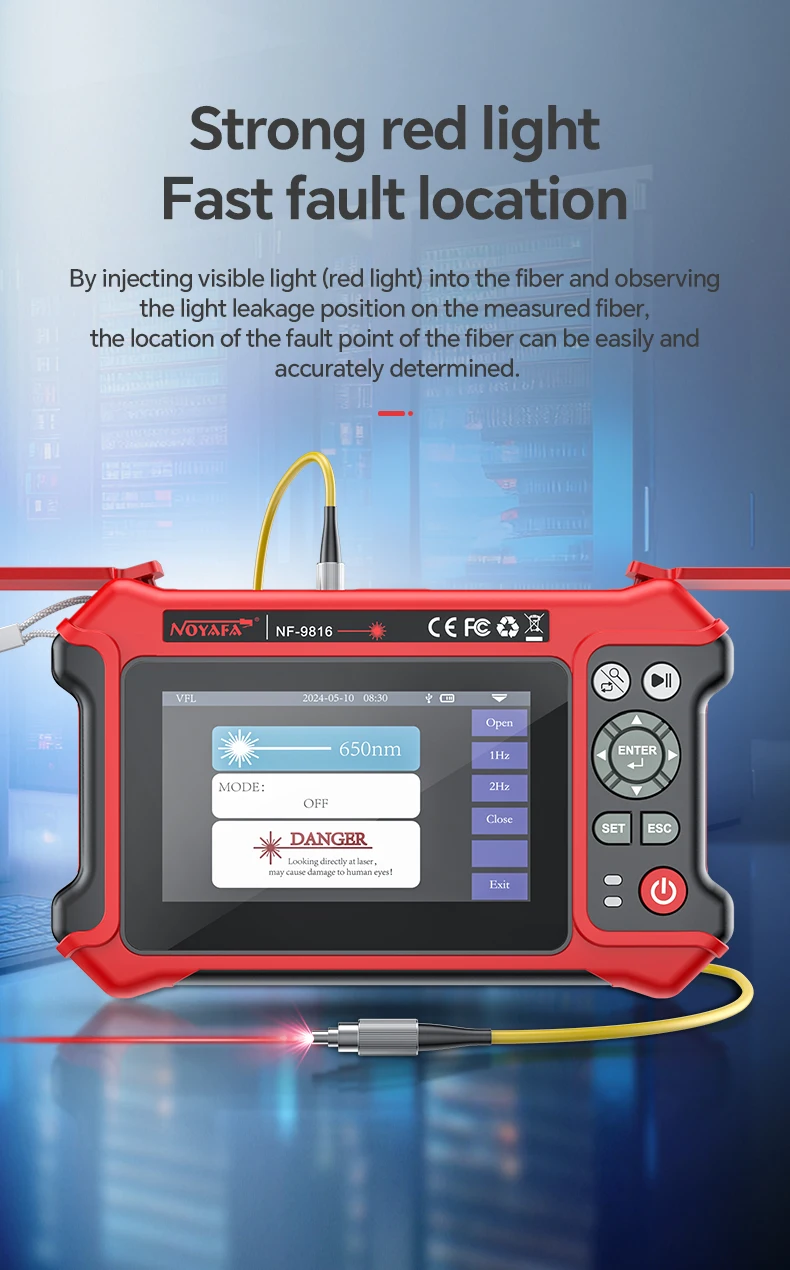

Thie ODTR fiber optic tester tool integrates essential fiber optic tests in one device: OPM (Optical Power Meter):Calibrated for 850/1270/1300/1310/1490/1550/1577/1625nm wavelengths with a range of -50~+26dBm;VFL (Visual Fault Locator): 650nm wavelength, max range 10KM;LS (Light Source):Modes include CW,270Hz,1kHz,2kHz.;OLS (Optical Loss Test):Used for testing optical passive loss at 650nm, max range 10KM. Note: Always use the external power supply as per specifications to avoid damage.

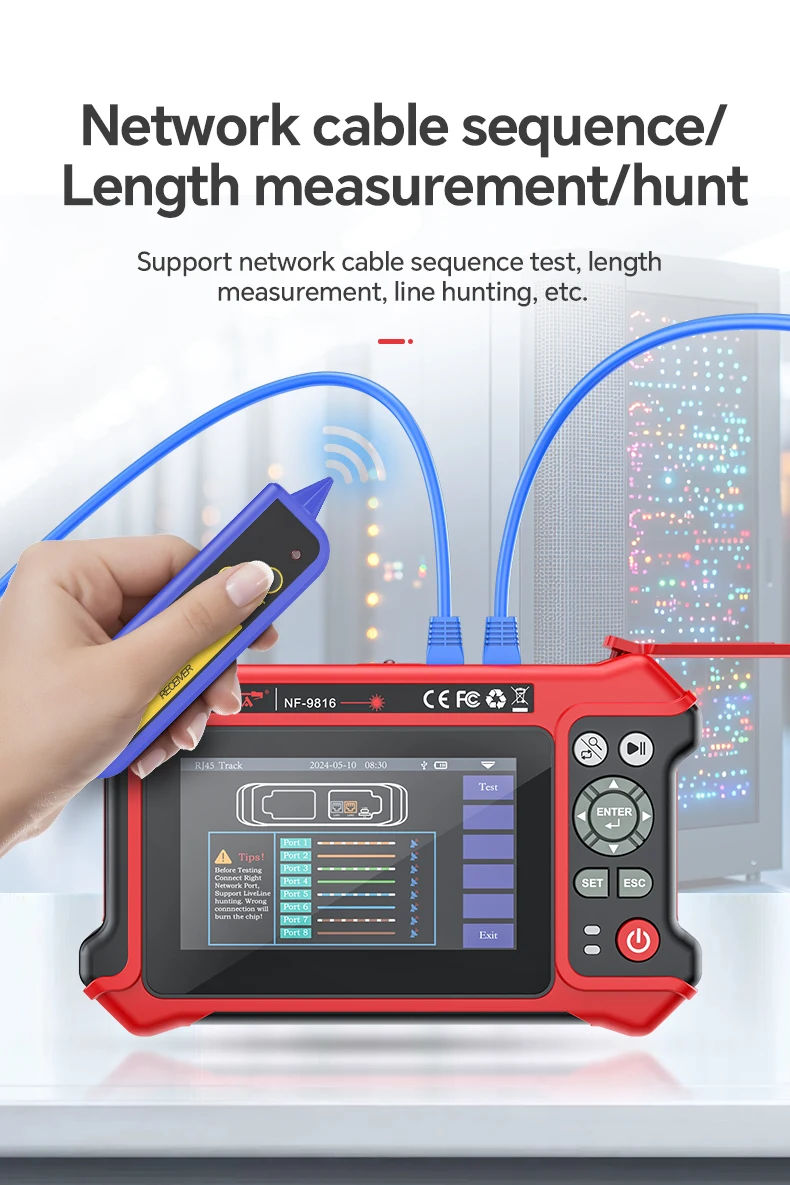

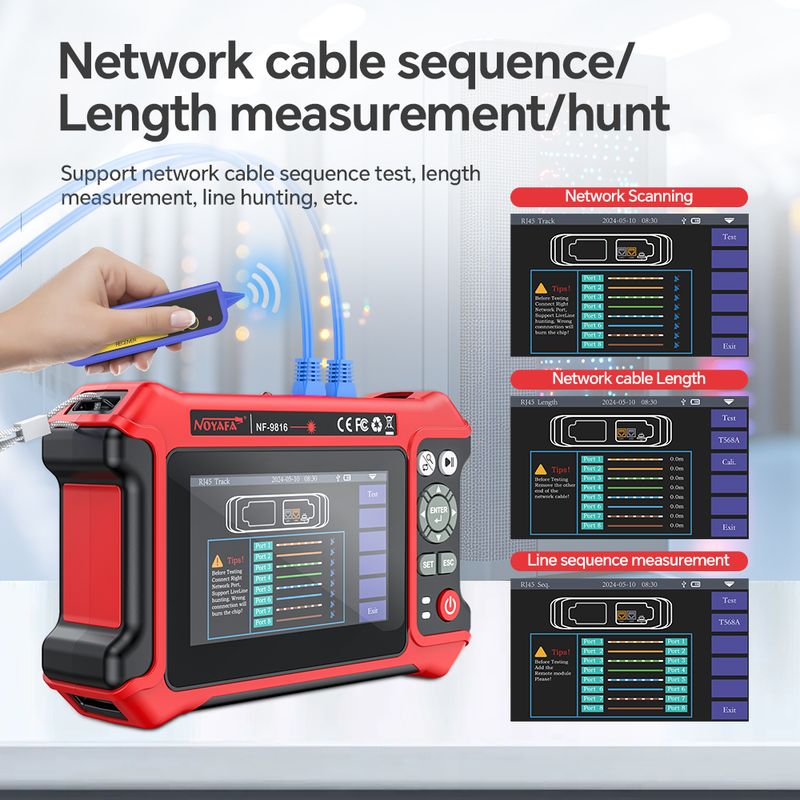

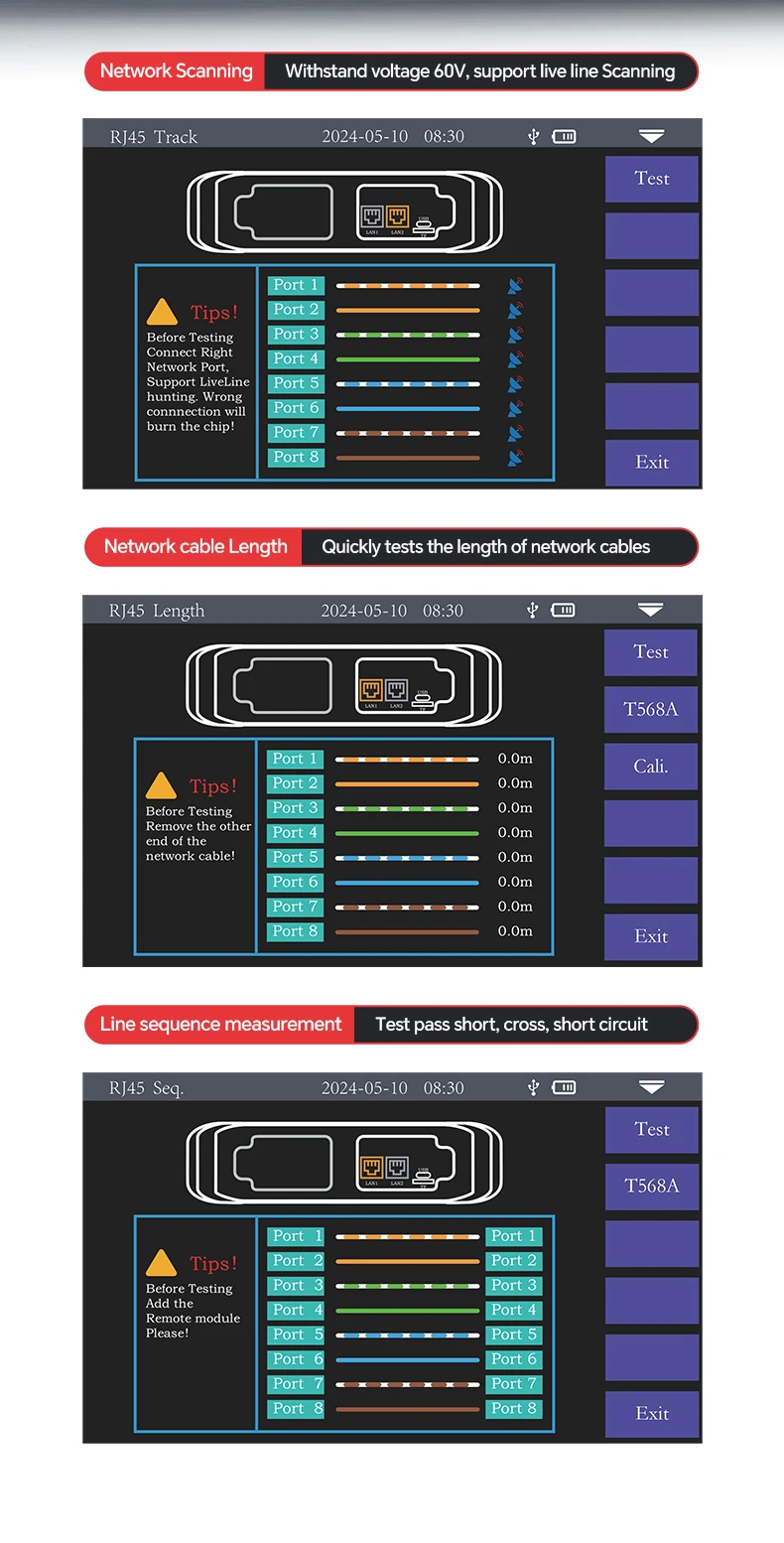

RJ45 Cable Test
The fiber optic tool kit equip with a line-finding receiver to meet the RJ45 line-finding/length measurement/sequencing functions.The RJ45 cable testing functional section checks cable pair status,length,and calibrates according to network standards T568A/T568B.It can test voltage-resistant cables and help find wire locations using a digital radar method. The tester is designed to work with Ethernet switches,routers,and other low-voltage equipment (under 60V DC).The RJ45 tracing function uses a digital radar-type tracing method with strong anti-interference capability.The tone frequency varies based on the proximity of the target.

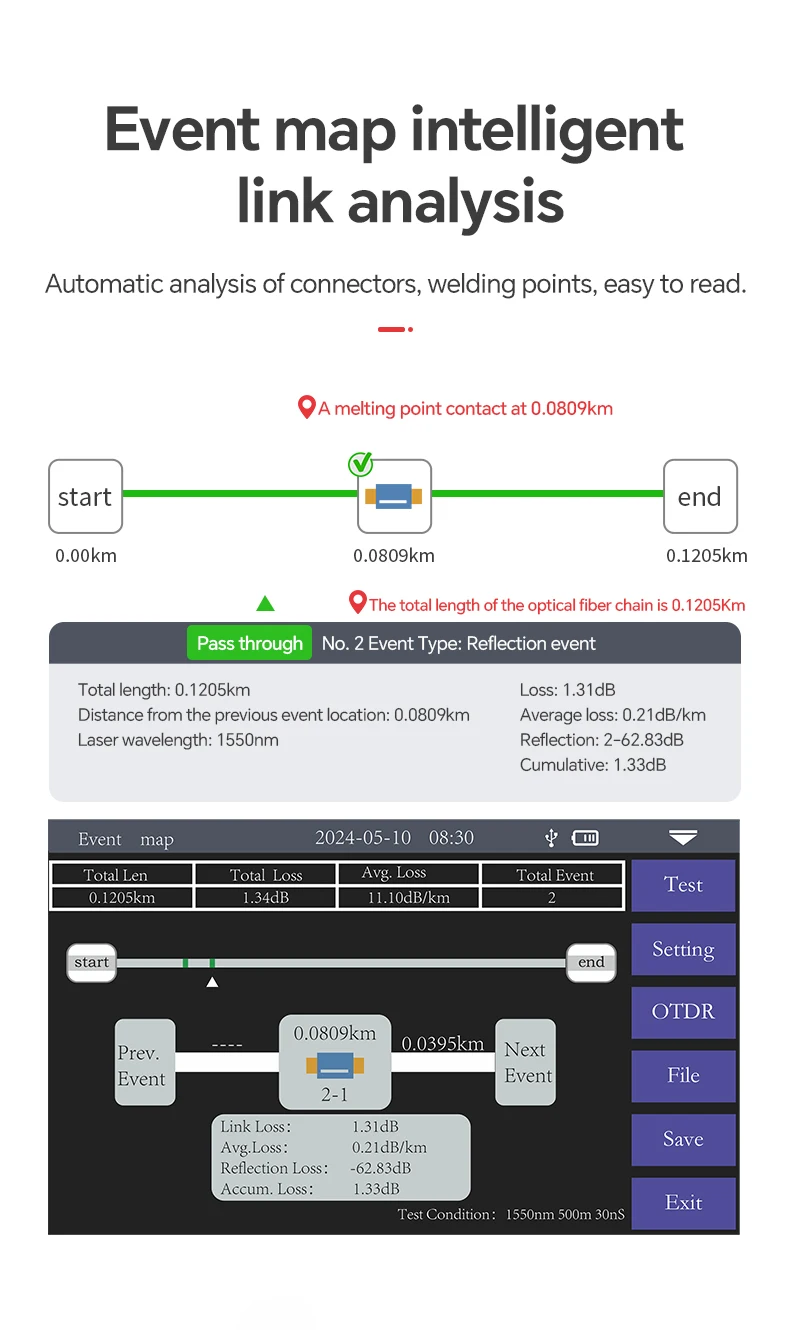

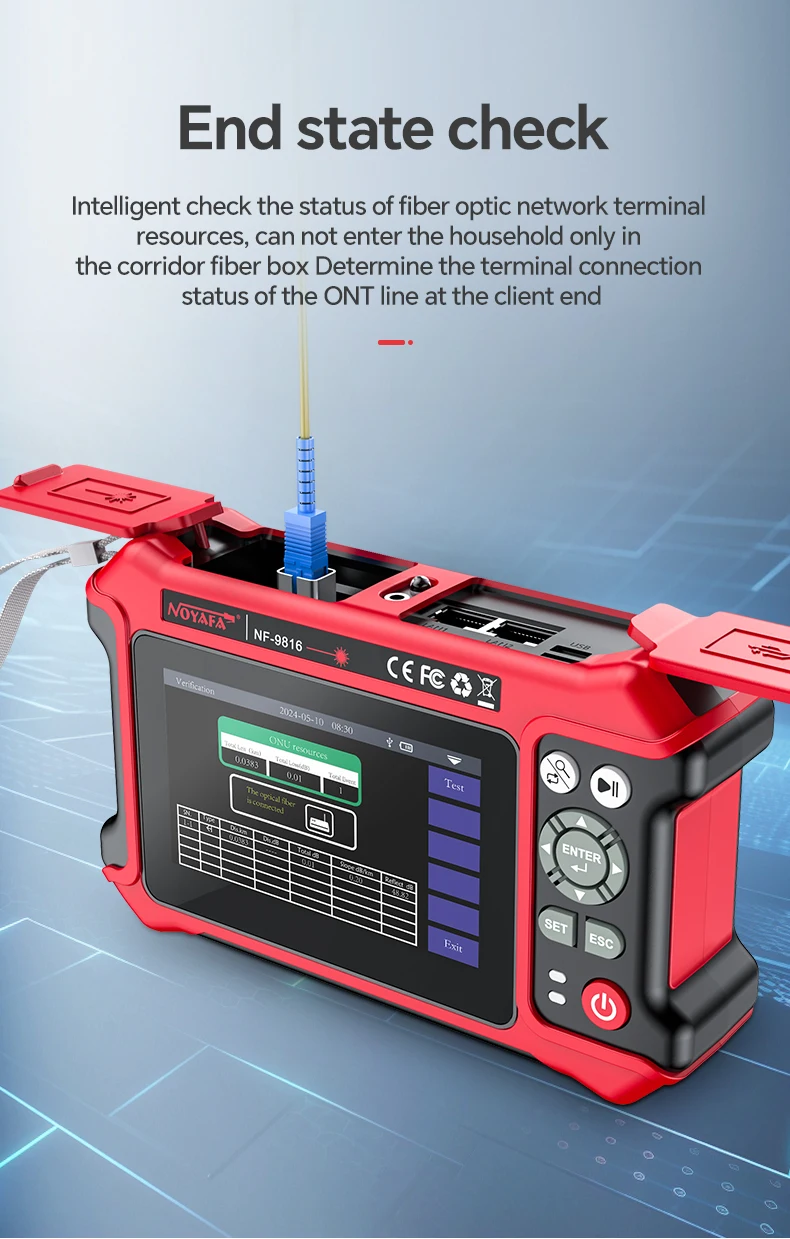

Event Map/Endface Inspect/Endstate Verify

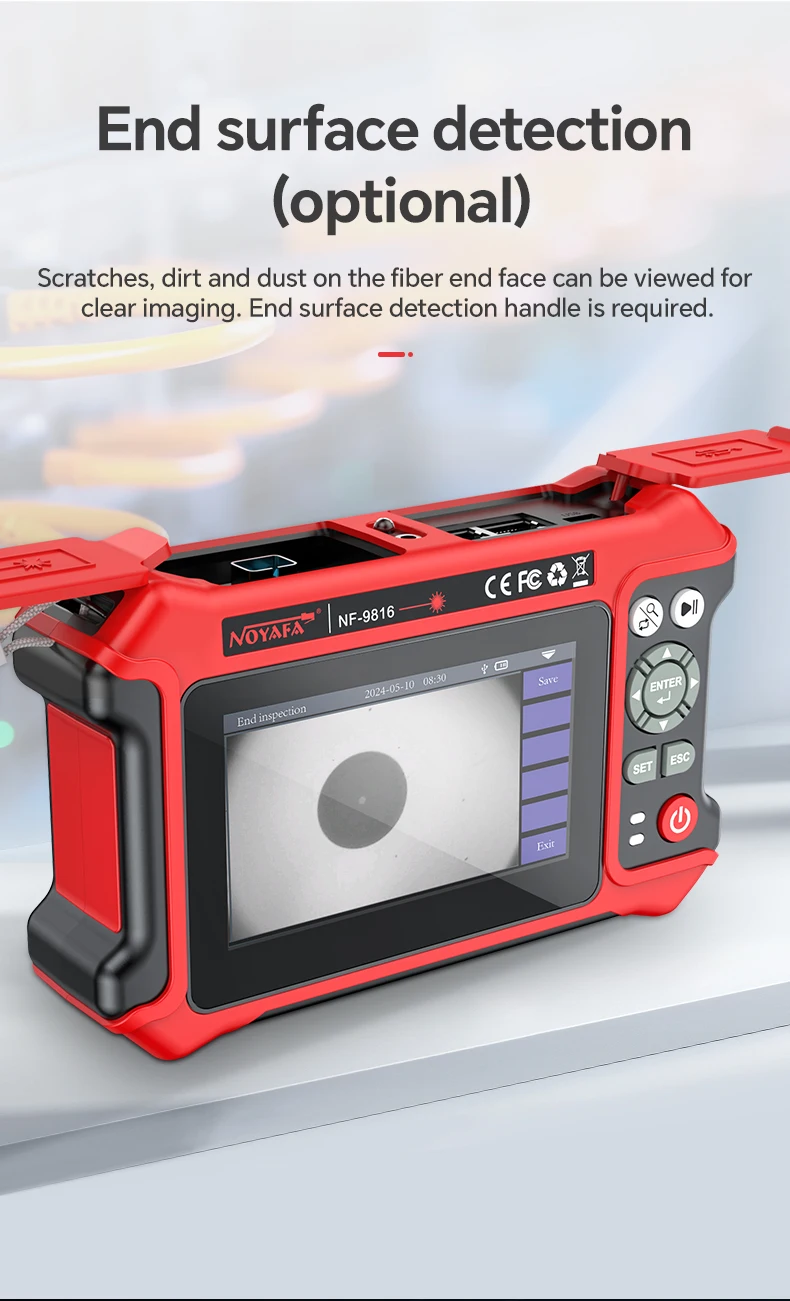

This intelligent 16-in-1 otdr fiber optic tester automates fiber link testing,displaying key information like fiber length,connector types,and breakpoints in a clear graphical format.Ensure optimal communication quality with endface inspection to detect contamination or damage,and keep your network running smoothly with end state verification,allowing non-invasive checks of terminal connections and link loss diagnostics. Whether for installation,maintenance,or troubleshooting,our multifunctional tester streamlines your workflow and guarantees reliable fiber performance every time.

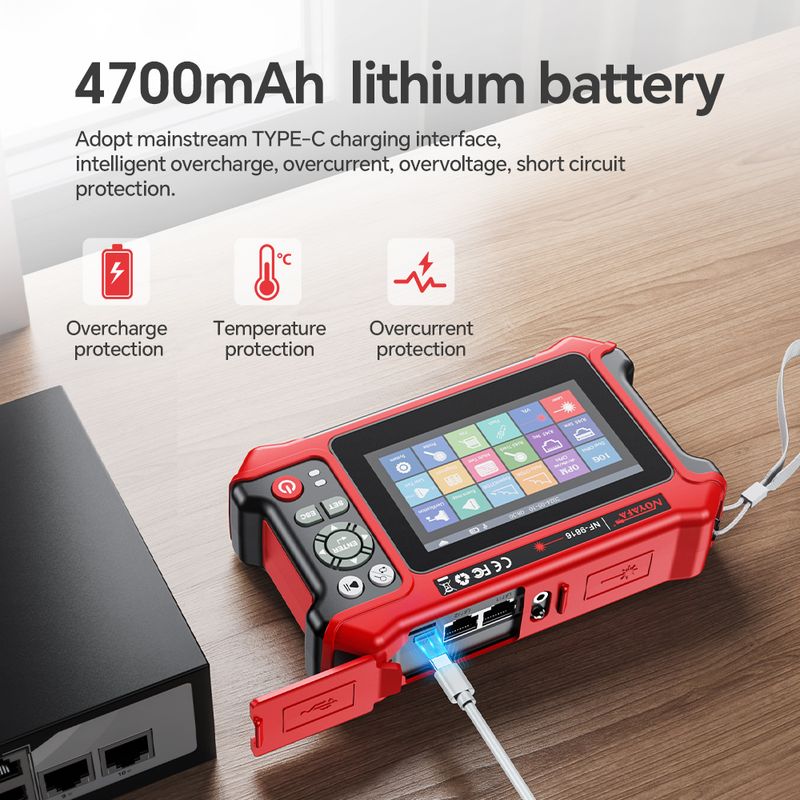

Battery&Quality Assurance

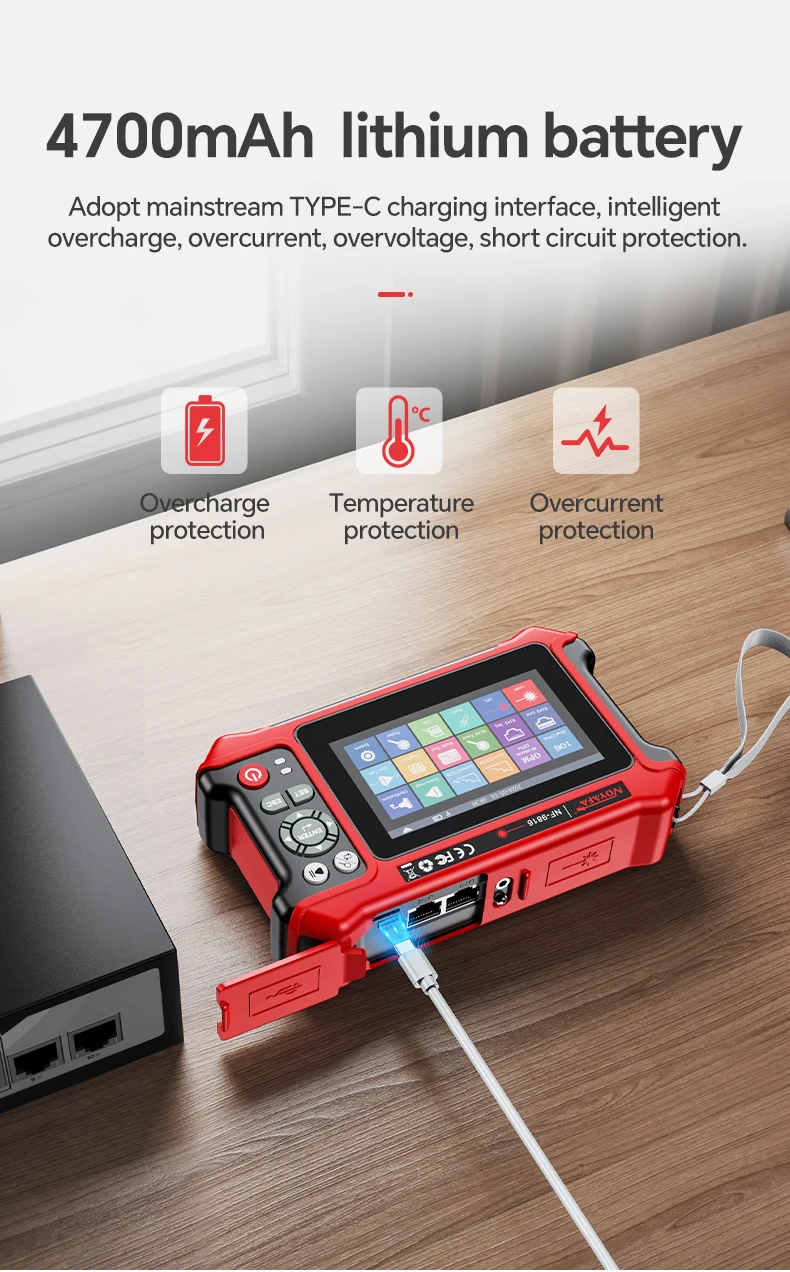

Equipped with a high-performance chip for smooth operation and accurate measurements. The built-in 4000mAh, 3.7V lithium polymer battery ensures long-lasting use with over 20 hours of standby time and more than 12 hours of active measurement time. The device supports Type-C charging, catering to various power supply needs.
