Openbuilds Latest Lead CNC Router Machine Full Kit GRBL Control Screw Driven CNC Milling Engraver for Wood Metal Acrylic Cutting

$2,147.08

Includes all taxes

Power (W)
Quantity
Meet your Seller
Delivery options
  • Ship Only

Description

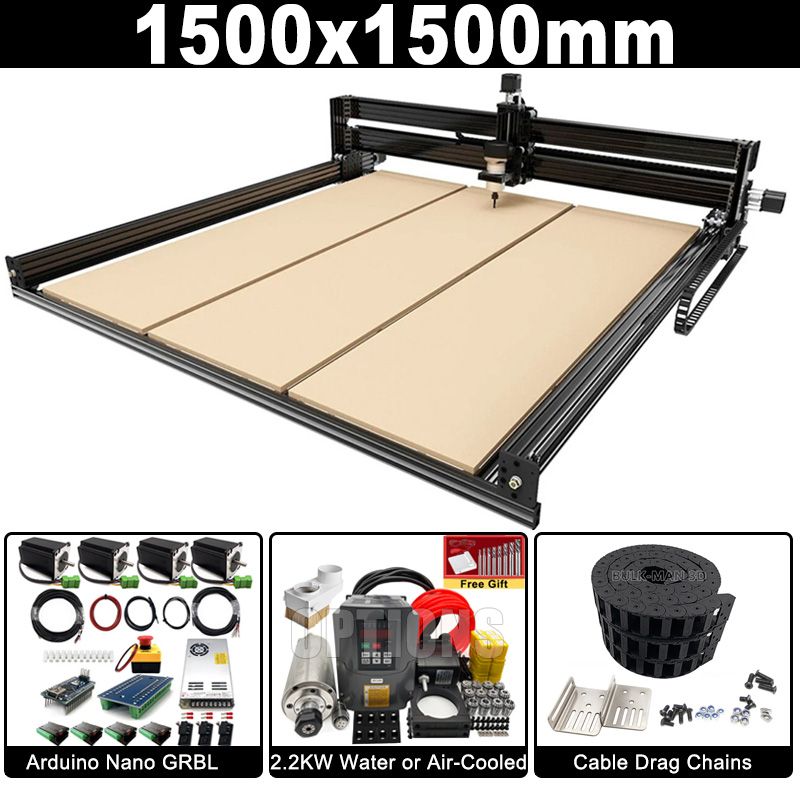

 Latest LEAD CNC Machine Full Kit - Arduino Nano GRBL


The Lead CNC Machine was originally designed by Mark Carew and the design is licensed under CC – Attribution – CC BY. It is a super strong, accurate and easy to assemble CNC machine.

The Lead CNC has a rigid X Axis through the incorporation of double C-Beam Linear Rails to achieve intense accuracy and we've included a tensioning system for maximum performance.


The LEAD CNC has proven itself as a workhorse capable of not only cutting large/hard material cuts, but also having the ability to transform and grow into any configuration.

The LEAD CNC Full Kit is a self-assembly kit and comes with everything needed for building your CNC Machine. Other parts that are needed for you to perform your ‘first cut’ are: Baseboard, Power cord and Software.

This Full Kit Includes:


● Latest Version LEAD CNC Mechanical Kit
● 2.45N.m Nema23 Stepper Motors
● Cable Drag Chain System
● Wiring Shielded Cable Kit
 + Options (Spindle Bundle Kit with Dust Cover 80mm/65mm)

2.2KW 110V/220V Water-Cooled Spindle Kit

1.5KW 110V/220V Water-Cooled Spindle Kit

1.5KW 110V/220V Air-Cooled Spindle Kit
● Arduino Nano GRBL Controller Kit
● XYZ Touch Probe
● Free Drill Bits (10pcs/set)



Note:

● MDF Working Table is NOT included with this kit.

● We do not provide technical support for software debugging.

● GRBL software is not included with this kit. It can be free download directly from the official website.

● Any Mains power connections must be installed by a Licensed electrician or suitability qualified person.




Arduino Nano GRBL Controller

The controller system uses an Arduino Nano with a terminal shield block for quick and easy installation, and with 8bit process or to control the CNC machine. This system uses external genuine TB6600 Stepper Drivers suitable for High Torque Stepper Motors. This system does require you to wire up all the components yourself and flash the Nano with GRBL. Because of this it is a very customisable system.

This controller bundle is fully compatible with GRBL 1.1 which is an excellent control software for our CNC machines.

Features:
 Compact Design: Small, lightweight, and ideal for CNC setups.
 Easy Wiring: Terminal Shield enables plug-and-play connections for motors and switches.
 High Compatibility: Works with GRBL firmware and popular CNC software like CNCjs and UGS.
 Precise Motion Control: Delivers smooth, accurate performance for engraving, milling, and cutting.
 Cost-Effective: Affordable and customizable for hobbyists and small businesses.


Nema 23 Stepper Motor – High Torque


Holding torque: 2.45N.m
Rated voltage: 3.6V
Rated current: 3A
Step angle: 1.8°±5%
Phase number: 2
Insulation resistane: 100MΩ min.(500V DC)
Insulation class: Class B
Rotor inertia: 600g.cm2
Resistance per phase: 1.2Ω±10%
Inductance per phase: 4mH±20%
Detent torque: 90mN.m
Suit for Controller: CNC xPROV5, UC300, High Current GRBL etc.

Features:
- High Torque: Ideal for heavy-duty applications.
- Standard Size: NEMA 23 (2.3"x2.3") for easy integration.
- Precise Movement: 1.8° step angle for accuracy.
- Durable: Long-lasting and reliable.
- Versatile: Suitable for CNC, robotics, and automation.
- Efficient & Quiet: Low noise with high efficiency.
- Flexible Specs: Available in various current/voltage options.



2.2kW/1.5kW Water or Air Cooled Spindle Kit


● Spindle Net weight: 5.3kg(2.2kW Water-Cooled), 4.2kg(1.5kW Water-Cooled), 2.6kg(1.5kW Air-Cooled)
● Spec: ∅80x 238mm (2.2kW Water-Cooled), ∅80x 208mm (1.5kW Water-Cooled), ∅65x 188mm (1.5kW Air-Cooled)
● High Speed-7 series 4 Bearings
● Power: 2.2kW
● Voltage: 220 ~250 V or 110V
● Frequency: 400 Hz
● Speed: 0-24000 R/min
● Air or Water Cooling
● Run-out off: less than 0.005 mm
● Grease Lubrication
● VFD Inverter 2.2kW 220V or 110V
 ER20 Collet: 2.2kW Water-Cooled (28pcs, size from 1mm/1.5mm/2mm/2.5mm/3mm/3.175mm/3.5mm/4mm/4.5mm/5mm/5.5mm/6mm/6.35mm/6.5mm/7mm/7.5mm/8mm/8.5mm/9mm/9.5mm/10mm/10.5mm/11mm/11.5mm/12mm/ 12.5mm/12.7mm/13mm)


 ER11 Collet: 1.5kW Water/Air-Cooled (15pcs, size from 1mm/1.5mm/2mm/2.5mm/3mm/3.175mm/3.5mm/4mm/4.5mm/5mm/5.5mm/6mm/6.35mm/6.5mm/7mm)


Key Difference:
 Water-Cooled: Better for heavy-duty, continuous tasks with quieter and cooler operation.
 Air-Cooled: Simpler, low-maintenance choice for moderate tasks with easier setup.


Our Suggestion:
 It depends on the application you are using them for.
 If you are milling timber then air cooled will be sufficient.
● If you are milling metals, or are using the spindle for more than 8 hours at one time then water cooled will be recommended.



Free Gift - 10PCS Drill Bits (Optional)



 Capability


Compatible Material for Cutting/Milling/Engraving:Aluminium / Hard Wood / Soft Wood / Oak / Plexi Glass / Delrin / HDPE / Foam.





 Credits


" V-Slot " and " C-Beam " are registered trademarks of OpenBuilds LLC as released under the Creative CommonsLicence "Attribution-ShareAlike"


All our components are designed to work and are fully compatible with the products produced by OpenBuilds.
