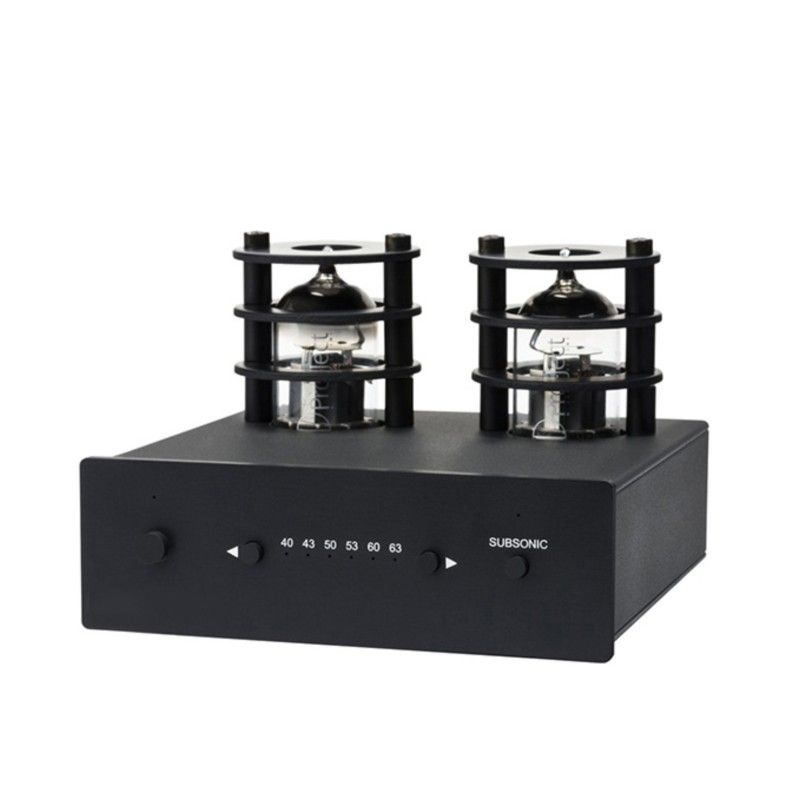

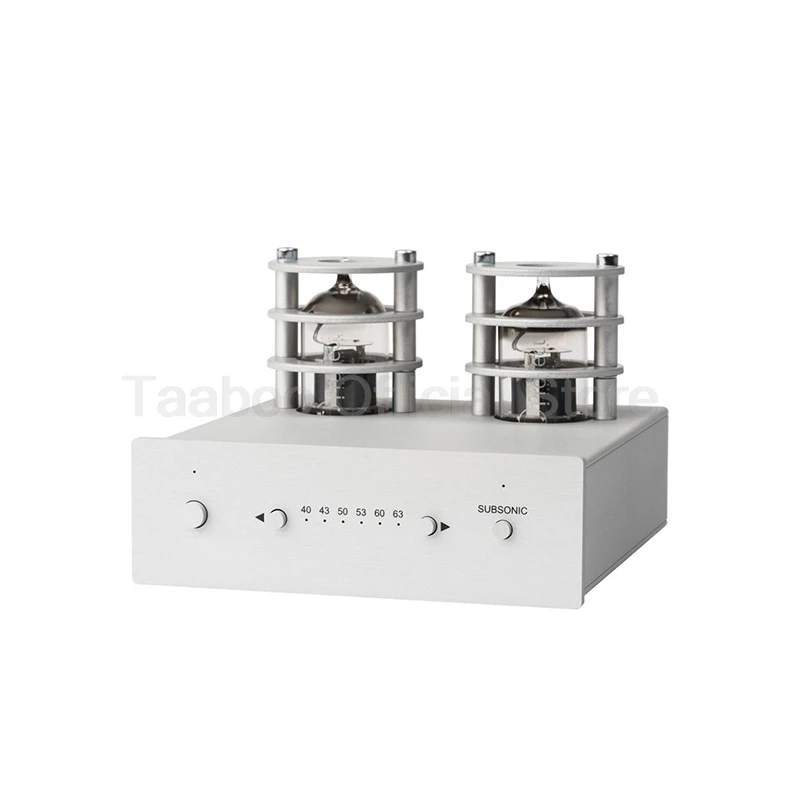

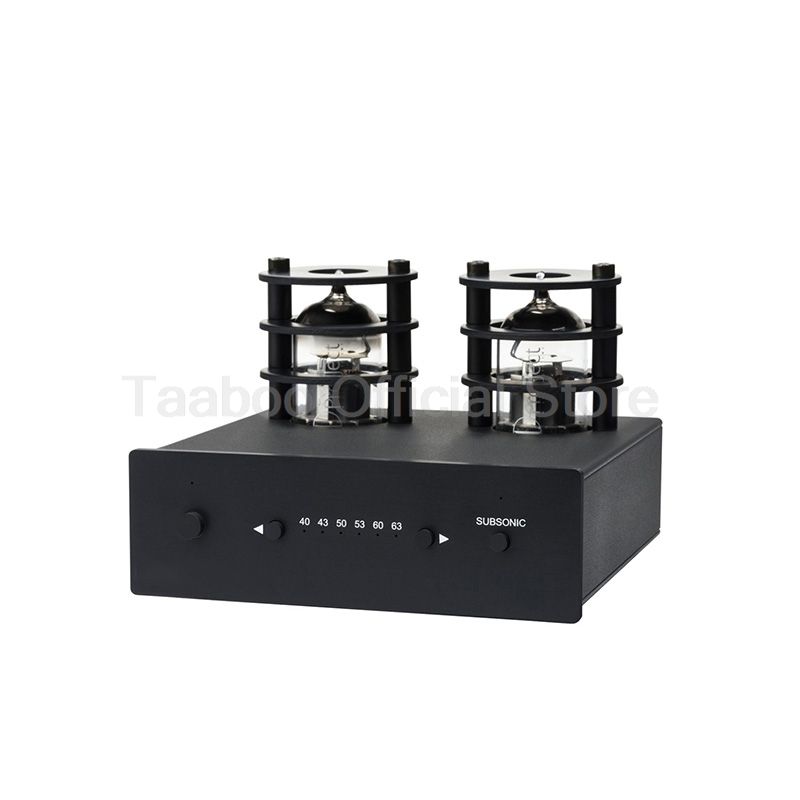

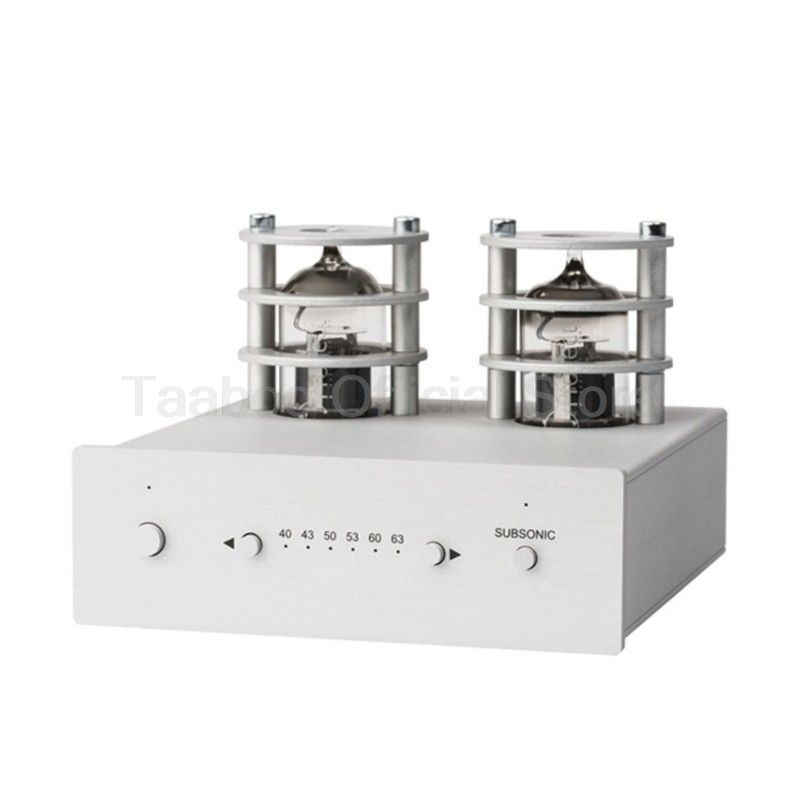

Phono Preamplifier 2xECC83 Tube Pre Amplifier MM MC Cartridge Compatible 40-63dB Gain Selectable Preamp For Vinyl Record Studio

$3,710.61

Includes all taxes

Quantity
Meet your Seller
Delivery options
  • Ship Only

Description

Vacuum Tube Preamp Phono Stage 410g Weight 103mm Width Subsonic Filter FET Input Low Noise Circuit Gold Plated RCA Connectors For Turntable System


Product Specifications:
  • Model: Tube Box S2
  • Type: Vacuum Tube Phono Preamplifier (Equalizer)

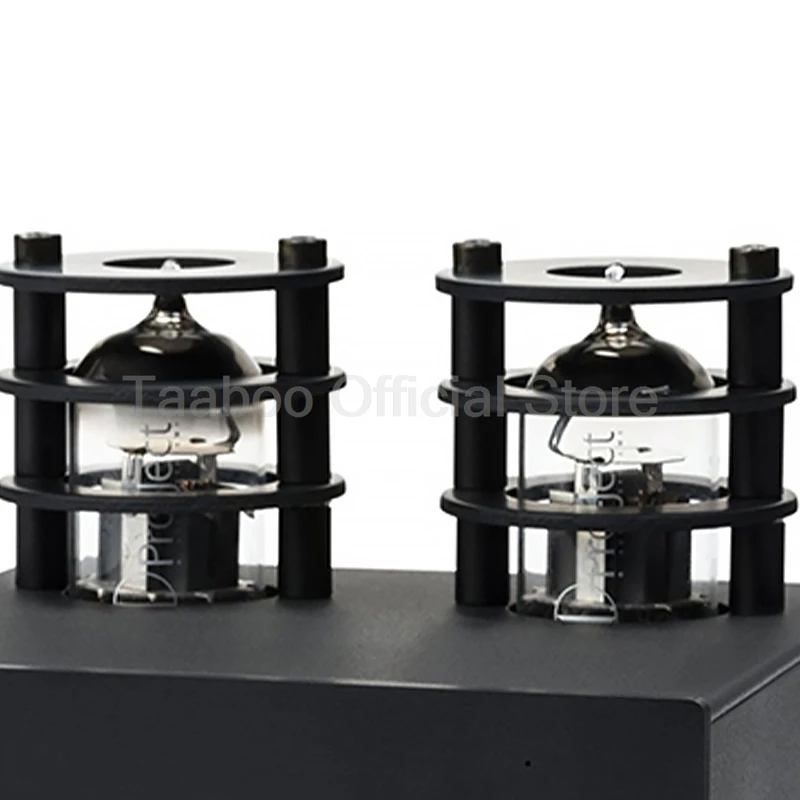

  • Tubes: 2 x ECC83 (12AX7A) - Replaceable
  • Cartridge Compatibility: MM (Moving Magnet) and MC (Moving Coil)

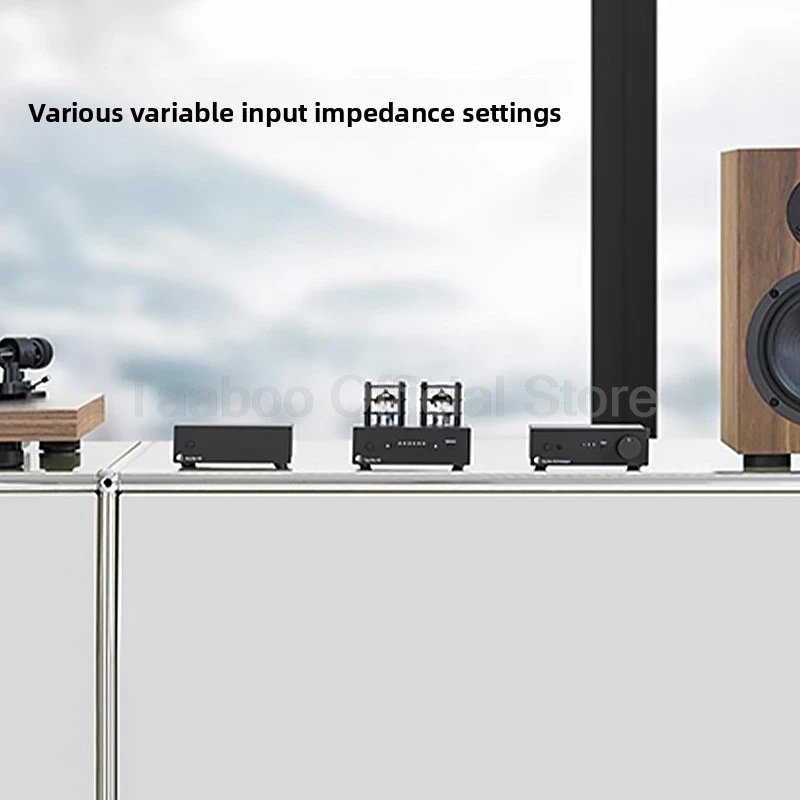

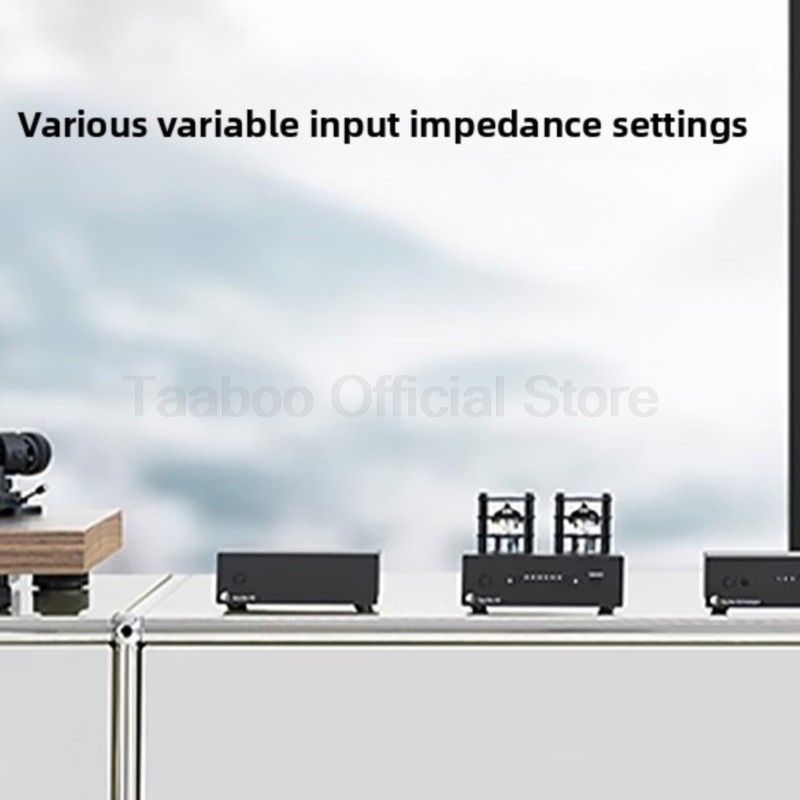

  • Input Impedance Settings (Adjustable): 10Ω, 100Ω, 1kΩ, 2.2kΩ, 47kΩ (Fixed for high-output MC)
  • Input Capacitance: 47pF, 147pF, 267pF, 367pF, 487pF, 587pF* (adjustable)
  • Gain Settings: 40dB, 43dB, 50dB, 60dB, 63dB
  • Noise Level:
80dB(A-weighted) at 40dB gain
75dB(A-weighted) at 50dB and 63dB gain
  • Total Harmonic Distortion (THD):
<0.02% at 40dB gain
<0.05% at 50dB and 63dB gain
  • RIAA Equalization Accuracy: ±0.4dB (20Hz - 20kHz)
  • Subsonic Filter: 18dB/octave at 20Hz

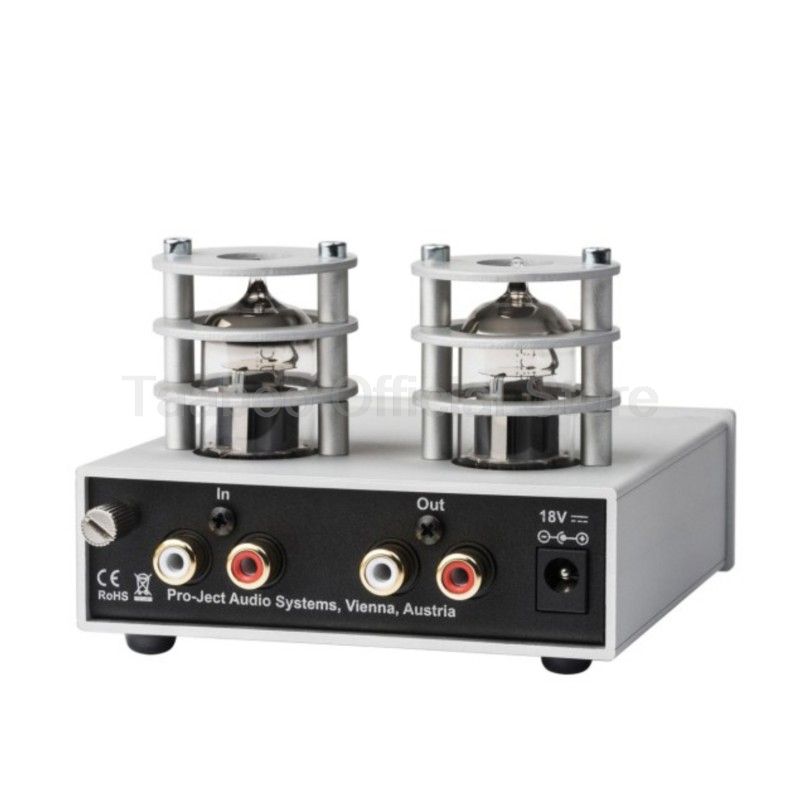

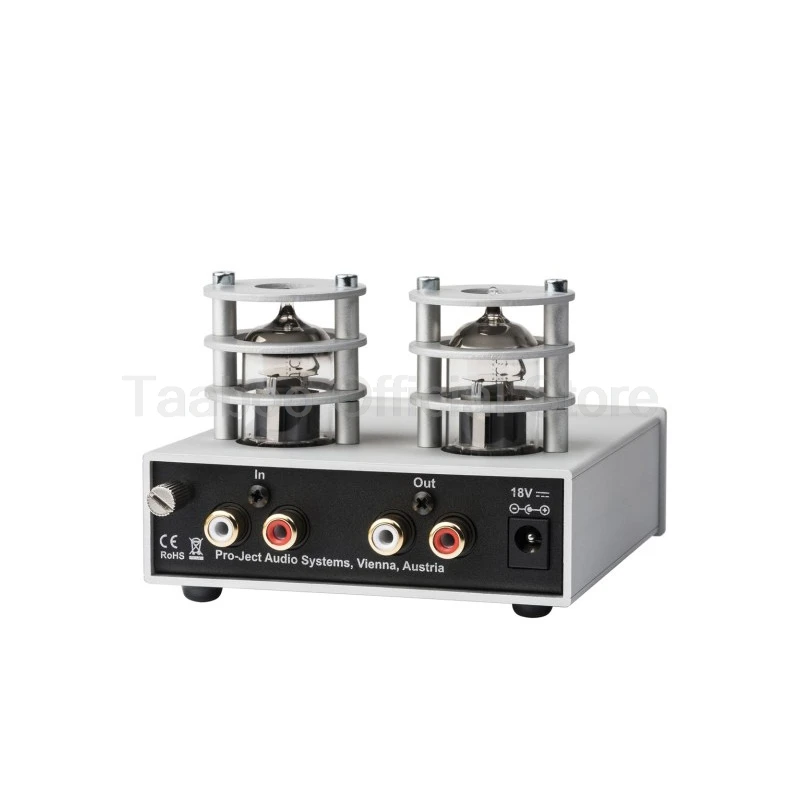

  • Inputs/Outputs: 1 x Pair RCA Phono Input / 1 x Pair RCA Output (Gold-plated)
  • Power Supply: External 18V DC / 1000mA adapter
  • Power Consumption: 470mA DC, <1W in standby

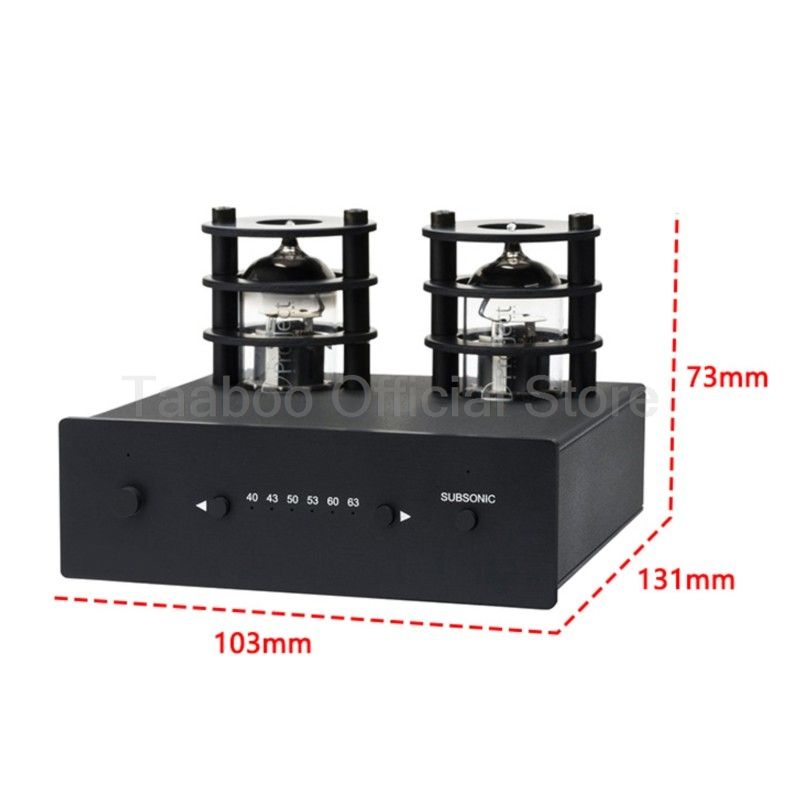

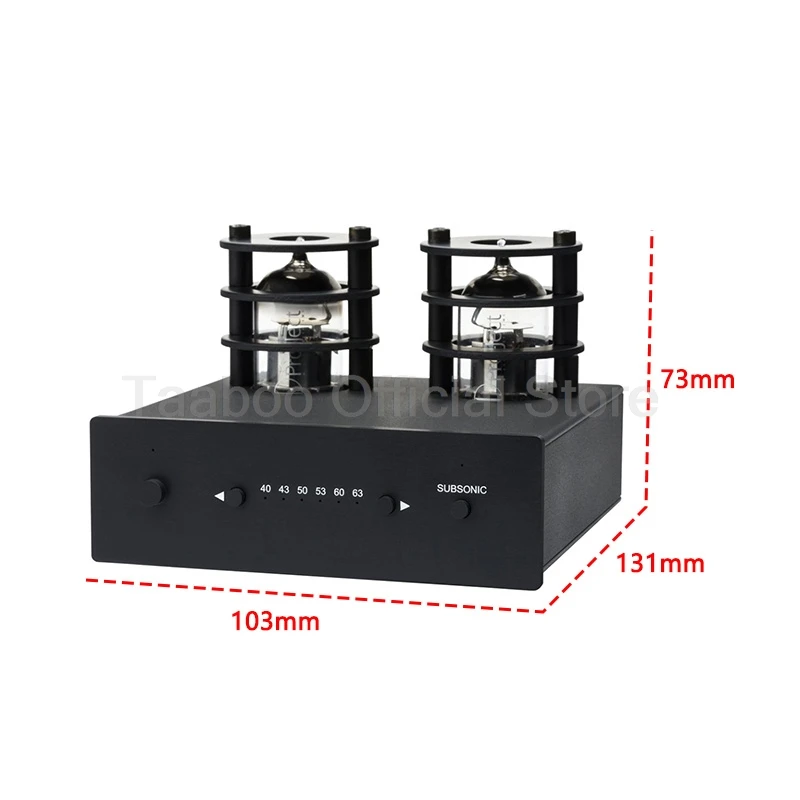

  • Dimensions: 103mm (W) x 131mm (D) x 73mm (H)
  • Weight: 410g (excluding power supply)
  • Circuit Design: Fully discrete, no operational amplifiers (Op-Amps)
  • Key Components: Uses polystyrene capacitors where possible, FET input stage, dual-mono circuitry, layered aluminum/metal chassis for anti-vibration and EMI shielding.
  • Package Included:1 x Phono Preamplifier Unit

Product Features:
  1. Dual ECC83 Tube Design: Provides the classic warm, detailed, and musical sound signature associated with vacuum tube amplification.
  2. Versatile Cartridge Matching: Offers five adjustable input impedance settings (10Ω to 2.2kΩ) plus a fixed 47kΩ setting to optimally match a wide range of MM and MC phono cartridges.
  3. High-Precision RIAA Equalization: Achieves exceptional accuracy (±0.4dB, 20Hz-20kHz) through a combined passive/active two-part circuit for faithful record playback.
  4. Ultra-Low Noise Performance: Features an FET input stage and a discrete, Op-Amp-free design resulting in a high signal-to-noise ratio (up to 80dB A-weighted).
  5. Dual-Mono Construction: Implements separate circuits for left and right channels to optimize channel separation and soundstage imaging.
  6. Subsonic Filter: Includes a front-panel switchable subsonic filter (18dB/octave at 20Hz) to remove unwanted ultra-low frequency rumble.
  7. Robust Build Quality: Housed in a layered aluminum and metal chassis that effectively dampens vibrations and shields against electromagnetic interference.
Warm Tips:
  • Before connecting, ensure the gain and input impedance settings match the specifications of your phono cartridge for optimal performance and sound quality.
  • Allow the tubes to warm up for at least 5-10 minutes for stable operation and the best sonic character.
  • Use high-quality, shielded RCA cables to connect the phono stage to your turntable and main amplifier to minimize noise pickup.
