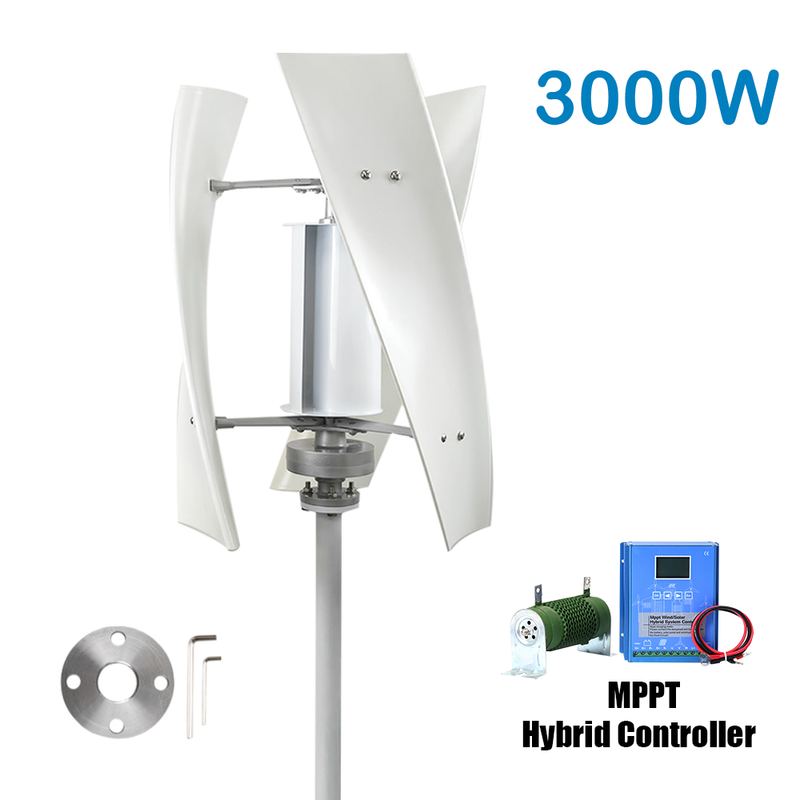

Poland Delivey 3000W Vertical WindmillTurbine Dynamo Generator Alternative Energy 24V 12V 48V With Mppt Controller Solar Panels

Poland Delivers 3KW 5KW Vertical Axis Maglev Wind Turbine Free Energy Household Wind Turbine Low Speed Low Noise with Battery

Poland Delivers 3KW 5KW Vertical Axis Maglev Wind Turbine Free Energy Household Wind Turbine Low Speed Low Noise with Battery Sy

Product Features:

1.Magnet generator Core-less generator, Horizontal rotation with high efficiency.

2.3 blades with curved design,utilizes wind resource effectively and obtains a higher power generation

3. 20 years use life and 1 year for warranty, warmly welcome to be our agent.

4. Small ,light ,stable and safely, special control principle expended the wind speed to 2.5 ~ 25m/s, utilizes wind resource effectively and obtains a higher power generation.

5.Certified with:CE.

6.High efficiency, could be hybrid system with solar panels for home use, LED street light, planting room...

7.Applications: Marine, Boat,Streetlights, Home, Opening Plaza lighting etc.

MPPT BOOST HYBRID CONTROLLER(optional)

The controller has basic control and protection functions and provides low voltage charging. The battery can be charged in low winds.

It allows solar panel input, wind power up to 5500W and optional solar capacity up to 3000W.

Specifications：

100w Solar Panels

Cell type: single crystal
Power: 100W
Working voltage: 18V
Open circuit voltage: 23.5V
Working current: 5.5A
Short circuit current: 5.8A
Efficiency: 21% (depending on sunlight conditions)
Working temperature: - 40 ℃ - 85 ℃
Connector type: M4C
Size: 700*540*3mm
Weight: 0.9kg

2560Wh Lifepo4 Battery

Nominal Voltage: 12.8V/25.6V/51.2V
Built-in BMS:4S100A
Energy: 1280Wh
Cycle Life: ＞4000 cycles at 0.2C; End of life 70% capacity.
Charge Voltage: 14.6±0.2V
Charger Current: 20A
Max. Charge Current: 50A
Max. Continuous Current: 100A
Max. Pulse Current: 200A(＜3S)
Discharge Cut-off Voltage: 10.0V
Charge Temperature: 0 to 45℃ (32 to 113℉)
Discharge Temperature: -20 to 60℃ (-4 to 140℉)
Storage Temperature: 0 to 45℃ (32 to 113℉)
Water Dust Resistance: IP5
Case Material: ABS
Terminal Type: M8

MPPT Boost Wind Turbine Controller

Model: CWT-12/24
Working voltage: 12v/24 automatic identification
Maximum current: 40A
Protection: overcurrent, overload
Function: MPPT BOOST voltage control

MPPT Boost Wind & Solar Hybrid Controller

Voltage：12/24V AUTO
Max input Voltage：≤50V
Current (DC):≤0.05A
Control Mode:Wind generator MPPT boost ,PWM dump load,PWM Over current Limiting function
Output Working Mode(Mode):
Display r:LCD display,
Protection Type:Solar Reversed Charging protection, Battery open circuit protection, Battery anti-reverse connection protection protection, Over current and over voltage auto, Brake protection, Over load protection,etc.
Cooling Mode:aluminium profiles Heat dissipation and self-cooling
Working temperature :-25℃~+80℃
Weight :2.35kg
Controller Size/167mm*145.5mm*61.8mm

3000W Inverter

Model: ZX-3000
Rated power: 1500W
Maximum power: 3000W
Input voltage: 12v/24v/48V
Output voltage: 220V
Output frequency: 50hz/60hz
Waveform: pure sine wave
Size :330*210*130mm
Weight:2.5kg

Packing List：

1.wind turbine 1set blades,generator,hood,bolts and nuts)
2.PWM/MPPT controller 1 piece.(optional)
3. installation tool 1 set.
4.flange 1 piece.
5 inverter 1 piece (optional)
6 solar Panles 3 piece (optional)
7 LiFepo4 Battery 1 piece (optional)

FEATURES:

1.Low start up speed ,high wind energy utilization

2.Easy installation, tube or flange connection optional

3.Blades using new art of precision injection molding,matched with optimized aerodynamic shape and structure which enhance the wind energy utilization and annual output.

4.Body of casting aluminum alloy, with 2 bearings swivel , making it survive stronger wind and run more safely

5.Patented permanent magnet ac generator with special stator,effectively reduce torque,well match the wind wheel and generator, and ensure the performance of whole system.

6.Controller,inverter can be matched(optional) accroding to customers' specific needs

On grid system diagram

ADVANTAGES OF GRID-TIED SYSTEMS1. SAVE MORE MONEY WITH NET METERINGA grid-connection will allow you to save more money with wind generator through better efficiency rates, net metering, plus lower equipment and installation costs:).Batteries, and other stand-alone equipment, are required for a fully functional off-grid wind system and add to costs as well as maintenance. Grid-tied wind systems are therefore generally cheaper and simpler to install.).Your wind turbine generator will often generate more electricity than what you are capable of consuming. With net metering, homeowners can put this excess electricity onto the utility grid instead of storing it themselves with batteries.).Net metering (or feed-in tariff schemes in some countries) play an important role in how wind power is incentivized. Without it,residential wind systems would be much less feasible from a financial point of view.).Many utility companies are committed to buying electricity from homeowners at the same rate as they sell it themselves.2. THE UTILITY GRID IS A VIRTUAL BATTERY).Electricity has to be spent in real time. However, it can be temporarily stored as other forms of energy (e.g. chemical energy in batteries). Energy storage typically comes with significant losses.).The electric power grid is in many ways also a battery, without the need for maintenance or replacements, and with much better efficiency rates. In other words, more electricity (and more money) goes to waste with conventional battery systems.).According to EIA data[1], national, annual electricity transmission and distribution losses average about 7% of the electricity that is transmitted in the United States. Lead-acid batteries, which are commonly used with solar panels, are only 80-90% efficient at storing energy, and their performance degrades with time.).Additional perks of being grid-tied include access to backup power from the utility grid (in case your solar system stop generating electricity for one reason or another). At the same time you help to mitigate the utility company`s peak load. As a result, the efficiency of our electrical system as a whole goes up.

Off grid system diagram

ADVANTAGES OF OFF-GRID SOLAR SYSTEMS1. NO ACCESS TO THE UTILITY GRIDOff-grid solar systems can be cheaper than extending power lines in certain remote areas.Consider off-gird if you’re more than 100 yards from the grid. The costs of overhead transmission lines range from $174,000 per mile (for rural construction) to $11,000,000 per mile (for urban construction).2. BECOME ENERGY SELF-SUFFICIENTLiving off the grid and being self-sufficient feels good. For some people, this feeling is worth more than saving money.Energy self-sufficiency is also a form of security. Power failures on the utility grid do not affect off-grid wind systems.On the flip side, batteries can only store a certain amount of energy, and during cloudy times, being connected to the grid is actually where the security is. You should install a backup generator to be prepared for these kinds of situations.
