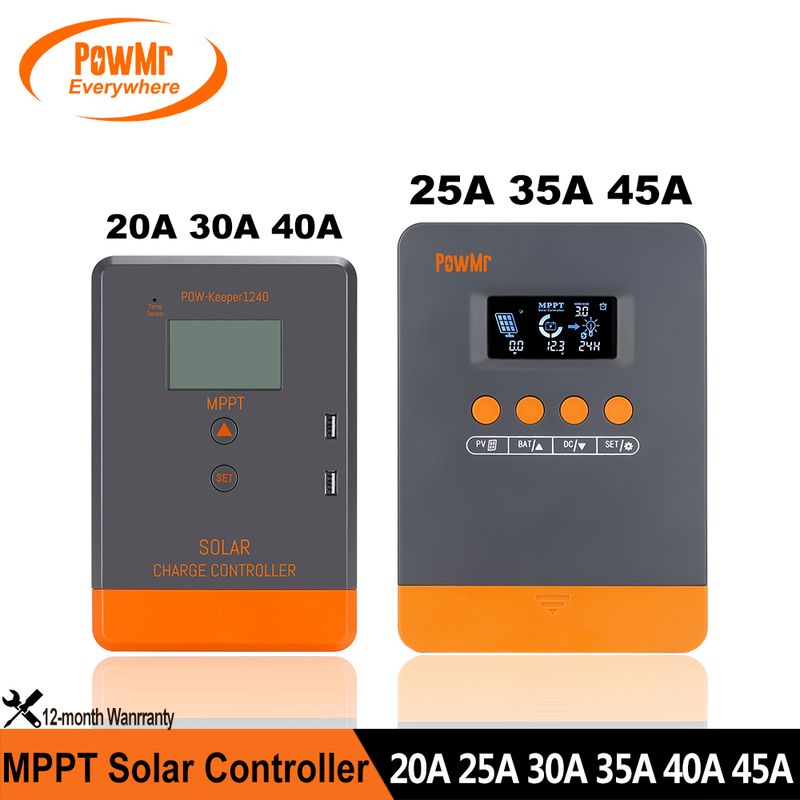

PowMr 20A 25A 30A 35A 40A 45A MPPT Solar Charge Controller for 12V 24V Lead-acid/Lithium Battery Solar Regulator Back-light LCD

$47.52

Includes all taxes

Quantity
Meet your Seller
Delivery options
  • Ship Only

Description

PowMr 20A 25A 30A 35A 40A 45A MPPT Solar Charge Controller for 12V 24V Lead-acid/Lithium Battery Solar Regulator Back-light LCD


Overview:

PowMr 20A 25A 30A 35A 40A 45A solar charge controller is based on an advanced maximum power point tracking(MPPT) technology developed, dedicated to the solar system, the charge controller conversion efficiency up to 98%.It can be used in communication base station, home power supply system, traffic light, solar street lamp, courtyard lamp systems, etc.

Feature:

* Advanced MPPT maximum power point tracking technology, the tracking efficiency is no less than 99.5%.

* High quality components are used to improve the system performance, and the maximum conversion efficiency can reach97%.

* Super fast maximum power tracking speed while ensuring tracking efficiency.

* Accurate identification and tracking of the maximum power point of multi-wave peak.

* Reliable maximum input power of pv array to ensure the safety of equipment.

* Wide pv array maximum power point operating voltage range. 12/24v automatic voltage identification

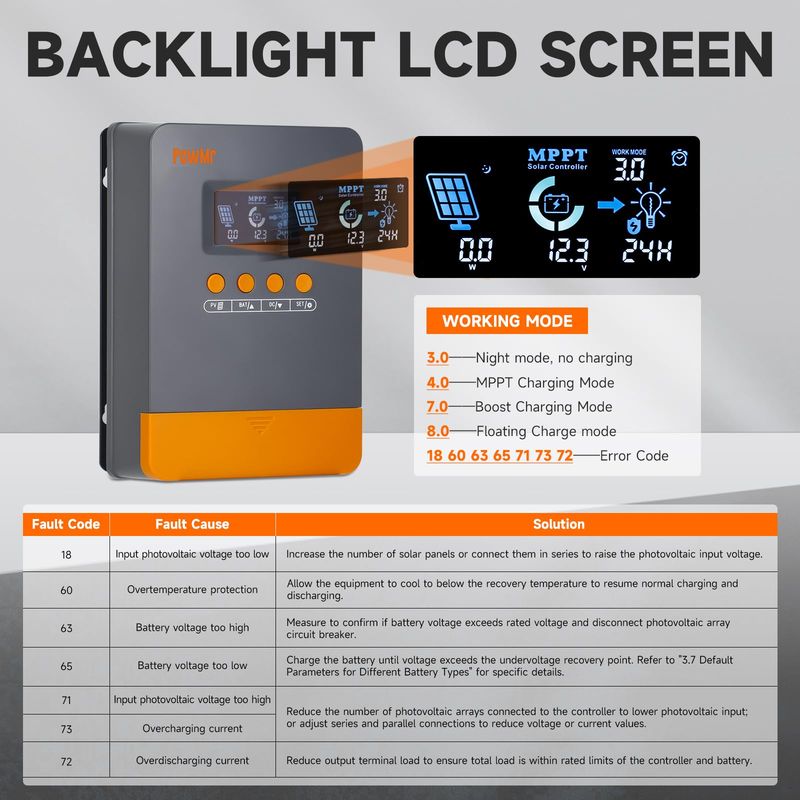

* The LCD is designed to dynamically display the operation data and working status of the equipment.

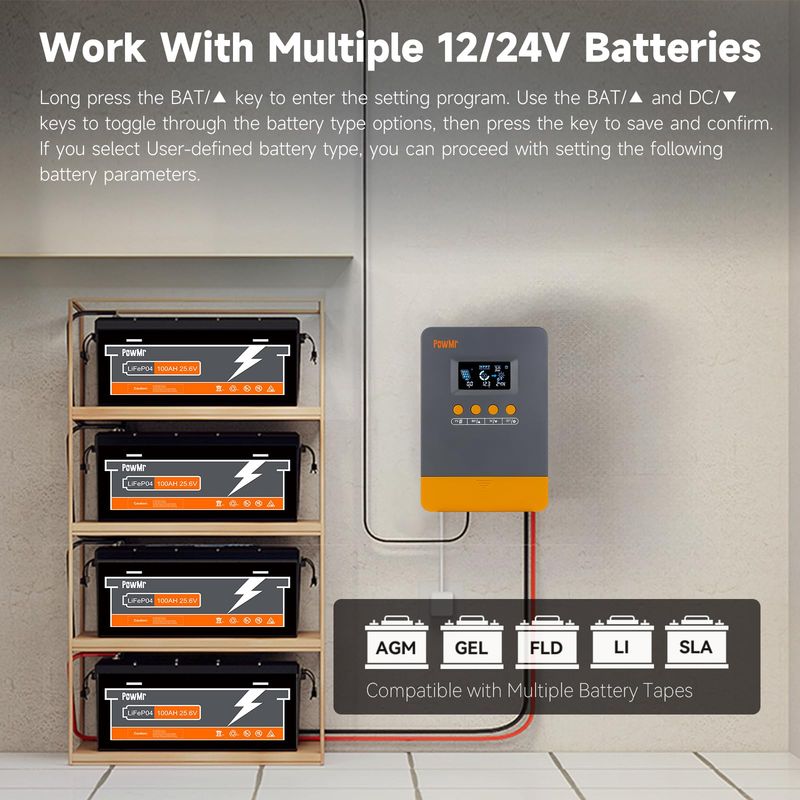

* Seal, GEL, Flooded, LifePO4 and Li(NiCoMn)O2 charging process can be selected.

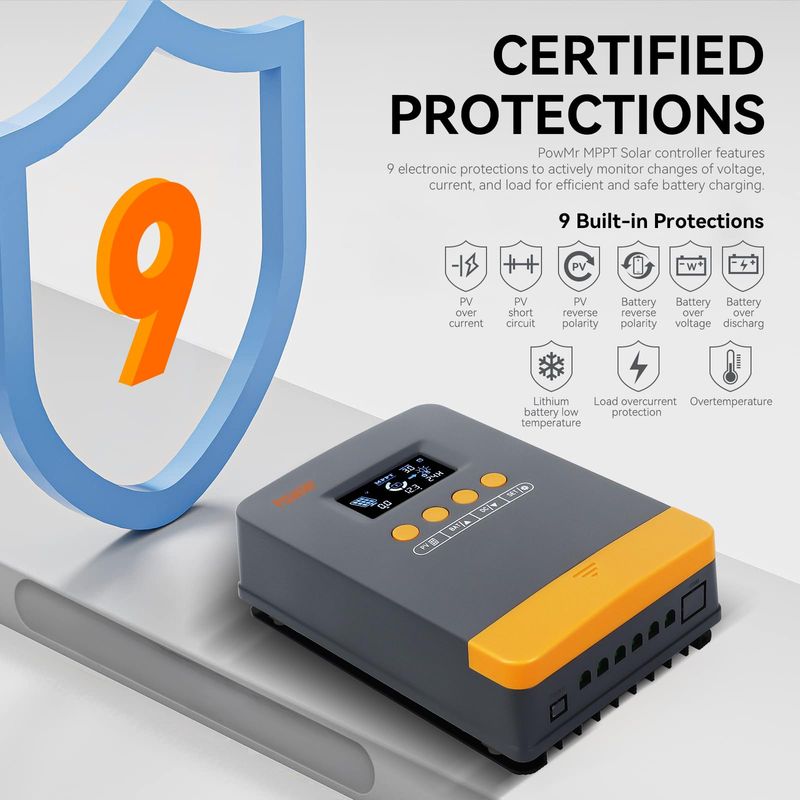

* Overcharge protection, Input PV polarity reverse protection, Output limited current protection, over-temperature protection .

* Troubleshooting promotion function.

* Easy to be mounted.


Specification:

Model

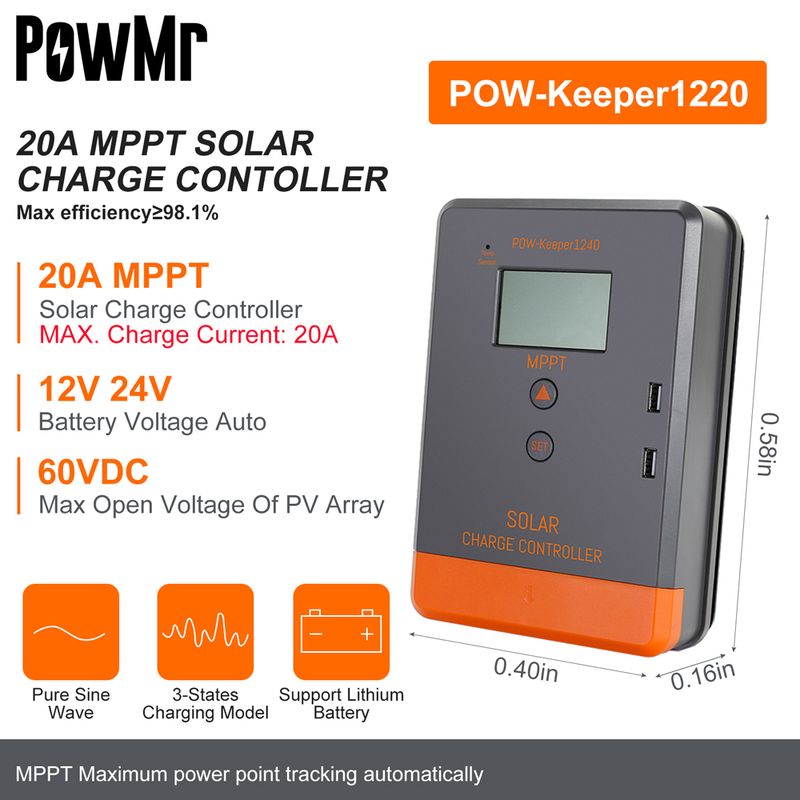

POW-Keeper1220

POW-Keeper1230

POW-Keeper1240


Rated charge current

20A

30A

40A

System rated voltage

12V/24V Auto work

Voltage range of battery

8-32V

Max open voltage of PV module

55VDC

75VDC

100VDC

Battery type

User default, Sealed, Flooded, GEL, LiFePO4

Maximum PV input power

240W(12V)

360W(12V)

480W(12V)

 480W(24V)

720W(24V)

960W(24V)

Equalized charging voltage

Maintenance-fee lead acid battery 14.6V, GEL: No: Lead acid flooded battery: 14.8V

Absorption charging voltage

Maintenance-fee lead acid battery 14.4V,GEL: 14.2; Lead acid flooded battery: 14.6V

Floating charging voltage

Maintenance-fee lead acid battery,GEL, Lead acid flooded battery: 13.8V

Low voltage re-connection (LVR)

Maintenance-fee lead acid battery,GEL, Lead acid flooded battery: 12.6V

Low voltage disconnection (LVD)

Maintenance-fee lead acid battery,GEL, Lead acid flooded battery: 10.8V

Static loss

<9.2mA 12V; <11.7mA 24V

High voltage disconnection (HVD)

16V (24V x 2)

Duration of absorption charging

2 Hours

Light control voltage

5V

Charge loop voltage drop

<0.29V

LCD Temperature

-20℃~+70℃

Operating Temperature

-20℃-+55℃ (To run at full rated current continuously)

Working humidity

<95% No condensation

Protection class

IP30

Dimension (LxWxH) mm

123x178x48

135x202x55

150x220x67

Installation hole size(LxW)mm

108x120x5

116x140x5

132x130x5


Model

POW-M25-PRO

POW-M35-PRO

POW-M45-PRO


Rated charge current

25A

35A

45A

Solar Input Parameters

Max. PV Open-Circuit Voltage

100V

Max. Input Power:

For 12V System

300W

420W

540W

For 24V System

600W

840W

1080W

Input Voltage Range:

For 12V System

<60V

<80V

<100V

For 24V System

<60V

<80V

<100V

Battery Charging Parameters

Charging Technology

MPPT

Charging Algorithm

3 Stages

Nominal System Voltage

12V/24V

Battery Voltage Range

9~30V

Rated Charging Current

25A

35A

45A

Conversion Efficiency

≤98%

Max. Power Point Tracking Efficiency

>99%

Temperature Compensation

-3mV/℃/2V (default)

Self-Consumption

44mA/12V; 26mA/24V

DC Output Parameters

Rated DC Output Current

15A

20A

25A

General Parameters

IP Class

IP32

Operating Temperature Range

-35℃~+45℃

Humidity Range

≤95% Non-condensing

Altitude

<3000m

Dimensions

160x115x51mm

195x135x65mm

195x135x65mm

Net Weight

500g

900g

1035g


Product Overview:
