R32 Inverter 18000btu Hybrid Climatisation Solaire Manufacturer Mini Split Air Conditioning Solar air Conditioners for Home

PRODUCTS SHOW

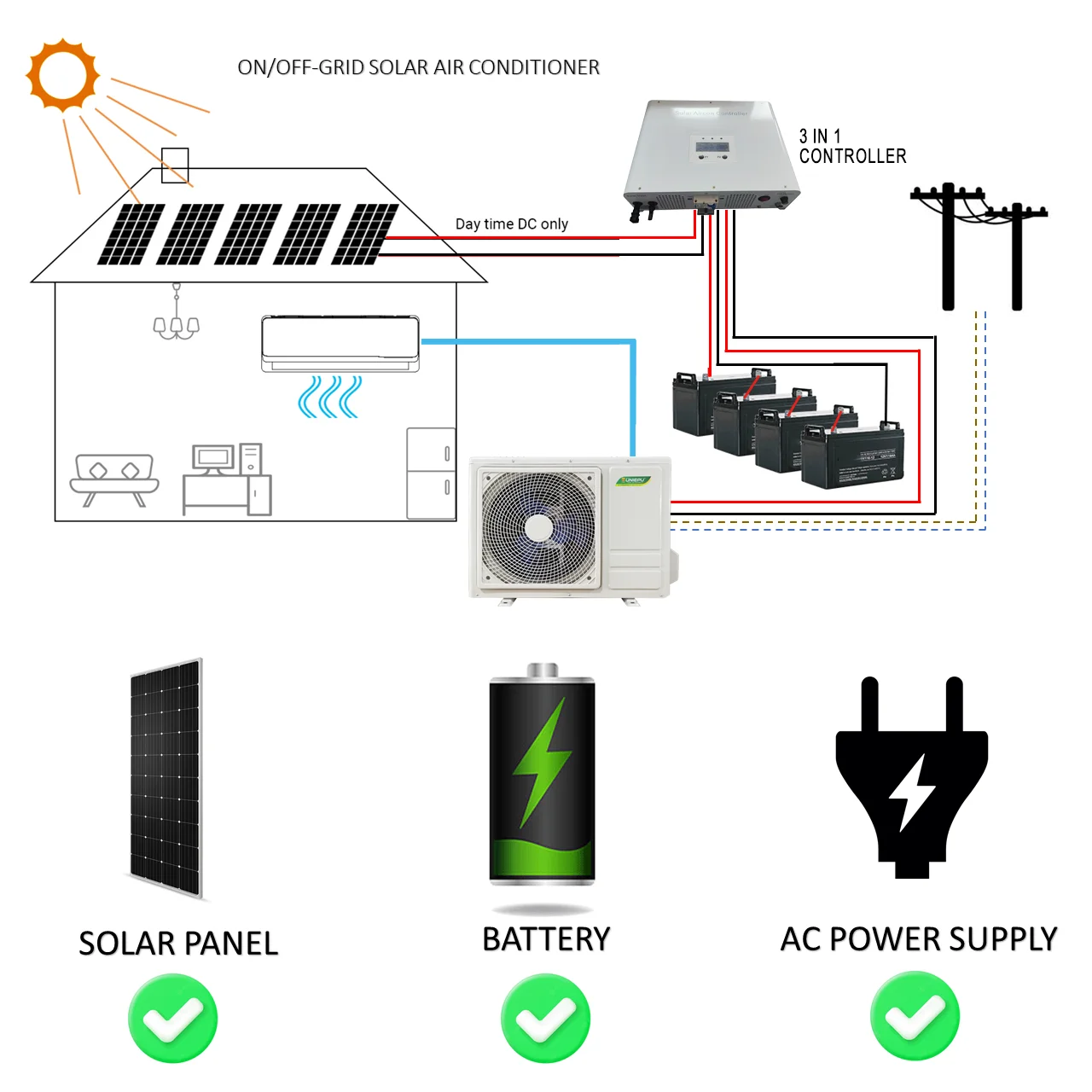

ON/OFF GRID SOLAR AIR CONDITIONER
We offer an Hybrid grid solar system that requires only solar panels + electrical grid, no batteries and no charge controller. It saves up to 95% of electricity during the day, mixing with the electrical grid supply and using all the AC power at night.

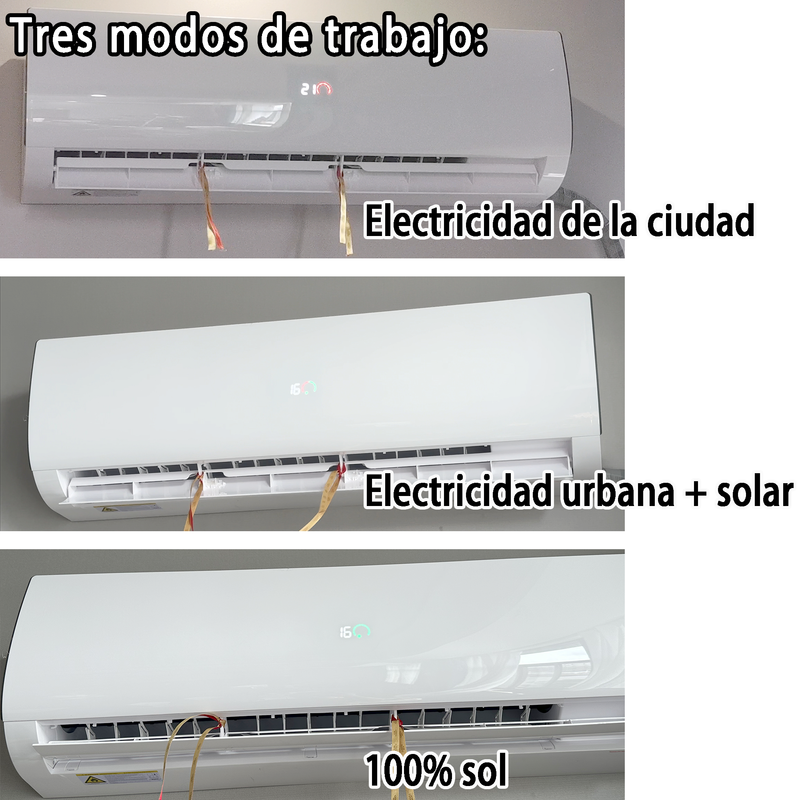

* This on/off grid solar air conditioner achieves multi-functional options. Equipped MPPT PV tracking system utilizes the PV DC power as first priority and battery back-up for night hours.
* When DC power (from solar panels and batteries) is not sufficient, the AC power takes over thus achieving continuous power supply.
* Energy delivered from solar PV directly and if not sufficient, will aggregates with the grid. If the grid cut, then the battery comes as back up to continually run the air conditioner.
* This solution is perfect for the places where the grid power is not steady or grid power often cut.
Products Description
Please have it installed by professionals to avoid affecting after-sales service.
Refrigerant default emptying
Orders shipped to the European Union do not support processing through Alibaba!!
The following parameters are laboratory parameters. They will vary according to the actual usage environment, so it is normal to have deviations.
Equipped With Compressor






Model



Unit
UNP-35GW/ACDCB1-P
UNP-50GW/ACDCB1-P
Rated Capacity

Cooling

W
3500
5000


Heating

W
3500
5000
Rated Power Consumption

Cooling

W
870
1358


Heating

W
940
1450
Rated Running Current

Cooling

A
3.97
6.01


Heating

A
4.26
6.34
Max. Input Power



W
1500
1900
Max. Input Current



A
7
9
EER Cooling



W/W
3.86
3.66
COP Heating



W/W
3.64
3.56
Power supply source



V/Ph/Hz
208-230V~/50-60Hz
208-230V~/50-60Hz




VDC
80-350
80-350
Refrigerant




R32
R32
Refrigerant Charged



g
820
960
Max. Discharge Pressure



Mpa
4.30
4.30
Max. Suction Pressure



Mpa
1.15
1.15
Air Flow Volume



m3/h
650
1050
Noise level



dB(A)
43
49
Noise level



dB(A)
51
57
Indoor Unit Size
Net Dimension


mm
900*290*195
1080*327*227

Packing Dimension


mm
971Ë£364Ë£281
1150Ë£405Ë£310
Outdoor Unit Size
Net Dimension


mm
780*255*540
820*300*600

Packing Dimension


mm
885Ë£355Ë£615
1045Ë£455Ë£700
Indoor unit weight (Net/Gross Weight)



Kg
10 /13
13/16
Outdoor unit weight (Net/Gross Weight)



Kg
29/32.5
37/41
Dehumidification



L/h
1.05L/h
1.38L/h



Compressor

Capacity


W
2765
3995

Input


W
980
1479
Container Loading 20/40/40HC



sets
104/228/261
81/166/193
Equipped With GMCC Compressor





Model

Unit
UNP-35GW/ACDCB1
UNP-50GW/ACDCB1
UNP-70GW/ACDCB1
Power Supply

V
DC50-380V
DC50-380V
DC50-380V


PH-V-HZ
1Ph,220~,50/60Hz
1Ph,220~,50/60Hz
1Ph,220~,50/60Hz
Cooling
Capacity
Btu/h
12000
(7000-14000)
18000
(6200-19500)
24000
(5100-26900)

Power Input
W
865
(110-1500)
1320
(140-1800)
1980
(240-3030)

Current
A
3.93
(0.5-6.82)
6
(0.6-8.18)
9
(1.0-13.2)
Heating
Capacity
Btu/h
13000
(4000-15000)
19000
(4700-20000)
25000
(5500-30000)

Power Input
W
880
(130-1510)
1465
(200-1900)
2050
(260-3140)

Current
A
4
(0.59-6.86)
6.66
(0.9-8.63)
9.32
(1.1-13.7)
Moisture Removal

L/h
1.3
1.7
2.5
Max input

W
1500
2300
3200
Max current

A
7.50
10.45
14.54
Indoor air flow(H/M/L)

m3/h
570/470/370
721/566/458
970/780/590
Indoor noise(H/M/L)

dB(A)
41/36/28
43/37/32
45/39/34
Indoor unit
Net Size(W*D*H)

mm

775*194*285

921*213*302

1026*220*327

Pack Size(W*D*H)

mm

830*270*360

995*305*380

1105*310*405

Net/Gross
kg
8.1/9.9
9.5/12.5
11.9/15.2
Outdoor air flow

m3/h
2100
2100
2900
Outdoor noise

dB(A)
<50
<52
<56
Outdoor unit
Net Size(W*D*H)

mm

835*320*540

835*320*540

910*340*700

Pack Size(W*D*H)

mm

900*400*600

900*400*600

1063*457*780

Net/Gross
kg
29/33.5
31/36
49.5/56
Operation temp.

℃
16~30
16~30
16~30
Ambient temp.(cooling/heating)

℃
18-52/-15-34
18-52/-15-34
18-52/-15-34
Application area

m2
16-23
24-35
32-47
Solar panels recommendation

W
1030-1900
1580-2900
2370-4350
CONFIGURATION TABLE


Model
Solar Panel
Quantity
12000BTU
580W/700W
3-4/3-4 Pieces
18000BTU
580W/700W
3-5/3-4 Pieces
24000BTU
580W/700W
4-6/3-5 Pieces

SYSTEM ADVANTAGES

* AC, DC and AC+DC
* High Energy Efficiency: Maximum Up to SEER 36;
* Automatic Selection Between Solar Power and Grid Power Supply that Provides Uninterrupted Power Supply.
* High-SEER Brushless Inverter DC Permanent Magnet Compressors
* Wide Operating Temperature Range: -10°C To +52°C
* Anti-Corrosion Technology.
* Eco-Friendly R410a Refrigerant
* Solar Connector Terminal – Easy Connection and Maintenance Plug and Play
* Quiet Indoor Unit (As Low as 26db)

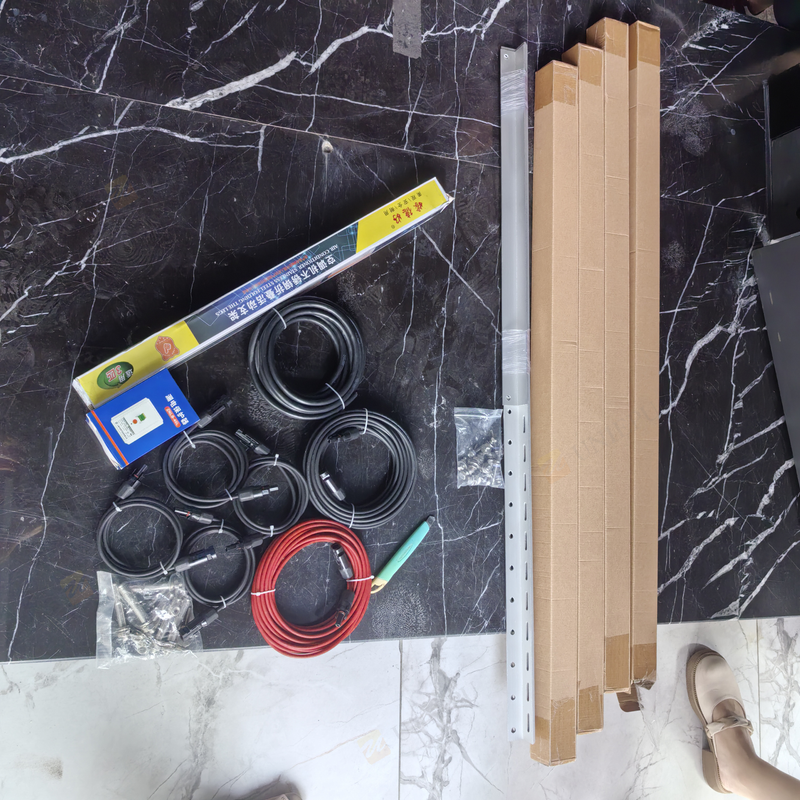

Solar Air Conditioner Parts
The unit's components include solar panels, DC wiring, and the air conditioning unit itself. It is important to size the solar panel array and battery bank correctly to meet the energy demands of the air conditioner unit and ensure optimal performance.

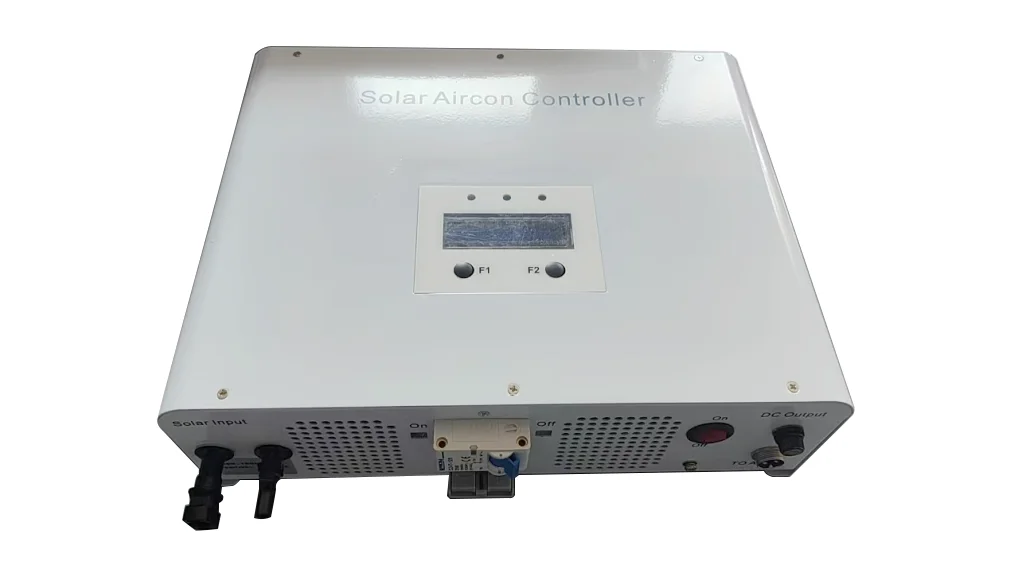

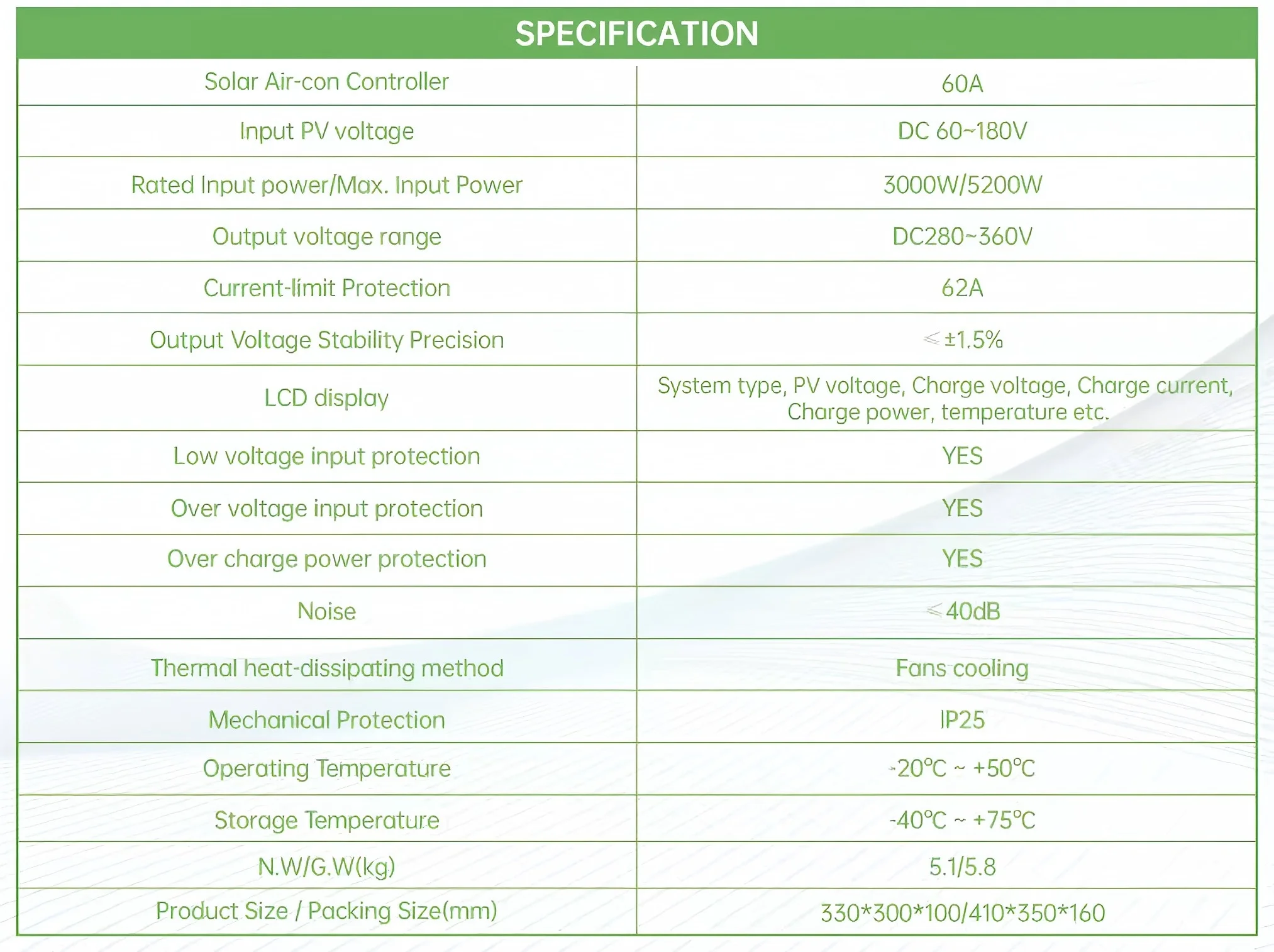

3 in 1 controller

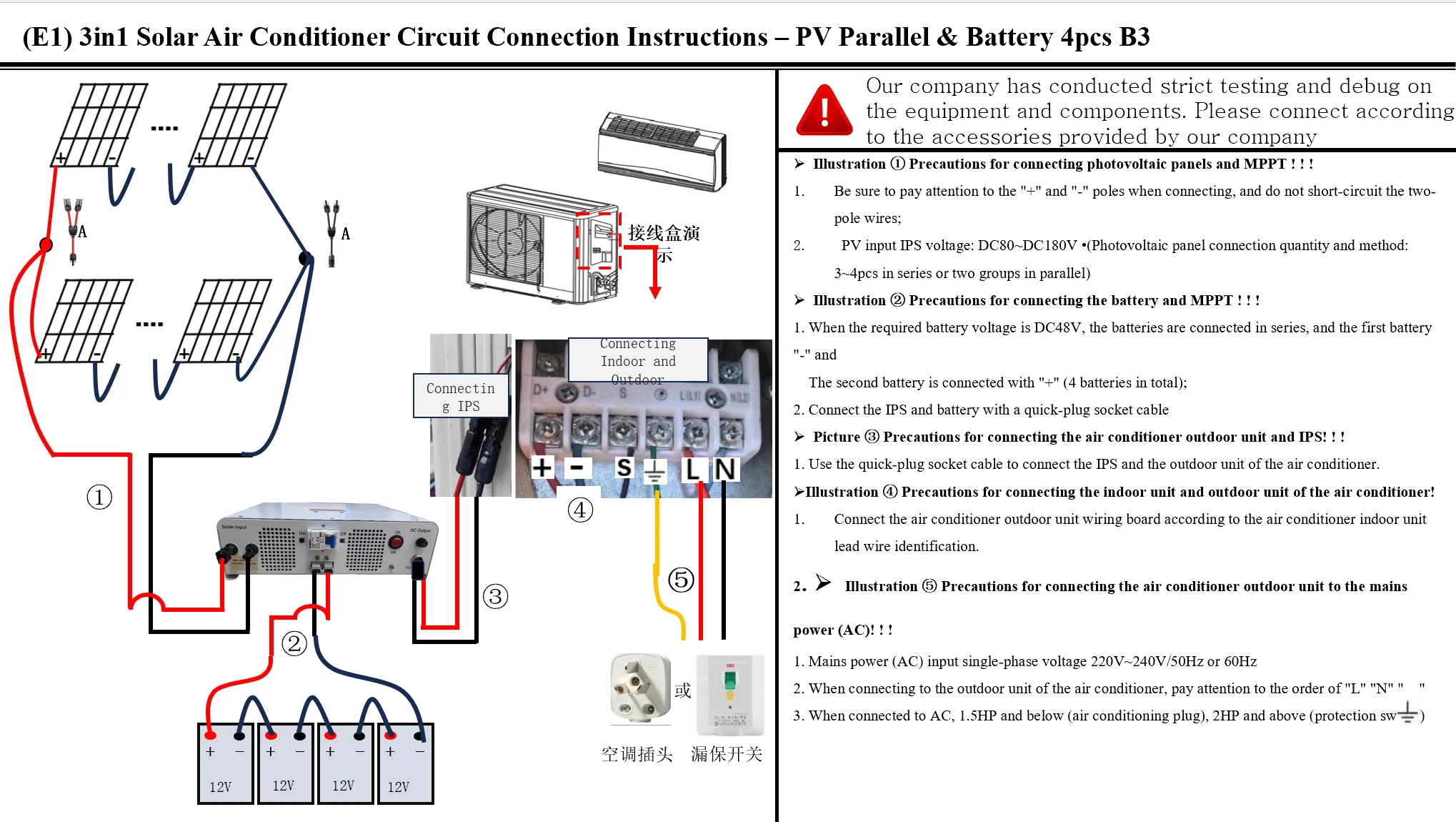

1.High efficiency MPPT control algorithm, MPPT efficiency ≥99.5% 2.Input PV voltage:60-180VDC. 3.Output voltage range: 280-360VDC. 4.Charge mode: three stages (fast charge, constant charge,floating charge).lt prolongs service life of the batteries 5.Recommended battery types:Fooded,Sealed lead acid,Gel battery. 6.Most information could be provide by LCD;PV input voltage,battery type,battery voltage,charging current,charging power,working stotus and so on.

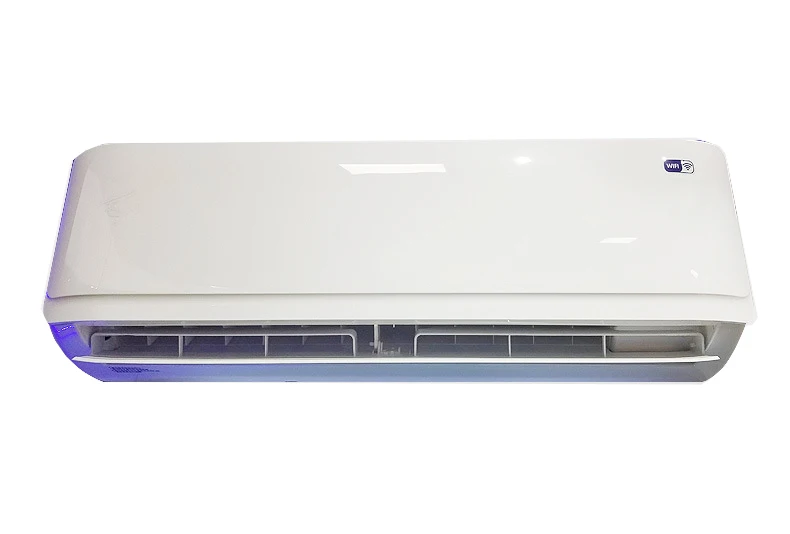

Indoor Unit

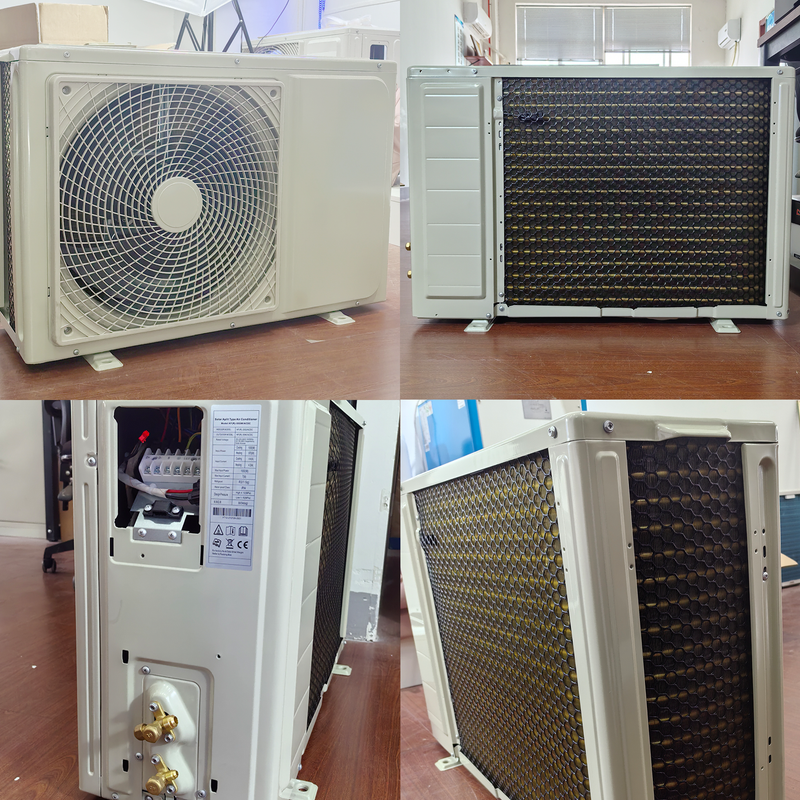

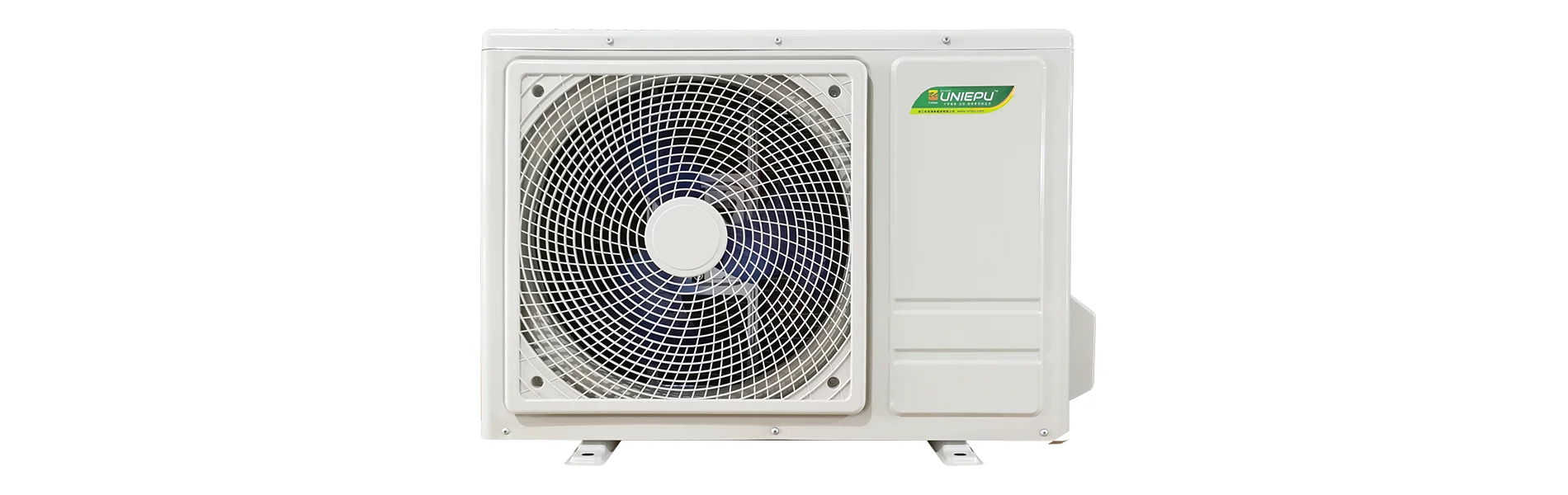

Outdoor Unit

Core Technologies
- Full DC
- Outdoor unit: Rust and corrosion resistance.
-Compressor: Strong power, stable performance.
-Motor: Pure copper coils increase efficiency.
-Copper tube: Inner grooved design improve the heat transfer rate.
-Double-muting technology: Keep the environment quiet and comfortable.
-Strainer: Effectively prevents dust from entering, easy to remove and wash.
Application
