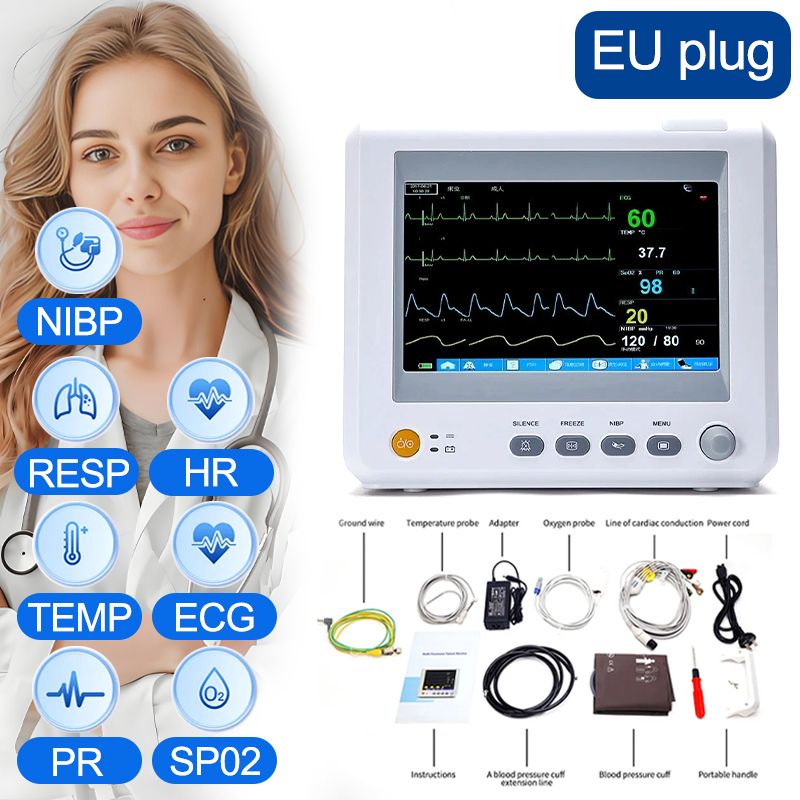

Resoxy Medical Vital Signs Monitor NIBP RESP TEMP PR HR ECG SPO2 8in Multi-Parameter Monitor For Patient Vital Signs Monitoring

$1,182.99

Includes all taxes

Quantity
Meet your Seller
Delivery options
  • Ship Only

Description

Resoxy Medical Vital Signs Monitor NIBP RESP TEMP PR HR ECG SPO2 8in Multi-Parameter Monitor For Patient Vital Signs Monitoring

Environment

Operating environment :
Temperature: 0 ~ 40 ℃
Humidity: ≦ 85 %
Pressure: 86.0 kPa ~ 106.0kPa
Transport and Storage environment :
Temperature: -20 ~ 55 ℃
Humidity: ≦ 93 %
Pressure: 86.0 kPa ~ 106.0kPa

Display

8”real color LED screen

Power Requirements

AC: 100 ~ 240V, 50Hz/60Hz
DC: Built-in rechargeable battery
Battery: 11.1V 24wh Li-ion battery
2h operating after full charge
5min operating after low battery alarm

Date Storage

Trend diagram/table: 720h
NIBP review: 10000 events
Wave review: 12h
Alarm review: 200 alarm events
Support drug concentration titration analysis

Application Range

Adult/Pediatric/Neonatal/Medicine/Surgery/
Operating Room/ICU/CCU

ECG

5 Leads: RA, LA, LL, RL, V
Lead mode: Ⅰ,Ⅱ, Ⅲ, AVR, AVL, AVF, V
Gain: × 1.25mm/mV,2.5mm/mV,
5.0mm/mV, 10mm/mV,
20mm/mV (error ≤ 5%)
Sweep speed: 6.25mm/s,12.5mm/s,25mm/s,
50mm/s (error ≤ ± 10%)
Bandwidth: Surgery 1 ~ 25 Hz
Monitor 0.5 ~ 40 Hz
Diagnostic 0.05 ~ 130 Hz
Sensitivity: >200 μ V P-P
CMRR: ≥ 112dB
Differential Input Impedance: >5M
ohm Electrode Offset Potential: ±300mV
Polarization Voltage: ≥ ± 500mV
Input Impedance: ≥ 5 M
Calibration Voltage: 1mV ± 5%

ST Segment

ST Segment Range: -2.0mV ~ +2.0mV
Accuracy: 0.02mV

NIBP

Method: Oscillometry
Measure mode: Manual, Auto, STAT
Measure interval in auto mode:
1~5/10/15/30/60/90/120/180/240/480min
Measure period in STAT mode: 5min
Pulse rate range: 40 ~ 240bpm
Measure & alarm range: Adult
SYS 40 ~ 280mmHg
DIA 10 ~ 220mmHg
MEAN 20 ~ 240mmHg
Pediatric
SYS 40 ~ 220mmHg
DIA 10 ~ 160mmHg
MEAN 20 ~ 170mmHg
Neonatal
SYS 40 ~ 135mmHg
DIA 10 ~ 100mmHg
MEAN 20 ~ 110mmHg
Static pressure measurement
Range: 0 ~ 300mmHg
Accuracy: ± 3mmHg
Resolution: 1mmHg Accuracy:
Max. Mean Error: ± 5mmHg
Max. Standard Deviation: 8mmHg
Overpressure protection:
Adult 300mmHg
Pediatric 240mmHg
Neonatal 150mmHg

SpO2

Measurement range: 0 ~ 100%
Resolution: 1%
Accuracy: 70% ~ 100% ± 2%
40% ~ 69% ± 3%

Pulse Rate

Measure/alarm range: 20 ~ 300bpm
Resolution: 1bpm
Accuracy: ± 3bpm

RESP

Method: impedance between RA-LL
Resp Impedance range: 0.3 ~ 3 Ω
Base Impedance range: 200 Ω ~ 4000 Ω
Bandwidth: 0.3 ~ 2.5Hz
Gain: × 0.25, × 0.5, × 1, × 2, × 4
Resp rate:
Measurement Range
Adult 0 ~ 120BrPM
Neonatal/Pediatric 0 ~ 150BrPM
Resolution: 1BrPM
Accuracy: 7 ~ 150BrPM ( ± 2BrPM)
0 ~ 6BrPM (unspecified)
Apnea Alarm: 10 ~ 40s

TEMP

Channel 2
Measure & alarm range: 0 ~ 50 ℃
Resolution: 0.1 ℃
Accuracy (no sensor): ±0.1 ℃ (0~50 ℃)

Pantalla LED de color real de 8 pulgadas

Pantalla grande de alta definición;
Visualización de forma de onda multicanal;
Mostrar claramente los datos de los signos vitales;
Lectura y diagnóstico de datos instantáneos

Bateria de iones de litio de gran capacidad de 2200 mAh

2 horas de trabajo continuo después de la carga completa;
5 minutos de trabajo con bateria baja;
Apto para asistencia médica móvil.;

Función de alarma de soporte

La alarma tiene tres tipos: sonora, de texto y visual.

Support Wired or WirelessCentral Monitoring Systems

Multi-purpose Medical PatientMonitor

Ideal tool for health,no matter in hospital or daily use

ECG
HR,7-lead ECG waveform on the same screen display

SPO2
SPO2,PR and pulse wave are suitable for detection in various weak perfusion occasions

NIBP
Manual/AUTO/STAT, storage for 4800-group NIBP data

RESP
Display breathing, waveforms and breathing rates on the same screen

TEMP
Dual channel temperature data display, contact measurement,multi-parameter comparison

PR
Pulse rate,trend chart display
