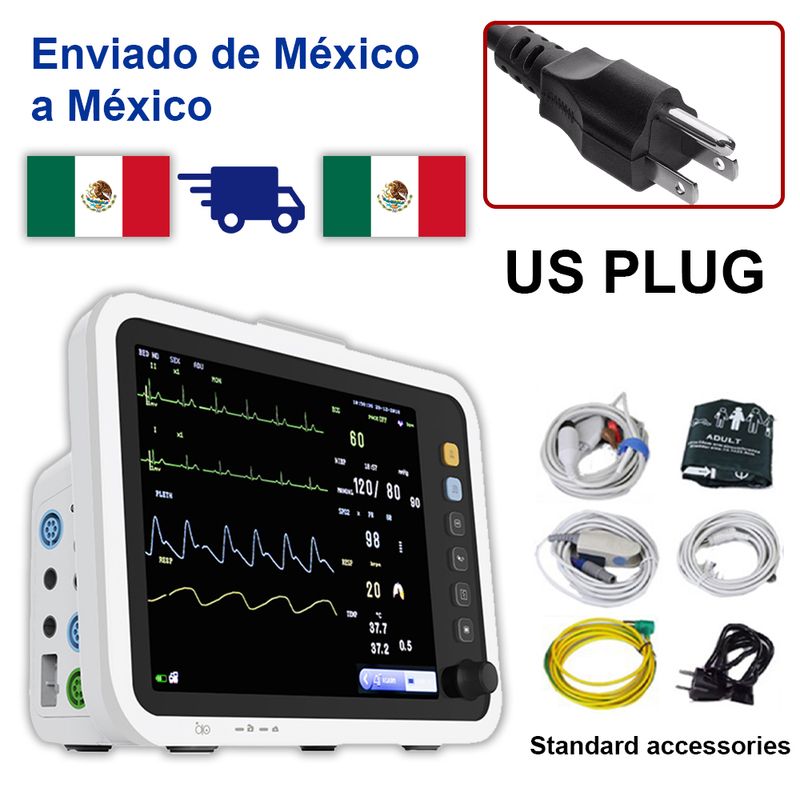

Resoxy Patient Vital Signs Monitor 12.1 Inch screen Human Use 6 Parameters Medical Patient Monitor ECG NIBP TEMP RESP SPO2 PR

$991.44

Includes all taxes

Quantity
Meet your Seller
Delivery options
  • Ship Only

Description











¡Pregunta por envíos desde México! ! ! ¡Atención amigos mexicanos! ! ! Contamos con almacén propio exclusivo en México, logística dual y seguro fiscal. Si el almacén en el extranjero tiene inventario, el producto se enviará desde el almacén en el extranjero. Si no hay inventario en el almacén en el extranjero, no tiene que preocuparse por el despacho de aduana. Hemos unido canales de logística de entrega dual para entregar los productos en sus manos. (Para clientes que no pueden pasar la aduana)

Product Specifications

Multi-Parameter Monitor
Brand: Resoxy
Fuse: F2AL 250V
Electrical Specifications: 220 VAC, 50Hz
Operating Temperature: 5°℃~40°℃
Maximum Input Power: 70VA
Working Humidity: 15%~80%
Battery:
11.1V 2200mAh rechargeable lithium battery
Weight:
4.5KG
Atmospheric Pressure:
86kPa~106kPa
Product Size:
342*252*139.5mm

Standard ConfigurationSpO2, PR/HR, NIBP, ECG, RESP, 2-TEMP

✔12.1 inch high-resolution color TFT LCD screen
✔Thinner and lighter design, convenient and portable for user
✔ Freeze instant waveform for real time S-T segment analysis, pace-maker detection.
✔ Full touch screen selectable, more convenient for operation
✔ Real time S-T segment analysis, pace-maker detection
✔ 3-level audio/visual alarming
✔ Efficient resistance to interference of defibrillator and HF knife.
✔ Lasting working capacity with built-in rechargeable lithium battery
✔ 400 groups of NIBP list, 6000 seconds ECG waveform recall, 60 alarm evens records recall, 7-day trend chart in storage
✔ Wire/wireless central monitoring system applicable to ICU/CCU/OR

Product Parameters

Size: 12 * 11.4 * 6.4 inch
Weight: 4kg
Electrical Specification: 100-240v AC, 50/60Hz, Max Input Power: 70VA
Battery: 11.1V 2200mAh rechargeable lithium battery
Standard configuration: SpO2, PR, NIBP, ECG, RESP, TEMP
Optional Configuration: SpO2, 2-IBP, ETCO2, Touch screen, Built-in Thermal Printer

Patient Monitor Package Include

1 x device
1 x Rechargeable lithium battery
1 x Power line1 x Earth wire
1 x User's Manual
1 x Reusable Spo2 sensor (for SpO2, PR)
1 x Blood pressure cuff and tube(for NIBP)
1 x ECG cable (for ECG, RESP)
1 x Temperature probe (for Temperature)
5xDisposable ECG Electrodes

Product Specifications

Multi-Parameter Monitor
Brand yongrow
Fuse: F2AL 250V
Electrical Specifications: 220 VAC, 50Hz
Operating Temperature: 5°℃~40°℃
Maximum Input Power: 70VA
Working Humidity: 15%~80%
Battery:
11.1V 2200mAh rechargeable lithium battery
Weight:
4.5KG
Atmospheric Pressure:
86kPa~106kPa
Product Size:
342*252*139.5mm

Accessories Display

1.ECG electrodes*5
2.Power cord*1
3.Blood pressure extension tube*1
4.ECG lead wire*1
5.Ground wire*1
6.Temperature probe*1
7.Instructions*1
8.Blood pressure cuff*1
9.Oxygen probe*1
10.Li-Battery*1

▲ 1 ECG Specification
1.1 Lead configuration :Standard 3-lead or 5-lead
3-lead :RA, LA, LL,Lead method:I,II,III
5-lead :RA, LA, LL, RL, V,Lead method:I,II,III,aVR,aVL,aVF,V
1.2 Gain variation :0.25, .5, 1, 2. Automatically,Gain change per minute < 0.66%/min,Total gain change in 1 hour < ±10%
1.3 HR Range :
Adult :15 ~ 300bpm (beat/minute)
Precision : ±1% or ±1bpm,the larger prevails
Resolution :1 bpm(beat/minute)
1.4 Sensitivity :> 200 uV (Peak-to-peak value)
1.5 Input Impedance :> 5 (megohm)
1.6 Bandwidth
Diagnostic mode :0.05~130Hz
Monitoring Mode :0.5~40Hz
Operation mode :1~20Hz
1.7 Common Mode rejection Ratio
Diagnostic mode > 90 dB
Monitoring Mode > 100 dB
Operation mode > 100 dB
1.8 Pole Polarization Vvoltage Range :±300mV
1.9 Pacing Pulse Test
Test pacing pulse in accordance with the following conditions :
Amplitude : ±2 mV ~ ±700mV
Width : 0.1ms ~ 2ms
Risetime : 10us~100µs
1.10 Pacing pulse inhibition
When pacing analysis switch is on, pacing pulse in accordance with the following conditions are
restrained, but affection against HR calculation.
Amplitude : ±2 mV ~ ±700mV
Width : 0.1ms ~ 2ms
Risetime : 10us ~ 100µs
1.11 Signal Range :±8 mV (Peak-to-peak value)
1.12 Calibrating Signal :1mV(Peak-to-peak value),precision ±5%
1.13 ST Segment Measuring Volume
Measuring range : -2.0mV ~ +2.0mV
Measuring precision : Ranging -0.8 mV ~ +0.8mV, measuring error is ±0.02mV or ±10%,. The larger prevails. No definition for other ranges.
▲ 2 RESP Specification
2.1 Measuring Method :RA-LL impedance
2.2 RESP Impedance Measuring Range :0.3~3Ω
2.3 Base Impedance Range :200~4000Ω
2.4 Bandwidth :0.1~2.5Hz
2.5 RESP Rate
Range
Adult :0~120BrPM
Resolution :1 BrPM
Precision :±±2 BrPM
2.6 Asphyxia Alarm :10~40 seconds
▲ 3 NIBP Specification
3.1 Measuring Method :Pulse wave oscillometry
3.2 Work Mode :Manual/Automatic/STAT
3.3 Measuring Interval of Automatic Measuring Mode :1,2,3,4,5,10,15,30,60,90,120,180,240,480 minute(s)
3.4 Measuring Time of STAT Mode :5 minutes
3.5 PR range :40 – 240 bpm
3.6 Measuring Range and Precision
Range
Adult :Systolic blood pressure 40~270mmHg
Diastolic blood pressure 10~215mmHg
Mean blood pressure 20~235mmHg
Static pressure range : 0~300mmHg
Static pressure precision : ±3mmHg
Pressure precision : Max. average error: 5mmHg;Max. standard deviation: 8mmHg
3.7 Overvoltage protection
Adult mode :300 mmHg
▲ 4 SpO2 Specification
4.1 SpO2
Range : 0~100%
Resolution : 1%
Precision : 70~100%:±2%
0%~69% :no definition given
4.2 PR
Range 20~300bpm
Resolution 1bpm
Precision ±±3bpm
▲ 5 TEMP Specification
5.1 suitable for temperature sensor :YSI series,CYF series
5.2 Channel quantity :2 channels
5.3 Measuring
Range :0~50℃
Resolution :0.1℃
Precision : ±0.1℃(excluding sensor error)
▲ 6 IBP Specification
Label :ART, PA, CVP, RAP, LAP, ICP, P1, P2
Measuring and alarm range
ART :0 ~ 300 mmHg
PA :-6 ~ 120 mmHg
CVP/RAP/LAP/ICP :-10 ~ 40 mmHg
P1/P2 :-10 ~ 300 mmHg
Press Sensor
Sensitivit : 5 uV/V/mmHg
Impedance : 300-3000Ω
Resolution :1 mmHg
Accuracy :±2% or ±1mmHg, which great
Actualization interval :about 1 Sec.
▲ 7 CO2 Specification
Side stream :
7.1 measurement :Infrared radiation absorption technique
7.2 measurement range :0 ~ 99mmHg
7.3 precision* :0 ~ 40mmHg : ±2mmHg
41 ~76mmHg : ±5%
77~99mmHg : ±10%
7.4 resolution :1mmHg
7.5 drift :To meet the requirement of accuracy within 6 hours
7.6 pumping rate :70ml/min, 100ml/min
7.7 pumping rate control accuracy :15% or 15ml/min big
7.8 module start time
The < 1min, enter the precision measurement of the state,After entering 1min, the accuracy of measuring state
7.9 AwRR measuring range :0 ~120BrPM: ±2
7.10 precision
0 ~70BrPM : ±2BrPM
>70BrPM : ±5BrPM
7.11 response time
The use of adult sampling tube :
< @ 5.5s 100ml/min
< @ 7s 70ml/min
7.12 delay time
The use of adult sampling tube :
< @ 5s 100ml/min
< @ 6.5s 70ml/min
7.13 asphyxia alarm delay
AwRR : 10 ~ 40s
