Resoxy Patient Vital Signs Monitor 12.1 inch screen Human Use Multi-parameter Medical Patient Monitor ECG/NIBP/TEMP/RESP/SPO2/PR

$1,138.56

Includes all taxes

Meet your Seller
Delivery options
  • Ship Only

Description

¡Pregunta por envíos desde México! ! ! ¡Atención amigos mexicanos! ! ! Contamos con almacén propio exclusivo en México, logística dual y seguro fiscal. Si el almacén en el extranjero tiene inventario, el producto se enviará desde el almacén en el extranjero. Si no hay inventario en el almacén en el extranjero, no tiene que preocuparse por el despacho de aduana. Hemos unido canales de logística de entrega dual para entregar los productos en sus manos. (Para clientes que no pueden pasar la aduana)


Product Specifications

Multi-Parameter Monitor
Brand yongrow
Fuse: F2AL 250V
Electrical Specifications: 220 VAC, 50Hz
Operating Temperature: 5°℃~40°℃
Maximum Input Power: 70VA
Working Humidity: 15%~80%
Battery:
11.1V 2200mAh rechargeable lithium battery
Weight:
4.5KG
Atmospheric Pressure:
86kPa~106kPa
Product Size:
342*252*139.5mm

Standard Configuration

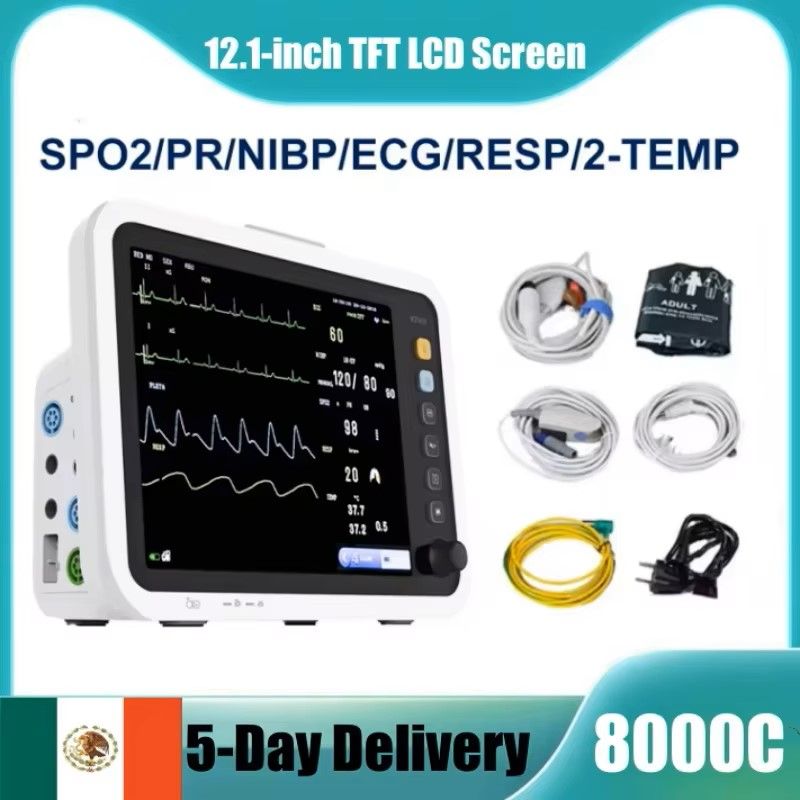

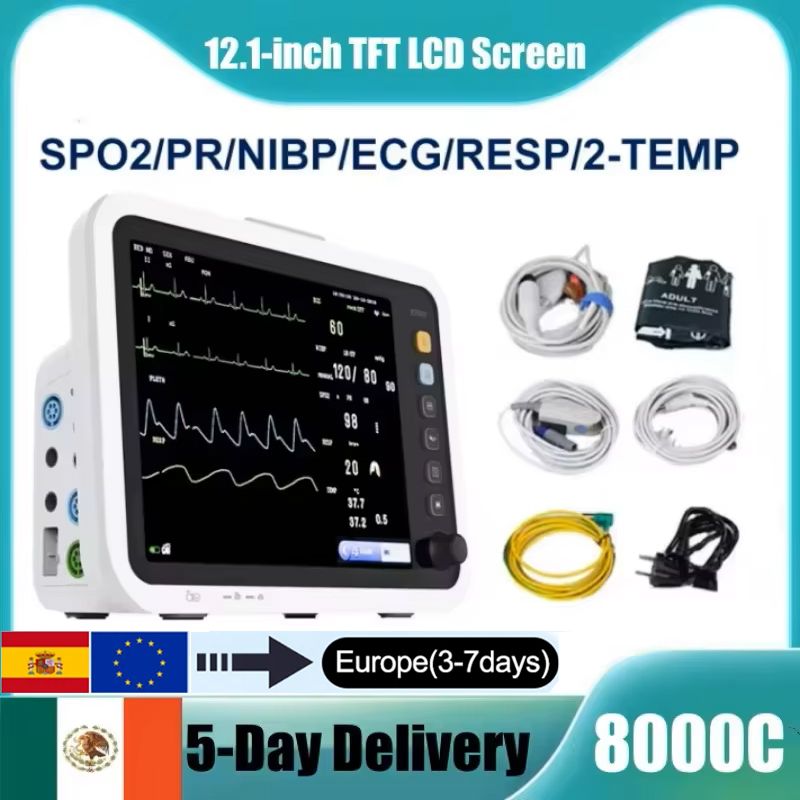

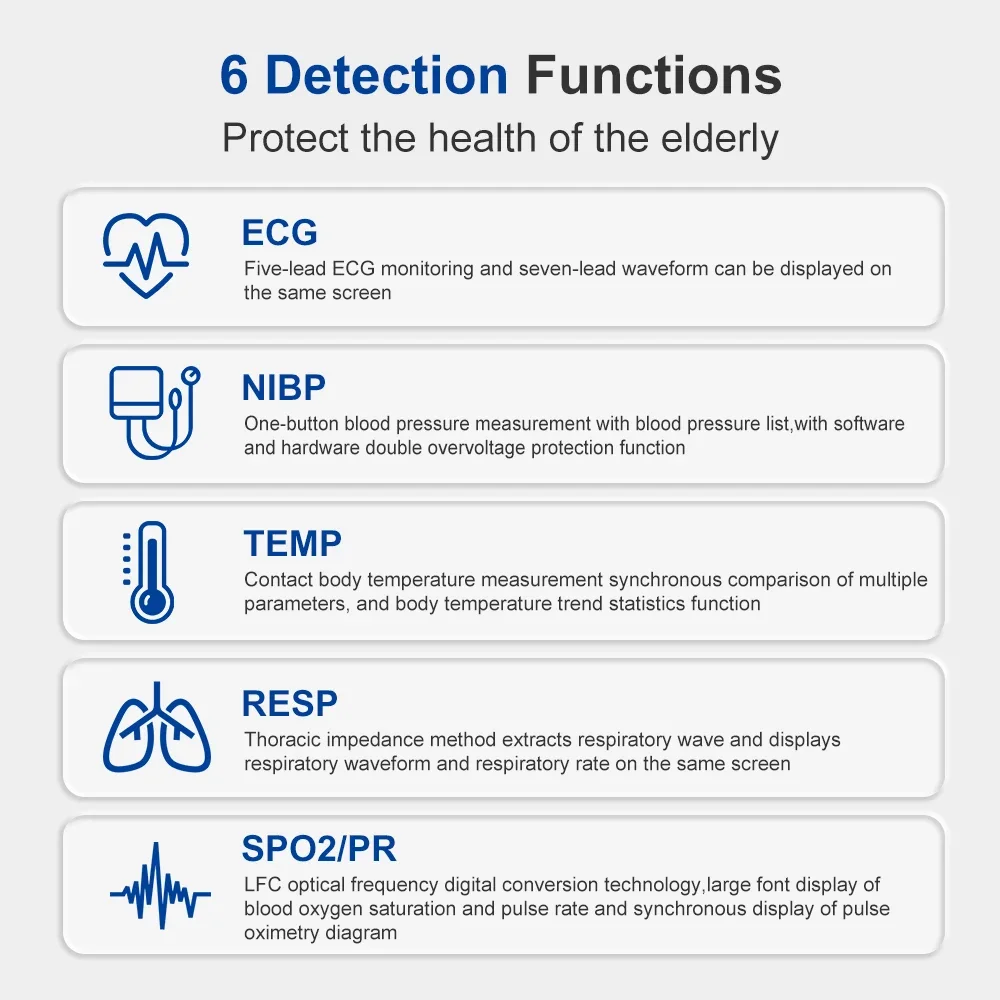

SpO2, PR/HR, NIBP, ECG, RESP, 2-TEMP

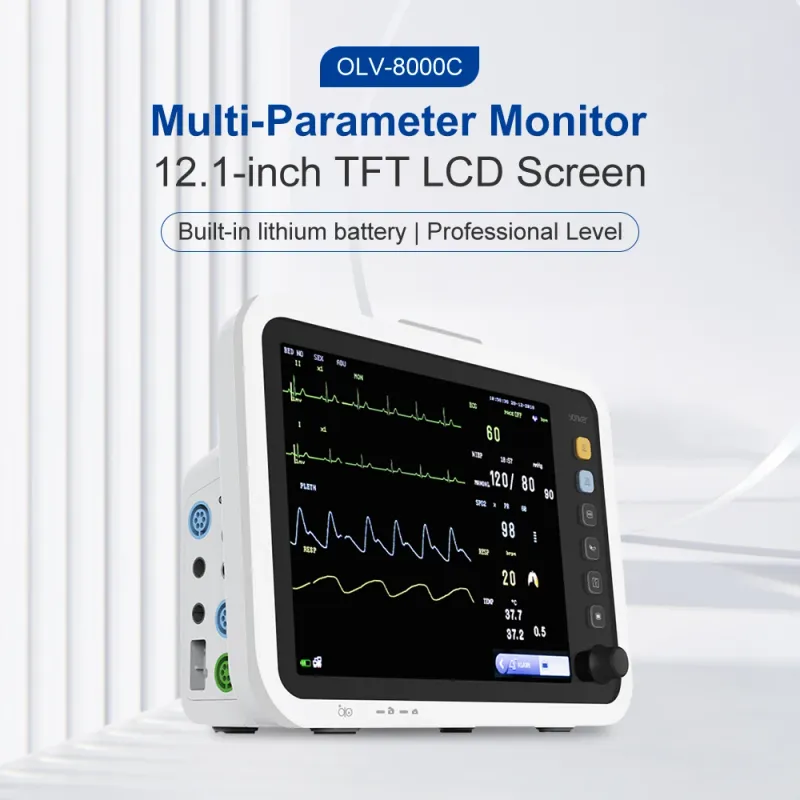

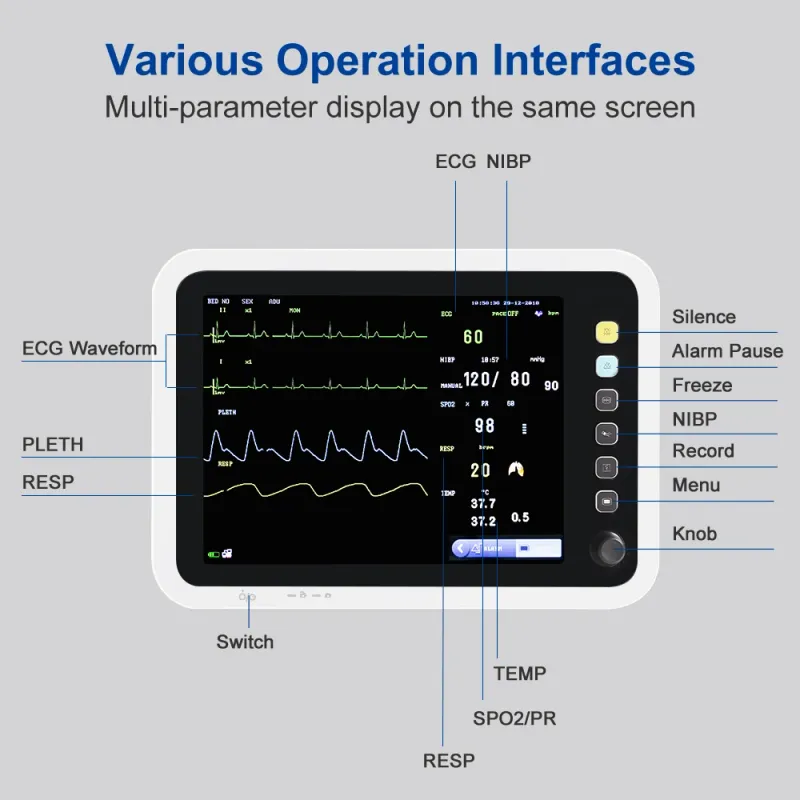

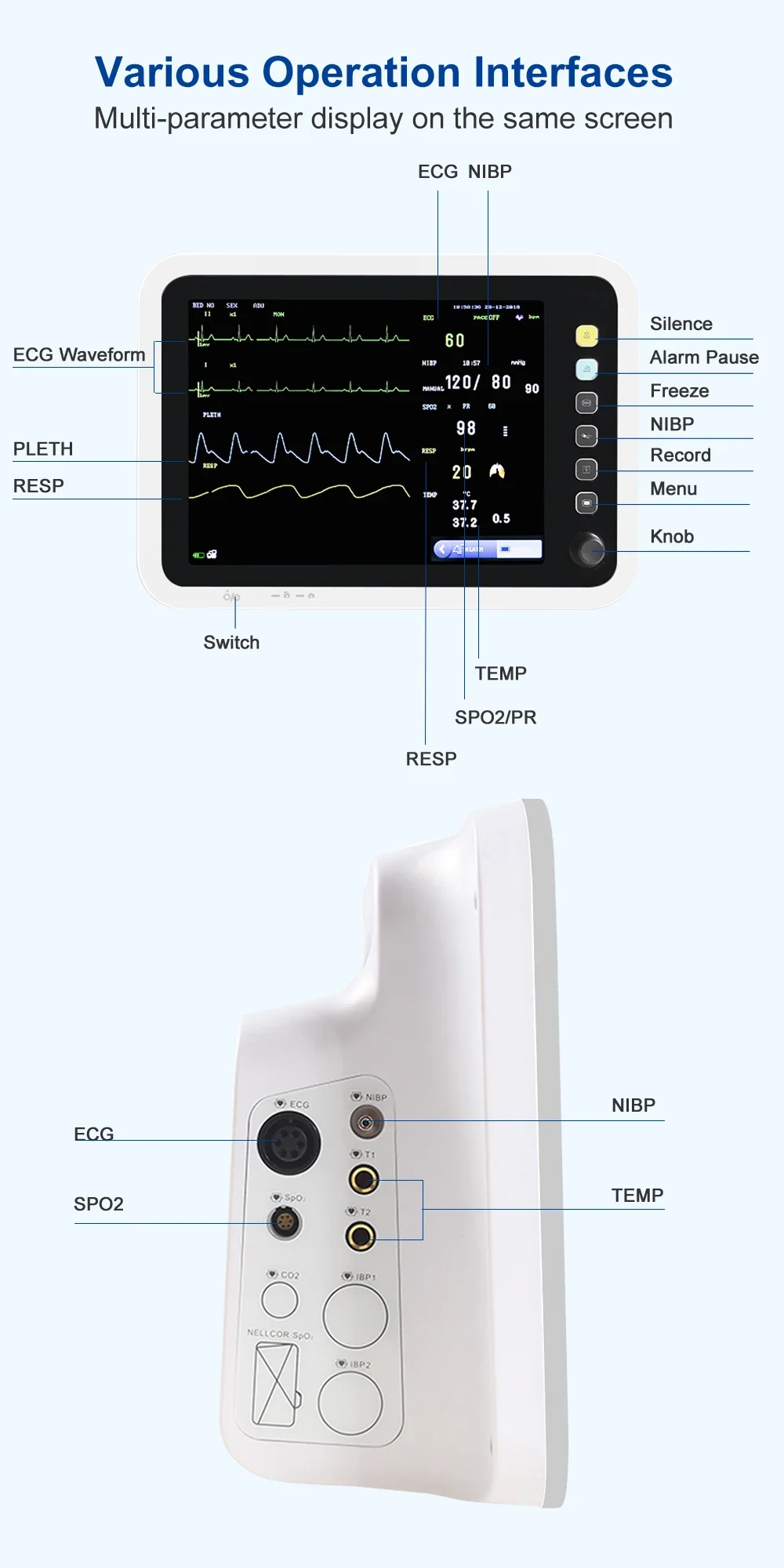

✔12.1 inch high-resolution color TFT LCD screen

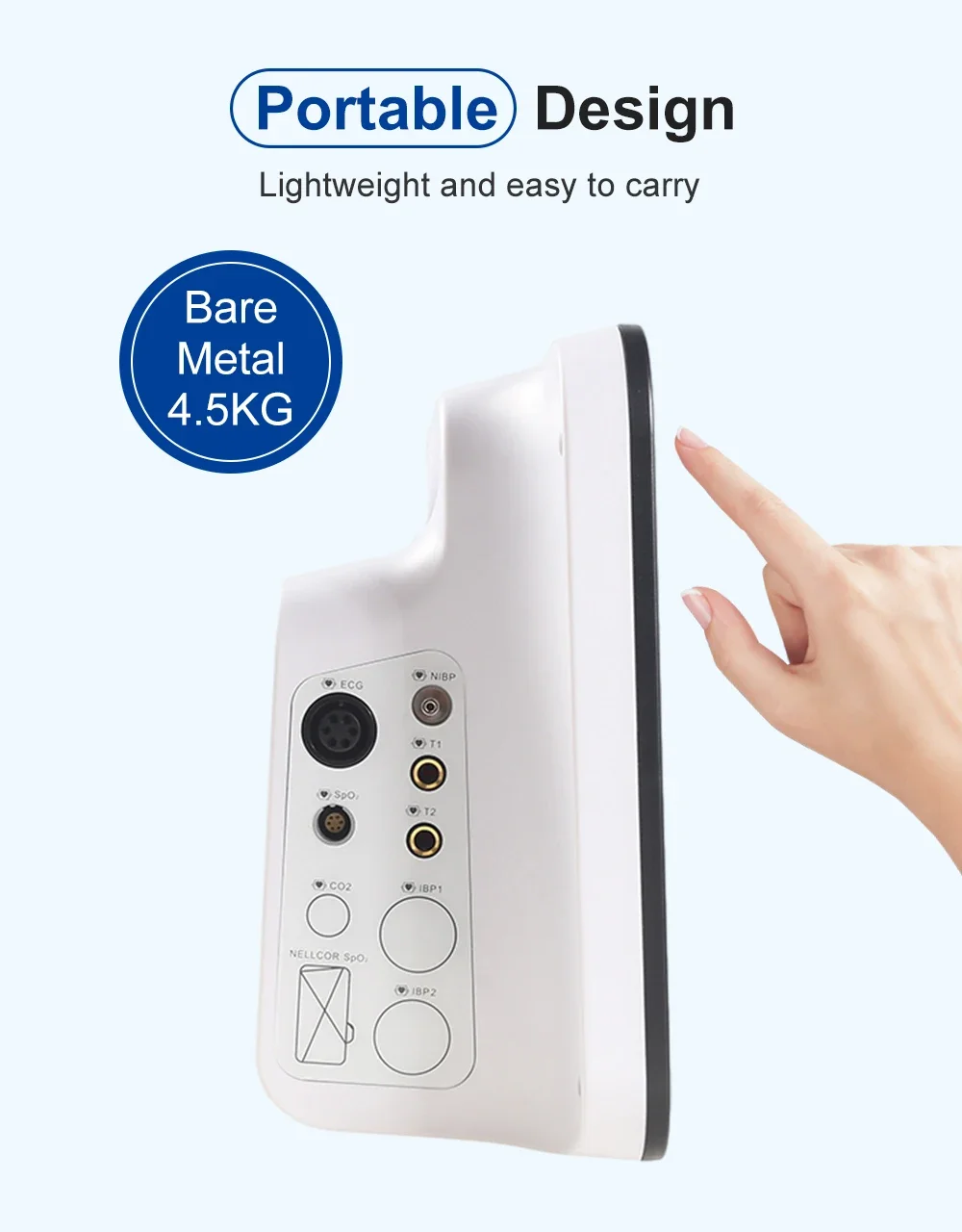

✔Thinner and lighter design, convenient and portable for user

✔ Freeze instant waveform for real time S-T segment analysis, pace-maker detection.

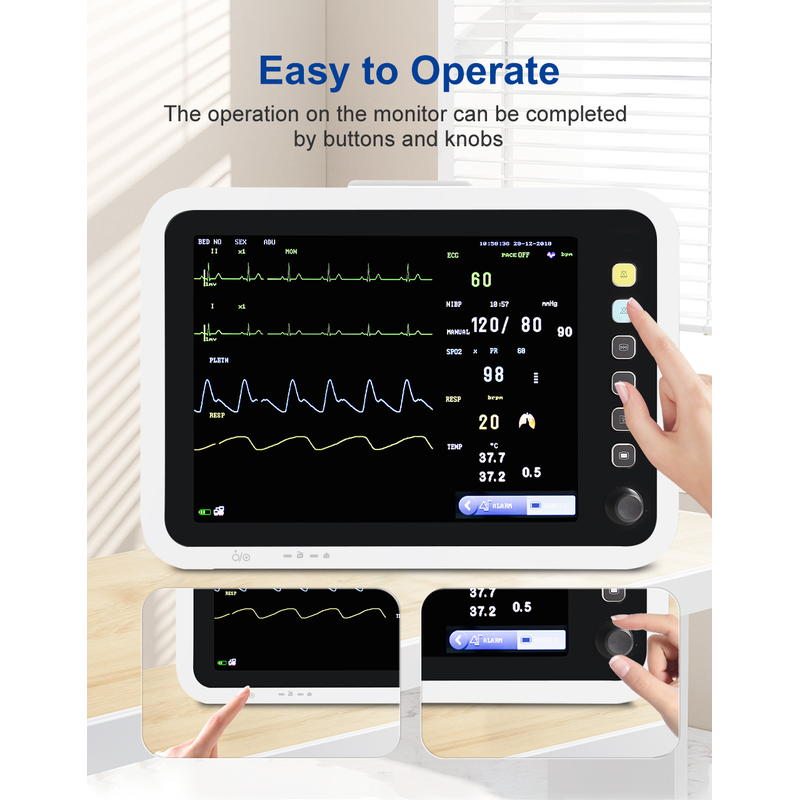

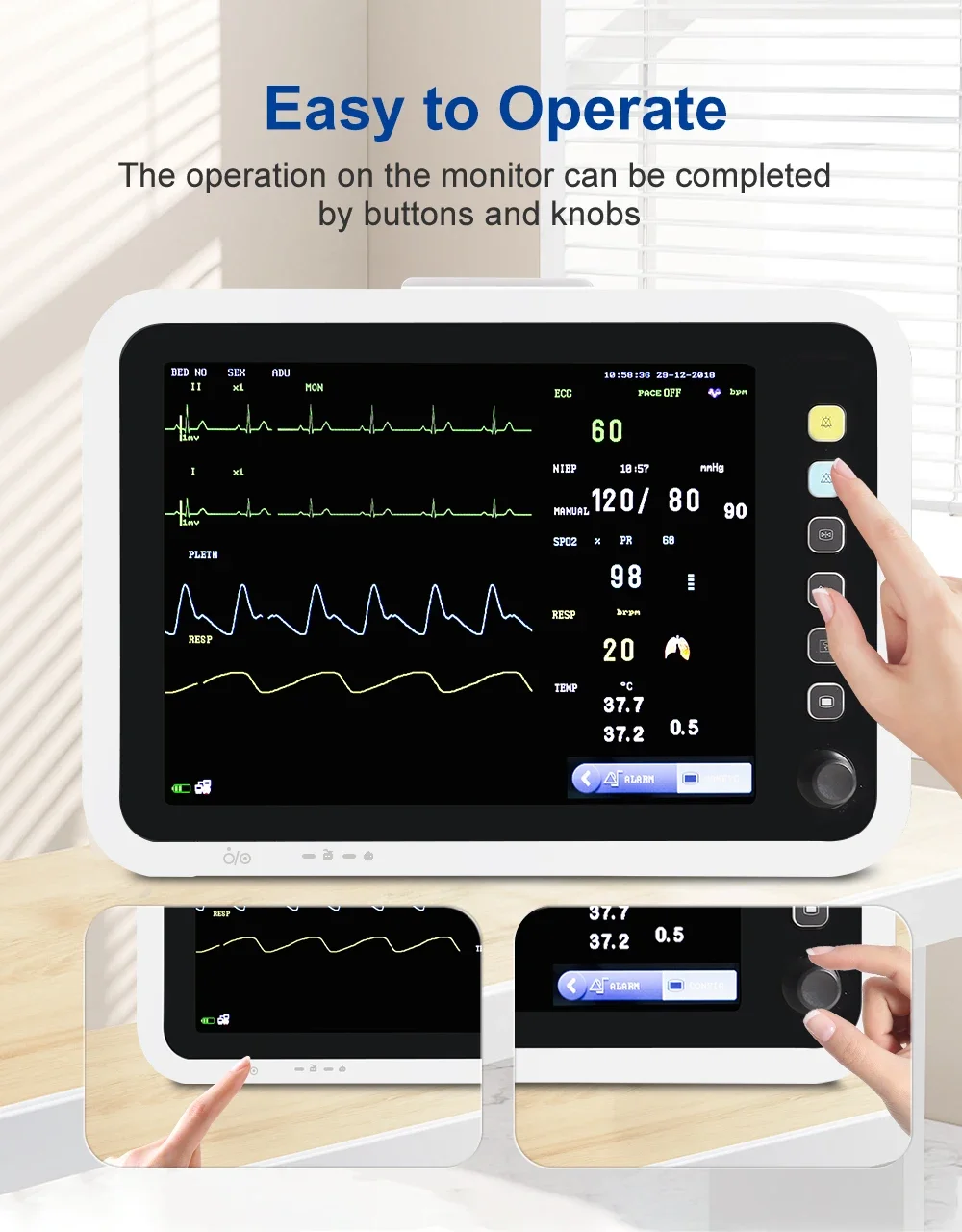

✔ Full touch screen selectable, more convenient for operation

✔ Real time S-T segment analysis, pace-maker detection

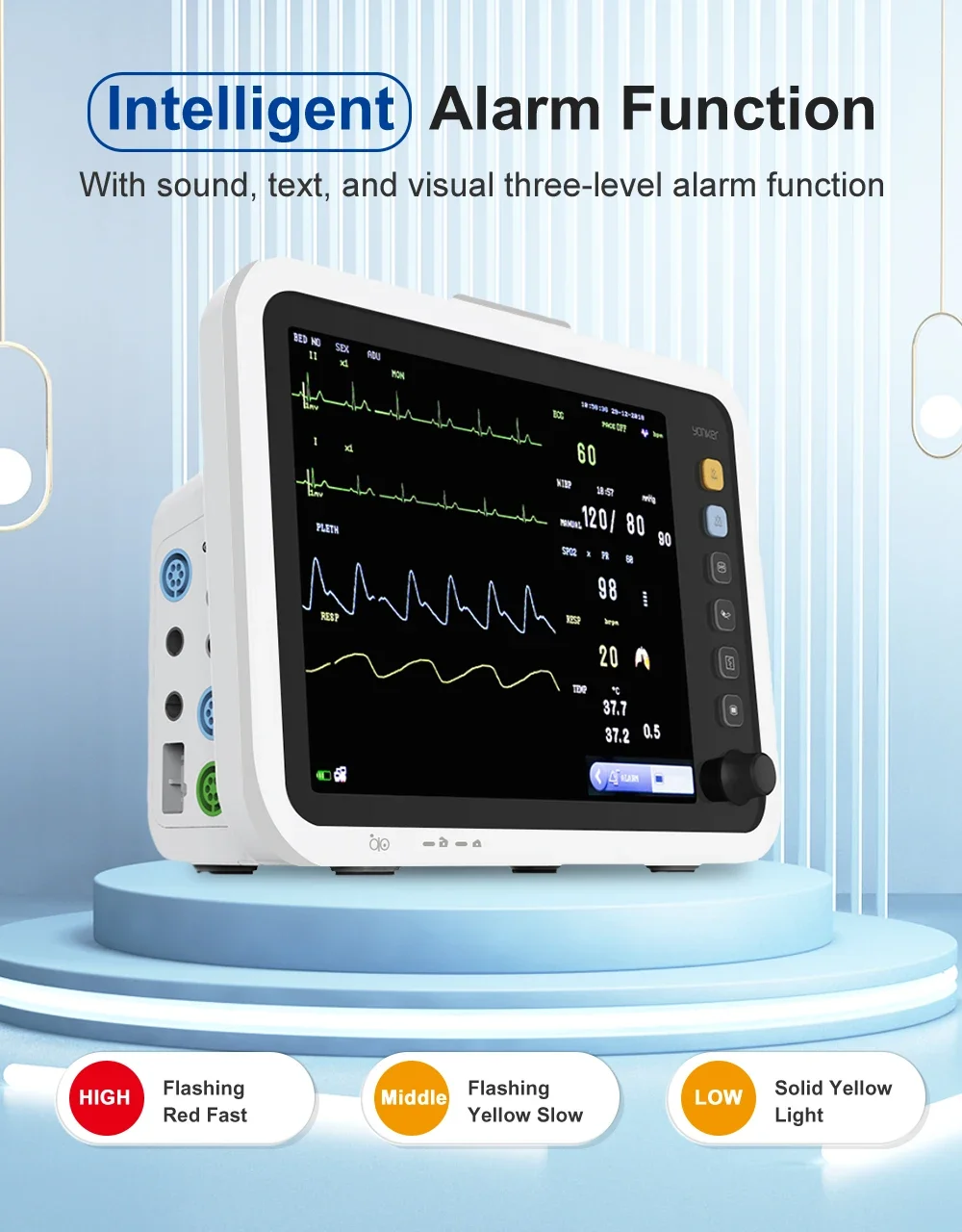

✔ 3-level audio/visual alarming

✔ Efficient resistance to interference of defibrillator and HF knife.

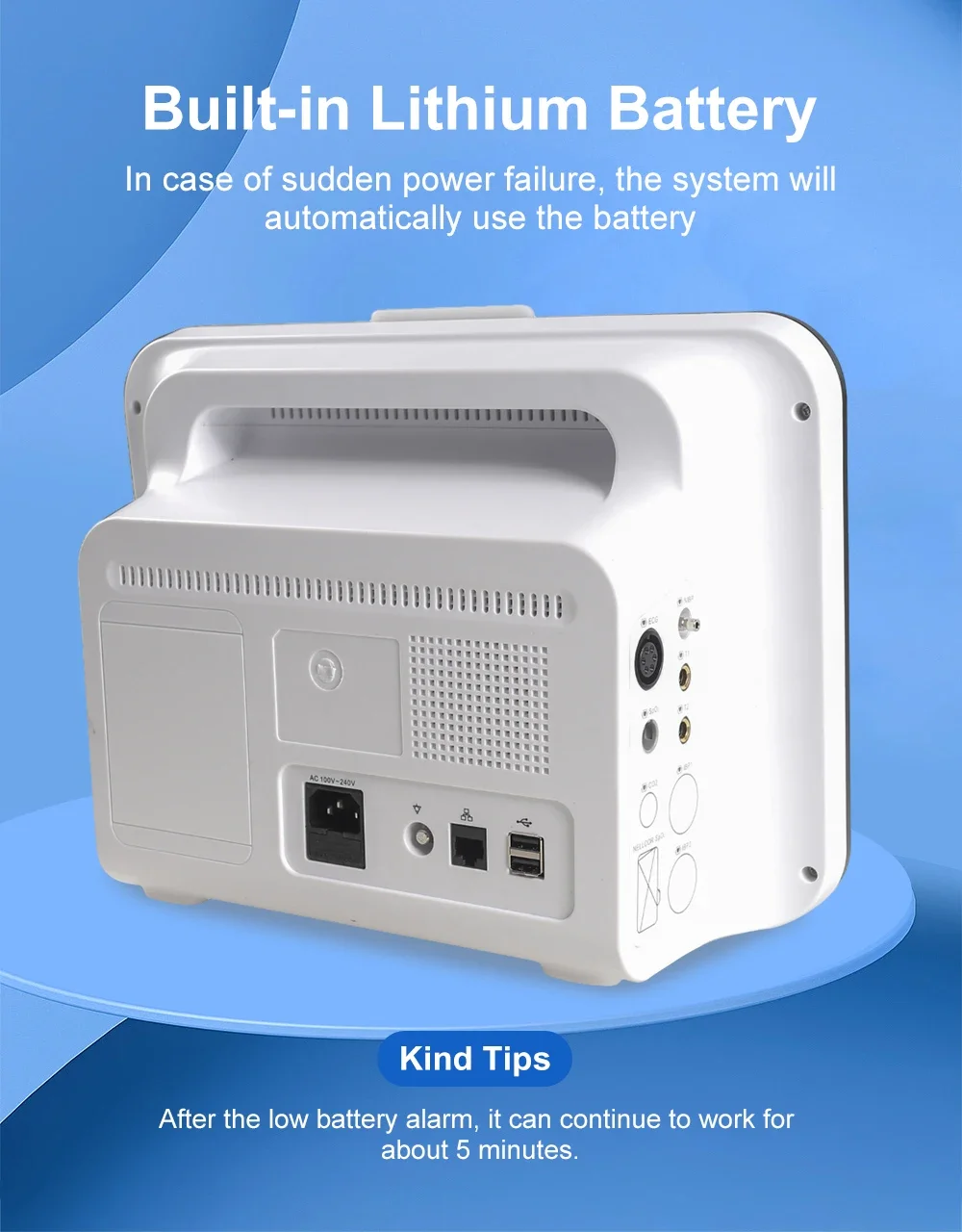

✔ Lasting working capacity with built-in rechargeable lithium battery

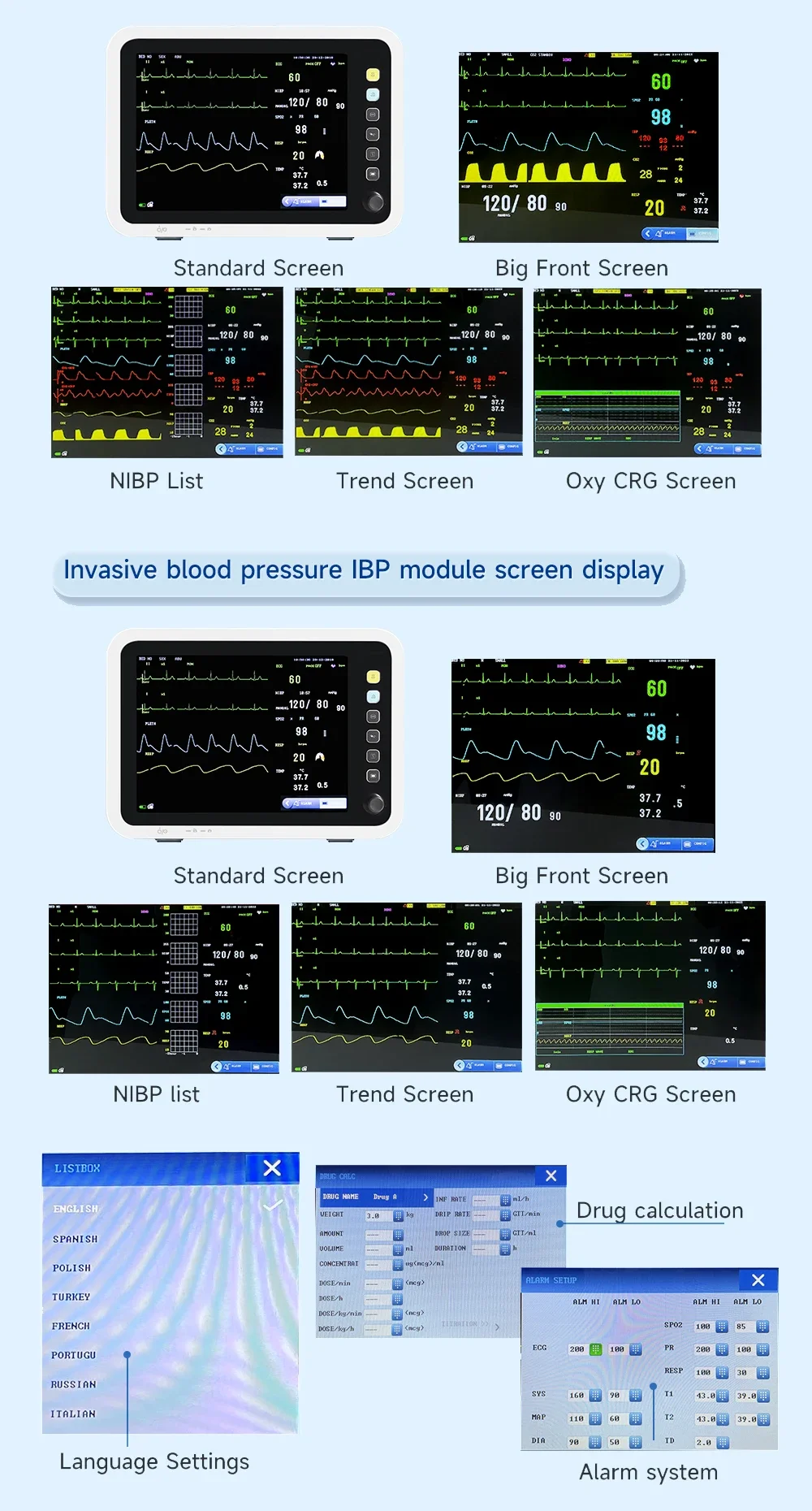

✔ 400 groups of NIBP list, 6000 seconds ECG waveform recall, 60 alarm evens records recall, 7-day trend chart in storage

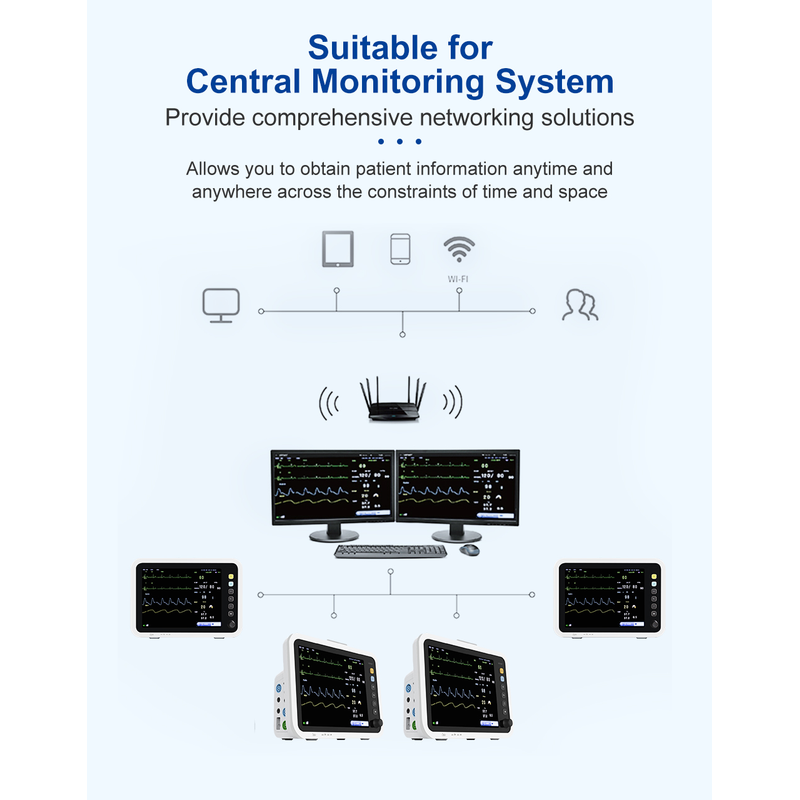

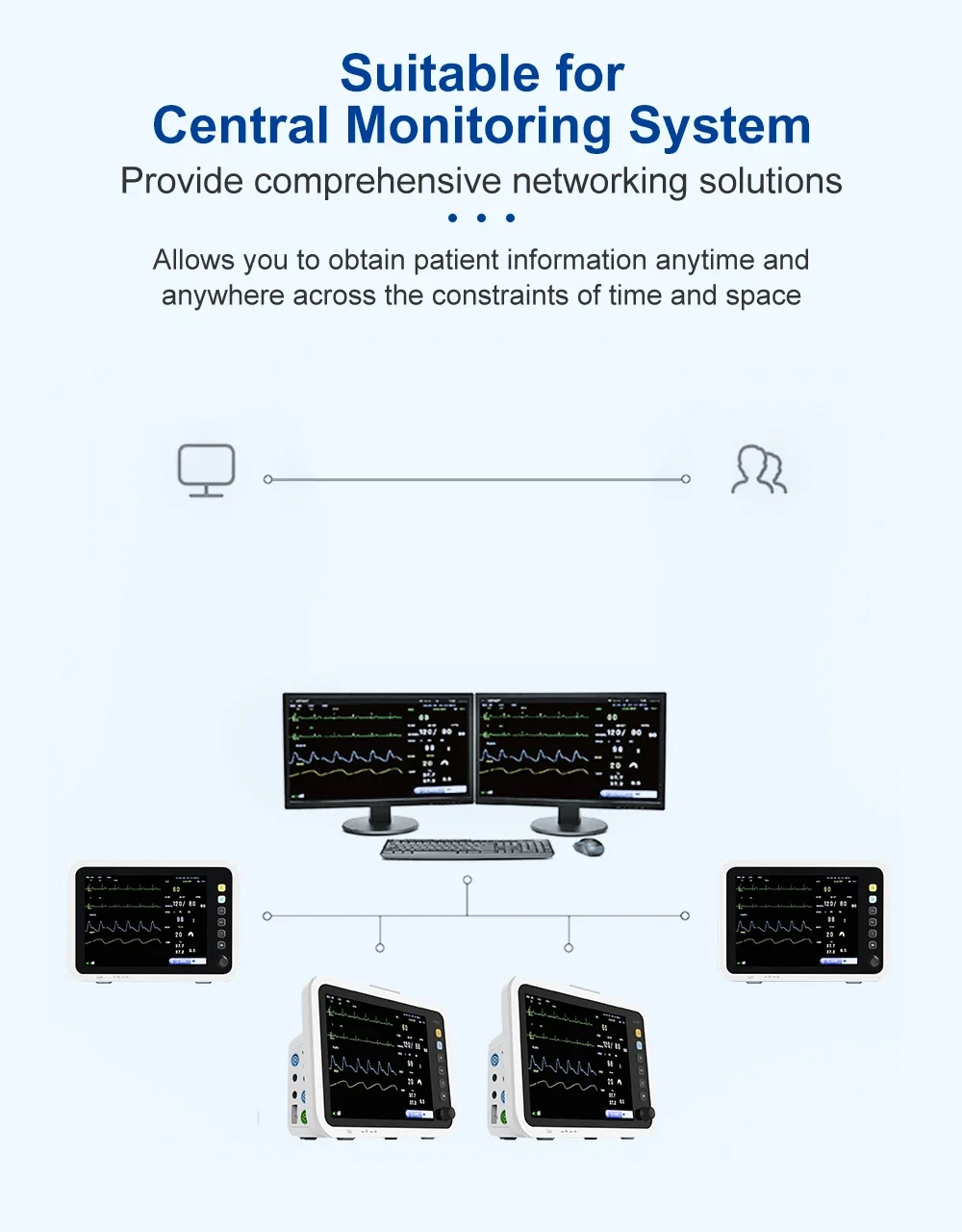

✔ Wire/wireless central monitoring system applicable to ICU/CCU/OR

Product Parameters

Size: 12 * 11.4 * 6.4 inch
Weight: 4kg
Electrical Specification: 100-240v AC, 50/60Hz, Max Input Power: 70VA
Battery: 11.1V 2200mAh rechargeable lithium battery
Standard configuration: SpO2, PR, NIBP, ECG, RESP, TEMP
Optional Configuration: SpO2, 2-IBP, ETCO2, Touch screen, Built-in Thermal Printer

Patient Monitor Package Include

1 x device

1 x Rechargeable lithium battery

1 x Power line

1 x Earth wire

1 x User's Manual

1 x Reusable Spo2 sensor (for SpO2, PR)

1 x Blood pressure cuff and tube(for NIBP)

1 x ECG cable (for ECG, RESP)

1 x Temperature probe (for Temperature)

5xDisposable ECG Electrodes



Product Specifications

Multi-Parameter Monitor
Brand yongrow
Fuse: F2AL 250V
Electrical Specifications: 220 VAC, 50Hz
Operating Temperature: 5°℃~40°℃
Maximum Input Power: 70VA
Working Humidity: 15%~80%
Battery:
11.1V 2200mAh rechargeable lithium battery
Weight:
4.5KG
Atmospheric Pressure:
86kPa~106kPa
Product Size:

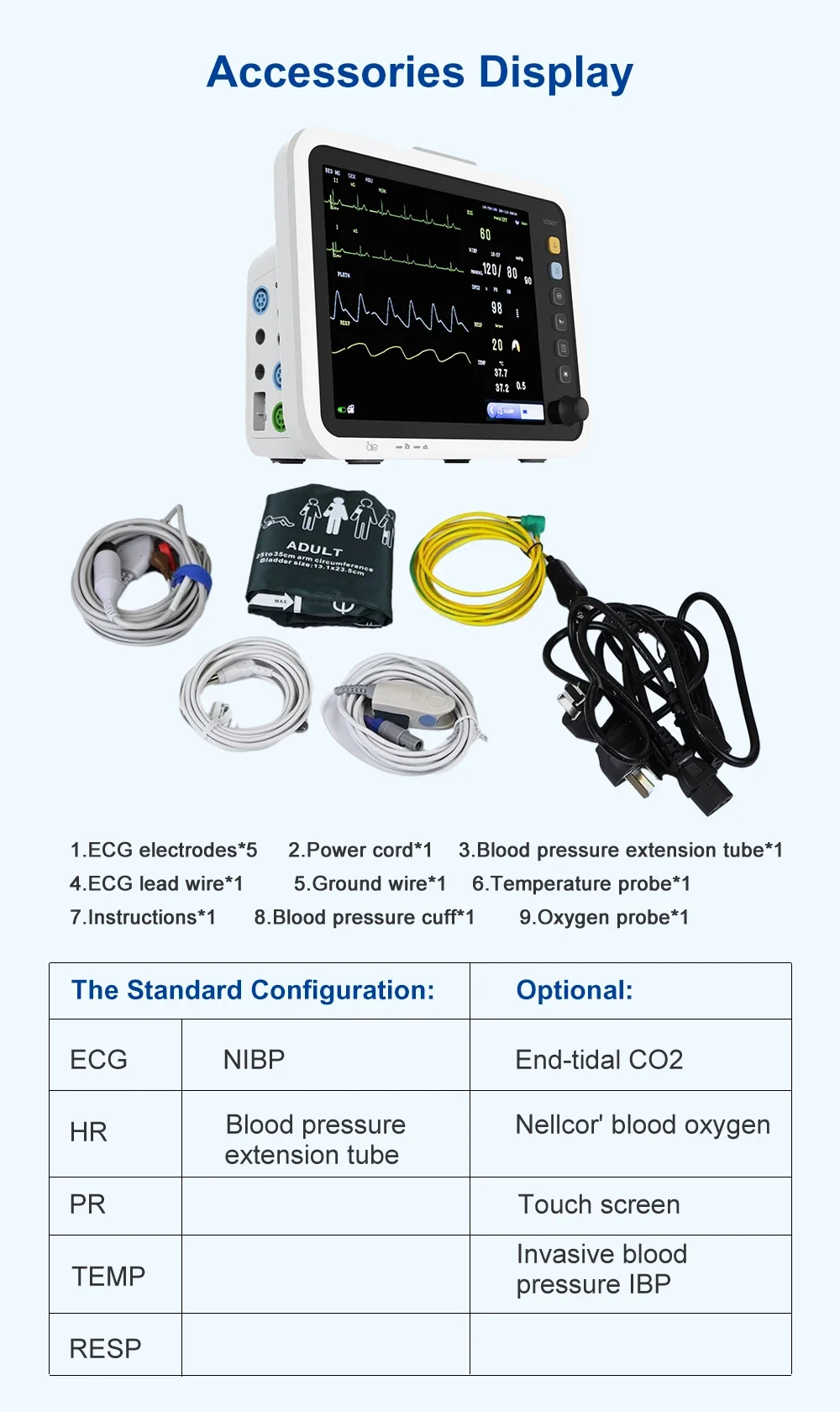

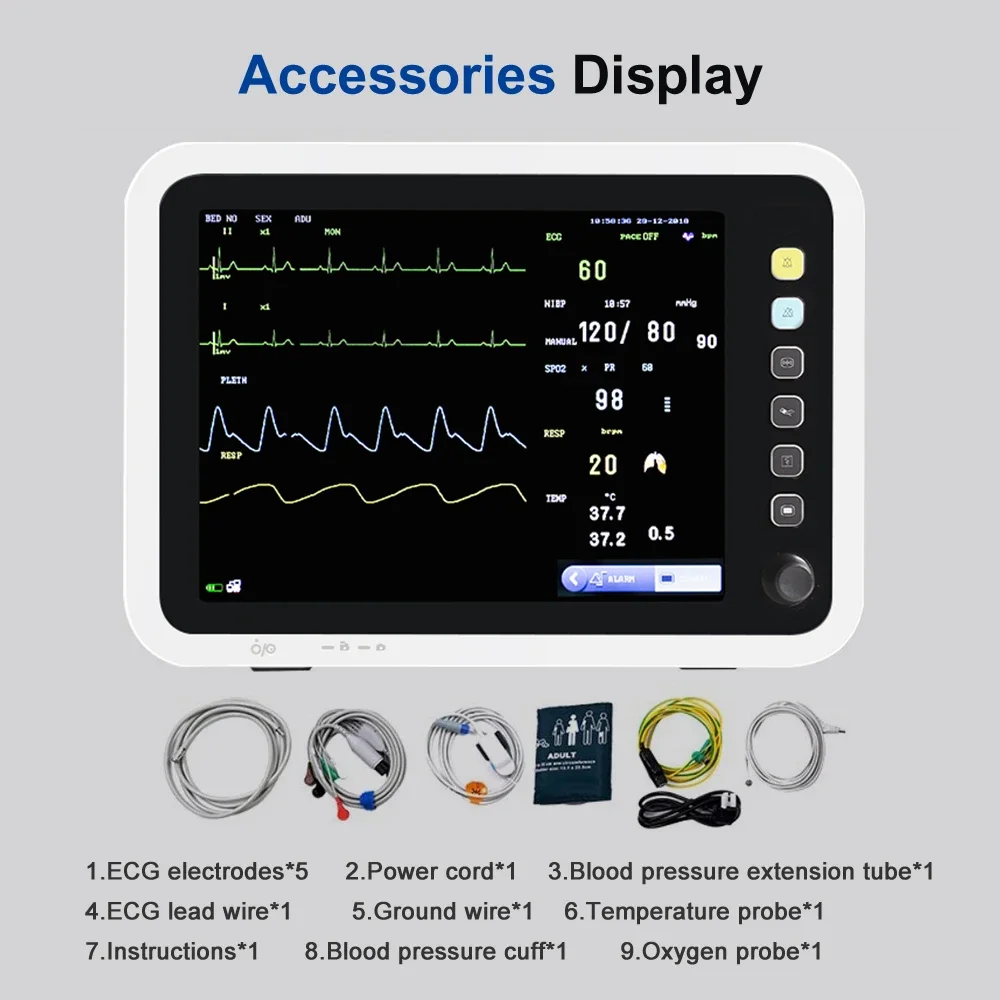

342*252*139.5mmAccessories Display

1.ECG electrodes*5
2.Power cord*1
3.Blood pressure extension tube*1
4.ECG lead wire*1
5.Ground wire*1
6.Temperature probe*1
7.Instructions*1
8.Blood pressure cuff*1
9.Oxygen probe*1
10.Li-Battery*1



Medical patient monitor machine parameters



TECHNICAL SPECIFICATIONS

ECG

SpO2

Quality Standards and Classification

5 Leads: RA, LA, LL, RL, V

Measurement range: 0 - 100%

CE, ISO13485

Lead mode: I,II, III, AVR, AVL, AVF, V

Rosolution:1%

SFDA: Class IIb

Gain: x 1.25mm/mV,2.5mm/mV,

Accuracy: 70% - 100%土2%

Anti-electroshock degree:

5. 0mm/mV, 10mm/mV,

40%-69%土3%

Class 1 equipment

20mm/mV (error ≤ 5%)

Pulse Rate

(internal power supply)

Sweep speed: 6. 25mm/s, 12.5mm/s,25mm/s,

Measure/alarm range: 20 - 300bpm

TEMP/SpO 2 /NIBP: BF

50mm/s (errors土10%)

Resolution:1bpm

ECG/Resp: CF

Bandwldth: Surgery 1- 25 Hz

Accuracy:土3bpm

Application Range

Monitor 0.5 - 40 Hz

RESP

AdultPediatricNeonatal/Medicne/Surgery1

Diagnostic 0.05 - 130 Hz

Method: impedance betwoen RA-LL

Operating Room/ICU/CCU

Sensitvity: >200μ V P-P

Resp Impedance range:0.3- 3Ω

Display

CMRR:112dB

Base Impedance range: 200 Ω - 4000 Ω

12.1" real color TFT screen

Dilferental Input Impedance: >5M

Bandwidth: 0.3 - 2.5Hz

Environment

ohm Electrode Offset Potential:土300mV

Gain: x0.25, x0.5,x1,x2,x4

Operating environment ;

Polarization Voltage: ≥土500mV

Resp rate:

Temperature: 0 -40 C

Input Impedance:≥5 M

Measurement Range

Humidity: 15% - 80%

Calibration Voltage: 1mV士5%

Adult0- 120BrPM

Pressure:

ST Segment

Neonatal/Pediatric 0 - 150BrPM

86.0 kPa - 106.0kPa

ST Segment Range: -2.0mV ~ +2.0mV

Resolution:1BrPM

Transport and Storage environment :

Accuracy;0.02mV

Accuracy: 7 - 150BrPM (土2BrPM)

Temperature: -20- 55 C

NIBP

0 - 6BrPM (unspecifed)

Humidity: 10% - 90%

Method:Osillometry

Apnea Alarm: 10 ~ 40s

Pressure: 86.0 kPa - 106.0kPa

Measure mode:Manual, Auto, STAT

TEMP

Power Requirements

Measure interval in auto mode:

Channel2

AC: 100 - 240V, 50Hz/60Hz

1-5/10/15/30/60/90/120/180/240/480min

Measure & alarm range: 0- 50 C

DC: Billtin rechargeable battery

Measure period in STAT mode: 5min

Resolution:0.1 C

Battery: 11.1V 24wh LHion battery

Pulse rate range: 40 - 240bpm

Accuracy (no sensor): +0.1 C (0~50 C)

2h operating after full charge

Measure & alarm range:Adult

Standard accessories

5min operating after low battery alarm

SYS40 - 280mmHg

●NIBP cuff & tube

Dimension and Weight

DIA 10 - 220mmHg

●ECG cable & electrodes

Equlpment:

MEAN 20 - 240mmHg

●SpOz sensor

340mm x 245mm x 134 mm(about);2.798kg(about)

Pediatric

●TEMP probe

Package:

SYS .40 ~ 220mmHg

●Lithium-ion battery

380mm *350 mm x 300mm; 4.598 kg(about)

DIA10 - 160mmHg

●Power cable

Date Storage

MEAN 20 - 170mmHg

●Operator's manual

Trend dlagram/table: 7x24h

Neonatal

Optional accessories

NIBP revilew:400 events

SYS . 40 - 135mmHg

●IBP

Wave review;100min

DIA10 - 100mmHg

●CO2

Alarm review;100 alarm events

MEAN 20 - 110mmHg

●Nellcor SpO2

Support drug concentration titration analysis

Static pressure measurement



Range:0 - 300mmHg



Accuracy:土3mmHg



Resolution: 1mmHg Accuracy:



Max. Mean Error:土5mmHg



Max. Standard Deviation: 8mmHg



Overpressure protection:



Adult 300mmHg



Pediatric 240mmHg



Neonatal 150mmHg
