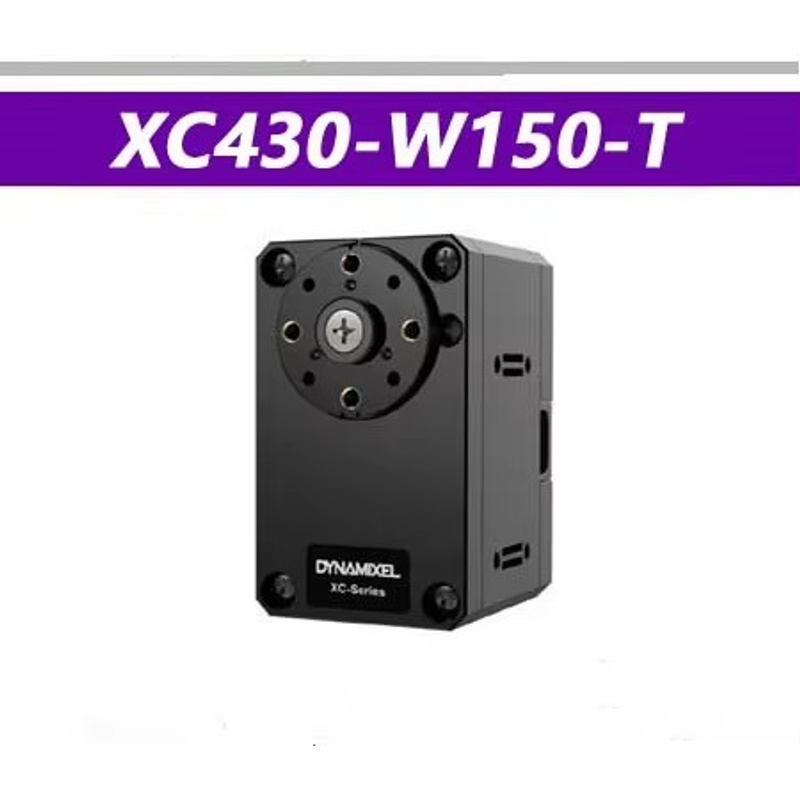

ROBOTIS DYNAMIXEL XC430-W150-T servo Dynamixel special steering engine for robot

$314.40

Includes all taxes

Quantity
Meet your Seller
Delivery options
  • Ship Only

Description


Features

DYNAMIXEL is a robot exclusive smart actuator with fully integrated DC Motor + Controller + Driver + Sensor + Reduction Gear + Network in one DC servo module.


The DYNAMIXEL XC series adopts new features that allow 360 degrees control mode with its contactless magnetic encoder and hollow back case assembly structure. The XL series has the same mechanical structure as the XM430 and XH430 and is compatible with the respective models.


XC430 is a high performance version of XL430 (Entry-level DYNAMIXEL), that can be applied to robots that require stronger torque.

Metal gears are adopted to enhance its durability.


1. Various Operating Modes

      (Velocity Control, Position Control, Extended Position Control, PWM Control)

2. Profile Control for Smooth Motion Planning

3. Hollow Back Case Minimizes Cable Stress (3-way-routing)

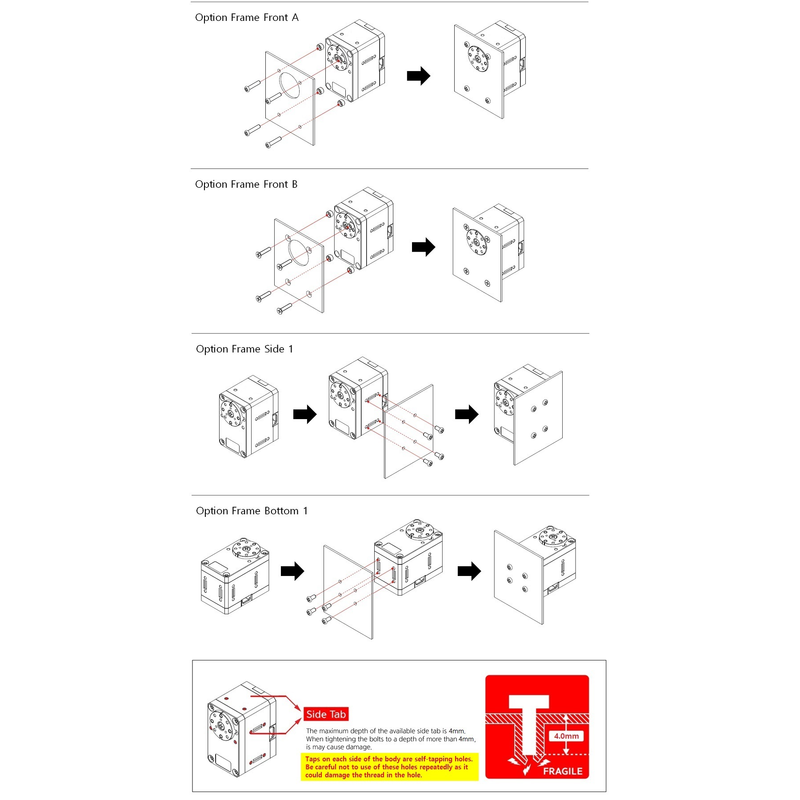

4. Easy and Simple Assembly Structure


5. Energy Saving with Reduced Current

*This product is a model with plastic bushings, and the XC430-T150BB-T model (link) is available with metal ball bearings at the same price.

Package Components

Item

Quantity

Description

XC430-W150-T

1

DYNAMIXEL

HN11-N101

1

Assembled

Robot Cable-X3P 180mm

1

TTL 3p Cable(JST-JST)

Bolt M2.6x5 TAP

5

For frame assembly(Side hole)

Bolt M2x5

5

For horn & frame assembly

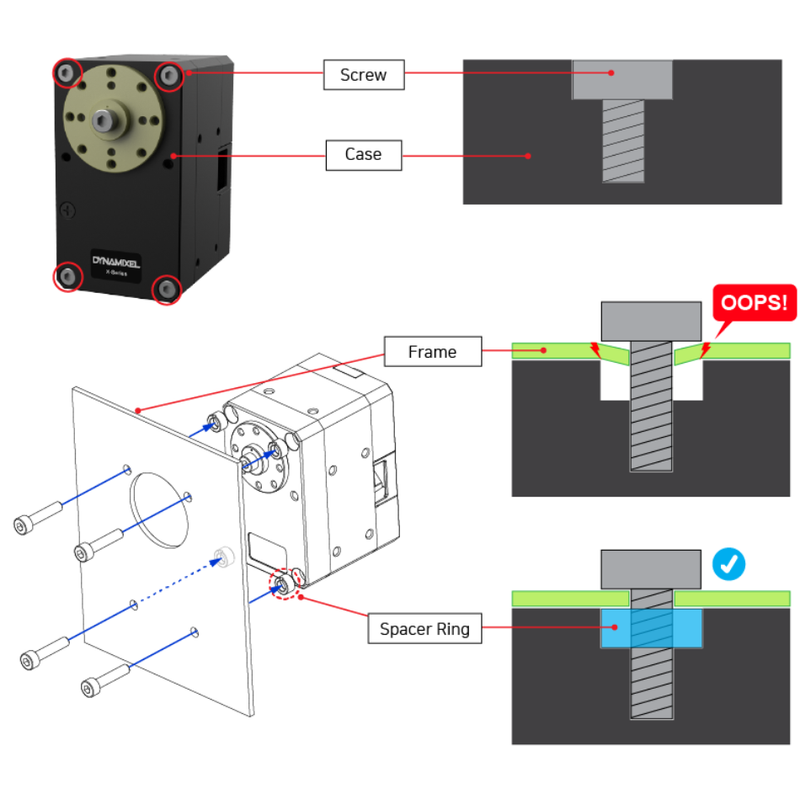

Spacer Ring

5

For frame assembly

* Idler Set for assembling hinge frames is not included

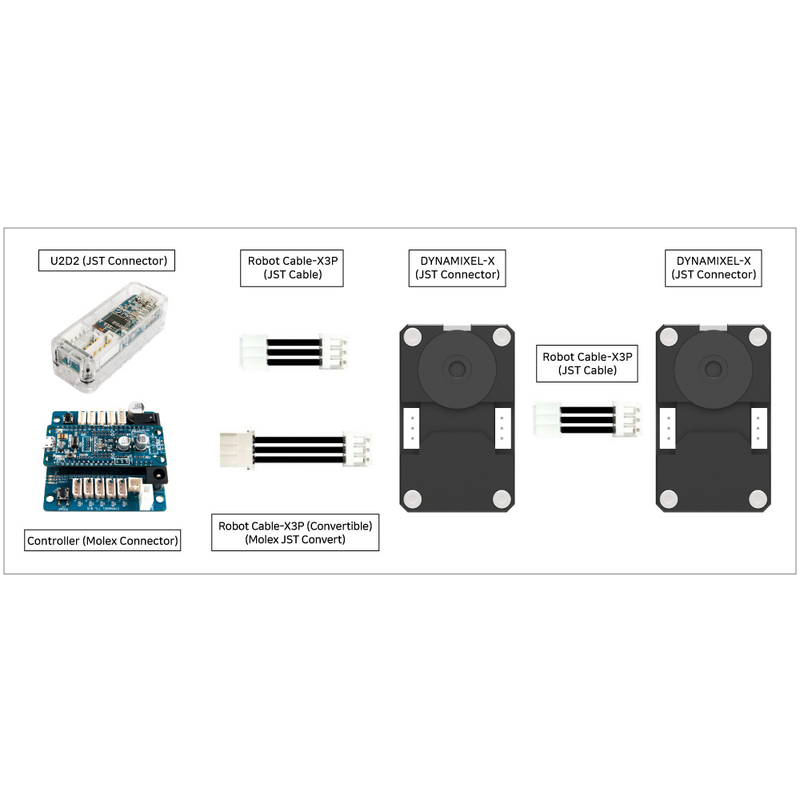

Various Cabling Methods
Compatible Products
Caution

DYNAMIXEL-X Series cable assembly through hollow case


Organize the entangled cable before assembling the back case.

Do not assemble the back case with entangled cable. The entangled cable can be squashed by the case and cause communication error.

If you use two cables through the hollow case, the cables will be damaged.

Use only one cable through the hollow case.


The DYNAMIXEL-X Series adopted a new gold-plated JST connector for secure and reliable communication.

The connector used for previous DYNAMIXEL is Molex.


To control DYNAMIXEL-X Series actuators via OpenCM or USB2DYNAMIXEL, please use the JST-Molex Convertible Cable enclosed in the

package.


However, the Molex-JST convertible cable is NOT included in the XL430 model.


Please purchase a convertible cable when using a controller and interface that supports the JST connector.

Installation Example
Specification

Model Name

XC430-W150-T

Series

DYNAMIXEL X

MCU

ARM Cortex-M3 (72 [Mhz], 32 [bit])

Input Voltage

Min. [V]

10.0

Recommended [V]

12.0

Max. [V]

14.8

Performance Characteristics

Voltage [V]

12.0

Stall Torque [N·m]

1.60

Stall Current [A]

1.4

No Load Speed [rpm]

106.0

No Load Current [A]

0.06

Continuous Operation

Voltage [V]

-

Torque [N·m]

-

Speed [rpm]

-

Current [A]

-

Resolution

Resolution [deg/pulse]

0.0879000000

Step [pulse/rev]

4,096

Angle [degree]

360

Position Sensor

Contactless absolute encoder (12 [bit], 360 [deg])
Maker : ams(www.ams.com), Part No : AS5045

Operating Temperature

Min. [°C]

-5

Max. [°C]

80

Motor

Coreless

Baud Rate

Min. [bps]

9,600

Max. [bps]

4,500,000

Control Algorithm

PID

Gear Type

Spur

Gear Material

Metal

Case Material

Engineering Plastic

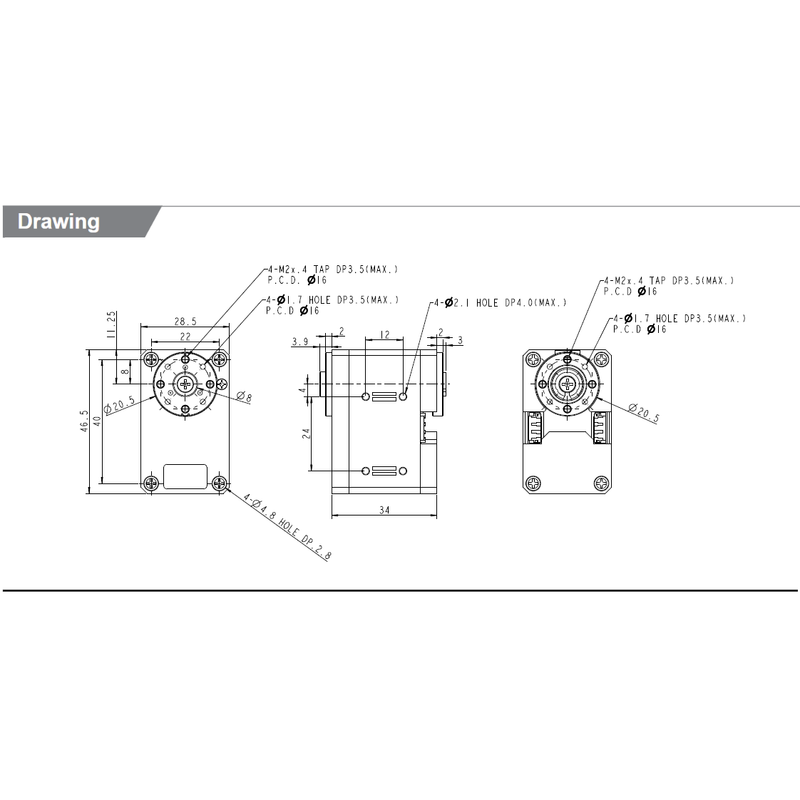

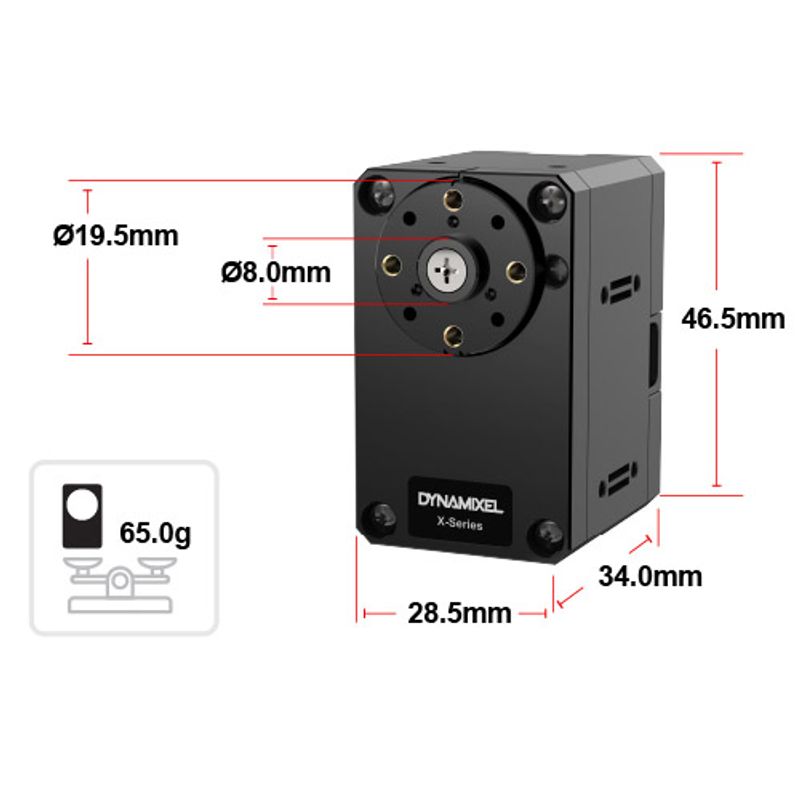

Dimensions (Wâ…¹Hâ…¹D) [mm]

28.5 x 46.5 x 34.0

Dimensions (Wâ…¹Hâ…¹D) [inch]

1.12 x 1.83 x 1.34

Weight [g]

65.00

Weight [oz]

2.29

Gear Ratio

159.5 : 1

Backlash [arcmin]

-

Backlash [deg]

-

Command Signal

Digital Packet

Protocol Type

Half duplex Asynchronous Serial Communication (8bit, 1stop, No Parity)

Link (Physical)

TTL Level Multidrop Bus

ID

0 ~ 252

Feedback

Position, Velocity, Load, Realtime tick, Trajectory, Temperature, Input Voltage, etc

Protocol version

Protocol 1.0
Protocol 2.0(Default)

Operating Mode / Angle

Velocity Control mode:Endless turn
Position Control Mode:360 [deg]
Extended Position Control Mode:±256 [rev]
PWM Control Mode:Endless turn

Output [W]

-

Standby Current [mA]

46
