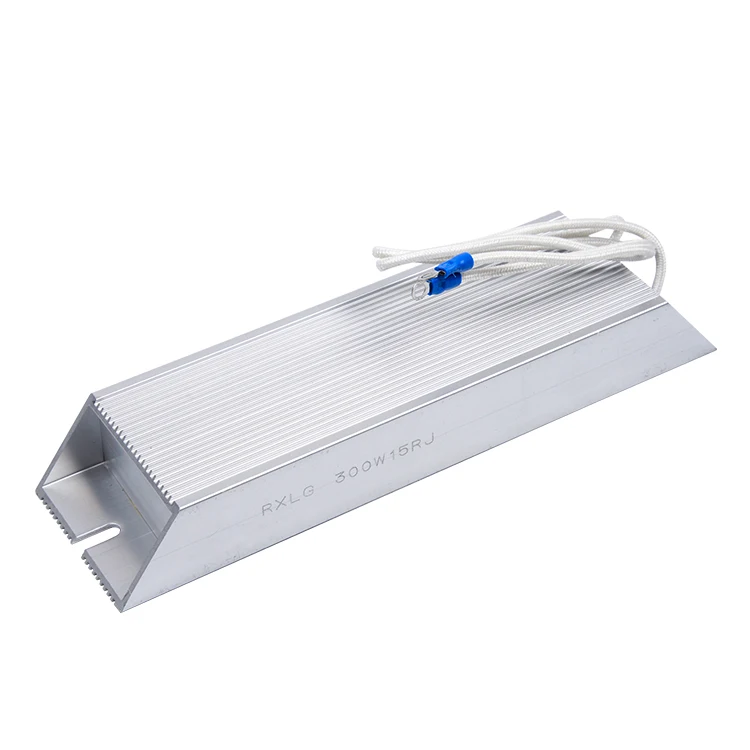

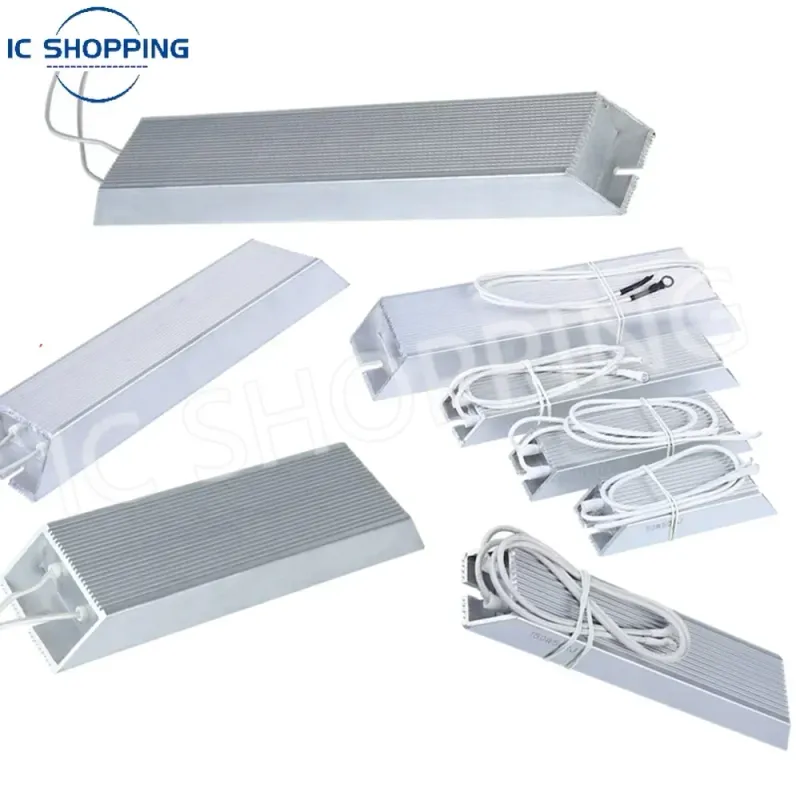

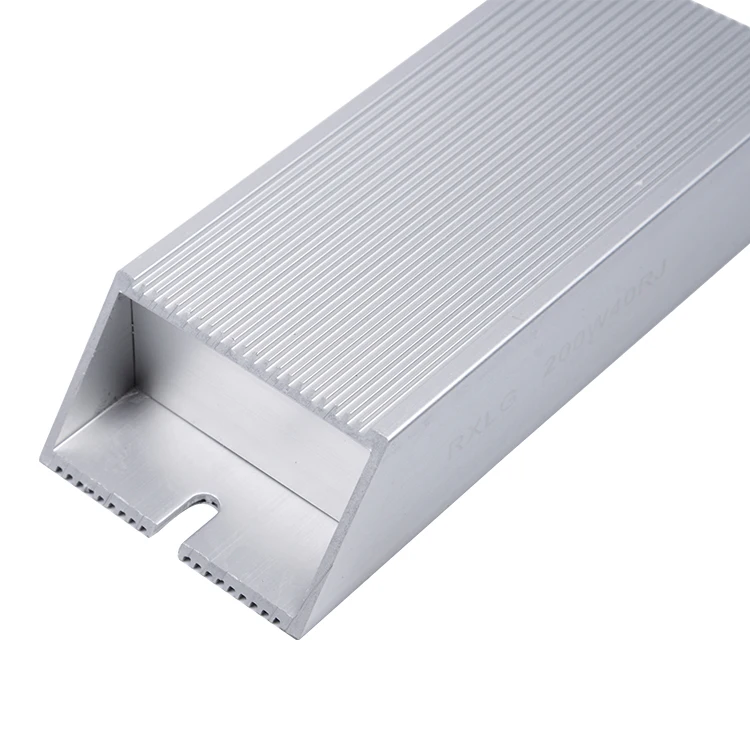

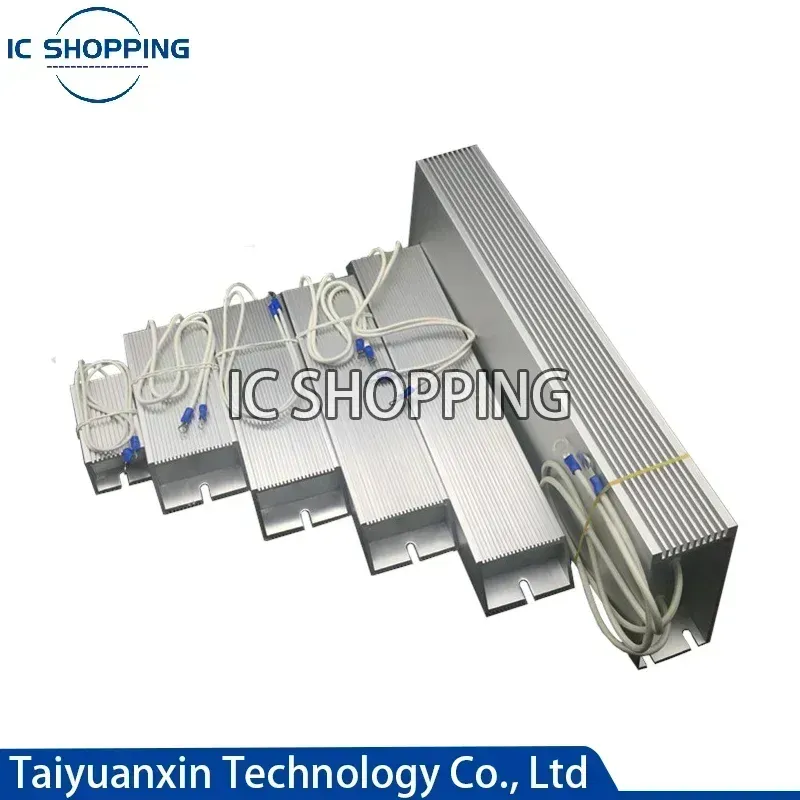

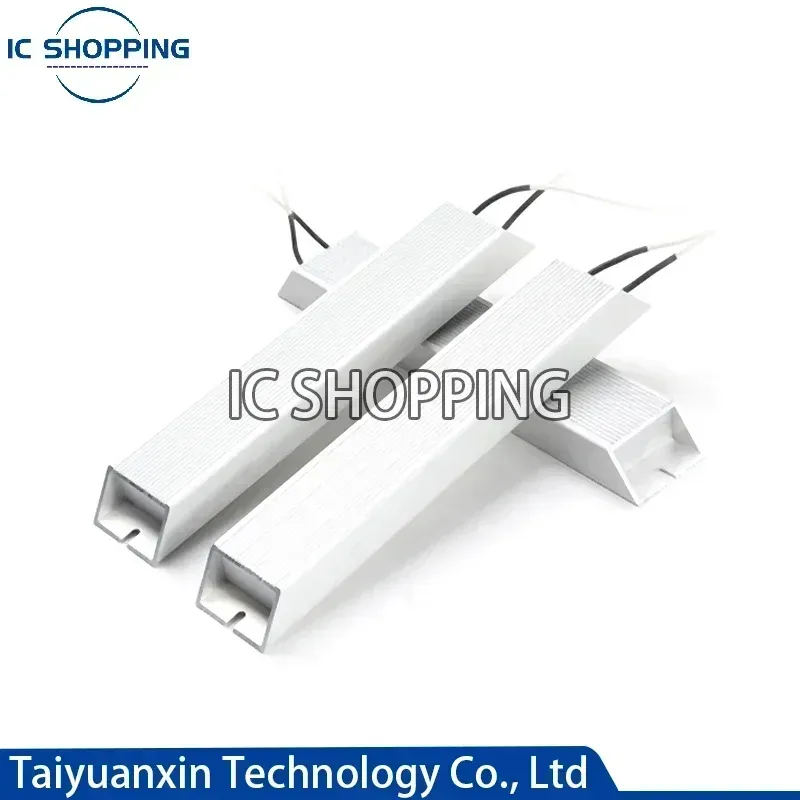

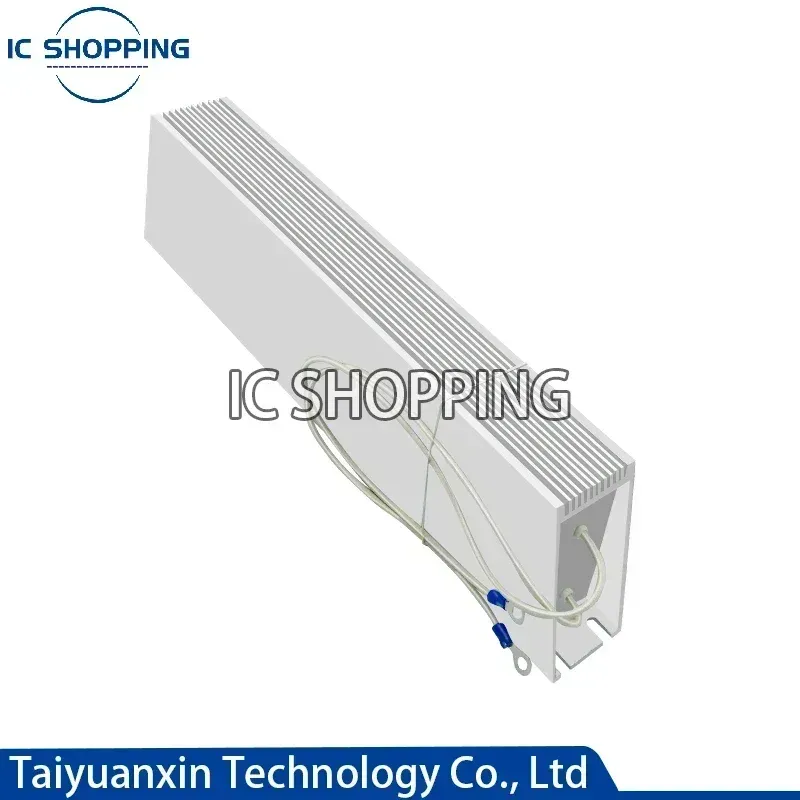

RXLG Aluminum Shell Braking Resistor 100W 150W 200W 300W 400W 500W 600W 800W 1000W 1500W 10 20 30 40 50 75 100 150 300Ohm

$6.55

Includes all taxes

Quantity
Meet your Seller
Delivery options
  • Ship Only

Description

Wattage Product Link Simplified Title
100W-800W Link 3 RXLG Aluminum Shell Braking Resistor 100W-800W 10R-300R
1000W-1500W Link 2 RXLG Aluminum Shell Braking Resistor 1000W-1500W 10R-400R
2000W-3000W Link 4 RXLG Aluminum Shell Braking Resistor 2000W-3000W 10R-100R
4000W-5000W Link 6 RXLG Aluminum Shell Braking Resistor 4000W-5000W 10R-100R
6000W Link 5 RXLG Aluminum Shell Braking Resistor 6000W 10R-100R
10kW Link 1 RXLG Aluminum Shell Braking Resistor 10kW 10R-100R

FD Power (kW) Recommended Brake Resistors
0.4 kW • 60 W, 200 Ω
• 80 W, 200 Ω
0.75 kW • 100 W, 200 Ω
• 80 W, 750 Ω
1.5 kW • 300 W, 100 Ω
• 300 W, 400 Ω
2.2 kW • 300 W, 70 Ω
• 300 W, 250 Ω
3.7 kW • 300 W, 50 Ω
• 400 W, 150 Ω
5.5 kW • 500 W, 100 Ω
• 500 W, 150 Ω
• 500 W, 200 Ω
7.5 kW • 1000 W, 75 Ω
• 1000 W, 50 Ω
• 1000 W, 30 Ω
• 1000 W, 20 Ω
• 1000 W, 100 Ω
11 kW • 1000 W, 50 Ω
15 kW • 1500 W, 40 Ω
18.5 kW • 4800 W, 32 Ω
If you need Other resistance value, you can buy "Other Ohm", and then fill in the required resistance value in the order message remarks, the delivery period is generally about 5~7 days, such as the delivery period is extended, customer service will be notified separately!

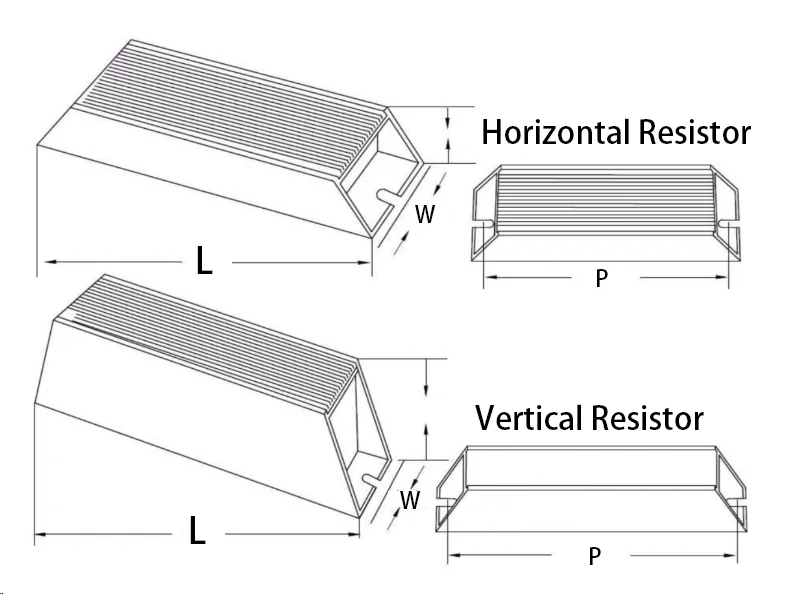

Power (W) Terminal Wire L (mm) P (mm) W (mm) H (mm)
50 M6 400mm 1.5 mm² 100 85 40 20
80 M6 400mm 1.5 mm² 100 85 40 20
100 M6 400mm 1.5 mm² 140 125 40 20
120 M6 400mm 1.5 mm² 165 150 40 20
150 M6 400mm 1.5 mm² 165 150 40 20
200 M6 400mm 1.5 mm² 165 145 60 30
300 M6 400mm 1.5 mm² 215 195 60 30
400 M6 400mm 1.5 mm² 245 225 60 30
500 M6 400mm 1.5 mm² 245 225 60 30
600 M6 400mm 2.5 mm² 265 245 60 30
800 M6 400mm 2.5 mm² 330 310 60 30
1000 M6 400mm 2.5 mm² 330 310 60 30
1200 M6 400mm 2.5 mm² 420 400 60 30
1500 M6 400mm 2.5 mm² 420 400 60 30
2000 M6 400mm 4 mm² 450 430 50 107
2500 M6 400mm 4 mm² 450 430 50 107
3000 M6 400mm 4 mm² 550 530 50 107
4000 M6 400mm 4 mm² 550 530 50 107
5000 M6 400mm 4 mm² 550 530 50 107
6000 M6 400mm 4 mm² 700 680 50 107
7000 M6 400mm 4 mm² 700 680 50 107
8000 M6 400mm 6 mm² 700 680 50 107
10000 M6 400mm 6 mm² 1000 980 50 107

Height * width * length
 100W 20*40*140

150W 20*40*180

200W 30*60*165



300W 30*60*215



500W30*60*245

800W30*60*330

1000W 30*60*330

(50*100*300)

1500W30*60*420

(50*100*400)

2000W50*100*450

3000W 50*100*550

5000W 50*100*700

6000W50*100*700

7000W50*100*900
