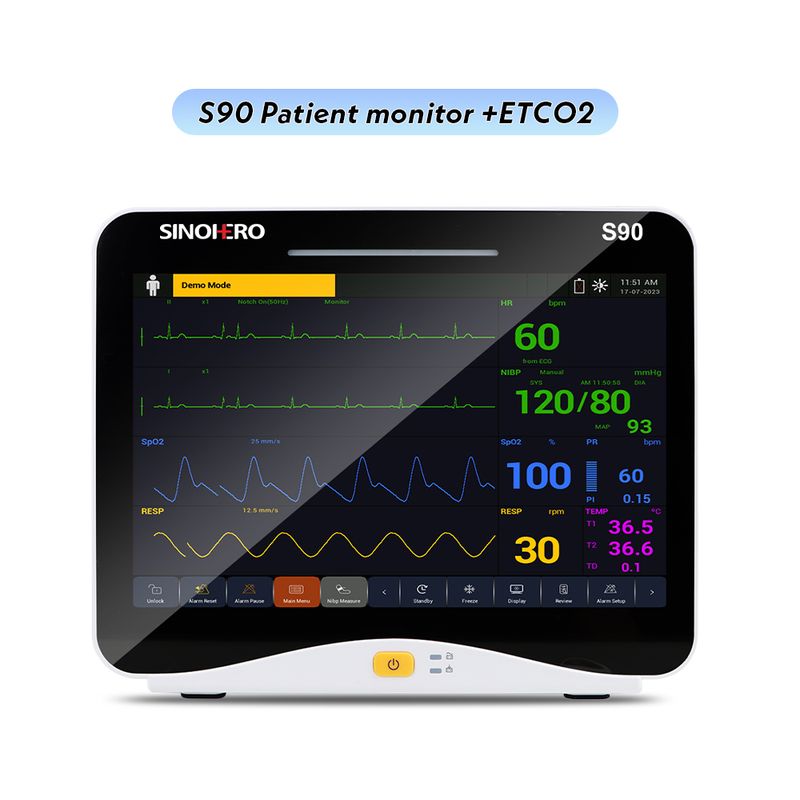

S90C Patient Monitor 12.1''Touch Screen Mulit-parameters ECG RESP SpO2 PRNIBP TEMP Hospital ICU Vital Sign Monitor

$3,236.76

Includes all taxes

Quantity
Meet your Seller
Delivery options
  • Ship Only

Description

Introduction:

S90 12.1''Touch Screen Multi-Parameter Patient Monitor,The monitor has abundant functions that can be used for clinical monitoring with adult, pediatric and neonate. Users may select different parameter configuration according to different requirements.

This device can monitor such parameters as ECG, RESP, NIBP, SpO2, and dual-channel TEMP, etc. It integrates parameter measurement module, display and recorder in one device to form a compact and portable equipment.


Feature:

High efficient capacitive full touch Screen,operation without hardkey

Ultra simplified and friendly operation flow

Compact and portable design with concealed handle

Arrhythmia and ST analysis to provide rapid cardiac diagnosis

Ultra quiet design suitable for night-time operation


Specification:

Display

● Screen & Resolution:12.1 inch, 1024*768 pixels

● Waveform:7 lead wave form for standard configuration

● Indicator:Alarm indicator, power indicator, battery

indicator, pulse rate sound, alarm sound

● Port:Specification port, AC port, LAN port, USB port

● Size:295mm*265mm*180mm

● Weight: N.W.2.80Kg;


NIBP:

● Measurement method:Oscillation

● Measurement mode:Manul/Auto/Continuous

● Pressure unit:mmHg/Kpa

● Measurement parameter:Systolic, diastolic, mean

● Systolic range:ADU: 30~260mmHg; PED: 30~200mmHg

NEO: 30~135mmHg

● Diastolic range:ADU: 20~220mmHg; PED: 20~165mmHg

NEO: 20~100mmHg

● Mean range:ADU: 20~230mmHg; PED: 20~165mmHg

NEO: 20~110mmHg

● Accuracy:±3mmHg

● Double overvoltage protection

ECG

● Lead:3/5 lead

● Waveform:2 channel

● Gain:AUTO, 2.5 mm/mV, 5.0 mm/mV, 10 mm/mV

20 mm/mV, 40 mm/mV

● Speed:12.5mm/s, 25mm/s, 20mm/s

● HR range:15-300BPM(AUD),15-350BPM(PED/NEO)

● Filter mode:Dia(0.05~100Hz), Mon(0.5~40Hz), Sur(1~25Hz)

● Protection:Anti-electric knife, Anti-defibrillation protection

5000V isolation strength

● ST diagnosis:-2.5mV~2.5mV, Arrhythmia analysis

Pacing detection


TEMP

● Range:0~50℃

● Resolution:0.1℃

● Accuracy:± 0.1℃

● Dual Channels


RESP

Measurement method:Impedance Breathing

● Range:0~120RPM

● Choking alarm:20s~60s optional, internval 5s


SPO2

● Range:(0~100%); Resolution(1%)

● Accuracy:±2%(70~100%)

● PR:Range(30~250BPM), Accurate(± 2BPM)


IBP

● IBP:Range: -50~400mmHg

accuracy: ± 3mmHg(0~40mmHg)

● Supports multiple measurement modes:ABP, CVP, ICP, LAP and so on

● Pulse rate range:20~254BPM, Accurate: ±2RPM

● Support dual-channel IBP simultaneous measurement


CO2

Mode:Main stream/side stream

Range:0~150mmHg

Accuracy:±2mmHg(0-76mmHg),±5%(77-150mmHg),± 8%(101~150mmHg)

Respiratory rate range:0~150RPM; Accuracy: ±2RPM

Sampling flow:50ml/Min


AG Gas

● Mode:Main stream/side stream

● ISO:Range: 0-5% Accuracy: 0.15Vol%+ reading 5%

● SEV:Range: 0-8% Accuracy: 0.15xVol%+reading 5%

● CO2:Range: 0-20% Accuracty: 0.20Vol%+ reading 5%(0~5%)

0.20Vol%+ reading 8%(5.1~20%)

● RESP:Range: 0~120RPM Accuracy: ±2RPM

● Sampling flow:50ml/Min

● Anesthetic gas ID automatic identification

● Automatic recognition time is less than 20s


Physical Identity:

Product Size: 295mm*265mm*180mm

Product Net Weight: 2.8Kg

Package Size:43*32*34cm

Package weight:5kg


Package included:

1X S90 12.1'' HD Touch Screen Screen Patient Monitor

1X Adult fingertip SpO2 probe

1X Adult NIBP cuff

1X NIBP extension tube

1X ECG lead cable

1X ECG electrode

1X Temperature probe

1X Power cord

1X User Manual


Optional:(Want Optional please contact us to chat about it)

2-TEMP, Thermal Recorder, 2-IBP, Side(Micro)Stream EtCO2

MainStream EtCO2, Masimo SpO2, AG/Multi-gas, HL7, WIFI
