SHT30 SHT30-D SHT31 SHT31-D SHT35 SHT35-DSHT40 SHT40-D SHT41 SHT41-D Temperature Humidity Sensor Breakout Weather for Arduino
Includes all taxes
Meet your Seller
-
$3.87Sold by BILLIONS BIRDS
Description
SHT30 Description:
Sensiron Temperature/Humidity sensors are some of the finest & highest-accuracy devices you can get. And, finally we have some that have a true I2C interface for easy reading. The SHT30-D sensor has an excellent ±2% relative humidity and ±0.3°C accuracy for most uses.
Unlike earlier SHT sensors, this sensor has a true I2C interface, and (bonus!) even with two address options. It also is 3V or 5V compliant, so you can power and communicate with it using just about any microcontroller or microcomputer.
Such a lovely chip - so we spun up a breakout board with the SHT30-D and some supporting circuitry such as pullup resistors and capacitors. Each order comes with one fully assembled and tested PCB breakout and a small piece of header. You'll need to solder the header onto the PCB but it's fairly easy and takes only a few minutes even for a beginner.
Power Pins:
Vin - this is the power pin. The chip can use 2.5-5VDC for power. To power the board, give it the same power as the logic level of your microcontroller - e.g. for a 5V micro like Ard uino, use 5V. For a 3.3V controller like a Raspbery Pi, connect to 3.3V
GND - common ground for power and logic
I2C Logic pins:
SCL - I2C clock pin, connect to your microcontrollers I2C clock line.
This pin has a 10K pullup resistor to Vin
SDA - I2C data pin, connect to your microcontrollers I2C data line.
This pin has a 10K pullup resistor to Vin
Other Pins:
ADR - This is the I2C address selection pin. This pin has a 10K pull down resistor to make the default I2C address 0x44. You can tie this pin to Vin to make the address 0x45
RST - Hardware reset pint. Has a 10K pullup on it to make the chip active by default. Connect to ground to do a hardware reset!
ALR - Alert/Interrupt output. You can set up the sensor to alert you when an event has occured. Check the datasheet for how you can set up the alerts

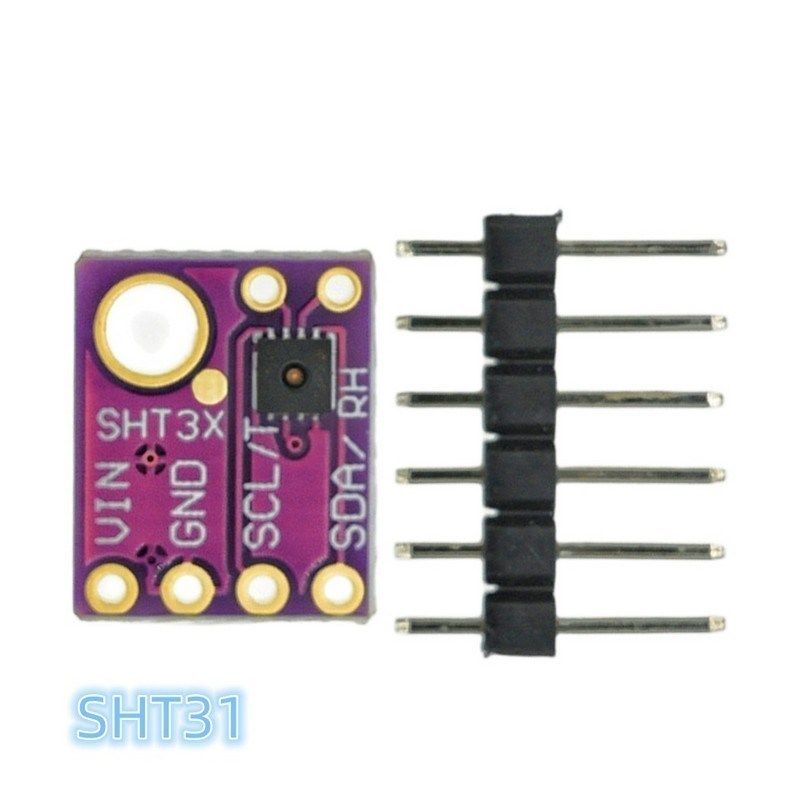

SHT31 Description:
Sensiron Temperature/Humidity sensors are some of the finest & highest-accuracy devices you can get. And, finally we have some that have a true I2C interface for easy reading. The SHT31-D sensor has an excellent ±2% relative humidity and ±0.3°C accuracy for most uses.
Unlike earlier SHT sensors, this sensor has a true I2C interface, and (bonus!) even with two address options. It also is 3V or 5V compliant, so you can power and communicate with it using just about any microcontroller or microcomputer.
Such a lovely chip - so we spun up a breakout board with the SHT31-D and some supporting circuitry such as pullup resistors and capacitors. Each order comes with one fully assembled and tested PCB breakout and a small piece of header. You'll need to solder the header onto the PCB but it's fairly easy and takes only a few minutes even for a beginner.
Power Pins:
Vin - this is the power pin. The chip can use 2.5-5VDC for power. To power the board, give it the same power as the logic level of your microcontroller - e.g. for a 5V micro like for Arduino, use 5V. For a 3.3V controller like a Raspbery Pi, connect to 3.3V
GND - common ground for power and logic
I2C Logic pins:
SCL - I2C clock pin, connect to your microcontrollers I2C clock line. This pin has a 10K pullup resistor to Vin
SDA - I2C data pin, connect to your microcontrollers I2C data line. This pin has a 10K pullup resistor to Vin
Other Pins:
ADR - This is the I2C address selection pin. This pin has a 10K pull down resistor to make the default I2C address 0x44. You can tie this pin to Vin to make the address 0x45
RST - Hardware reset pint. Has a 10K pullup on it to make the chip active by default. Connect to ground to do a hardware reset!
ALR - Alert/Interrupt output. You can set up the sensor to alert you when an event has occured. Check the datasheet for how you can set up the alerts
SHT40 Description:
Specifications:
Power supply: 1.1-3.6V DC - typically 3.3V DC
Resolution: 16bit
Temperature measuring range: -40-125 ° C
Temperature measurement resolution: 0.01 ° C
Temperature measurement accuracy: ± 0.2 ° C
Humidity measurement range: 0-100% RH
Humidity measurement resolution: 0.01 RH
Humidity measurement accuracy: ± 1.8% RH
Sht41 is based on the newly upgraded CMOS ENSR chip, with lower power consumption Higher accuracy. The power supply voltage range is extended to 3.3 V to 5.0 V, which is very suitable for mobile applications and battery powered applications.
output
[2C
Power supply voltage range
3.3 to 5.0 V
average current
0.4ua (1 Hz measurement rate)
Relative humidity operating range
0 to 100% RH
Temperature operating range
-40 to + 125 ° C (- 40 to + 257 ° f)
Relative humidity response time
6 seconds (tau63%)
Application:
HVAC, dehumidifier, agriculture, cold chain storage, testing and testing equipment, consumer goods, automobile, automatic control, data recorder, weather station, household appliances, humidity regulator, medical treatment and other related humidity detection and control.
