Q: Why can't my device connect to 2.4G WiFi?
A: This is a ZigBee device, it can't connect WIFI signal directly, but require a Tuya ZigBee gateway as hub to work, please make sure you have a Tuya ZigBee gateway to work with this item.
Q: Is it ZigBee 3.0 standard Item?
A: No. It's Tuya ZigBee device, not ZigBee 3.0. so it can only work Tuya ZigBee Gateway.
Q: Is this device compatible with HomeAssistant?
A: No, it's not compatible. Please use the Tuya Smart or Smart Life APP.
Q: Is this device compatible with Zigbee2MQTT?
A: Sure.. If you have any question about how to figure it, please be free to contact with customer service, we will make guide.
Q: Does the equipment have an overload alarm function?
A: Sorry, it doesn't have this function

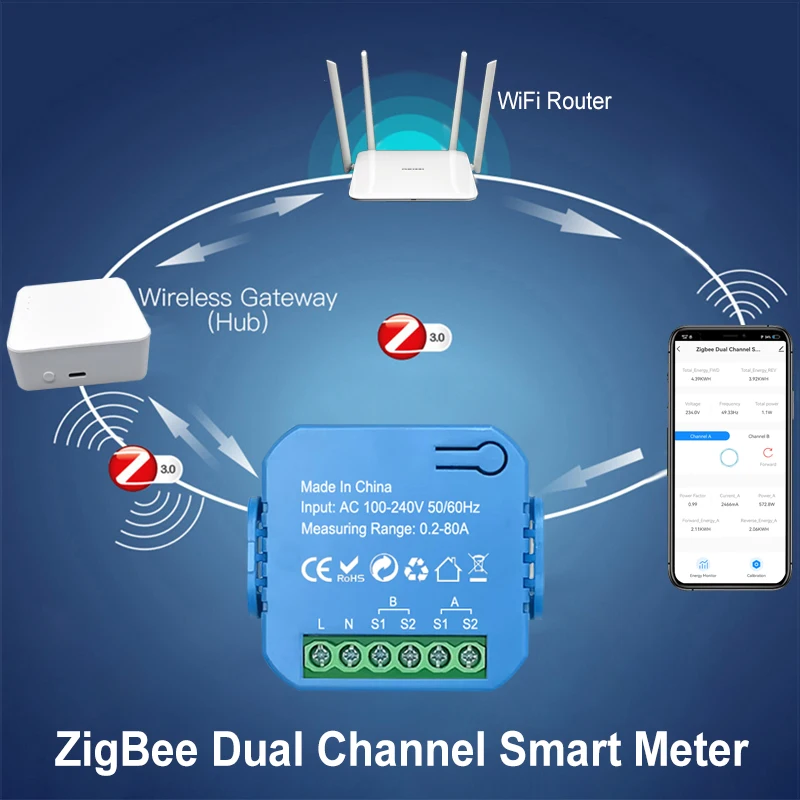

Hi, friend. Do you have a Tuya Zigbee Gateway?
If not, please prepare a Tuya gateway for this device.
Zigbee devices need to connect to the Tuya Zigbee Gateway and cannot directly connect to 2.4G WiFi.

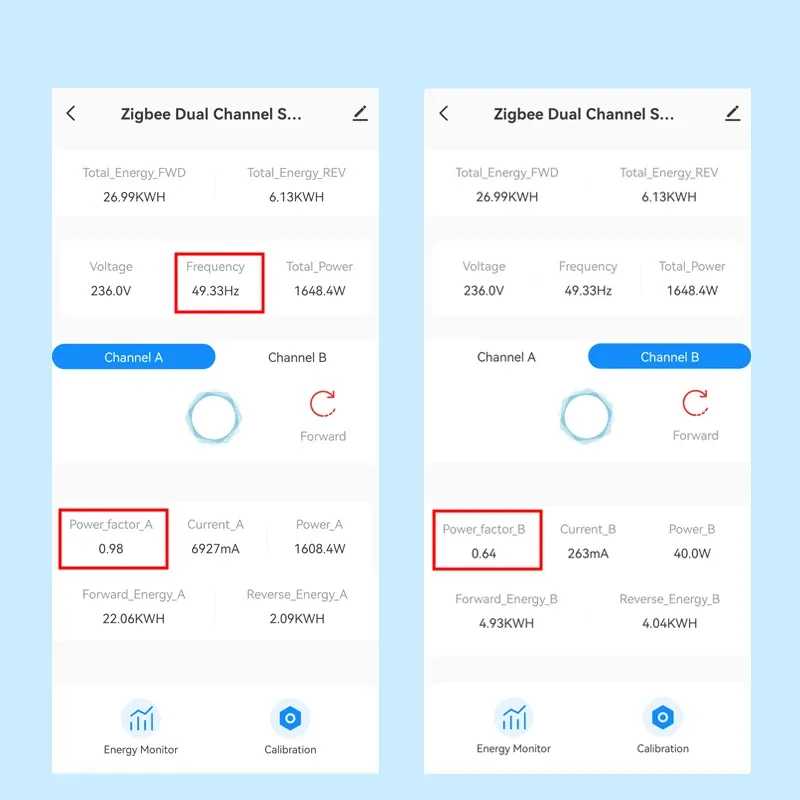

App can display Channel A and B Real-time power, current, voltage for Forward and Reverse direction clearly
Can Measure Consumed Energy ( Forward) and Produced Energy (Reverse)

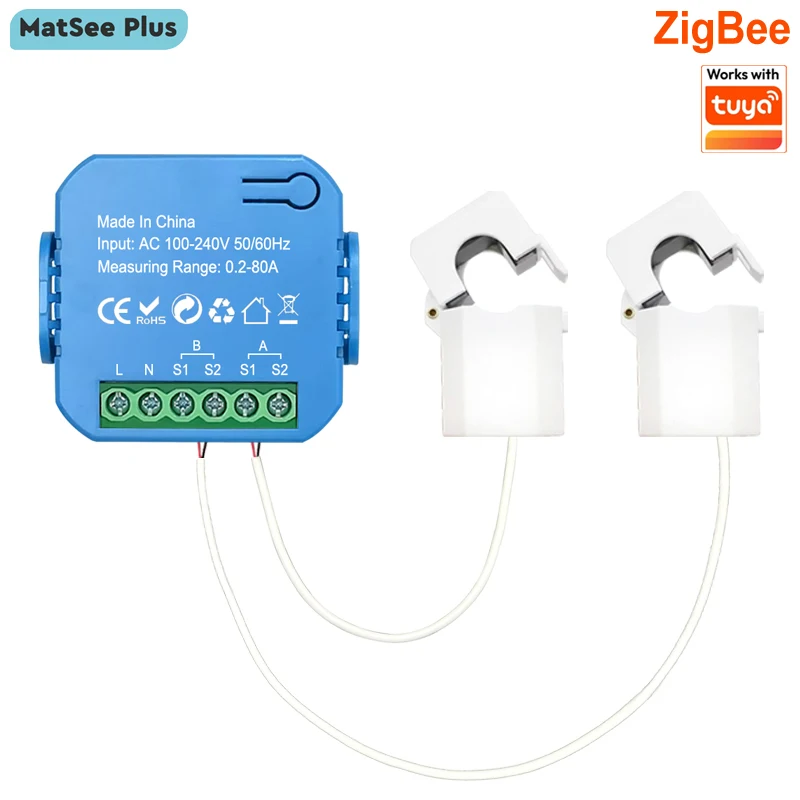

2 Channels For Reverse and Forward direction, Import and Export Energy
1 Channle or 2 Channels are available to Choose
And you can read from App for each Channel
- Real-time total power of 2 channels of reverse and forward direction
- Power for Channel A and B Separately(W)
- Current(mA)
- Voltage(V),
- Power factor, and Frequency(Hz)

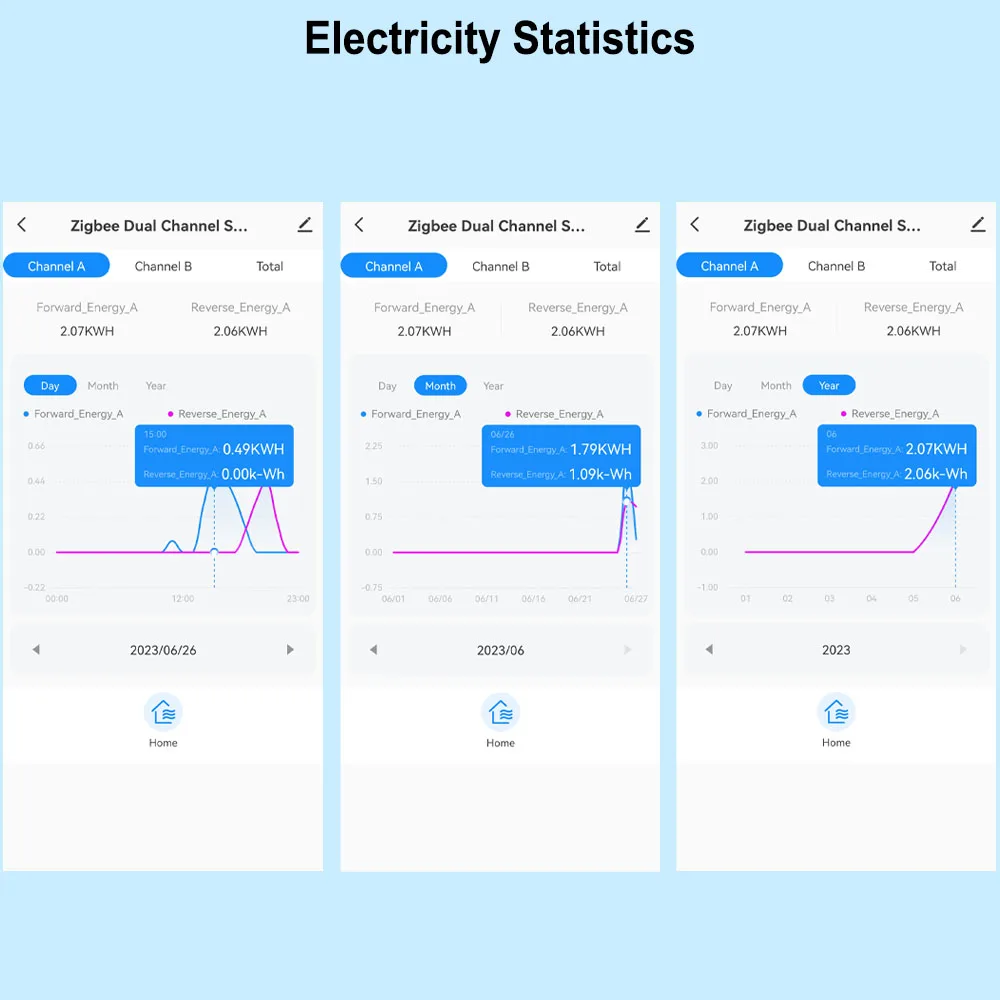

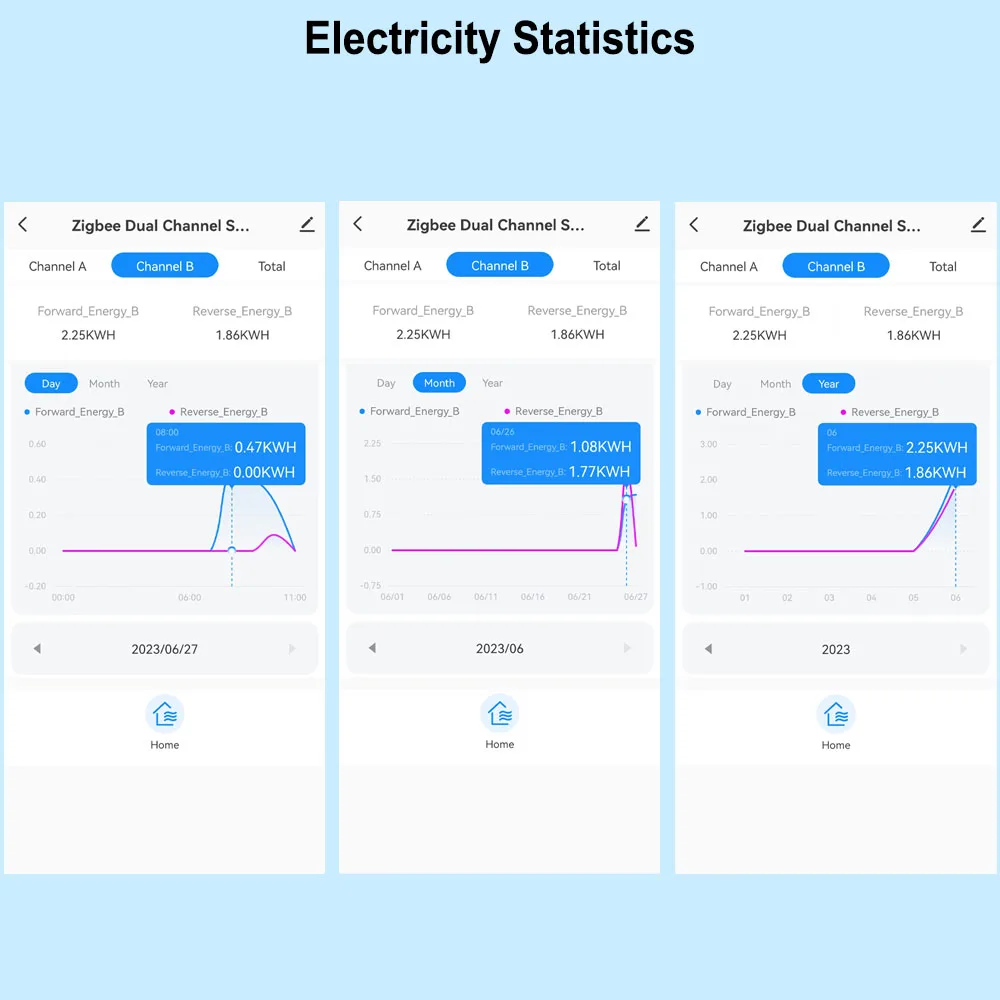

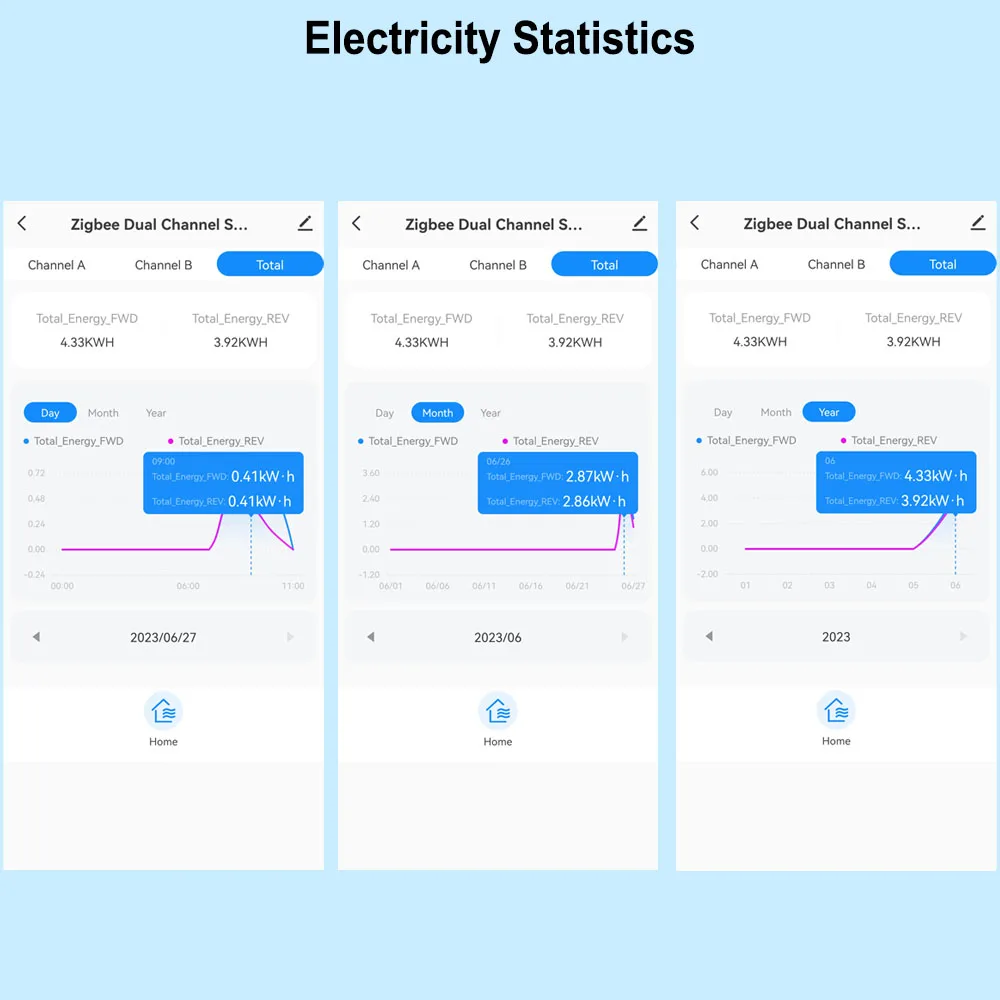

Electricity Statistic for each channel in Forward and Reverse direction.
Hourly Elec. (KWh)
Daily Elec. (KWh),
Monthly Elec. (KWh)
-Yearly Elec. (KWh)
Technical data:
Rated Voltage:100-240V AC 50/60Hz

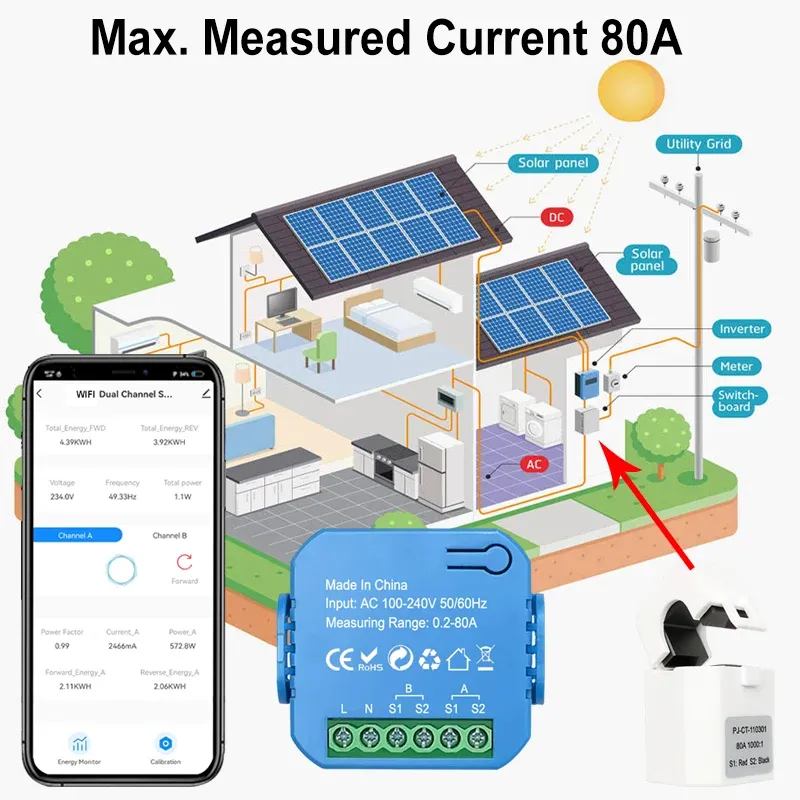

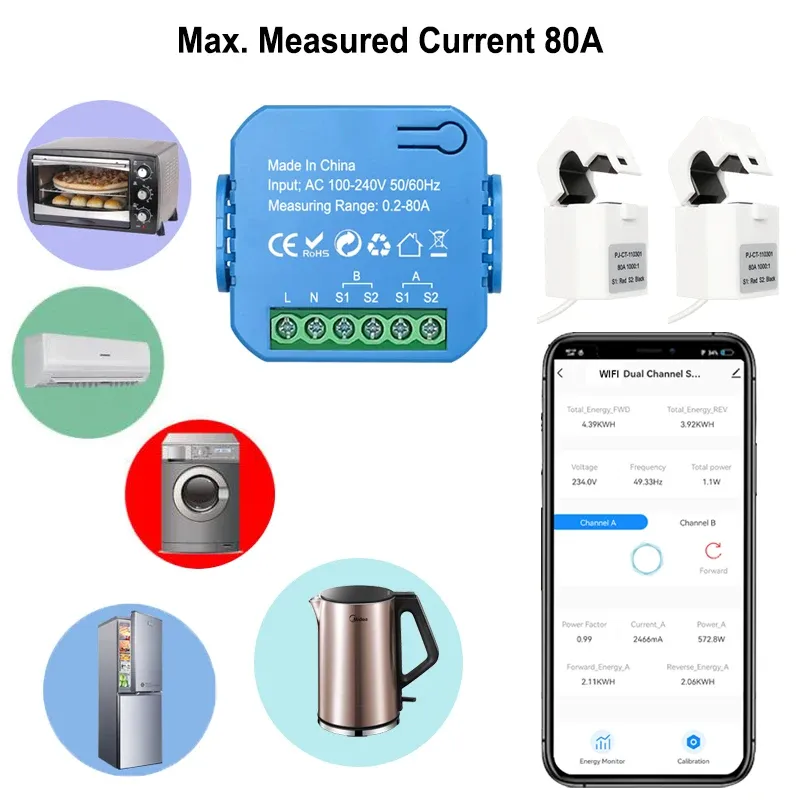

Measurable Current Range: 0.2A-80A
WiFi Frequency: 2.4GHZ (Not Support 5Ghz)
Ambient Temperature Range:-10°C ~ 55°C
Electricity Statistic Channel A , B Separately and Total daily monthly, yearly Reverse and Forward Direction





Automation , It allows to make a Scene for this device working with other tuya devices
For example, when the reverse or forward power (watts) or KWh reaches a value, the other tuya switch can turn on , or turn off

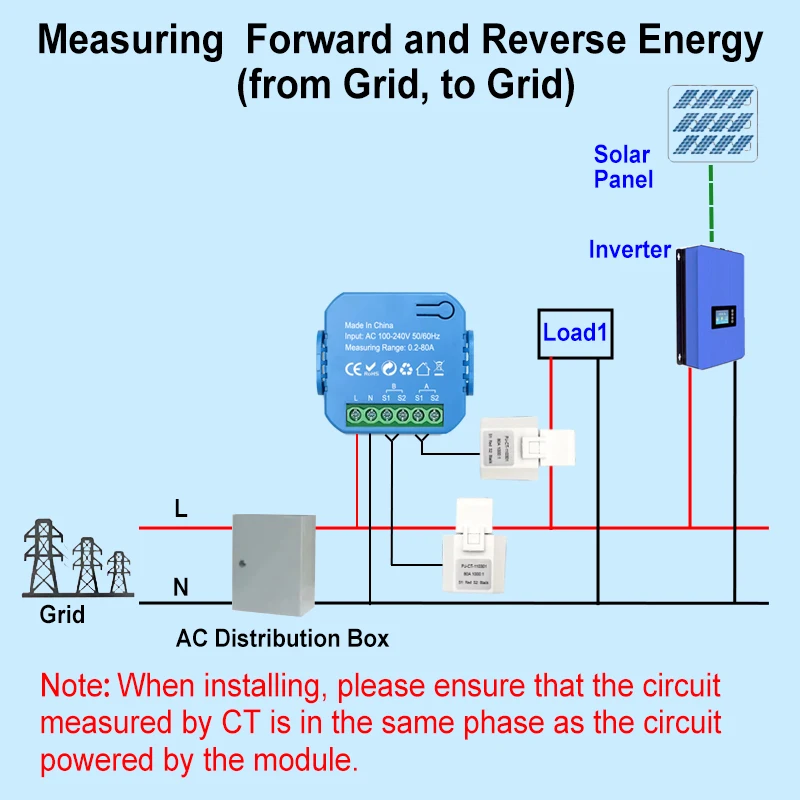

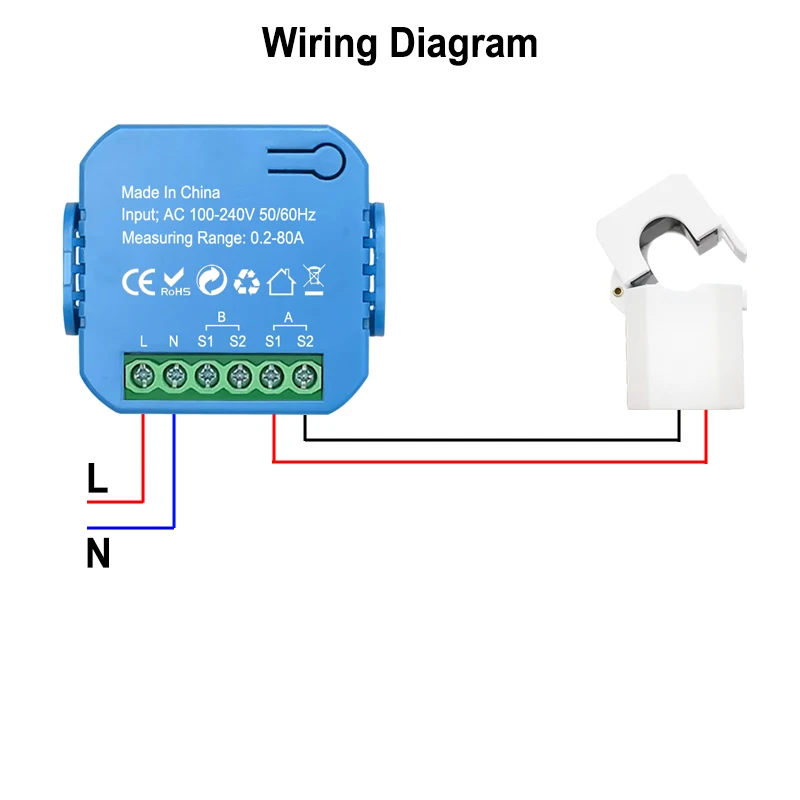

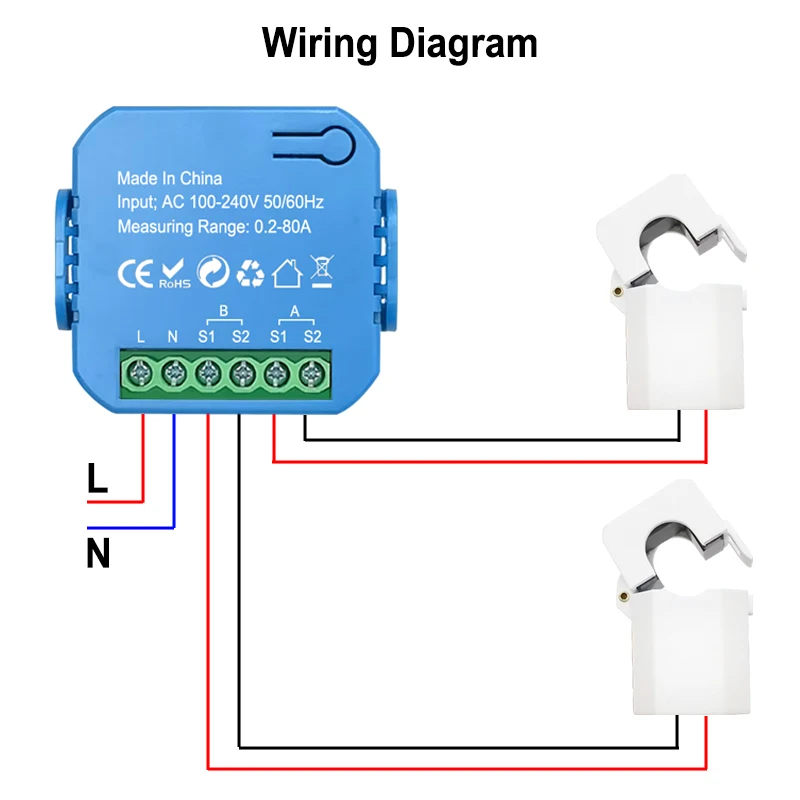

Wiring Diagram

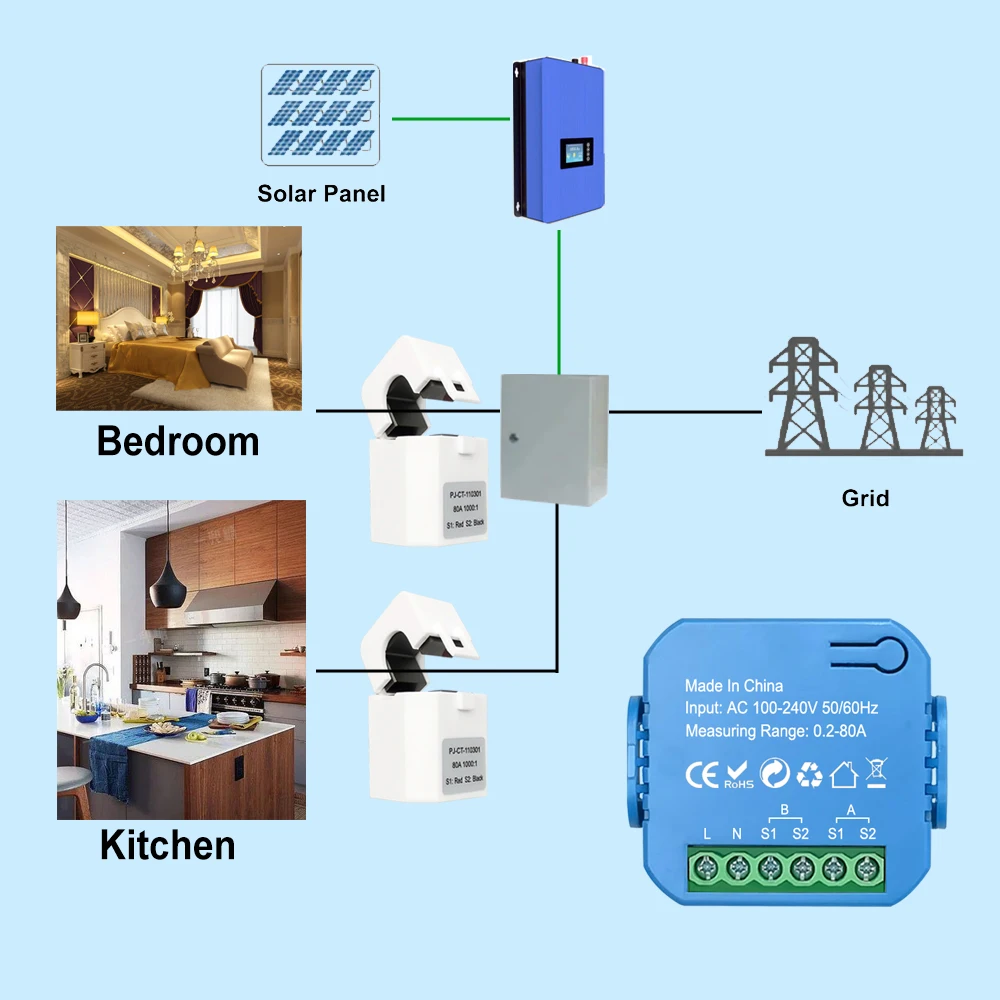

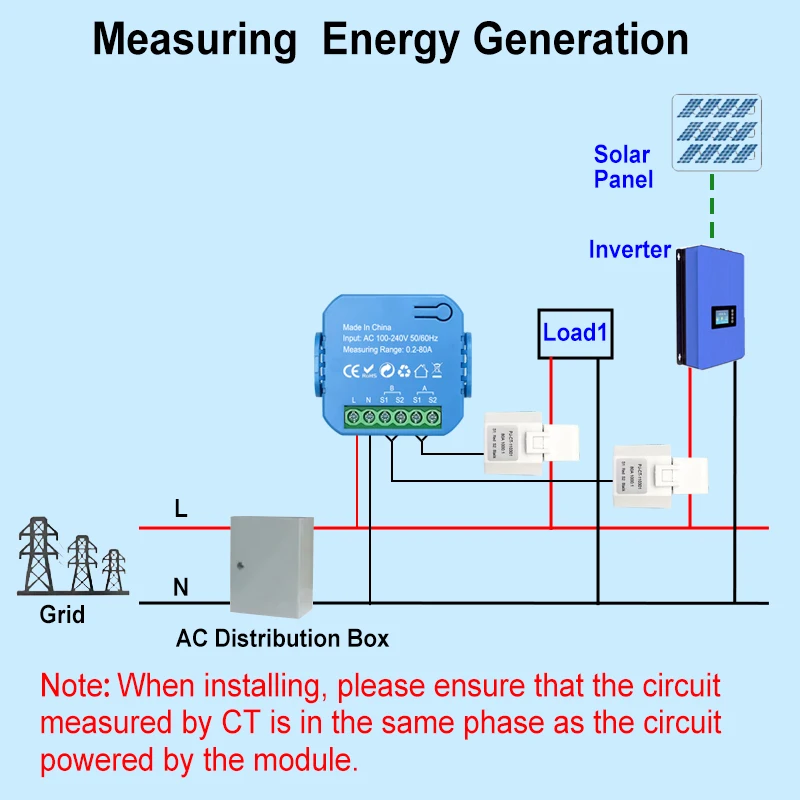

1. To measure the power 'from Grid' and 'To Grid'
Please note to make sure the circuit mesaured is in the same phase as the circuit power to the module.

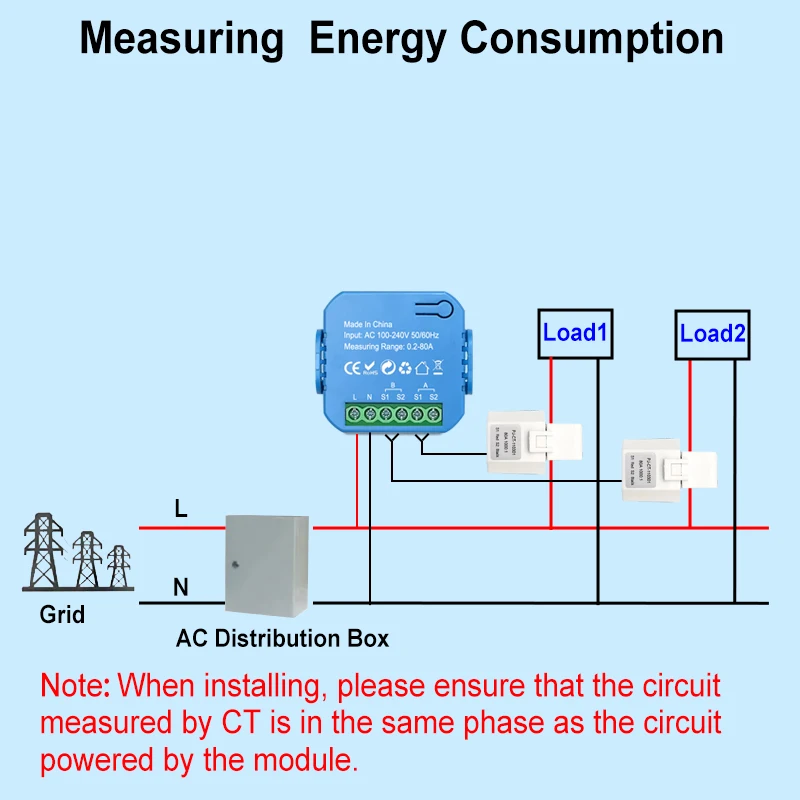

2. Measure the power consumption.
Please note to make sure the circuit mesaured is in the same phase as the circuit power to the module.

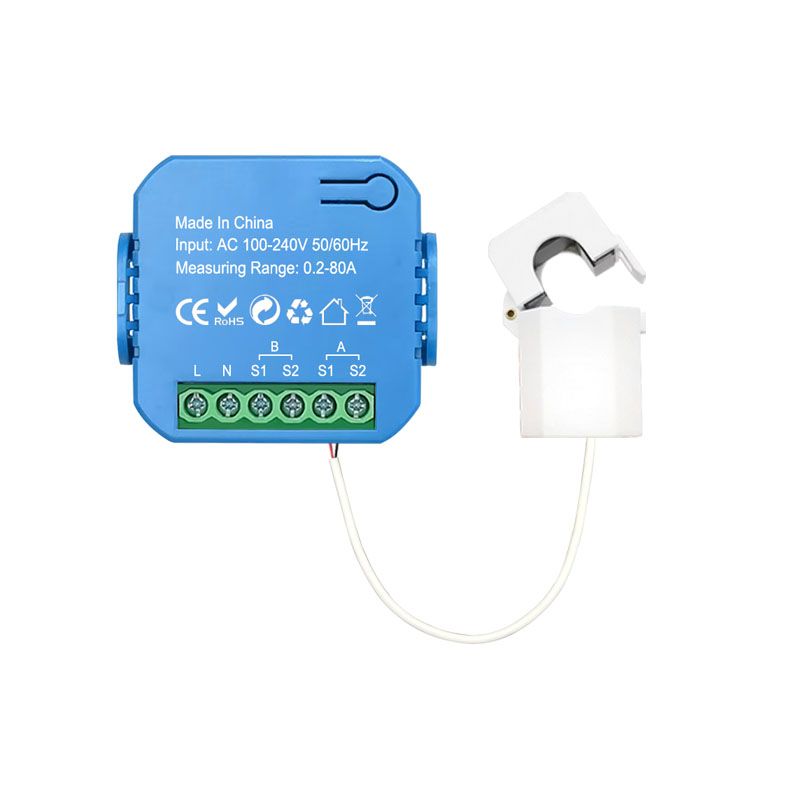

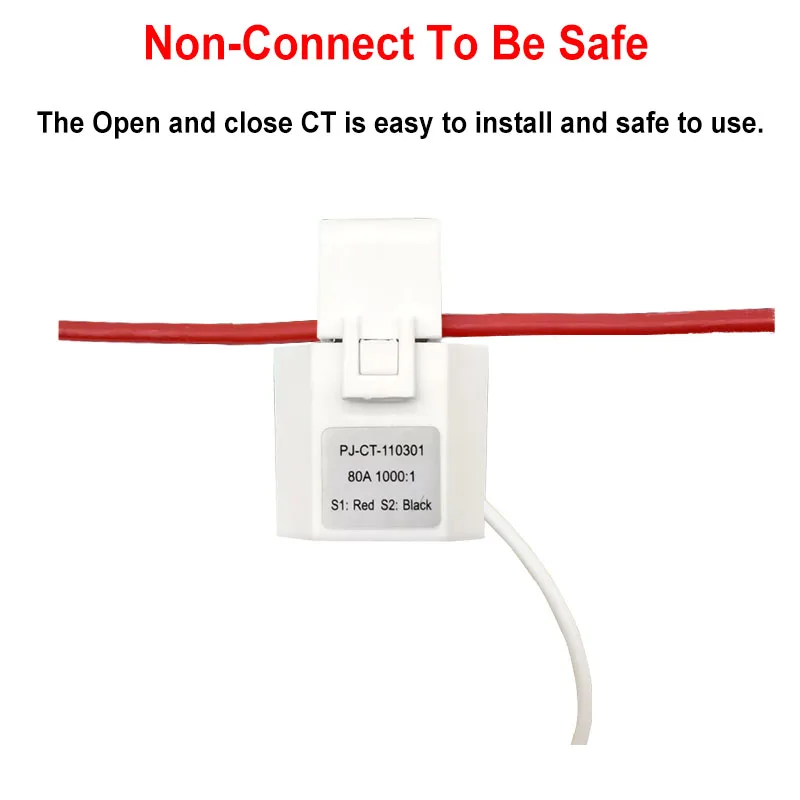

Non-connect to Be Safe, Easy and Safe to Install
No need to change the wires, Just put the wire into the clamp, then it can measure, very easy.

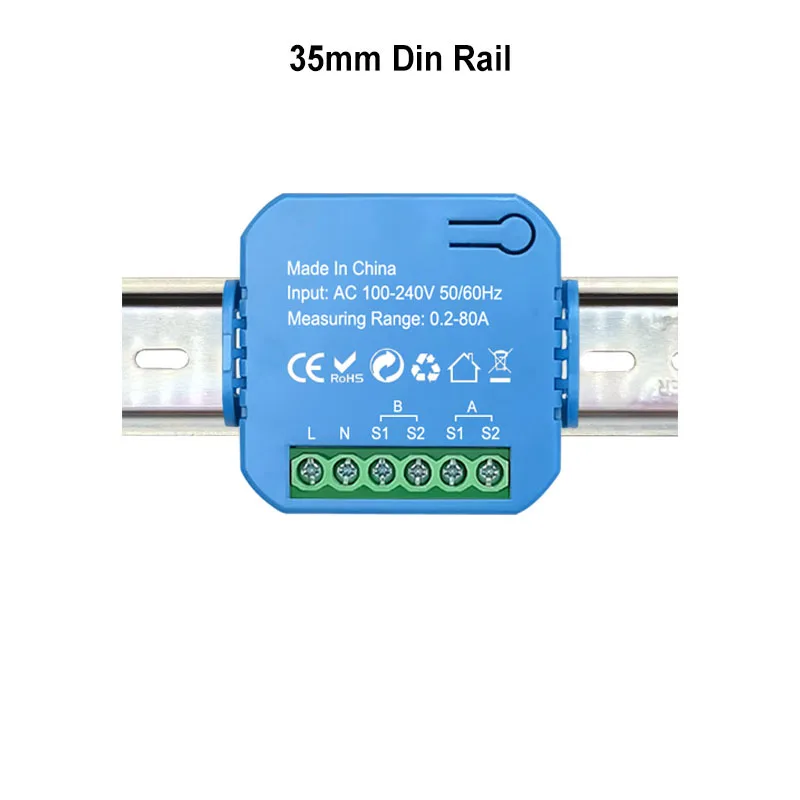

Small Size Module , Easy to Install


We guarantee good quality, every product will be tested before delivery. Not before Order
