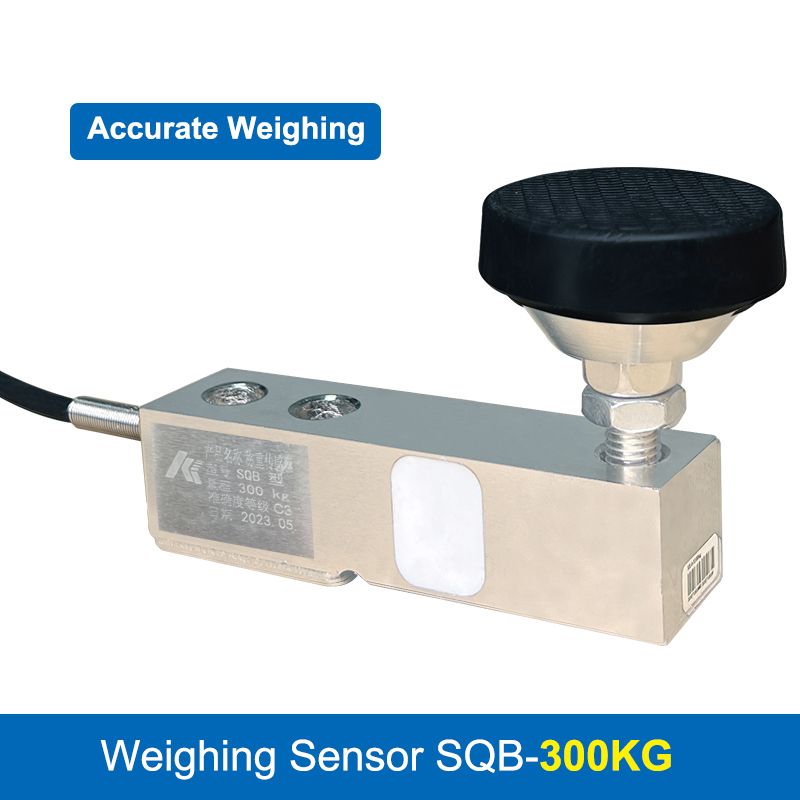

SQB Industrial Weighing Sensor Load Cell 100kg 3t Compression Shear Beam Stainless Steel Alloy Steel Floor Platform Scale

$83.82

Includes all taxes

Quantity
Meet your Seller
Delivery options
  • Ship Only

Description


F1 Load Cell Weighing Sensor 2000KG 2 Ton Shear Beam Type – High Precision Alloy Steel with Shielded Cable for Electronic Truck Scales

Designed with a shear beam structure, this load cell is fixed at one end and allows loading at the other, featuring excellent sealing and a self-centering design. It offers easy installation, reliable performance, and superior interchangeability. Ideal for use in ultra-thin electronic truck scales, single-track crane scales, hopper scales, and more.

Key Features:

High precision shear beam load cell

Capacity range: 100kg to 3000kg

Robust alloy steel construction with IP67-rated protection

Shielded cable for reliable signal transmission

Easy to install and operate

Excellent stability and repeatability

Specifications:

Capacity: 100–3000kg

Zero Balance: ±1% F.S

Rated Output: 2.0 ± 0.004 mV/V

Input Resistance: 380 ± 20Ω

Output Resistance: 350 ± 5Ω

Accuracy Class: C2

Non-linearity: 0.02% F.S

Hysteresis: 0.03% F.S

Creep (30 minutes): 0.02% F.S

Safe Overload: 150% F.S

Ultimate Overload: 300% F.S

Excitation Voltage: 10V AC/DC (Max 15V AC/DC)

Temperature Effect on Span: 0.015% F.S/10℃

Temperature Effect on Zero: 0.02% F.S/10℃

Compensated Temperature Range: -10℃ to +40℃

Operating Temperature Range: -30℃ to +65℃

Insulation Resistance: ≥500MΩ

Environmental Protection: IP67

Material: High-strength Alloy Steel

This load cell delivers dependable performance in demanding industrial weighing applications.

FAQs

Q1: Is this load cell compatible with standard electronic truck scales and weighing systems?
A: Yes, this shear beam load cell features standard output and resistance values (2.0mV/V, 350Ω output), making it fully compatible with most electronic truck scales, hopper systems, and crane weighing systems. Its wide capacity range (100–3000kg) and IP67 protection ensure reliable integration in industrial environments.


Q2: How should I install the F1 load cell to ensure accurate measurement?
A: The F1 load cell is designed with a single-end fixed shear beam structure, making it easy to install. Ensure it is firmly mounted at one end with proper load applied vertically on the other. Avoid side-loading or torque during installation. Self-centering design and high interchangeability allow for fast replacement without recalibration in many cases.
