Description:

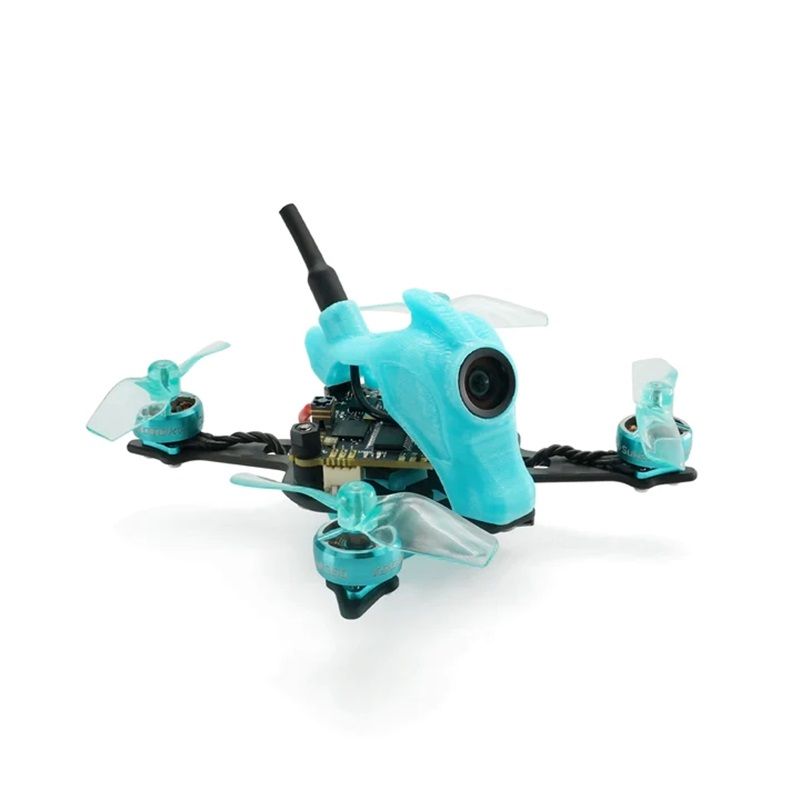

HELLO everyone, we are very happy to introduce our first Ultra-light Freestyle FPV Drone Sub250 1s Nanofly 16 to you. it is very quiet, and suitable for both indoors and outdoors. Currently available in 2 versions: ELRS 2.4G, TBSNanoRX-TBS 915 Mhz

The design concept of Nanofly 16 quad is lightweight, small in size, has good hand feels, and is suitable for a variety of flight scenarios FPV traversing aircraft. Obviously, it exceeded the design specifications. We designed a 1.5mm carbon fiber body with a 3D-printed upper shell for the Nanofly 16. The fuselage has high strength and is very crash-resistant. We did a lot of tests and selected the Ant lens with better effect, which has a better imaging effect and less wide-angle distortion. We developed a 0803-19000KV strong magnetic motor with 40mm propellers, it has strong power and smooth throttle, which is very suitable for flying freestyle.

Nanofly16 has an ultra-light body weight with the latest 1S 380mAh high-voltage battery. The take-off weight of a drone is only 38.0g, and the flight time is 4.5 minutes. Equipped with a 3D printed battery holder, it is convenient and quick to replace the battery.

The most important thing is that Nanofly16 is very quiet to fly, like a dragonfly, you can both fly it at home and freestyle in the yard and even set up a few gantries for racing practice. Trust me, you'll love this small, portable, and quiet mini FPV drone after you fly it.

Features:

• 1.6-inch tiny size & lightweight, just 28.0g

• Includes a full set of high-quality 3D printed parts for a superior flying experience

• It is equipped with a new F411-1S AIO/250mW/ELR Flight controller. Reliable & stable and easy to use.

• Ant camera with a high-quality image. Clear and clean.

• With a new 1S 380mAh battery with plenty of power output

• The latest light 0803 - 19000KV motor is matched with 40 mm-2 propellers proving maximum power and efficiency

• It is quiet, like a dragonflysuitable for both indoors and outdoors.

• Suitable for both freestyle and racing.

Specifications：

• Brand Name: Sub250

• Model: Nanofly16

• Frame: NF16

• Wheelbase size: 77mm

• Arm thickness: 1.5mm

• Motor: M1 0803-19000KV

• Weight：28.0g (ELRS)

• Camera: Ant

• MCUSTM32F411

• IMU： ICM20689(SPI)

• ESC: BLheli_S 4IN1 5A ESC

• VTX: VTX 5.8G 250mW

• Propeller: HQ 40mm-2

• OSD：BetaFlight OSD w/AT7456E chip

• Antenna: UFL 5.8G stick VTX antenna

• Flight Controller: F411-1S AIO/250mW/ELRS

• Receiver Version: ELRS 2.4G \ TBS 915 Mhz

• Battery: Recommend 380mAh 1S 90C LiHV battery(Not include)

• Flight Time：4 minutes and 45 seconds flight time with Sub250 latest 1S 380 mAh!

Package Includes:

• 1 x Nanofly16

• 4 x HQ 40mm-2 propellers

• 1 x 3D printed battery holder

• 1 x Phillips-head screwdriver

• 1 x 1.5 mm screwdriver

• 4 x M1.4*3 Phillips screws

• 3 x M2*2 nylon nuts
