TEC1-12706 TEC1-12703 TEC1-12704 TEC1-12705 TEC1-12708 TEC1-12709 12710 12715 Semiconductor Refrigeration Sheets 40*40mm
Includes all taxes
Meet your Seller
-
$6.68Sold by BILLIONS BIRDS
Description
Buy one=10PCS(10PCS are same module)
Red wire positive, black wire negative
12705 12706 does not reach the rated power only 30w
-------------------------------------------------------------------------------------------------------------------------
The working state of the cooling film is one side of the cooling side of the heat, when working must give the heating surface of good heat dissipation, is strictly prohibited in the absence of heat dissipation in the case of power for more than 2 seconds, resulting in overheating burned buyer's own responsibility!
Attention:
Installation of heat sink must be coated with heat-conductive silicone grease.
The cool side is the cool side and the hot side is the non-word side.
-------------------------------------------------------------------------------------------------------------------------
12705 12706 can not reach the rated power, only 30w, special requirements
Please don't shoot, thank you!
TEC1-12706 Semiconductor Refrigeration Tablet Water Dispenser Refrigeration CPU Electronic Refrigerator Special This product does not send other things, if you need, please click on the properties to buy, thank you!
Refrigeration chip working state is one side of the cooling side of the heat, when working must give the heating surface of good heat dissipation, is strictly prohibited in the absence of heat dissipation in the case of power for more than 2 seconds, resulting in overheating burn buyer's own responsibility!
12703.
Chip model: TEC1-12703
Dimension: 40*40*4.0mm±0.1
-------------------------------------------------------------------------------------------------------------------------
Number of component pairs 127
Wire specification: Lead length 310mm±5mm RV standard wire single head 5mm tinned
Internal resistance value: 4.0~4.3Ω (ambient temperature 23±1℃, 1kHZ Ac test)
Maximum temperature difference: △Tmax(Qc=0) 60℃ or more
Operating current: Imax=12 (at rated voltage start)
Rated voltage: DC12V (Vmax: 15.5V)
Cooling power: Qcmax 27W
Assembly pressure: 85N/cm2
Operating environment: temperature range -55℃～83℃ (too high ambient temperature drop directly affects cooling efficiency)
Encapsulation process: standard 704 silicone rubber seal all around
Packaging standard: foam box packaging, storage conditions Ambient temperature -10℃～40℃
Storage conditions: -40~60℃
-------------------------------------------------------------------------------------------------------------------------
12704.
Chip model: TEC1-12704
Dimension: 40*40*4.2mm Number of pairs of components 127
Lead wire specification: lead wire length 100±5mm RV standard lead wire single head 5mm tinned
Internal resistance value: 3.0~3.3Ω (ambient temperature 23±1℃, 1kHZ Ac test)
Large temperature difference: △Tmax(Qc=0) 60℃ or more
Operating current: Imax=12 (at rated voltage start)
Rated voltage: DC12V (Vmax: 15.5V)
Cooling power: Qcmax 36W
Assembly pressure: 85N/cm2
Operating environment: temperature range -55℃～83℃ (too high ambient temperature will directly affect the cooling efficiency)
Encapsulation process: standard 704 silicone rubber seal all around
Packaging standard: foam box packaging, storage conditions Ambient temperature -10℃～40℃
Storage conditions: -40~60℃
-------------------------------------------------------------------------------------------------------------------------
12705.
Chip model: TEC1-12705
Dimension: 40*40*3.8mm Number of component pairs 127
Lead wire specification: lead wire length 100±5mm RV standard lead wire single head 5mm tinned
Internal resistance value: 2.4~2.7Ω (ambient temperature 23±1℃, 1kHZ Ac test)
Large temperature difference: △Tmax(Qc=0) 61℃ or more
Operating current: Imax=5 (at rated voltage start)
Rated voltage: DC12V (Vmax: 15.5V)
Cooling power: Qcmax 45W
Assembly pressure: 85N/cm2
Operating environment: temperature range -55℃～83℃ (too high ambient temperature will directly affect the cooling efficiency)
Encapsulation process: standard 704 silicone rubber seal all around
Packaging standard: foam box packaging, storage conditions Ambient temperature -10℃～40℃
Storage conditions: -40~60℃
-------------------------------------------------------------------------------------------------------------------------
12706.
Chip model: TEC1-12706
External size: 40*40*3.75mm
Internal resistance value: 2.1~2.4Ω (ambient temperature 23±1℃,1kHZ Ac test)
Large temperature difference: △Tmax(Qc=0)59℃ or more
Operating current: Imax=4.3-4.6A (at rated 12V)
Rated voltage: 12V (Vmax: 15V starting current 5.8A)
Cooling power: Qcmax 60-72W
Operating environment: Temperature range -55°C to 83°C (excessive ambient temperature drop directly affects cooling efficiency)
-------------------------------------------------------------------------------------------------------------------------
12708.
Chip model: TEC1-12708
Dimension: 40*40*3.5mm Number of component pairs 127
Wire specification: lead length 300±8mm RV standard wire single head 5mm tinned
Internal resistance value: 1.5~1.7Ω (ambient temperature 23±1℃, 1kHZ Ac test)
Large temperature difference: △Tmax(Qc=0) 60℃ or more
Operating current: Imax=8A (at rated voltage start)
Rated voltage: DC12V (Vmax: 15.5V)
Cooling power: Qcmax 77W
Assembly pressure: 85N/cm2
Operating environment: temperature range -55℃～83℃ (too high ambient temperature will directly affect the cooling efficiency)
Encapsulation process: standard 704 silicone rubber seal all around
Packaging standard: foam box packaging, storage conditions Ambient temperature -10℃～40℃
Storage conditions: -40~60℃
-------------------------------------------------------------------------------------------------------------------------
12709.
Chip model: TEC1-12708
Dimension: 40*40*3.5mm Number of component pairs 127
Wire specification: lead length 300±8mm RV standard wire single head 5mm tinned
Internal resistance value: 1.5~1.7Ω (ambient temperature 23±1℃, 1kHZ Ac test)
Large temperature difference: △Tmax(Qc=0) 60℃ or more
Operating current: Imax=8A (at rated voltage start)
Rated voltage: DC12V (Vmax: 15.5V)
Cooling power: Qcmax 77W
Assembly pressure: 85N/cm2
Operating environment: temperature range -55℃～83℃ (too high ambient temperature will directly affect the cooling efficiency)
Encapsulation process: standard 704 silicone rubber seal all around
Packaging standard: foam box packaging, storage conditions Ambient temperature -10℃～40℃
Storage conditions: -40~60℃
-------------------------------------------------------------------------------------------------------------------------
12710.
Chip model: TEC1-12710
Dimension: 40*40*3.4mm Number of pairs of components 127
Lead wire specification: Lead wire length 300±5mm RV standard lead wire Single head 5mm tinned
Internal resistance value: 1.2~1.5Ω (ambient temperature 23±1℃, 1kHZ Ac test)
Large temperature difference: △Tmax(Qc=0) 60℃ or more
Operating current: Imax=10A (at 15Vmax voltage start)
Rated voltage: DC12V (Vmax: 15.5V)
Cooling power: Qcmax 92W
Assembly pressure: 85N/cm2
Operating environment: temperature range -55℃～83℃ (too high ambient temperature will directly affect the cooling efficiency)
Encapsulation process: standard 704 silicone rubber seal all around
Packaging standard: foam box packaging, storage conditions Ambient temperature -10℃～40℃
Storage conditions: -40~60℃
-------------------------------------------------------------------------------------------------------------------------

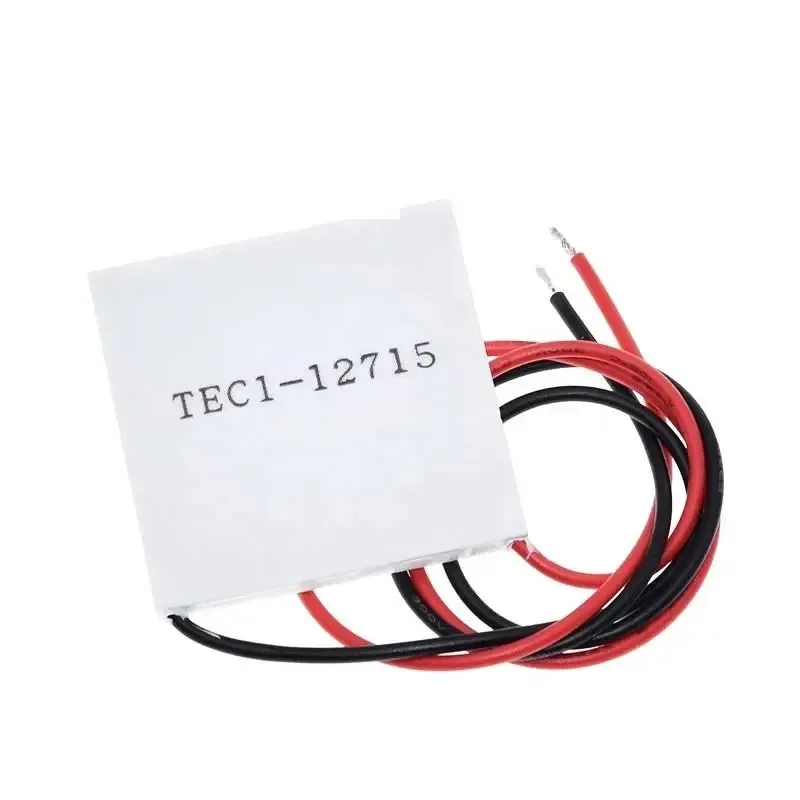

12715.
Product Model: TEC1-12715
High voltage: 15.4V
High current: 15A
Cooling output: 134W
Temperature difference: 65°C
Dimension: 40*40*3.3mm
12706 Note: Rated voltage 12V
Lead wire length: approx. 30CM
-------------------------------------------------------------------------------------------------------------------------
For buyers who receive the goods want to test the good or bad, available a battery test
The specific method is to pinch the refrigeration piece with one hand, one hand to the refrigeration piece of the wire pressed in the 2 ends of the battery, if you can feel the side slightly cold side slightly hot on the refrigeration piece is good!
