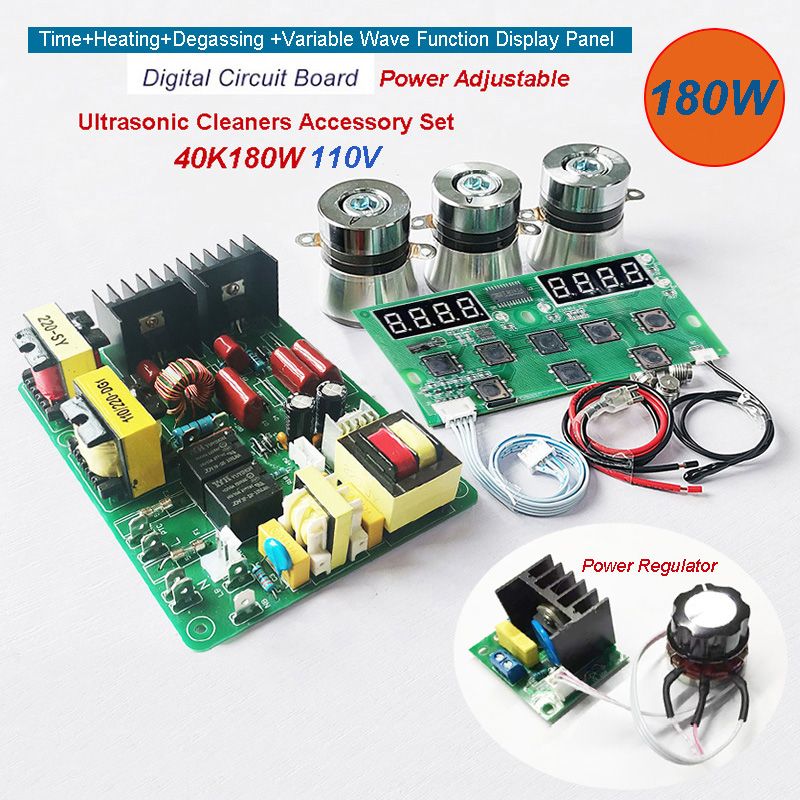

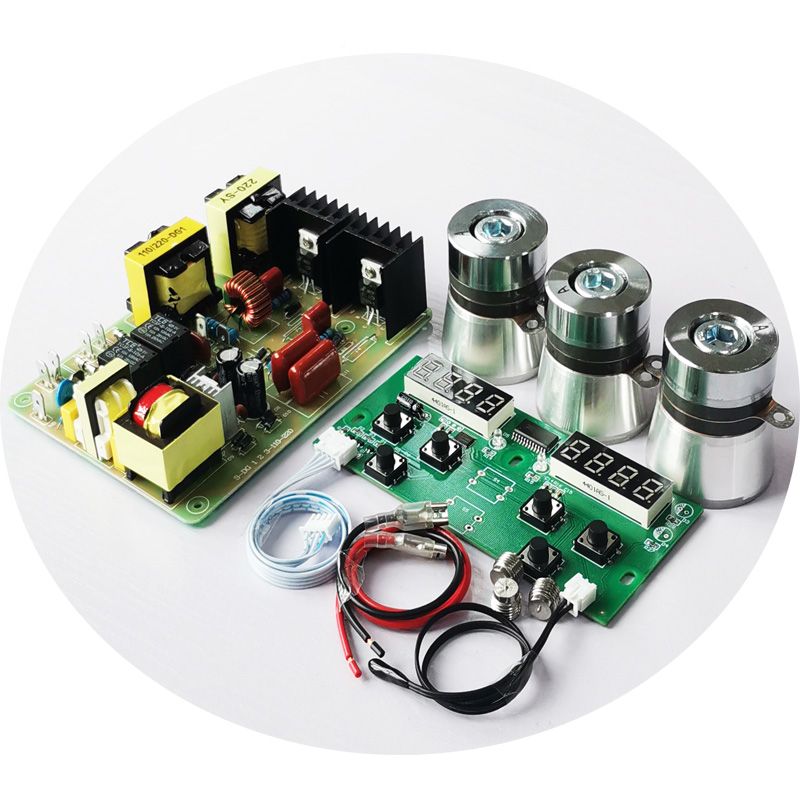

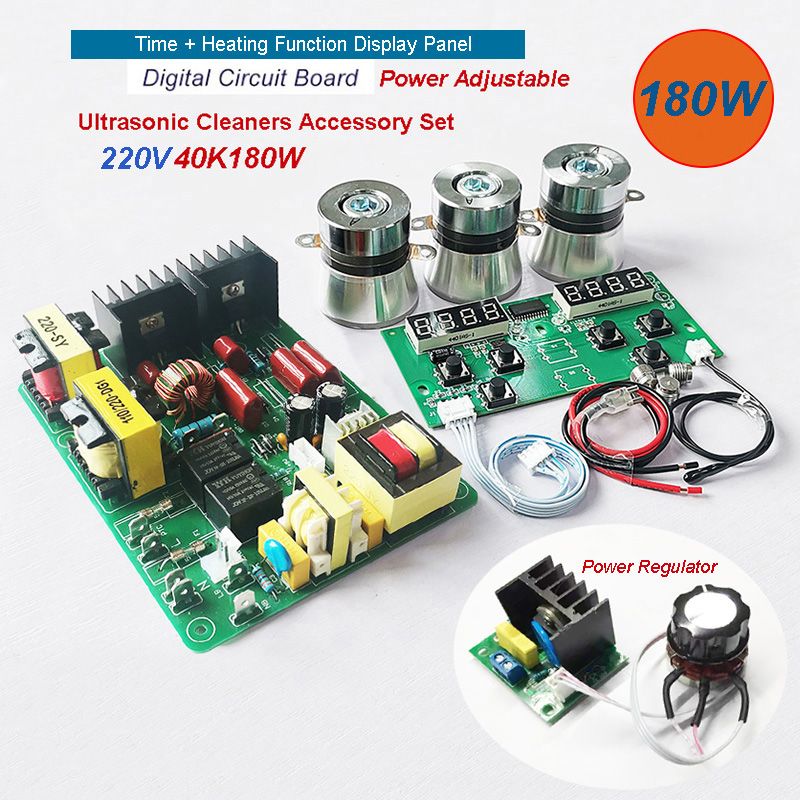

Ultrasonic Cleaner PCB Driver Boards Circuit Board Kit With 40KHz 180W Ultrasounic Transducer

$83.74

Includes all taxes

Quantity
Meet your Seller
Delivery options
  • Ship Only

Description

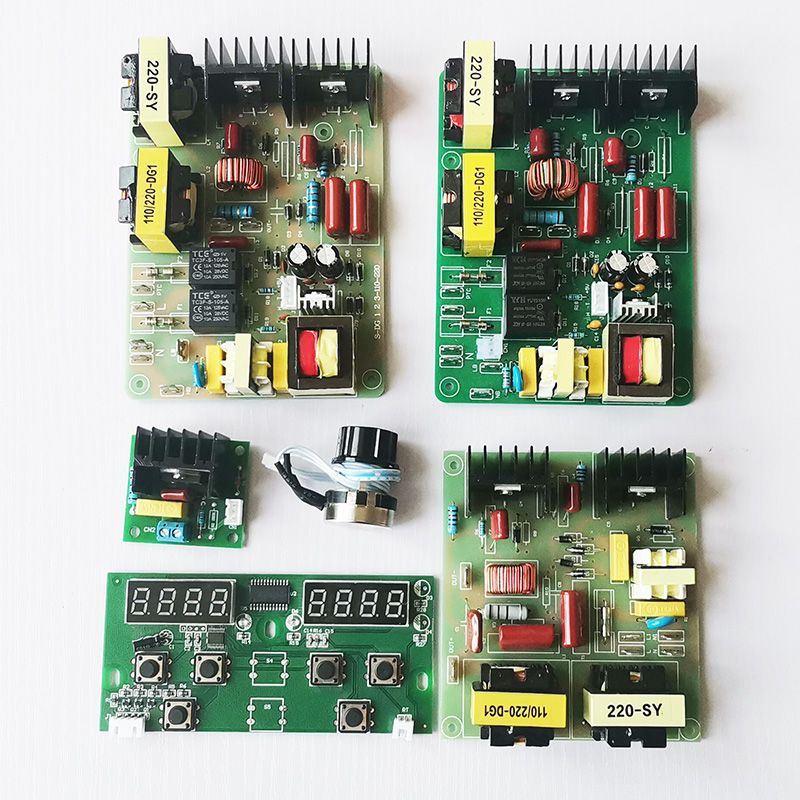

About Type:


M- DG3  is Mechnical Ultrasonic PCB Board.
D - DG3 is Digital Ultrasonic PCB Board (we can adjust the working time and temperature by digital panel).
DD-DG3  is Digital Ultrasonic PCB Board with degassing function (we can adjust the working time and temperature by digital panel).

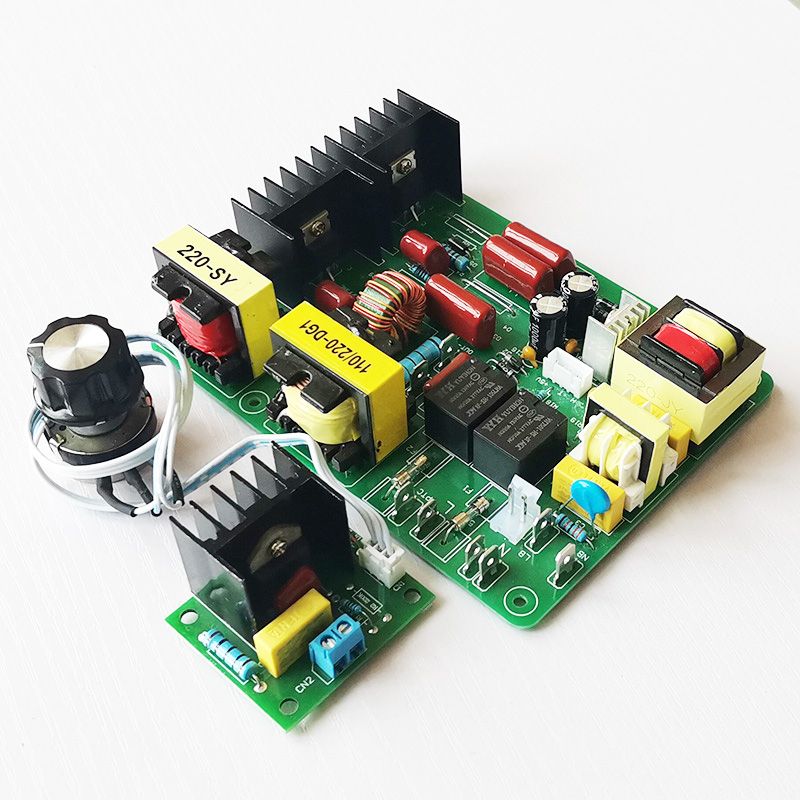

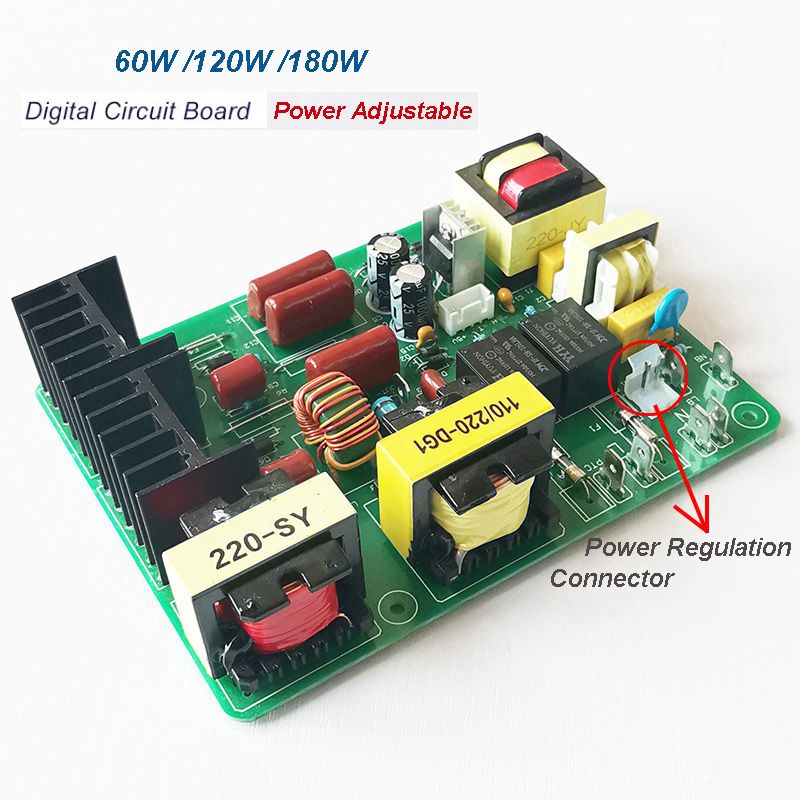

DP- DG3 is Digital Ultrasonic PCB Board with power adjustment(we can adjust the working time and temperature and power).
DPD- DG3 is Digital Ultrasonic PCB Board with power and degassing adjustment(we can adjust the working time and temperature and power).

Relevant Recommendation

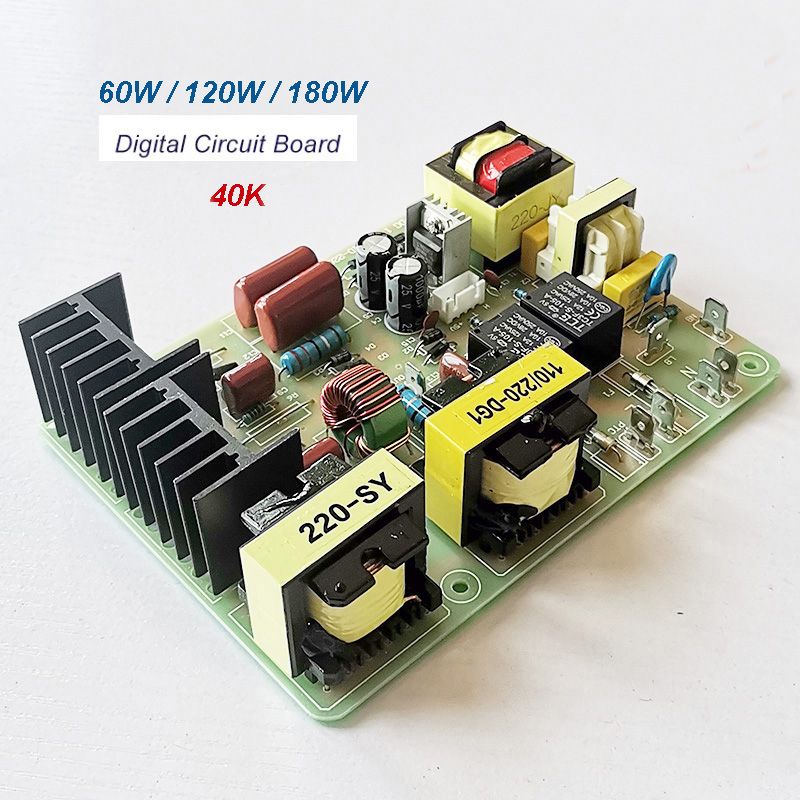

The Main Specification of 40KHZ Ultrasonic PCB Generator (Type: DG1 DG2 DG3)

Powe Supply:  AC110V (-15/+10%). 60HZ.  60-120w for the 110V PCB Generator

                        AC 220V (-15/+10%). 60HZ.  60-180w for the 220V PCB Generator

Environment Temperature: -10-40 ℃

Environment Humidity: 35-85%


Attentions:

 60W  PCB can drive 1pcs 60w transducer

120W PCB can drive  2pcs 60w transducers

180W PCB can drive  3pcs 60w transducers

Size of PCB generator (Mechanical version which can not connect the display panel)

103mm*101mm*40mm

Size of PCB generator (Digital version which can connect the display panel)


140mm*105mm*40mm

working time(0-30mins) and temperature can be adjusted  by display panel

The display panel can be selected according to the requirements

Some Common Technical Problem of Ultrasonic Generator

& The ultrasonic generator can't power on under no-load condition.

& After installed, we can not power on until lay cleaning fluid.

& Ultrasonic transducer has two lugs.The positive one lay in the middle of two pieces of ceramic.The native one near lower

metal column. Please do not make wrong when wiring.

& The larger side with screw hole in ceramic transducer which has a function of vibration,can be stuck in the bottom of cleaning

machine. And please make sure the cleaning machine is safely grounding

& The ceramic transducer should be pasted in the bottom of cleaning machine using transducer specialized glue or use AB glue stick.

but the effect is a bit poor, or use epoxy resin with proportion of 10:4.

& The working circuit board voltage is 600V.The voltage output to the transducer is 1100 v. Please ensure the cleaning machine is

safely grounding. Please make sure leakage protection switch ,assembled on the power supply in

Want to learn more about Ultrasonic cleaning system Please contact us
