Universal 4 Hole Under dash Auto Electric Air Conditioning System 12V 24V for Car Van Street Rod Hot Classic AC Conditioner
Includes all taxes
Meet your Seller
-
$1,050.71Sold by BILLIONS BIRDS
Description
Please pay attention to the voltage when placing an order!
Air conditioning kits are divided into 12V and 24V.
Ducts Description:
1.Brand: Gcfix
2.Air Vent: 61mm (2.4inch)
3.Outside Diameter: 45.5mm (1.79inch)
4.Duct Inner Diameter: 50mm (1.96ich)
Description:
This electric air conditioning system (Inside unit + outside unit) can be installed to anywhere you want. It runs by battery(Generator). Even you got your engine stalled,you still can use this air conditioner. Low noise,energy-saving,environmental protection is the best choice for you. It will help you save thousand dollars on gas every year.
Pay attention:
1. PLEASE DON'T RUN the compressor without adding R134a gas (Freon) and connecting with other parts! We couldn't take responsibility for you if you damage the compressor.
2. Remember ! Please screw tightly of the controller board. Otherwise the board will get burnt.
Generator (battery) request:
12V compressor require generator ampere over 100a;
24V compressor require generator ampere over 70A.
About vehicle battery. If you want to use the electric compressor after parking,then your vehicle battery capacity should be large enough. For example,12V compressor current about 45A. So one new and full charged 45A battery can run the compressor for one hour.
Compressor data:
Compressor style: Semi-closed Horizontal Scroll Compressor
Material: Aluminum alloy
Voltage: DC 12V / 24V
Working voltage range: 10.5VDC15VDC / 19.5VDC32VDC
Current: 45A+-2 / 35A+-2
Displacement: 21cm³/r
Cooling capacity: 1.688KW / 2.465KW
(5731BTU / 8410BTU)
Speed range: 1000 - 2300rpm / 1000 - 3000rpm
Rated power: 550W / 850w
Rated speed: 1800rpm / 3000rpm
Oil: POE / 130ml - 150ml (Oil has already in compressor )
Gas/Refrigerant: R134a
Condensing temperature range: 26.7～68 ℃
Evaporating temperature range: -10～12.5 ℃
Refrigerant leakage rate: <14g per year
Suction pipe inner size: Ø18.3mm
Discharge pipe inner size: Ø15.5mm
COP W/W: 3.07 / 2.9
Led blinking
Blinking 1 times,pause 1 second: Standby mode.
Fast blinking 2 times,pause 1 second: Excessive current,Over 50A.
Fast blinking 3 times,pause 1 second: Locked rotor protection.
Fast blinking 4 times,pause 1 second: Undervoltage protection.
Fast blinking 6 times,pause 1 second: Electric fan fault.
Fast blinking 7 times,pause 1 second: Motor lack of phase. Please check if the motor got burnt and connection is correct or not.
Fast blinking 8 times,pause 1 second: Compressor over heated protection.
Fast blinking 9 times,pause 1 second: Pressure switch protection.
Cooling performance:
Remark: Speed tolerance ±1%. Actual test cooling capacity data not less than 90% of data in the table. Actual test power rate not exceed 110% of data in the table.
Compressor body not to be tilted (the angle between the main axis of the compressor and the horizon should not be greater than 5 °)

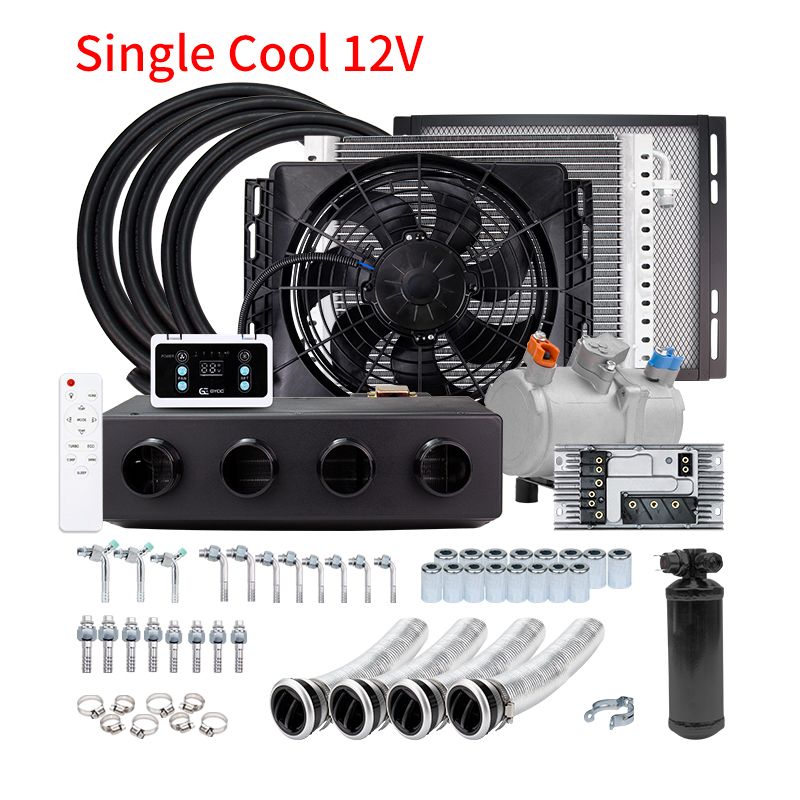

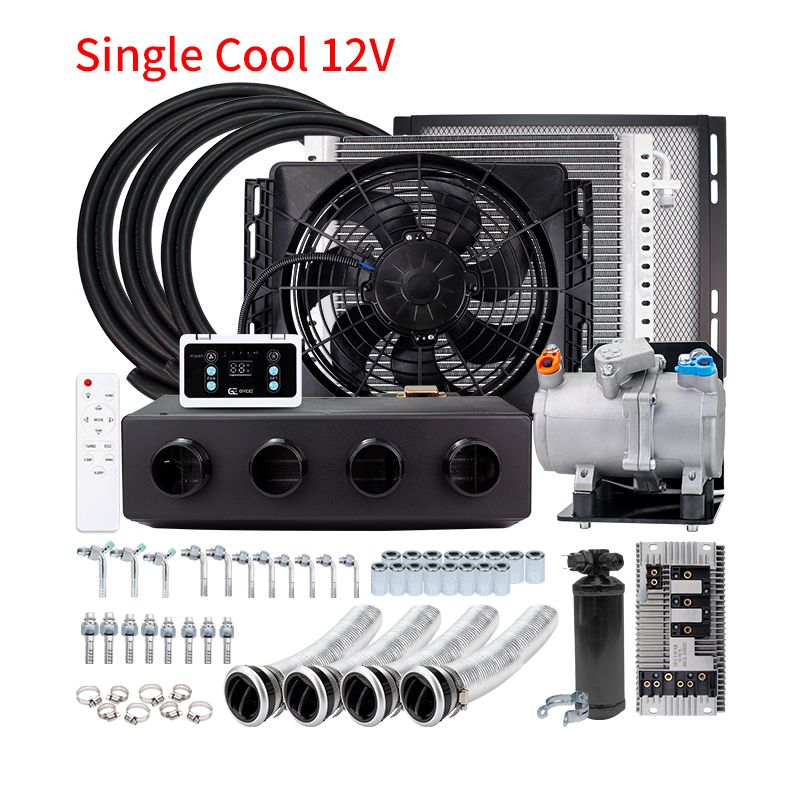

Package & Product Details
Your order is shipped in 2 packages:1 big carton with 4 small boxes inside + 1 separate carton.
Carton 1/2: Contains 4 inner boxes
lInner Box 1:
① 1 x Evaporator with mounting bracket and Remote control
lInner Box 2:
② 1 x Radiator fan / Radiator/ Radiator protector
③1 x dryer
lInner Box 3:
④ 1 x Electric compressor
⑤ Electric compressor control board
⑥ 2 meters x Electric compressor motor cable / dryer cable / 2 meters x Power cable /2 meters x Electric compressor temperature sensor cable /2 meters x Radiator fan cable
lInner Box 4:
⑦ 4 x #6 fitting / 2 x #8 fitting / 2 x #10 fitting
⑧ 1 x #6 #8 #10 fitting with service port
⑨ 4 x #6 fitting / 2 x #8 fitting / 2 x #10 fitting
⑩ 2 x Electric compressor fittings
⑪8 x #6 steel crimp ferrule / 4 x #8 steel crimp ferrule / 4 x #10 steel crimp ferrule
⑫8 x hose clips
⑬ 1 x clamp
Carton 2/2: Separate box
⑭5 meters x #6 hose/3 meters x #8 hose/5 meters x #10 hose
⑮ 4 meters x heater water hose (Only the cool and warm evaporator is equipped with heater water hose.)
⑯ 4 x Air Vents
⑰4 meters x Ducts
⑱ 8 x Hose Clips
⑲ 2 x Sponge Strip (1meter each)/1x Aluminum foil tape (20meters)
⑳ Compressor bracket + mounting screws
Evaporator
Evaporator with three positions air switch and temperature switch.
1.2 Ton O-ring expansion valve,Size #6 and #10
Strong PP case
Electric fan
120W strong airflow (pulling air) radiator fan
Radiator protector net for stone attacked.
Radiator with #6 and #8 male O-ring fittings.
Electric compressor
Four thick rubber leg for shockproof
Four extended cable. From 2 to 12 square millimeter. Safety and qualified
Paired with fixed bracket, thickened steel plate, thickness 5MM, sturdy, durable and corrosion-resistant
Dryer/Hose
Dryer with glass. Size #6 to #6
Hose with three layer protection. No leaking and strong.
Heater water hose
5/8'' (16mm) internal diameter,Thick: 3.5mm
Temperature: -40° to 130° (-40° to 266°)
