Waveshare ESP32-S3 1.43inch AMOLED Display Development Board 466×466 QSPI Interface Round Display

$42.78

Includes all taxes

Quantity
Meet your Seller
Delivery options
  • Ship Only

Description


ESP32-S3 1.43inch AMOLED
Development Board

466 × 466 Resolution, AMOLED Round Display, Onboard Multiple Interfaces

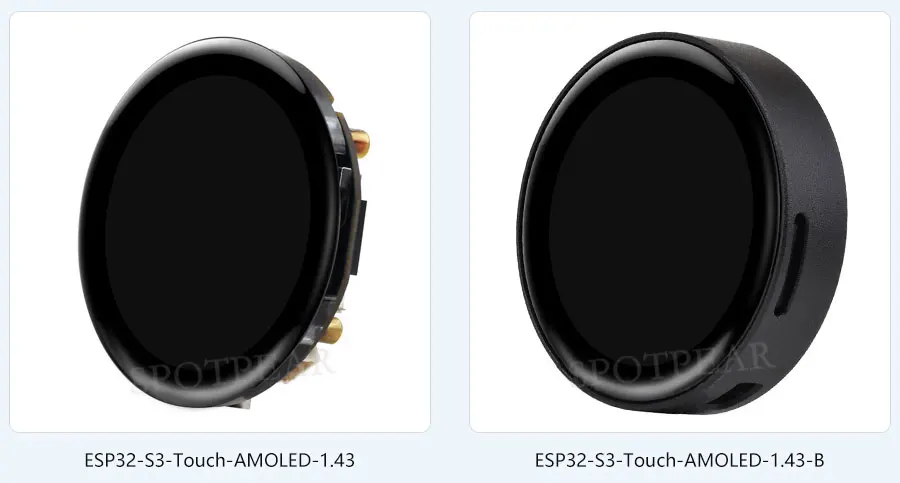

Version Options

Product Features

This product adopts ESP32-S3R8 chip with 2.4GHz WiFi and Bluetooth BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 1.43inch AMOLED display which can smoothly run GUI programs such as LVGL. Onboard rich peripheral resources such as RTC chip, QMI8658 6-axis IMU, TF card slot, Lithium battery header, etc., and reserved USB, UART, I2C and GPIO pin headers, offering strong compatibility and expandability. It is suitable for the quick development of the HMI and other ESP32-S3 applications.

  • Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency

  • Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with an onboard antenna. Supports switching to use external antenna via resoldering an onboard resistor

  • Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM

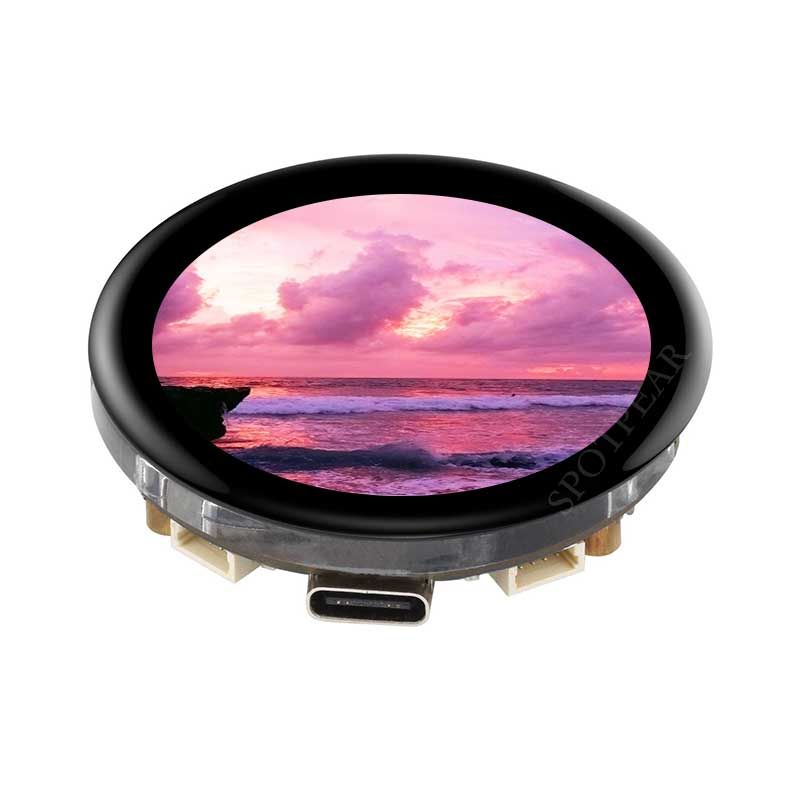

  • Onboard 1.43inch AMOLED display, QSPI interface, 466 × 466 resolution, 16.7M color

  • Supports capacitive touch function controlled via I2C interface, with interrupt support

  • Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etc.

  • Onboard PCF85063 RTC chip with reserved SH1.0 RTC battery header (supports charging) for RTC function requirement

  • Onboard RST button and programmable BOOT button for easy custom function development

  • Onboard 3.7V MX1.25 Lithium battery recharge/discharge header

  • Onboard TF card slot for external TF card storage of pictures or files

  • Onboard USB Type-C port for power supply, program downloading, and debugging, more convenient for development use

  • Onboard UART and I2C SH1.0 4PIN connector, reserved 2 × 14PIN 1.27mm pitch headers, adapting multiple GPIO interfaces

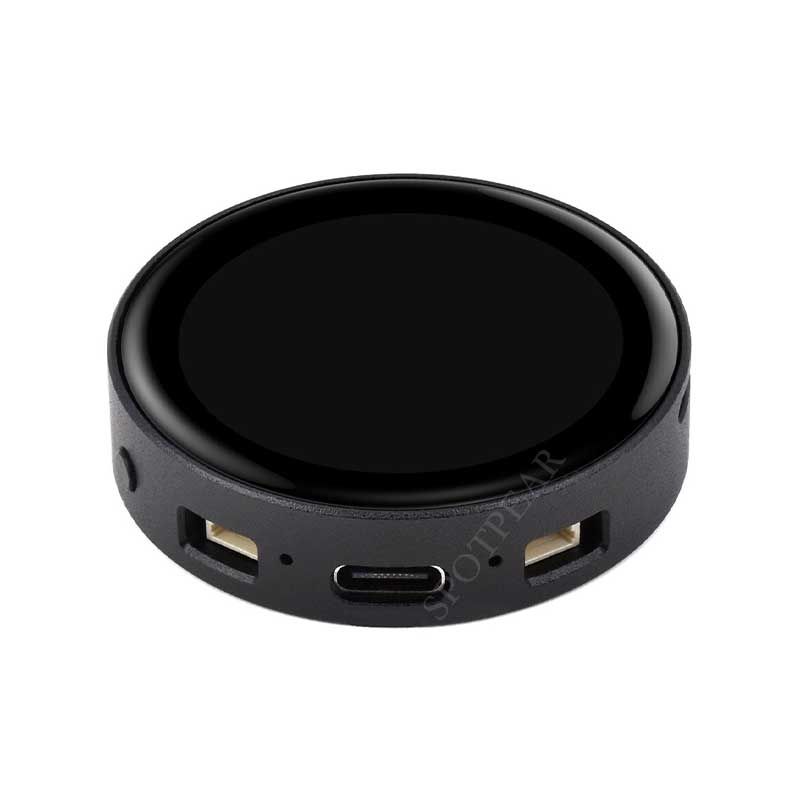

  • Optional for CNC metal case, with clear and colorful label on the back, nice looking and easy to carry



AMOLED Parameters

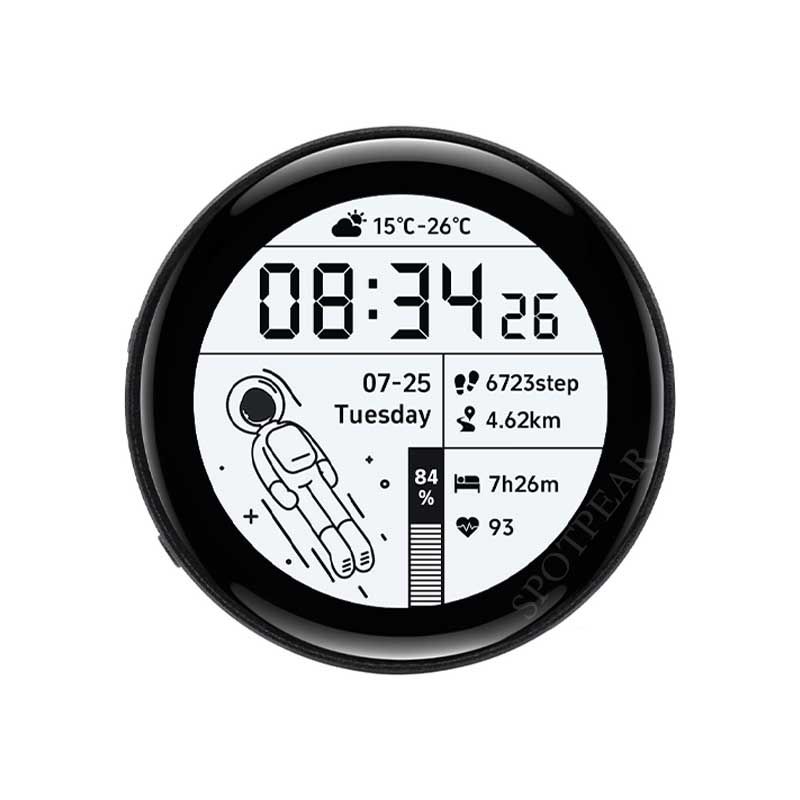

Application Scenarios
Adopts AMOLED Screen

The Next-Generation Display Technology, Compared To Those Traditional LCD Displays, The AMOLED Screen Features Precise Light-Control Capability, Representing More Delicate Colors, More Picture Details, And More Vivid Video Image

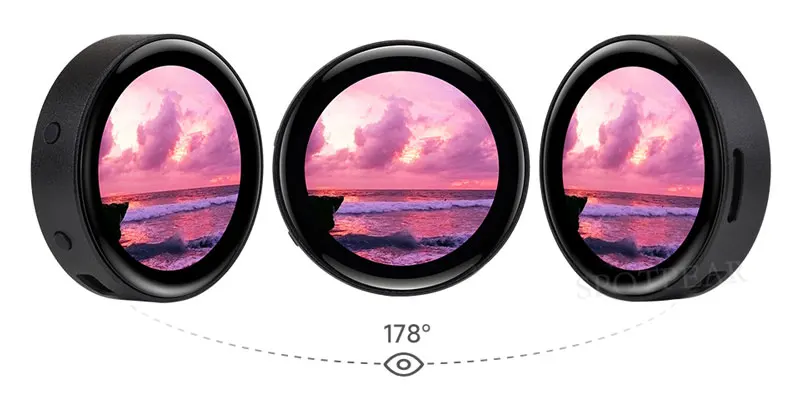

178° Wide Viewing Angle

Excellent Display Performance, 16.7M Color, Wide Viewing Angle


Supports ESP-IDF, Arduino IDE

Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

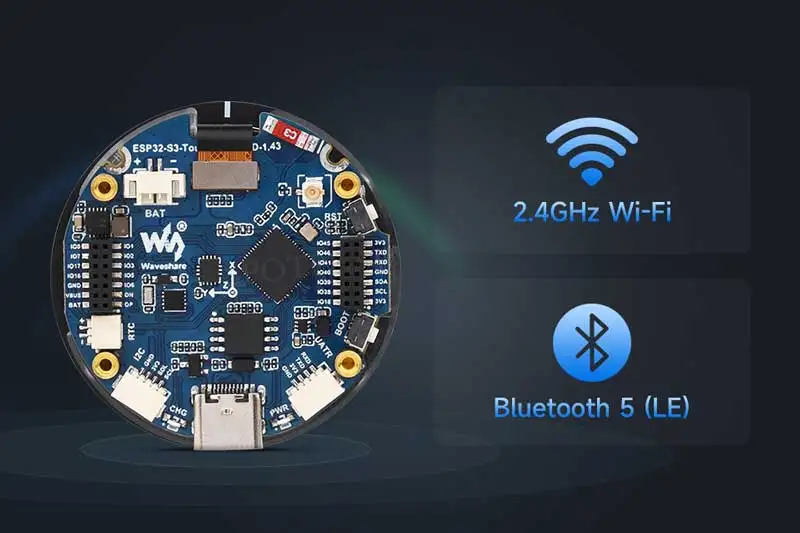

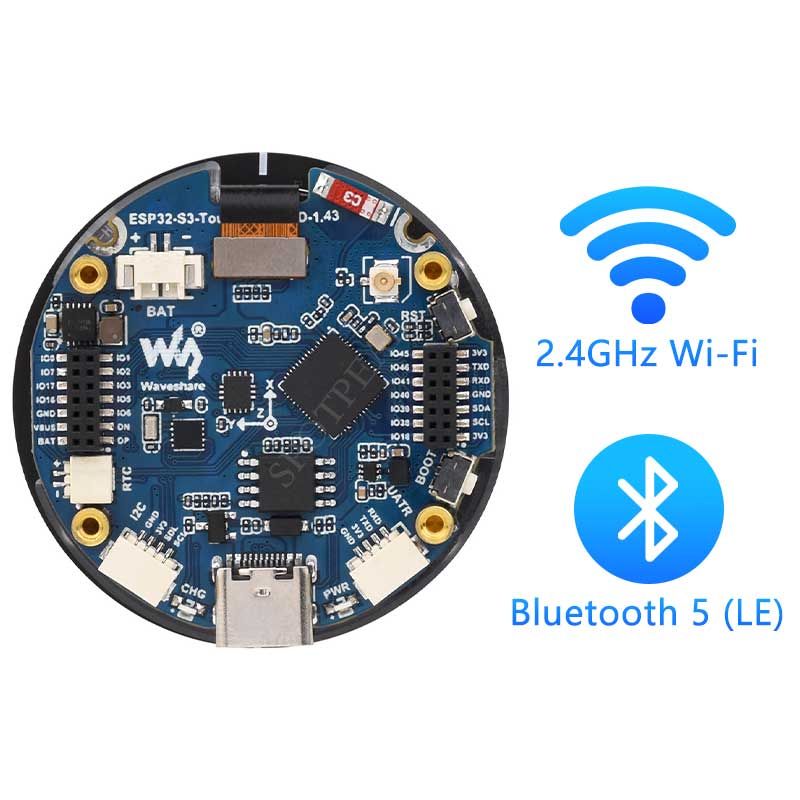

Wi-Fi And BLE 5 Support

ESP32-S3 Integrates 2.4 GHz Wi-Fi (802.11 Ax/B/G/N) With 40 MHz Of Bandwidth Support, Its Bluetooth Low Energy Subsystem Supports Bluetooth 5 (LE) And Bluetooth Mesh

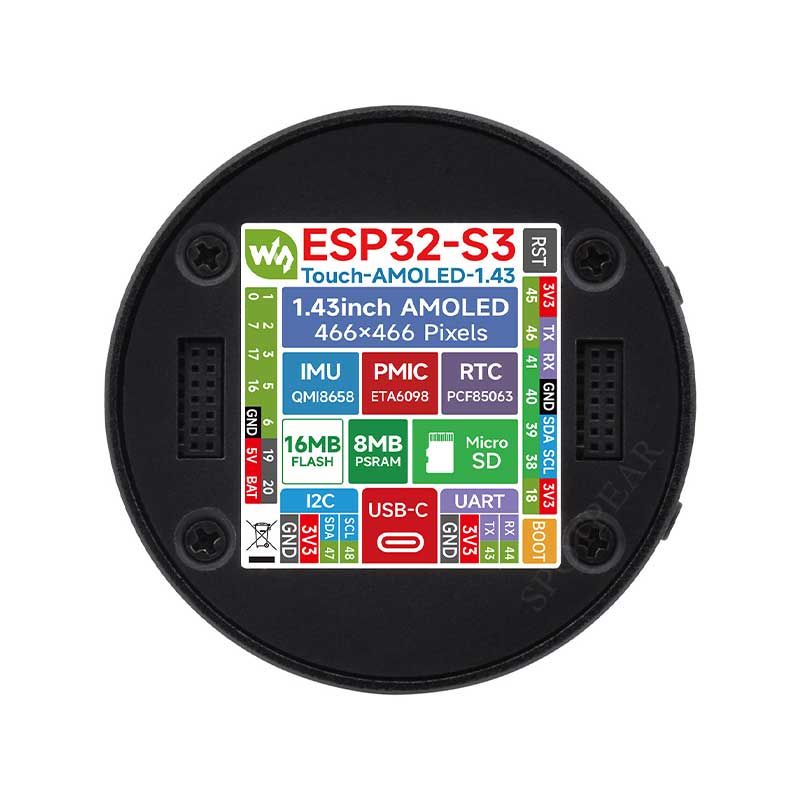

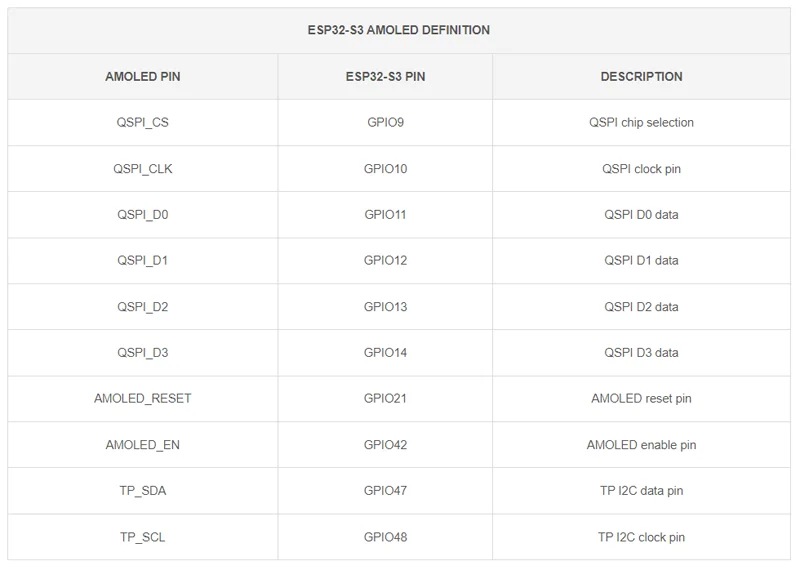

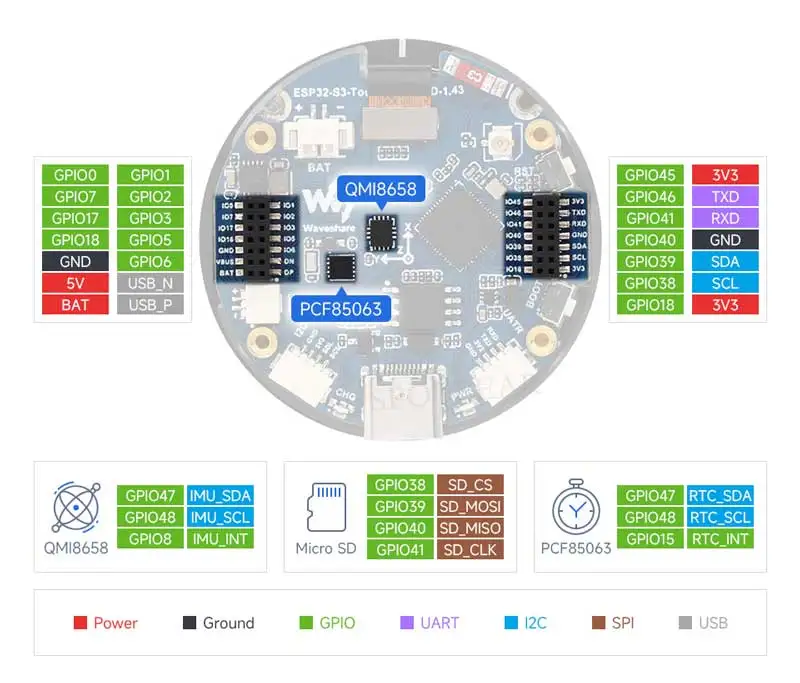

Interface Definition

Adapting Multiple GPIO Interfaces, Offers Strong Compatibility And Expandability

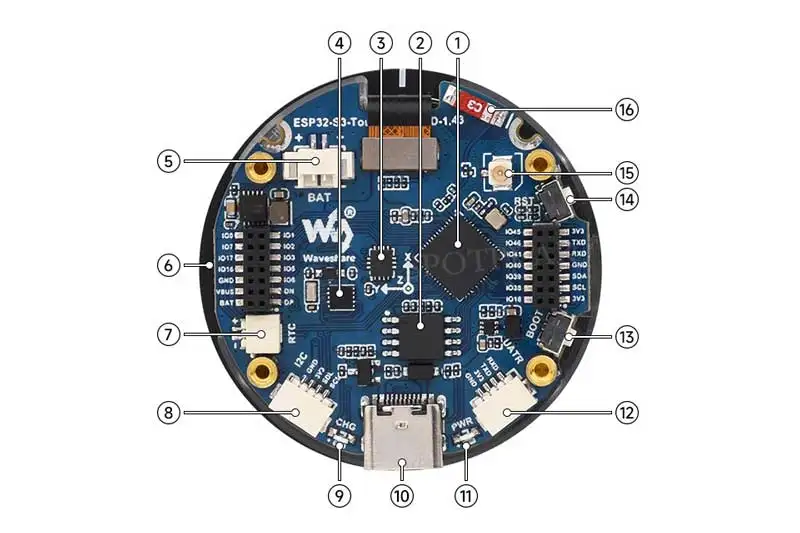

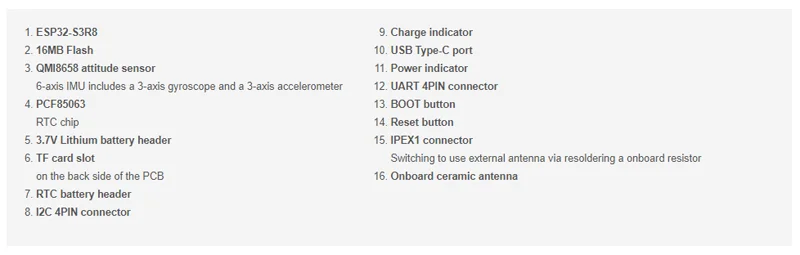

What's On Board

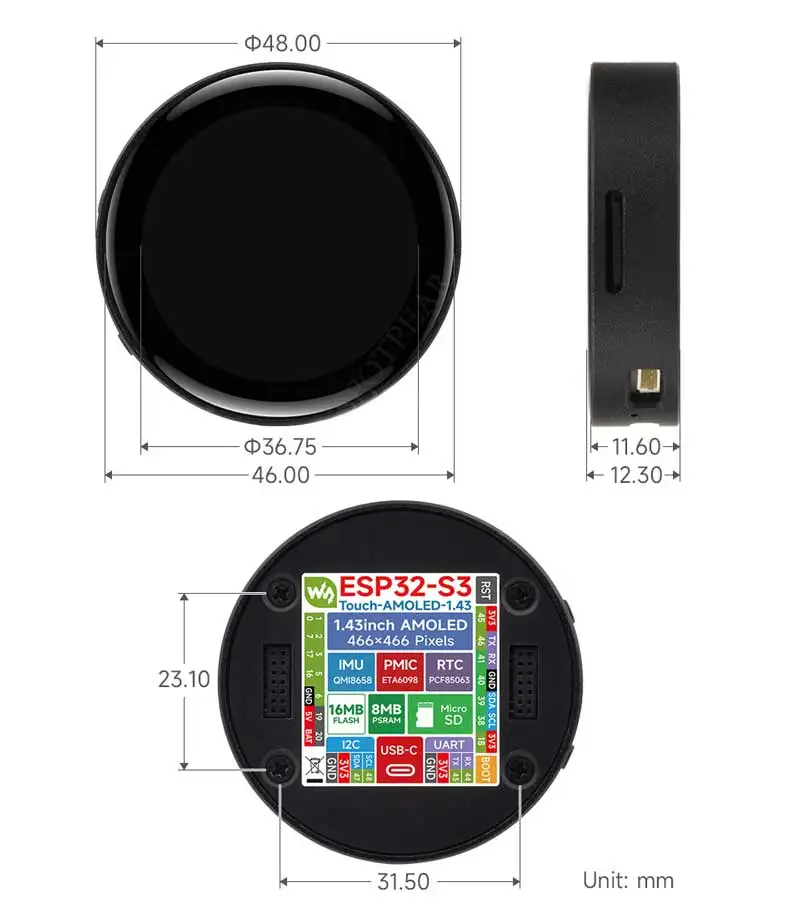

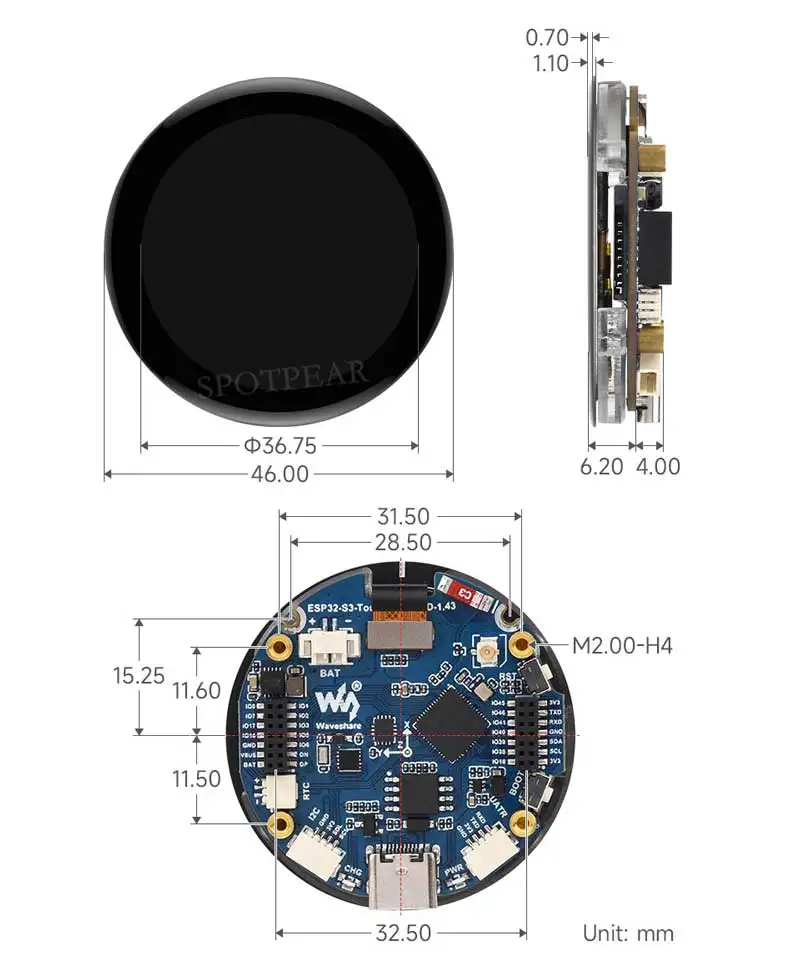

Outline Dimensions

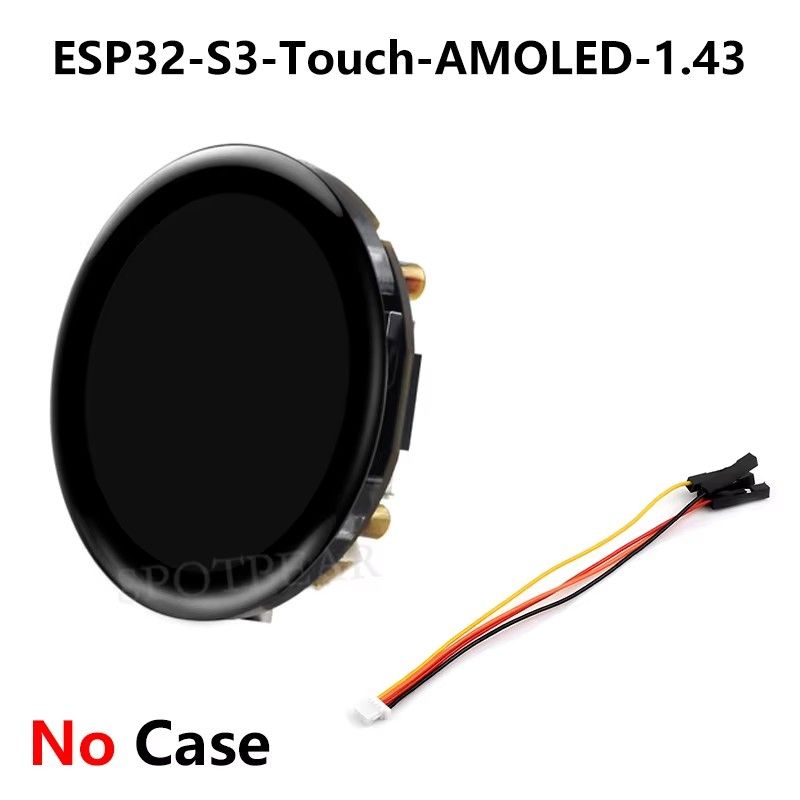

ESP32-S3-Touch-AMOLED-1.43



ESP32-S3-Touch-AMOLED-1.43-B




Package Contains

[] ESP32-S3-Touch-AMOLED-1.43 x1

[] ESP32-S3-Touch-AMOLED-1.43-B x1
