1.note
The threaded connection type is M8 male thread by default, but M5 thread can be customized. Please contact us if you need an M5 thread
Default Parameters
Power Supply: DC 10–30V
Temperature Range: –40 to 85℃, customizable up to 150℃ maximum tolerance
Vibration: 0–50 mm/s
Frequency: 10–1600 Hz / 10–5000 Hz optional
Installation Method: Threaded / Magnetic optional
Output: RS485 / 4–20 mA / 0–5 V / 0–10 V
Protection Rating: IP67

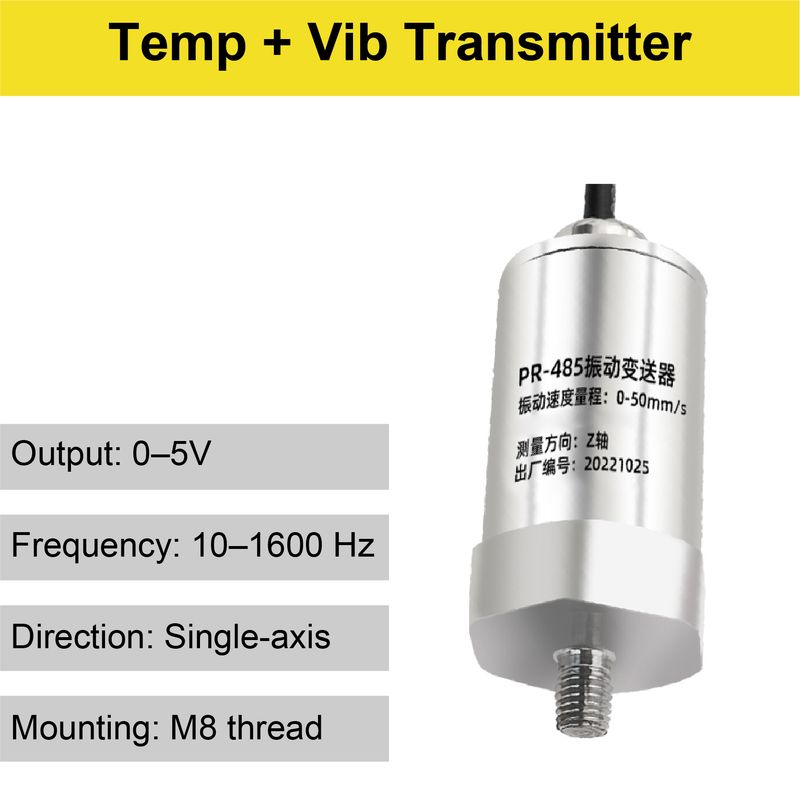

Specifications: Vibration transmitters available in single-axis and three-axis versions.
Single-axis: Measures vibration value and temperature
Three-axis: Measures X, Y, Z axis vibration, displacement, and temperature
Parameter | Value |
Frequency Range | 10–1600Hz / 10–5000Hz |
Vibration Speed Range | 0–50 mm/s |
Vibration Displacement Range | 0–5000 μm |
Acceleration Range | ±16g |
Temperature Range | –40°C to +150°C (default 85°C) |
Accuracy | Vibration ±1.5% / Temperature ±0.4°C |
Protection Level | IP67 (waterproof & oilproof) |
Power Supply | DC 10–30V |
Output Signal | RS485 /4-20MA/0-5V/0-10V |
Installation | Magnetic / Threaded |
High Precision Monitoring
Accurate measurement of vibration (velocity, displacement, acceleration) and temperature ensures reliable diagnostics.
Multi-parameter & Spectrum Analysis
Supports time-domain and frequency-domain analysis, including bearing fault feature detection.
Durable & Stable
Stainless steel housing with sealed design, IP67 protection against water and oil.
Flexible Communication
Multiple options including RS485, NB, LoRa, for seamless cloud connectivity.
Easy Installation
Magnetic, threaded, or adhesive mounting to suit various applications.
Ideal for machine rooms, pipelines, workshops, warehouses, greenhouses, hospitals, laboratories, power systems, and smart buildings.










Q1: What parameters can this transmitter measure?
A1: Single-axis models measure vibration and temperature; three-axis models measure vibration, displacement, and temperature across X, Y, and Z axes.
Q2: What is the measurement accuracy and range?
A2: Vibration speed: 0–50 mm/s, displacement: 0–5000 μm, temperature: –40°C to +150°C, with high accuracy (±1.5% vibration, ±0.4°C temperature).
Q3: What communication options are available?
A3: RS485, LoRa, NB, Wi-Fi, and 4G. All can be connected to a free cloud platform for data monitoring.
