Woodworking 45 90 Degrees Double Saw Blade Melamine MDF Plywood Wood Cutting Machine Precision Sliding Table Panel Saw Machine
Includes all taxes
Meet your Seller
-
$1,210.95Sold by BILLIONS BIRDS
Description
Woodworking 45 90 Degrees Double Saw Blade Melamine MDF Plywood Wood Cutting Machine Precision Sliding Table Panel Saw Machine
SLIDING TABLE PANEL SAW FEATURES:
1. Apply to processing all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels,
organic glass plates solid wood and others with wood structure and similar hardness.
2. Movable table guide track is plating chromium steel bars structure, exact and durable.
3. With oxidation treatment, the movable table surface is beautiful and hardwearing.
4. Tilt angles of main and scoring saw blades are displayed directly by a precision inclinometer.
5. Electric lifting saw blade.
6. The saw blade can be adjusted at 45 degrees.

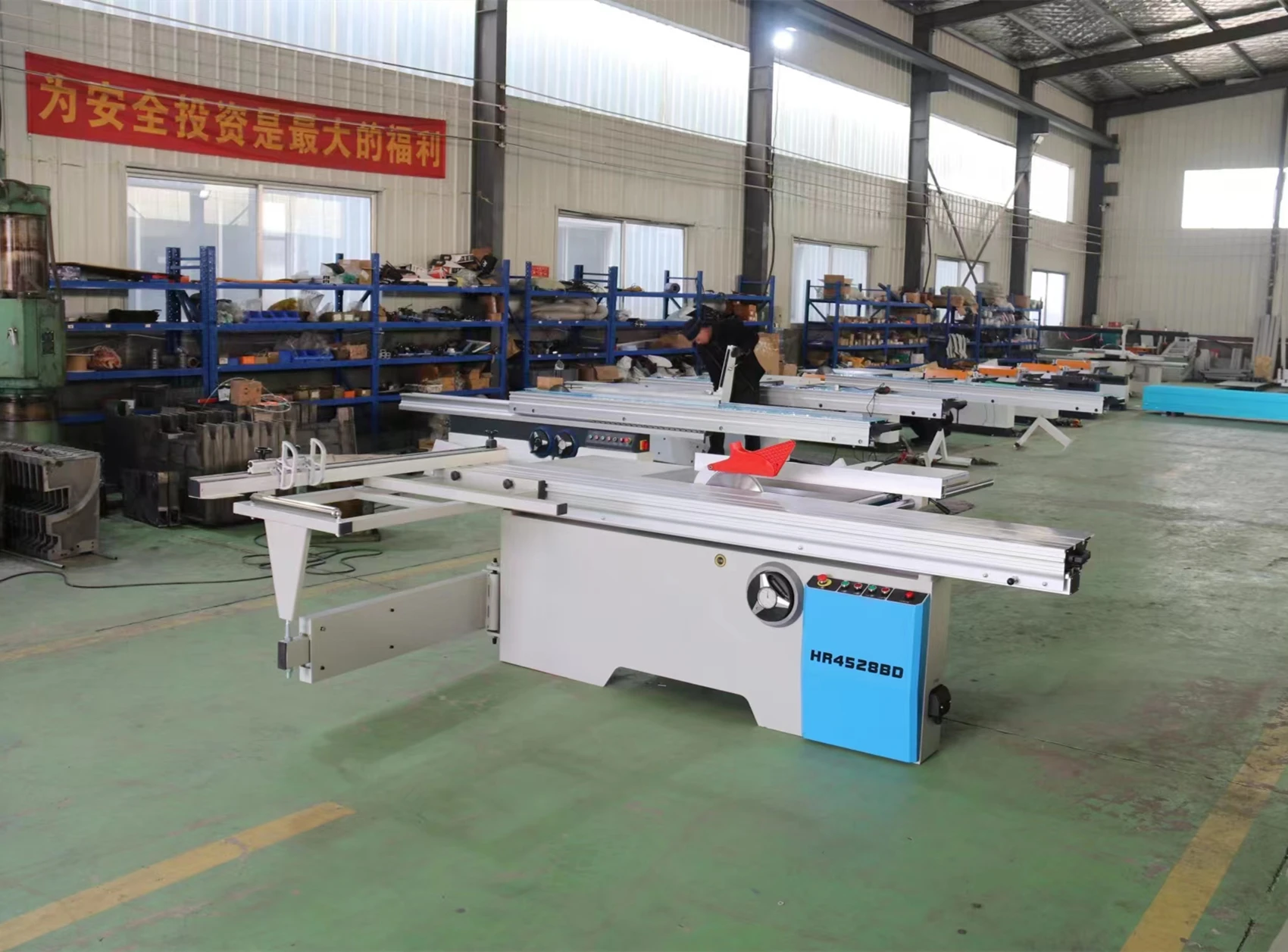

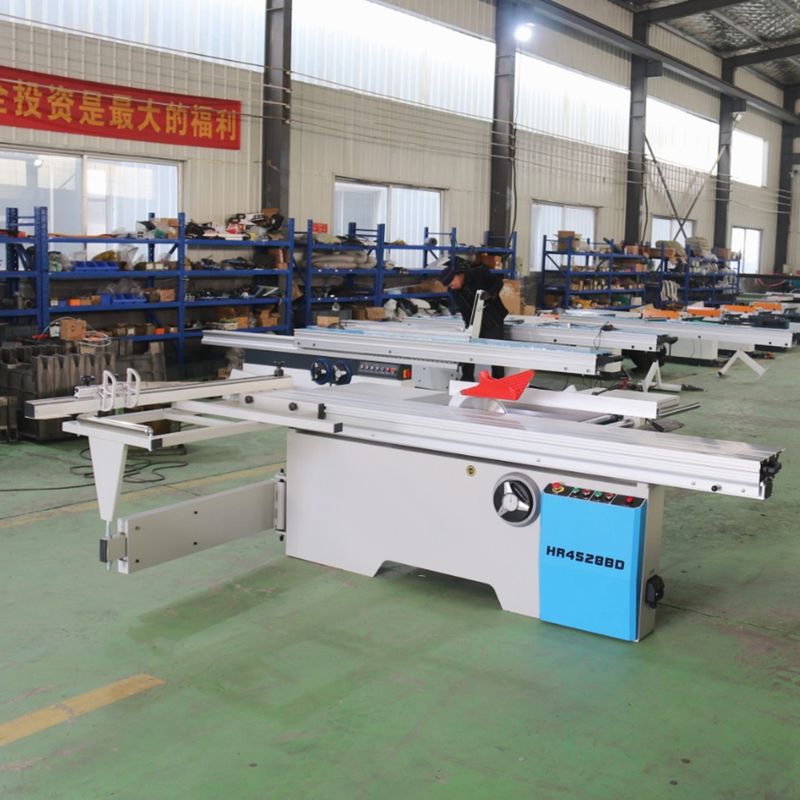

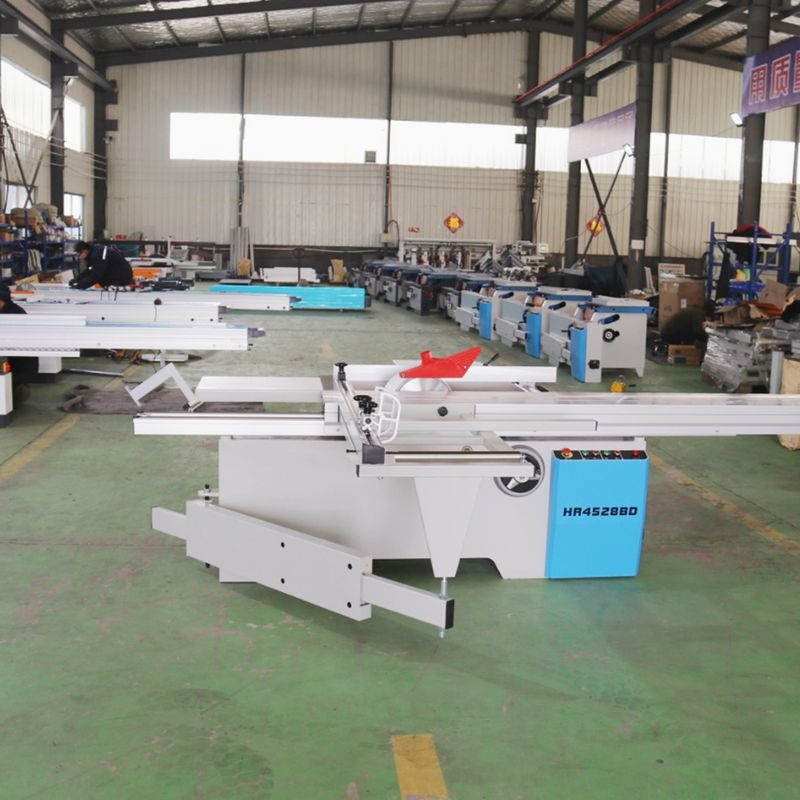

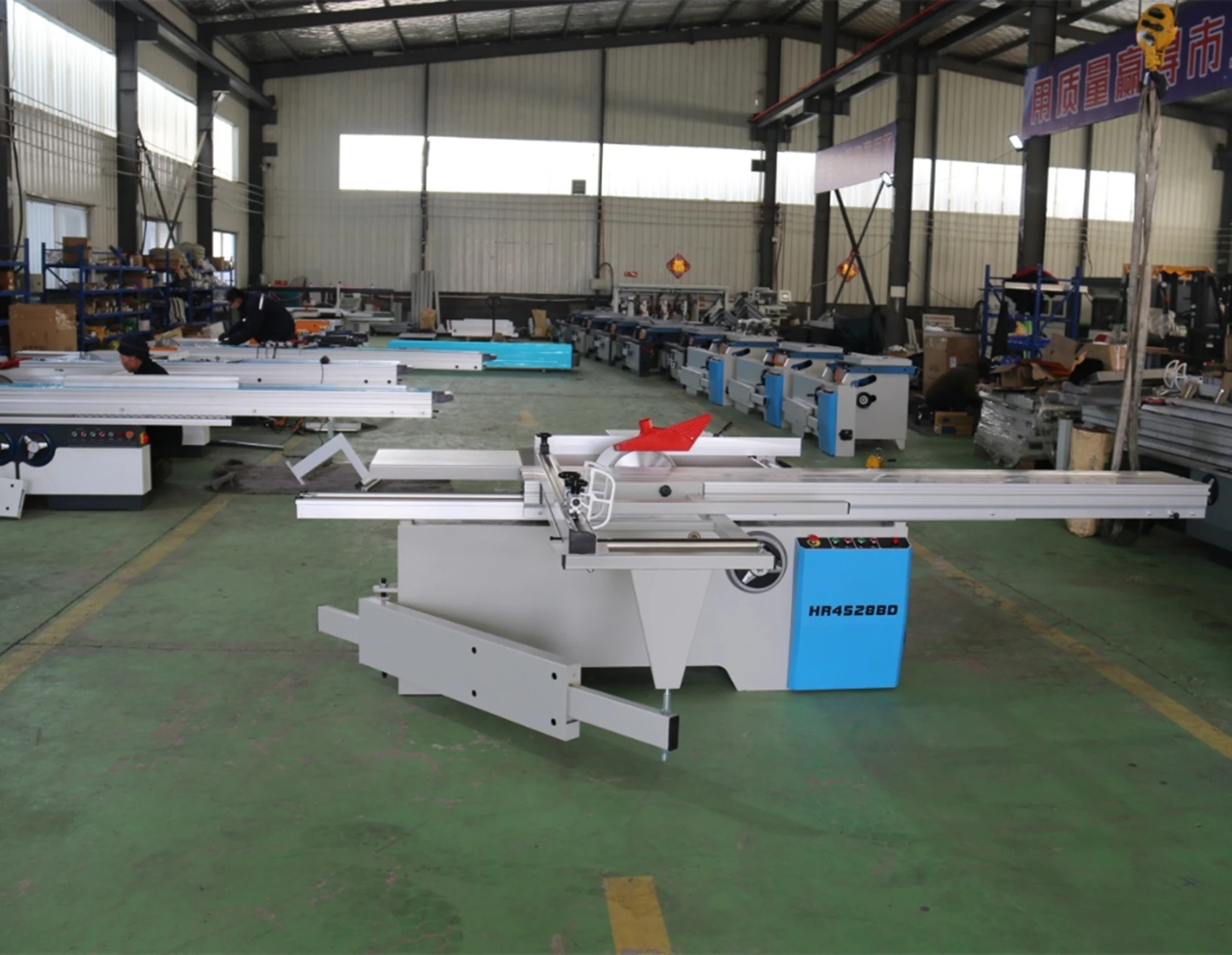

SLIDING TABLE PANEL SAW PICTURES:
Dimension of sliding table | 2800*375mm |
Gross cut capacity | 2800mm |
Width of cut between saw blade and rip fence | 1250mm |
Saw blade diameter | 300mm(250-300) |
Height of cut (diameter:300mm) | 85mm |
Height of cut with saw blade 300mm at 45 angle | 55mm |
Speed of main saw spindle | 4000/6000rpm |
Main spindle diameter | 30mm |
Tilting saw blade | 45 degree |
Main motor | 5.5kw |
Scoring saw blade diameter | 120mm |
Speed of scoring saw blade | 8000r/min |
Scoring spindle diameter | 20mm |
Scoring motor | 0.75kw |
Net weight | 600kg |
Gross weight(with wooden package) | 700kg |
Overall dimensions | 2800*3150*900mm |
The difference between 45-degree panel saw and 90-degree panel saw
1, 90 degree panel saw can only cut 90 degree right angle.
2, 45 degree panel saw blade can be tilted, not only can cut right angle but also can effectively cut 0-45° sheet, used for solid wood furniture, panel furniture, and other manufacturers.
Features
1, Euro design sliding table, this will make the machine more stable, and greatly enhance the pressure bearing capacity of the machine.

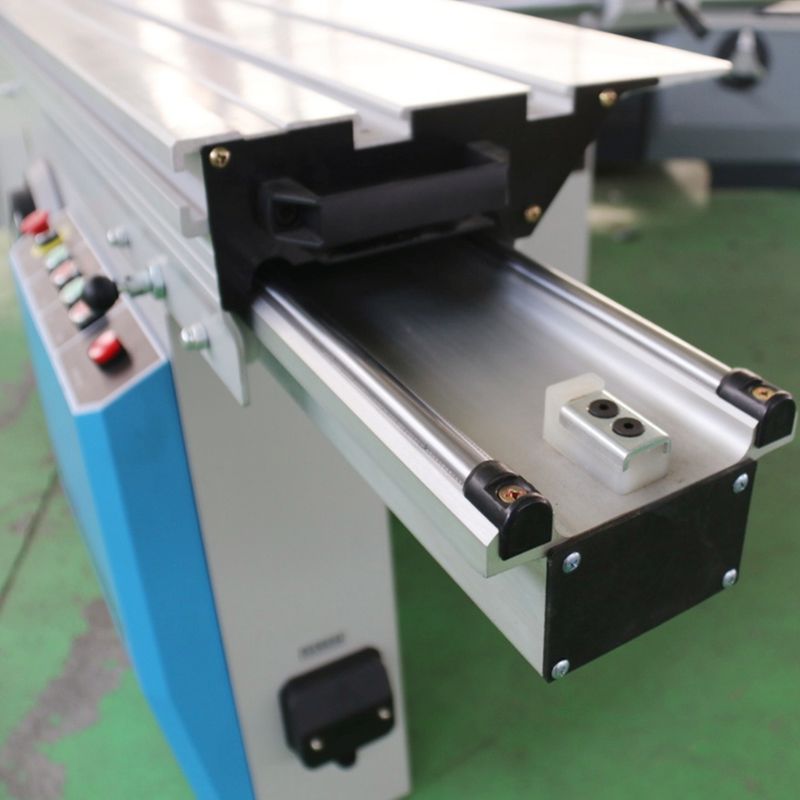

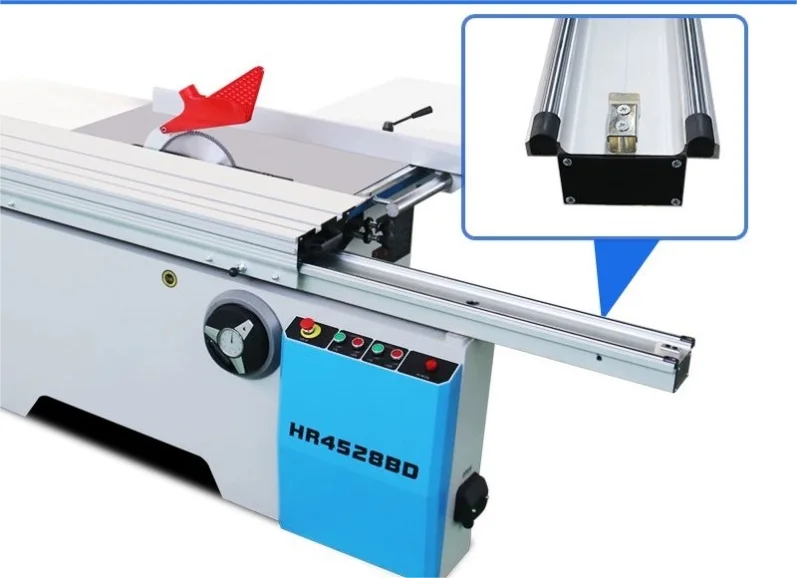

2, Circular rod structure with chromium plating, the positioning is more accurate than the linear guide, the push table is smoother.
3, Big ruler, made of aluminum alloy material, stable and non-displacement, effectively guarantees precision in the cutting process, can increase the stretching space, promote smoothness, and save time and labour.
4, Imported Swedish skf bearings, low noise, smooth operation, durable, cost 3-5 times the cost of ordinary bearings.
5, Upgrade large motor, the main motor power is 5.5kw, the scoring motor power is 1.1kw, the power is strong, and the service life is long.
6, Main and scoring saw blade, first slotted by a scoring saw, followed by a main saw can easily cut the sheet to prevent chipping burrs, in addition, the size of the saw blade can be used alone.
7, Heavy rip fence, the cutting board is more precise, the error is controlled within 10 wires, and the thick chrome-plated round bar is used on the mould column to improve the bearing pressure of the plate during vertical cutting.

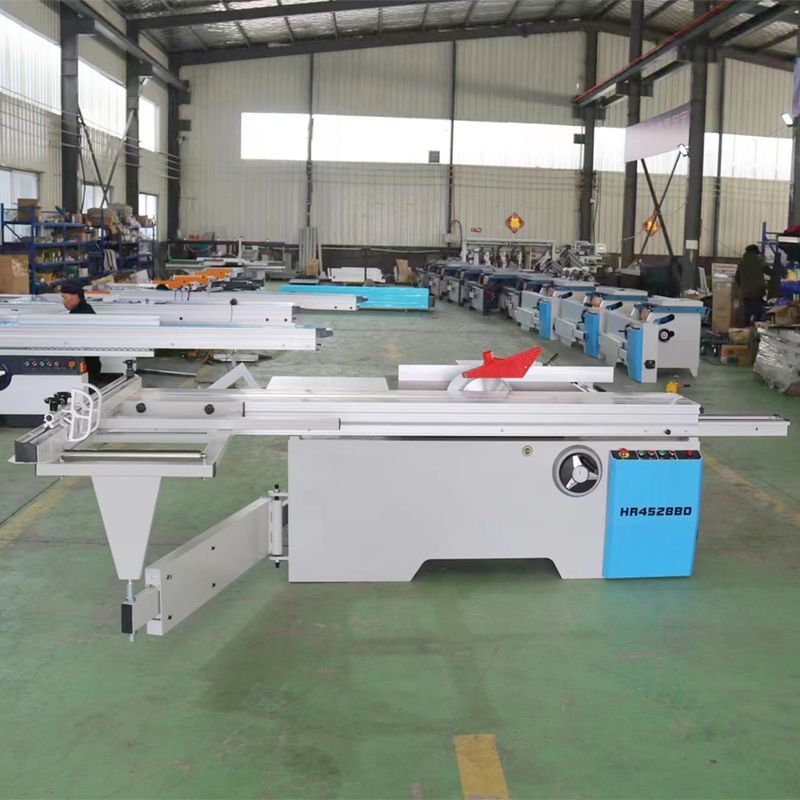

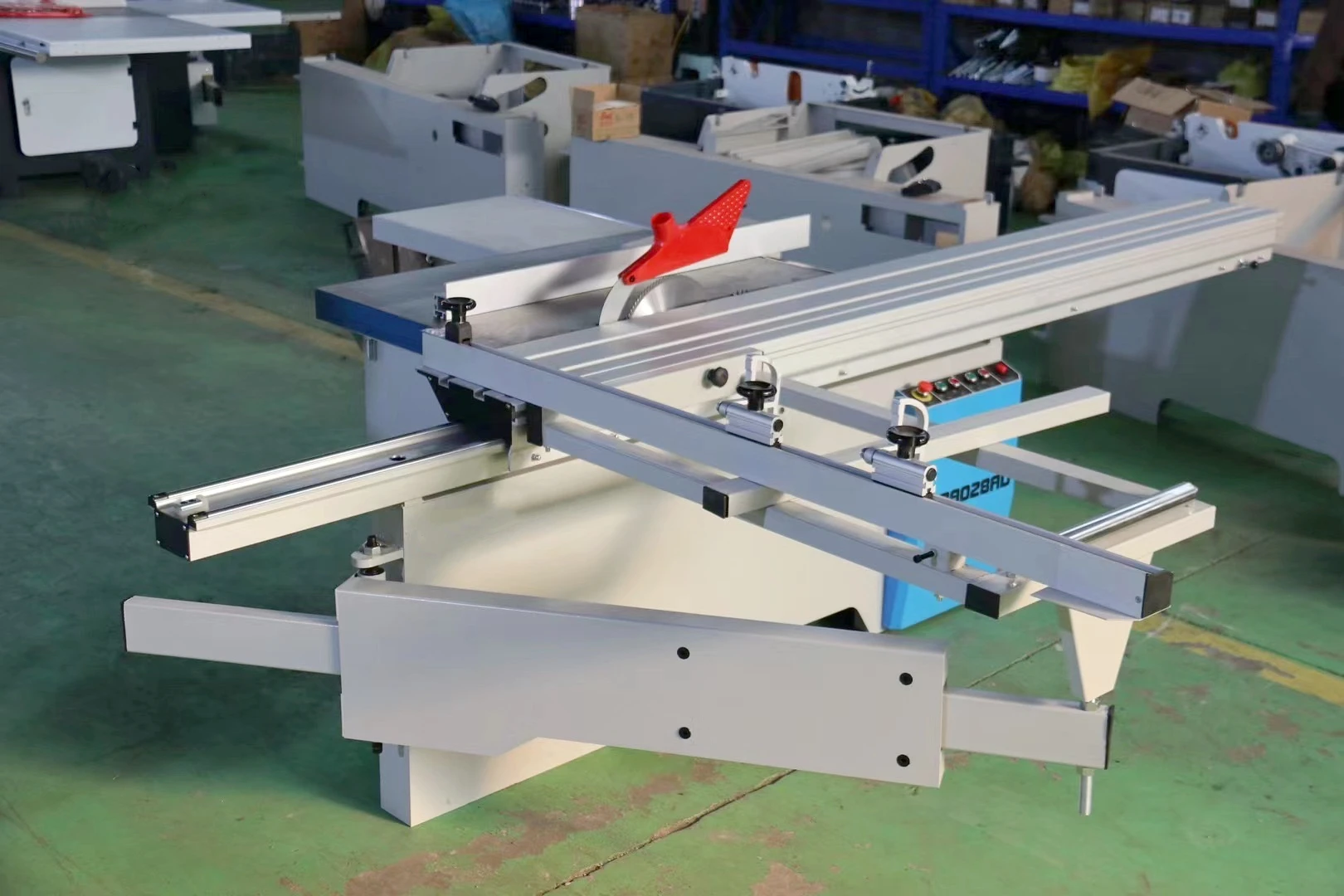

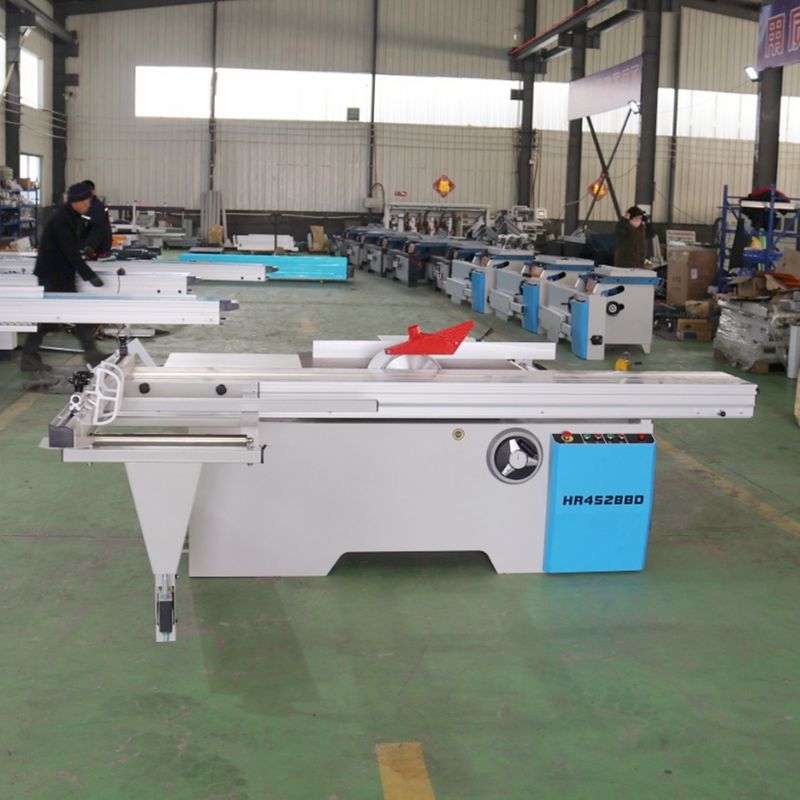

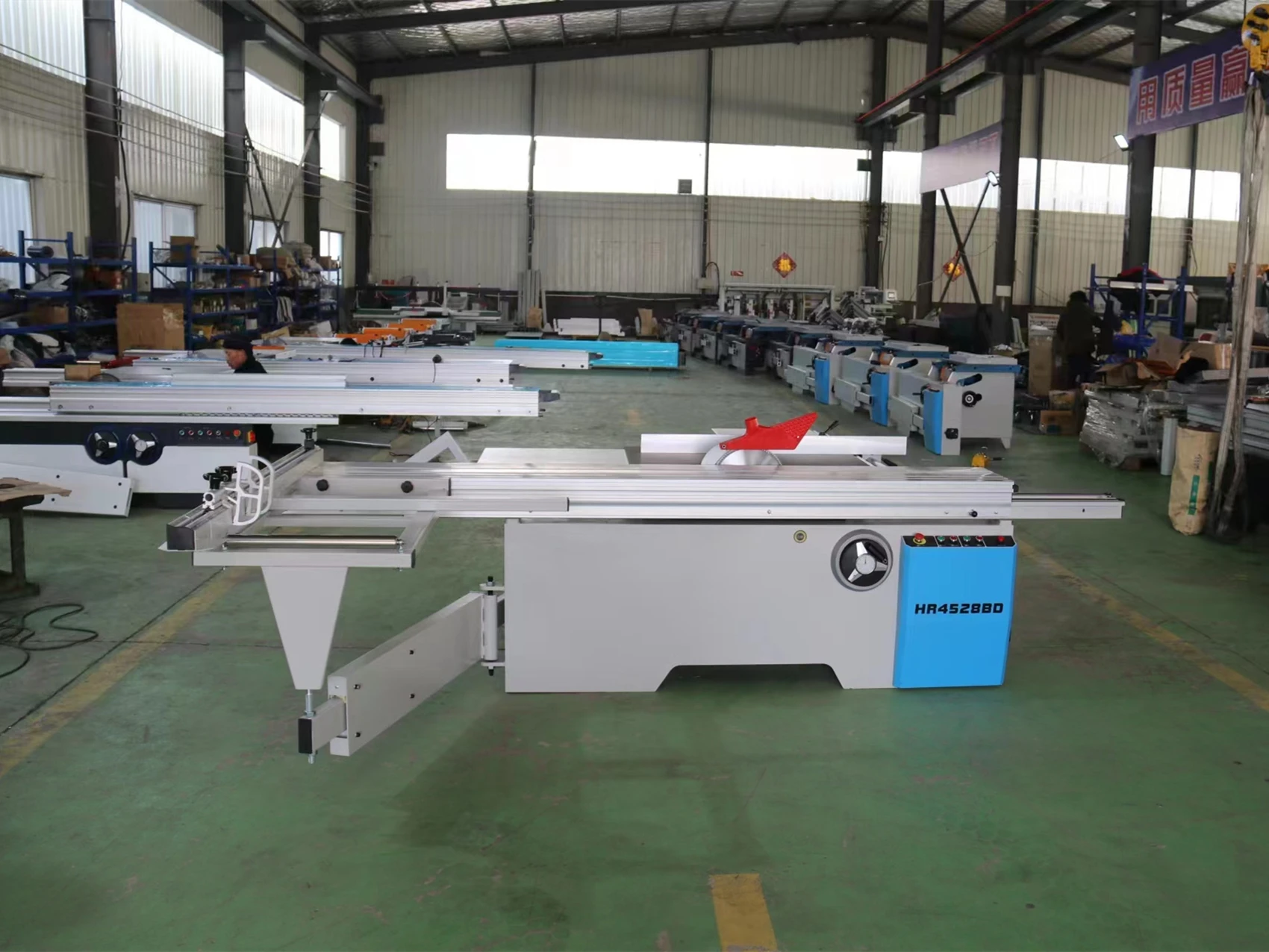

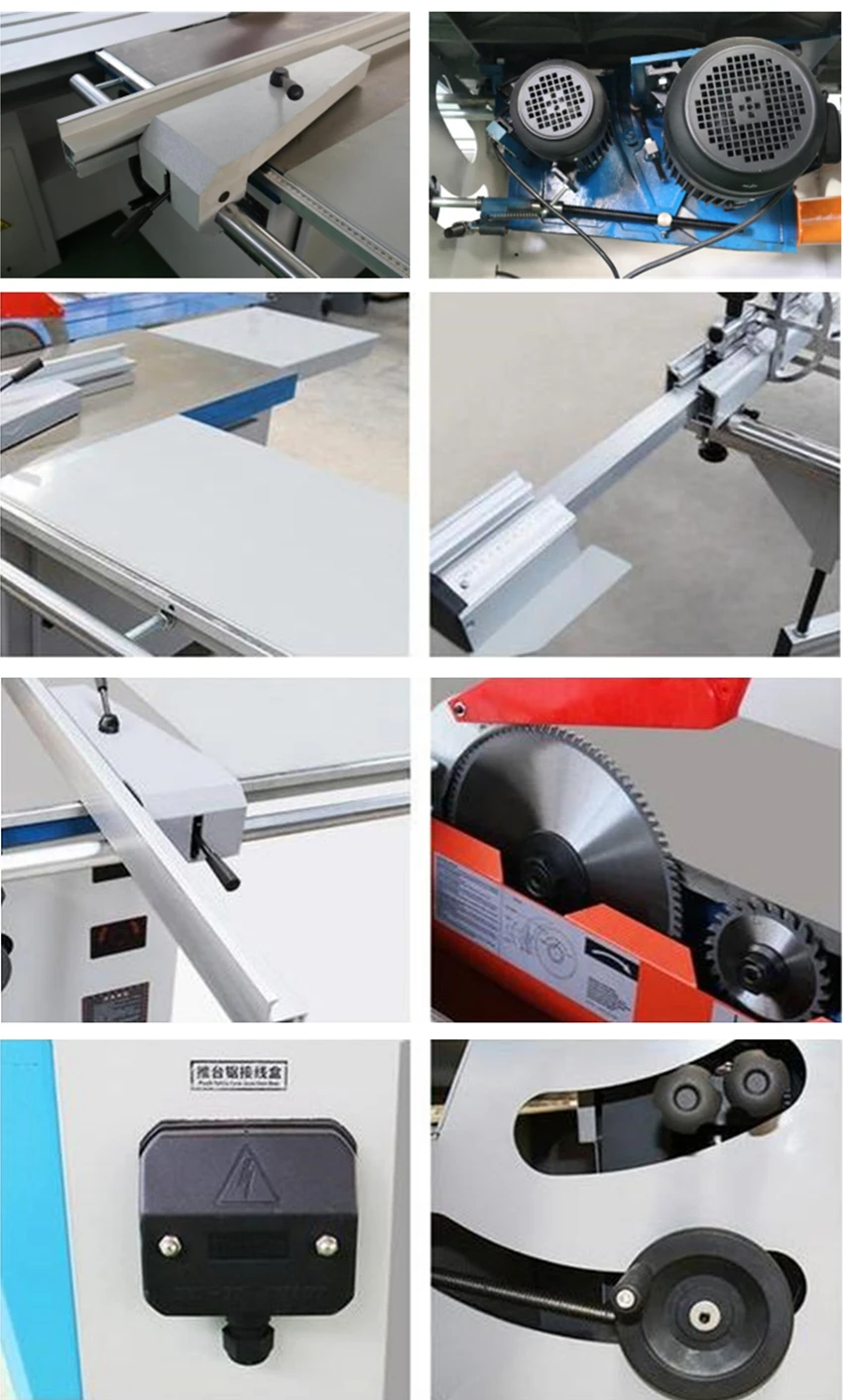

Sliding Table Panel Saw Detailed Pictures:
Application
It is used for cross-cutting of various kinds of wood-based panels, such as veneers, particleboards, fiberboards, plywood and solid wood panels, aluminum alloys, plexiglass panels, etc.
SLIDING TABLE STRUCTURE YOU CAN CHOOSE:
1. Max. adjustable angle of main saw blade: 45º or 90º
2. Slide rail type: Altendrof structure (A), round rod structure(D) or linear structure(Z).
3. Saw blade lifting and tilting system (manual or electric)
4. Sliding table length from 1500mm to 3800mm (usually we have 1600, 2200, 2600, 2800, 3000, 3200, 3800mm).
5. All the sliding table saws have CE certification
T/T in advance or by ESCROW. We can accept 30% deposit, and the balance is paid to us before the delivery machine to you.
2, How long is the delivery time?
For standard machines, it would be 15 days; For non-standard machines and customized machines according to the client's specific requirements, it would be 30 days.
3, Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
4, How about the documents after shipment?
After shipment, we ll send all original documents to you by DHL, including the Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
5, How is the packing?
Water-proof plastic film package with foam protection in each corner
Solid Seaworthy Wood Box Package with Steel Belt
Save space as much as possible for container loading
