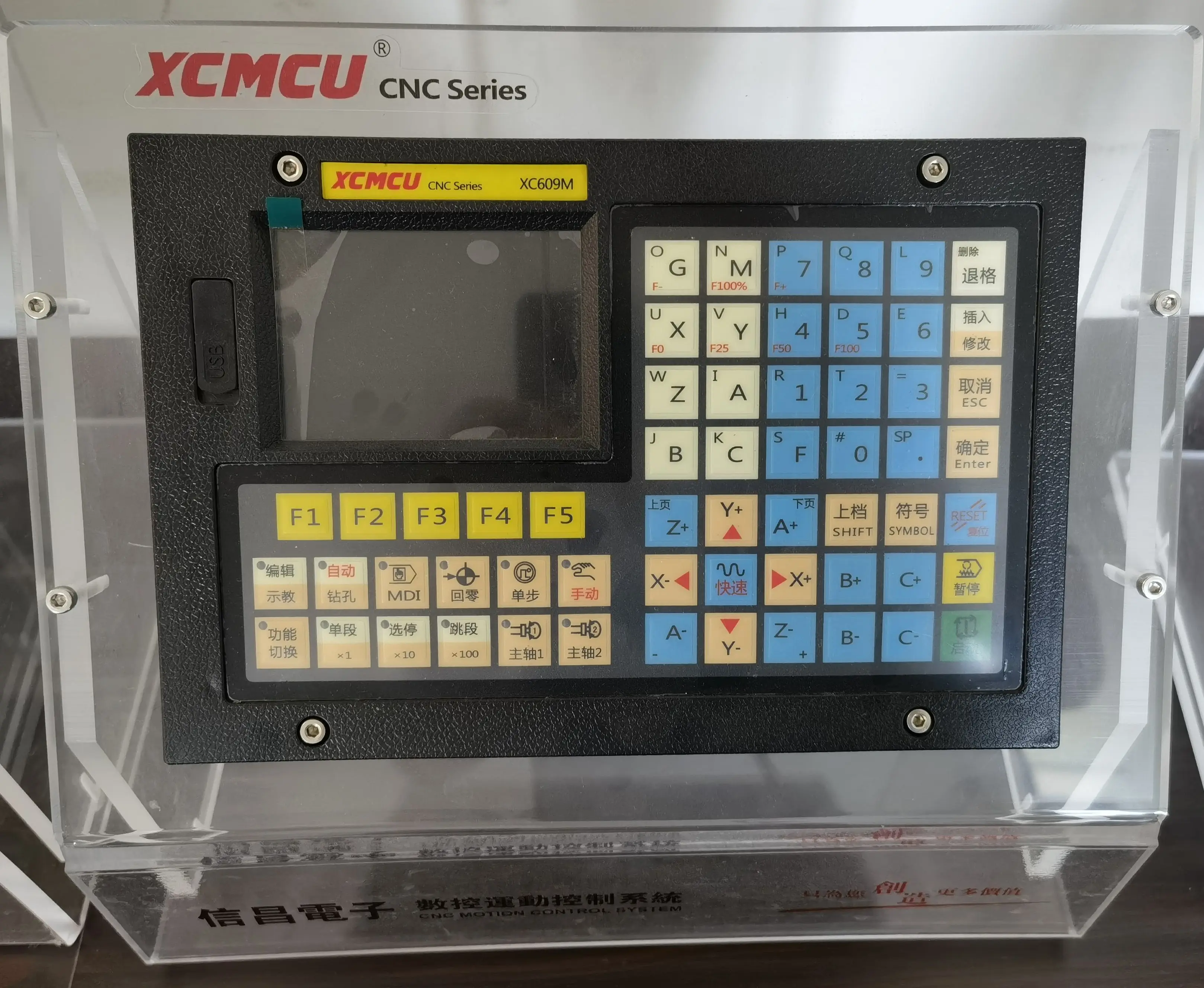

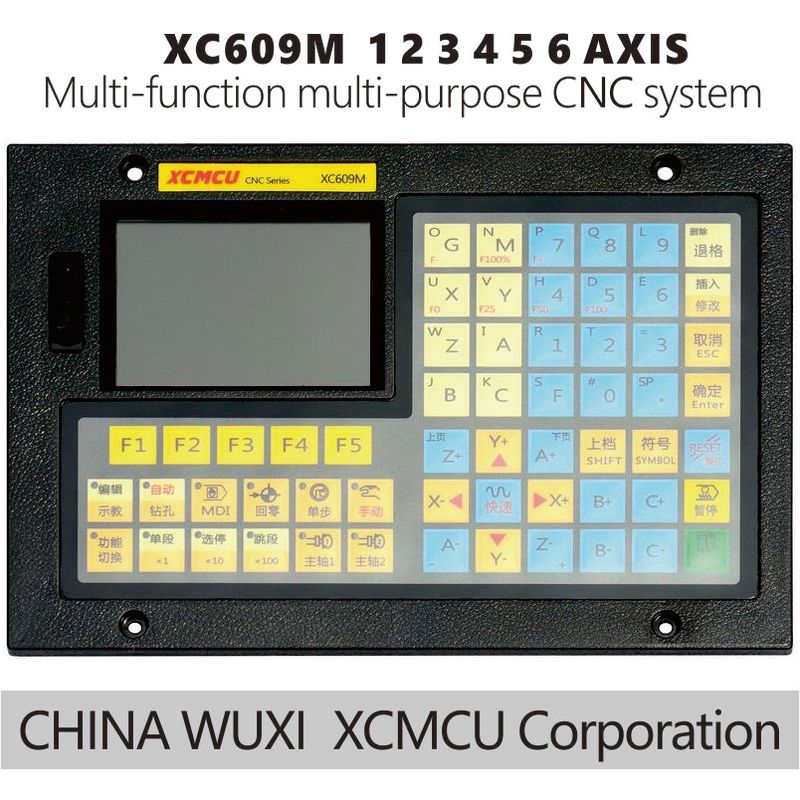

XC609M multi-function and multi-purpose CNC system is a new generation
CNC system developed by our company.Support milling, boring, tapping, drilling
and automatic feeding.001mm, high-speed, high-speed and high-performance
interpolation technology.It is the best choice for CNC drilling machine, CNC
milling machine, special machine tool, automation equipment, automatic welding
robot, feeding robot, coordinate robot, etc.
Software and hardware characteristics of XC609M CNC system:
Based
on 32-bit microprocessor, full linkage, 0.001mm interpolation accuracy and
maximum speed of 12m / min.
Three
programs (one main program and two auxiliary programs) can be run at the same
time, which is convenient for processing, loading and unloading.
It

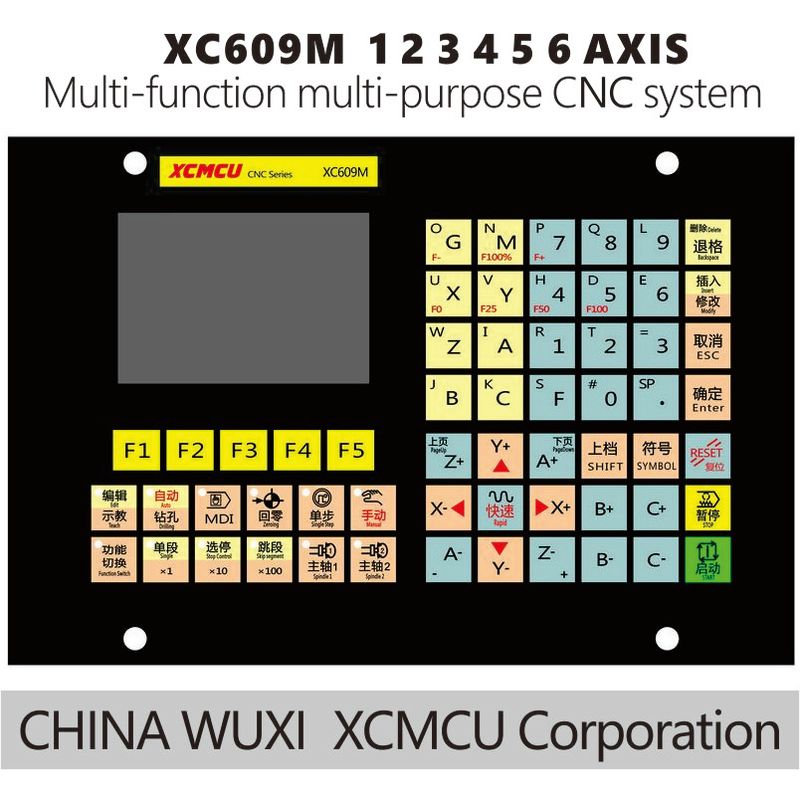

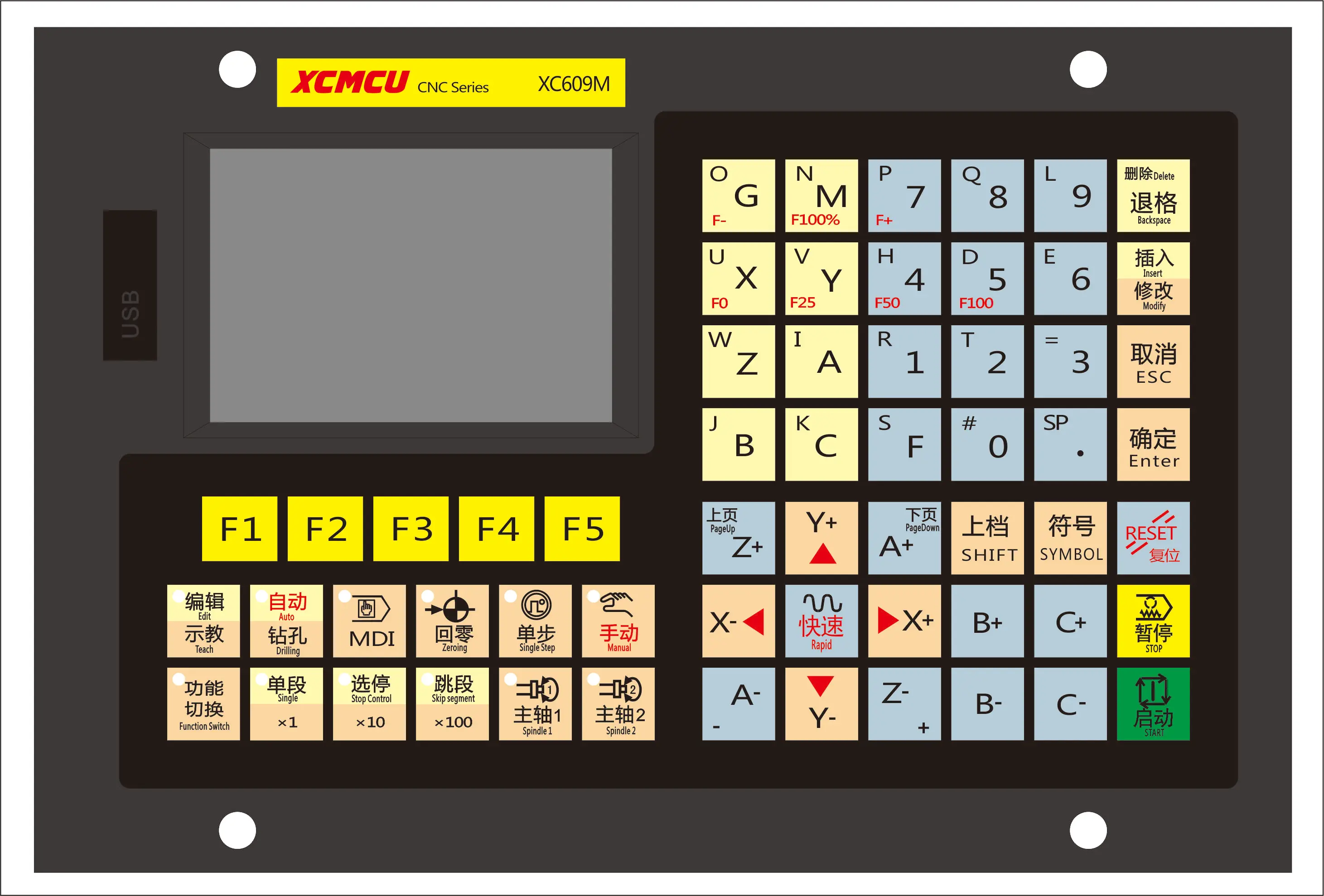

adopts 3.5 inch color wide screen LCD with resolution of 480x320 and windows
interface style.Equipped with 5 soft function keys, easy to operate and
learn.Provide parameter classification, alarm log, system diagnosis and other
rich display interface to facilitate debugging and maintenance.
It
is compatible with FANUC system instruction.
There
are 40 kinds of G commands, supporting drilling cycle and tapping cycle.
Full
screen editing of part program, built-in 512M mass program space, can store n
part programs.
With
USB interface, it supports file reading and writing and data backup of U disk.
Input
24 (expandable to 96) points, output 24 (expandable to 96) points (customized),
flexible and convenient.
The
Chinese / English operation interface, complete help information, more
convenient operation.
The
system adopts acceleration and deceleration control before interpolation.
It
supports multi-level operation authority, facilitates equipment management, and
has time limited system locking function.
Support G code file of third party software.
basic | |
Number of control axes | Axis 1 ~ 6 (x, |
Number of linkage axes | Full linkage |
Simulation spindle | 2 |
Spindle monitoring | yes |
Minimum instruction unit | 0.001 mm |
Maximum instruction value | ±99999999×Minimum instruction unit |
Rapid feed rate | 12000 mm / min |
Rapid feed rate | F0, 25%, 50%, |
feed rate | 12000 mm / min |
Rate feed rate | 0~150% |
Electronic gear ratio | 1~65535: 1~65535 |
Automatic acceleration and deceleration | yes |
location | G00 (linear |
interpolation | Linear (G01), |
Return to reference point | Automatic return |
LCD | 3.5-inch TFT LCD |
MDI software key | Five |
Single step feed | x1,x10,x100 |
communication interface | U disk interface |
External handwheel interface | yes |
I / O interface | 24 / 24 |
Pause (SEC) | yes |
Quasi stop state | yes |
Accurate stop | yes |
Memory trip check | yes |
MDI operation | Yes, it supports |
reset | yes |
Trip switch | yes |
Single section operation | yes |
Program protection switch | yes |
Self diagnosis function | yes |
Emergency stop | yes |
Power Supply | DC24V |
Coordinate system | Machine |
Automatic coordinate system setting | yes |
Decimal point input | yes |
Auxiliary | |
Auxiliary function | M2 digit, M code |
Spindle | |
Spindle function | Double spindle |
tapping | support |
Spindle analog output | Yes, double |
Tool | |
Tool function | It supports the |
Tool compensation memory | -9999.999 ~ |
Tool compensation | Length |
Edit | |
Editing function | Parameters, |
storage capacity | 512M |
Number of stored programs | N |
Display of program name | Chinese, |
Program line lookup | yes |
Optional program skip | yes |
Program switch | yes |
display | |
display | Chinese, English |
Display of processing time and number of parts | yes |
Spindle speed, M / s command | yes |
