XY6008 XY6020 DC Regulated Power Supply 60V Maintenance Step-down Module TTL/WIFI Connected LCD Stabilization Buck Conver Module

$140.43

Includes all taxes

Color

Ship from

China

Ship to

By shipping method

Meet your Seller

$140.43

Sold by BILLIONS BIRDS

Delivery options

Ship Only

Description

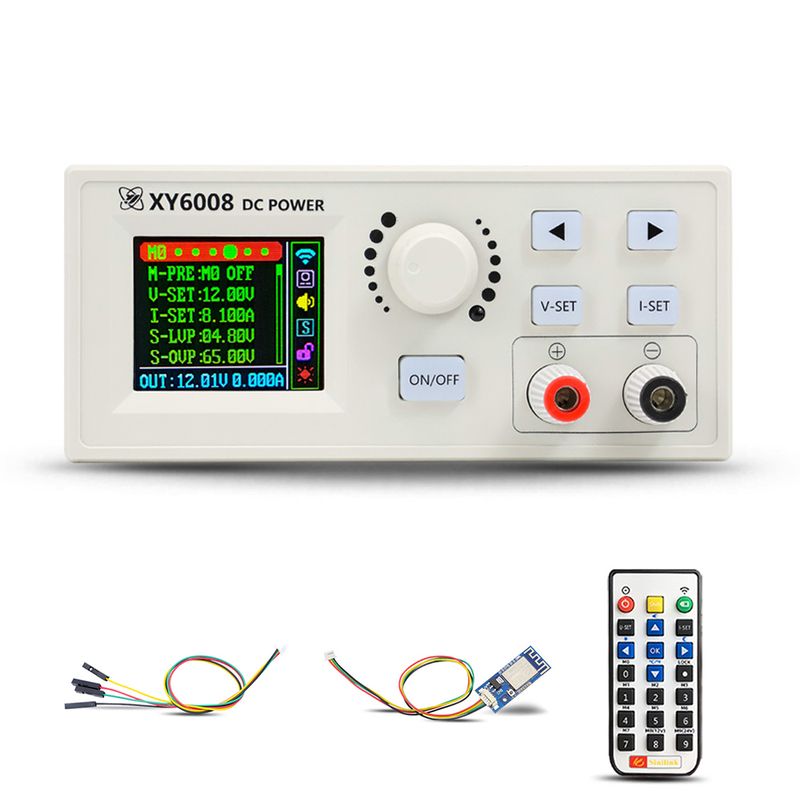

XY6008 / XY6008-W:

This digital control direct current voltage stabilization power supplys, is compact in size, with full digital keyboard, minimal operation, convenient and fast. With a full-view 1.8inch color LCD display, the large screen supports four-way rotation. Screen brightness settings, 6 levels(0-5 level) of brightness adjustment design. Display color adjustable design, support setting 8 colors. 2 models are available, you can choose XY6008 or XY6008-W according to the use requirements.

Features:
1. Digital control direct current voltage stabilization power supplys, is compact in size, with full digital keyboard, minimal operation, convenient and fast.
2. Fine workmanship, adopts quality component, uses SMT process production, can provide stable and reliable working performance.
3. With a full-view 1.8inch color LCD display, the large screen supports four-way rotation, which makes it can be used horizontally or vertically, and can be controlled by remote controller.
4. Screen brightness settings, 6 levels(0-5 level) of brightness adjustment design, you can adjust the brightness based on current lighting conditions.
5. Display color adjustable design, the theme background color, output voltage color, output power color, theme foreground color, output current color, voltage and current color can be set with free, support setting 8 colors.
6. 2 models are available, you can choose XY6008 or XY6008-W according to the use requirements.

XY6008-W Only:
1. Support network control, LAN penetration, real-time communication; outer net remotely control, no distance limitation.
2. Support WeChat notification, cloud record.
3. Support computers upload, cellphone APP control, support both Android and iOS system.
4. Firmware upgrade, WIFI remote upgrade, eliminating the tedious wiring, can be easily handled.
5. Support domestic weather system and global WiFi timing system.

Specifications:
Name: Step-down Module
Material: plastics
Model: XY6008, XY6008-W (optional)
Remote controller battery: 1 * CR2025 battery (included)
Screen brightness setting: 0-5 a total of 6 level
Display screen: 1.8 inch color LCD display
Input voltages ranges: 6-70. 00V
Output voltages ranges: 0-60.00V
Output current ranges: 0-8.000A
Output power ranges: 0-480.0W
Input voltages measurement resolution: 0.01V
Output voltages setting measurement resolution: 0.01V
Current setting measurement resolution: 0.001A
Input voltages measurement accuracy: ±(1%+5 words)
Output voltages setting and measurement accuracy: (0.4%+1 word)
Output current setting and measurement accuracy: ±(0.5%+3 words)
Typical output ripples: 100mv VPP
Product working temperature ranges: -10℃--40℃
Capacity measurement ranges: 0-99999Ah
Energy measurement ranges: 0-99999Wh
Statistical error of capacity and energy: ±2%
Running for time measurement ranges: 0-1000h
Maximum output voltages: (input voltages÷1.1)-2
Cooling fan turned on: current>2A power>50W temperature>50℃
The cooling fan is turned on and then turned off: current <1.5A power <45W temperature <45℃
Over temperature protections: default 110℃
Item size: 125 * 55 * 66mm / 4.92 * 2.17 * 2.60in
Package size: 150 * 90 * 100mm / 5.91 * 3.54 * 3.94in
Package weight: 258g / 9.10ounce

Packing List (XY6008):
1 * Step-down Module
1 * Remote Controller
1 * Serial Port Communication Cable
OR
Packing List (XY6008-W):
1 * Step-down Module
1 * Remote Controller
1 * Serial Port Communication Cable
1 * Wifi Communication Module

XY6020 / XY6020-W:

This is a kind of quality constant voltage constant current direct-current powersupply, with 60V output voltage, 20A output current, 1200W output power, strong and powerful. Large size 1.8inch colorful LCD screen, high brightness, multiple informations will displayed in one screen.

Features:
1. 1.8in colorful LCD screen, horizontal and vertical screen adjustable.
2. Made of fine quality material, safer to use.
3. 8 display colors can be matched freely.
4. With a remote controller for easy and convenient operation.
5. Support over temperature protections and automatically stop charging when over temperature.
6. High accurancy circuit board, stable performances.

Specifications:
Type: with Wi-Fi module, without Wi-Fi module (optional)
Input voltage range: 6-70V ±1%
Output voltage range: 0-60V ±0.4%
Output current range: 0-20A ±0.5%
Output power range: 0-1200W
Input voltage measuring resolution: 0.01V
Output voltage setting measuring resolution: 0.01V
Current setting measuring resolution: 0.01V
Typical value of output ripple: 100mV VPP
Working temperature: -10 to 40℃
Capacity measuring range: 0-99999Ah ±2%
Power measuring range: 0-99999Wh ±2%
Working time measuring range: 0-1000h
Screen size: 1.8in
Remote controller battery: 1 * CR2025, 3V, 150mAH
Item size: 125 * 55 * 35mm / 4.9 * 2.2 * 1.4in
Item weight: 256g / 9.0ounce
Package size: 150 * 100 * 90mm / 5.9 * 3.9 * 3.5in
Package weight: 341g / 12.0ounce

Packing List:
1 * Power Supply Module
1 * Temperature Detector
1 * Remote Controller
1 * Serial Communication Line
