YG 10l Double Color Stripes Plastic Ablution Kettle Water Jug Pot Can Making Extrusion Blowing Blow Moulding Machine

$70,073.63

Includes all taxes

Quantity
Meet your Seller
Delivery options
  • Ship Only

Description

PLEASE NOTE:


1.Since it is a customized product, the price needs to be calculated according to specific needs, so the link price is not the final price. Since tariffs and other fees are different in each country, it is impossible to calculate all costs in advance, so door-to-door delivery requires communication and calculation of costs later.

2. The price only for reference, the specific cost based on your requirements and the destination port, please contact us for more product details and quotations


My Whatsapp:+86 183 3717 5537

MY Email:sales18yugong@yg797.com



Fully Automatic Double Colors Plastic Water Pot Making Muslim Ablution Kettle Pot Toilet Wash Jug Extrusion Blow Molding Machine

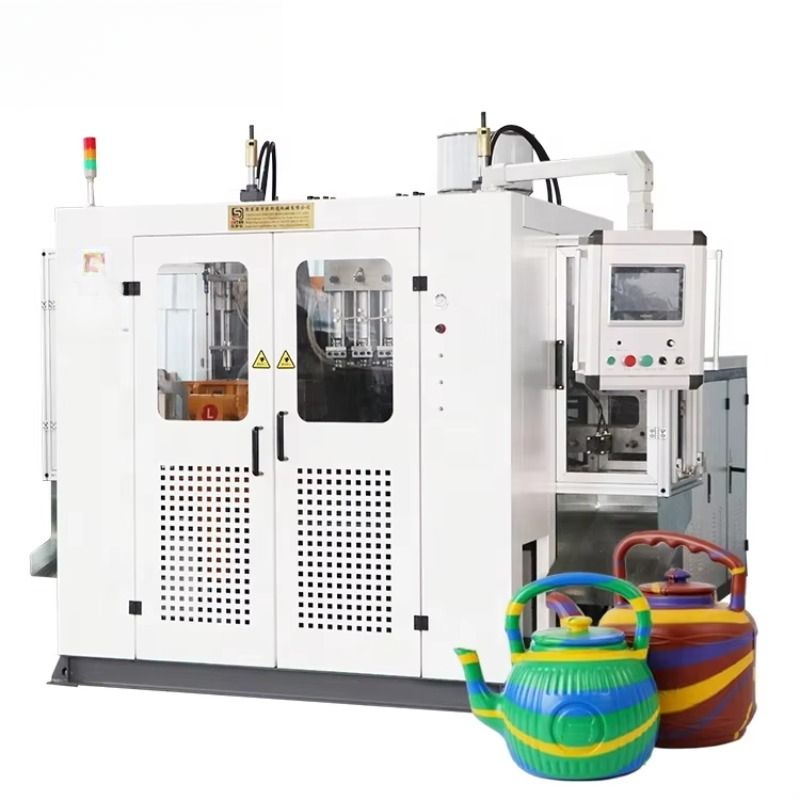

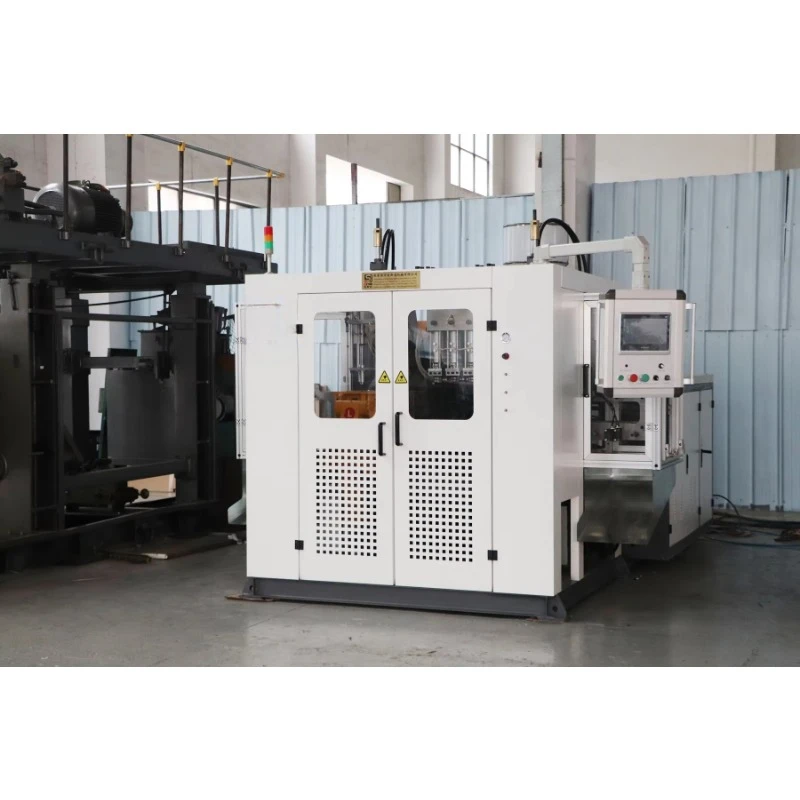

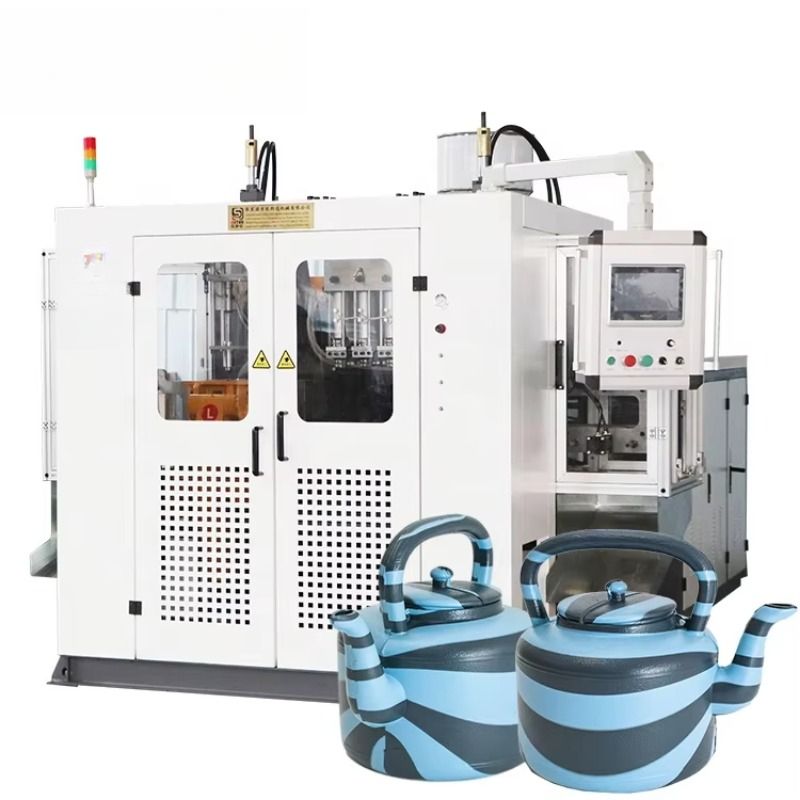

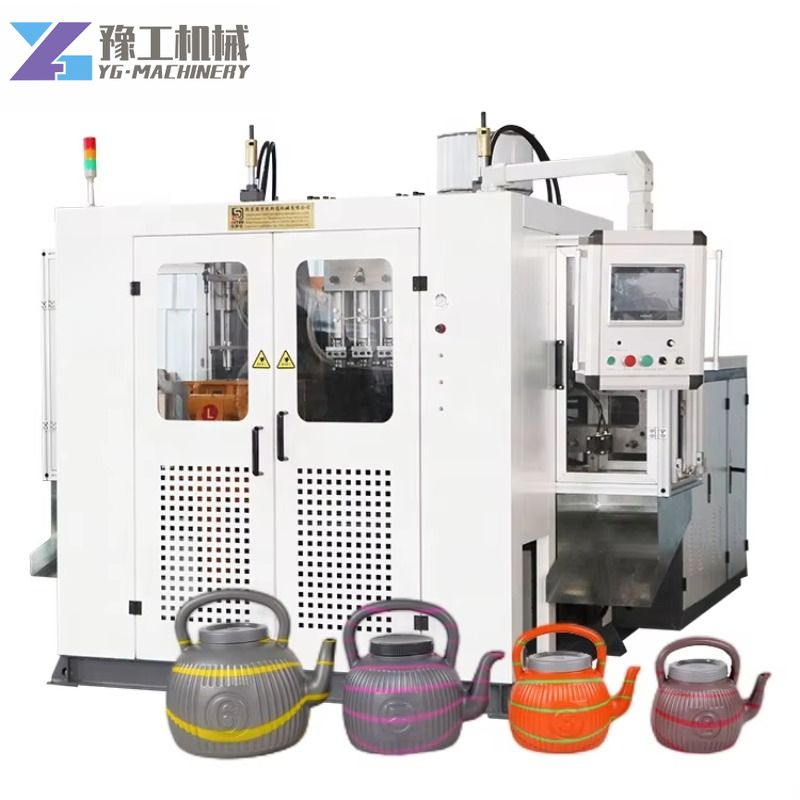

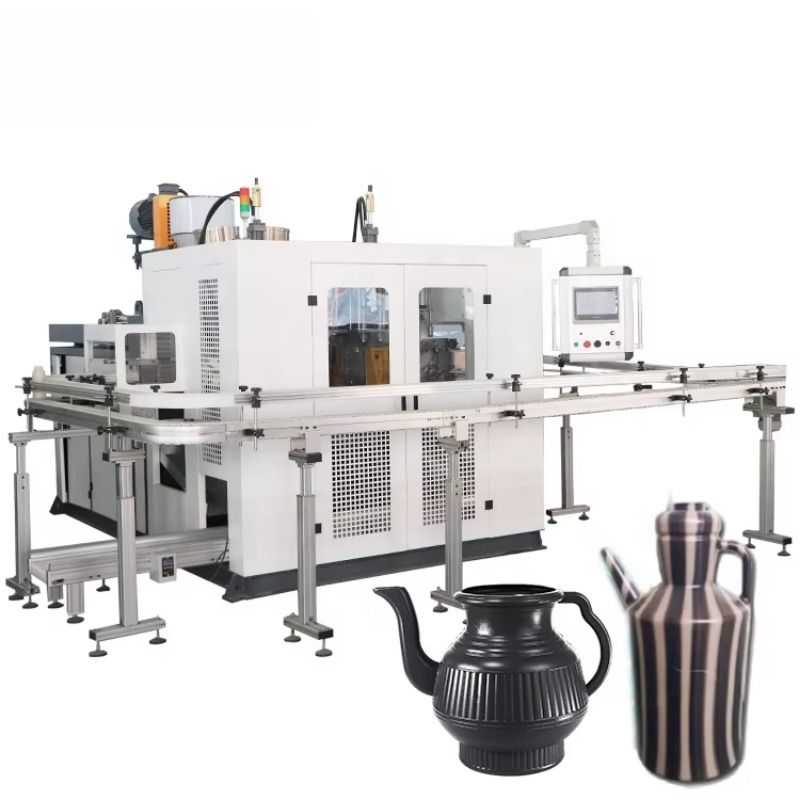

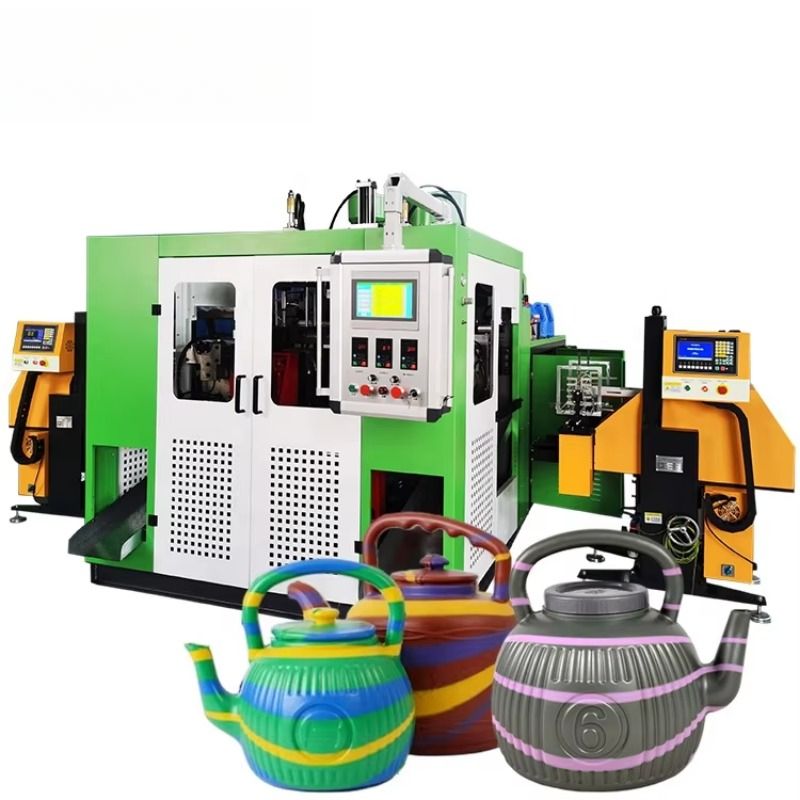

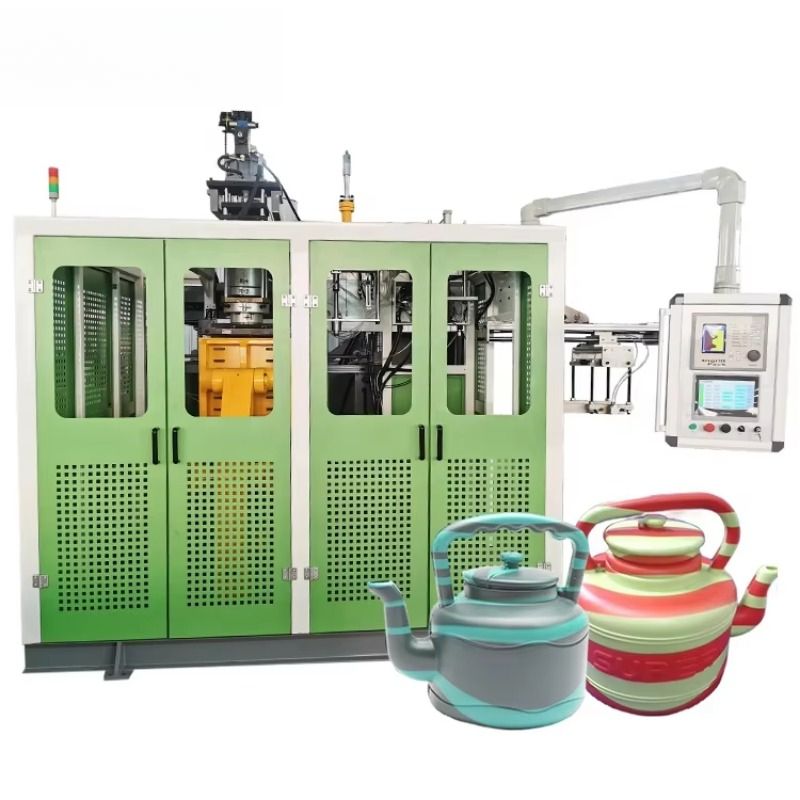

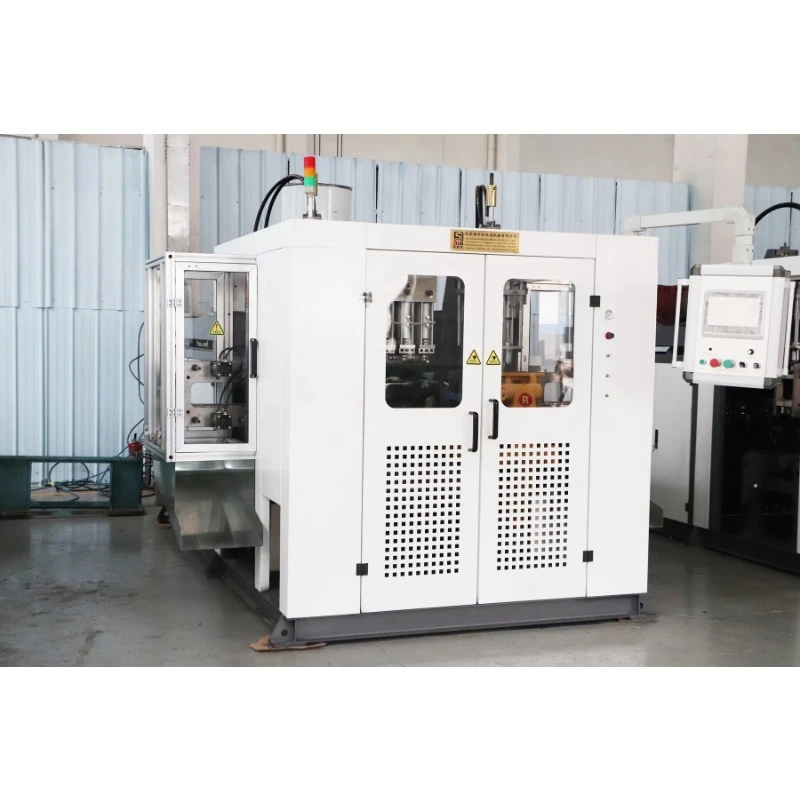

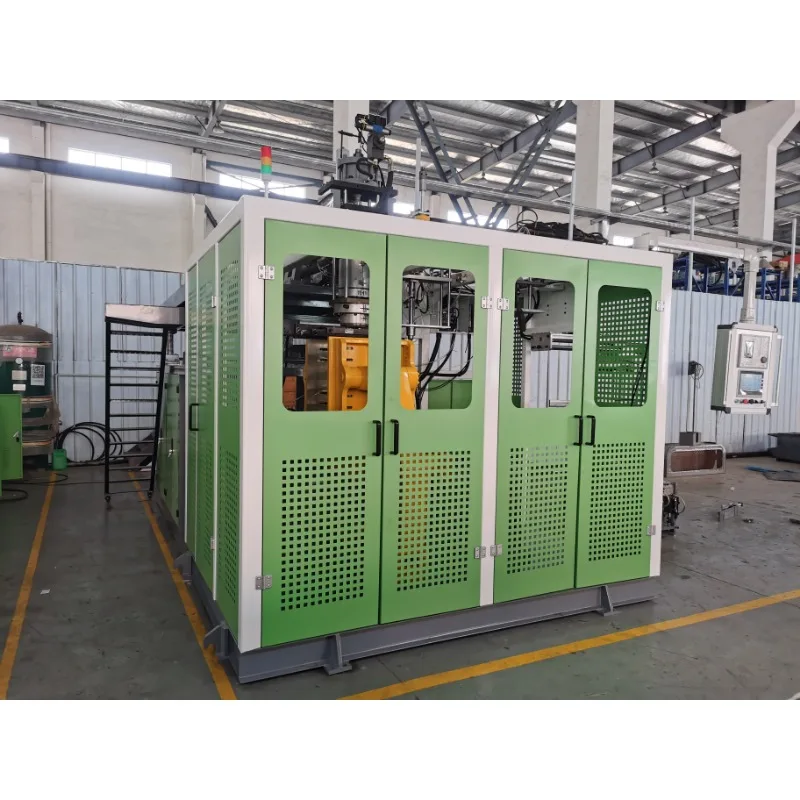

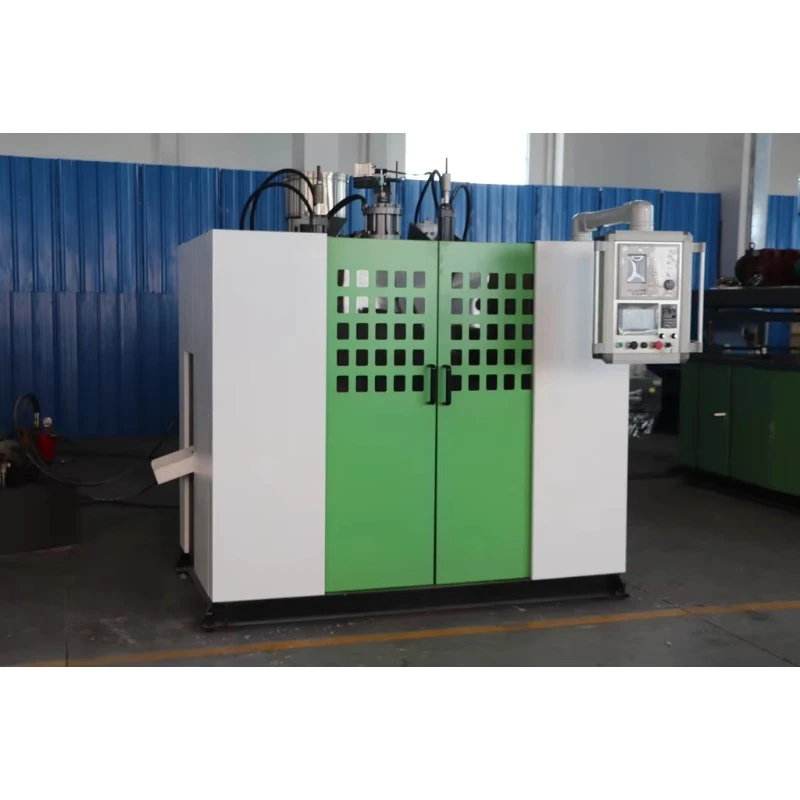

Double color plastic kettle extrusion blow molding machine
Fully automatic extrusion blow molding machine, 5L, 10L, 15L model, single station&double stations, single die head and double die heads, for different customer choose.
Double color kettle making machine, with  optimized inner structure of extrusion die head, make sure the parison color evenly,  high speed fully automatic kettle production.
We manufacture plastic kettle molds too, one cavity mold, two cavities molds available, customers could choose mold with auto deflashing function or non-deflashing.
We provide complete production line for double colors kettle blow molding machine, from extrusion blow molding machine, kettle mold and auxiliary machine, give your A-Z solution with the most economic way.

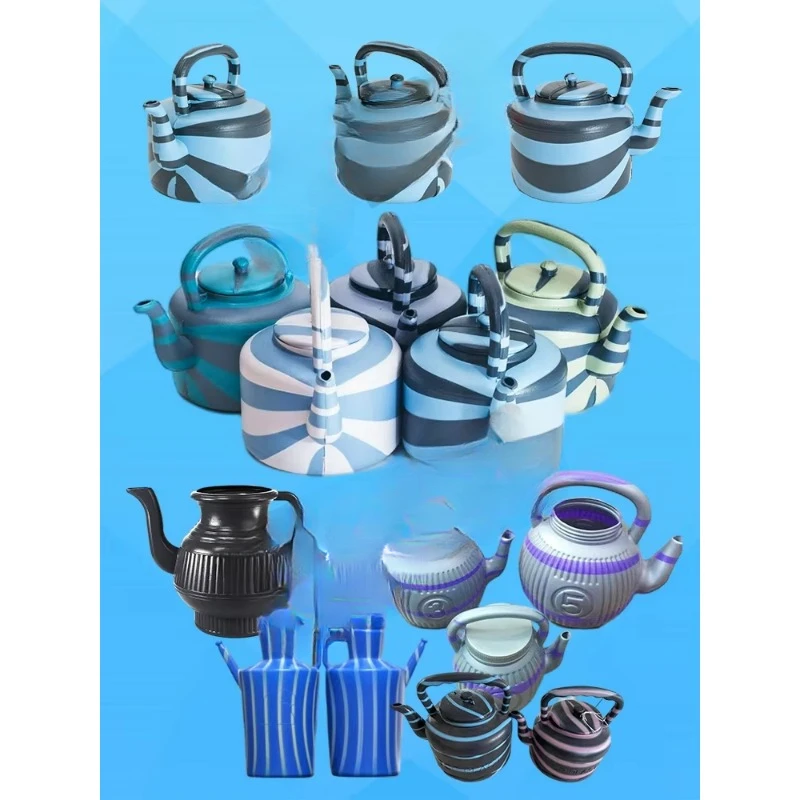

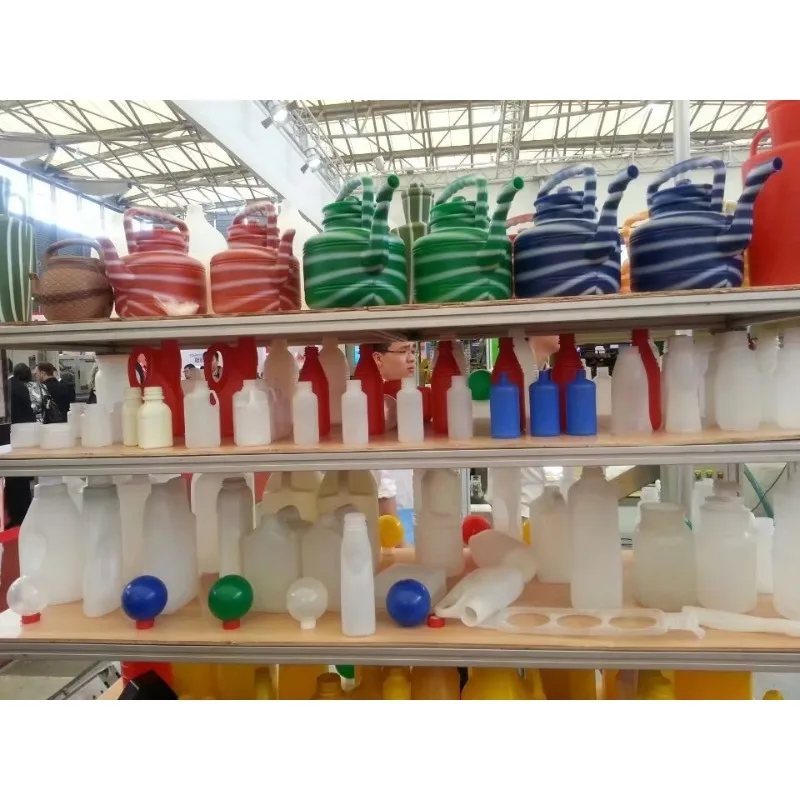

Two double color plastic kettle samples

 We are able to design kettle shape according to customer sample or ideas, give the hot sale kettles in your local market.
Products Description
Machine Paramenters
Specification
Unit
KC60-5LI
KC70-5LII
Suitable Material
PE PP HDPE PVC..
Max Product Volume
L
5
5
Dry Cycle
Pcs/h
1100
700*2
Machine Size m
3.3*2.1*2.6
4.6*2.5*2.6
Machine Weight Tons
4
5.5
Clamping Force Kn
68
68
Platen Distance mm
165-525
165-525
Mold Moving Stroke
mm
420
430
Template Size(W*H) mm
360*400
360*400
Max Mold Size(W*H) mm
360*400
360*400
Screw Diameter mm
60
70
Screw L/D L/D
25
25
Screw Driver Power Kw
15
22
Screw Heating Power Kw
6.5
7.2
Screw Screw Heating Zone Zone 3
3
HDPE Output Kg/h
70
80
No of Die Heating Zone Zone
3
4
Die Heating Power Kw
5.7
5.7
Max Single Die Diameter mm
145
145
Double Die Center Distance mm
150-180
150-180
Triple Die Center Distance mm
110-130
110-130
Quadruple Die Center Distance mm
80-90
80-90
Total Power Kw
34.7
42.4
Oil Pump Motor Kw 7.5
7.5
Average Energy Consumption Kw
15.5
20.5
Blowing Pressure
Mpa
0.7 0.7
Air Consumption
M3/min
0.6 0.9
Cooling Water Pressure Mpa 0.3 0.3
Water Consumption L/min 50 60

Machine Components
Machine component
We choose famous brand component for our machine. make sure the machine working stable and durable.Each machine would be tested over 72 hours automatically, to make sure every machine component are in good condition, would not bring any trouble to our customer.

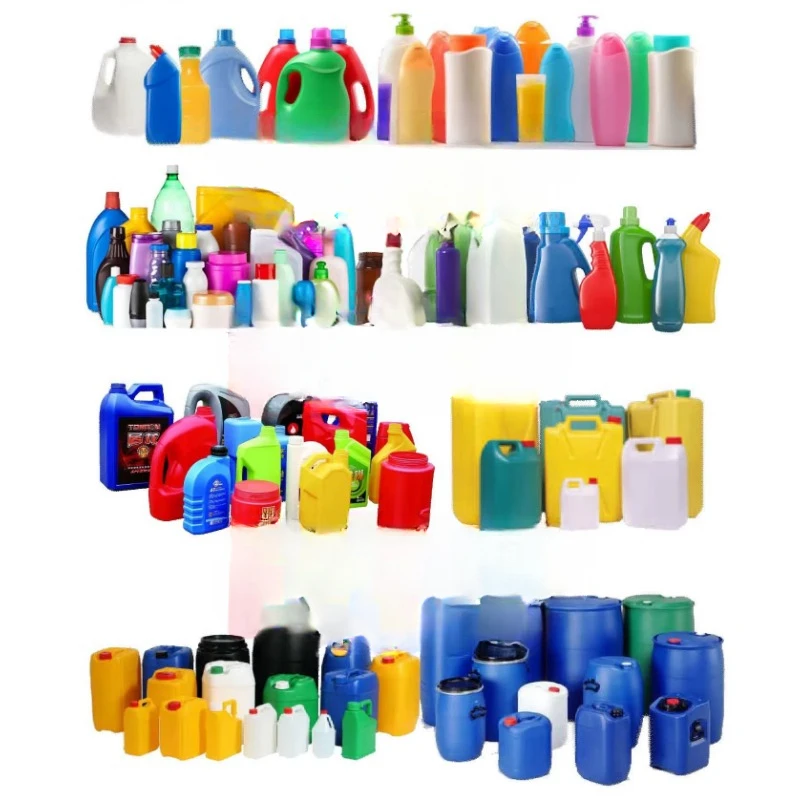

Machine Application

Machine Details

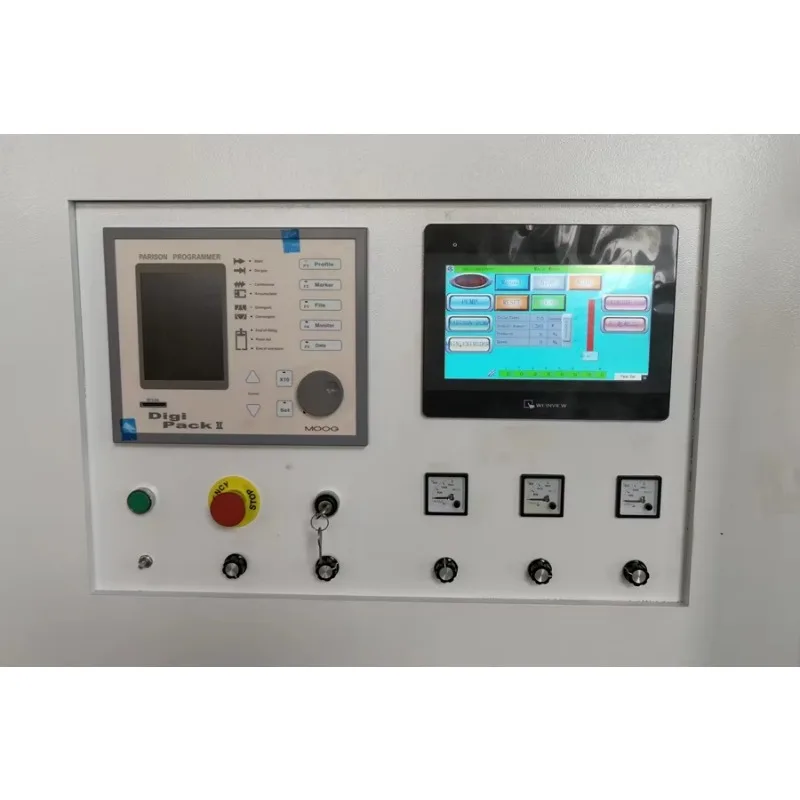

Controller Panel

Colorful screeen display with English.
Technical setting date saving system
100 points parison controller, to make sure even thickness of finished product.
Optimized switches, easily operation.

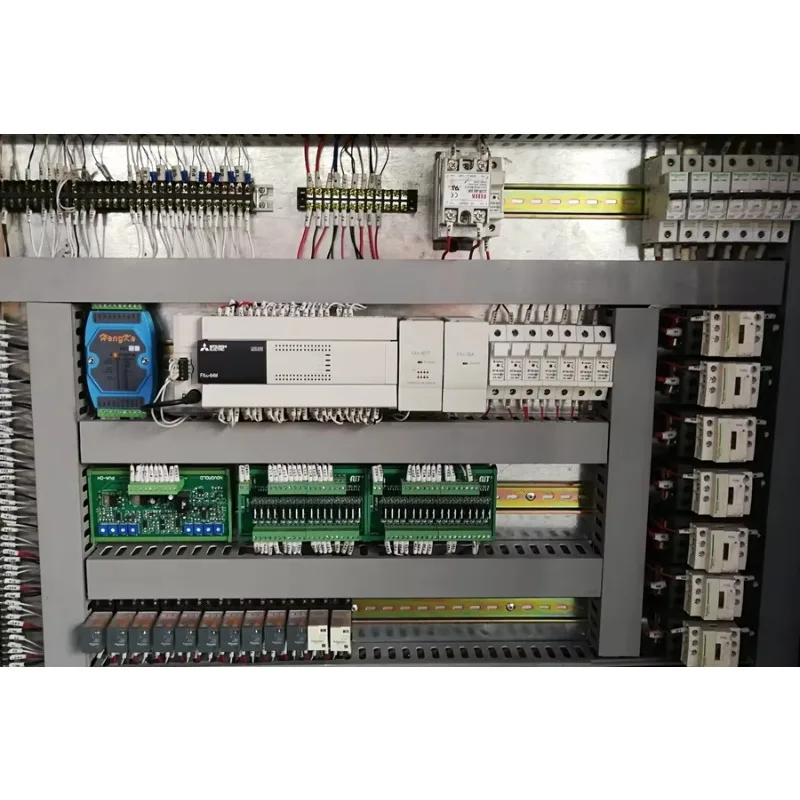

Electrical Cabinet

Famous brand electrical compoents, make sure durable & stable condition.
Digitization wire cable connection, easily for future inspection and testing
Modularized components, easy replace

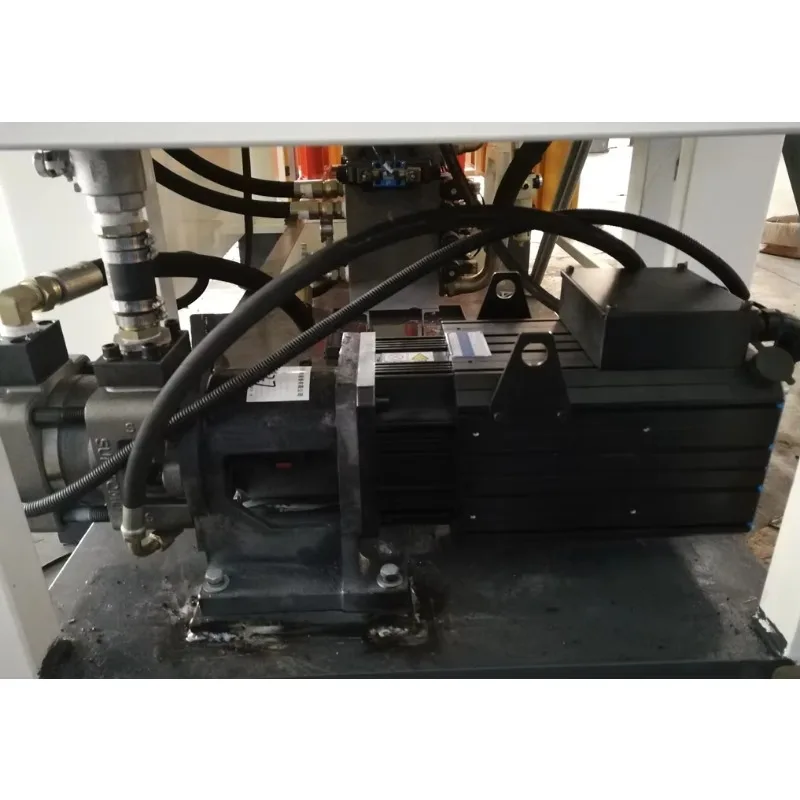

Servo System

Adpot high efficiency servo motor and pump, saving up to 40% -50% power comsumption, reduce your factory manufacturing cost. low noise and stable working condition.

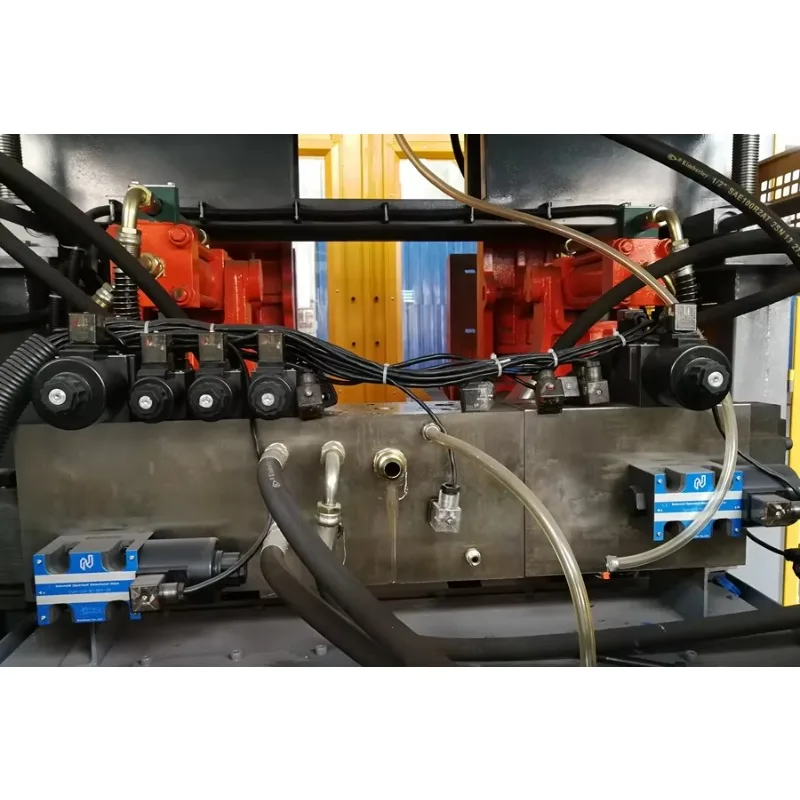

Hydraulic System

Famous brand Japan/Taiwan hydraulic valves, proportional control machine pressure, flow, for precious movement.
Optimized hydraulic oil system, fast response, precious control motion.

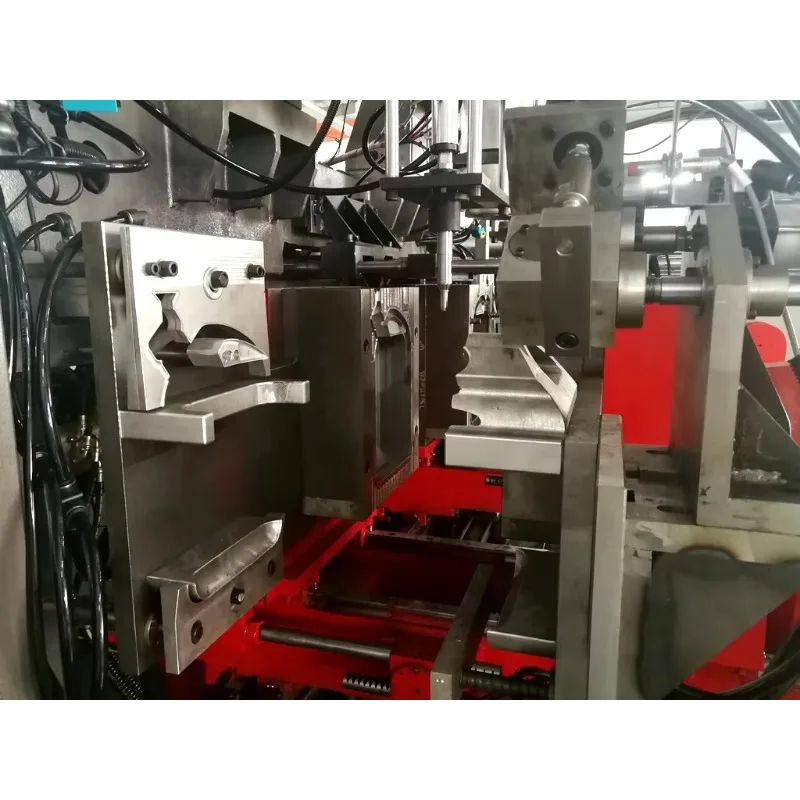

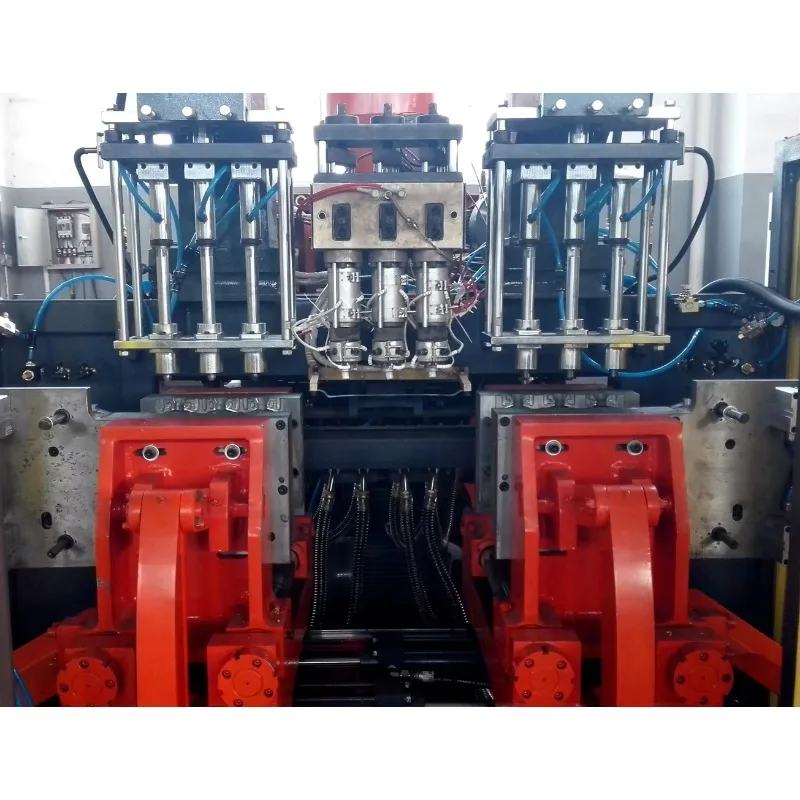

Clamping Unit&Die Head

Super strong machine clamping force, make sure tightly lock blow molds, for better finished products surface.
Safety protection device for operator.
 Good material used for the die head.

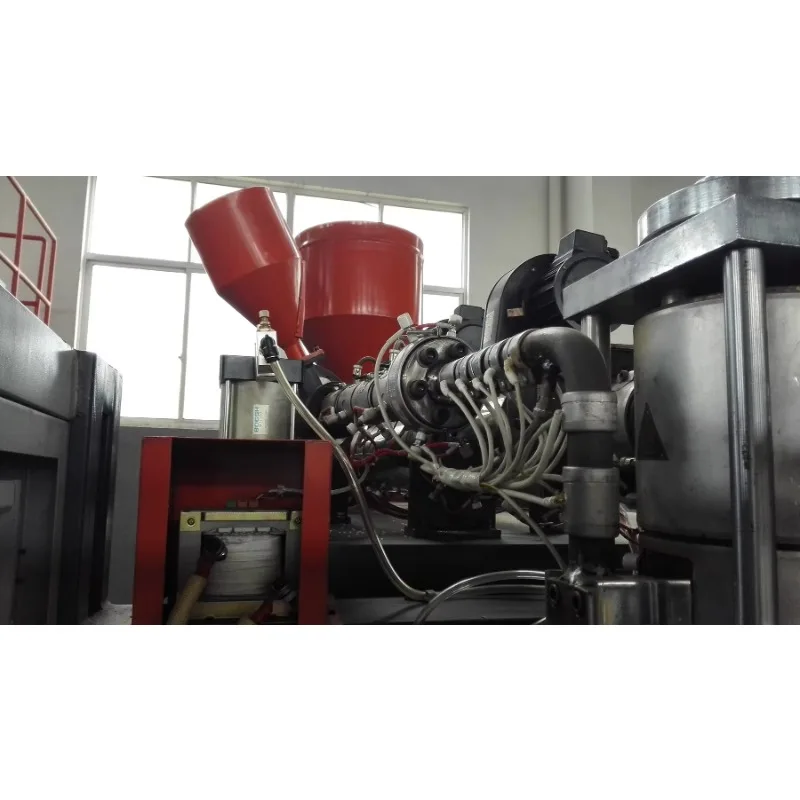

Extrusion System

High hardness bimetalic screw &barrel for high plasticizing and longer life.
High quality gearbox, motor&inverter.
Special designed heating band, highly efficiency and less power consumption.
Mold&Auxilary

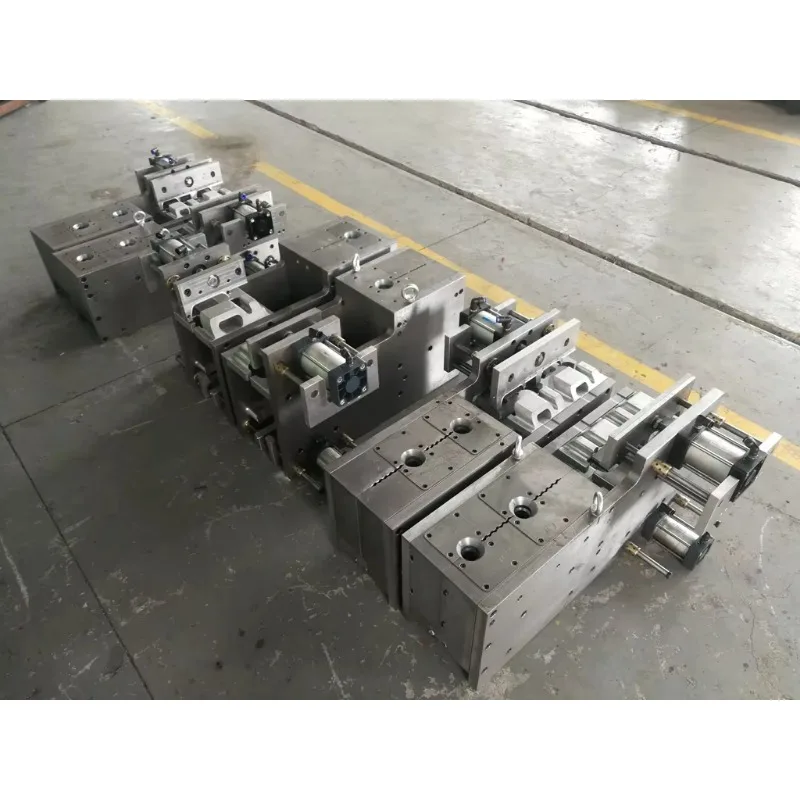

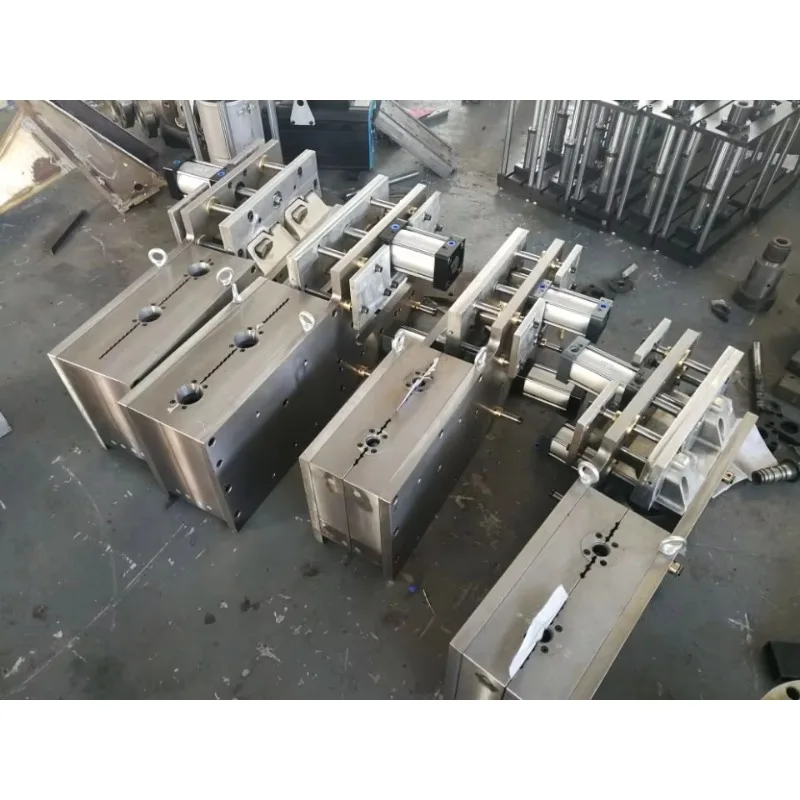

Blow Mold

We have own mold department, we design drawing, manufacturing mold parts, assembly together, testing molds on our machines, make sure running goods before shipment.
We choose quality mold material, such as P20, A luminum, BeCu, for better finished product.
Mold design with optimized cooling system, help to reduce cooling time, increase production speed.
Mold with deflashing, automatic running condition.

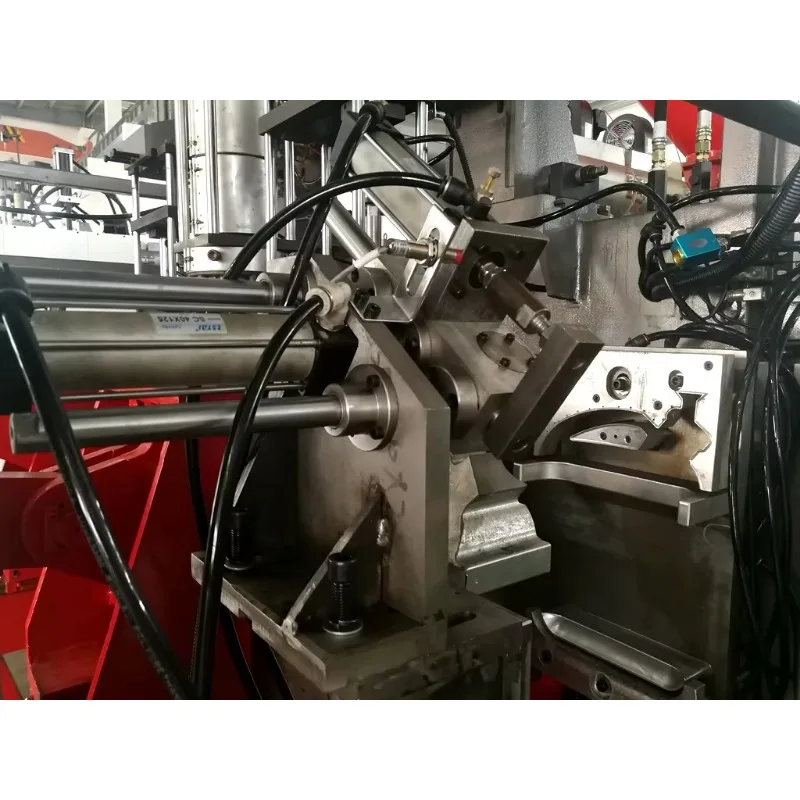

Rotary Bottle Neck Cutting

Top hardness cutting balde, for smoothly bottle neck cutting

Auto deflashing System

Automatical remove flashing plastic, reduce manual labor

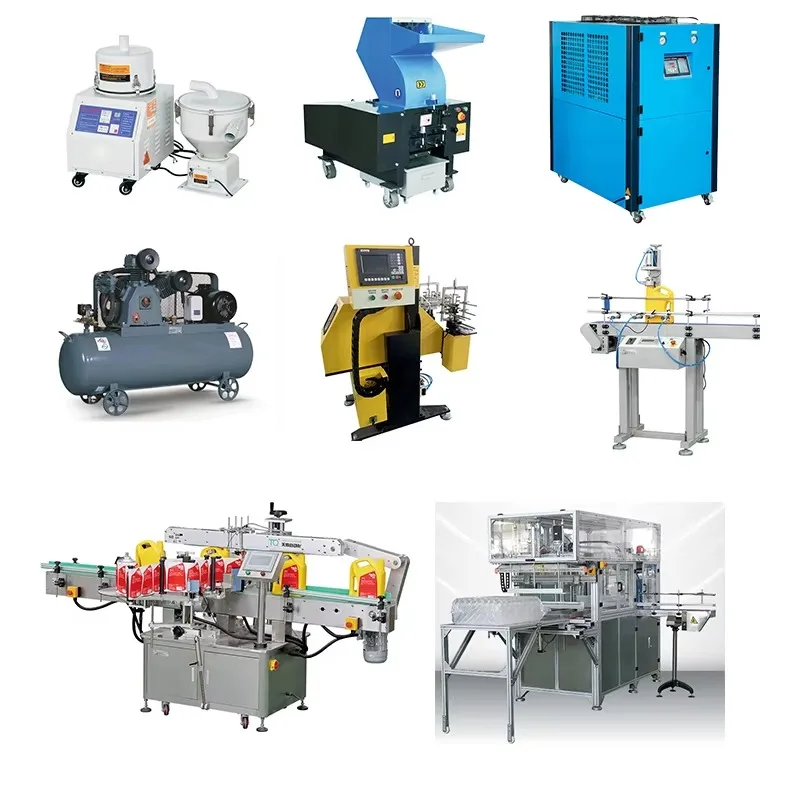

Auxiliary Equipment

We supply our customer blow molding machine, blow molds, and also necessary auxiliary, such as auto loader, crusher, conveyor, air compressor, chiler, leakage detector, in-mold labelling machine, outside labelling machine, self-adhesive labelling machine, robot, bottle neck trimming machine, automatic package machine. we are offering complete solution, automatic production line.
