YG 600kg Electric Glass Vacuum Lifting Machine Lifter Robot for Glazing Construction

$15,773.29

Includes all taxes

Quantity
Meet your Seller
Delivery options
  • Ship Only

Description

PLEASE NOTE:


1.Since it is a customized product, the price needs to be calculated according to specific needs, so the link price is not the final price. Since tariffs and other fees are different in each country, it is impossible to calculate all costs in advance, so door-to-door delivery requires communication and calculation of costs later.

2. The price only for reference, the specific cost based on your requirements and the destination port, please contact us for more product details and quotations


My Whatsapp:+86 183 3717 5537

MY Email:sales18yugong@yg797.com



Product Overview

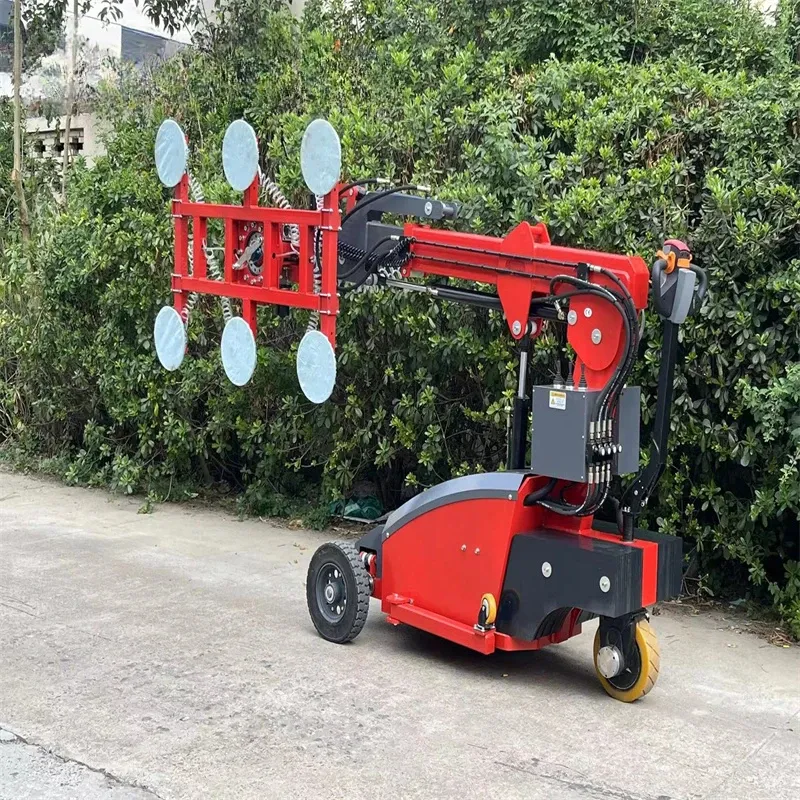

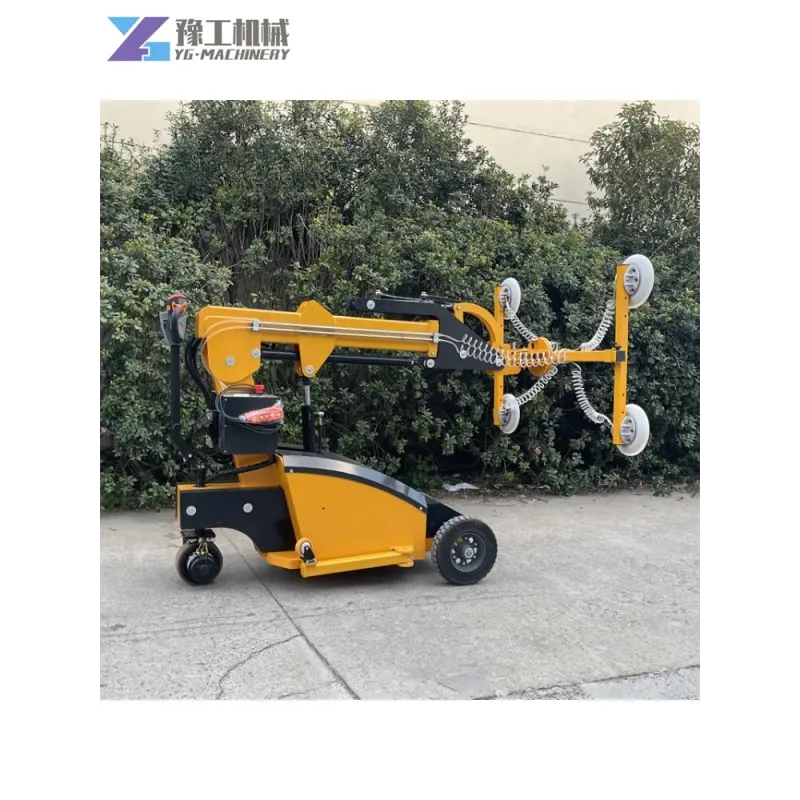

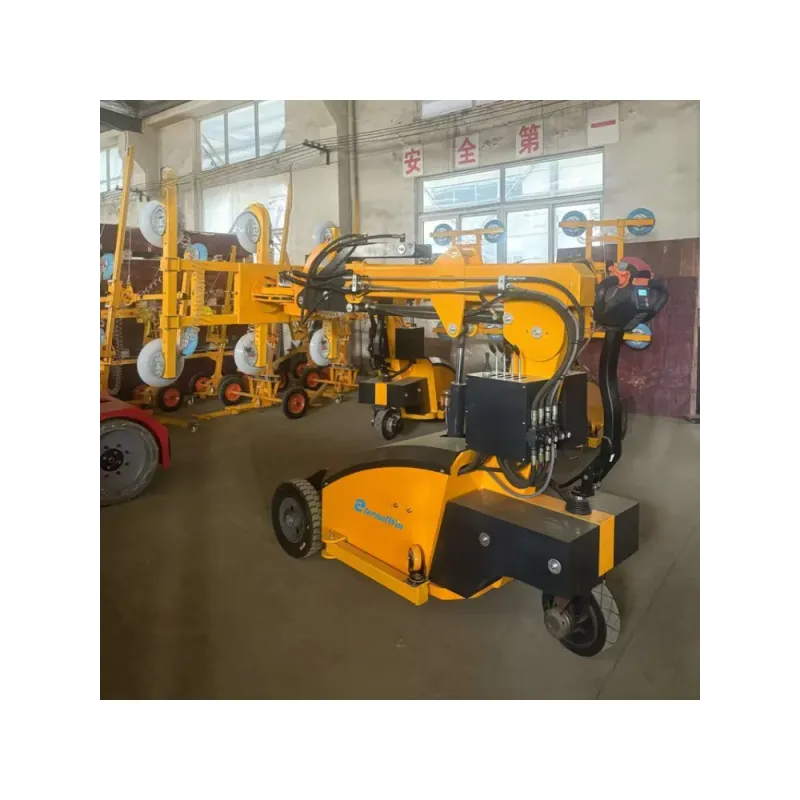

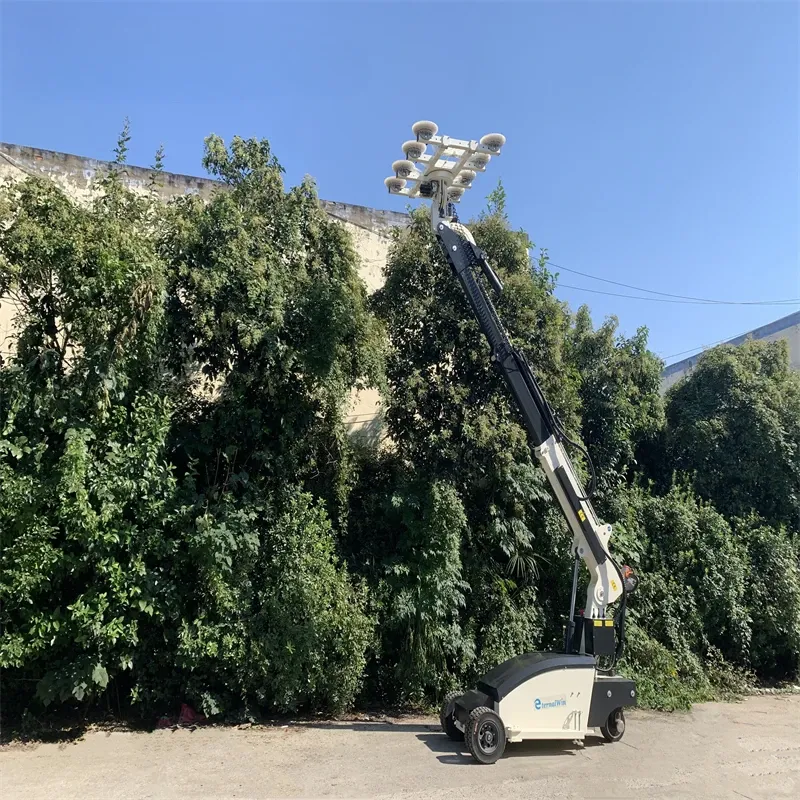

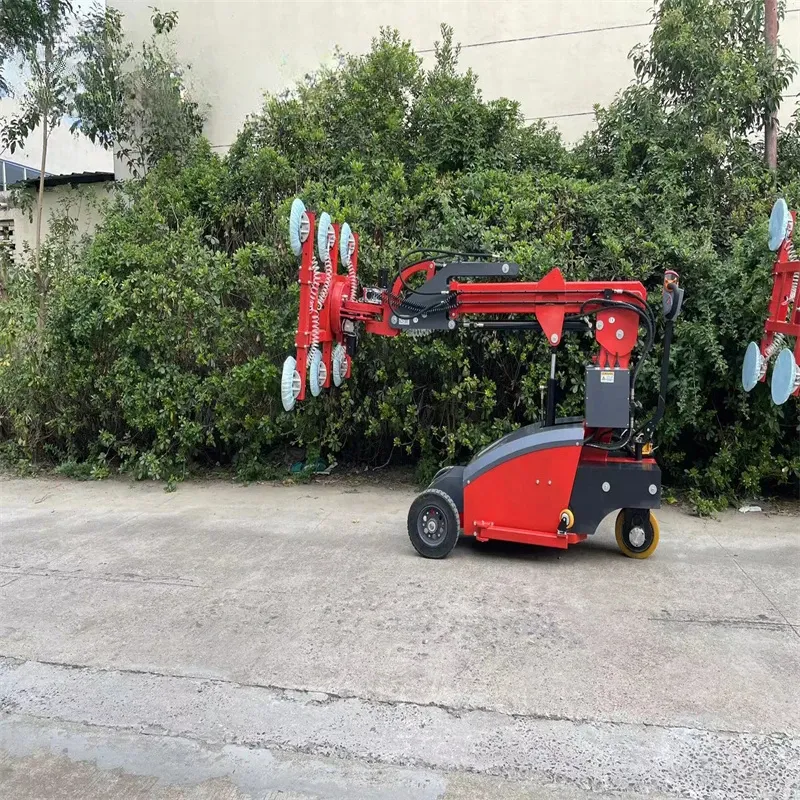

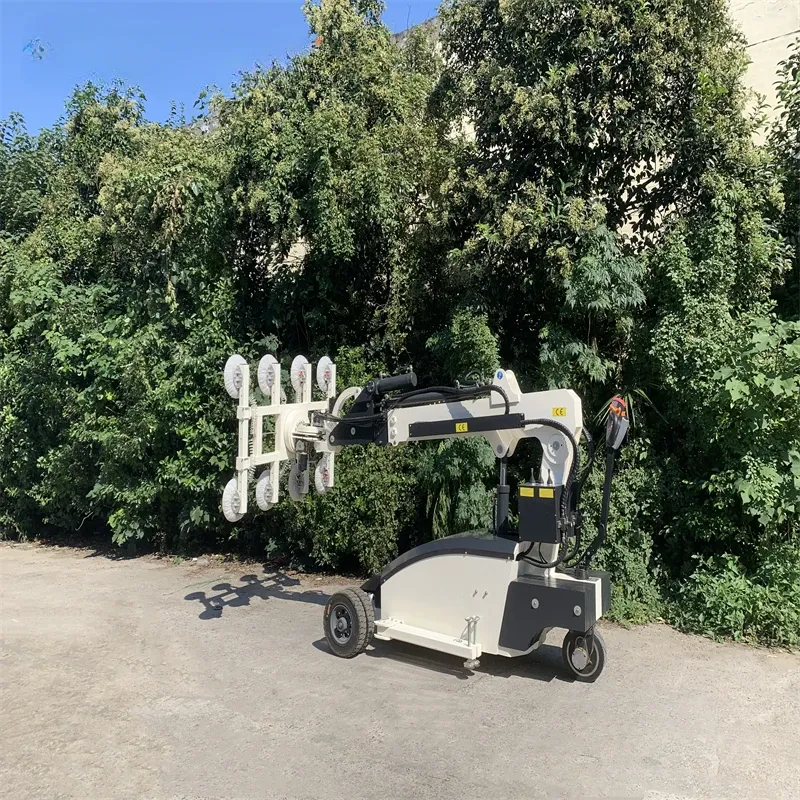

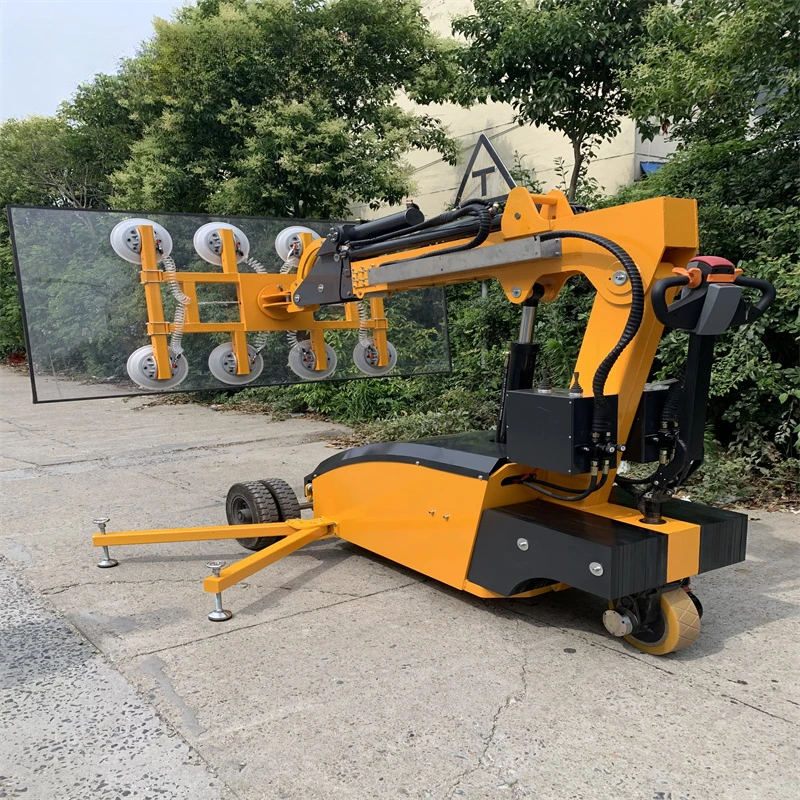

Vacuum Lifter for Handling and Moving Heavy and Large Glass


Glass lift equip vacuum lifter is made up of two control systems (i.e., the suckers are arranged in two rows), The finished
product type of sucker (the arrangement of the type of a sucker) controls the car's elevation and the turning of glass, marble and other planar goods. When operating, it can absorb and lift the flipped plate by controlling the sucker. It has the functions of walking before and after electric power, electric hydraulic lifting, suction and suction guarantee system, electric flip and so on.

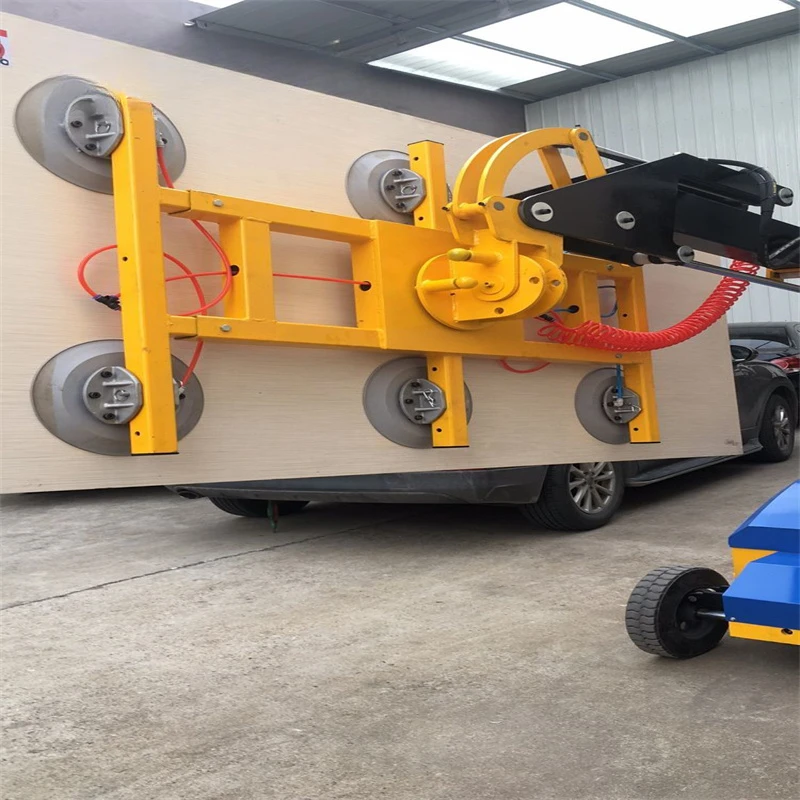

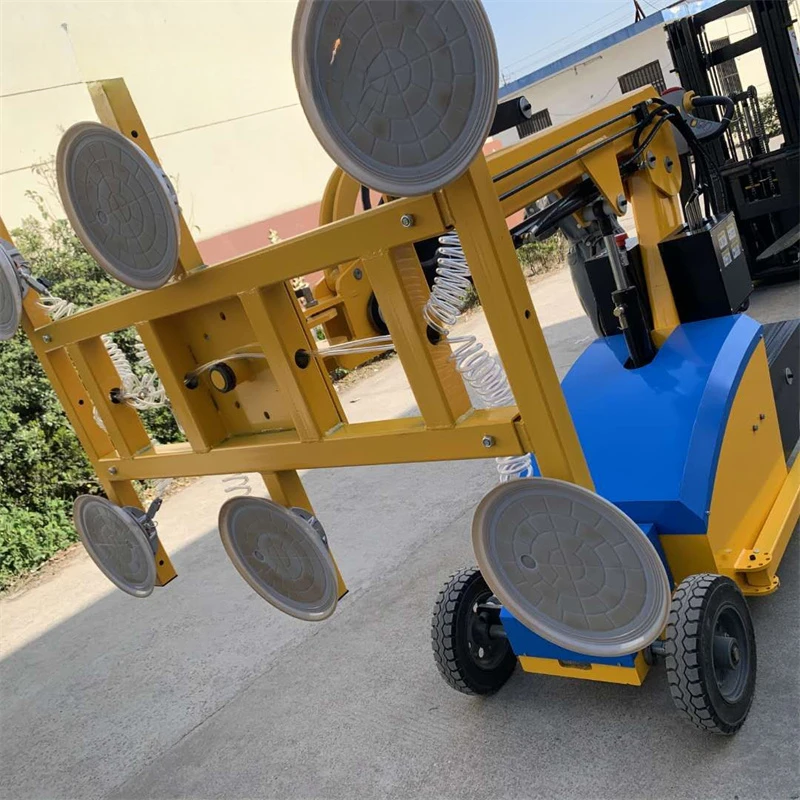

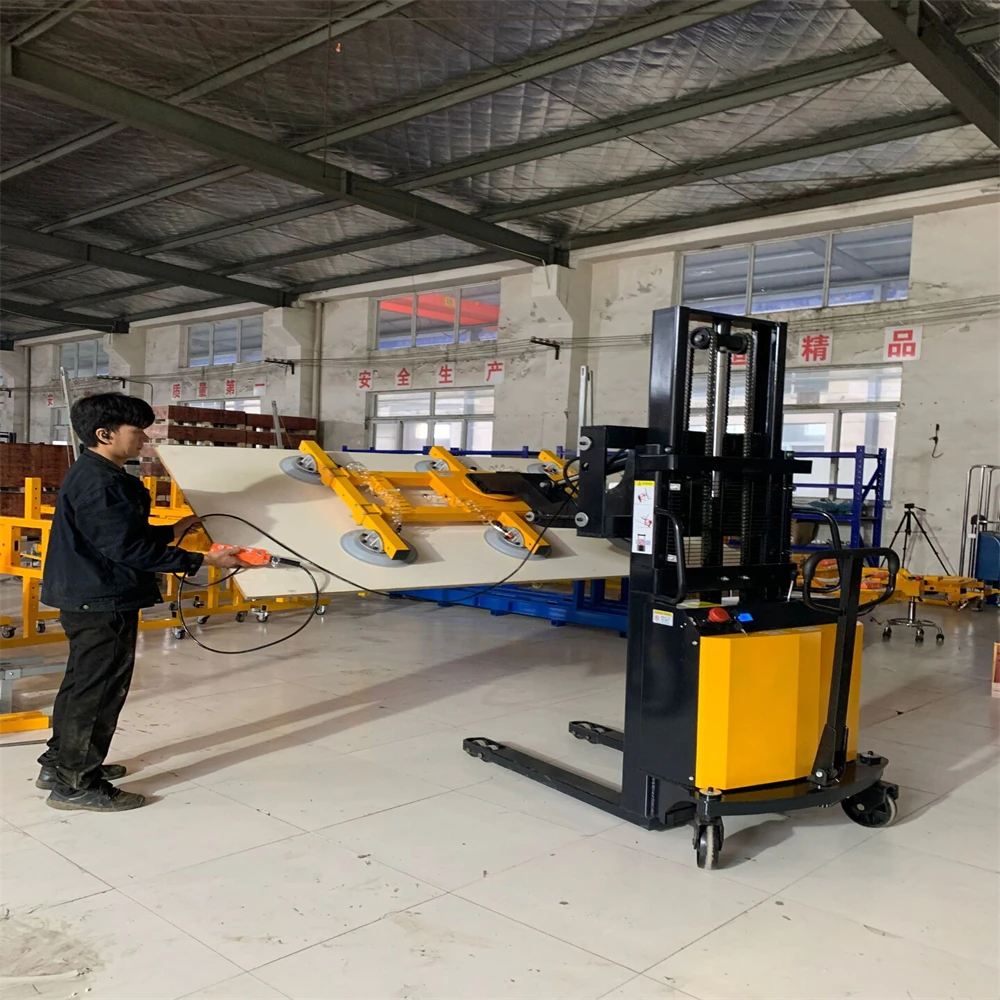

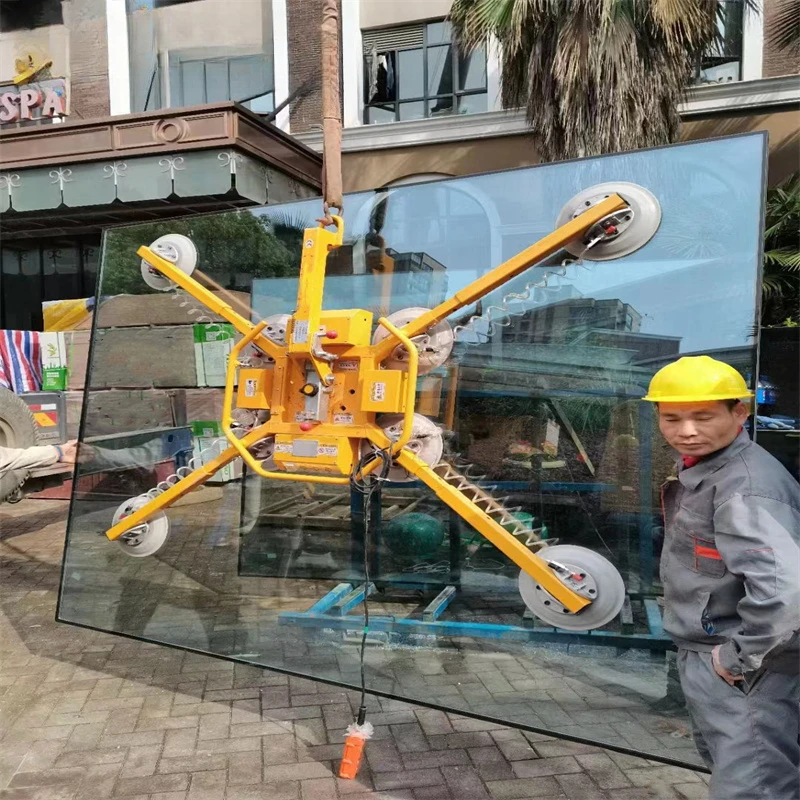

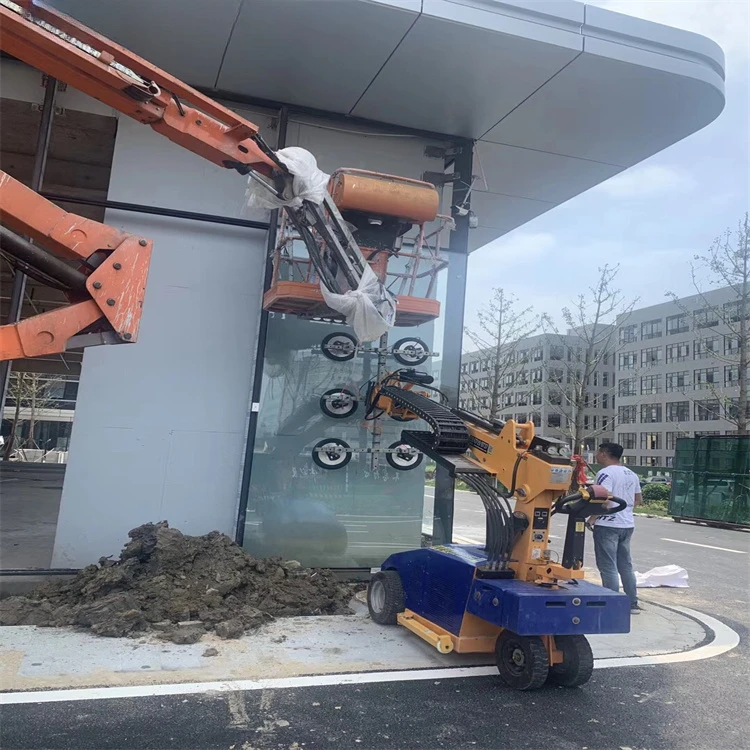

Detailed Application
Product Parameters
Main Features: 1.Sucker suction guarantee system, if there is a set of suction leakage, another set of suckers can also absorb the cargo, ensure that the normal operation of the car can suck up, lift the flip of the plate.
2.Small product appearance;Easy access to elevators.Clever design;The multifunction key is focused on the control handle.
3.Mobile convenience;Electric walking, electronic stepless speed regulation, smooth walking, high power drive motor, ensure the safety of the carrying glass.

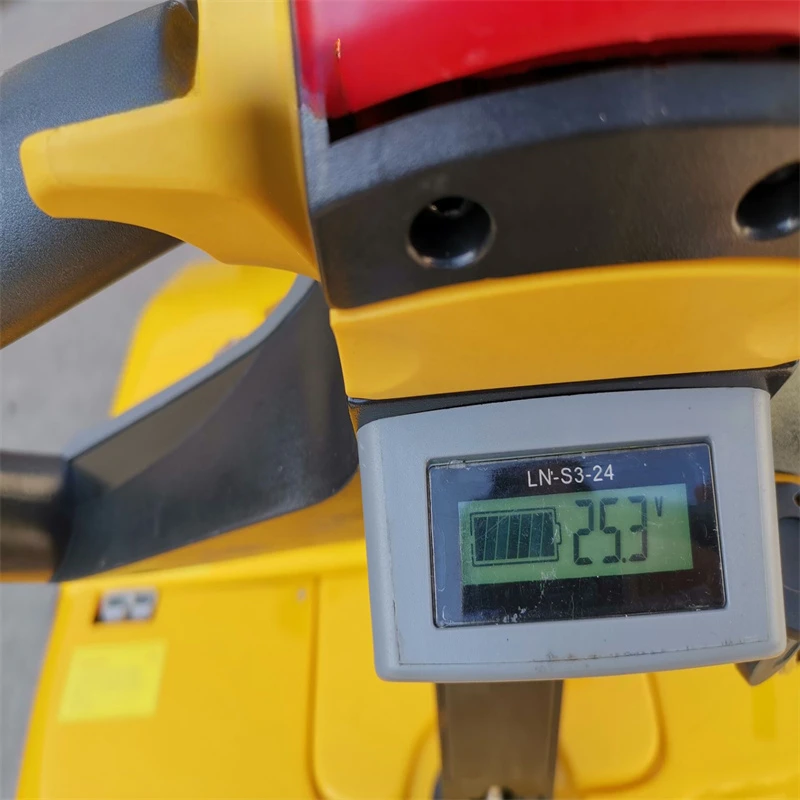

4.It is convenient to charge and equipped with intelligent charger, which can be used to supply the electric quantity at any time.
Model
EWR300
EWR400
EWR500
EWR600
EWR800
Max. Loading Capacity
300KG
400KG
500KG
600KG
800KG
Manual Rotation Angle
360°




Manual Flipping Angle
90°




Max. Lifting Height
3500MM
3500MM
3500MM
3500MM
3500MM
Operation Method
Battery walking type




Battery
24V/80A
24V/80A
24V/100A
24V/120A
24V/120A
Charger
24V/12A
24V/12A
24V/15A
24V/18A
24V/18A
Walking Motor
24V/1200W
24V/1200W
24V/1200W
24V/1200W
24V/1500W
Lifting Motor
24V/2000W
24V/2000W
24V/2000W
24V/2200W
24V/2200W
Body Width
840MM
840MM
840MM
840MM
840MM
Body Length
2660MM
2660MM
2660MM
2800MM
2800MM
Wheel Size
250*80MM
250*80MM
250*80MM
300*100MM
300*100MM
Suction Cup Size
300MM
300MM
300MM
300MM
300MM
Recommend Products

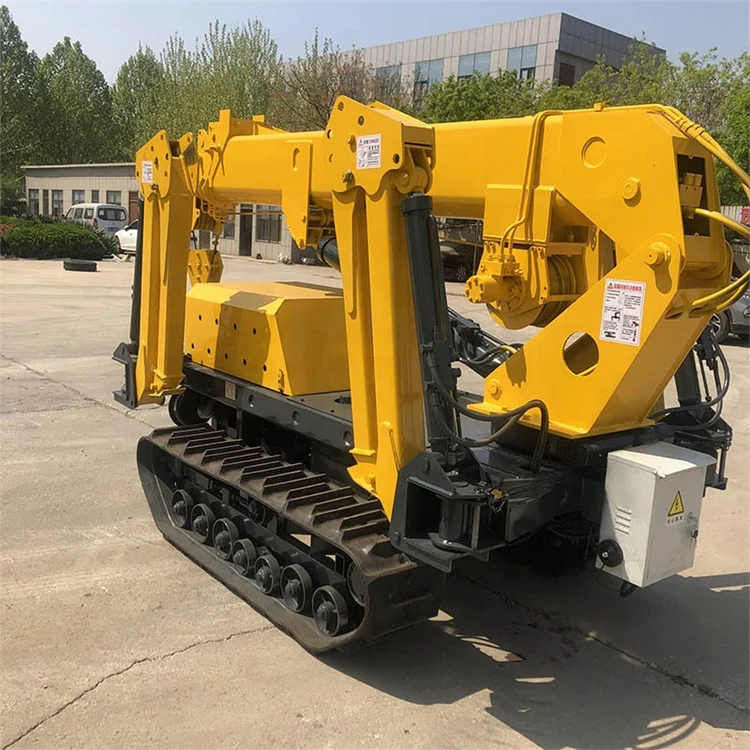

Spider crane
EW3.0 B mini crawler crane, powered by Japanese gasoline engine, Taiwan hydraulic valve, hydraulic pipe fittings, rated lifting
capacity of 3 tons, with all lifting functions of spider crane and basic safety configuration. It is widely used in the maintenance and installation of electrical equipment in substations, the maintenance and installation of equipment in mechanical and chemical workshops, and glass curtain walls and other occasions with narrow spaces.

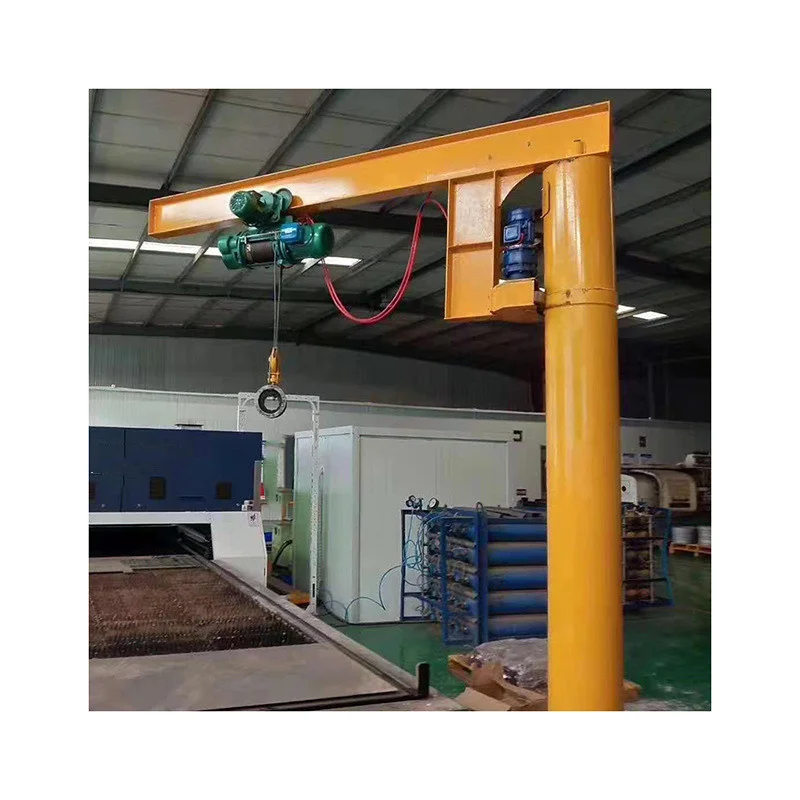

Jib Crane
Fixed column slewing Jib crane is mainly composed of top column, low column, main girder, main girder pole, electric
hoist,rotation mechanism and electrical system, etc.Normally control model of jib crane with remote control or pendent line with
press button or both.

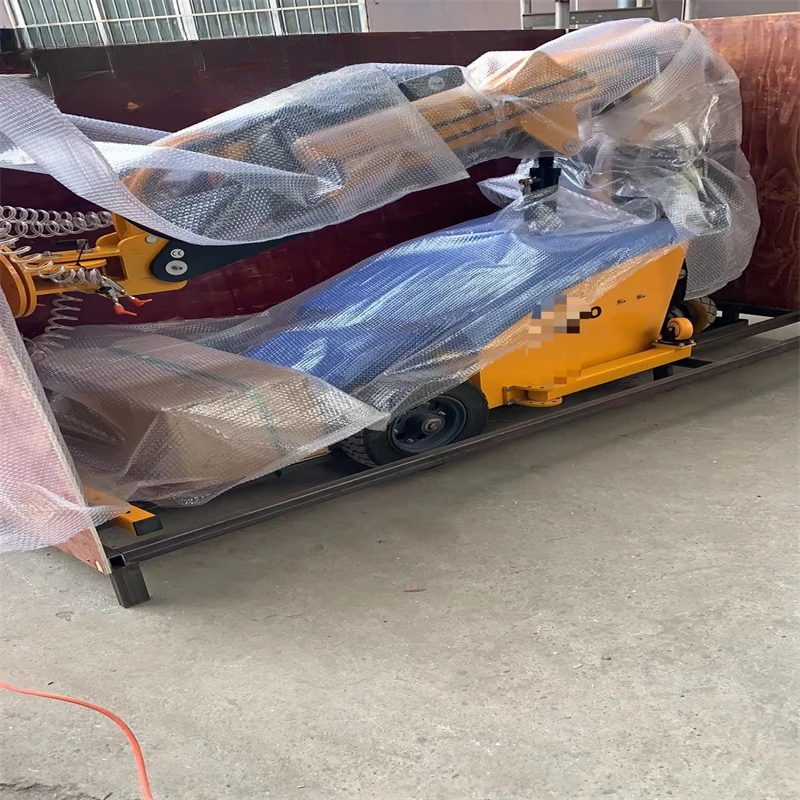

Product Packaging
