0.3-15mm Automatic Terminal Crimping Machine E/U/O type pre-insulated terminal crimping wire twisting Stripping Terminal Machine

$14,054.85

Includes all taxes

Quantity
Meet your Seller
Delivery options
  • Ship Only

Description


This machine is available in sizes ranging from 0.3 - 6mm².

We also have models in sizes from 0.5- 16mm².

Welcome to consult our customer service.



Product Parameters


0.3 - 6mm²


Product Name: Tube Terminal Automatic Crimping Machine

Crimping range: 0.3mm² -6mm² (maximum crimping length 12mm)

Crimping shape: Four-sided crimping

Peeling length: The minimum outer skin peeling range for the sheath line is 65mm

Production capacity: 600pcs per hour for four actions including rotary peeling, twisting, threading and crimping

Control mode: Touch screen and ARM motherboard

Drive mode: Motor/imported ball screw

Rotating blades: 2 pieces (Material: imported tungsten steel)

Wire clamping device: Motor-driven, with clamping force control program

Crimping device: Driven by servo motor, with crimping force control program

Detection device: Terminal supply detection for material shortage

Power supply capacity: AC220V 50/60Hz400W

Dimensions: L680mmxW590mmxH560mm;

Weight: Net weight 70KG; The wooden box weighs 88 kilograms

DC power supply: Mean Well switching power supply

Working environment: 0-50 degrees Celsius, moderate dryness (Please use a clean and dry air source)

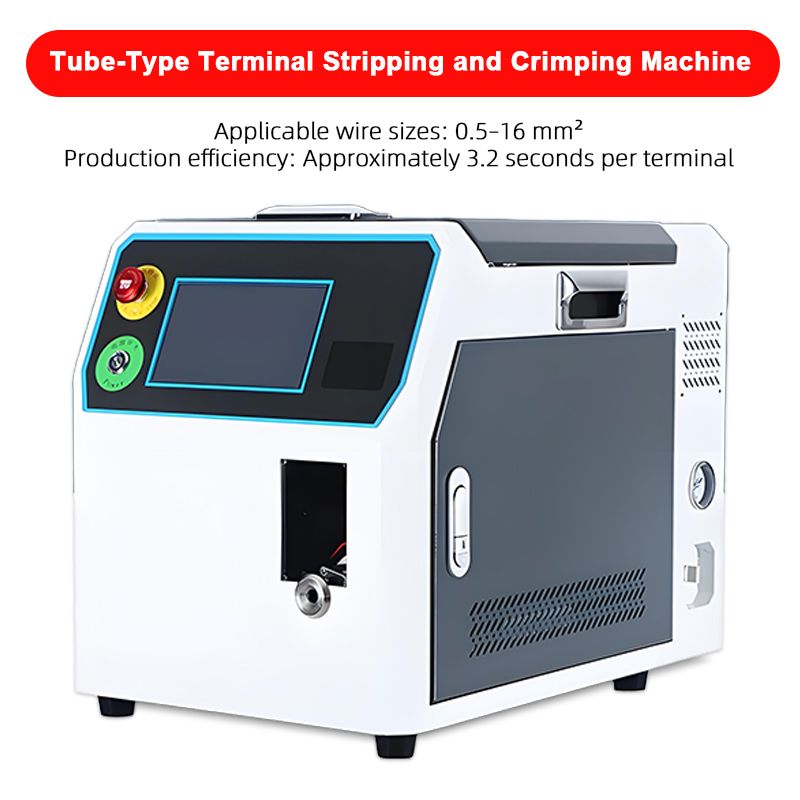

0.5- 16mm²


Name: Pre-insulated Tubular Terminal Servo Crimping Machine

Control mode: Human-machine interface, electrical control, mainly electric and pneumatic combined to achieve electrical integrated control.

Operation mode: Automatic trigger operation by wire release induction and manual operation trigger. A foot pedal start switch can be installed.

Wire size specification: Applicable to most types of wires such as RV flexible wires, with 10 specifications ranging from 0.3 to 16 square meters (currently, for wires smaller than 0.5 square meters, material matching fixtures need to be provided).

Terminal specifications: 0.3(customized)0.5 to 16 square; The length of the terminal insulator should be within 11mm and the length of the conductor within 20mm.

Peeling and penetration: The peeling length is 6-30mm. The position of penetration into the rubber shell can be controlled by motor adjustment, liberating the original mechanical limit for in and out.

Peeling methods: Rotary peeling, parallel peeling, rotary twisting, and the direction can be forward or reverse.

Terminal supply: Vibrating tray feeding, one tray can be used for 10 types of terminals. With simple adjustments, 10 types of terminals can be used universally.

Crimping shape: Regular quadrilateral crimping, servo motor crimping, and the crimping height can be adjusted freely: The crimping shape can be customized with a dedicated crimping die.

Product replacement: Manually replace the relevant fixtures and adjust the vibration disc, select the original parameters, and control the memory parameter invocation.

Production capacity: Terminal presence detection, and various other operation detections.

Detection alarm: approximately 3.2 seconds per single terminal. The exact time may vary depending on the wire type (considered as a single machine operation cycle). During manual operation, it is approximately 4 seconds per single terminal (depending on the wire type).

Power supply: AC220V/50Hz(single-phase)10A; Internal power supply: DC24V, DC30V, AC30V; Total power: 1500W.

Air source: 0.5-0.6Mpa(Please use a stable, clean and dry air source).

Working temperature and humidity: 0-35℃(ambient temperature for machine operation), 30-80%HR(no condensation).

Net weight and dimensions of the machine: W360mm(front width)xL535mm(front and back depth)xH425mm(height)(excluding protrusions), weight approximately 62KG.

Dimensions and weight after wooden box packaging: L640mmxW470mmxH580mm, 80kg
