Please note or leave a message about the required size for the one inch (32mm) and six inch (25mm) heating ports. To distinguish between tap water and heating water, it is not recommended to have the same diameter.

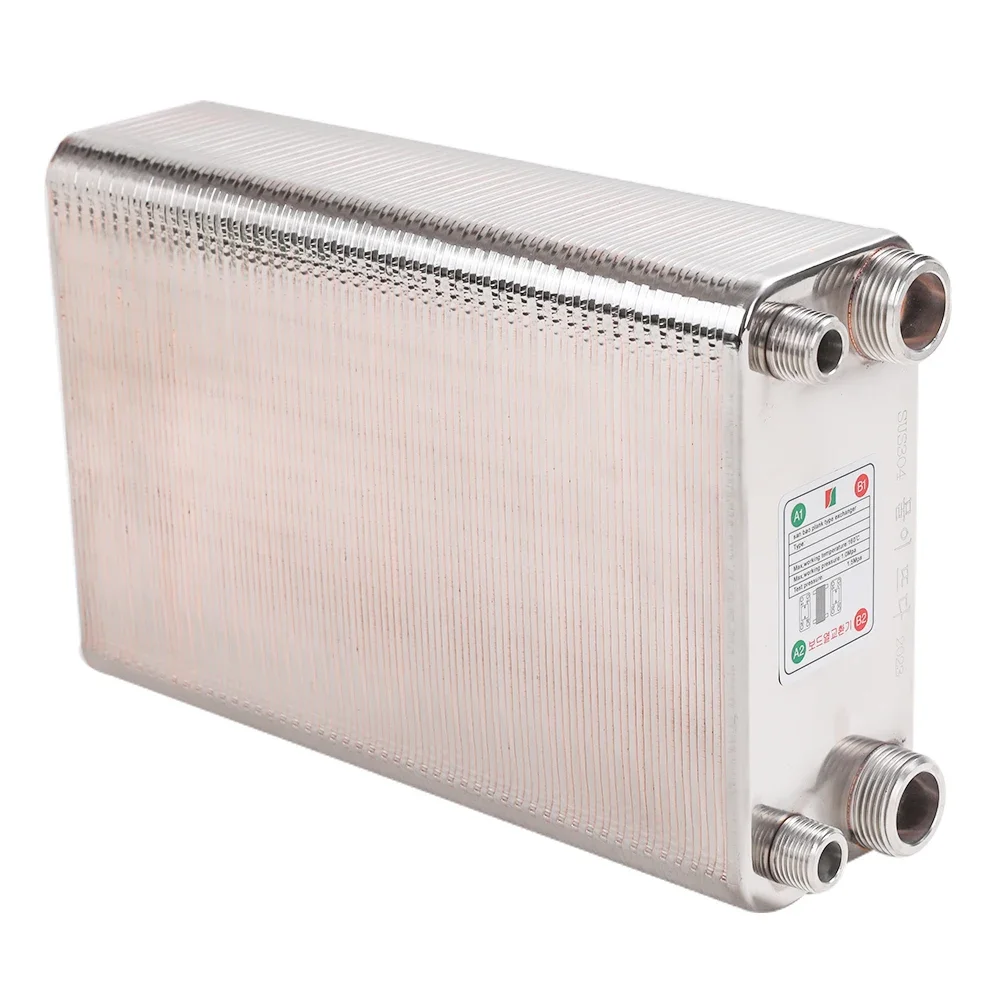

Product parameters

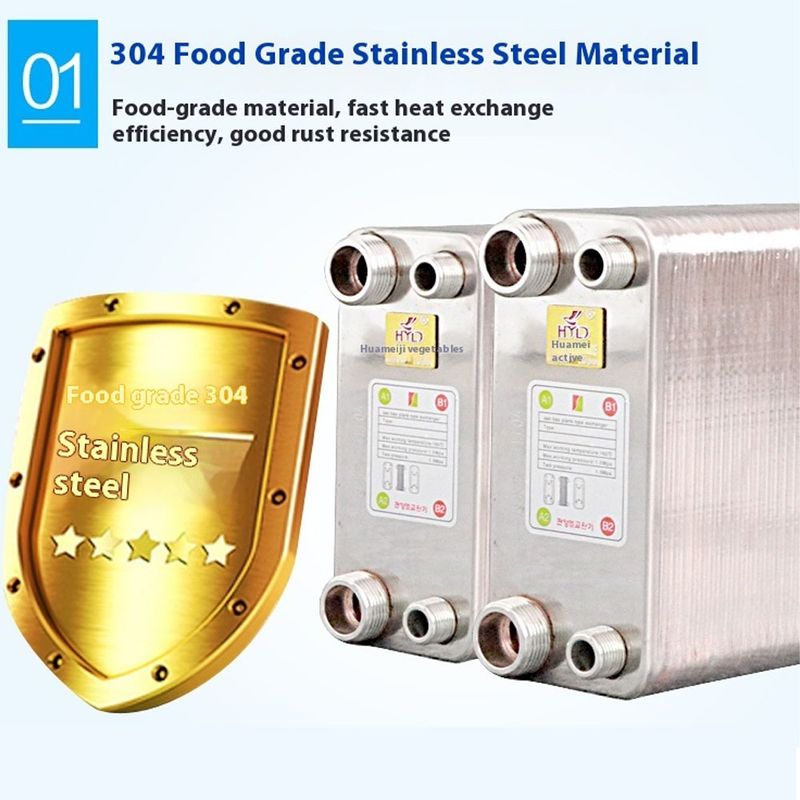

Material:SUS 304 Stainless Steel (Food Grade)
WeldIing Material:99.9% Copper
Application:Home Brew Wort Chiller,Famliy Hot Water supply
Thread of Port A1,A2:1/2" BSPT Male
Thread of Port B1,B2:1" BSPT Male or 3/4" BSPT Male

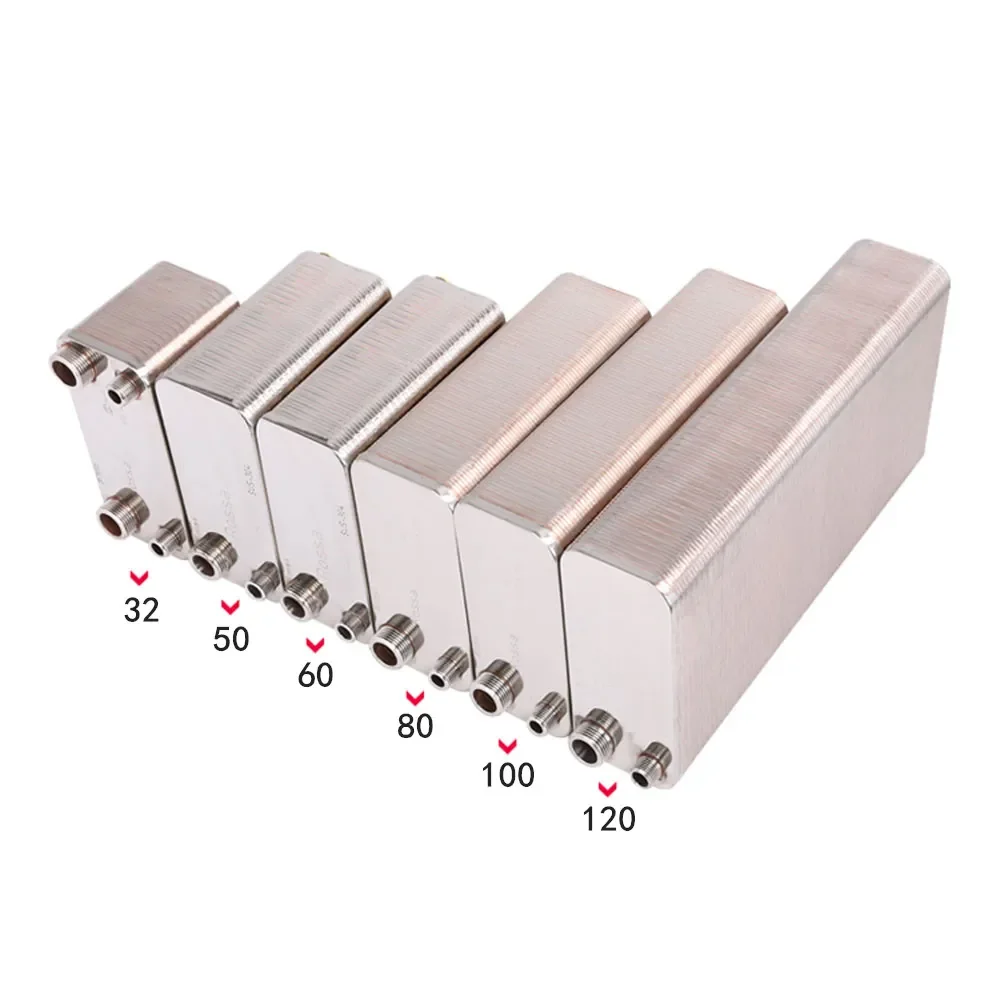

Plates Number:100
Denension:195x85x310mm
Heat Transfer Area/plate: 0.028 m2(0.30 ft2)
Thickness of One Plate:0.25-0.35mm
Max Flowrate:12 m3/H
The Maximum Pressure: 1.6Mpa(228 PSI)
Refrigeration Capacity: 20 KW(5860 BTU/hour)
Working Temperature:-160 ℃ to + 185 ℃
Using Way for hot Wort:Port A1:Hot Wort,Port A2:Cold Wort
Port B1:Cold Water,Port B2:Hot Water
The flowrate of Cold Water higher the Better.
Using Way for Famliy hot water supply:Port A1:Cold Water,Port A2:Hot Water
Port B1:Central heating In;,Port B1:Central heating Out
Options Instruction:

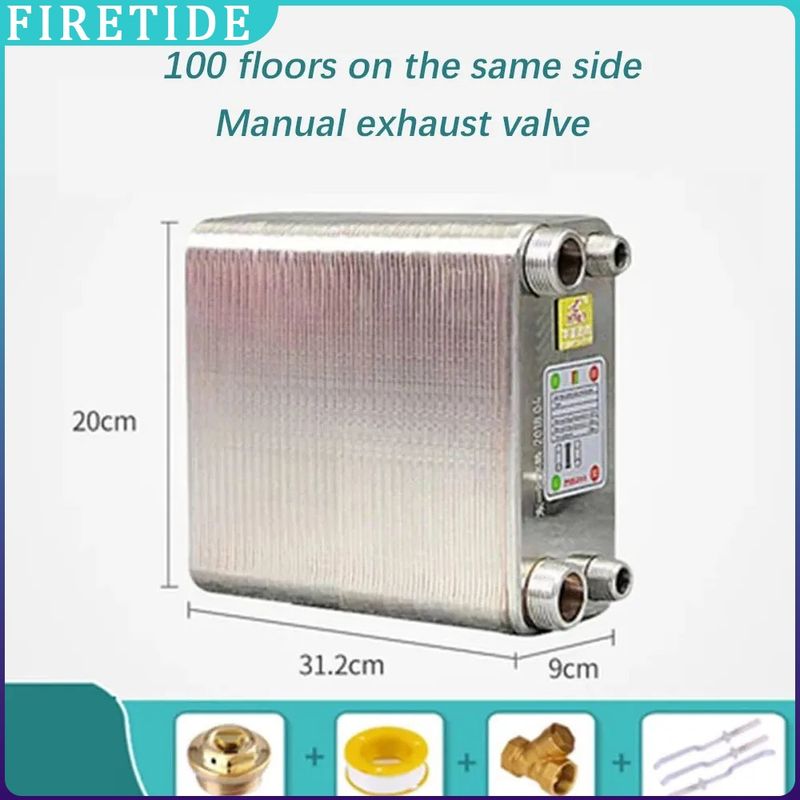

Same side: mean the 4 ports are in the same side
Different side: mean the 4 ports are in different side, each side with 2 ports.
Please choose it according to your own demand. Thanks.

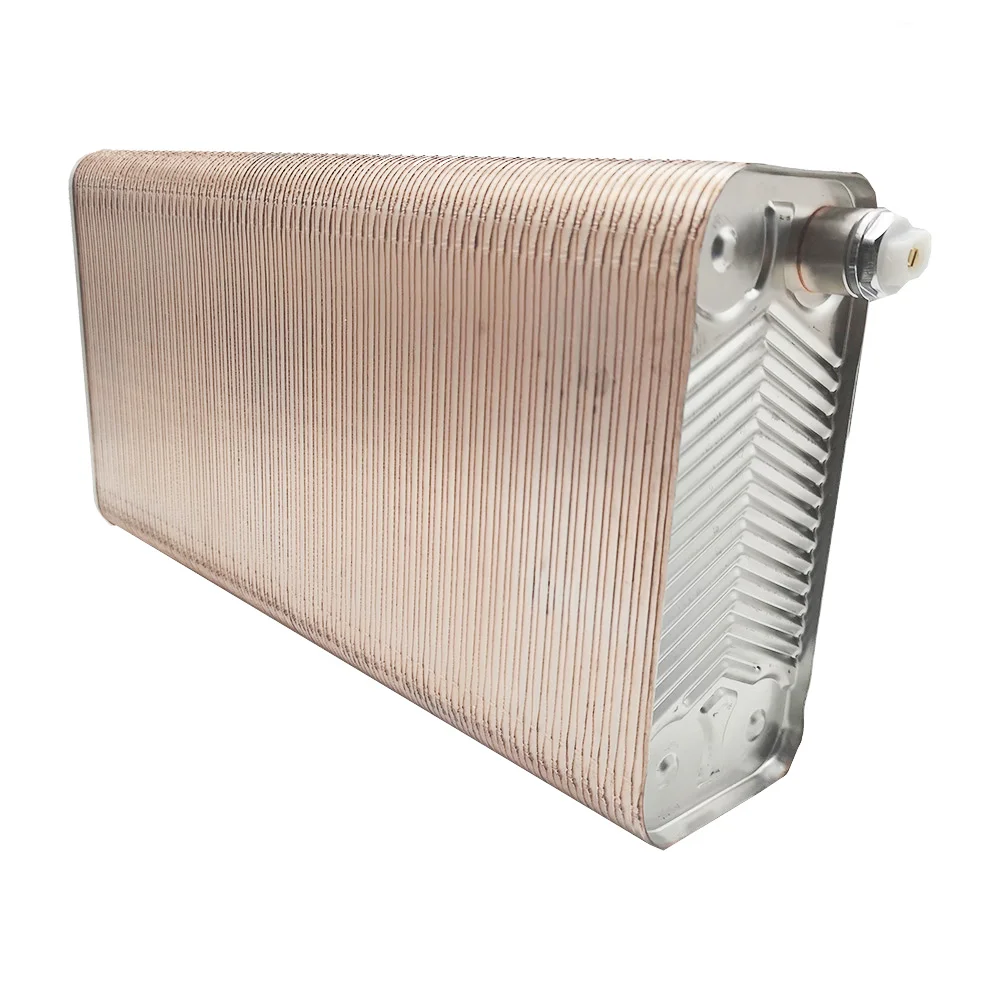

Besides above four ports, there is an air vent on the heat exchanger for 50 plates heat exchanger and above, this air vent's function is to avoid if there is some air remained in the exchanger and you need to release the remain air so that the water can go through when you first time use this heat exchanger. For other time, the air vent need to be plugged.
We also have other relevant products.Please feel free to contact us!
