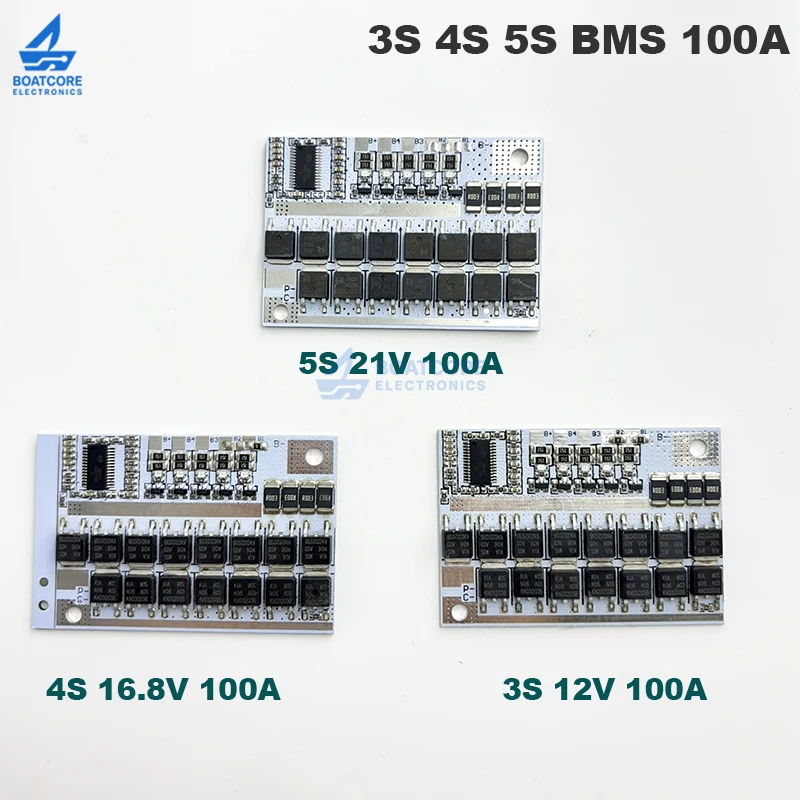

🔋 Product Overview — QS-B305ABL-50A Lithium Battery Protection Board

Product Structure: Lithium battery protection board
Application Range: LiFePO4, Ternary Li-ion (NMC/NCA), Lithium Cobalt Oxide (LCO), Lithium Manganese Oxide (LMO) packs

⚙️ Model Highlights

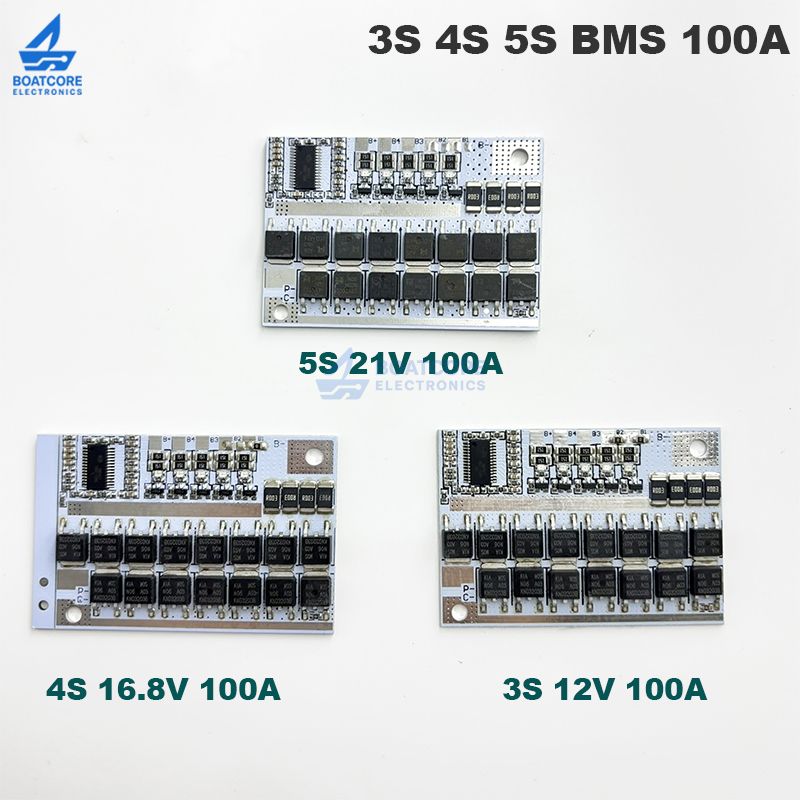

  • Designed for 3S / 4S / 5S packs; common version can be configured per actual needs

  • Mature protection circuit with dedicated IC, supports wire-disconnection protection

  • Imported high-current, ultra-low RDS(on) MOSFETs (single MOS as low as ~3 mΩ)

🛡️ Core Protections
  • Complete and stable charge and discharge protection logic

  • Overcharge, overdischarge, overcurrent, short-circuit, and disconnection handling

  • Designed to enhance pack reliability in daily use

⚡ Power Path & Components
  • High-current MOS array helps reduce conduction losses

  • Topology optimized for stable charging/discharging performance

🧮 Cell Balancing
  • Hardware balancing for cells

  • Balanced current set appropriately; heat distribution is reasonable

  • Balancing is designed not to impair overall pack performance

✅ Supported chemistries: LiFePO4, NMC/NCA, LCO, LMO (configure 3S/4S/5S as required)

Note: Actual configuration depends on the required series count and component selection in the common version. Ensure cell consistency and correct wiring before operation.

⚡ Functional Features — Flexible Setup & High Power Design

🔄 Flexible Series Configuration

Users can freely configure 3S / 4S / 5S setups.
By default, the board will be shipped according to the customer’s selected series count.
Simply connect according to the matching wiring diagram — no modification required.
If another series configuration is needed, users can adjust it themselves by following the provided operation guide.

⚙️ Same-Port & Split-Port Compatible

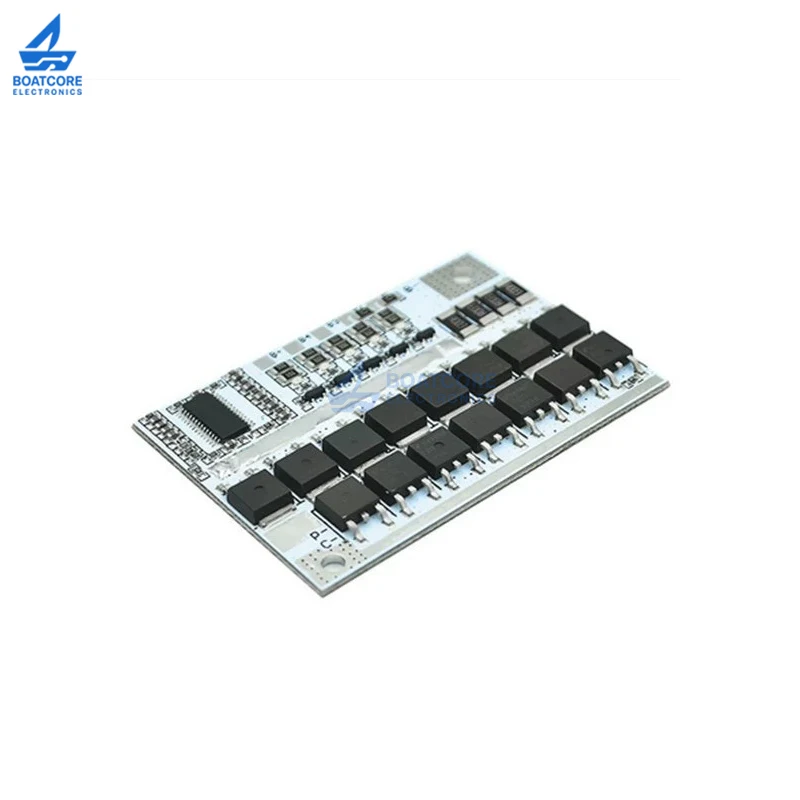

This protection board uses 15 high-power ultra-low resistance MOSFETs (8 for discharge, 7 for charge).

  • Same-Port Mode: Discharge 60A / Charge 60A

  • Split-Port Mode: Discharge 80A / Charge 60A

✅ Absolutely different from the low-power MOS solutions on the market.
Each MOS has an internal resistance as low as ~3 mΩ, ensuring superior efficiency and heat control.

Technical Parameters

LiFePO4 Protection Board Parameters (3.6V / 3.7V)


Protection Project

Min

Typ

Max

Unit

Overcharge Voltage

3.61

3.65

3.69

V

Overcharge Recovery Voltage

3.5

3.55

3.6

V

Overcharge Protection Delay

500

1000

1500

mS

Overdischarge Voltage

2.27

2.35

2.43

V

Overdischarge Recovery Voltage

2.45

2.55

2.65

V

Overdischarge Protection Delay

500

1000

1500

mS

Overdischarge Protection Current


100


A

Split Discharge Current (Continuous)


50

80

A

Same Port Discharge Current (Cont.)


40

60

A

Overdischarge Protection Delay

100

200

300

mS

Overcharge Protection Current


100


A

Charging Current (Continuous)


40

60

A

Overcharge Current Protection Delay

10

20

30

mS

Quiescent Current


17

25

μA

Temperature Protection


With temperature control interface



Disconnection Protection


Yes



Short Circuit Protection


Yes



Short Circuit Delay

100

300

600

μS

Over Current Protection Recovery Mode


Disconnect load release



Balance Function


Yes



Equalizing Voltage


3.405


V

Equalizing Current


60


mA

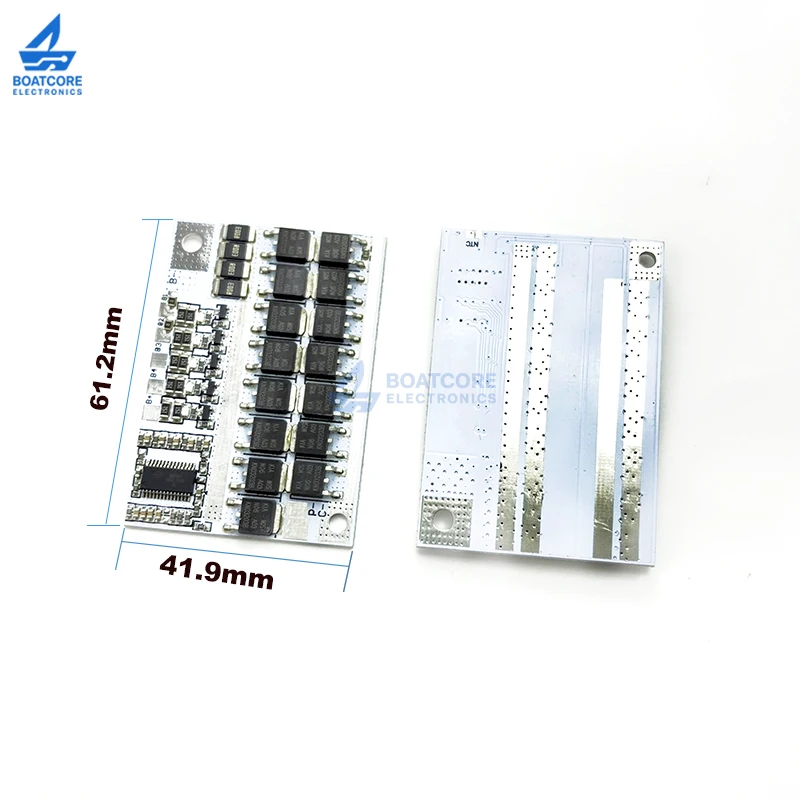

Fuselage Size


62×42×4


mm

Body Color


White (PCB)



Fuselage Weight


17


g

Standard Accessories


Circuit board



Standard Packaging


Electrostatic bag



Wire Specification


None



Conductor Length


None


cm

Working Temperature


-20℃~+65℃


Storage Temperature


-40℃~+85℃



Polymer / Ternary Lithium / Lithium Manganese Oxide Protection Board Parameters (3.6V / 3.7V)


Protection Project

Min

Typ

Max

Unit

Overcharge Voltage

4.21

4.25

4.29

V

Overcharge Recovery Voltage

4.14

4.19

4.24

V

Overcharge Protection Delay

500

1000

1500

mS

Overdischarge Voltage

2.72

2.8

2.88

V

Overdischarge Recovery Voltage

2.9

3.0

3.1

V

Overdischarge Protection Delay

500

1000

1500

mS

Overdischarge Protection Current


100


A

Split Discharge Current (Continuous)


50

80

A

Same Port Discharge Current (Cont.)


40

60

A

Overdischarge Protection Delay

100

200

300

mS

Overcharge Protection Current


100


A

Charging Current (Continuous)


40

60

A

Overcharge Current Protection Delay

10

20

30

mS

Quiescent Current


17

25

μA

Temperature Protection


With temperature control interface



Disconnection Protection


Yes



Short Circuit Protection


Yes



Short Circuit Delay

100

300

600

μS

Over Current Protection Recovery Mode


Disconnect load release



Balance Function


Yes



Equalizing Voltage


4.18


V

Equalizing Current


60


mA

Fuselage Size


62×42×4


mm

Body Color


White (PCB)



Fuselage Weight


17


g

Standard Accessories


Circuit board



Standard Packaging


Electrostatic bag



Wire Specification


None



Conductor Length


None


cm

Working Temperature


-20℃ ~ +65℃


Storage Temperature


-40℃ ~ +85℃




⚙️ OPERATION GUIDE

Practical Operation Guide

🔋 Output Current: Split Port 80A | Same Port 60A

⚠️ Note: Lithium batteries must be charged with a dedicated lithium battery charger.
Do not use a lead-acid battery charger. Charging with a lead-acid charger may generate
high voltage that breaks down the MOS tubes of the protection board, causing the protection
board to fail in overcharge protection.

📘 (1) 3S Split-Port Wiring Method

(Refer to the 3S split-port wiring diagram)

  1. Connect 3 battery packs in series according to the wiring method of the 3S split-port wiring diagram.

  2. Connect the charger negative terminal to C- of the protection board, and the load negative terminal to P-.

  3. Connect the charger positive terminal and the load positive terminal to the positive terminal of the 3S battery pack.

  4. Use 3 wires to connect the positive terminals of the 3 battery packs in sequence to B+, B4, and B3.

  5. Connect the negative terminal of the 3S battery pack to B-. Short-circuit B1, B2, and B-.

  6. After all wires are connected according to the diagram, carefully check to ensure correctness. Confirm everything is correct before starting use.

  7. During use, when the indicator light on the protection board is ON, it means the corresponding battery group is in balancing working state (i.e., the battery voltages are unbalanced).

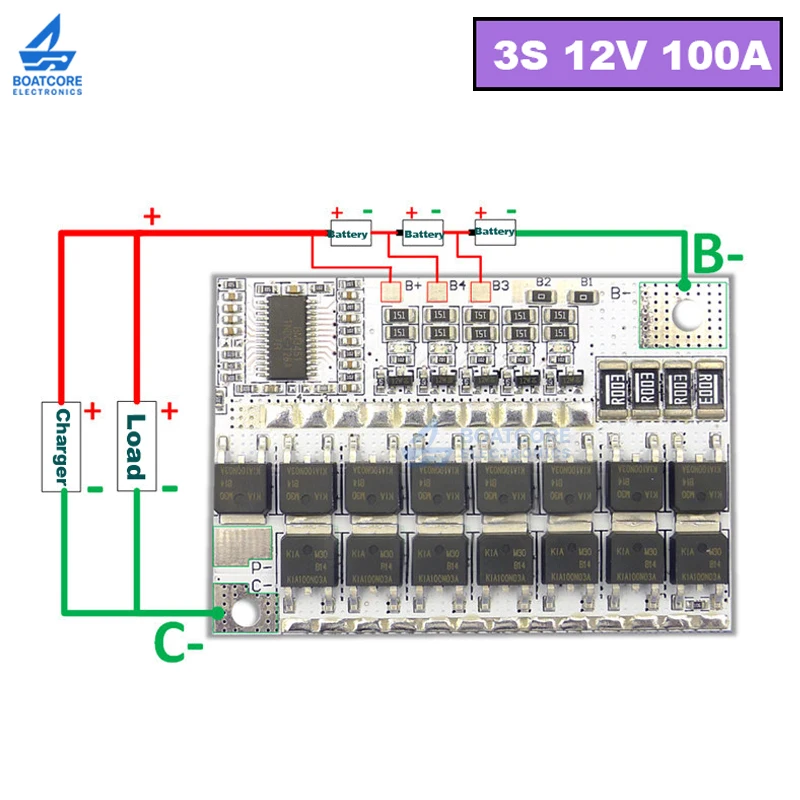

📘 (2) 3S Same-Port Wiring Method

(Refer to the 3S same-port wiring diagram)

  1. Connect 3 battery packs in series according to the wiring method of the 3S same-port wiring diagram.

  2. Connect the charger negative terminal and the load negative terminal to C-. Keep P- unconnected.

  3. Connect the charger positive terminal and the load positive terminal to the positive terminal of the 3S battery pack.

  4. Use 3 wires to connect the positive terminals of the 3 battery packs in sequence to B+, B4, and B3.

  5. Connect the negative terminal of the 3S battery pack to B-. Short-circuit B1, B2, and B-.

  6. After all wires are connected according to the diagram, carefully check to ensure correctness. Confirm everything is correct before starting use.

  7. During use, when the indicator light on the protection board is ON, it means the corresponding battery group is in balancing working state (i.e., the battery voltages are unbalanced).


📘 (3) 4S & 5S Wiring Methods

The wiring methods for 4S same-port / split-port and 5S same-port / split-port are similar to the 3S wiring methods. Please refer to the corresponding wiring diagrams.

  • 🔹 4S Split-Port Wiring → Refer to 4S split-port wiring diagram.

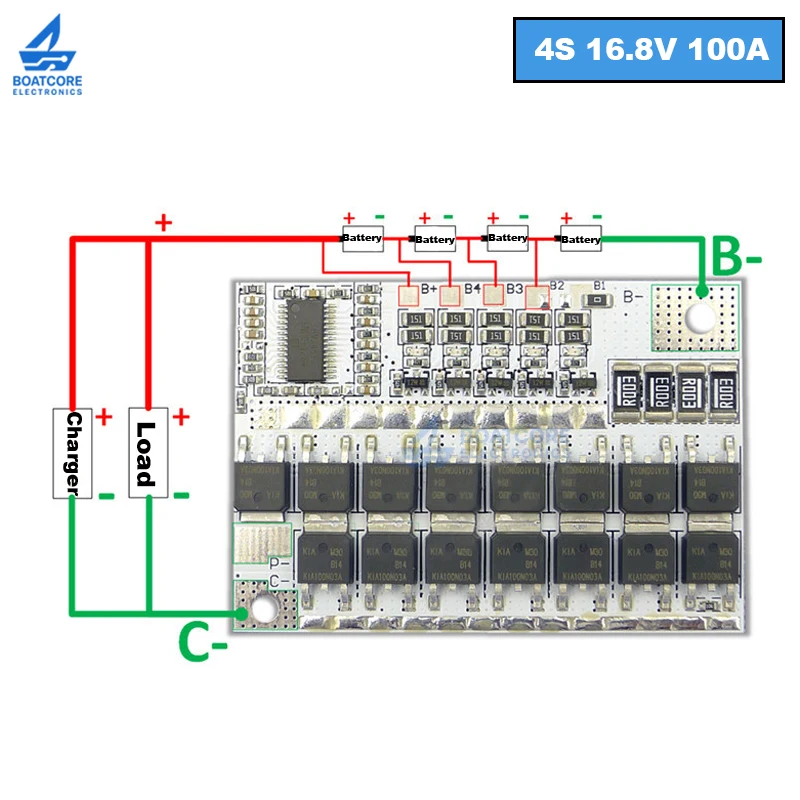

  • 🔹 4S Same-Port Wiring → Refer to 4S same-port wiring diagram.

  • 🔹 5S Split-Port Wiring → Refer to 5S split-port wiring diagram.

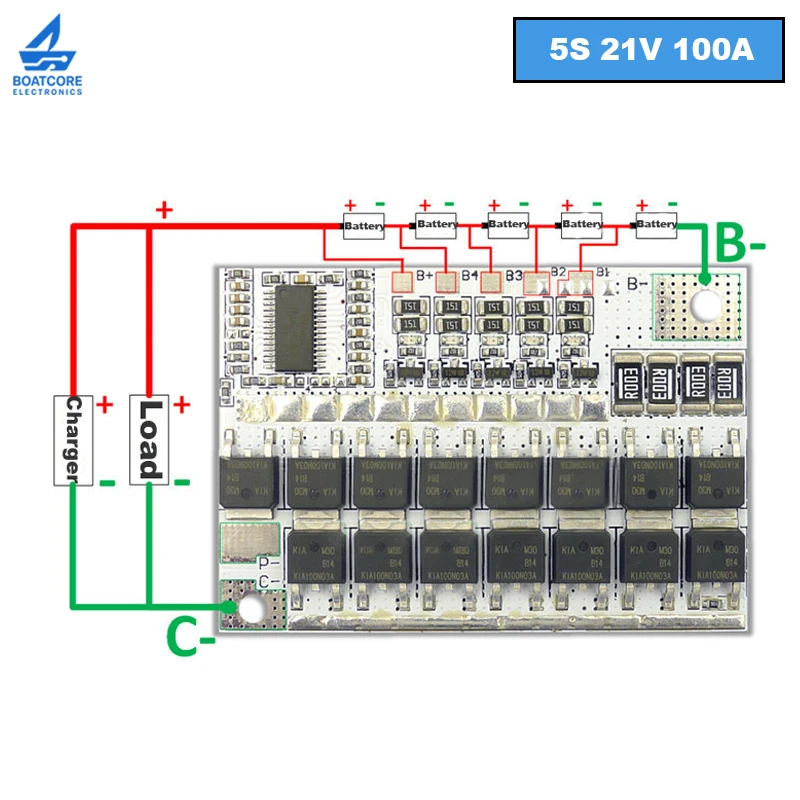

  • 🔹 5S Same-Port Wiring → Refer to 5S same-port wiring diagram.

⚠️ Please strictly follow the wiring diagrams for 4S or 5S to ensure correct installation and safe operation.
