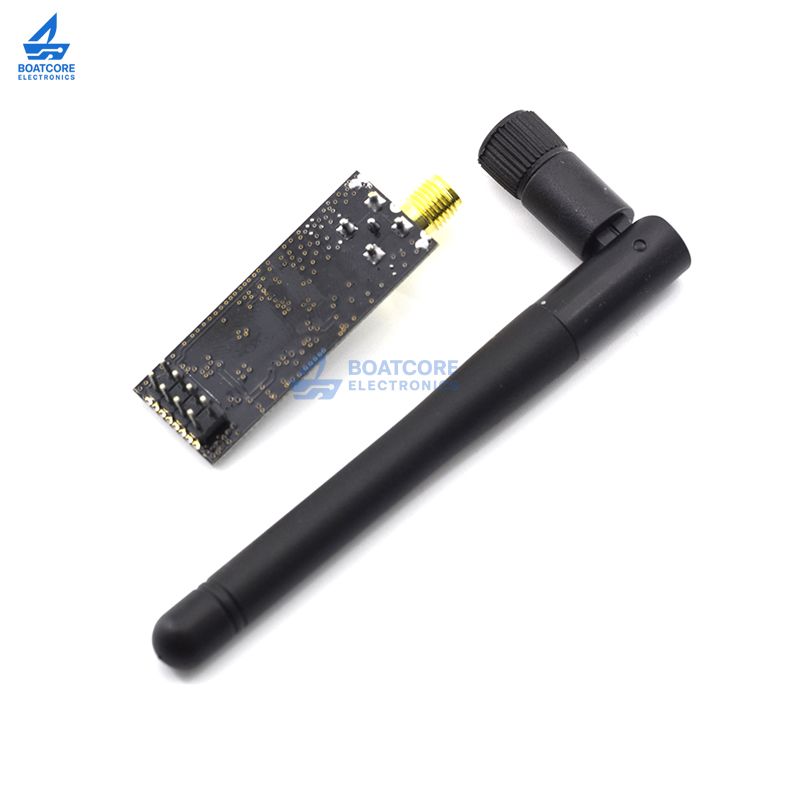

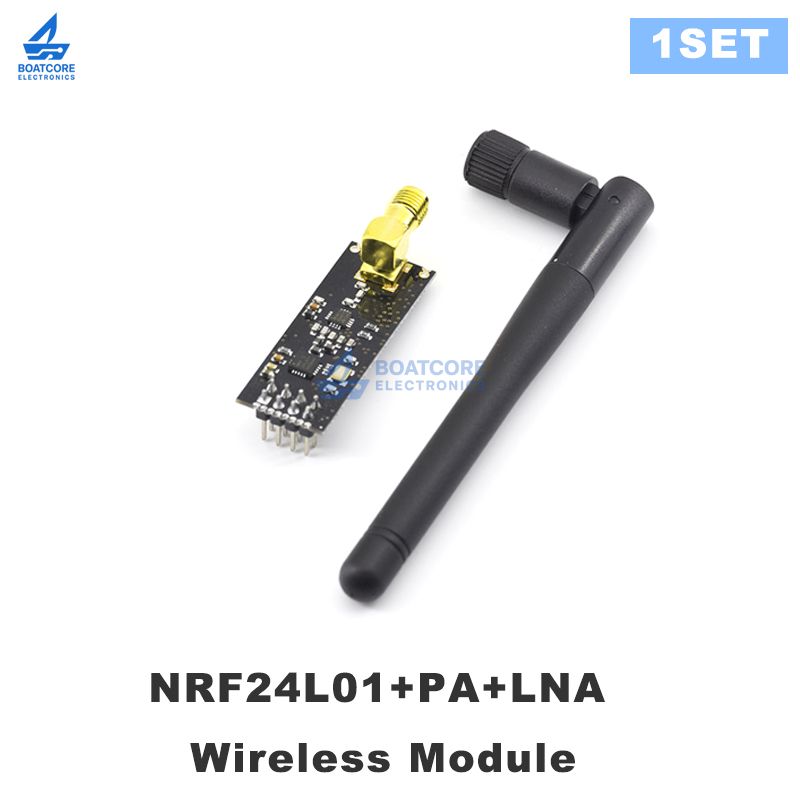

1PCS NRF24L01+PA+LNA Wireless Module 1100-Meter Long-Distance with Antenna Special Promotions module sans fil nrf24l01 nrf24

$2.94

Includes all taxes

Ships From
Quantity
Meet your Seller
Delivery options
  • Ship Only

Description

âš¡ 1PCS NRF24L01+PA+LNA Wireless Module 1100-Meter Long-Distance with Antenna Special Promotions âš¡

📘 Description

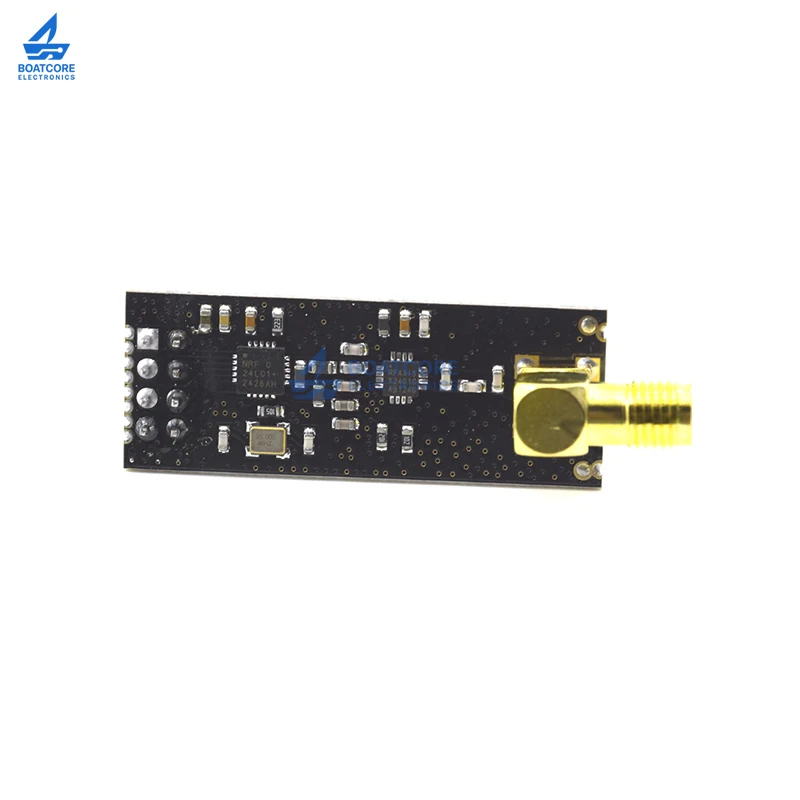

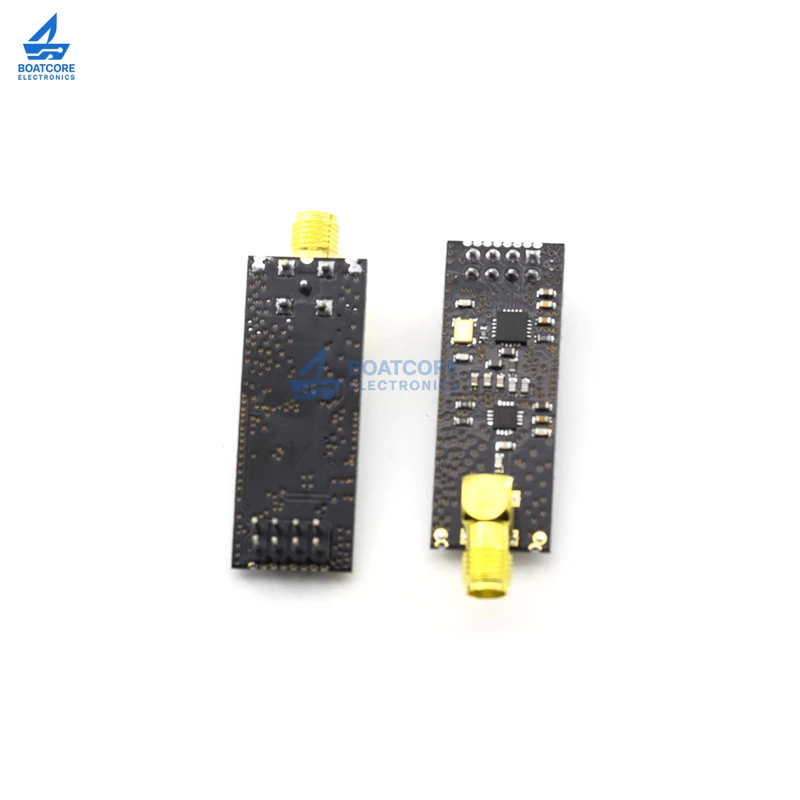

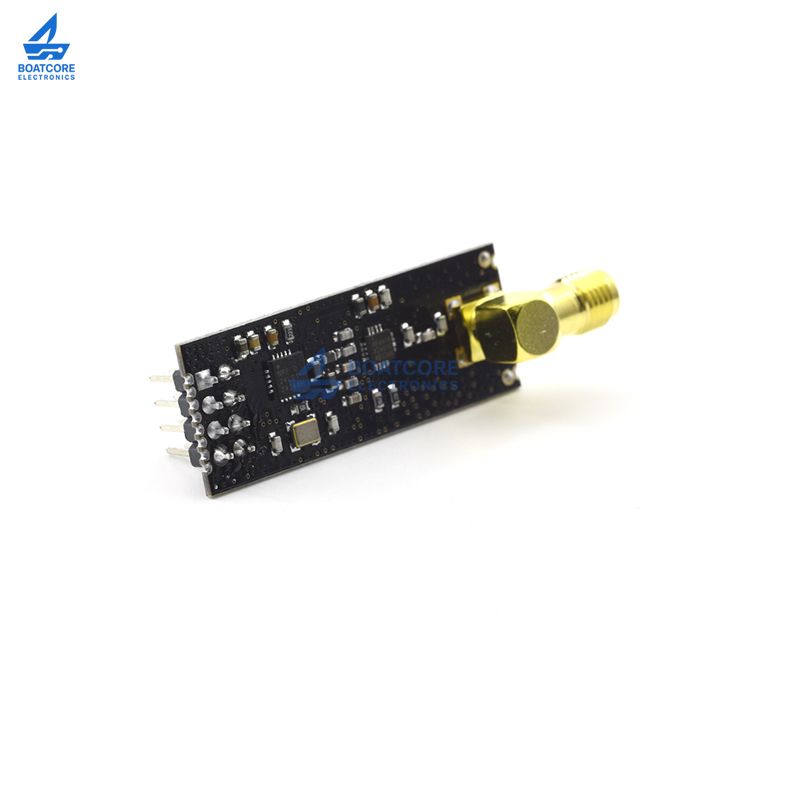

NRF24L01P + PA + LNA wireless module operates in Free license 2.4G ISM band, you can do point to point application and can also be composed of star network. The Data transmission chip NRF24L01+, and match with the department's professional design, Add the the chip of power PA and LNA, RF switch, band pass filter composed of a professional full two-way RF power amplifier, making the effective communication distance has been greatly expanded.

Small size: 45.54mm x 16.46mm, easy to embed in any space-constrained products, customers can use the SPI port of Arduino or any other MCU to control NRF24L01P + PA + LNA, Wireless module to complete long distance wireless data transmission system desige.

✨ Features

  • It uses 2.4G global open ISM band, with license free.

  • Transmit power is greater than +20 dbm.Support six-channel data reception. 2Mbit/s speed makes high-quality VoIP possible Low

  • operating voltage: 2.7 to 3.6V

  • Multi-frequency points: 125 frequency points meet the needs of multi-point communications and frequency hopping.

  • Low cost: integrated with high-speed signal processing parts associated with RF protocol, such as: automatically re-send lost packets and generate acknowledge signal; SPI interface facilitates the communication with MCU I/O port.

  • Facilitate the development for customers, without development RF part.

  • Software programming is fully compatible with NRF24L01 modules.Size: 37.4mm * 16.6mm

🧩 Applications

Applications: remote control, telemetry, wireless meter reading, access control systems, residential paging, industrial data acquisition systems, wireless tags, identification, contactless RF smart card, small wireless data terminal, fire
safety systems, wireless remote control systems, bio-signal acquisition, wireless 232, wireless 422/485 data communications.

🔌 Interface Function

PIN

Function

Direction

Pin1

GND

Ground

Pin2

VCC

VCC, 1.9~3.6V

Pin3

CE

Operating Mode,RX/TX In

Pin4

CSN

SPI chip select In

Pin5

SCK

SPI clock In

Pin6

MOSI

SPI Input In

Pin7

MISO

SPI Output Out

Pin8

IRQ

Interrupt Output Out

🛠 Usage

With Arduino

The nRF24L01 module can be controlled in many ways, one of which is Arduino or Crowduino.
