220V Metal Processing Milling Machine, Household Multifunctional Drilling And Milling Machine, With Flat Milling

$2,012.55

Includes all taxes

Color
Quantity
Meet your Seller
Delivery options
  • Ship Only

Description

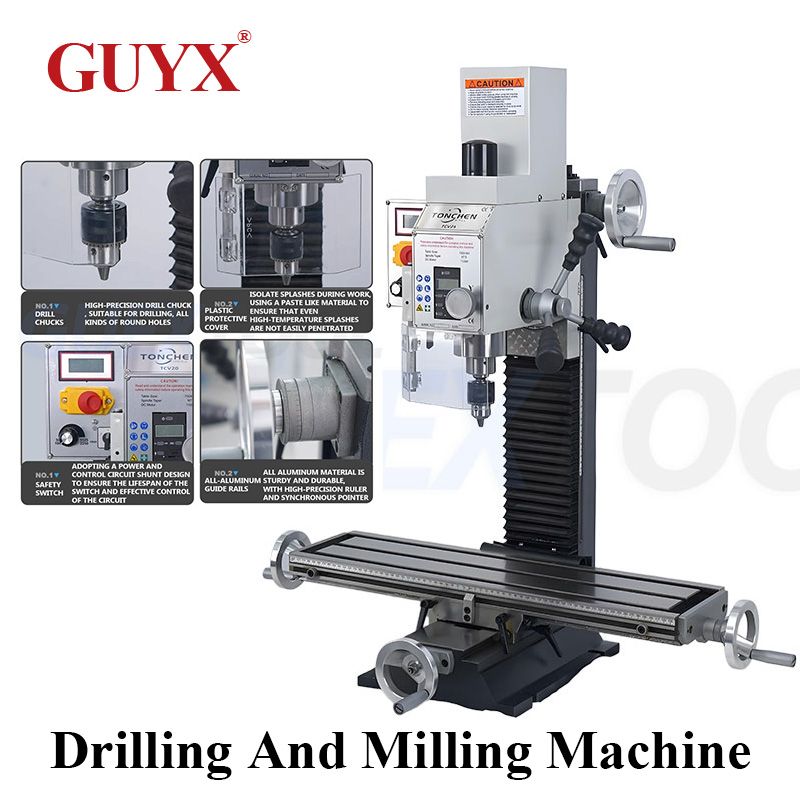

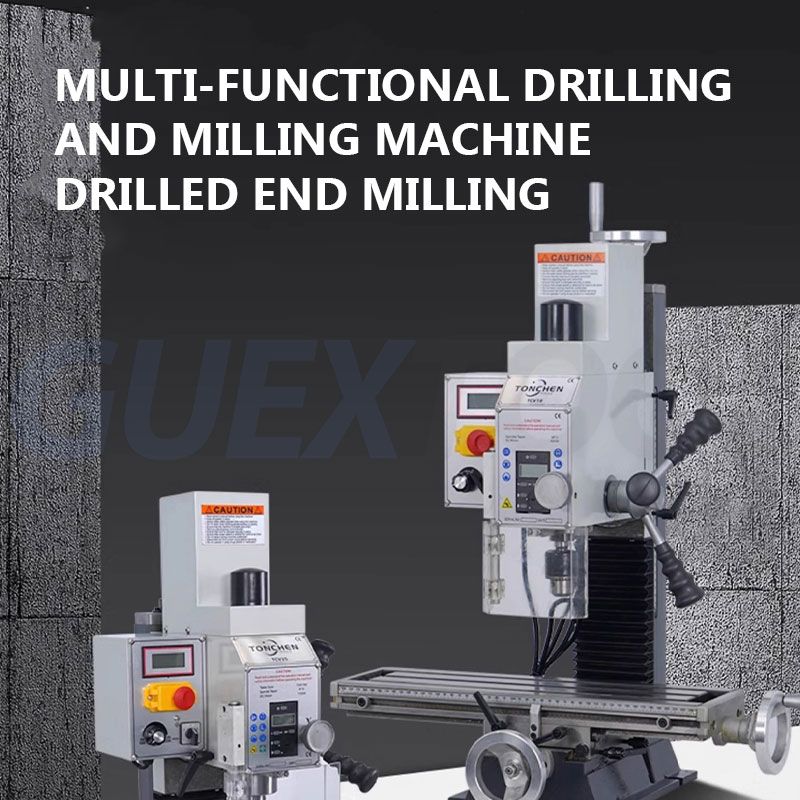

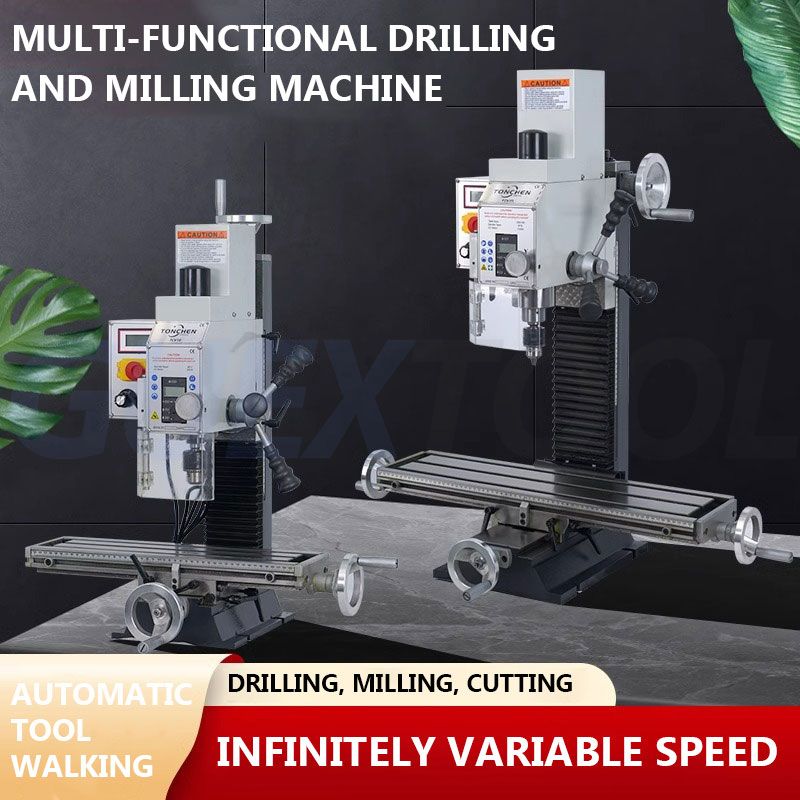

Drilling And Milling Machine



GUYX drilling and milling machine is an efficient and multifunctional metal processing machine tool widely used in mechanical manufacturing, automotive industry, aerospace, mold manufacturing and other fields. It integrates drilling and milling functions to complete various machining tasks, reduce workpiece clamping and adjustment time, and improve production efficiency. Drilling and milling machines have become indispensable and important equipment in modern mechanical processing due to their high rigidity, high precision, and flexible machining capabilities.



Product Advantages

  • Multifunctionality: Drilling and milling machines can complete various machining tasks such as drilling, milling, expanding holes, and reaming, adapting to the machining needs of different parts.

  • High efficiency: Multiple processing steps can be completed through a single clamping process, reducing the clamping and adjustment time of the workpiece and improving production efficiency.

  • High machining accuracy: Equipped with high-precision spindle and feed system, ensuring the dimensional accuracy and surface quality of machined parts.



Flat milling function

Milling groove function

Drilling and tapping function

Milling dovetail groove function

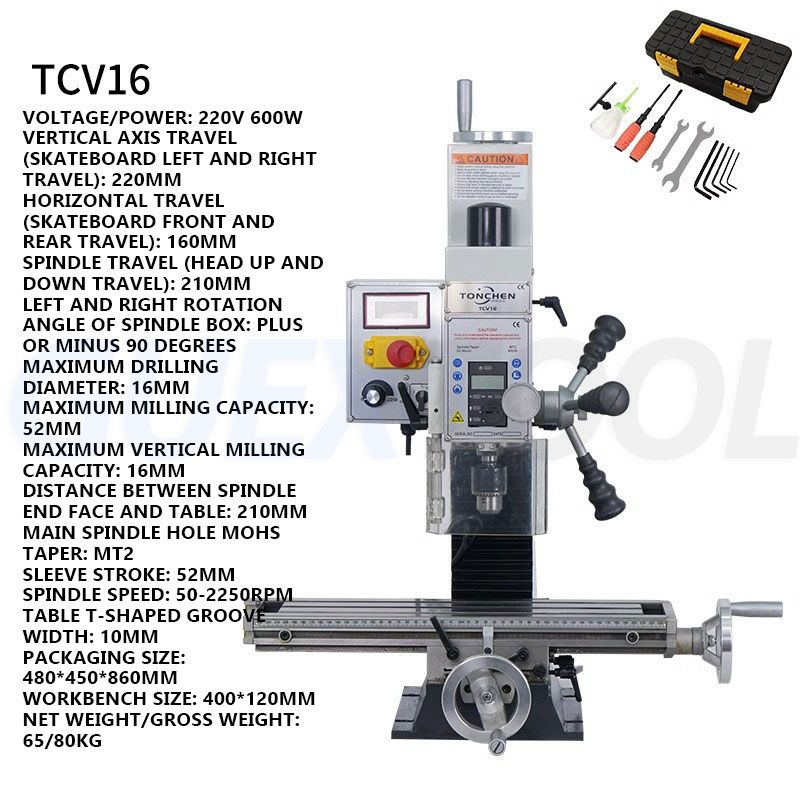

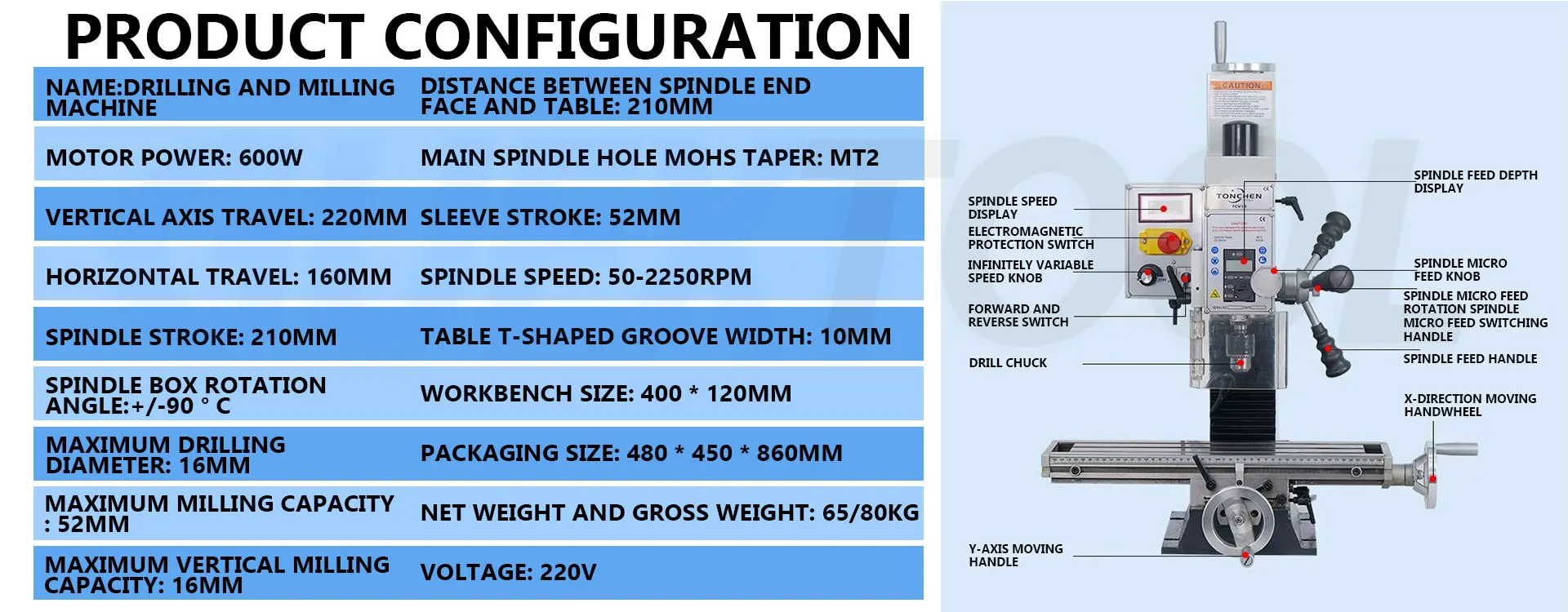

Product Parameters



Product Name: Drilling and Milling Machine

Product model: TCV16

Voltage: 220V

Motor power: 600W

Spindle speed: 50-2250rpm

Vertical axis travel (skateboard left and right travel): 220MM

Horizontal travel (skateboard front and rear travel): 160MM

Spindle travel (head up and down travel): 210MM

Left and right rotation angle of spindle box: plus or minus 90 degrees

Maximum drilling diameter: 16MM

Maximum milling capacity: 52MM

Maximum vertical milling capacity: 16MM

Distance between spindle end face and table: 210mm

Main spindle hole Mohs taper: MT2

Main spindle hole Mohs taper: MT2

Table T-shaped groove width: 10MM

Workbench size: 400 * 120MM

Packaging size: 480 * 450 * 860MM

Net weight and gross weight: 65/80KG
