3.5X-200X Clip-on desktop Stereo Trinocular Microscope Jewelry Soldering Coins Phone PCB 55MP 4K 2K Electronic Magnifying Glass
Includes all taxes
Meet your Seller
-
$602.44Sold by BILLIONS BIRDS
Description
Note: The link has multiple SKU options, each representing a different model of camera.
Features:
Stereo microscopes are easy to operate and widely used.
1. Zoology, biology, botany, entomology, histology, mineralogy, archaeology, geology and dermatology.
2. In the textile industry, it is used in the inspection of raw materials and cotton wool fabrics.
3. In the electronics industry, it is used as operating tools such as transistor soldering, mobile phone electronic maintenance, watch maintenance and inspection.
4. In biological anatomy, applied to local anatomy.
5. In the manufacture of precision parts, it is applied to the device of machine tools, the observation of the working process, the inspection and assembly of precision parts.
6. Surface quality of lenses, prisms or other transparent substances, and quality inspection of precision scales.
7. Cultural relics, books, coins, calligraphy and paintings, the inspection
8. Widely used in textile products, chemical chemistry, plastic products, electronic manufacturing, machinery manufacturing, pharmaceutical manufacturing, food processing, printing industry, colleges and universities, archaeological research and many other fields.
Microscope Head Feature:
Sharp stereo erect image over a wide field of view. Standard working distance is 110mm, to create enough space for the uses
45inclined and 360rotatable binocular head .The interpupillary distance is between 54-75mm. Observation head 45 ° inclined, diopter adjustment in two tubes, easy to operate and feel no fatigue when long time use.
Wide field and high eyepiont eyepiece WF10X/22mm 10X large field of view eyepiece, FOV 22mm,plan and high eye-point design, more suitable for search and observation
Ergonomics design, shift hand wheel level (axial) bilateral settings, high repeatability precision.
Best eye-point height, to ensure that different vision of the user can get a clear image
Head: 360 degree rotatable 45 degree inclined binocular
Eyepieces: WF10X/22MM
Zoom Rate position:0.7-5x
Magnification:7x-50x
Working Distance:110mm
Installation diameter: 76mm
Adjustable eyepiece:Standard WF10X22,High angle wide angle eyepiece,provide convenience for observers wearing glasses
Note: The link has multiple SKU options, each representing a different model of camera.

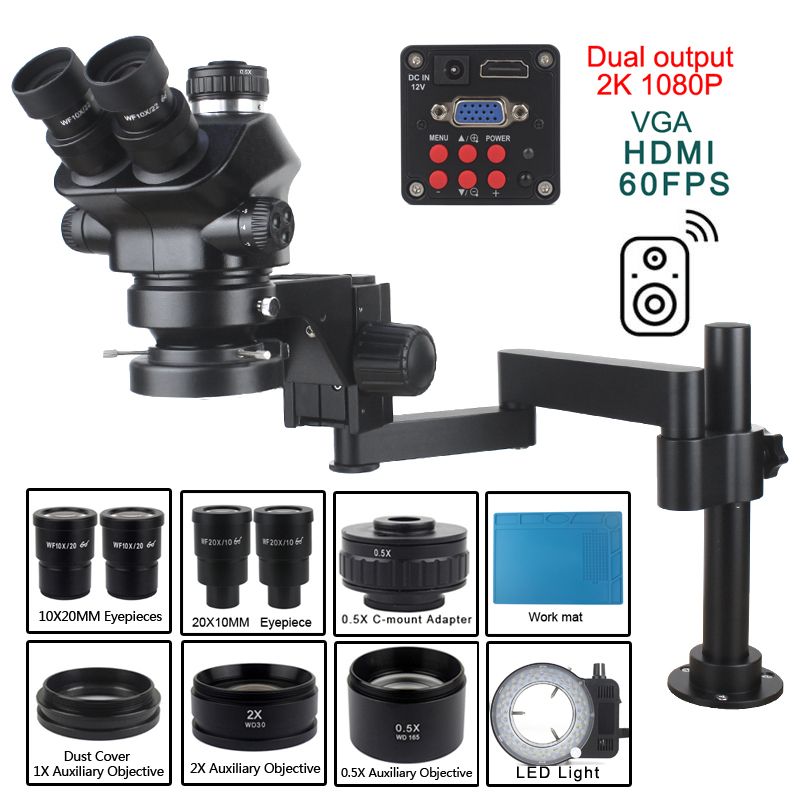

Package Including:
Package Including:
1 x Trinocular Stereo Zoom Head
1 x Pair of Super Widefield 10X22MM Eyepieces
1 x Pair of Super Widefield 20X10MM Eyepieces
1 x Pair of Eye-Guards
1 x Dust Cover
1 x 56-LED Ring Light with Adapter
1 x High Temperature Insulation Pad
1 x Articulating Arm Set
1 x 32mm Columns
1 x Desktop clip
1 x 76mm Focusing
1 x 0.5X C-mount Adapter
1 x 0.5X Microscope Auxiliary Objective Lens(Working Distance 160 mm)
1 x 1.0X Microscope Auxiliary Objective Lens(Protection function)
1 x 2.0X Microscope Auxiliary Objective Lens(Working Distance 40 mm)
(Optional)
1 x Microscope Camera
1 x 12V Power Adapter
1 x HDMI Cable
1 x IR Remote Control
Picture Pixel: 9885X5560 55M Pixel 9280X5220 48M Pixel
Video Frame rate: 4K(4:3)@24fps/2K@30fps/1080P@60fps
CMOS censer: SONYÂ 1/2.33 inch
CMOS pixel: 1.33um x 1.33um
Color setting: Auto
White balance: Auto/one button calibration/Manual
EV: Auto/Manual
Camera mode HDMI output: 1080P @60 FPS
Grid line: 8 horizontal lines, 8 vertical lines
TF card: 4GB (Up to 128GB max)
Cross line: Overlap or Cancel
Lens jack: Standard C
Power: 5V-12V/1A
Size: 68x68x33mm
Weight: 200g
Working temperature: 0-70℃
48MP 2K 4K TF HDMI USB Features:
Model: Camera with HDMI USB2.0 two output
Image sensor: 48 megapixel Panasonic sensor
Frame rate: 60F/S @ HDMI output
Movie size:4K(30fps) 2K(30fps) 1080P(60fps) 720P(60fps)(Note: If you need to record 4K or 2K video, you need to use the SDHC class10 TF card.)
Housing: All metal
Support:C-Mount lens
Digital magnification: 5 times digital zoom
White balance: Auto/manual
Cross cursor: Support multi-color, size adjustable
TF card interface: Max 32G
video format:MOV
HDMI interface: HDMI/USB output
Image : 48M 8000X6000/38M 7168X5376/26M 5888X4416/20M 5120X3840/16M 4608X3456
Language:Chinese/English
Mirroring: Support
Frequency:50Hz/60Hz
Monitor:16:9/16:10/4:3
Grid line: 15 Horizontal line, 15 Vertical line, Central scale line,Custom colors,Size
Power supply:5-12V 1A
48MP 2K TF HDMI USB
Optical format:1/2.3 inch
pixel size:1.335μm x1.335μm
Interface:HDMI(Type A).USB(Type B).TF Card
Image resolution:48MegaPixel
Video record resolution:2K@30FPS 1080p@60FPS
HDMI resoltion:1920*1080p 60FPS
Can output with USB at the same time
HDMI scale:Support 4:3,16:9,16:10 screen
USB2.0(Drive free):1920*1080@30FPS 1280*720@30FPS640*480@30FPS
Can output with HDMI at the same time
TF card:MAX 64GB
AWB:WB color correction/Auto/Manual
R.G.B value setting independent
Exposure:Auto/Manual.AE value can set
Cross lines:8lines.Can set color& width& position
Scale mark lines:2lines.
Dotted lines:2lines.Can set color& width& position
Sharpness Contrast Color gain:Support
Mono Negative:Support
Mirror:Horizontal vertical mirror
Language:English/simplified Chinese
Digital Zoom:Support
IR remoter:Support
Voltage in:DC 12V 55-21mm size
Power consumption:MAX 0.15W 12V,0.12A
Lens interface:C/CS
Net weight:180g
Gross weight:400g
Camera size:74*74*35mm
Packaging size:160*100*80mm
4K 48MP HDMI Type-c Function:
Adopt Imported Sony sensor;
Adopt 1/2.8 inch image sensor;
HDMI 1080P 60 frame image output;
TYPE-C driver-free output 1080P 30/Fps image output;
HDMI port 4K, 1080P video recording, 48MP Pictures were taken;
48MP photos, JPG format, photo size 8000x6000;
One-key freeze/thaw function;
Electronic zoom function;
Support manual/automatic exposure/one-key exposure, exposure compensation value adjustment;
Support manual/automatic white balance/one-key white B, R, G, adjustable;
Provide 16 line functions, line color, thickness, position adjustable;
Provide center crosshair display on/off;
Support TF card storage, up to 64GB;
Support remote control operation, take pictures without shaking and the image will be clearer;
Support Chinese and English menu languages;
Support shutdown setting parameter saving;
Aluminum alloy casing processed by CNC precision milling technology;
Sensor: 1/2.8 Sony sensor
Pixel size: 2.9μm × 2.9μm
HDMI output: 1920*1080 60 frames
Type-C HDMI Feature:
Sensor type:1/2.8" Sony Color CMOS
Effective pixels:1920H*1080V
Data bits: 16bit
Pixel size:2.9μm*2.9μm
Frame rate:60 frames per second (HDMI or VGA), 30 frames per second (UVC)
Definition:The maximum definition is above 1000TV lines
Scanning method:Progressive
Shutter Type:Electronic Shutter
Dynamic range:>90dB
Signal-to-noise ratio:55dB
Sensitivity:2.0 V/lux-sec (550nm)
Exposure mode:manual/automatic
White balance:automatic/manual
Lens interface:C/CS
Video interface:GA, HDMI and Type-C UVC synchronous output
Output resolution: 1920*1080(16:9) / 1920*1080(16:10) / 1280*720 / 1024*768 (4:3)
Power supply:Type-C power supply, DC 5-12V/1A
Language:Chinese, English, Japanese, Korean, Portuguese, Spanish, Russian, Italian, German!
Menu function:1, crosshairs:1-30 groups, optional color, adjustable size.
2. Scale bar, center cursor, center line
