Includes all taxes
Model | Input Voltage Range | Output Voltage | Output current | Output power max | Conversion Efficiency | Dimension excluding cable | Net Weight |

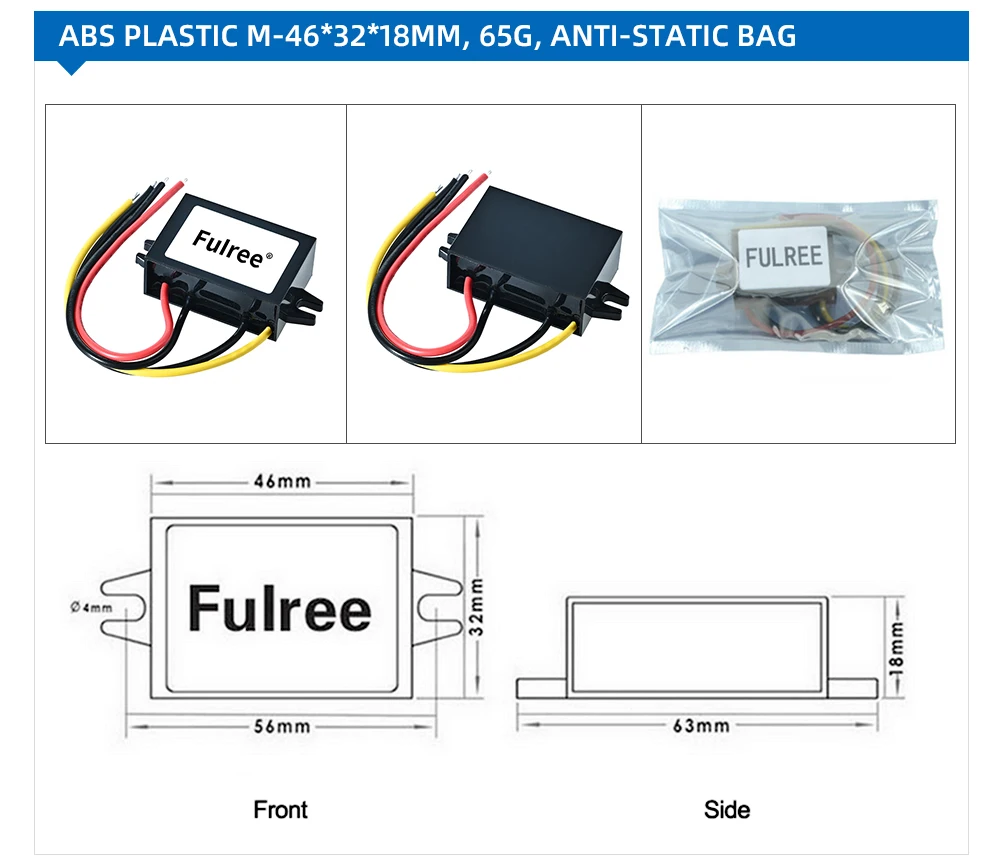

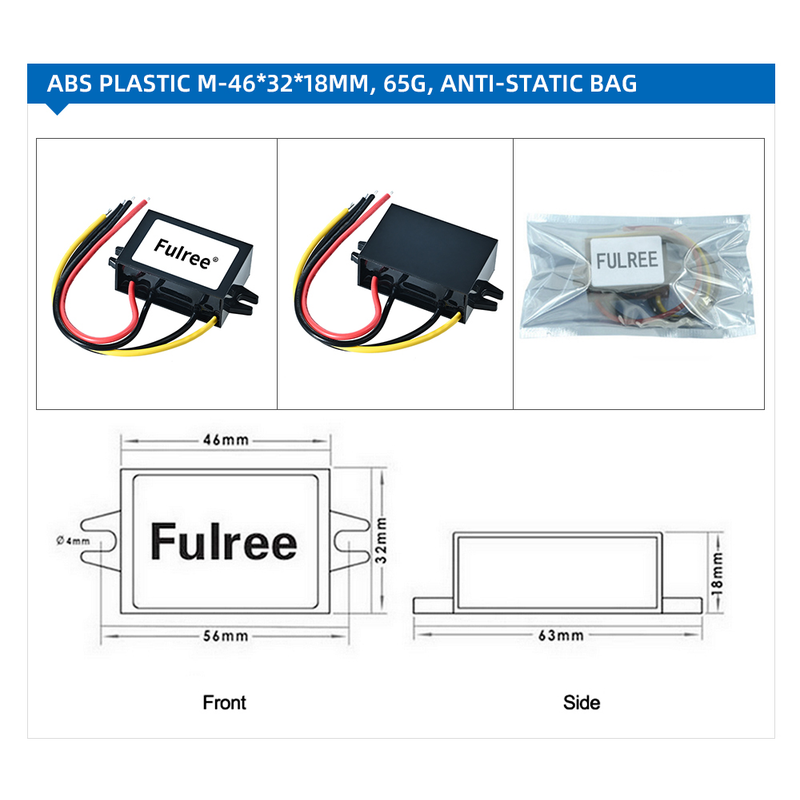

F60J24V1A2S | DC 30-60V | DC 24V | 1A max | 24W max | >90% | 46*32*18mm | 65g |
F60J24V2A2S | DC 30-60V | DC 24V | 2A max | 24W max | >90% | 46*32*18mm | 65g |
F60J24V3A2S | DC 30-60V | DC 24V | 3A max | 72W max | >90% | 46*32*18mm | 65g |
F60J24V5A2S | DC 30-60V | DC 24V | 5A max | 120W max | >90% | 46*32*18mm | 65g |

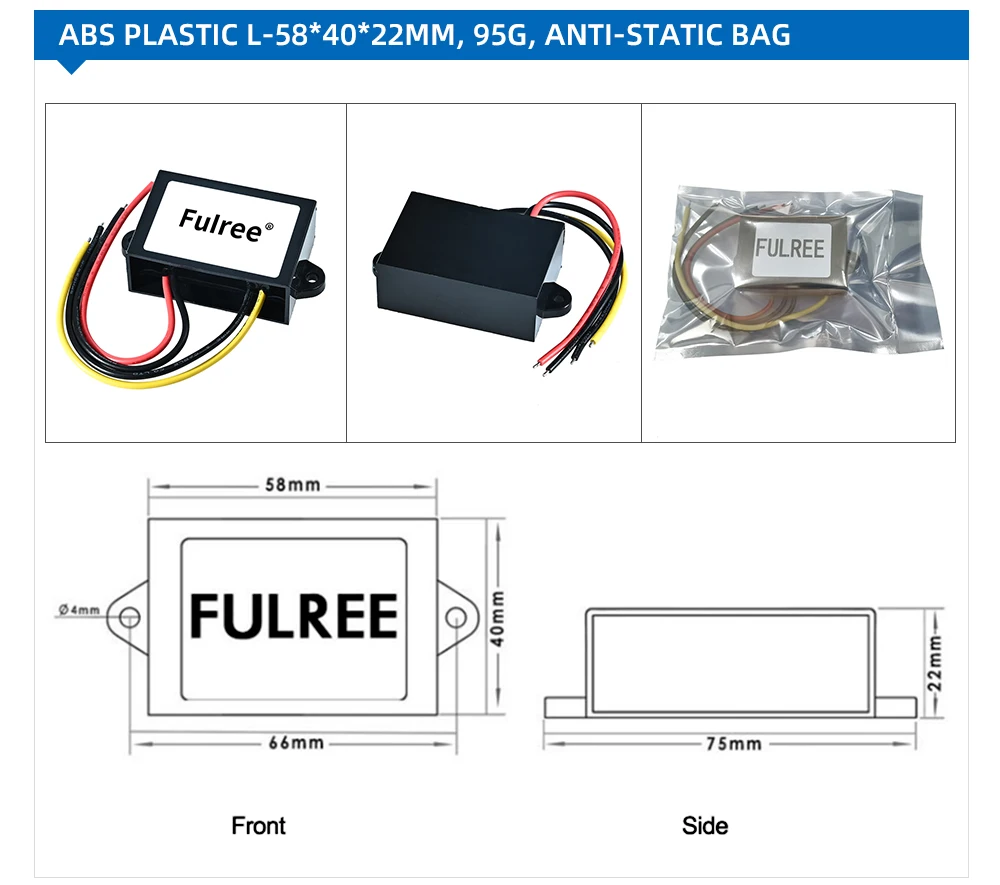

F60J24V3A3S | DC 30-60V | DC 24V | 3A max | 72W max | >90% | 58*40*22mm | 95g |
F60J24V5A3S | DC 30-60V | DC 24V | 5A max | 120W max | >90% | 58*40*22mm | 95g |

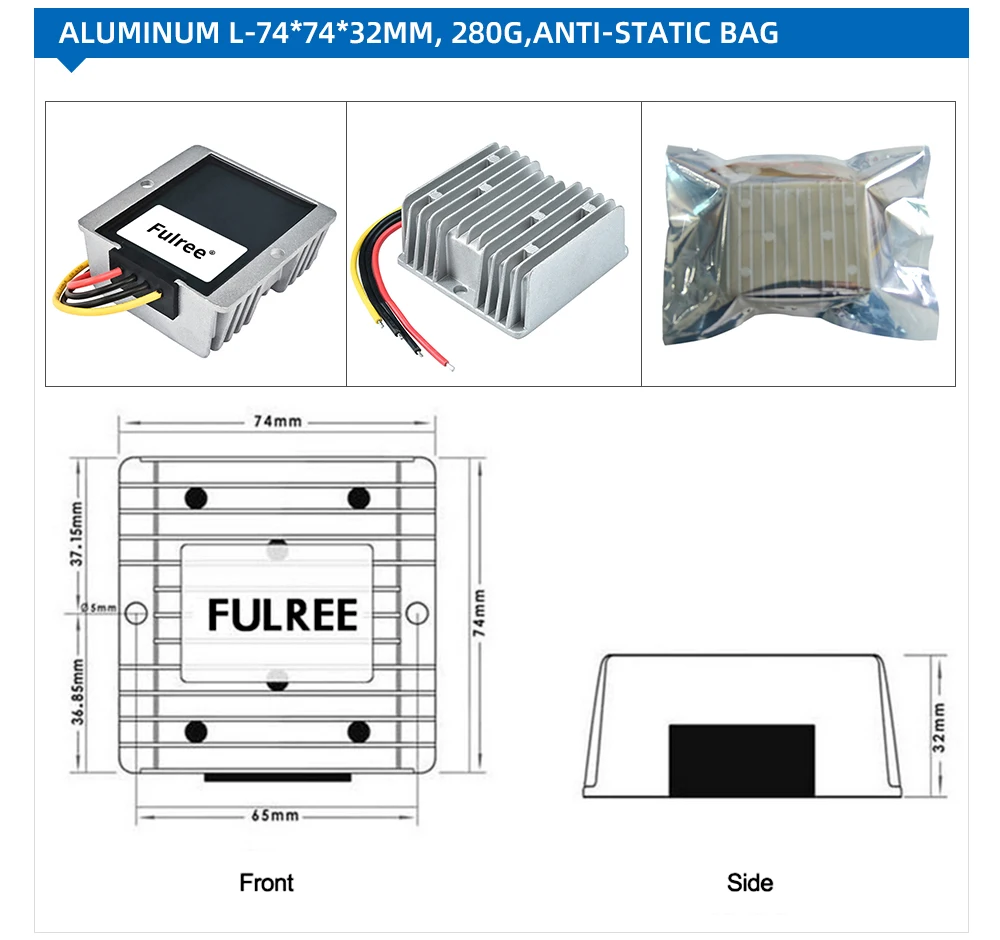

F60J24V5A5L | DC 35-60V | DC 24V | 5A max | 120W max | >90% | 74*74*32mm | 280g |
F60J24V8A5L | DC 35-60V | DC 24V | 8A max | 192W max | >90% | 74*74*32mm | 280g |
F60J24V10A5L | DC 35-60V | DC 24V | 10A max | 240W max | >90% | 74*74*32mm | 280g |
F60J24V15A5L | DC 35-60V | DC 24V | 15A max | 360W max | >90% | 74*74*32mm | 280g |
F60J24V20A5L | DC 35-60V | DC 24V | 20A max | 480W max | >90% | 74*74*32mm | 280g |
F60J24V30A6L | DC 35-60V | DC 24V | 30A max | 720W max | >90% | 100*80*39mm | 500g |

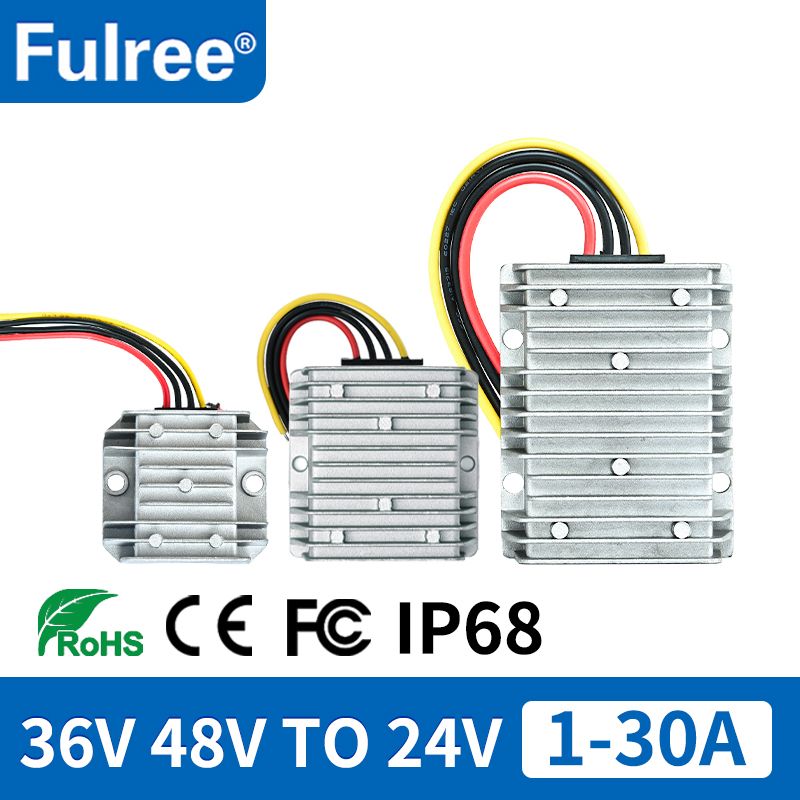

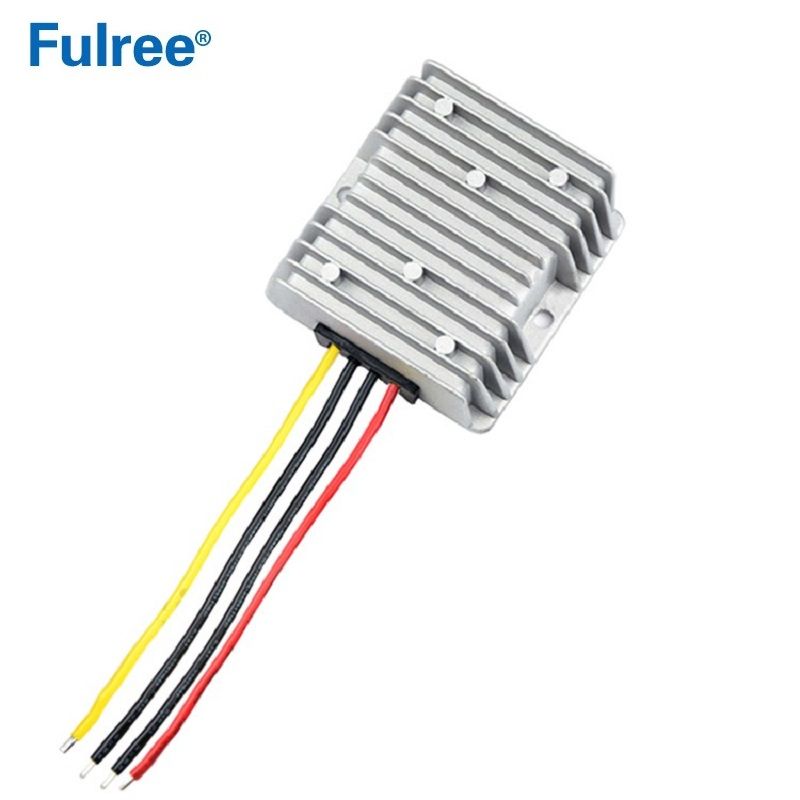

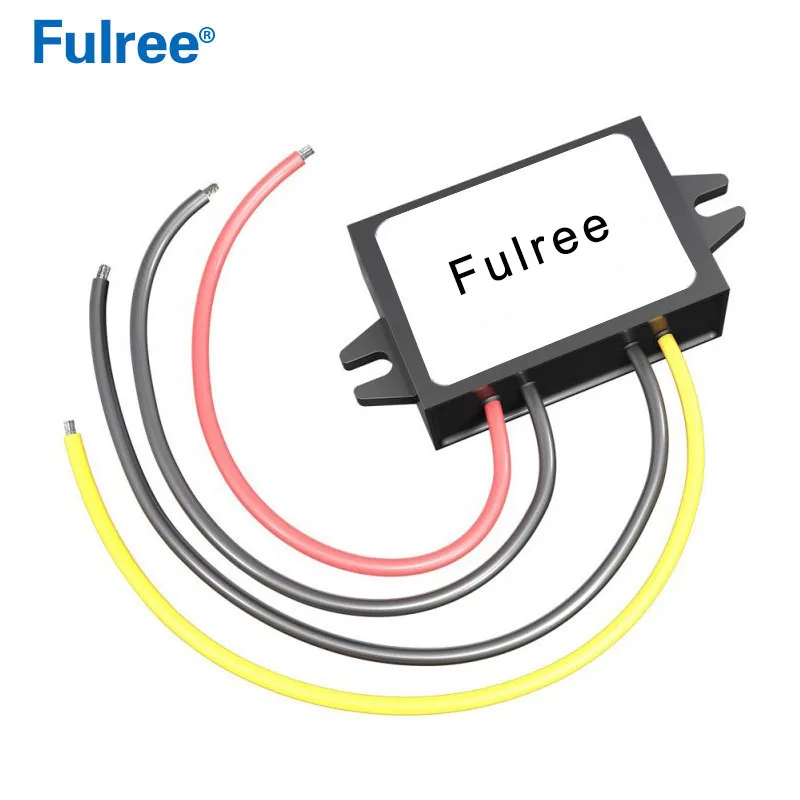

Product Name | DC DC Converter 36V 48V to 24V 1A~30A Max |
Brand Name | Fulree |
Model No. | F60J24V*A**(First * for current Second ** for case No) |
Module Properties | non-isolated buck module |
Rectification | synchronous rectification |
Input cable length | 12cm |
Input Voltage | DC 36V 48V |
InputĀ Voltage Range | DC 30-60V for 1A~5A / DC 35-60V for 5A~30A |
Outputcable length | 12cm |
Output Voltage | DC 24V |
Output Current | 1A/2A/3A/ 5A/8/10A/15A/20A/30A Max |
Output Power | 24W/48W/72W/120W/192W/240W/360W/480W/720W Max |
Conversion Efficiency | >93% |
Voltage regulation | ±1% |
Load regulation | ± 2% |
Ripple (Full load test) | < 150mV |
No-loadĀ current | <100mA |
Working Temperature | -40~80ā( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation) |
Waterproof Rating | IP68 |
Protection | Over-current protection / Overheating protection / Short circuit protection / waterproof IP68 design, anti-shock protection |
Application | mobile phone, car camera, Electric motors, Trucks, Golf Carts, Forklift, Solar Panel Power System, water pumps, industrial equipment and so on. |
Case Material | As above table |
Product Size (L x W x H) | As above table |
Product Weight | As above table |
Warranty | 12 months |
Cooling Way | Free air convection |
OEM&ODM Service | Acceptable |
