3D Printing Consumables Extruder Laboratory-use Single Screw Extruder 0-400℃ for PVC PET PS PP PC Profiles Sheet Extruder

$5,301.10

Includes all taxes

Quantity
Meet your Seller
Delivery options
  • Ship Only

Description

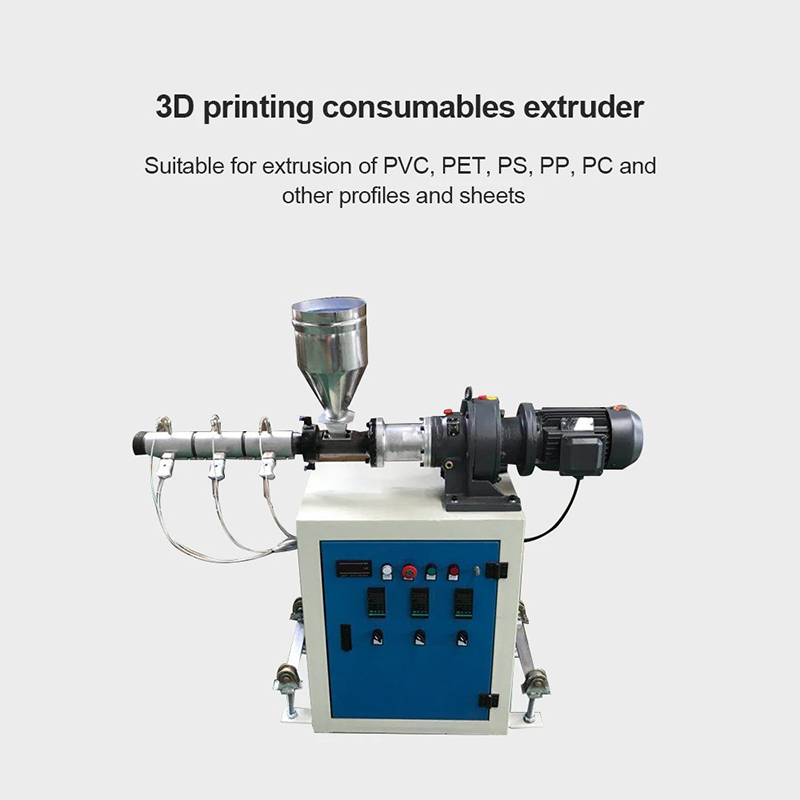

HT200 3D printing consumables extruder


Product Introduction



1. Suitable for extrusion of PVC, PET, PS, PP, PC andother profiles and sheets.

2. The set is advanced in design,high in output,goodin plasticization and low in energy consumption.

3. Suitable for PP-R pipes, PE gas pipes, PEX cross-linked pipesaluminum-plastic composite pipes, ABS pipes, PVC pipes, HDPEsilicon core pipes and various co-extruded composite pipes.

4. The involute gear driving is characterized by lownoise,stable running,big bearing capacity andlong service life


Pipe extrusion

Suitable for PP-R pipes, PE gas pipes, PEX cross-linked pipes, alu-minum-plastic composite pipes, ABS pipes, PVC pipes, HDPE siliconcore pipes and various co-extruded composite pipes


Sheet and Sheet Extrusion:

It is suitable for extrusion of PVC, PET, PS, PP, PC and other profilesand sheets. Extrusion of various other plastics such as wire, rod, etc.


Extrusion of profiles:

Adjusting the speed of the extruder and changing the structure of theextrusion screw can be used to produce various plastic profiles suchas PVC and polyolefins


Modified Granulation:

It is suitable for blending, modifying and reinforcing granulation of var-ious plastics.



Product Parameters

Screw

Screw diameter:25

Effective length of screw:625 mm

Length diameter ratio:28.1

Speed:10-90 rpm

Screw rotation direction:counter clockwise(looking from the front end of the screw handle

Material:alloy screw

Surface treatment:nitriding, polishing

Barrel

Material:38CrMoAIA

Internal surface treatment:nitriding, grinding

Heating control area:2-3 areas

Heating method:cast aluminum heating ring

Heating power:1.1 kw

Cooling system:barrel fan cooling

Cooling power:60Wx2(3)

Temperature control range:100 ℃~300 ℃

Main drive motor

Main motor power:1.5 kW

Motor type: AC motor

Speed regulation mode: variable frequency regulation

Reduction gearbox (gear box)

Box material:HT200

Gear material:20CrMnTi

Gear surface treatment:tooth surface quenching

Shaft material:40Cr

Reduction ratio:16:1

An electric appliance

Voltage:380V, 50Hz.three-phase

Frequency converter:ABB

Temperature control meter:OMRON

Circuit breaker:Siemens

Motor:Siemens Bede



JH-20 3D PRINTING MATERIAL Single screw extruder


Product Parameters

Outlet per hour: 500-1000 grams

Product model: JH-20

Product Name: Experiment Squeezing Machine

Input voltage: 2 φ 220V (can be used by household electricity)

Input power: 1000V

Maximum heating temperature: 0-350 degrees can be adjusted

Screw nominal diameter: 20 long diameter ratio 15:1

Outlet per hour: 500-1000 grams

Volume: 45*25*60cm (length, width height)

Nozzle size: Default sending 3mm (if you have special requirements, you can note 1.75mm)

What can JH-20 extruder do for you?

Guarantee quality, worry-free after-sales

Double the efficiency, stable and efficient

1. Years of production experience,strong designteam, with reliable quality and strong management technology to bring you quality products.

2. Precision craftsmanship and careful materials

3. Factory direct operation with complete equipment

4. Professional masters with rich experience

5. SCOPE OF USE

All standard temperatures are 0-350 degrees Extruded PP PE PS AS ABS commonly used polyethylene. The finished product isused for plug -in.


Note

The machine has three output options to choose from:

0.5 1 kg/h

2-3kg/h

3-5kg/h

Different outputs result in different prices. Please select the machine you need to purchase.

After placing an order, please specify whether you need 220v or 110v.

Plug specifications: American standard, European standard, Australian standard, British standard.
